WOR-6023FWIRELESS IP CAM

1 Content Safety Instruction ............................................................................................................................................................ 2 Minimum System Requirement & Product Feature .................................................................................................... 4 Minimum System Requirement .................................................................................................................................... 4 Product Feature .............................................................................................................................................. 5 Main Page ........................................................................................................................................................................ 6 Basic Setup ........................................................................................................................................................ 9 Account .......................................................................................................................................................... 9 Network........................................................................................................................................................ 10 Date Time ..................................................................................................................................................... 14 Video ............................................................................................................................................................ 15 Audio............................................................................................................................................................ 17 Live View......................................................................................................................................................... 18 Video ............................................................................................................................................................ 18 Audio............................................................................................................................................................ 18 Camera Setting ............................................................................................................................................. 18 PTZ Control ................................................................................................................................................. 20 Playback .......................................................................................................................................................... 21 Client PC ...................................................................................................................................................... 21 Network Storage .......................................................................................................................................... 22 Local Storage ............................................................................................................................................... 22 Event................................................................................................................................................................ 23 Event Server ................................................................................................................................................. 23 Event List ..................................................................................................................................................... 23 Motion Detection ......................................................................................................................................... 25 Audio Detection ........................................................................................................................................... 25 Schedule ....................................................................................................................................................... 26 System ............................................................................................................................................................. 26 Maintenance ................................................................................................................................................. 26 Date Time ..................................................................................................................................................... 27 Security ........................................................................................................................................................ 27 Network Basic .............................................................................................................................................. 28 Network Advanced....................................................................................................................................... 28 LED .............................................................................................................................................................. 29 System Log .................................................................................................................................................. 29 2 User Manual Safety Instruction  Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if it is not used properly. To avoid such accidents, be sure to heed the following.  Legal Caution Video and audio surveillance can be forbidden by laws that vary from country to country. Check the laws in your local region b…

Text truncated - open the document above for the full version.

1 Zavio F3201/F3206 Quick Installation Guide Please follow the installation steps below to set up F3201/F3206 IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.1 Install the hardware and connect all cables. See P.2 Microsoft OS: Use the software CD to install Intelligent IP Installer. See P.2 Access the IP Camera using Intelligent IP Installer. See P.2 Mac OS using Safari Browser. S e e P.4 Change light environment setting. See P.5 Change the Web Interface into your preferred language. See P.5 Wireless Setting(For F3206). See P.5 Application of IP Camera. See P.6 For more information, please check the User Manual available in the Software CD or you can download the latest software from http://www.zavio.com Package Contents Physical overview Focus Adjustment Ring: Adjust the focus ring to get a clear image. Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 5 seconds to set the settings back to factory default. Camera F3201 / F3206 IP Camera Quick Installation Guide Brief product information and quick installation Software CD IP Surveillance Software Intelligent IP Installer User Manuals Language Packs Mounting Bracket (2) screws, (2) plastic wall anchors, and (1) camera bracket Adaptor 12V DC, max 12W (for F3105) (F3206) Built-in Microphone Focus Adjustment Ring Micro SD Card Slot Network Connector Reset Audio Out DC 12V Power WPS Network LEDs Indicator Power LEDs Indicator 2 Install the hardware and connect all cables 1. Use the 3 supplied screws to fix the base plate to a flat surface. 2. Loosen the lock ring to adjust the desired angle of the camera. 3. Tighten the lock ring. a. Wall mounting and Ceiling mounting b1. Wire Connection b. Connect cables and power supply 1. Connect the power adaptor to the IP Camera. 2. Use a standard RJ-45 network cable to connect the IP Camera to the Network connection b2. Wireless Connection (F3206) 1. Connect power adaptor to the IP Camera. 2. Connect to Wi-Fi. Microsoft OS:Use the software CD to install Intelligent IP Installer Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these steps to install the firmware. Access the IP Camera using Intelligent IP Installer 1. Please check two settings before using Intelligent IP Installer . b1 Select “Intelligent IP Installer” and follow the installation process to complete the installation. a. Browser’s Internet Properties → Security → Default Level b. Browser’s Internet Properties → Privacy → Uncheck Pop-up Blocker b2 3 2 2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active camera and video server devices. Select the relevant IP camera from the list and click Link to IE. 3. Enter your Username and Password to login to the IP Camera. (Default is admin / admin) 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control. 6. Click Install. 4 Mac OS using Safari Browser 7. Live video displays in the centre of your web browser. 1. Select Safari icon 2. Click Bonjour function and select the camera you wish to access. 3. Enter name and password to login to the IP camera. (Default is admin / admin) 4. The monitor image will be displayed in your browser. 5 Lighting environment setting The default setting of lighting environment is Auto. However, you may also select 50 or 60 Hz upon the lighting environment of your country. Go to “Setting > Live View > Camera Setting > Image Setting”, select the environment setting you wish. Change the Web Interface into your preferred language Use the settings screen to set the language of the Web Interface. Go to “Setting > System > Maintenance ”. 1. Insert Software CD into your CD-ROM. 2. Browse and select the preferred language from language pack in the Software CD and then click OK. 3. The web interface will change into your preferred language. Wireless Setting( For F3206) Power the IP Camera and connect an Ethernet network cable to the IP Camera’s LAN port. Using Intelligent IP Installer and entering the camera’s setting page. Please go to “Setting > System > Network > WLAN”, set the wireless option to “Enable” 1. Click Refresh and choose the AP you wish to connect and click Connect. 2. Enter the password within the Active transmit key field if required. 3. Choose the option of Obtain an IP address automatically (DHCP) and Obtain DNS server address automatically. 4. Click “Save” to apply settings. The Wireless IP address appears in the IP address field. 6 Note: The wireless private IP address can be found in Intelligent IP Installer. Application of IP Camera 7 Memo ............................................................................................... ............................................................................................... ............................................................................................... ............................................................................................... ............................................................................................... ............................................................................................... ............................................................................................... ............................................................................................... ............................................................................................... ............................................................................................... ............................................................................................... ...................................................................................…

Text truncated - open the document above for the full version.

ZAVIO Inc. 2F, No. 13, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan November 25, 2011 FCC ID：WOR-6023F Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No.8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712,Taiwan R.O.C. Name: Daphne Liang Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Zavio / F3206 FCC ID: WOR-6023F Product Name: IP Cam Note: The registered grantee contact is not available, Zavio Inc. is signing for grantee contact. He can be reached at email: [email protected] Signature FCC grantee contact person information : Name/Title: Minar Lin/ Chief Technology Officer Company Name: Zavio INC. ADDRESS: 2F, No. 13, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan TEL: 886 3 5790275 FAX: 886 3 6686845 Email: [email protected]

ZAVIO Inc. 2F, No. 13, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan November. 25, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID：WOR-6023F Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below : 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Minar Lin/ Chief Technology Officer Applicant: Minar Lin Company Name: Zavio INC. ADDRESS: 2F, No. 13, R&D Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan TEL: 886 3 5790275 FAX: 886 3 6686845 Email: [email protected]

ZAVIO Inc. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2011, 12 07 SUBJECT: FCC Application for WOR-6023F To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, (Must be signed by the person that is listed on the FCC Website)

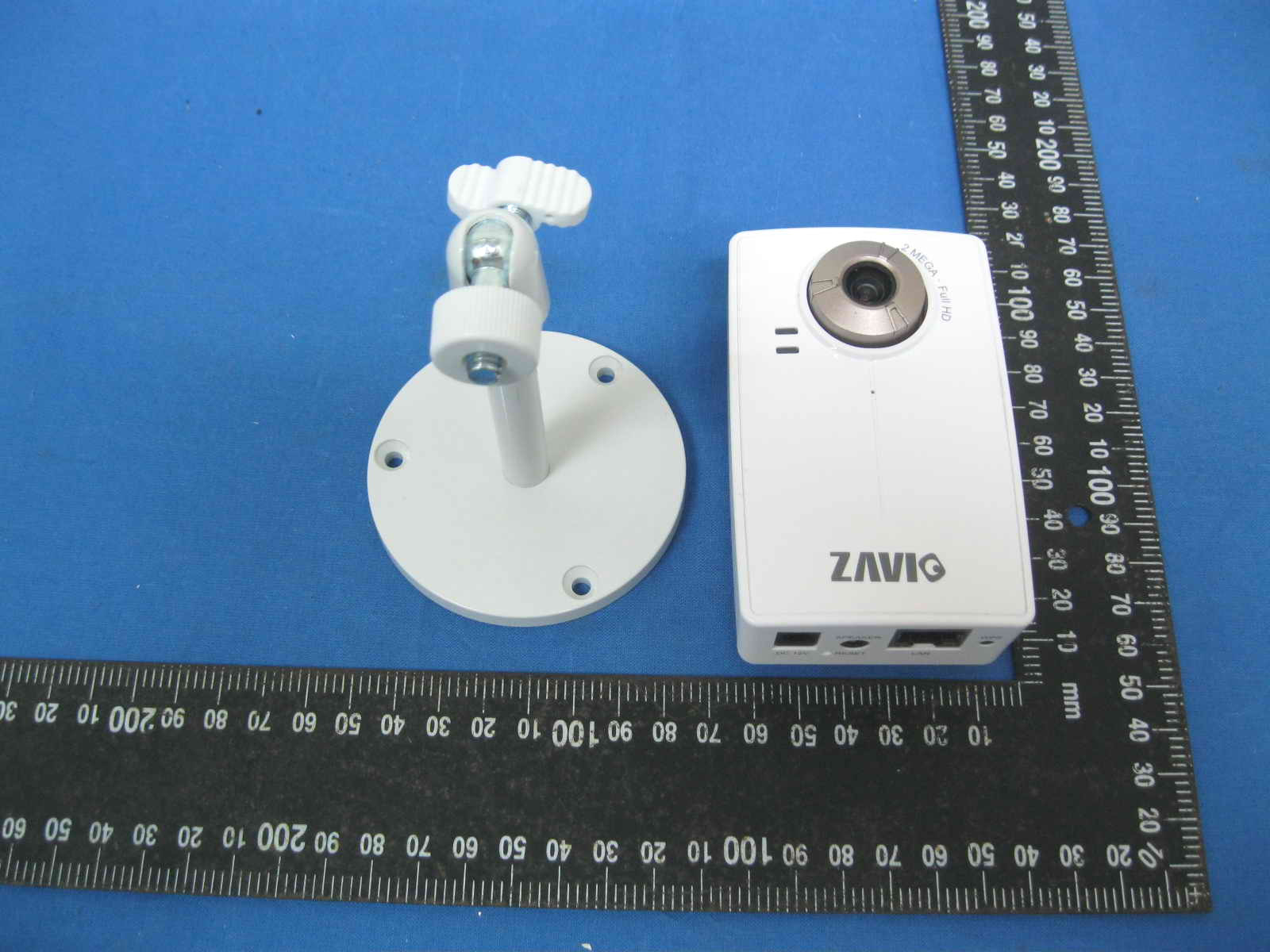

Report No.：T111110304 Page 1 of 15 External Photo Report No.：T111110304 Page 2 of 15 Report No.：T111110304 Page 3 of 15 Report No.：T111110304 Page 4 of 15 Power Adapter Photo Report No.：T111110304 Page 5 of 15

Report No.：T111110304 Page 6 of 15 Internal Photo Report No.：T111110304 Page 7 of 15 Report No.：T111110304 Page 8 of 15 Report No.：T111110304 Page 9 of 15 Report No.：T111110304 Page 10 of 15 Report No.：T111110304 Page 11 of 15 Report No.：T111110304 Page 12 of 15 Report No.：T111110304 Page 13 of 15 Report No.：T111110304 Page 14 of 15 Report No.：T111110304 Page 15 of 15

PRODUCT APPROVAL SHEET –WUBR-168GN (P) 1 WUBR-168GN (P) PRODUCT APPROVAL SHEET Version: 1.4 SparkLAN Communication, Inc. Part Number R9900019343 Product Number WUBR-168GN (P)/E Description Ralink RT3070 11gn 1T1R USB PCBA SparkLAN Customer Sales PM Approved by Richard Pan Angela PRODUCT APPROVAL SHEET – WUBR-168GN (P) 2 Revised History Version Purpose Date Editor V1.0 Initial Doc 2009.11.27 Angela V1.1 Revised Packing photo 2009.12.02 Angela Revised APPENDIX 2009.12.03 Angela Revised PCBA Mechanical Drawing 2009.12.03 Angela Revised requirement 2009.12.03 Angela V1.2 Revised product photo 2009.12.28 Angela V1.3 Revised Dimensions & Weight 2010.01.06 Angela V1.4 Revised 2.4 PCBA Mechanical Drawing 2010.01.06 Angela PRODUCT APPROVAL SHEET – WUBR-168GN (P) 3 Contents 1. PRODUCT SPECIFICATION .................................................................................................................................4 1.1 PRODUCT SPECIFICATION........................................................................................................................................... 4 1.2 PIN DEFINITION.......................................................................................................................................................... 5 2. HARDWARE SPECIFICATION.............................................................................................................................. 6 2.1 PCBA PHOTO............................................................................................................................................................. 6 2.2 BLOCK DIAGRAM....................................................................................................................................................... 7 2.3 SCHEMATIC................................................................................................................................................................. 7 2.4 PCBA MECHANICAL DRAWING.................................................................................................................................. 9 2.5 SHIELDING CASE....................................................................................................................................................... 11 2.6 DOMAIN CODE.........................................................................................................................................................12 3. SOFTWARE SPECIFICATION ............................................................................................................................ 13 3.1 DRIVER SUPPORT...................................................................................................................................................... 13 4. STANDARD PACKING ........................................................................................................................................ 14 4.1 PRODUCT LABEL...................................................................................................................................................... 14 4.2 PACKING & CARTON LABEL..................................................................................................................................... 14 5. CUSTOMIZE REQUIREMENT............................................................................................................................. 16 6. APPENDIX ........................................................................................................................................................... 17 PRODUCT APPROVAL SHEET – WUBR-168GN (P) 4 1. PRODUCT SPECIFICATION 1.1 Product Specification Host Interface USB 2.0 Type A LEDs Link/Activity Radio Antenna Internal Printed Antenna (1Tx1R Structure) Antenna Gain 2.0 dBi Operating Frequency 2.412~ 2.4835GHz ISM Band Transmit Power 802.11b: 17± 1.5dBm 802.11g: 14± 1.5dBm 802.11n: HT20:13± 1.5dBm HT40:10± 1.5dBm 802.11b : -85dBm @11Mbps 802.11g : -68dBm @54Mbps Receive Sensitivity 802.11n: HT20: -66dBm @MCS7 HT40: -61dBm @MCS7 Environmental Temperature Humidity Operating 0 ~ 40°C 10% to 90% Non-Condensing Storage -20 ~ 75°C 5% to 95% Non-Condensing Operating Voltage DC 5V ± 5% Physical Specification Dimensions 37.9*16*1.0mm (PCBA without sheilding case) Weight 4.5 g Software Driver Windows 2000/XP/Vista Linux Security 64/128-bit WEP 802.1x WPA-PSK, WPA2-PSK Security Wi-Fi Protected Setup ( WPS ) PRODUCT APPROVAL SHEET – WUBR-168GN (P) 5 1.2 Pin Definition Pin 1 is V :5V Pin 2 is - : D- Pin 3 is + :D+ Pin 4 is G :GND PRODUCT APPROVAL SHEET – WUBR-168GN (P) 6 2. HARDWARE SPECIFICATION 2.1 PCBA Photo
PCBA with shielding cover
Back Dimension:
PCBA + USB connector 52.7mm (L )* 16mm(W )*4.5mm(H)
PCBA without sheilding 37.9mm(L)*16mm(W )*1.0mm(H)
PCBA with shielding 2mm(H) PRODUCT APPROVAL SHEET – WUBR-168GN (P) 7 2.2 Block Diagram 2.3 Schematic PRODUCT APPROVAL SHEET – WUBR-168GN (P) 8 PRODUCT APPROVAL SHEET – WUBR-168GN (P) 9 2.4 PCBA Mechanical Drawing PRODUCT APPROVAL SHEET – WUBR-168GN (P) 10 PRODUCT APPROVAL SHEET – WUBR-168GN (P) 11 2.5 Shielding case PRODUCT APPROVAL SHEET – WUBR-168GN (P) 12 2.6 Domain Code Domain Code 01 (EU Type) 0: FCC (US, Canada, and other countries uses FCC radio communication standards) 1: ETSI (Europe) 2: SPAIN 3: FRANCE 4: MKK 5: MKKI (TELEC) 6: ISERAL (Channel 3 to 9) 7: ISERAL (Channel 5 to 13) Note: 1. Support channels can refer the Appendix. PRODUCT APPROVAL SHEET – WUBR-168GN (P) 13 3. Software Specification 3.1 Driver Support Support MAC/Linux/Window PRODUCT APPROVAL SHEET – WUBR-168GN (P) 14 4. Standard Packing 4.1 Product Label N/A 4.2 Packing & Carton Label
Bulk package device packing 5pcs/package 4 packages/box 40 boxes/carton carton label packing PRODUCT APPROVAL SHEET – WUBR-168GN (P) 15
SN Number on USB connector
Carton Label 802.11gn USB PCBA R9900019343 WUBR-168GN (P)/E use SPK MAC & S/N ) PRODUCT APPROVAL SHEET – WUBR-168GN (P) 16 5. CUSTOMIZE REQUIREMENT…

Text truncated - open the document above for the full version.

- RALINK PROPRIETARY & CONFIDENTIAL- 1 Ralink’s Printed Antenna Report for USB 2.4GHz ISM Band Working Frequency -- RT3070 Editor : Claire Date: 20080704 - RALINK PROPRIETARY & CONFIDENTIAL- 2 Measurement Items z Measurement Items : z a. Return loss z b. Radiation pattern Y Z X Printed Antenna - RALINK PROPRIETARY & CONFIDENTIAL- 3 Return Loss - RALINK PROPRIETARY & CONFIDENTIAL- 4 Radiation pattern - RALINK PROPRIETARY & CONFIDENTIAL- 5 X-Y Plane Horizontal Polarization - RALINK PROPRIETARY & CONFIDENTIAL- 6 X-Y Plane Vertical Polarization - RALINK PROPRIETARY & CONFIDENTIAL- 7 Y-Z Plane Horizontal Polarization - RALINK PROPRIETARY & CONFIDENTIAL- 8 Y-Z Plane Vertical Polarization - RALINK PROPRIETARY & CONFIDENTIAL- 9 X-Z Plane Horizontal Polarization - RALINK PROPRIETARY & CONFIDENTIAL- 10 X-Z Plane Vertical Polarization - RALINK PROPRIETARY & CONFIDENTIAL- 11 Gain( Hor. & Ver.) YZ –Hor. YZ –Ver. XY –Hor. XY –Ver. XZ –Hor. XZ –Ver. - RALINK PROPRIETARY & CONFIDENTIAL- 12 Gain (Total: Ver. + Hor.) -1.63 2.65 2.5 -1.91 2.5 2.45 -2.79 1.83 2.4 Average (dBi) Max. Value (dBi) Frequency(GHz) XY-total -1.15 1.83 2.5 -1.5 1.91 2.45 -2.24 1.46 2.4 Average (dBi) Max. Value (dBi) Frequency(GHz) YZ-total -3.53 0.44 2.5 -4.11 -0.52 2.45 -5.39 -2.13 2.4 Average (dBi) Max. Value (dBi) Frequency(GHz) ZX-total

FCC IDWOR-6023F Report No.T111110304-RP1 Page 1 of 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For Wireless IP Cam Model : F3206 Trade Name : ZAVIO Issued for ZAVIO Inc. 2F, No.13, R&D Rd.II, Science Based Industrial Park, Hsinchu, Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: November 24, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDWOR-6023F Report No.T111110304-RP1 Page 2 of 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 11/24/2011 Initial Issue All Page 102 Cindy Pon FCC IDWOR-6023F Report No.T111110304-RP1 Page 3 of 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 7 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST......................................................................9-10 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 11 7.1 6dB BANDWIDTH .................................................................................................. 11-20 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 12-31 7.3 AVERAGE POWER ............................................................................................... 12-34 7.4 POWER SPECTRAL DENSITY............................................................................. 12-45 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 12-58 7.6 RADIATED EMISSION........................................................................................... 12-91 7.7 CONDUCTED EMISSION ...................................................................................... 12-96 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE ..................................................... 12-98 APPENDIX II SETUP PHOTOS ....................................................................................... 12-102 FCC IDWOR-6023F Report No.T111110304-RP1 Page 4 of 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant ZAVIO Inc. Address 2F, No.13, R&D Rd.II, Science Based Industrial Park, Hsinchu, Taiwan Equipment Under Test Wireless IP Cam Model F3206 Trade Name ZAVIO Tested Date November 10 ~ 23, 2011 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC IDWOR-6023F Report No.T111110304-RP1 Page 5 of 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Wireless IP Cam Model Number F3206 Identify Number T111110304 Received Date November 10, 2011 IEEE 802.11b/g, 802.11n HT20 : 2412MHz～2462MHz Frequency Range IEEE 802.11n HT40 : 2422MHz～2452MHz IEEE 802.11b : 17.02 dBm (0.0504W) IEEE 802.11g : 17.75 dBm (0.0596W) IEEE 802.11n HT20 : 18.12 dBm (0.0649W) Transmit Power IEEE 802.11n HT40 : 17.96 dBm (0.0625W) Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40 : 5MHz IEEE 802.11b/g, 802.11n HT20 : 11 Channels Channel Number IEEE 802.11n HT40 : 7 Channels IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps Transmit Data Rate IEEE 802.11n HT40 : 135, 121.5, 108, 81, 54, 40.5, 27, 13.5Mbps IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g : OFDM (64QAM, 16QAM, QPSK, BPSK) Type of Modulation IEEE 802.11n HT20/40 : OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type Printed Antenna, Antenna Gain 1.71 dBi DC Power Cord Type Non-shielded cable, 1.5m (Non-detachable), wit…

Text truncated - open the document above for the full version.

FCC IDWOR-6023F Report No.T111110304-RP1 Page 99 of 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz FCC IDWOR-6023F Report No.T111110304-RP1 Page 100 of 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1 GHz FCC IDWOR-6023F Report No.T111110304-RP1 Page 101 of 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC IDWOR-6023F Report No.T111110304-RP1 Page 102 of 102 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
