WR925SC1AG0ARCRadar Occupancy Sensor

Part number: 465-00514 Description: RADAR CHIP FCC/IC INSERT Revision: A FCC Compliance Statement | Compliance Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Change or modifications that are not expressly approved by the manufacturer could void the user’s authority to operate the equipment. RF Exposure Information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 8 inches during normal operation. Innovation, Science and Economic Development Canada (ISED) | Compliance Notice: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1.This device may not cause interference. 2.This device must accept any interference, including interference that may cause undesired operation of the device. RF Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This transmitter must be installed to provide a separation distance of at least 8 inches from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter. Warning: Changes or modifications not expressly approved by ecobee Inc. could void the user’s authority to operate the equipment. Model # EB-SOC60G FCC ID: WR925SC1AG0ARC IC: 7981A-25SC1AG0ARD Déclaration de conformité à la FCC | Avis de conformité : Le matériel a été testé et jugé conforme aux limitations de la catégorie B des appareils numériques, en vertu de l’article 15 des règles de la FCC. Ces critères sont établis afin d’assurer une protection suffisante contre les interférences nocives à l’intérieur d’une résidence. Cet appareil produit, utilise et peut émettre de l’énergie radioélectrique et peut occasionner des interférences nuisibles aux communications radio s’il n’est pas assemblé et utilisé selon les directives. Toutefois, il est impossible de garantir qu’aucune interférence ne se produira dans une installation donnée. Si cet appareil cause des interférences nuisibles à la réception radio ou télévisuelle, ce qui peut être établi en éteignant et en rallumant l’appareil, nous recommandons à l’utilisateur d’essayer de remédier à cette interférence de l’une ou de plusieurs des façons suivantes : Réorientez ou déplacez l’antenne réceptrice. Augmentez la distance séparant le système et le récepteur. Branchez le système dans une prise située sur un circuit électrique différent de celui du récepteur. Consultez votre fournisseur ou un technicien expérimenté en radio et télévision pour obtenir de l’aide. Cet appareil est conforme à l’article 15 des règles de la FCC. L’exploitation est autorisée aux deux conditions suivantes : L’appareil ne doit pas produire de brouillage. L’utilisateur doit accepter tout brouillage radioélectrique de l’appareil, même si le brouillage est susceptible d’en compromettre le fonctionnement. Les changements ou les modifications qui ne sont pas expressément autorisés par le fabricant pourraient annuler le droit d’utilisation du matériel. Informations sur l’exposition aux radiofréquences : Cet appareil est conforme aux limites de radiation de la FCC comme indiqué pour un environnement non contrôlé. Afin d’éviter la possibilité de dépasser les limites d’exposition aux radiofréquences de la FCC, une distance d’au moins 20 cm doit être maintenue entre l’antenne et les individus pendant une utilisation normale. Innovation, Sciences et Développement économique Canada (ISDE) | Avis de conformité : L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1.L’appareil ne doit pas produire de brouillage; 2.L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Énoncé sur l’exposition aux fréquences radio : Cet équipement est conforme aux limites d’exposition aux fréquences radio d’IC RSS-102 définies pour un environnement non contrôlé. Cet émetteur doit être installé à au moins 20 cm de toute personne et ne doit pas être colocalisé ou fonctionner en association avec une autre antenne ou émetteur. Avertissement : les changements qui ne sont pas expressément autorisés par ecobee inc. pourraient annuler le droit d’utilisation du matériel. 4 6 5-00 5 1 4

Version 1 December 29, 2025 For Models ECB601 and ECB501 only Model: EB-SOC60G FCC ID: WR925SC1AG0ARC IC: 7981A-25SC1AG0ARD Confidential 2 Disassembly - Remove Rear Housing 1 2 3 1. Remove the 4 screws holding the backing plate in place 2. Remove rear cover 3. Using a plastic wedge, lift the rear housing away from the front housing Screw Torque 6.0 +/- 0.2 kgf-cm Confidential 3 6.Remove and set aside the two gaskets 7.Detach the speaker wire connector by gently tugging up. 8.Open FFC flex connector drawer 9.Gently tug the FFC flex connector up to detach Disassembly – Gaskets and Connectors FFC Flex Connector Wire connectors Gaskets Confidential 4 Front Housing to Rear Housing Disassembly 1. Pull apart both sub assembly halves. Ensure FPC Cable and speaker connector are lose during disassembly. Confidential 5 Disassembly – Front Housing Radar Board PCBA Connections 1. Open FFC flex connector 2. Remove FFC flex cable from PCBA connector FFC Flex Connector Confidential 6 Front Housing – Radar Board Insertion and removal 1. Ensure orientation of radar board is correct 2. Insert radar board into the LDS frame 3. Reverse the process to remove the radar board Confidential 7 Front Housing – PCBA Connections 1. Insert Radar flex into PCBA connector, check the silk screen line is parallel with connector. 2. Insert Radar FFC flex into connector. 3. Close connector. Confidential 8 6.Insert the two gaskets 7.Connect the speaker wire connector by lining up the connector and gently pushing down. 8.Open FFC flex connector drawer 9.Gently push the FFC flex connector in and close the drawer to latch flex in Assembly – Gaskets and Connectors FFC Flex Connector Wire connectors Gaskets Confidential 9 Front Housing to Rear Housing Assembly 1. Bring both sub assembly halves together as a clamshell. Ensure FPC Cable does not get caught underneath during assembly. Confidential 10 Full Unit Assembly – Rear Cover 1. Place rear cover into opening of housing. 2. Insert and torque 4x screws. 3. Torque screws in the following pattern as labelled below. Torque 6.0 +/- 0.2 kgf-cm 4 3 1 2 Photos for reference purposes only 1 2 3 4 Confidential 11 Regulatory Approvals This Limited Modular Approved device complies with FCC 15.255 & 15.209 rules and RSS-210 requirements. The host device manufacturer is responsible for compliance to any other FCC/ISED rules that apply to the host not covered by the modular transmitter grant certification. The final host device will require Part 15 Subpart B/ICES-003 compliance testing with the modular transmitter installed. This module is not sold separately and is not intended/installed to be used in any host except for Ecobee Inc. Models ECB601 and ECB501 and in case where the module will be integrated in other non-identical hosts in the future, we will expand the LMA to include the new hosts after an appropriate assessment to the FCC/ISED rules. Integration instructions for host device manufacturers can be found below and are compliant with the KDB 996369 D03 OEM Manual v01. Specific Operational Use Conditions The module is tested for mobile RF exposure use conditions. Using the module for portable conditions will require additional assessment though a Class II permissive change or a change in FCC ID through a new application. The host manufacturer installing this module into their product must ensure that the final product complies with the FCC and/or ISED requirements by a technical assessment or evaluation against the FCC and/or ISED rules. The host manufacturer must be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The host’s end-user manual shall include all required regulatory information/warning as shown in this manual. The module are not permitted to be used in satellites and aircrafts. Limited Module Procedure This limited module approved transmitter does not have a RF shield over the transmitter portion of the device and the transmitter is not tested in stand-alone configuration The end host shall ensure spurious radiated emissions meets FCC and ISED rules. Integration instructions Confidential 12 RF Exposure Conditions A 20 cm minimum distance must be maintained between the antenna and the users for the host device this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an uncontrolled environment can be satisfied. Further RF exposure shall be re- evaluated to the scenario of portable and co-located use. Antenna Antenna is integrated in the RF chip. Tx antenna gain is 3 dBi. No external antenna connection is required for normal function of the radar. User Manual of the End Product In the user manual of the end product, the end user must be informed to keep at least 20 cm separation with the antenna while this end product is installed and operated. The end user must be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user must also be informed that any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Label and compliance information The final end product must be labeled, in a font size of 4pt or greater, in a visible area with the following: Contains FCC ID: WR925SC1AG0ARC Contains IC: 7981A-25SC1AG0ARD Integration instructions Continued Confidential 13 Additional Notice This module is intended for internal use with the specific platform ECB601 and ECB501. The integrator is responsible for the compliance to all the rules that apply to the product into which this certified limited RF module is integrated. Additional testing and certification may be necessary when multiple transmitter are used. A Class II permissive change is required if the module is integrated in different hosts. 1. Radiated power (EIRP) must be tested per ANSI C63.10-2020, KDB 36244 D01 and comply wi…

Text truncated - open the document above for the full version.

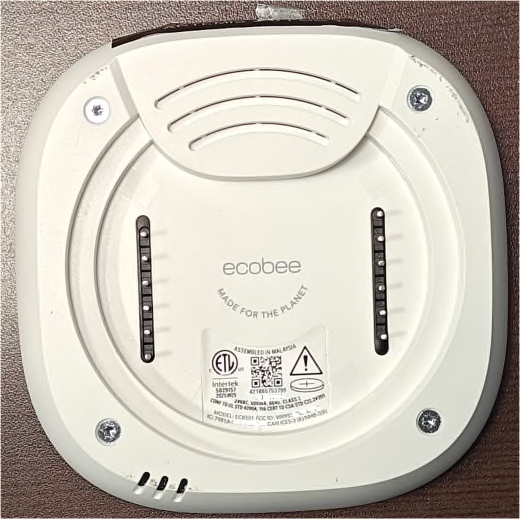

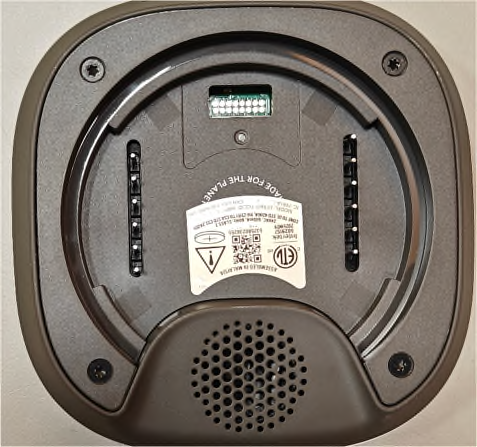

Report No.: ML303230-RF00Issue Date: April 6, 2026 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 1 of 2 Client:Ecobee Inc. Product Name/Model:EB-POS24G FCC ID:WR926POSMRSAN1 IC:7981A-26POSMRSAN1 Host Label Figure 1: ECB501 Label Report No.: ML303230-RF00Issue Date: April 6, 2026 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 2 of 2 Figure 2: ECB601 Label

Page of Section .Radiated emissions setup photos .Below GHz Setup photos – PRJ0086458 Page of Page of .Above GHz Page of Section .Conducted AC emissions setup photos .General setup Page of .General setup, alternative view END OF REPORT

Date (03/03/2026) Dear Sir or Madam, The antennas for EB-SOC60G are contained in Radar chip. There is one transmit antenna and four receiving antennas that are all internal to the Radar chip. Integrated Tx antenna type and shape is not provided by the manufacturer; Tx antenna gain is 3 dBi. The Radar chip does not provide any means for external antenna connection. Yours sincerely, Name: John Russomanno Title: Senior Engineering Technologist CET

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by ANSI National Accreditation Board (ANAB). The tests included in this report are within the scope of this accreditation. The ANAB symbol is an official symbol of the ANSI National Accreditation Board, used under licence. ANAB File Number: AT-3195 (Ottawa); AT-3193 (Pointe-Claire); AT-3194 (Cambridge) FCC 15.255 and RSS-210.docx; Date: Aug 18, 2025 Choose Scandinavian trust RADIO TEST REPORT Report ID: Project number: REP150211R1 PRJ0097679 Type of assessment: Type of radio equipment: Final product testing Radar Applicant: Description of product: Ecobee Inc Radar 60GHz Occupancy Sensor Module Model(s)/HVIN(s): Product marketing name (PMN): EB-SOC60G EB-SOC60G FCC identifier: ISED certification number: FCC ID: WR925SC1AG0ARC IC: 7981A-25SC1AG0ARD Specifications:  FCC 47 CFR Part 15 Subpart C, §15.255  RSS-210 Issue 11, June 2024, Annex J Date of issue: March 5, 2026 Alvin Liu, EMC/RF Specialist Tested by Signature David Duchesne, EMC/RF Lab Manager Reviewed by Signature Report reference ID: REP150211R1 Page 2 of 26 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road, Ottawa, ON, Canada, K1V 1H2 Tel: +1 613 737 9680 Test site registration number: CA2040 Montréal site: 292 Labrosse Avenue, Pointe-Claire, QC, Canada, H9R 5L8 Tel: +1 514 694 2684 Test site registration number: CA2041 Cambridge site: 1-130 Saltsman Drive, Cambridge, ON, Canada, N3E 0B2 Tel: +1 519 650 4811 Test site registration number: CA0101 Website www.nemko.com Limits of responsibility Note that this report's results relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of this report. This test report has been completed following the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada's ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report, provided it is reproduced in its entirety and for use by the company's employees only. Any use that a third party makes of this report, or any reliance on, or decisions made based on it, is such third parties' responsibility. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party due to decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: REP150211R1 Page 3 of 26 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Exclusions ................................................................................................................................................................................................................. 4 1.4 Statement of compliance .......................................................................................................................................................................................... 4 1.5 Test report revision history ....................................................................................................................................................................................... 4 Engineering considerations ................................................................................................................................................................. 5 2.1 Modifications incorporated in the EUT for compliance ............................................................................................................................................ 5 2.2 Technical judgment .................................................................................................................................................................................................. 5 2.3 Model variant declaration ........................................................................................................................................................................................ 5 2.4 Deviations from laboratory tests procedures ........................................................................................................................................................... 5 Test conditions ................................................................................................................................................................................... 6 3.1 Atmospheric conditions ............................................................................................................................................................................................ 6 3.2 Power supply range .................................................................................................................................................................................................. 6 Information provided by the applicant ................................................................................................................................................ 7 4.1 Disclaimer ........................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: ML303219-RF00Issue Date: April 6, 2026 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 1 of 5 Client:Ecobee Inc. Product Name/Model:EB-SOC60G FCC ID:WR925SC1AG0ARC ReferenceFCC KDB 447498 D04 v01 FCC RF Exposure Where the Device Under Test (DUT) can be shown to meet the requirements for an exemption pursuant to FCC 47 CFR §1.1307(b)(3), an evaluation is not required with respect to the limits on human exposure to RF emissions provided in FCC 47 CFR §1.1310. 1.Determination of Exemption As per 47 CFR §1.1307(b)(3), for single RF sources (i.e., any single fixed RF source, mobile device, or portable device), a single RF source is exempt if: A.1-mW Test Exemption: The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); B.SAR-Based Exemption: The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by: ( ) = ( 20 ⁄ ) ≤20 20 < ≤40 Where = − 60 And ( ) = 2040 0.3 ≤ <1.5 3060 1.5 ≤ ≤6 d = the minimum separation distance (cm) in any direction from any part of the device antenna(s) or radiating structure(s) to the body of the device user. Report No.: ML303219-RF00Issue Date: April 6, 2026 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 2 of 5 C.MPE-Based Exemption: Using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time- averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 of § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF SourceFrequency (MHz) Threshold ERP (Watts) 0.3-1.341,920 R 2 1.34-303,450 R 2 /f 2 30-3003.83 R 2 300-1,5000.0128 R 2 f 1,500-100,00019.2 R 2 Where R is the separation distance in meters and f is in MHz 2.RF Exposure Evaluation The DUT is a mobile device designed to be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the RF source's radiating structure and the body of the user or nearby persons. The EUT contains 57.0 – 64.0 GHz transmitter. EIRP exemption threshold was calculated using the lowest operating frequency for each transmitter; the lower frequency resulted in a lower exemption limit. ERP exemption threshold was calculated using the lowest operating frequency for each transmitter; the lower frequency resulted in a lower exemption limit. 2.1DUT RF Output Power Highest power (peak or average) for each operation band was used in the RF exposure evaluation. TransmitterOperation Band (MHz) EIRP (dBm) ERP (dBm) Max ERP (W) Minimum Separation Distance (cm) Radar57,000 –64,0007.65.450.00420 Note: 1.ERP (dBm) = EIRP – 2.15 Report No.: ML303219-RF00Issue Date: April 6, 2026 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 3 of 5 2.ERP (W) = 10^((ERP(dBm) – 30)/10) 3.See Section 7.5 of test report for EIRP. 2.2MPE-Based Exemption The EUT contains 57.0 – 64.0 GHz transmitter. ERP exemption threshold was calculated using the lowest operating frequency for the transmitter; the lower frequency resulted in a lower exemption limit. Evaluation Frequency (MHz) Minimum Required Separation Distance (λ/2π) (cm) Threshold ERP (W) DUT Maximum ERP (W) 57,0000.0840.7680.004 Note: λ/2π = (3x10 8 m/s) / (2 * 3.14* f (Hz)) in meters Threshold ERP = 19.2 * 0.2 2 = 0.768 The DUT separation distance is greater than the Minimum Required Separation Distance. And the transmitter operates below its applicable Threshold ERP Limit; thus, the RF Exposure Exemption requirement is met. According to 47 CFR §1.1307(b)(3)(i)(B), this device complies with the RF exposure test exemption. 3.Host RF Exposure Evaluation The host is a mobile device designed to be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the RF source's radiating structure and the body of the user or nearby persons. ERP exemption threshold was calculated using the lowest operating frequency for each transmitter; the lower frequency resulted in a lower exemption limit. 3.1Host Transmitter RF Output Power The host contains 902 – 928 MHz FHSS/Hybrid transmitters, 2400 – 2483.5 MHz DTS/FHSS transmitters, 5.2 GHz and 5.8 GHz WLAN transmitters. The table below shows the type of transmitter, operation band, max ERP, and minimum separation distance of the host transmitters: Host Transmitters TransmitterOperation Band (MHz) Conducted Power (dBm) Anten…

Text truncated - open the document above for the full version.

Report No.: ML303219-RF00Issue Date: March 5, 2026 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 1 of 2 Client:Ecobee Inc. Product Name/Model:EB-SOC60G FCC ID:WR925SC1AG0ARC IC:7981A-25SC1AG0ARD Host Installation Figure 1– Top view (red box is location of EB-SOC60G) Report No.: ML303219-RF00Issue Date: March 5, 2026 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 2 of 2 Figure 2 – Internal view (red box is location of EB-SOC60G)

Report No.: ML303219-RF00Issue Date: January 9, 2026 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 1 of 1 Client:Ecobee Inc. Product Name/Model:EB-SOC60G FCC ID:WR925SC1AG0ARC IC:7981A-25SC1AG0ARD Internal Photos Figure 1– Top view Figure 2 – Bottom view Note: Antenna of the transmitter is within the Radar’s chip.

Covered Equipment Certification Attestation Letter 3/5/2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: WR925SC1AG0ARC Ecobee Inc(“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes certifying that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Ecobee(“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: John Russomanno Title: Senior Engineering Technologist CET Company Name: Ecobee Inc Date: 2/2/2026
