WR9EBSTATZBE3ecobee 3 thermostat

1 ecobee 3 Quick Start Guide Installation Guide DRAFT 2 what’s in the box? ecobee3 thermostat remote sensor (and stand) power extender kit optional trim plateinstallation materials ecobee 3 Installation Guide 3 wiring configuration equipment configuration set your preferences Wi-Fi configuration register your ecobee first run The first time your ecobee3 powers on, it will begin the first run process. This ensures everything is connected, working properly, and it shows you where to find these settings in the menu. 4 get to know your ecobee 3 indoor temperature adjust temperature system mode schedule menu savings live weather quick changes indoor humidity motion sensor A. B. C. D. E. F. G. H. I. J. A C D J E F G B H I 5 ecobee optimizes settings to where you are in the home. Follow me ecobee will detect when you're away and auto-adjust your schedule for you. Auto-away remote sensors Pull the plastic tab to power on the device. It will connect to your ecobee3 automatically. place at thermostat height; on a shelf or mounted to a wall avoid placing in areas with direct sunlight mount on an interior wall for more accurate temp reading 6 quick tips Press the quick changes button and easily customize fan runtime. How do I control my fan? Press the quick changes button and easily switch between home and away. How to switch between home and away? Press the menu button , select system , select HVAC and easily switch between heat and cool. How do I switch between heat and cool? 1 Press the menu button , select schedule and customize your schedule. How do I change my schedule? 1 7 a few more tips Log in to your personal web portal at ecobee.com to customize the operation of your ecobee3 and learn how to use it to save energy and money. Accessing Web Portal Looking for more info on your ecobee3? Visit our online user guide at ecobee.com/support/ecobee3. User guide ecobee3 supports both iOS and Android devices. Visit your device’s app store to download the free application for your phone or your tablet. Control from your phone When alerts and reminders are sent to your thermostat your menu button will appear like this, press the button to view them. Alerts and reminders 3 8 Welcome! If you have any questions, we have answers. Contact us by email or telephone for help. Or, visit our web page for tutorials, how?to videos, and answers to frequently asked questions (FAQs). www.ecobee.com 1.877.932.6233 (North America) 1.647.428.2220 (International) [email protected] Compatible systems ecobee 3 works with most centralized residential heating and cooling systems. Heating: 1 or 2 stages + fan Cooling: 1 or 2 stages + fan Heat pumps: 1 or 2 stages + auxiliary heat + fan Accessories: Dehumidifier, humidifier or ventilation device 9 Terminal descriptions GFan RCCool transformer RHHeat transformer O/BHeat pump reversing value YY1, Y2: Used for 1 - 2 stages of convential A/C or 1 - 2 stages of heat pump compressor WW1, W2: Used for 1 - 2 stages of convential heat or 1 - 2 stages of heat pump auxiliary heat C24VAC common ACC$FFHVVRU\  8VHGIRUGHKXPLGLÀHUVKXPLGLÀHUV ventilators, HRVs or ERVs ecobee 3 is designed for 24VAC with a 2A maximum current. Do not connect it to line:voltage or high:voltage systems. ! 10 Items included in box Rc G Y1 W1 (AUX1) O/B ACC- ACC+ W2 (AUX2) Y2 C R H 70 35% 70 ecobee 3 thermostat ecobee 3 base with small trim plate Mounting screws & anchors Large trim plate 11 Double-sided adhesive Installation and Quick Start guides ecobee 3 sensor with optional stand Power Extender Kit (PEK) 12 Items you’ll need Before you start Review the all the instructions before you start to ensure that there are no surprises during installation. Phillips screwdriver 13 Step 1. Power o< your HVAC system Before doing anything else, power o[ your system. If your HVAC equipment doesn’t have a master switch, go to your circuit breaker box and turn o[ the breaker. Verify that the equipment is o[ by attempting to adjust the temperature with the existing thermostat. Power off your system 14 Step 2. Remove old thermostat If you don’t have an existing thermostat, skip to step 3. Remove the cover from your old thermostat. Most snap o[ easily but some may be attached by screws. Warning! If your old thermostat has 110/120V wires connected to the thermostat, it is a high voltage system and is not compatible with your ecobee 3 . Rc Rh G Y W C 110/120V ! 15 Look at the wires coming out of the wall. Take a picture for reference. Be careful not to let any wires fall back into the wall! Tip: Leave the wires attached to the base until you are ready to install your ecobee 3 . Rc Rh G Y W C C R Y W G Using the old thermostat base as a guide, label each wire coming out of the wall with the provided stickers. Discard any jumper wires between Rh, Rc, or R. Your ecobee 3 does not need them. They are jumpered automatically. When done, remove the old thermostat base by unscrewing it from the wall. 16 Step 3. Install Power Extender Kit (PEK) If you have a wire labelled “C” or “common”, skip this step. Warning: If you are not comfortable with working with your HVAC wiring, contact ecobee customer support or hire a professional installer. Some thermostats do not have a C?wire. The C?wire is used to provide power to the thermostat. In this case, the PEK can use the existing wires to power your thermostat. The PEK requires your system to have the following wires: • 4 wires: W, Y, G, and R (or R C or RH) • 3 wires: Y, G, and R (or RC or RH) 1. Make sure that your HVAC equipment is o[. 2. Open your HVAC equipment’s control panel. Take a picture for reference. ! 17 3. Using the stickers provided with the PEK, label the wires in the control panel leading to the thermostat. 4. Open up the PEK. It has two rows of terminals (one side is for thermostat connections, the other side, pre?wired, is for the equipment panel connections. PEK Cover PEK Base G R Y W W G R Y Y W G C R Pre-installed wires to HVAC Wires connecting to thermostat 18 5…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: __April 22, 2014______ Subject: Confidentiality Request for: ______WR9EBSTATZBE3______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ______Ecobee Inc_____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___180 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ ____Kashif Ahmed________ 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. (Signature/Title 3 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. ) (Print name)

Authority to Act as Agent Date: _April 21, 2014_ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ____Global EMC Inc/Min Xie__ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____April 21, 2015___ By: __________________________ __ Kashif Ahmed __ (Signature 1 ) (Print name) Title: __Senior Hardware Engineer___ On behalf of: ____Ecobee Inc________ (Company Name) Telephone: __ 416-987-1048 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. _

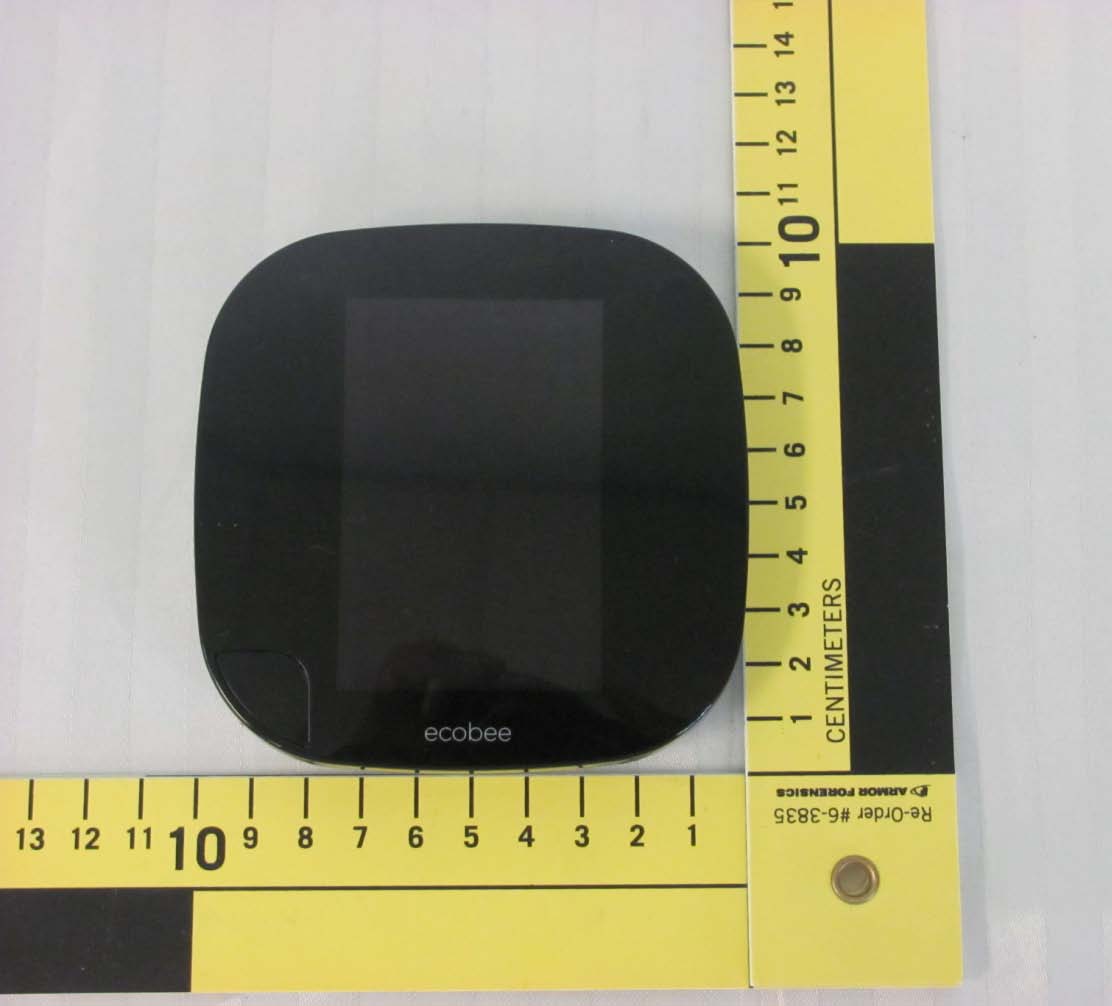

Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 1 of 2 Report issue date: 4/21/2014 GEMC File #: GEMC-FCC-21842R1 Illustration 1: EUT external front view Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 2 of 2 Report issue date: 4/21/2014 GEMC File #: GEMC-FCC-21842R1 Illustration 2: EUT external rear view

43.937 mm 33.497 mm 21.284 mm 10.893 mm 40.056 mm 12.397 mm 40.056 mm 43.937 mm 44.169 mm 9.535 mm x9.072 mm 30.415 mm x 3.787 mm 17.298 mm x 4.332 mm 33.497 mm 23.489 mm x 5.824 mm EB-STATe3-01 FCC ID: WR9EBSTATZBE3 IC ID: 7981A-EBSTATZBE3

EB-STATe3-01 FCC ID: WR9EBSTATZBE3 IC ID: 7981A-EBSTATZBE3

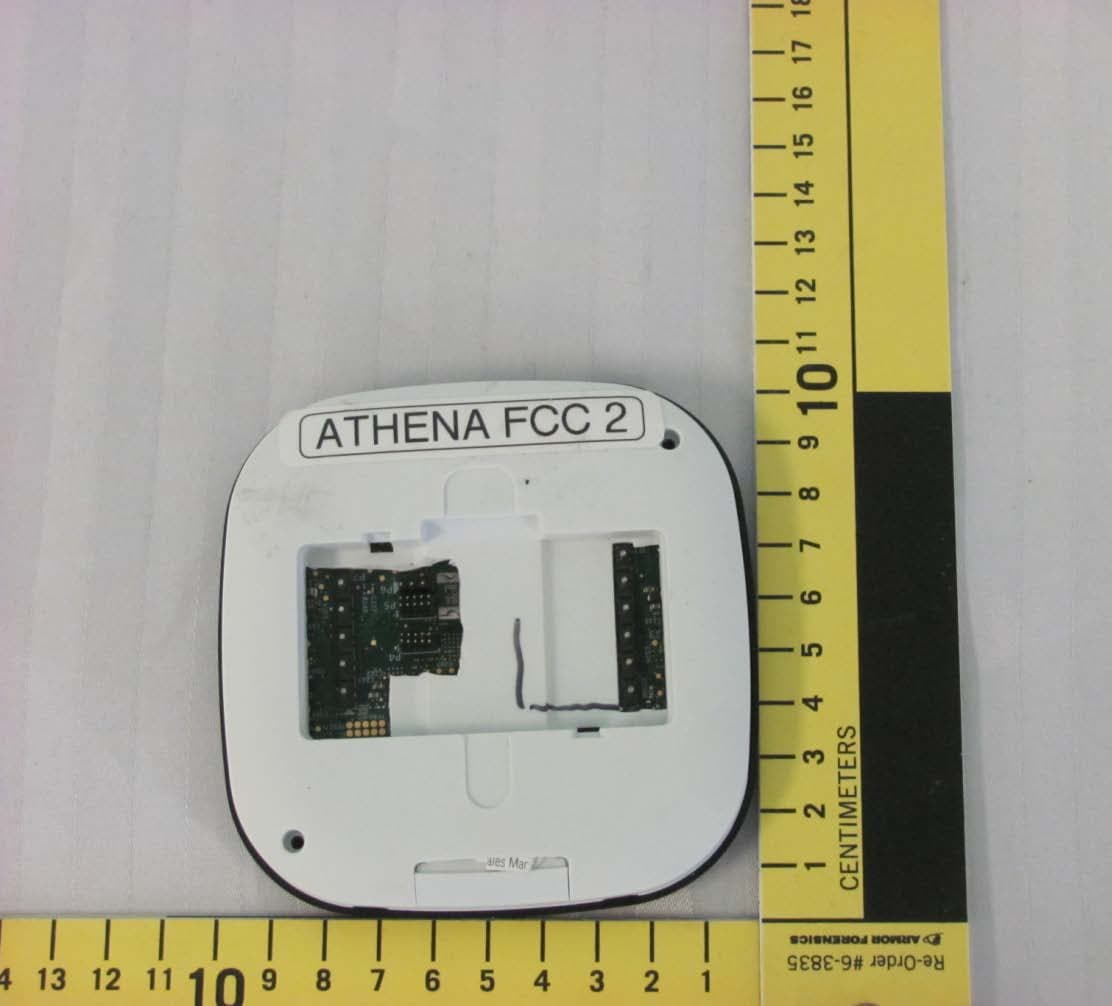

Cl ie nt Ecobee Inc Product At he na Standard(s) RSS 210 Issue 8:2010 / FCC P art 15 Subpart C 15:2014 P a ge 1 of 4 Report issue date: 5/6/2014 GEMC Fi le #: GEMC-FCC-2 184 2R1 Illustration 1: EUT internal rear vie w – ph o to Zigbee module contacts. Zigbee Module: rea r Cl ie nt Ecobee Inc Product At he na Standard(s) RSS 210 Issue 8:2010 / FCC P art 15 Subpart C 15:2014 P a ge 2 of 4 Report issue date: 5/6/2014 GEMC Fi le #: GEMC-FCC-2 184 2R1 Illustration 2: Zig bee module Cl ie nt Ecobee Inc Product At he na Standard(s) RSS 210 Issue 8:2010 / FCC P art 15 Subpart C 15:2014 P a ge 3 of 4 Report issue date: 5/6/2014 GEMC Fi le #: GEMC-FCC-2 184 2R1 Illustration 3: EUT in tern al fr ont vie w – ph ot o Cl ie nt Ecobee Inc Product At he na Standard(s) RSS 210 Issue 8:2010 / FCC P art 15 Subpart C 15:2014 P a ge 4 of 4 Report issue date: 5/6/2014 GEMC Fi le #: GEMC-FCC-2 184 2R1 Illustration 4: EUT internal view – photo 15.247 Transmitter and antenna 15.249 Transmitter and PCB antenna

Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 1 of 2 Report issue date: 5/8/2014 GEMC File #: GEMC-FCC-21842R1 Maximum Permissible Exposure Purpose The purpose of this test is to ensure that the RF energy intentionally transmitted, in terms of power density emitted from the EUT at a stated operating distance does not exceed the limits listed below as defined in the applicable test standard, as calculated based upon readings obtained during testing. This helps protect human exposure to excessive RF fields. Limit(s) and Method The limits, as defined FCC 1.1310 Table 1 (B) limits for general public exposure was applied. The limits for the frequency ranges 300 MHz to 1.5 GHz and 1.5 GHz to 100 GHz was applied. The limits are f/1500 mW/ cm 2 and 1.0 mW/ cm 2 respectively. The distance used for calculations was 20 cm, as this is the minimum distance an operator will be from the EUT during normal operation, as stated by the manufacturer. Results The EUT passed the requirements. The worst case calculated power density was 0.02 mW/cm 2 , this is significantly under the 1.0 mW/cm 2 requirement. Calculations 15.247 Device Method 1 (conducted power) Internal antenna P d = (P t *G) / (4*pi*R 2 ) Where Pt = 18.68 dBm or 73.79 mW as per Peak power conducted output Where G = 2.1 dBi, or numerically 1.62 Where R = 20 cm P d = (73.79 mW * 1.62) / (4 * pi * 20cm 2 ) P d = 73.79 mW / 5026 cm 2 P d = 0.024 mW/cm 2 Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 2 of 2 Report issue date: 5/8/2014 GEMC File #: GEMC-FCC-21842R1 15.249 Device Method 2 (EIRP) PCB antenna P d = EIRP / (4*pi*R 2 ) Where EIRP = equivalent isotropic radiated power Where R = 20 cm EIRP = E(dBuV/m) – 95.2 EIRP = 93.1 -95.2 EIRP = -2.1 dBm or 0.61 mW P d = 0.61 mW / ( 4 * pi * 20cm 2 ) P d = 0.61 mW / 5026 cm 2 P d = 0.00012 mW/cm 2 The limit for 927 MHz is (927/1500) = 0.618 mW/cm 2 The power density for Zigbee module is 0.0284 mW/cm 2 The sum of ratios for each transmitter is (P d (WIFI)/Limit(WIFI)) + (P d (903 MHz TX)/Limit) + (P d (Zigbee)/Limit) (0.024/1.0) + (0.00012/0.618) + (0.0284/1.0) = 0.053 The MPE requirement for collocated antennas are that the sum of ratios should be less than 1. The EUT meets the antenna collocation MPE requirements.

LAB REGISTRATION #6844A-3 Testing Laboratory Certificate #2555.01 FCC REGISTRATION #377448 R-4023, G-506 T-1246, C-4498 Page 1 of 126 Report issue date: 6/11/2014 GEMC File #:GEMC-FCC-21842R1 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 8:2010 & FCC Part 15 Subpart C:2014 Unlicensed Intentional Radiators on the Athena Min Xie Project Engineer 11 Gordon Collins Dr, Gormley, ON, L0H 1G0 Canada Ph: (905) 883-8189 Testing produced for See Appendix A for full customer & EUT details . Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 2 of 126 Report issue date: 6/11/2014 GEMC File #: GEMC-FCC-21842R1 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 6dB Bandwidth of Digitally Modulated Systems – 15.247 ............................................. 13 Maximum Peak Envelope Conducted Power - DM ......................................................... 24 Antenna Spurious Conducted Emissions (-20 dBc Requirement) – 15.247 .................... 29 Radiated Emissions – 15.247 ........................................................................................... 46 Power Spectral Density – 15.247 DM ............................................................................. 96 Maximum Permissible Exposure – 15.247 .................................................................... 107 Power Line Conducted Emissions ................................................................................. 109 Appendix A – EUT Summary ............................................................................................ 115 Appendix B – EUT and Test Setup Photographs............................................................... 118 Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 3 of 126 Report issue date: 6/11/2014 GEMC File #: GEMC-FCC-21842R1 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of Ecobee Inc’s Athena, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 8:2010 FCC Part 15 Subpart C 15:2014 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 4 of 126 Report issue date: 6/11/2014 GEMC File #: GEMC-FCC-21842R1 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: WR9EBSTATZBE3 EUT Industry Canada Certification #, IC: 7981A- EBSTATZBE3 EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Min Xie Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 5 of 126 Report issue date: 6/11/2014 GEMC File #: GEMC-FCC-21842R1 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique Pass See Justification FCC 15.205 RSS 210 (Table 1) Restricted Bands for intentional operation QuasiPeak Average Pass FCC 15.207 Power line conducted emissions QuasiPeak Average Pass FCC 15.209 RSS-210 (Table 2) Spurious Radiated emissions QuasiPeak Average Pass FCC 15.247…

Text truncated - open the document above for the full version.

Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 1 of 6 Report issue date: 4/21/2014 GEMC File #: GEMC-FCC-21842R1 Illustration 1: Radiated emission setup – photo 1 Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 2 of 6 Report issue date: 4/21/2014 GEMC File #: GEMC-FCC-21842R1 Illustration 2: Radiated emission setup - photo 2 Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 3 of 6 Report issue date: 4/21/2014 GEMC File #: GEMC-FCC-21842R1 Illustration 3: Radiated setup - photo 3 Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 4 of 6 Report issue date: 4/21/2014 GEMC File #: GEMC-FCC-21842R1 Illustration 4: Antenna conducted emission setup Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 5 of 6 Report issue date: 4/21/2014 GEMC File #: GEMC-FCC-21842R1 Illustration 5: Power line conducted emission setup – photo 1 Client Ecobee Inc Product Athena Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2014 Page 6 of 6 Report issue date: 4/21/2014 GEMC File #: GEMC-FCC-21842R1 Illustration 6: Power line conducted emission – photo 2
