WSGSK-258BBluetooth Speaker

SKY WING SK-258B SKYWING COMMUNICATION ELECTRONICS CO.,LTD. How to pair with The Bluetooth enabled devices Every SK-258B Bluetooth TM device has a unique name, Enabling devices to recognize each other, and then connect them. Step1. Open the toggle switch to ON, the blue LED will flash 6 times then press the” Play Pause” button, The blue LED will flash with the red LED, the Bluetooth is in pair mode. Step2.Set your devices “Bluetooth switched on”, and then search new devices Step3.The Bluetooth device SK-258B will find a new headset named” BT Audio SPK”, enter a PIN“0000”,and then connect with Bluetooth speaker(for 99% of Bluetooth speaker, this code is“0000”) Step4.The Bluetooth device and speaker would connect, and you should get a connection message like “Hands Free Connection Established” or something like that Step5.That's it! The Bluetooth devices are now paired. Tips: 1. Provided you set the Bluetooth power to“On”,after the initial connection has been made, the Bluetooth device will automatically re — connect to the Speaker. 2. Test Your Connection: Turn off the speaker and observe the Bluetooth device to say“Disconnected”.Then turn on the speaker again and the Bluetooth device should be connected automatically and displays “Bluetooth Connected”. Button function: 1. “ ”:VOL+/Next, long press ;Volume up ,short press: Next song 2. “ ”:VOL-/Previous, long press; Volume down, short press: Previous song 3. “ ”: short press: Pause/Play/Answer/End, double-click: Last number redial，Long press 3 seconds：Reject Calls Interface: 1. “OFF/ON”; Turn off and Turn on the speaker 2. “AUX”: With 3.5mm audio jack, connect to MP3/MP4/CD/PC/MAC/PSP,etc. 3. “DC5V”Charge the battery by using USB cable. Battery: This Speaker SK-258B uses the NOKIA BL-5C battery powered, and users should be buy it for their own at their side. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. FCC warning statement： changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

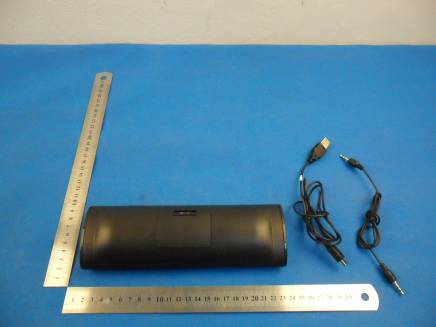

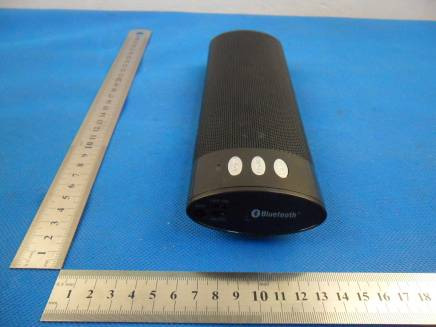

1 Photographs - EUT Construction Details (Test Model No.: SK-258B)

1 Photographs - EUT Construction Details (Test Model No.: SK-258B)

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Page: 1 of 1 FCC ID: WSGSK-258B “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1.1 RF Exposure Compliance Requirement 1.1.1 Standard requirement 15.247(b)(4) requirement: (4) The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6 dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section. as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6 dBi. 1.1.2 EUT RF Exposure The Max Conducted Peak Output Power is -6.71dBm(0.2133mW) in this report SZEM120300122601; The best case gain of the antenna is 2dBi. 2dB logarithmic terms convert to numeric result is nearly 1.5849. According to the formula. calculate the EIRP test result: EIRP= P x G = 0.2133mW x 1.5849= 0.3381 mW ① SAR requirement: S= 60 / f(GHz) = 60/2.402 = 24.98mW ② ; ① < ②. So the SAR report is not required.

SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120300122601 Page: 1 of 75 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1203001226RF Applicant: SKYWING COMMUNICATION ELECTRONICS CO., LTD. Manufacturer: SKYWING COMMUNICATION ELECTRONICS CO., LTD. Factory: SKYWING COMMUNICATION ELECTRONICS CO., LTD. Product Name: Bluetooth Speaker Mode No.(EUT): SK-258B Add Mode No.: SK-S8, SK-S10, SK-S9, SK-S11, SK-S12, SK-S1, SK-B1, SK-B2, SK-B3, SK-B5, SK-B6, SK-B9 FCC ID: WSGSK-258B Standards: FCC CFR Title 47 Part 15 (2010) Date of Receipt: 2012-03-22 Date of Test: 2012-03-27 to 2012-04-20 Date of Issue: 2012-05-03 Test Result: PASS * . * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120300122601 Page: 2 of 75 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement FCC CFR Title 47 Part 15C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission FCC CFR Title 47 Part 15C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power FCC CFR Title 47 Part 15C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth FCC CFR Title 47 Part 15C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation FCC CFR Title 47 Part 15C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number FCC CFR Title 47 Part 15C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time FCC CFR Title 47 Part 15C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence FCC CFR Title 47 Part 15C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions FCC CFR Title 47 Part 15C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions FCC CFR Title 47 Part 15C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions FCC CFR Title 47 Part 15C Section 15.205/15.209 ANSI C63.10 (2009) PASS Band Edge (Radiated Emission) FCC CFR Title 47 Part 15C Section 15.205/15.209 ANSI C63.10 (2009) PASS Remark: Model No.: SK-258B, SK-S8, SK-S10, SK-S9, SK-S11, SK-S12, SK-S1, SK-B1, SK-B2, SK-B3, SK-B5, SK-B6, SK-B9 Only the Model SK-258B was tested, since the electrical circuit design, layout, components used and internal wiring were identical for all above models. Only different on model name. SGS-CSTC Standards Technical Services Ltd. …

Text truncated - open the document above for the full version.

1 Photographs (Test model No.: SK-258B) 1.1 Conducted Emission Test Setup 1.2 Radiated Emission Test Setup 1.3 Radiated Spurious Emission Test Setup
