WSGSK-S18V3Bluetooth Speaker

SKY WING Communication Electronics Co.,Ltd

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Aug 27, 2015
Application Purpose: Original Equipment
Date of Application: Aug 27, 2015
Equipment Note: Bluetooth Speaker
Frequency Range: 2402.00000000 - 2480.00000000
Company: SKY WING Communication Electronics Co.,Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

S18V3 Bluetooth speaker Manual Features  Bluetooth® technology lets you stay connected, go where you want to go  Expand your listening experience with a new level of quality  Enjoy your favorite music or movie with up to 5 hours of listening and 10 hours of talk time.  Speaker battery meter automatically shows onscreen for iPhone® and iPad®. Function of the button “” Bluetooth mode： Short press the button to get next song. “” Short press to lower down the volume. “” Short press the button to get next song. “” Short press to lower down the volume Short press to receive/end/cancel calling Double click to redial last calling No. Hold the button 2seconds to reject calls/ exchange the audio source from phone to speaker Bluetooth mode Short press to play or pause music Note: Those above buttons do not work in Aux mode. LED Indication ■ Green solid: AUX input playing ■ Blue LED flashes once every ten seconds: Bluetooth talking or connected standby mode. ■ Blue and red LED flashes alternately: pairing mode ■ Red solid( slide button in off position): charging ■ Red turns off (slide button in off position): full charged. 3. Function and operation 3.1 Definition A. Bluetooth pairing: the Bluetooth enabled mobile phone, computer, tablet and other device (Support HSP, A2DP, AVRCP etc. profile) pair with Bluetooth speaker. The pass code is no need when pairing with the device with V2.1 or version more thanV2.1 B. Automatically connection: when the mobile phone or computer in Bluetooth model and the former connection records did not clear, click the connection record to connect the Bluetooth speaker. 3.2 How to pair one speaker first time A, Slide the switch to “Bluetooth “side, the unit enters into pairing mode automatically (blue and red LED flashes alternately.) B, Turn on the Bluetooth of your mobile phone, searching for S18V3, click the S18V3 to pair, several seconds, a beep tone informs connection successful, it is also showed connection on the mobile phone. C, Turn on the media player of the mobile phone, press button to play music through the speaker. T ips: You could use, to control music play/pause/Forward/backward Note: If the media player is downloaded and set up on the mobile phone, you maybe not control the music play/pause/next song /previous song through the speaker. D. If the mobile phone shows the speaker connected with the mobile phone, however it is no voice or could not dial when hold the button. Please turn off the Bluetooth of the mobile phone and re-turn on it, click the connection record of S18 to pair, the speaker and mobile phone will connect with each other automatically, when the connection is successful, please play music or dial again. 3.3 Pairing with the speaker automatically A, Slide the switch to “Bluetooth “side, 10 seconds later, the unit will connect with the last connected mobile phone. B. Turn on the media player of the mobile phone, press button to play music through the speaker. T ips: You could use,, , those buttons to control music play/pause/next song /previous song. Then you could do same operation according to above steps in 3.2 3.4 How to use AUX input A. Slide the switch into MP3 side, B .Put the 3.5mm jack to the mobile phone or computer, and connect the other end of 3.5mm jack to the speaker. Note: When the slide button in Bluetooth side, please remove the AUX cable from the speaker or the Bluetooth working mode may have noise. 3.5 How to use NFC 1. Place the unit in pairing mode 2. Open the NFC function of mobile phone, a small “N” mark shows on your mobile phone, means mobile phone NFC function opened. 3. Find the NFC area of your mobile phone, and touch the Bluetooth speaker NFC area with mobile phone’s NFC area, several seconds, the mobile phone will inform “connecting with SK-S18. Separate two units as far as the connection is successful. 4. Touch the mobile phone and speaker again to disconnect two unit’s NFC connection. Note: Some mobile phone could not connect directly; you need to install application software of NFC Bluetooth Connect. Then you could use NFC function to connect the speaker with your mobile phone. Specification Bluetooth version: V4.1+EDR Unit dimension: 131*80*65mm voltage of built-in battery: 3.7V Battery capacity：800MAH Distortion: ≤0.5% Driver size: 40mm 3W Net weight: around 385g SNR: ≥85Db Charging voltage: 5V Charging time: around 3 hours Talking time: around 10 hours Music working time：around 5 hours in 70% volume Notice: 1 .Keep them out of the reach of children 2. Please don't strike or hit the product 3. Keep the product away from water and high temperature; do not use this product in extreme weather. 4. Do no put the product into fire. 5. Do not block the mesh of the speaker 6. If the product has problems, please do not take apart by yourself and return to the shops where you bought. 6. Rust, surface shedding is the natural oxidation, which is not under the warranty. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver…

Text truncated - open the document above for the full version.

Cover Letter(s)

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a BLUETOOTH SPEAKER with Bluetooth function. The EUT was powered by DC 3.7V lithium battery and charged by DC 5V USB port. It has one passive NFC. For more detail information pls. refer to the user manual. Modulation Type: GFSK, /4DQPSK, 8DPSK. Bluetooth Version: 4.1+EDR. Antenna Type: Integral antenna. Antenna Gain: 1dBi. The nominal conducted output power specified: 5.2dBm (+/-3dB). The nominal radiated output power (e.i.r.p) specified: 6.2dBm (+/- 3dB) According to the KDB 447498: The maximun peak radiated emission for the EUT is 104.4dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW =9.17dBm which is within the production variation. The minimum peak radiated emission for the EUT is 101.3dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = 6.07dBm which is within the production variation. The maximun conducted output power specified is 8.2dBm = mW The source- based time-averaging conducted output power = * Duty Cycle mW (where Duty Cycle < 100%) < mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: WSGSK-S18V3 6.6 6.6 6.6

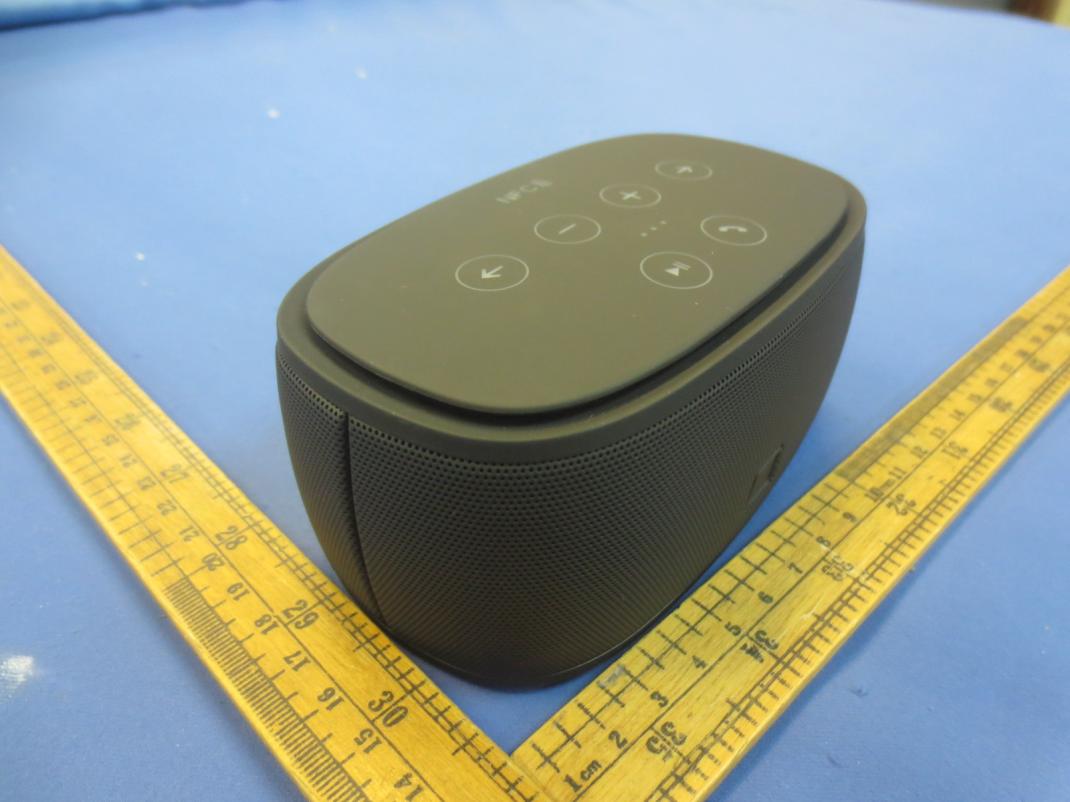

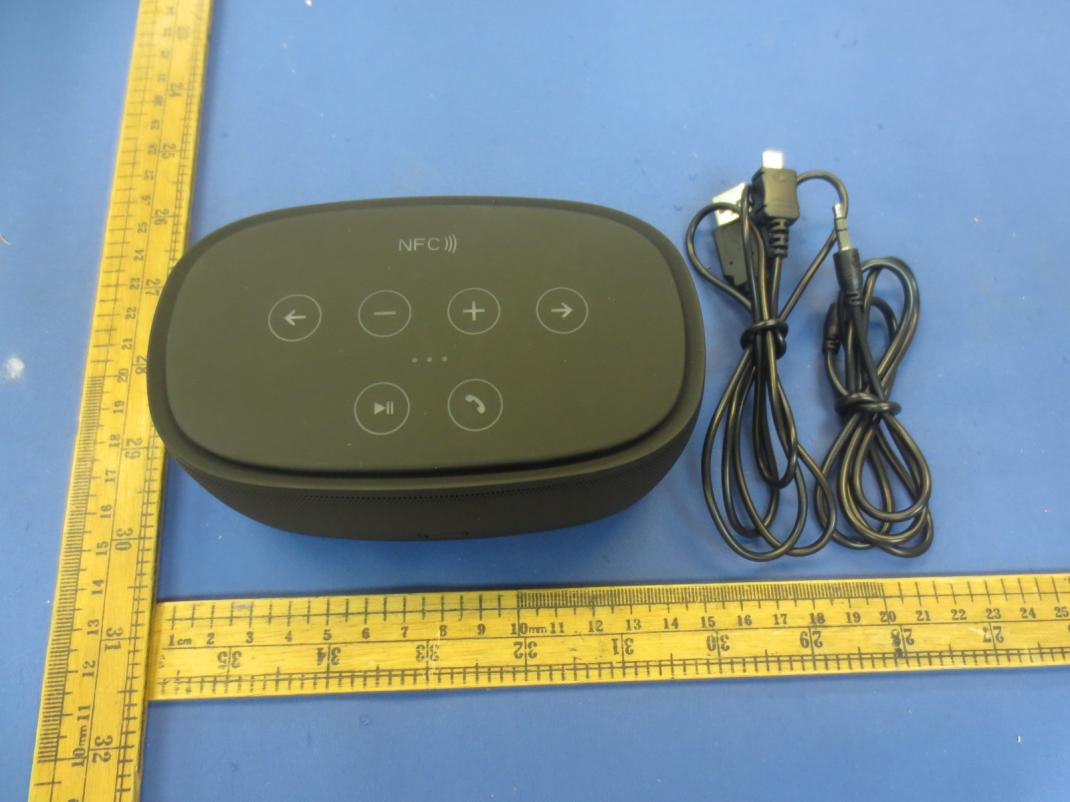

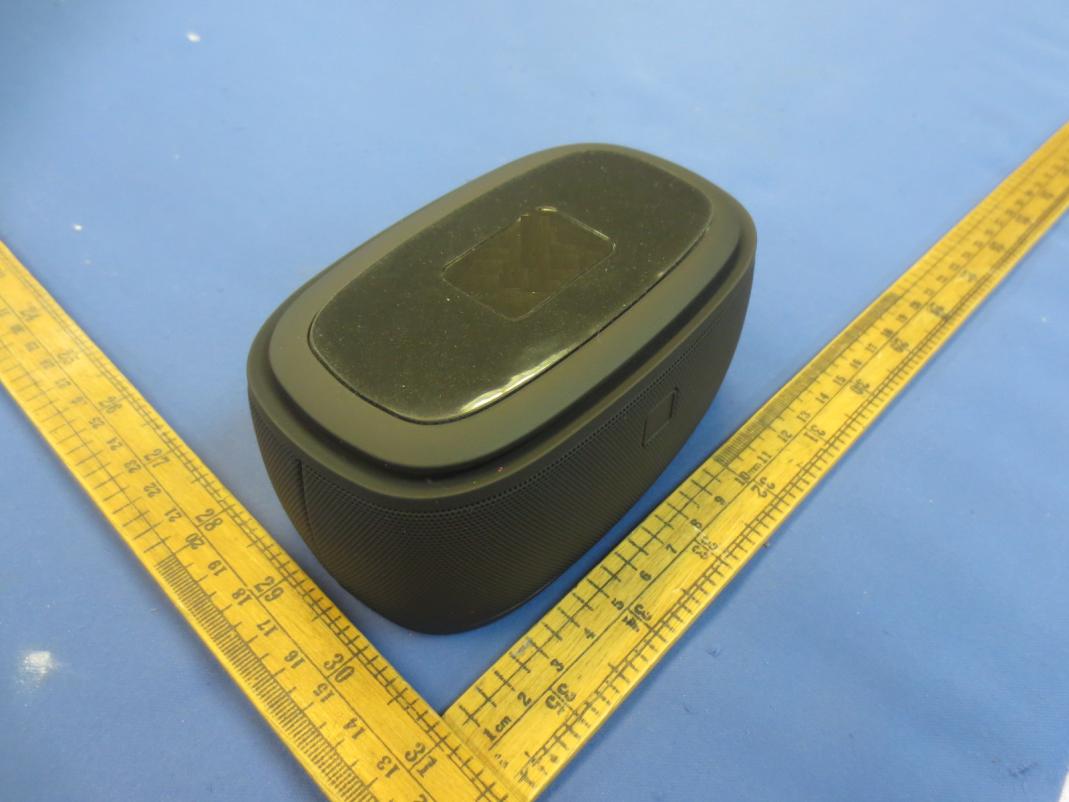

External Photos

ID Label/Location Info

mm mm mm mm

Internal Photos

internal photos

RF Exposure Info

Test Report

BT 4.1+EDR

Test Report

BT 4.1+EDR

Test Report

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Sky Wing Communication Electronics CO., LTD Application For Certification FCC ID: WSGSK-S18V3 Bluetooth speaker Model: SK-S18V3 Additional Model: SK-S18VM, SK-S18 Brand name: LEVN 2.4GHz Transceiver Report No.: 150724021SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] Prepared and Checked by: Approved by: Sign on file Vincent Chen Engineer Andy Yan Senior Project Engineer Date: 07 August, 2015 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: WSGSK-S18V3 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: WSGSK-S18V3 ii MEASUREMENT/TECHNICAL REPORT Sky Wing Communication Electronics CO., LTD - MODEL: SK-S18V3 Brand name: LEVN FCC ID: WSGSK-S18V3 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-13 Edition] provision. Report prepared by: Vincent Chen Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0684 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: WSGSK-S18V3 iii Table of Contents 1.0 General Description ............................................................................................................................................ 2 1.1 Product Description ........................................................................................................................................... 2 1.2 Related Submittal(s) Grants ............................................................................................................................. 2 1.3 Test Methodology .............................................................................................................................................. 2 1.4 Test Facility ....................................................................................................................................................... 2 2.0 System Test Configuration ................................................................................................................................ 4 2.1 Justification ......................................................................................................................................................... 4 2.2 EUT Exercising Software .................................................................................................................................. 4 2.3 Special Accessories .......................................................................................................................................... 4 2.4 Equipment Modification ..................................................................................................................................... 4 2.5 Measurement Uncertainty ................................................................................................................................. 5 2.6 Support Equipment List and Description ......................................................................................................... 5 3.0 Emission Results ................................................................................................................................................ 7 3.1 Radiated Test Results ....................................................................................................................................... 8 3.1.1 Field Strength Calculation .............................................................................................................................. 8 3.1.2 Radiated Emission Configuration…
