WSVSUNVOTEKEYM5XWireless Voting Keypad

FAST OPERATION MANUL M52 M52 FAST OPERATION MANUL 1. Power On-off Power on：Press any key to turn on. If indicating antenna symbol & signal strength, it stands base station locked. Power off: Power off automatically if there is no press within 20 seconds; or power off automatically by software. 2. Functions Polling types LCD display Operation l Sign-in When polling starts, the LCD indicates clear; after numbers being pressed, the LCD will display corresponding number or letter; when data is submitted successfully, the LCD will display “OK” symbol. Press “OK” key to sign in. l Vote As above “1,2,3” stand for “Yes, No, Abstain” separately. The answer will be submitted automatically or by pressing “OK”, according to system set up. l Single choice As above Support max. 10 options. Make the single choice by pressing 0~9 (0 stands for 10/J) -The digit or letter will be displayed on the LCD -The result will be submitted automatically or by pressing “OK”, according to system set up. -If changing the choice, please press the new choice directly. Digit display OK Alphanumeri c & symbol Cancel PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn FAST OPERATION MANUL M52 l Multiple choice As above Support max. 10 options. Make the single choice by pressing 0~9 (0 stands for 10/J) -The digit or letter will be displayed on the LCD; the press will not be valid after reaching the given options. - If changing the choice, please press C key to clear, and then input the new choices and press “OK” to submit. l Sequence As above As above l Score As above Input max. continuously 10 numbers, including “_” and decimal, decimal consider as 1 number. Only last 6 numbers can be displayed. Press “C” key to cancel the previous number. l Fastest answer As above Press OK key to be the first answerer. 3. Match up Before using together with the base station, new keypads should be matched up with the base stations. Firstly make the base station entering into match-up mode by operating the software, secondly input “11.2233”, finally press “OK” key. The LCD will continuously display the searched channel 1~32. If stopped on a channel and the buzzer rings, it stands match up successfully. Meanwhile the software will also indicate it. If directly powered off, it stands match-up failure. 4. Parameter configure Press “OK” together with base station and software to read or write keypads ID. When under idle mode and no number indicated on LCD, press “C” key to indicate keypads ID. When under idle mode and no number indicated on LCD, press “.” key to indicate software version. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn FAST OPERATION MANUL M52 RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 ChangSha SunSky Electronic Design&Development Co., Ltd Room1024,Building A,Biaozhi Business Center,No.198 XiangFu Road,Tianxin District,ChangSha,China 2011-9-1 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Changsha SunSky Electronic Design & Development Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Wireless Voting Keypad model name: ARS_M52 FCC ID: WSVSUNVOTEKEYM5X We affirm that between SIEMIC and Changsha SunSky Electronic Design & Development Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title：Jack Pei/CTO Contact information / address：1024/ Room1024, Building A, Biaozhi Business Center, No. 198 Xiang Fu Road, Tianxin District, Changsha，China

Label Location

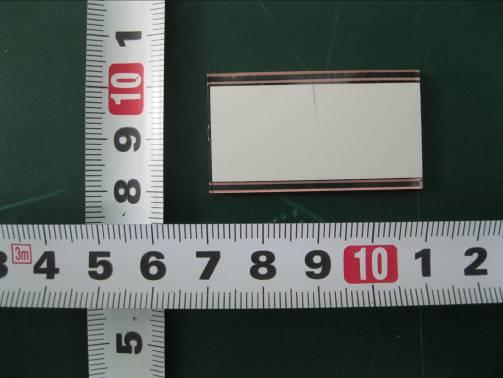

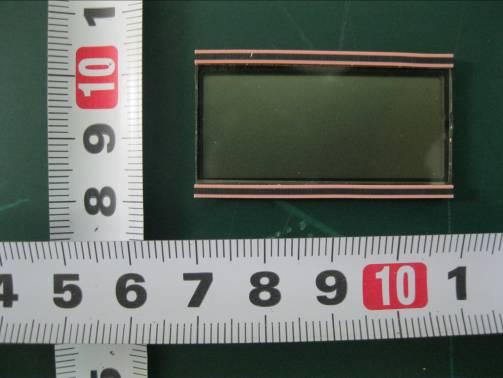

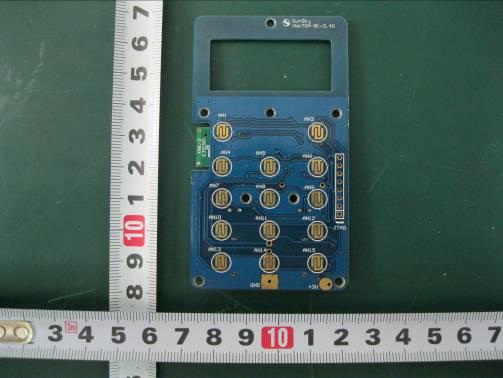

Front View of PCB board Rear View of PCB board Front View of LCD display

FCCID:WSVSUNVOTEKEYM5X Portable device According to § 15.247(e)(i) and § 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level inexcess of the Commission’s guidelines. According toKDB 447498 (2)(a)(i) Frequency Range Low Frequency (MHz)High Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2404 2466 243224.67 Maximum measured transmitter power ConductedPower (mw)Max Antenna Gain (dBi)EIRP (mw) 0.25-3.40.115 Threshold at which no SAR required is 24.67mw. Maximum Tx power is0.115mw EIRP. Conclusion:No SAR is required. SIMULTANEOUS TRANSMISSIONEVALUATION N/A

ChangshaSunSkyElectronic Design&DevelopmentCo.,Ltd. WirelessVotingKeypad Model:ARS_M52 25August,2011 ReportNo.:11070044 (This report supersedesNONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: PeterCai TestEngineer Spring Zhou Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title:RFTest Report forWirelessVotingKeypad Model:ARS_M52 To:FCC15.247:2010 Serial#:11070044 Issue Date:25August,2011 Page:2of50 www.siemic.com.cn Laboratory Introduction ATION SIEMIC,headquartered in the heart of Silicon Valley, with superior facilities in US andAsia, is one of the leading independent testing and certification facilities providingcustomers withone-stop shop servicesfor Compliance Testing and Global Certifications. In addition totestingandcertification, SIEMIC provides initial design reviews andcompliance managementthrough out a project. Our extensive experience withChina,Asia Pacific,North America, European, and internationalcompliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for theglobal markets. Accreditations for Conformity Assessment Country/RegionAccreditation BodyScope USAFCC, A2LAEMC , RF/Wireless, Telecom CanadaIC, A2LA, NISTEMC,RF/Wireless, Telecom TaiwanBSMI , NCC , NISTEMC, RF, Telecom , Safety Hong KongOFTA , NISTRF/Wireless,Telecom AustraliaNATA, NISTEMC, RF, Telecom , Safety KoreaKCC/RRA, NISTEMI, EMS, RF , Telecom, Safety JapanVCCI, JATE, TELEC,RFTEMI,RF/Wireless, Telecom MexicoNOM, COFETEL,CanietySafety,EMC , RF/Wireless, Telecom EuropeA2LA, NISTEMC, RF, Telecom , Safety Accreditations for Product Certifications CountryAccreditation BodyScope USAFCCTCB, NISTEMC , RF , Telecom CanadaICFCB, NISTEMC , RF , Telecom SingaporeiDA, NISTEMC , RF , Telecom EUNBEMC & R&TTE Directive Title:RFTest Report forWirelessVotingKeypad Model:ARS_M52 To:FCC15.247:2010 Serial#:11070044 Issue Date:25August,2011 Page:3of50 www.siemic.com.cn This page has been left blank intentionally. Title:RFTest Report forWirelessVotingKeypad Model:ARS_M52 To:FCC15.247:2010 Serial#:11070044 Issue Date:25August,2011 Page:4of50 www.siemic.com.cn CONTENTS 1EXECUTIVE SUMMARY &EUT INFORMATION.............................................................................................................5 2TECHNICAL DETAILS..................................................................................................................................................6 3MODIFICATION............................................................................................................................................................7 4TEST SUMMARY..........................................................................................................................................................8 5MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD.........................................................................................................................33 ANNEX B.EUT AND TEST SETUPPHOTOGRAPHS...........................................................................................................37 ANNEX C.TEST SETUP AND SUPPORTING EQUIPMENT...................................................................................................43 ANNEXD.USER MANUAL / BLOCKDIAGRAM / SCHEMATICS/ PART LIST.......................................................................47 ANNEXE.SIEMIC ACCREDITATIONCERTIFICATES..........................................................................................................48 Title:RFTest Report forWirelessVotingKeypad Model:ARS_M52 To:FCC15.247:2010 Serial#:11070044 Issue Date:25August,2011 Page:5of50 www.siemic.com.cn 1Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of theChangshaSunSky ElectronicDesign&DevelopmentCo.,Ltd.WirelessVotingKeypad, and modelARS_M52against the current Stipulated Standards. TheWirelessVotingKeypadhasdemonstrated compliance with theFCC 15.247:2010. EUT Information EUT Description : WirelessVotingKeypad Model No :ARS_M52 Serial No :N/A Input Power :3Vdc Classification Per Stipulated Test Standard : DTS Title:RFTest Report forWirelessVotingKeypad Model:ARS_M52 To:FCC15.247:2010 Serial#:11070044 Issue Date:25August,2011 Page:6of50 www.siemic.com.cn 2TECHNICAL DETAILS Purpose Compliance testing of WirelessVotingKeypadwithstipulated standard Applicant / Client ChangshaSunSkyElectronicDesign&DevelopmentCo.,Ltd. Room1024,BuildingA,BiaozhiBusinessCenter, No.198XiangFuRoad,TianxinDistrict,Changsha,China Manufacturer ChangshaSunSkyElectronicDesign&DevelopmentCo.,Ltd. Room1024,BuildingA,BiaozhiBusinessCenter, No.198XiangFuRoad,TianxinDistrict,Changsha,China Laboratory performing the tests SIEMIC Nanjing(China)Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number11070044 Date EUT received8August,2011 Standard appliedFCC15.247:2010 Dates of test (from–to)8August~11August,2011 No of Units:#1 Equipment Category:DTS Trade Name:SunVote Model :ARS_M52 RFOperating Frequency (ies)2404MHz–2466MHz Number of Channels :32 Modulation :MSK FCC ID：WSVSUNVOTEKEYM5X Title:RFTest Report forWirelessVotingKeypad Model:ARS_M52 To:FCC15.247:2010 Serial#:11070044 Issue Date:25August,2011 Page:7of50 www.siemic.com.cn 3MODIFICATION NONE Title:RFTest Report forWirelessVotingKeypad Model:ARS_M52 To:FCC15.247:2010 Serial#:11070044 Issue Date:25August,2011 Page:8of50 www.siemic.com.cn 4TEST SUMMARY The product was tested in accordance with the following specifications. Alltesting has been performed according to below product classification: SpreadSpectrumSystem/Device Test Results Summary…
