WT7PTRNKTMBS800MBS Unit-N Digital RF Transceiver

MBS USER AND INSTALLATION MANUAL 01.01.00/1 Rev.1 PRODUCT: MBS CODE: D148X01PT_DDS06 VERSION: 03 REVISION: 00 DATE: 19-Dec-2012 CLASSIFICATION: General information Internal document DOCUMENT MAINTENANCE THIS DOCUMENT HAS 17 PAGES EDIT. DATE AUTHOR DESCRIPTION 1.0 05-Oct-2011 Javier Córdova First edition. 2.0 02-May-2012 Javier Córdova Changes in section 4. Document code and minor editorial changes. 3.0 19-Dec-2012 A. González Addition of labelling information and FCC RF Exposure Requirements. DOCUMENT APPROVAL ACTIVITY NAME DATE SIGNATURE Prepared Revised Project Manager Approved R&D Director Code: D148X01PT_DDS06 MBS USER AND INSTALLATION MANUAL Date: 19-Dec-2012 Page: 2 of 36 01.01.00/1 Rev.1 PowerTrunk Inc. is the subsidiary of Teltronic S.A.U. responsible for business development, distribution and customer support for Teltronic’s Land Mobile Radio products in North America. The company is headquartered in New York City. Teltronic S.A.U. distributes the same products for Land Mobile Radio under different trademarks and brand names in other regions of the world. Disclaimer Although every reasonable effort has been made to ensure the accuracy of the information contained herein and any other referred document, this should not be construed as a commitment on the part of Teltronic S.A.U. and/or PowerTrunk Inc., and the liability of Teltronic S.A.U. and/or PowerTrunk Inc. for any errors and omissions shall be limited to the correction of such errors and omissions. Teltronic S.A.U. and/or PowerTrunk Inc. welcomes any comment as a way to improve any delivered documentation. The information contained herein has been prepared for the use of appropriately trained personnel, and it is intended for the purpose of the agreement under which the information is submitted. Any party using or relying upon this information assumes full responsibility for such use and in no event shall Teltronic S.A.U. and/or PowerTrunk Inc. be liable to anyone for especial, collateral, incidental, or consequential damages in connection with or arising out of the use of this information. The information or statements given in these documents regarding the suitability, capacity or performance of the mentioned hardware or software products cannot be considered binding but shall be defined in the agreement made between Teltronic S.A.U. and/or PowerTrunk Inc. and the customer. Teltronic S.A.U. and/or PowerTrunk Inc. reserves the right to revise these documents and to make changes to its content at any time, without prior notification. Copyrights No part of the information contained herein and the other referred documents may be copied, distributed or transmitted by any means to any other party without prior written permission of Teltronic S.A.U. and/or PowerTrunk Inc. The distribution of this document may be also covered by NDA (non-disclosure agreement) between Teltronic S.A.U. and/or PowerTrunk Inc. and the receiver. Please also note that part of these contents even may be covered by patent rights. This document, the referred documents and the described product are considered protected by copyright according to the applicable laws. PowerTrunk and the PowerTrunk logo are registered trademarks of Teltronic S.A.U. Copyright © PowerTrunk Inc. All rights reserved Code: D148X01PT_DDS06 MBS USER AND INSTALLATION MANUAL Date: 19-Dec-2012 Page: 3 of 36 01.01.00/1 Rev.1 CONTENTS: 1. INTRODUCTION.........................................................................................................4 2. UNPACKING AND CHECKING ..................................................................................4 3. PREVIOUS CONSIDERATIONS.................................................................................4 4. LABELLING AND INFORMATION ON SAFETY AND ELECTROMAGNETIC COMPATIBILITY ..................................................................................................................5 5. EQUIPMENT DESCRIPTION......................................................................................7 5.1. VIEW ....................................................................................................................7 5.2. CONNECTORS ....................................................................................................8 6. INSTALLATION GUIDE............................................................................................10 6.1. NECESSARY EQUIPMENT ...............................................................................11 6.2. BASIC PRE-CONFIGURATION .........................................................................13 6.3. INSTALLATION .................................................................................................14 6.3.1. MAST/POLE INSTALLATION..........................................................................15 6.3.2. WALL INSTALLATION ....................................................................................20 6.3.3. ANTI-VANDAL KIT INSTALLATION ................................................................23 6.3.4. CONNECTIONS ..............................................................................................25 7. START UP/CONFIGURATION/VERIFICATION .......................................................35 8. INCIDENTS...............................................................................................................36 8.1. INTERFERENCE AT MBS UNIT ........................................................................36 8.2. OVER VOLTAGE PROTECTION .......................................................................36 Code: D148X01PT_DDS06 MBS USER AND INSTALLATION MANUAL Date: 19-Dec-2012 Page: 4 of 36 01.01.00/1 Rev.1 1. INTRODUCTION The MBS Units are the outdoor modules that make up a Mast Mounted Base Station (MBS). They are independent units that can be interconnected with each other to increase the base station capacity. A MBS consists of a maximum of two MBS Units. This manual is common to all the equipme…

Text truncated - open the document above for the full version.

FCC Authorization May 24 th , 2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We TELTRONIC S.A.U. , the undersigned, Hereby authorizes Bay Area Compliance Laboratory Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Jose Roman Gimeno Certifications & Services Area Manager TELTRONIC S.A.U. Poligono Malpica, calle F Oeste 50057 Zaragoza (Spain)

FCC Confidential Authorization May 24 th , 2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: WT7PTRNKTMBS800 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, TELTRONIC S.A.U. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Part list • Operation Description • Circuit Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Jose Roman Gimeno Certifications & Services Area Manager TELTRONIC S.A.U. Poligono Malpica, calle F Oeste 50057 Zaragoza (Spain)

January 21, 2013 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies/Rule Part Justification FCC ID: WT7PTRNKTMBS800 To whom it may concern: The MBS Unit -N is a base station designed to operate in the frequency band 806-825/851-870 MHz with 20 kHz and 22 kHz bandwidth. To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Teltronic S.A.U. is requesting that the FCC lists the frequencies 806-824/851-869 MHz with Part 22 and 90 on the FCC Grant. For the FCC’s Rule Parts 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB 634817 guidance, “as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies”. Yours faithfully, Jose Roman Gimeno Certifications & Services Area Manager TELTRONIC S.A.U. Poligono Malpica, calle F Oeste 50016 Zaragoza (Spain)

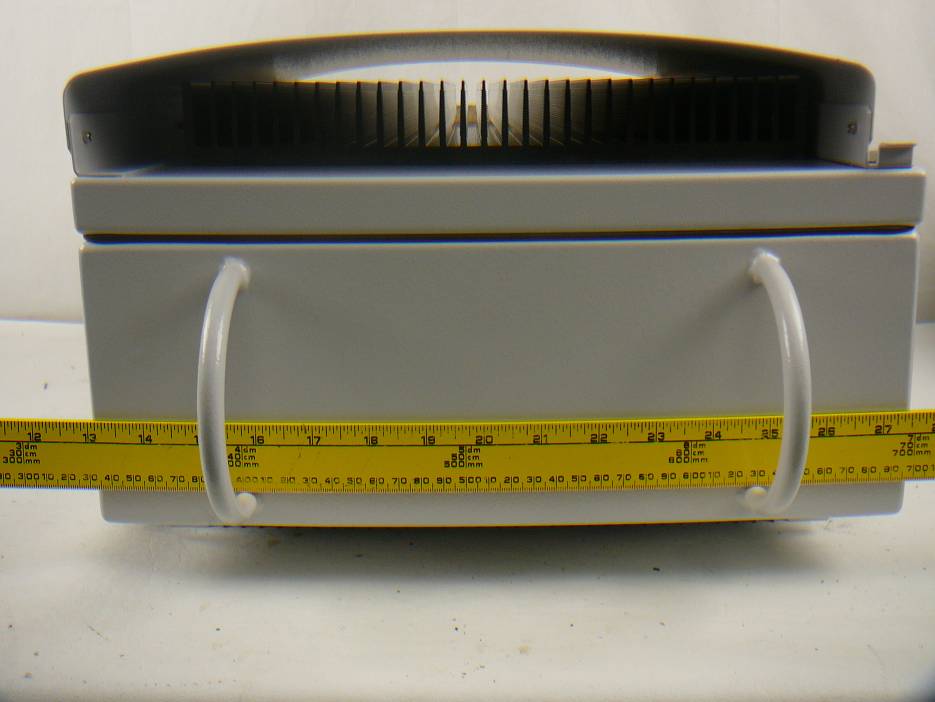

Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 49 of 59 FCC Part 90 Test Report 14 Exhibit C - EUT Photographs 14.1 EUT - Front View 14.2 EUT – Rear View Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 50 of 59 FCC Part 90 Test Report 14.3 EUT – Top View 14.4 EUT – Bottom View Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 51 of 59 FCC Part 90 Test Report 14.5 EUT Side View - 1 14.6 EUT Side View - 2

MBS IDENTIFICATION LABEL 01.01.00/1 Rev.1 PRODUCT: MBS CODE: D148N01PT_DDS07 VERSION: 01 REVISION: 00 DATE: 09-May-2012 CLASSIFICATION: General information Internal document DOCUMENT MAINTENANCE THIS DOCUMENT HAS 5 PAGES EDIT. DATE AUTHOR DESCRIPTION 1.0 09-May-12 J. Córdova First edition. DOCUMENT APPROVAL ACTIVITY NAME DATE SIGNATURE Prepared Revised Project Manager Approved R&D Director Code: D148N01PT_DDS07 MBS IDENTIFICATION LABEL Date: 05/10/11 Page: 2 of 5 01.01.00/1 Rev.1 PowerTrunk Inc. is the subsidiary of Teltronic S.A.U. responsible for business development, distribution and customer support for Teltronic’s Land Mobile Radio products in North America. The company is headquartered in New York City. Teltronic S.A.U. distributes the same products for Land Mobile Radio under different trademarks and brand names in other regions of the world. Disclaimer Although every reasonable effort has been made to ensure the accuracy of the information contained herein and any other referred document, this should not be construed as a commitment on the part of Teltronic S.A.U. and/or PowerTrunk Inc., and the liability of Teltronic S.A.U. and/or PowerTrunk Inc. for any errors and omissions shall be limited to the correction of such errors and omissions. Teltronic S.A.U. and/or PowerTrunk Inc. welcomes any comment as a way to improve any delivered documentation. The information contained herein has been prepared for the use of appropriately trained personnel, and it is intended for the purpose of the agreement under which the information is submitted. Any party using or relying upon this information assumes full responsibility for such use and in no event shall Teltronic S.A.U. and/or PowerTrunk Inc. be liable to anyone for especial, collateral, incidental, or consequential damages in connection with or arising out of the use of this information. The information or statements given in these documents regarding the suitability, capacity or performance of the mentioned hardware or software products cannot be considered binding but shall be defined in the agreement made between Teltronic S.A.U. and/or PowerTrunk Inc. and the customer. Teltronic S.A.U. and/or PowerTrunk Inc. reserves the right to revise these documents and to make changes to its content at any time, without prior notification. Copyrights No part of the information contained herein and the other referred documents may be copied, distributed or transmitted by any means to any other party without prior written permission of Teltronic S.A.U. and/or PowerTrunk Inc. The distribution of this document may be also covered by NDA (non-disclosure agreement) between Teltronic S.A.U. and/or PowerTrunk Inc. and the receiver. Please also note that part of these contents even may be covered by patent rights. This document, the referred documents and the described product are considered protected by copyright according to the applicable laws. PowerTrunk and the PowerTrunk logo are registered trademarks of Teltronic S.A.U. Copyright © PowerTrunk Inc. All rights reserved Code: D148N01PT_DDS07 MBS IDENTIFICATION LABEL Date: 05/10/11 Page: 3 of 5 01.01.00/1 Rev.1 CONTENTS: 1. MBS............................................................................................................................4 1.1. INTRODUCTION ..................................................................................................4 1.2. LABEL .................................................................................................................4 1.3. LABEL LOCATION: .............................................................................................5 Code: D148N01PT_DDS07 MBS IDENTIFICATION LABEL Date: 05/10/11 Page: 4 of 5 01.01.00/1 Rev.1 1. MBS 1.1. INTRODUCTION The identification Label is situated in the rear of the MBS Unit. The label is a silver paper polyester film laminate. 1.2. LABEL Label Colors: Silver and Black. Label 1 Label 2 Label 3 Code: D148N01PT_DDS07 MBS IDENTIFICATION LABEL Date: 05/10/11 Page: 5 of 5 01.01.00/1 Rev.1 1.3. LABEL LOCATION: 1 2 3 Label 1 Label 2 Label 3

Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 52 of 59 FCC Part 90 Test Report 14.7 EUT Backplane – Component View (1) 14.8 EUT Backplane – Component View (2) 14.9 EUT MNI PCB – Component View Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 53 of 59 FCC Part 90 Test Report 14.10 EUT MNI PCB – Solder View 14.11 EUT RCPU PCB – Component View Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 54 of 59 FCC Part 90 Test Report 14.12 EUT RCPU PCB – Solder View (2) 14.13 EUT RRX PCB – Component View Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 55 of 59 FCC Part 90 Test Report 14.14 EUT RRX PCB – Solder View 14.15 EUT SWITCH PCB – Component View (1) Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 56 of 59 FCC Part 90 Test Report 14.16 EUT SWITCH PCB – Component View (2) 14.17 EUT ENCRYPTION PCB– Component View Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 57 of 59 FCC Part 90 Test Report 14.18 EUT ENCRYPTION PCB – Solder View 14.19 MULTICOUPLER PCB – Component View Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 58 of 59 FCC Part 90 Test Report 14.20 MULTICOUPLER PCB – Solder View 14.21 RPA PCB – Component View Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 59 of 59 FCC Part 90 Test Report 14.22 RPA PCB – Solder View 14.23 RTX PCB – Component View 14.24 RTX PCB – Solder View --- End of Report ---

Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 10 of 59 FCC Part 90 Test Report 4 FCC §2.1091 - RF Exposure Information 4.1 Applicable Standards FCC §2.1091, (a) Requirements of this section are a consequence of Commission responsibilities under the National Environmental Policy Act to evaluate the environmental significance of its actions. See subpart I of part 1 of this chapter, in particular §1.1307(b). According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 842/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the anten Test Mode: 25kHz Channel Spacing, 22kHz Bandwidth 4.3 Conclusion The device complies with the MPE requirements by providing a safe separation distance of at least 400 cm between the antenna with maximum 20 dBi gain, including any radiating structure, and any persons when normally operated. Maximum peak output power at antenna input terminal (dBm): 40.24 Maximum peak output power at antenna input terminal (mW): 10568.175 Prediction distance (cm): 400 Prediction frequency (MHz): 868.975 Maximum Antenna Gain, typical (dBi): 20 Maximum Antenna Gain (numeric): 100 Power density of prediction frequency at 400 cm (mW/cm 2 ): 0.5256 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 0.5793

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 90 TEST AND MEASUREMENT REPORT For Teltronic S.A.U. Poligono Malpica, Calle F Oeste, Parcela 12, 50057 Zaragoza, Spain FCC ID: WT7PTRNKTMBS800 Report Type: Original Report Product Type: Digital RF Tranceiver Test Engineer: Wei Sun Report Number: R1204243-90 Report Date: 2013-01-15 Reviewed By: Victor Zhang RF/EMC Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 2 of 59 FCC Part 90 Test Report TABLE OF CONTENTS 1. General Information............................................................................................................................................. 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................... 5 1.2 MECHANICAL DESCRIPTION........................................................................................................................... 5 1.3 OBJECTIVE..................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................... 5 1.5 TEST METHODOLOGY..................................................................................................................................... 6 1.6 MEASUREMENT UNCERTAINTY...................................................................................................................... 6 1.7 TEST FACILITY............................................................................................................................................... 6 2 System Test Configuration................................................................................................................................... 7 2.1 JUSTIFICATION............................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE............................................................................................................................ 7 2.3 EQUIPMENT MODIFICATIONS......................................................................................................................... 7 2.4 INTERNAL CONFIGURATION........................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT......................................................................................................................... 7 2.6 EXTERNAL I/O CABLING LIST AND DETAILS.................................................................................................. 8 3 Summary of Test Results ..................................................................................................................................... 9 4 FCC §2.1091 - RF Exposure Information ........................................................................................................ 10 4.1 APPLICABLE STANDARDS............................................................................................................................. 10 4.2 MPE PREDICTION......................................................................................................................................... 10 4.3 CONCLUSION................................................................................................................................................ 10 5 FCC §2.1046 & §90.205 – RF Output Power ................................................................................................... 11 5.1 APPLICABLE STANDARD.............................................................................................................................. 11 5.2 TEST PROCEDURE......................................................................................................................................... 11 5.3 TEST EQUIPMENT LIST AND DETAILS........................................................................................................... 11 5.4 TEST ENVIRONMENTAL CONDITIONS........................................................................................................... 11 5.5 TEST RESULTS.............................................................................................................................................. 12 6 FCC §2.1047 & §90.207 – Modulation Characteristic..................................................................................... 13 6.1 APPLICABLE STANDARD.............................................................................................................................. 13 6.2 TEST PROCEDURE......................................................................................................................................... 13 6.3 TEST RESULTS.............................................................................................................................................. 13 7 FCC §2.1049, §90.209, §90.210 & §90.691 – Occupied Bandwidth & Emission Mask ................................. 14 7.1 APPLICABLE STANDARD.............................................................................................................................. 14 7.2 TEST PROCEDURE......................................…

Text truncated - open the document above for the full version.

Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 47 of 59 FCC Part 90 Test Report 13 Exhibit B - Test Setup Photographs 13.1 Radiated Emission below 1 GHz – Front View 13.2 Radiated Emission below 1 GHz – Rear View Teltronic S.A.U. FCC ID: WT7PTRNKTMBS800 Report Number: R1204243-90 Page 48 of 59 FCC Part 90 Test Report 13.3 Radiated Emission above 1 GHz – Front View 13.4 Receiving Spurious Emission above 1 GHz - Rear View
