WUACCMMASGT-ERSLWireless Optical Mouse

FCC NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter- ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guar- antee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV tech- nician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. Changes or modifications not expressly approved by the party responsible for compliance. could void the user's authority to operate the equipment. plug and play plug and play plug and play plug and play plug and play 正面背面

4.3 Electronic drawing 4.4 Block Diagram 2.4G Wireless Optical Mouse KM1025 Product Specification V1.0 P9/14

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 PAWAS Trading Gmbh Date:2010-01-10 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, PAWAS Trading Gmbh hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: Wireless Optical Mouse (M/N: CCMMASGT, CCMMERSL) We affirm that between SIEMIC and PAWAS Trading Gmbh, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Signature PAWAS Trading Gmbh Nordstrasse 223, CH-8037 Zurich, Switzerland

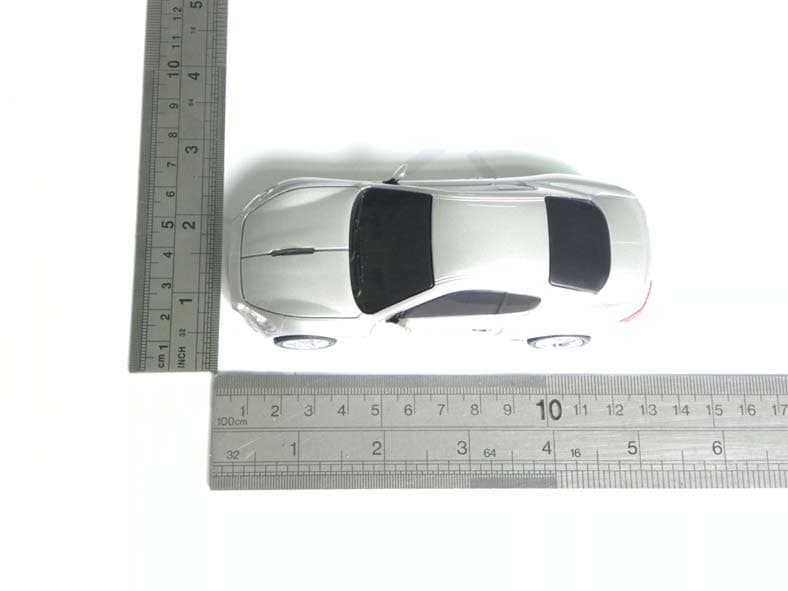

General Appearance of the EUT

FCC ID Lable Location On EUT

2.4G Remote Operation Description The power of the remote unit is provided by a 1.5V DC battery. The oscillation and emission circuit is controlled by the output of the transmitter chipset SPRF2411A. While the RFout pin of SPRF2411A is high the oscillation and emission circuit will be turned on and send out the radio frequency signal. While the RFout pin of SPRF2411A is low the oscillation and emission circuit will be turned off and send out nothing. This procedure generates a GFSK modulated radio frequency signal. In the condition without key pressed the transmitter chip SPRF2411A stays in the sleeping mode and its output is low and the oscillation and emission circuit to be turned off and without radio frequency signal output. When any key is pressed, the transmitter ship SPRF2411A will read the EEPROM for configuration progressing and then send out a coded signal and this signal to modulate a 2.4GHz oscillation circuit base on a 16MHz Crystal to generate a GFSK modulation radio frequency signal. This modulation signal is directly sent out by transmitter chip SPRF2411A through a antenna matching network.

ABCD DCBA Title Number Revision Size A3 Date: 27-Nov-2009 Sheet of File: E:\ 产品资料 \KM1019TX 2.4G\KM1019TX 2.4G.DDB Drawn By: 凌阳 2.4G 发射板（车仔） VBAT 1 VDD_OUT 2 TEST 3 VLX 4 TC6 5 VSS 6 PA5 7 VDD 8 PA1 9 RF_VCCD 10 RF_GNDD 11 RF_VDDD 12 RF_XPIT 13 RF_XIN 14 RF_PSB 15 RF_VCOG 16 RF_VCOPG 17 RF_VCOVDD 18 RF_VDD 19 ANT1 20 ANT2 21 RF_GNDPG 22 RF_GND 23 RF_VCC 24 GND_IF 25 PB1 26 PC4 27 PD2 28 PD1 29 PD0 30 PC5 31 PA4 32 PA3 33 PB2 34 PB3 35 PA6 36 PA7 37 PB0 38 PB7 39 PB6 40 U1 SPRF2411A L1 100uH C4100nF C14.7uF BAT1.2V*2 C5100nF VCC BAT_LRF_PSBRF_PWRVSS C3 100uF RFVCC SVDD VCC C622pF C13100nF C144.7uF L43.3nH RFVCC C81uF X1 16MHz R4 1M C1033pF C1133pF C1222pF RF_PSB L25.6nH L56.8nH L32.7nH C270.5pFC21* C162.2nF C1522pF C203.9nH RF_PWRMISOS0R2R1R0 MOTION DIR BIND ZB ZA MOSI ESCLK R3 R4 S1 S1 LB S2 MB S3 RB R0R2R1 S0 RF_PWR NCS R810M R710M BAT_L C2100nF BAT 1 2 3 45 6 7 8 UC2 LM358 QC1 3906 QC2 2SD882 RC61K RC1390K 1% RC2 10K 1% RC3 191K 1% RC5 4.7K 1 2 3 UC1 LN7144 CC2100nF RC1018 (1206) RC7 200K RC9 390K 1% RC8390K 1% RC16 ? TP1 TP3TP2 USB_5V 4.4V WH Z Encoder VCC ZAZB LD1 BAT_LOW BIND R1 22 DA2 WHITE DA4 WHITE DA6REDDA8RED RA3 560 4.4V RA4 560 RA2 30 RA1 30 QA1 3906 RA61K RA5 4.7K 4.4V DA11N4148 DA51N4148DA71N4148 PIN1 LED+ BT RA74.7K PIN1 QA2 3906 VCC OSC-RES 1 MOTSWK 2 SDIO 3 SCLK 4 LED 5 VSS 6 VDD 7 VDDA 8 U2 PAN3204DH R634K 1% C17 4.7uF C18100nF C19 1uF SDIOMOTION MISOMOSI ESCLK R5 130 D3HLMP ED80 VCC 1234 5678 K1K8P EGNDLED+ BTEGNDBAT

DONGGUAN EMTEK CO., LTD. REPORT NO: ED09120175-1 FCC ID: WUACCMMASGT-ERSL DATE: 01/11/2010 Page 1 of 24 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART B &C REQUIREMENT OF Wireless Optical Mouse MODEL No.: CCMMASGT, CCMMERSL BRAND NAME: N/A FCC ID: WUACCMMASGT-ERSL REPORT NO: ED09120175-1 ISSUE DATE: January 11, 2010 Prepared for PAWAS Trading Gmbh Nordstrasse 223, CH-8037 Zurich, Switzerland Prepared by DONGGUAN EMTEK CO., LTD No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 DONGGUAN EMTEK CO., LTD. REPORT NO: ED09120175-1 FCC ID: WUACCMMASGT-ERSL DATE: 01/11/2010 Page 2 of 20 VERIFICATION OF COMPLIANCE Applicant: PAWAS Trading Gmbh Nordstrasse 223, CH-8037 Zurich, Switzerland Product Description: Wireless Optical Mouse Brand Name: N/A Model Number: CCMMASGT, CCMMERSL (Note: The samples are the same, except the model number is different; we prepare CCMMASGT for EMC test.) File Number: ED09120175-1 Date of Test: December 21, 2009 to January 12, 2010 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Approved By Nicol Lee / Q.A. Manager DONGGUAN EMTEK CO., LTD. DONGGUAN EMTEK CO., LTD. REPORT NO: ED09120175-1 FCC ID: WUACCMMASGT-ERSL DATE: 01/11/2010 Page 3 of 20 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ........................................................................................................... 4 1.1 PRODUCT DESCRIPTION........................................................................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 4 1.3 TEST METHODOLOGY.............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 5 1.6 TEST FACILITY........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .............................................................................................. 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 7 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 9 3. SUMMARY OF TEST RESULTS ................................................................................................. 10 4. DESCRIPTION OF TEST MODES............................................................................................... 10 5. RADIATED EMISSION TEST ......................................................................................................11 5.1 MEASUREMENT PROCEDURE................................................................................................................. 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 12 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 13 5.4 OUT OF BAND RADIATED MEASUREMENT RESULT.............................................................................. 13 5.5 RADIATED MEASUREMENT PHOTOS: ......................................................................................................... 17 6. BAND EDGE .................................................................................................................................... 18 7. ANTENNA APPLICATION ........................................................................................................... 20 7.1 ANTENNA REQUIREMENT........................................................................................................................... 20 DONGGUAN EMTEK CO., LTD. REPORT NO: ED09120175-1 FCC ID: WUACCMMASGT-ERSL DATE: 01/11/2010 Page 4 of 20 1. General Information 1.1 Product Description The PAWAS Trading Gmbh Model: CCMMASGT (referred to as the EUT in this report) The EUT is an short range, lower power, Wireless Optical Mouse designed as an " Input Device. It is designed by way of utilizing the GFSK modulation achieves the system operating. A major technical descriptions of EUT is described as following: A) Operation Frequency: 2405-2476MHz B) Modulation: GFSK C) Number of Channel: 32 channels hopping with 2 group form 2.405GHz~2.476GHz D) Antenna Designation: Integral E) Power Supply: DC 1.5V Channel frequency: 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: WUACCMMASGT-ERSL filing to comply with Section …

Text truncated - open the document above for the full version.

Radiated Emission Setup Photos
