WUI-AICAMWIFIT200 PLUS 2K AI Dash Cam + 1080P Rear Cam

2K AI Dash Cam + 1080P Rear Cam Model: BT533643 TABLE OF CONTENTS 1. Introduction ...............................................................................................................................................................................1 2. Package Contents ...................................................................................................................................................................2 3. Product Specifications ..........................................................................................................................................................3 4. Product Dimension ................................................................................................................................................................4 5. Product Overview ....................................................................................................................................................................5 6. Button Configuration .............................................................................................................................................................6 7. Before You Start...... ..................................................................................................................................................................6 8. Installation ..................................................................................................................................................................................7 9. Initial Setup .................................................................................................................................................................................9 10. Camera Status & LED Indicators ...................................................................................................................................10 11. Recording Time.....................................................................................................................................................................10 12 . Technical Specifications ..................................................................................................................................................10 13. Downloading and use the TYPE S Drive App ..........................................................................................................11 14. Safety Information ..............................................................................................................................................................12 15. Maintenance & Warranty .................................................................................................................................................14 16. General Information ..........................................................................................................................................................16 1 Please read all of the installation instructions carefully before installing the product. Improper installation will void the manufacturer’s warranty. The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the product. Consult an experienced technician if you are not comfortable installing the product. You can also contact TYPE S at 866.294.9244 to speak to one of our installation specialists if you have any specific questions regarding this product. BEFORE using the AI Dashcam, please read the safety information provided in this user manual. ALWAYS use the product as outlined in this user manual. Please make sure to read and understand all local laws and regulations regarding cameras and their use in a vehicle. Laws vary by state. 1. INTRODUCTION 2 1.2. 3.4. 5.6. 7.8. 9.10. 2. PACKAGE CONTENTS 1. 1 x 2K AI Dashcam 2. 1 x Rear Camera 3. 1 x 12 / 24V Power Adapter 4. 1 x 3M VHB™ Mount (Tilted Windshield) 5. 1 x 3M VHB™ Mount (Vertical Windshield) 6. 1 x 3M VHB™ Double Sided Tape (Spare) 7. 1 x Electrostatic Sticker 8. 1 x 64GB MicroSD Card (Class:U3) 9. 1 x Instruction Manual 10. 1 x Warranty Card 64GB www.typesauto.com/register Register this product within 30 days of purchase to receive 1 FREE YEAR of additional warranty coverage (beyond the standard one year warranty), along with special product offers and announcements. Registre este producto dentro de los 30 días siguientes a la compra para recibir 1 AÑO GRATUITO de cobertura de garantía adicional (más allá de la garantía estándar de un año), junto con ofertas de productos y anuncios especiales. Enregistrez ce produit dans les 30 jours suivant l'achat pour recevoir une couverture supplémentaire GRATUITE DE 1 AN (au-delà de la garantie standard d'un an), ainsi que des offres et des annonces spéciales. STOP ARRÊT DETÉNGASE Mon-Fri, 8am-5pm PST / Lundi au vendredi, 8h à 17h HNP / Lun-vie, 8 a. m. a 5 p. m. Hora del Pacífico [email protected] / (866) 294-9244 Please contact our customer service before returning this product to the store. Our friendly representatives are happy to help with any questions or concerns you have. Póngase en contacto con nuestro servicio a clientes antes de regresar este producto a la tienda. A nuestros amables representantes les dará mucho gusto ayudarle con cualquier pregunta o inquietud que tenga. Veuillez communiquer avec notre service à la clientèle avant de retourner le produit au magasin. Nos représentants se feront un plaisir de vous assister pour toute question ou préoccupation. Product code / Code de produit / Código del producto : BT533004 @TypeSAuto ML-533004DNR_V1 BT533643 Dash Cam Installation Step Please remove the static screenprotector before use it and stick the static into the windshield at a proposition. 1 Please stick the 3M stickers from the mount into the central location of static stickers. 2 3 3. PRODUCT SPECIFICATIONS Screen: Resolution: Frequency: Operating Voltage: Operating Temperatur…

Text truncated - open the document above for the full version.

Attestation Statements 2023-9-22 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: WUI-AICAMWIFI) Winplus Co., Ltd., the undersigned, hereby authorize ADC Solutions Auto, LLC to act as our designated U.S. agent for service of process, Winplus Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. ADC Solutions Auto, LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: Winplus Co., Ltd. Contact Name: Benson Leung Address: Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin, Hong Kong Telephone No: 852 2798 8932 Email: [email protected] Signature [Benson Leung] U.S. Agent Information: Company Name: ADC Solutions Auto, LLC Address: 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA Contact Name: Henry Ho Telephone No: 1-866-294-9244 Email: [email protected] Signature [Henry Ho]

Winplus Co., Ltd. 2023-09-26 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: WUI-AICAMWIFI ) [Winplus Co., Ltd. ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Benson Leung Director Winplus Co., Ltd. Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin, Hong Kong Winplus Co., Ltd. 2023-09-26 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: WUI-AICAMWIFI) [Winplus Co., Ltd. ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Benson Leung Director Winplus Co., Ltd. Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin, Hong Kong

Winplus Co., Ltd. 2023-09-26 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Guangdong Global Testing Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Benson Leung Director Winplus Co., Ltd. Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin, Hong Kong

Winplus Co., Ltd. 2023-09-26 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (EUT Name: T200 PLUS 2K AI Dash Cam + 1080P Rear Cam /Model: BT533643 /FCC ID: WUI-AICAMWIFI) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram ,Operational Description,Schematics ) required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Benson Leung Director Winplus Co., Ltd. Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin, Hong Kong

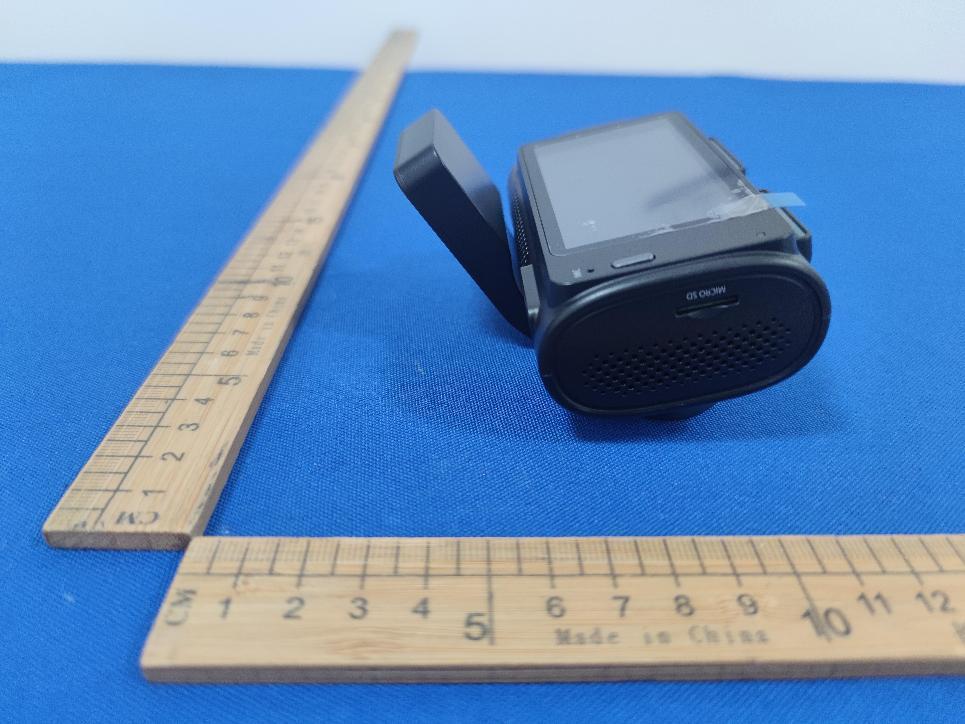

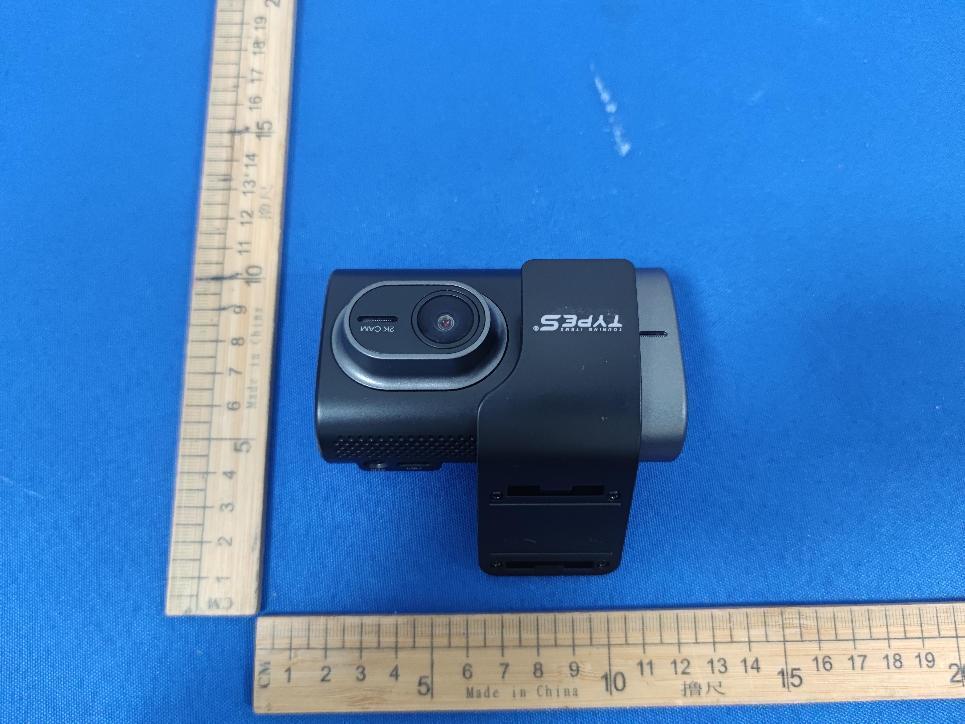

External-1 External-2 External-3 External-4 External-5 External-6 External-7

Product Label Information can be accessed at Regulatory Info page as follows. Starting from Main Menu: Step 1. Open Settings Menu Step 2. Go to System Setting Step 3. Go to Regulatory Info

Internal-1 Internal-2 Internal-3 Internal-4 Internal-5 Internal-6 Internal-7 Internal-8 Antenna Internal-9 RF IC

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in ß1.1307(b) FCC ID:WUI-AICAMWIFI EUT Specification EUT T200 PLUS 2K AI Dash Cam + 1080P Rear Cam Frequency band (Operating) BT: 2.402GHz ~ 2.480GHz WIFI: 2.412GHz ~ 2.462GHz WIFI: 5.18GHz ~ 5.24GHz WIFI: 5.745GHz ~ 5825GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power（peak power ） 2.4G WIFI 802.11b: -0.34 dBm 802.11g: -1.32 dBm 802.11n HT20: -1.60 dBm 802.11n HT40: -1.97 dBm Antenna gain (Max) 2.4G WIFI:2.92dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: P d =(P out *G)\(4*pi*R 2 ) Where P d = Power density in mW/cm 2 , P out =output power to antenna in mW. G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm P d the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result 2.4G WIFI: Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) 802.11b -0.34 0±1 1 1.259 2.92 1.959 0.000491 1 802.11g -1.32 -1±1 0 1.000 2.92 1.959 0.000390 1 802.11n HT20 -1.60 -1±1 0 1.000 2.92 1.959 0.000390 1 802.11n HT40 -1.97 -1±1 0 1.000 2.92 1.959 0.000390 1 The Product unsupported at the same time to Transmitting. According to KDB 447498, and no simultaneous SAR measurement is required. Signature: Shawn Wen Date: 2023-09-06

3.5: Directional diagram/方向图

TRF No.: 04-E001-1A TRF Originator: GTG TRF Date: 2022-06-29 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For T200 PLUS 2K AI Dash Cam + 1080P Rear Cam MODEL NUMBER: BT533643 REPORT NUMBER: E04A23080299F00201 ISSUE DATE: September 1, 2023 FCC ID:WUI-AICAMWIFI Prepared for Winplus Co., Ltd Suites 6-11, 7th Floor, Corporation Park, 11 On Lai Street, Shatin, Hong Kong Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People ’s Republic of China, 523808 This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A23080299F00201 Page 2 of 40 TRF No.: 04-E001-1A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 September 1, 2023 Initial Issue Jok Yang REPORT NO.: E04A23080299F00201 Page 3 of 40 TRF No.: 04-E001-1A Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2013, Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2013, Clause 11.9.1.3 FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013, Clause 11.8.1 FCC Part 15.247 (a)(2) Pass Power Spectral Density ANSI C63.10-2013, Clause 11.10.2 FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission ANSI C63.10-2013, Clause 11.11 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2013, Clause 11.11 & Clause 11.12 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A23080299F00201 Page 4 of 40 TRF No.: 04-E001-1A Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ........................................................................................ 5 2. TEST METHODOLOGY ............................................................................................................ 6 3. FACILITIES AND ACCREDITATION ........................................................................................ 6 4. CALIBRATION AND UNCERTAINTY....................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ..................................................................... 7 4.2. MEASUREMENT UNCERTAINTY ...................................................................................... 7 5. EQUIPMENT UNDER TEST ..................................................................................................... 8 5.1. DESCRIPTION OF EUT ..................................................................................................... 8 5.2. CHANNEL LIST .................................................................................................................. 8 5.3. Maximum Conducted Peak Output Power .......................................................................... 9 5.4. TEST CHANNEL CONFIGURATION .................................................................................. 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ...................................................... 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ........................................................................... 10 5.8. SETUP DIAGRAM ............................................................................................................ 10 6. MEASURING EQUIPMENT AND SOFTWARE USED ............................................................ 11 7. ANTENNA PORT TEST RESULTS ........................................................................................ 13 7.1. Conducted Output Power .................................................................................................. 13 7.2. 6dB Bandwidth ................................................................................................................. 14 7.3. Power Spectral Density..................................................................................................... 16 7.4. Conducted Band edge and spurious emission .................................................................. 17 7.5. Duty Cycle ........................................................................................................................ 19 8. RADIATED TEST RESULTS .................................................................................................. 20 9. ANTENNA REQUIREMENT ................................................................................................... 37 PENDIX: PHOTOGRAPHS OF TEST CONFIGURATION .......................................................... 38 APPENDIX: PHOTOGRAPHS OF THE EUT .............................................................................. 39 REPORT NO.: E04A23080299F00201 Page 5 of 40 TRF No.: 04-E001-1A Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Winplus Co., Ltd Address: Suites 6-11, 7th Floor, Corporation Park, 11 On Lai Street,Shatin, Hong Kong Manufacturer Information Company Name: ADC Solutions Auto, LLC Address: 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA Factory Information Company Name: ADC Solutions Auto, LLC Address: 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA EUT Information Product Description: T200 PLUS 2K AI Dash Cam + 1080P Rear Cam Model: BT533643 Sample Received Date: August 10, 2023 Sample Sta…

Text truncated - open the document above for the full version.

TRF No.: 04-E001-1A TRF Originator: GTG TRF Date: 2022-06-29 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For T200 PLUS 2K AI Dash Cam + 1080P Rear Cam MODEL NUMBER: BT533643 REPORT NUMBER: E04A23080299F00202 ISSUE DATE: September 1, 2023 FCC ID:WUI-AICAMWIFI Prepared for Winplus Co., Ltd Suites 6-11, 7th Floor, Corporation Park, 11 On Lai Street, Shatin, Hong Kong Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A23080299F00202 Page 2 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 September 1, 2023 Initial Issue Jok Yang REPORT NO.: E04A23080299F00202 Page 3 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Appendix A Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT b 2412 Ant1 98.64 0 0.08 NVNT b 2437 Ant1 99.09 0 0.08 NVNT b 2462 Ant1 98.71 0 0.08 NVNT g 2412 Ant1 92.35 0.35 0.48 NVNT g 2437 Ant1 95.47 0.2 0.48 NVNT g 2462 Ant1 93.14 0.31 0.48 NVNT n20 2412 Ant1 92.27 0.35 0.52 NVNT n20 2437 Ant1 95.52 0.2 0.52 NVNT n20 2462 Ant1 96 0.18 0.52 NVNT n40 2422 Ant1 93.75 0.28 1.06 NVNT n40 2437 Ant1 88.36 0.54 1.06 NVNT n40 2452 Ant1 93.75 0.28 1.06 REPORT NO.: E04A23080299F00202 Page 4 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Test Graphs Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT b 2437MHz Ant1 REPORT NO.: E04A23080299F00202 Page 5 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Duty Cycle NVNT b 2462MHz Ant1 Duty Cycle NVNT g 2412MHz Ant1 REPORT NO.: E04A23080299F00202 Page 6 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Duty Cycle NVNT g 2437MHz Ant1 Duty Cycle NVNT g 2462MHz Ant1 REPORT NO.: E04A23080299F00202 Page 7 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Duty Cycle NVNT n20 2412MHz Ant1 Duty Cycle NVNT n20 2437MHz Ant1 REPORT NO.: E04A23080299F00202 Page 8 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Duty Cycle NVNT n20 2462MHz Ant1 Duty Cycle NVNT n40 2422MHz Ant1 REPORT NO.: E04A23080299F00202 Page 9 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Duty Cycle NVNT n40 2437MHz Ant1 Duty Cycle NVNT n40 2452MHz Ant1 REPORT NO.: E04A23080299F00202 Page 10 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Appendix B Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 -0.66 30 Pass NVNT b 2437 Ant1 -0.34 30 Pass NVNT b 2462 Ant1 -0.39 30 Pass NVNT g 2412 Ant1 -1.87 30 Pass NVNT g 2437 Ant1 -1.42 30 Pass NVNT g 2462 Ant1 -1.32 30 Pass NVNT n20 2412 Ant1 -2.24 30 Pass NVNT n20 2437 Ant1 -1.74 30 Pass NVNT n20 2462 Ant1 -1.6 30 Pass NVNT n40 2422 Ant1 -2.1 30 Pass NVNT n40 2437 Ant1 -2.1 30 Pass NVNT n40 2452 Ant1 -1.97 30 Pass REPORT NO.: E04A23080299F00202 Page 11 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Appendix C -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 9.546 0.5 Pass NVNT b 2437 Ant1 10.023 0.5 Pass NVNT b 2462 Ant1 10.056 0.5 Pass NVNT g 2412 Ant1 16.338 0.5 Pass NVNT g 2437 Ant1 16.317 0.5 Pass NVNT g 2462 Ant1 16.323 0.5 Pass NVNT n20 2412 Ant1 17.55 0.5 Pass NVNT n20 2437 Ant1 17.556 0.5 Pass NVNT n20 2462 Ant1 17.547 0.5 Pass NVNT n40 2422 Ant1 35.268 0.5 Pass NVNT n40 2437 Ant1 35.112 0.5 Pass NVNT n40 2452 Ant1 35.328 0.5 Pass REPORT NO.: E04A23080299F00202 Page 12 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 REPORT NO.: E04A23080299F00202 Page 13 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 REPORT NO.: E04A23080299F00202 Page 14 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 REPORT NO.: E04A23080299F00202 Page 15 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 REPORT NO.: E04A23080299F00202 Page 16 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. -6dB Bandwidth NVNT n20 2462MHz Ant1 -6dB Bandwidth NVNT n40 2422MHz Ant1 REPORT NO.: E04A23080299F00202 Page 17 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. -6dB Bandwidth NVNT n40 2437MHz Ant1 -6dB Bandwidth NVNT n40 2452MHz Ant1 REPORT NO.: E04A23080299F00202 Page 18 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Appendix D Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -27.38 8 Pass NVNT b 2437 Ant1 -26.74 8 Pass NVNT b 2462 Ant1 -26.59 8 Pass NVNT g 2412 Ant1 -34.6 8 Pass NVNT g 2437 Ant1 -33.57 8 Pass NVNT g 2462 Ant1 -34.34 8 Pass NVNT n20 2412 Ant1 -35.08 8 Pass NVNT n20 2437 Ant1 -34.7 8 Pass NVNT n20 2462 Ant1 -35.01 8 Pass NVNT n40 2422 Ant1 -37.21 8 Pass NVNT n40 2437 Ant1 -38.01 8 Pass NVNT n40 2452 Ant1 -37.66 8 Pass REPORT NO.: E04A23080299F00202 Page 19 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. Test Graphs PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 REPORT NO.: E04A23080299F00202 Page 20 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 REPORT NO.: E04A23080299F00202 Page 21 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 REPORT NO.: E04A23080299F00202 Page 22 of 47 TRF No.: 04-E001-1A Global Testing , Great Quality. PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 REPORT NO.: …

Text truncated - open the document above for the full version.

TRF No.: 04-E001-1A TRF Originator: GTG TRF Date: 2022-06-29 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For T200 PLUS 2K AI Dash Cam + 1080P Rear Cam MODEL NUMBER: BT533643 REPORT NUMBER: E04A23080299F00204 ISSUE DATE: September 1, 2023 FCC ID:WUI-AICAMWIFI Prepared for Winplus Co., Ltd Suites 6-11, 7th Floor, Corporation Park, 11 On Lai Street, Shatin, Hong Kong Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People ’s Republic of China, 523808 This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A23080299F00204 Page 2 of 12 TRF No.: 04-E001-1A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 September 1, 2023 Initial Issue Jok Yang REPORT NO.: E04A23080299F00204 Page 3 of 12 TRF No.: 04-E001-1A Global Testing , Great Quality. Appendix A PHOTOGRAPHS OF THE EUT External-1 External-2 REPORT NO.: E04A23080299F00204 Page 4 of 12 TRF No.: 04-E001-1A Global Testing , Great Quality. External-3 External-4 REPORT NO.: E04A23080299F00204 Page 5 of 12 TRF No.: 04-E001-1A Global Testing , Great Quality. External-5 External-6 REPORT NO.: E04A23080299F00204 Page 6 of 12 TRF No.: 04-E001-1A Global Testing , Great Quality. External-7 REPORT NO.: E04A23080299F00204 Page 7 of 12 TRF No.: 04-E001-1A Global Testing , Great Quality. Internal-1 Internal-2 REPORT NO.: E04A23080299F00204 Page 8 of 12 TRF No.: 04-E001-1A Global Testing , Great Quality. Internal-3 Internal-4 REPORT NO.: E04A23080299F00204 Page 9 of 12 TRF No.: 04-E001-1A Global Testing , Great Quality. Internal-5 Internal-6 REPORT NO.: E04A23080299F00204 Page 10 of 12 TRF No.: 04-E001-1A Global Testing , Great Quality. Internal-7 Internal-8 Antenna REPORT NO.: E04A23080299F00204 Page 11 of 12 TRF No.: 04-E001-1A Global Testing , Great Quality. Internal-9 RF IC REPORT NO.: E04A23080299F00204 Page 12 of 12 TRF No.: 04-E001-1A Global Testing , Great Quality. --- END OF REPORT---

TRF No.: 04-E001-1A TRF Originator: GTG TRF Date: 2022-06-29 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For T200 PLUS 2K AI Dash Cam + 1080P Rear Cam MODEL NUMBER: BT533643 REPORT NUMBER: E04A23080299F00203 ISSUE DATE: September 1, 2023 FCC ID:WUI-AICAMWIFI Prepared for Winplus Co., Ltd Suites 6-11, 7th Floor, Corporation Park, 11 On Lai Street, Shatin, Hong Kong Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People ’s Republic of China, 523808 This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A23080299F00203 Page 2 of 4 TRF No.: 04-E001-1A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 September 1, 2023 Initial Issue Poal Chen REPORT NO.: E04A23080299F00203 Page 3 of 4 TRF No.: 04-E001-1A Global Testing , Great Quality. Appendix A PHOTOGRAPHS OF TEST CONFIGURATION Radiated emissions below 1GHz Radiated emissions above 1GHz REPORT NO.: E04A23080299F00203 Page 4 of 4 TRF No.: 04-E001-1A Global Testing , Great Quality. --- END OF REPORT---
