WUI-TTGEN2MODULE OF TTGEN2

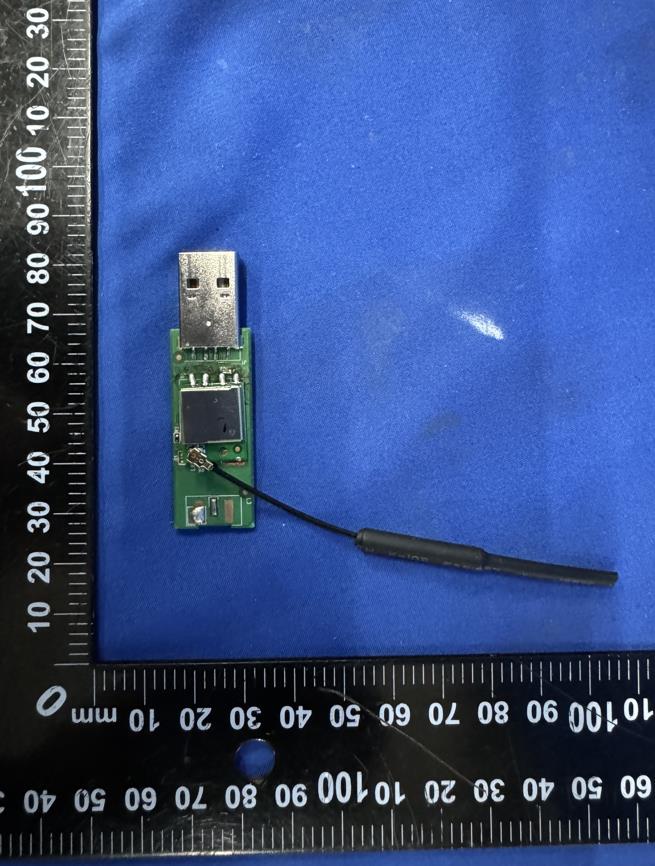

Specification MODULE OF TTGEN2 TTGEN2 Specification File status： [ ] Draft [√ ] Published [ ] Pending File name： Product specification Version： V1.2 Editor： Henry Ho Finished date： 2024-03-21 Version Editor Participator Valid from Remark V1.2 Henry Ho 2024-03-21 Specification 0 Amendment 1 General Description B828 wireless module is designed base on B828 chipset. This wireless module can support far than 100M communication. It operates at 2412-2462MHz and high wireless data rate. Note: The above pictures are for reference only 2 Feature • Operating Frequencies: 2.412~2.462GHz • Host Interface is USB, complies with USB2.0 • Connect to the external antenna through the IPEX connector • Power Supply:3.3V±0.2V Functional Block Diagram Specification 3 Specification Specification 4 Drawing 4.1 Mechanical Specifications Specification 5 Remark 5.1 Storage Temperature and Humidity 1. Storage Condition: Moisture barrier bag must be stored under 30°C, humidity under 85% RH. The calculated shelf life for the dry packed product shall be a 12-months from the bag seal date. Humidity indicator cards must be blue, 30% . 2. Products require baking before mounting if humidity indicator cards reads > 30% temp < 30°C, humidity < 70% RH, over 96 hours. Baking condition: 125°C, 12 hours. Baking times: 1 time. Specification FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or change to this equipment. Such modifications or change could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm during normal operation. This module is for internal use only and not sold outside. Antenna Information It is 2.4GHz Copper tube antenna(IPEX port), model number CH16HL. The modular must be installed in the host that assign by Company name: Winplus Co., Ltd. Product/PMN: MODULE OF TTGEN2 Model no./HVIN: TTGEN2 if other host types used would need further evaluation and possible C2PC if they are not significantly similar to the one tested. Module procedures: The module has its own RF shielding, which belong to signal module Standard requires: Clear and specific instructions describing the conditions, limitations and procedures for third‐parties to use and/or integrate the module into a host device (see Comprehensive integration instructions below). Resolve: Supply example as follows: Installation Notes: 1) TTGEN2 Module Power supply range is DC 3.1V~3.5V, when you use TTGEN2 Module design product, the power supply cannot exceed this range. 2) When connect TTGEN2 Module to the host device, the host device must be power off. 3) Make sure the module pins correctly installed. 4) Make sure that the module does not allow users to replace or demolition. Trace antenna designs: Not applicable. The system integrator must place an exterior label on the outside of the final product housing the TTGEN2 Modules. Below is the content that must be included on this label. The host product Labeling Requirements: NOTICE: The host product must make sure that FCC labeling requirements are met. This includes clearly visible exterior label on the outside of the final product housing that displays the contents shown in below: Contains FCC ID: WUI-TTGEN2 Specification Information on test modes and additional testing requirements: When testing host product, the host manufacture should follow FCC KDB Publication 996369 D04 Module Integration Guide for testing the host products. The host manufacturer may operate their product during the measurements. In setting up the configurations, if the pairing and call box options for testing does not work, then the host product manufacturer should coordinate with the module manufacturer for access to test mode software. Additional testing, Part 15 Subpart B disclaimer: The modular transmitter is only FCC authorized for the specific rule parts (FCC Part 15.247) list on the grant, and that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed when contains digital circ…

Text truncated - open the document above for the full version.

2024-03-07 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: WUI-TTGEN2 [Winplus Co., Ltd.] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Name: Benson Leung 2024-03-07 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: WUI-TTGEN2 Winplus Co., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Name: Benson Leung

Attestation Statements 2024-03-07 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: WUI-TTGEN2) (Winplus Co., Ltd.), the undersigned, hereby authorize (US agent: ADC Solutions USA, LLC) to act as our designated U.S. agent for service of process, (Winplus Co., Ltd.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. US agent: ADC Solutions USA, LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: Winplus Co., Ltd. Contact Name: Benson Leung Address: Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin HONGKONG FRN: 0018215988 Telephone No: 852 2798 8932 Email: [email protected] Benson Leung U.S. Agent Information: Company Name: ADC Solutions USA, LLC Address: 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA FRN: 0034448852 Contact Name: Henry Ho Telephone No: 1-866-294-9244 Email: [email protected] Henry Ho

Date: 2024-03-07 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (MODULE OF TTGEN2/ TTGEN2 / FCC ID: WUI-TTGEN2) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagrams, Schematics, Operational Descriptions) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Signature: Name: Benson Leung Applicant: Winplus Co., Ltd. Address: Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin Hong Kong TEL: 852 2798 8932

date: 2024-03-07 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Eurofins Electrical Testing Service (Shenzhen) Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Benson Leung Applicant: Winplus Co., Ltd. Address: Suites 6-11, 7th Floor, Corporation Park, 11 On La Shatin Hong Kong TEL: 852 2798 8932

Request for Modular/Limited Modular Approval Date: March 20, 2024 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: ______ WUI-TTGEN2______ 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) Details: The module have RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Details: Data to the modulation circuit is buffered as described in the operational description provided with the application 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Details: The module contains its own power supply regulation. Please refer to schematic filed with this application 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) Details: The module have Copper tube antenna 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) Details: The module was tested stand-alone as shown in test setup photographs filed with this application Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Details: There is a label on the module as shown in the labeling exhibit filed with this application. Host specific labeling instructions are shown in the installation manual .filed with this application. 7. The modular transmitter must comply with all specific rule or operating requirements applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.23…

Text truncated - open the document above for the full version.

Label: FCC ID: WUI-TTGEN2 Model: TTGEN2 Product: MODULE OF TTGEN2 SK-TTGEN2_V1 Label Location

Related to EFGX23120418-IE-01-E01 Radiofrequency radiation exposure evaluation: mobile devices RESULT : Pass Test Specification Test item : MODULE OF TTGEN2 Identification / Type No. : TTGEN2 FCC ID : WUI-TTGEN2 Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 D04  FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to KDB 447498 D04 a) EUT RF Exposure Evaluation operations, Worst Case mode Test Mode Measured Power (dBm) Antenna Gain (dBi) Measured e.i.r.p (dBm) Measured e.i.r.p (mW) Minimum Separation Distances (cm) Limit (mW) 2.4GHz band Wi-Fi 14.35 3.56 17.91 61.80 20 768

MyAntennaRFTechnologyCo.,Ltd ADD:Room410,BuildingA,FenghuangZhigu,No.50TieziRoad,GongleCommunity,XixiangStreet,BaoanDistrict, Shenzhen TEL ： +86-0755-86503881E-mail ： [email protected] VBM90ECopperTubeAntenna PRODUCTS PartNo.DimensionsConnectorColor M01-0601490R0A Φ4.5*87.1mm IPX1Black SPECIFICATIONS PARAMETER SPECIFICATION FrequencyBands,MHz2400-2500 VSWR(Max)3.0:1 PeakGain,dBi(Typ)Upto3.56 PeakEfficiencyUpto71.44% NominalImpedance50Ω MaxPower(ambienttempof25°C)10Watts AzimuthBeamWidth(deg)Omnidirectional PolarizationLinear,Omnidirectional ColorBlack StorageTemperatureRange(°C)-40°Cto+85°C OperationalTemperatureRange(°C)-40°Cto+85°C MaterialSubstanceComplianceRoHSCompliant ELECTRICALDATA V.S.W.R MyAntennaRFTechnologyCo.,Ltd ADD:Room410,BuildingA,FenghuangZhigu,No.50TieziRoad,GongleCommunity,XixiangStreet,BaoanDistrict, Shenzhen TEL ： +86-0755-86503881E-mail ： [email protected] Efficiency（%） PeakGain（dBi） MyAntennaRFTechnologyCo.,Ltd ADD:Room410,BuildingA,FenghuangZhigu,No.50TieziRoad,GongleCommunity,XixiangStreet,BaoanDistrict, Shenzhen TEL ： +86-0755-86503881E-mail ： [email protected] RADIATIONPATTERNS 3DRadiationPatternat2410MHzGain=3.47dBi 3DRadiationPatternat2450MHzGain=3.33dBi MyAntennaRFTechnologyCo.,Ltd ADD:Room410,BuildingA,FenghuangZhigu,No.50TieziRoad,GongleCommunity,XixiangStreet,BaoanDistrict, Shenzhen TEL ： +86-0755-86503881E-mail ： [email protected] 3DRadiationPatternat2480MHzGain=2.93dBi 2DRadiationPatternat2410MHzGain=3.47dBi H面E1面E2面 2DRadiationPatternat2450MHzGain=3.33dBi H面E1面E2面 MyAntennaRFTechnologyCo.,Ltd ADD:Room410,BuildingA,FenghuangZhigu,No.50TieziRoad,GongleCommunity,XixiangStreet,BaoanDistrict, Shenzhen TEL ： +86-0755-86503881E-mail ： [email protected] 2DRadiationPatternat2480MHzGain=2.93dBi DARKROOMTESTCOORDINATEDIAGRAM MyAntennaRFTechnologyCo.,Ltd ADD:Room410,BuildingA,FenghuangZhigu,No.50TieziRoad,GongleCommunity,XixiangStreet,BaoanDistrict, Shenzhen TEL ： +86-0755-86503881E-mail ： [email protected] HOUSINGCONFIGURATIONS 87.1±3.00 Φ4.5 24.10±0.5 Φ1.13±0.1 38.00±1.5 Ipex 1 connector

Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.560 2407.440 2417.000 0.5 PASS 2437 9.520 2432.000 2441.520 0.5 PASS 2462 10.040 2456.960 2467.000 0.5 PASS 11G Ant1 2412 16.360 2403.800 2420.160 0.5 PASS 2437 16.360 2428.800 2445.160 0.5 PASS 2462 16.360 2453.800 2470.160 0.5 PASS 11N20SI SO Ant1 2412 17.560 2403.200 2420.760 0.5 PASS 2437 17.280 2428.440 2445.720 0.5 PASS 2462 17.360 2453.400 2470.760 0.5 PASS 11N40SI SO Ant1 2422 29.440 2407.600 2437.040 0.5 PASS 2437 29.040 2421.960 2451.000 0.5 PASS 2452 30.000 2436.960 2466.960 0.5 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency [MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.454 2405.2618 2418.7158 --- --- 2437 13.496 2430.2678 2443.7638 --- --- 2462 13.477 2455.2928 2468.7698 --- --- 11G Ant1 2412 17.108 2403.4477 2420.5557 --- --- 2437 17.033 2428.5141 2445.5471 --- --- 2462 17.100 2453.4676 2470.5676 --- --- 11N20SI SO Ant1 2412 17.977 2403.0130 2420.9900 --- --- 2437 17.936 2428.0657 2446.0017 --- --- 2462 17.971 2453.0377 2471.0087 --- --- 11N40SI SO Ant1 2422 32.751 2405.6746 2438.4256 --- --- 2437 32.809 2420.6937 2453.5027 --- --- 2452 32.749 2435.7921 2468.5411 --- --- Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix C: Maximum conducted output power Test Result AV Test Mode Antenna Frequency [MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 8.39 ≤30.00 PASS 2437 7.91 ≤30.00 PASS 2462 8.17 ≤30.00 PASS 11G Ant1 2412 14.35 ≤30.00 PASS 2437 13.78 ≤30.00 PASS 2462 14.09 ≤30.00 PASS 11N20SISO Ant1 2412 14.21 ≤30.00 PASS 2437 13.47 ≤30.00 PASS 2462 13.81 ≤30.00 PASS 11N40SISO Ant1 2422 4.80 ≤30.00 PASS 2437 4.30 ≤30.00 PASS 2452 4.61 ≤30.00 PASS Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -22.88 ≤8.00 PASS 2437 -22.57 ≤8.00 PASS 2462 -22.61 ≤8.00 PASS 11G Ant1 2412 -15.30 ≤8.00 PASS 2437 -16.44 ≤8.00 PASS 2462 -15.70 ≤8.00 PASS 11N20SISO Ant1 2412 -16.31 ≤8.00 PASS 2437 -16.45 ≤8.00 PASS 2462 -16.06 ≤8.00 PASS 11N40SISO Ant1 2422 -26.36 ≤8.00 PASS 2437 -26.43 ≤8.00 PASS 2452 -26.42 ≤8.00 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Frequency [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 Low 2412 -0.14 -46.4 ≤-30.14 PASS High 2462 -0.37 -45.83 ≤-30.37 PASS 11G Ant1 Low 2412 2.47 -30.91 ≤-27.53 PASS High 2462 2.32 -43.26 ≤-27.68 PASS 11N20SI SO Ant1 Low 2412 2.67 -32.53 ≤-27.33 PASS High 2462 2.14 -42.78 ≤-27.87 PASS 11N40SI SO Ant1 Low 2422 -8.20 -45.7 ≤-38.2 PASS High 2452 -8.85 -45.83 ≤-38.85 PASS Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412

11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency [MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -0.04 -0.04 --- PASS 30~1000 -0.04 -58.55 ≤-30.04 PASS 1000~26500 -0.04 -50.22 ≤-30.04 PASS 2437 Reference -0.16 -0.16 --- PASS 30~1000 -0.16 -58.61 ≤-30.16 PASS 1000~26500 -0.16 -49.91 ≤-30.16 PASS 2462 Reference -0.43 -0.43 --- PASS 30~1000 -0.43 -56.84 ≤-30.43 PASS 1000~26500 -0.43 -50.11 ≤-30.43 PASS 11G Ant1 2412 Reference 3.37 3.37 --- PASS 30~1000 3.37 -58.25 ≤-26.63 PASS 1000~26500 3.37 -49.83 ≤-26.63 PASS 2437 Reference 2.39 2.39 --- PASS 30~1000 2.39 -58.71 ≤-27.61 PASS 1000~26500 2.39 -49.72 ≤-27.61 PASS 2462 Reference 2.37 2.37 --- PASS 30~1000 2.37 -58.25 ≤-27.63 PASS 1000~26500 2.37 -49.03 ≤-27.63 PASS 11N20SI SO Ant1 2412 Reference 2.51 2.51 --- PASS 30~1000 2.51 -58.47 ≤-27.49 PASS 1000~26500 2.51 -50.12 ≤-27.49 PASS 2437 Reference 2.54 2.54 --- PASS 30~1000 2.54 -58.42 ≤-27.46 PASS 1000~26500 2.54 -49.26 ≤-27.46 PASS 2462 Reference 2.82 2.82 --- PASS 30~1000 2.82 -58.44 ≤-27.18 PASS 1000~26500 2.82 -50.38 ≤-27.18 PASS 11N40SI SO Ant1 2422 Reference -8.40 -8.40 --- PASS 30~1000 -8.40 -58.14 ≤-38.4 PASS 1000~26500 -8.40 -50.38 ≤-38.4 PASS 2437 Reference -9.31 -9.31 --- PASS 30~1000 -9.31 -58.15 ≤-39.31 PASS 1000~26500 -9.31 -50.1 ≤-39.31 PASS 2452 Reference -8.59 -8.59 --- PASS 30~1000 -8.59 -57.05 ≤-38.59 PASS 1000~26500 -8.59 -50.38 ≤-38.59 PASS Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 19.00 19.00 100.00 2437 19.00 19.00 100.00 2462 19.00 19.00 100.00 11G Ant1 2412 5.49 5.51 99.64 2437 5.49 5.52 99.46 2462 5.49 5.50 99.82 11N20SIS O Ant1 2412 5.08 5.11 99.41 2437 5.09 5.11 99.61 2462 5.08 5.11 99.41 11N40SIS O Ant1 2422 2.47 2.49 99.20 2437 2.46 2.49 98.80 2452 2.47 2.50 98.80 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437

11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Appendix H: Emissions in Restricted Bands Test Result Mode: 11B-2412 Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310 9.07 46.96 74.00 27.04 44.28 54.00 9.72 150 164 Horizontal PASS 2 2326.88 9.14 49.27 74.00 24.73 45.87 54.00 8.13 150 182 Horizontal PASS 3 2371.2804 9.53 42.04 74.00 31.96 41.11 54.00 12.89 180 181.4 Horizontal PASS 4 2384.3201 10.12 40.23 74.00 33.77 38.98 54.00 15.02 136.5 140 Horizontal PASS 5 2388.4805 10.28 44.49 74.00 29.51 43.46 54.00 10.54 144.2 185 Horizontal PASS 6 2390 10.38 51.29 74.00 22.71 48.24 54.00 5.76 150 164 Horizontal PASS Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310 9.07 46.15 74.00 27.85 43.50 54.00 10.50 150 271 Vertical PASS 2 2323.28 9.17 48.67 74.00 25.33 45.68 54.00 8.32 150 63 Vertical PASS 3 2338.96 9.15 48.75 74.00 25.25 43.92 54.00 10.08 150 265 Vertical PASS 4 2378.88 9.85 48.79 74.00 25.21 46.03 54.00 7.97 150 158 Vertical PASS 5 2389.1997 10.36 42.43 74.00 31.57 41.34 54.00 12.66 159.7 110 Vertical PASS 6 2389.9995 10.38 42.84 74.00 31.16 41.83 54.00 12.17 172.4 120 Vertical PASS Mode: 11B-2462 Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5 10.62 49.37 74.00 24.63 47.15 54.00 6.85 150 37 Horizontal PASS 2 2484.3415 10.53 51.12 74.00 22.88 46.82 54.00 7.18 150 46 Horizontal PASS 3 2484.787 10.51 52.23 74.00 21.77 49.38 54.00 4.62 150 25 Horizontal PASS 4 2485.612 10.43 51.74 74.00 22.26 49.52 54.00 4.48 150 61 Horizontal PASS 5 2490.958 10.35 51.70 74.00 22.30 47.41 54.00 6.59 150 64 Horizontal PASS 6 2500 10.10 48.97 74.00 25.03 45.72 54.00 8.28 150 88 Horizontal PASS Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5 10.62 48.51 74.00 25.49 45.45 54.00 8.55 150 352 Vertical PASS 2 2484.8695 10.51 49.60 74.00 24.40 45.03 54.00 8.97 150 210 Vertical PASS 3 2487.394 10.29 49.61 74.00 24.39 45.64 54.00 8.36 150 76 Vertical PASS 4 2489.176 10.25 49.39 74.00 24.61 46.23 54.00 7.77 150 293 Vertical PASS 5 2490.8755 10.34 49.49 74.00 24.51 45.79 54.00 8.21 150 90 Vertical PASS 6 2500 10.10 47.50 74.00 26.50 45.76 54.00 8.24 150 355 Vertical PASS Mode: 11G-2412 Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310 9.07 46.57 74.00 27.43 43.78 54.00 10.22 150 238 Horizontal PASS 2 2321.6 9.19 48.98 74.00 25.02 44.06 54.00 9.94 150 235 Horizontal PASS 3 2341.28 9.22 49.81 74.00 24.19 46.91 54.00 7.09 150 247 Horizontal PASS 4 2362.56 9.41 50.77 74.00 23.23 47.63 54.00 6.37 150 241 Horizontal PASS 5 2383.76 10.11 50.98 74.00 23.02 48.60 54.00 5.40 150 70 Horizontal PASS 6 2390 10.38 50.24 74.00 23.76 47.57 54.00 6.43 150 265 Horizontal PASS Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2310 9.07 46.23 74.00 27.77 43.28 54.00 10.72 150 294 Vertical PASS 2 2332.08 9.30 48.80 74.00 25.20 46.83 54.00 7.17 150 170 Vertical PASS 3 2347.52 9.25 47.61 74.00 26.39 45.37 54.00 8.63 150 22 Vertical PASS 4 2379.2 9.86 49.18 74.00 24.82 45.81 54.00 8.19 150 66 Vertical PASS 5 2388.9601 10.34 41.90 74.00 32.10 40.77 54.00 13.23 174.6 121.8 Vertical PASS 6 2389.84 10.38 43.96 74.00 30.04 42.41 54.00 11.59 149.4 115.7 Vertical PASS Mode: 11G-2462 Final Data List NO. Freq. [MHz] Factor [dB/m] PK Value [dBμV/m] PK Limit [dBμV/m] PK Margin [dB] AV Value [dBμV/m] AV Limit [dBμV/m] AV Margin [dB] Height [cm] Angle [°] Polarity Verdict 1 2483.5825 10.61 48.33 74.00 25.67 47.43 54.00 6.57 100 243.7 Horizontal PASS 2 2484.0605 10.55 48.29 74.00 25.71 47.23 54.00 6.77 124.2 240.2 Horizontal PASS 3 2484.7043 10.51 44.59 74.00 29.41 43.45 54.00 10.55 120.1 268.1 Horizontal PASS 4 2485.81 10.40 53.48 74.00 20.52 49.37 54.00 4.63 150 254 Horizontal PASS 5 2486.866 10.35 53.84 74.00 20.16 51.…

Text truncated - open the document above for the full version.
