WUO-770102Audio frequency wireless transceiver

FCC ID: WUO-770102 IC: 7985A-770102 Page 1 of 4 SONAVOX Inc. Wireless Audio Transceiver Module - 770102 Users Manual This document is designed to provide general information for use of the Audio Wireless Transceiver Module 770102. EMI/EMC Compliance Guidelines FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IC Compliance This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. When integrating the 770102 module into your own product, you must: 1. Use only the provided PCB antenna. 2. Operate the module according to the specifications listed in this data sheet. 3. Include a label clearly visible on the exterior of the product which states: “Contains FCC ID: WUO-770102 / IC: 7985A-770102”. 4. It is mandatory that you consult all FCC and IC documentation for use of a modular approved product, and comply with all listed guidelines and additional testing that may be required. Specifications RF Circuit The module consists of Micro-controller, Audio RF Transceiver, Power amplifier, RF switches, Band-pass filter, antenna / optional soldering pad and matching circuits. The block diagram is shown on Fig.1 FCC ID: WUO-770102 IC: 7985A-770102 Page 2 of 4 SONAVOX Inc. Wireless Audio Transceiver Module - 770102 Users Manual Figure 1 RF Performance and Antenna configuration Outdoor range 30m. Maximum Transmitting RF Power - 15 dBm. Receiving Sensitivity -78 dBm. Frequency ISM 2.404 - 2.475 GHz. Operation mode – Adaptive FHSS. Antenna – PCB “F” configuration. Physical Dimensions L x W x H = 2.125 x 1.055 x 0.200 [in] SMT solder pads size (L x W) = 0.125 x 0.065 [in] Lead spacing (LS) = 0.100 [in] Electrical Parameters Absolute maximum Supply Voltage Range 2.3 - 3.6 VDC Nominal Supply voltage – 3.3VDC Current Requirements - 200mA Operating Temperature Range - 0 to 70 °C / 32 to 158 °F User Interface GPIO 6 GPIO connections are provided (with programmable / alternate functionality). These GPIO can take 0..3.3V voltage range and +/-6mA of current. Voltage exceeding these limits can result in damage to the module circuitry. Interrupt Capability is available on all pins. PCB Material and layout considerations The PCB material for the base PCB should be FR4 glass epoxy. FCC ID: WUO-770102 IC: 7985A-770102 Page 3 of 4 SONAVOX Inc. Wireless Audio Transceiver Module - 770102 Users Manual All supply pins should have decoupling electrolytic capacitors and ferrite beads positioned as close to the supply pins as possible. All digital audio pins must have small resistors (10..20 Ohms) or ferrite beads in series and positioned close to the module. No components or traces should be located close to the antenna. Recommended minimum distance is 1sm. Communications External devices can communicate with and through the module using low speed serial interface such as single wire communications (such as Infra Red Remote Control protocol) or systems using multiple connections (such as I2C, UART, SPI). Audio devices (ADC, DAC) have dedicated high speed digital audio serial bus that can be configured as (Left Justified, I2S or Right Justified). The configuration can be up to 24bit audio data with sampling rates of up to 48kHz. Audio Latency is selectable from 6ms to 25.1ms Addressing Several systems can work in close proximity when they have different address. The address is randomly generated during paring mode. The pairing mode is typically started using an external, user accessible switch connected to one of the GPIO pins of the module. Firmware Sonavox can provide customized firmware on the module for our customers. Other features The module is RoHS compliant. The module is FCC approved (documentation available on request). The module is IC approved (documentation available on request). Module Pin-out Pin Number Description 1 BCK – Digital audio – Bit clock 2 LRCLK – Digital Audio – Left/Right Clock 3 SDATA – Digital Audio - Data 4 MCLK – Digital audio – System Clock 5,7,9,20 GND 6 RF_TxRx_Vcc (+3.3V) 8 Control_Vcc (+3.3V) 10 RF_PA_CTRL_Vcc (+3.3V) 11 TDI/O_GPIO[1] – Micro-controller programming pin / General Purpose IO pin 12 TDI_GPIO[2] - Micro-controller programming pin / General Purpose IO pin FCC ID: WUO-770102 IC: 7985A-770102 Page 4 of 4 SONAVOX Inc. Wireless Audio Transceiver Module - 770102 Users Manual 13 TMS_GPIO[3] - Micro-controller programming pin / General Purpose IO pin 14 TCK_GPIO[4] - Micro-controller programming pin / General Purpose IO pin 15 uC_TEST Micro-controller programming pin 16,17 GPIO[5], GPIO[6] - General Purpose IO pin 18 uC_RST - Micro-controller programming pin 19 RF_PA_Vcc (+3.3V)

FCC ID: WUO-770102 IC: 7985A-770102 Page 1 of 2 Figure 1: Radiated spurious emissions on module FCC ID: WUO-770102 IC: 7985A-770102 Page 2 of 2 Figure 2: Rear view of enclosure Figure 3: Audio module

FCC ID: WUO-770102 IC: 7985A-770102 Page 1 of 4 Figure 1: RF Module FCC ID: WUO-770102 IC: 7985A-770102 Page 2 of 4 Figure 2: RF Module top view without shield FCC ID: WUO-770102 IC: 7985A-770102 Page 3 of 4 Figure 3: RF Module rear view without shield FCC ID: WUO-770102 IC: 7985A-770102 Page 4 of 4 Figure 4: Audio module

FCC ID: WUO-770102 IC: 7985A-770102 Page 1 of 3 SONAVOX Inc. Wireless Audio Transceiver Module - 770102 Operations Overview The 770102 Wireless Audio Module is the ideal solution for customers ready to make their audio products wireless. Whether you’re in the development stage or ready to mass manufacture, the 770102 will provide the reliable, standards-compliant, guaranteed performance you need. Product Highlights RF Performance Optimized and Guaranteed 770102 modules are thoroughly optimized and tested to ensure consistent and superior RF performance. Small Form Factor The 770102 minimal size makes it easy to integrate into existing enclosures. Firmware We can customize firmware on the module for our customers. IO Pins 4 Digital Audio pins configured as LJ/I2S/RJ audio configuration. 6 GPIO shared with Micro-controller programming pins. Other Features RoHS compliant. RF Characteristics Outdoor range 30m. Transmitting Power - 15 dBm. Receiver Sensitivity -78 dBm. Frequency ISM 2.404 - 2.475 GHz. Operation mode – Adaptive FHSS. Power requirements Supply Voltage Range 2.3 - 3.6 VDC Nominal Supply voltage – 3.3VDC Current Requirements - 200mA Physical Specifications Operating Temperature 0 to 70 °C / 32 to 158 °F Antenna – PCB “F” configuration. FCC ID: WUO-770102 IC: 7985A-770102 Page 2 of 3 SONAVOX Inc. Wireless Audio Transceiver Module - 770102 Operations FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IC Compliance This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. When integrating the 770102 module into your own product, you must: Use only the provided PCB antenna. Operate the module according to the specifications listed in this data sheet. Include a label clearly visible on the exterior of the product which states: “Contains FCC ID: WUO-770102 / IC: 7985A-770102”. It is mandatory that you consult all FCC and IC documentation for use of a modular approved product, and comply with all listed guidelines and additional testing that may be required. Module Connection specifications Pin description Pin Number Description 1 BCK – Digital audio – Bit clock 2 LRCLK – Digital Audio – Left/Right Clock 3 SDATA – Digital Audio - Data 4 MCLK – Digital audio – System Clock 5,7,9,20 GND 6 RF_TxRx_Vcc (+3.3V) 8 Control_Vcc (+3.3V) 10 RF_PA_CTRL_Vcc (+3.3V) 11 TDI/O_GPIO[1] – Micro-controller programming pin / General Purpose IO pin 12 TDI_GPIO[2] - Micro-controller programming pin / General Purpose IO pin 13 TMS_GPIO[3] - Micro-controller programming pin / General Purpose IO pin 14 TCK_GPIO[4] - Micro-controller programming pin / General Purpose IO pin 15 uC_TEST Micro-controller programming pin 16,17 GPIO[5], GPIO[6] - General Purpose IO pin 18 uC_RST - Micro-controller programming pin 19 RF_PA_Vcc (+3.3V) Module Footprint FCC ID: WUO-770102 IC: 7985A-770102 Page 3 of 3 SONAVOX Inc. Wireless Audio Transceiver Module - 770102 Operations

LAB REGISTRATION #6844A-1 FCC REGISTRATION #612361 Page 1 of 19 Report issue date: 11/7/2008 GEMC File #:180559 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs MPE Evaluation As per Industry Canada Safety Code 6 & FCC Part 15 Subpart C: 2007 15.247i FCC Part 1, Section 1.1310 Table 1 (B) On the Audio frequency wireless Transmitter / Receiver 770102 Ashwani Malhotra Global EMC Inc. 180 Brodie Dr, Unit 2 Richmond Hill, ON L4B 3K8 Canada Ph: (905) 883-3919 Testing produced for See Appendix A for full customer & EUT details. Client Sonavox Canada Inc. Product 770102 Standard(s) RSS 210 Issue 6:2005 / FCC Part 15 Subpart C 15:2006 Page 2 of 19 Report issue date: 11/7/2008 GEMC File #:180559 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 5 Applicable Standards, Specifications and Methods ........................................................... 6 Sample calculation(s) ......................................................................................................... 7 Sample calculation(s) ......................................................................................................... 7 Document Revision Status ................................................................................................. 7 Definitions and Acronyms ..................................................................................................... 8 Testing Facility ...................................................................................................................... 9 Calibrations and Accreditations ......................................................................................... 9 Testing Environmental Conditions and Dates ................................................................. 10 Detailed Test Results Section .............................................................................................. 11 Maximum Permissible Exposure ..................................................................................... 12 Appendix A – EUT Summary.............................................................................................. 14 Appendix B – EUT and Test Setup Photographs................................................................. 16 Client Sonavox Canada Inc. Product 770102 Standard(s) RSS 210 Issue 6:2005 / FCC Part 15 Subpart C 15:2006 Page 3 of 19 Report issue date: 11/7/2008 GEMC File #:180559 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the 770102 Wireless audio frequency transmitter / receiver, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was evaluated for compliance against the following standards: IC Safety Code 6 & FCC Part 1, Section 1.1310 Table 1 (B) Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Sonavox Canada Inc. Product 770102 Standard(s) RSS 210 Issue 6:2005 / FCC Part 15 Subpart C 15:2006 Page 4 of 19 Report issue date: 11/7/2008 GEMC File #:180559 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: WUO - 770102 EUT Industry Canada Certification #, IC: 7985A-770102 EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Ashwani Malhotra Client Sonavox Canada Inc. Product 770102 Standard(s) RSS 210 Issue 6:2005 / FCC Part 15 Subpart C 15:2006 Page 5 of 19 Report issue date: 11/7/2008 GEMC File #:180559 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.247(i) IC Safety code 6 Maximum Permissible Exposure > 20 cm separation. Pass See justification and calculations Overall Result PASS All tests were performed by Ashwani Malhotra If the product as tested or otherwise complies with the specification, the EUT is deemed to comply with the requirement and is deemed a „PASS‟ grade. If not „FAIL‟ grade will be issued. Note that „PASS‟ / „FAIL‟ grade is independent of any measurement uncertainties. A „PASS‟ / „FAIL‟ grade within measurement uncertainty is marked with a „*‟. Justifications, Descriptions, or Deviations The following justifications for tests not performed or deviations from the above listed specifications apply: For maximum permissible exposure, this device operates at less then 1 Watt at 2400 – 2480.0 MHz and is design…

Text truncated - open the document above for the full version.

LAB REGISTRATION #6844A-1 FCC REGISTRATION #612361 Page 1 of 118 Report issue date: 11/7/2008 GEMC File #:180559 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 6:2005 & FCC Part 15 Subpart C: 2006 Unlicensed Intentional Radiators on the Audio frequency wireless Transmitter / Receiver 770102 Ashwani Malhotra Global EMC Inc. 180 Brodie Dr, Unit 2 Richmond Hill, ON L4B 3K8 Canada Ph: (905) 883-3919 Testing produced for See Appendix A for full customer & EUT details. Client Sonavox Canada Inc. Product 770102 Standard(s) RSS 210 Issue 6:2005 / FCC Part 15 Subpart C 15:2006 Page 2 of 118 Report issue date: 11/7/2008 GEMC File #: GEMC-180559 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Spurious Radiated Emissions ........................................................................................... 13 Channel Carrier Separation for Frequency Hopping Systems ......................................... 68 Number of Channels for Frequency Hopping Systems ................................................... 76 Frequency Occupancy for Frequency Hopping Systems ................................................. 79 Maximum Peak Envelope Conducted Power .................................................................. 84 Spurious Emissions -20 dbc Rule .................................................................................... 90 Power Line Conducted Emissions ................................................................................. 104 Maximum Permissible Exposure ................................................................................... 111 Appendix A – EUT Summary............................................................................................ 113 Appendix B – EUT and Test Setup Photographs............................................................... 115 Client Sonavox Canada Inc. Product 770102 Standard(s) RSS 210 Issue 6:2005 / FCC Part 15 Subpart C 15:2006 Page 3 of 118 Report issue date: 11/7/2008 GEMC File #: GEMC-180559 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the 770102 Wireless audio frequency transmitter / receiver, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 6:2005 / FCC Part 15 Subpart C 15:2006 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Sonavox Canada Inc. Product 770102 Standard(s) RSS 210 Issue 6:2005 / FCC Part 15 Subpart C 15:2006 Page 4 of 118 Report issue date: 11/7/2008 GEMC File #: GEMC-180559 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: WUO - 770102 EUT Industry Canada Certification #, IC: 7985A-770102 EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Ashwani Malhotra Client Sonavox Canada Inc. Product 770102 Standard(s) RSS 210 Issue 6:2005 / FCC Part 15 Subpart C 15:2006 Page 5 of 118 Report issue date: 11/7/2008 GEMC File #: GEMC-180559 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 RSS 210 Section 5.5 Antenna Requirement PCB Antenna Pass See Justification FCC 15.205 RSS 210 Section 6.3 (Table 2) Restricted Bands for…

Text truncated - open the document above for the full version.

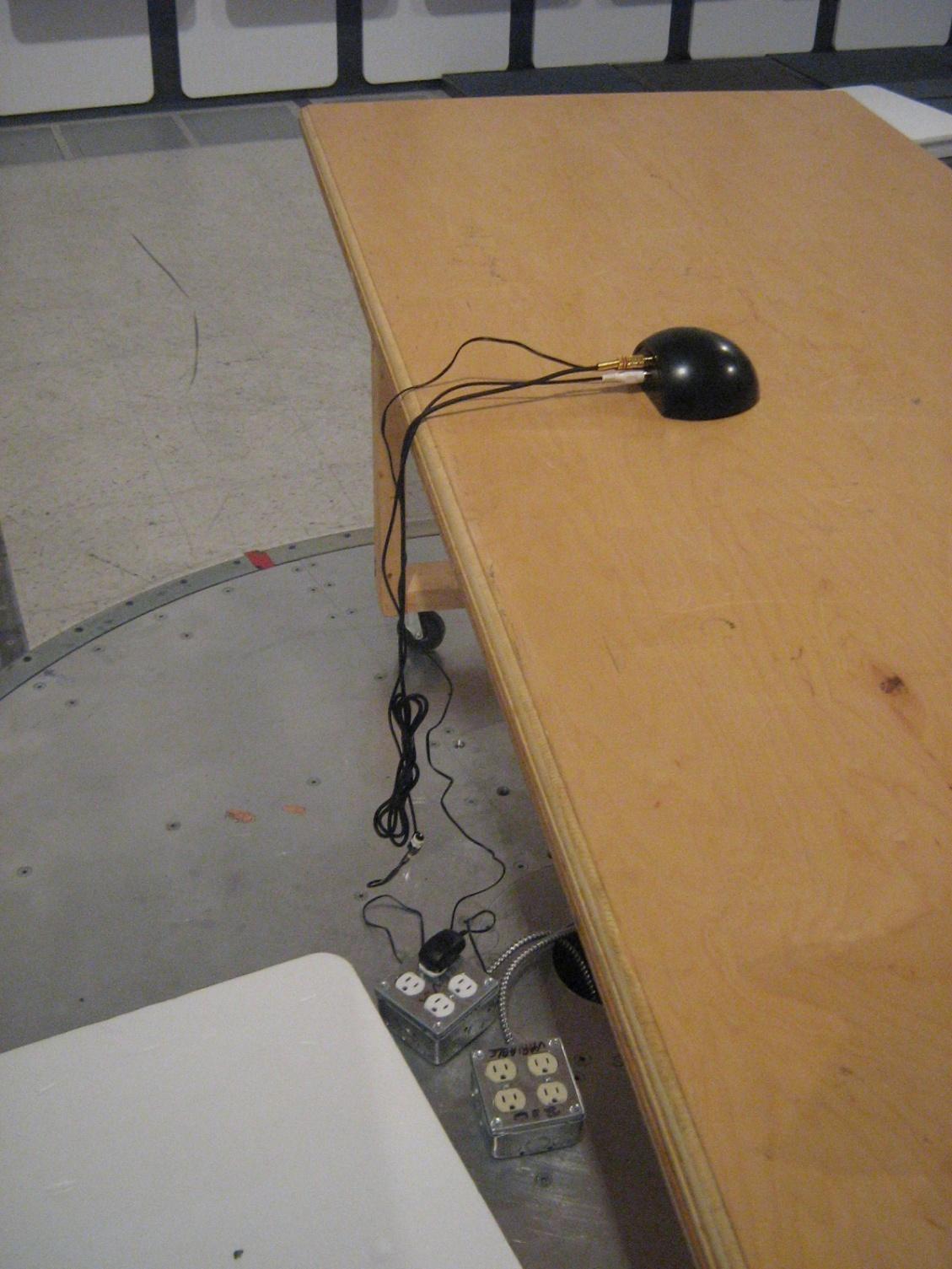

FCC ID: WUO-770102 IC: 7985A-770102 Page 1 of 3 Figure 1: Radiated emissions setup FCC ID: WUO-770102 IC: 7985A-770102 Page 2 of 3 Figure 2: Conducted emissions setup FCC ID: WUO-770102 IC: 7985A-770102 Page 3 of 3 Figure 3: RF Power conducted tests
