WWMMN421V2Wireless Lite-N USB Module

PW-MN421 Wireless Lite-N USB Module COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of PROWARE TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from PROWARE TECHNOLOGIES CO., LTD. Copyright © 2013 PROWARE TECHNOLOGIES CO., LTD. All rights reserved. http://www.proware.com.cn FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National Restrictions 2400.0-2483.5 MHz Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications Note: Please don’t use the product outdoors in France. CONTENTS Package Contents.................................................................................................... 1 Chapter 1 Introduction........................................................................................... 2 1.1 Overview of the Product.......................................................................................... 2 1.2 Features.................................................................................................................. 2 Chapter 2 Installation Guide.................................................................................. 3 2.1 Hardware Installation.............................................................................................. 3 2.2 Software Installation................................................................................................ 3 Appendix A: Specifications..................................................................................... 9 Appendix B: Glossary............................................................................................ 10 Package Contents The following items should be found in your package: ¾ PW-MN421 Wireless Lite-N USB Module ) Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor. Conventions: The ‘Module’ mentioned in this user guide stands for PW-MN421 Wireless Lite-N USB Module without any explanations. 1 PW-MN421 Wireless Lite-N USB Module 2 Chapter 1 Introduction Thank you for choosing the PW-MN421 Wireless Lite-N USB Module! 1.1 Overview of the Product The module is an 802.11n client device. It is mainly designed to provide a high-speed and unrivaled wireless performance for wireless embedded system application. With a faster wireless connection, you can get a better Internet experience without the cost of running network cables. With the 802.11n technology, the PW-MN421’s auto-sensing capability allows high packet transfer rate of up to 150Mbps for maximum throughput. It has good capability on anti-jamming, and it can also interoperate with other wireless (802.11b/g/n) products. The module supports WEP, WPA and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed. With unmatched wireless performance, reception, and sec…

Text truncated - open the document above for the full version.

PROWARE TECHNOLOGIES CO., LTD. Attestation for FCC Declaration of Conformity FCC ID:WWMMN421V2 Date:2013-4-10 Please be notified that we, the undersigned, Proware Technologies Co Ltd., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM‐F1020109 , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53‐11, Tin‐Fu Tsun, Lin‐Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

PROWARE TECHNOLOGIES CO., LTD. AGENCY AUTHORIZATION LETTER FCC ID：WWMMN421V2 Date: 2013-4-7 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China）to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site:WWW.PROWARE.COM.CN

PROWARE TECHNOLOGIES CO., LTD. Date: 2013-4-7 Communications Commission Authorization and Evaluation Division FCC ID: WWMMN421V2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

PROWARETECHNOLOGIES CO., LTD. Attestation for FCC Declaration of Conformity Modular Approval Request Letter Dear Application Examiner, Proware Technologies Co Ltd.,It’s PW-MN421, FCC ID:WWMMN421V1，would like to have your authorization as a modular approval specific to the the computer device such as desktop/laptop computer.The requirements of section 15.212 have been met and shown on the following stat ements. 1, “The modular transmitter must have it’ s own RF shielding.” The radio portion of this module have been shielded,please see exhibi tion External Photo. 2, “The modular transmitter must have buffered modulation data inputs.”The EUT has buff ered data inputs, it is integrated in chip AR9271L. 3，“The modular transmitter must have it’s own power supply regulation.” The USB interface provides 5 V DC, The on board power RT8010 convert 5V DC to 3.3V DC. 4，“The modular transmitter must comply with antenna requirements of section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements,it’ s an integral PCB antenna and have no antenna connector.The spurious emissions are shown in the t est report. 5, “The modular transmitter must be tested in a stand-alone configuration.” The EUT was tested in a stand-alone configuration vi a a PCB to PDA,please see section photographs of test configration in the t est report. 6, “The modular transmitter must be labeled with it’ s own FCC ID number.” Please see exhibition Lab el Sample for the FCC ID of this module.And also in the exhibiti on User Manual,there are in structions give to the OEM on how to label the end product. 7, “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instructi ons along with module to explain any such requirement.” The EUT is compliant with all applicable FCC rules,detail instructi ons for maintaining compliance are given in the users Manual. 8, “The modular transmitter must conply with any applicable RF exposure requ irements.” The EUT is compliant with al l a pplic able RF exposure requirements.RF exposure i s addressed in the test report. Best Regarts! Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel:86-755-2652555 4 Fax: 86-755-2650893 0 Web site: WWW.PROWARE.COM.CN

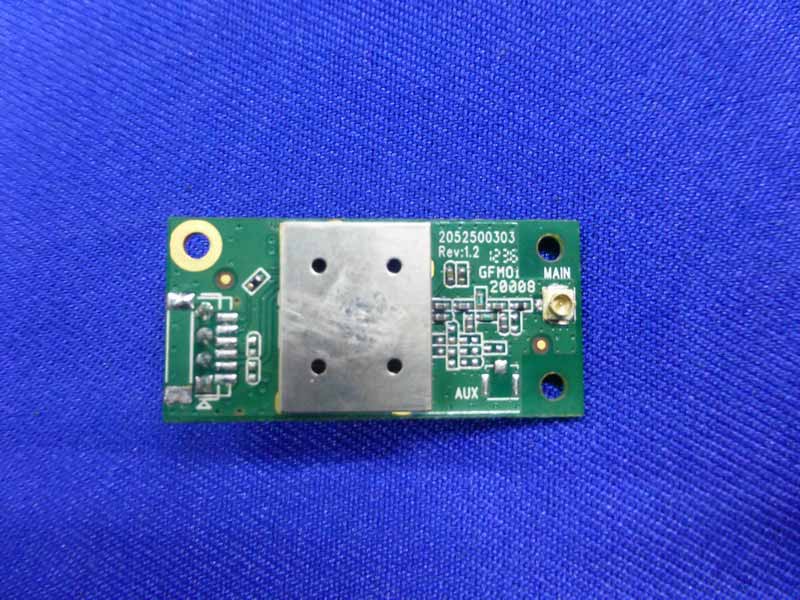

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN421V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13073 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

12 E D C B A 12 3456789 E D C 345678 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 PW-MN421 1.0屏蔽罩标贴 第一版 PW-MN421 1.0 2010-11-11 葛焕丽 80g艾利铜版纸+光膜 黑白印刷 14.5*11mm,0.5R 文字转曲线 1:1

12 E D C B A 12 3456789 E D C 345678 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 PW-MN421 1.0屏蔽罩标贴 第一版 PW-MN421 1.0 2010-11-11 葛焕丽 80g艾利铜版纸+光膜 黑白印刷 14.5*11mm,0.5R 文字转曲线 1:1

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN421V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13073 13-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN421V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13073 13-3 Figure 5 ANT(1120-1300REV) Figure 6 ANT(1120-1300REV) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN421V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13073 13-4 Figure 7 ANT (N2410CM-T-30U) Figure 8 ANT (N2410CM-T-30U) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN421V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13073 13-5 Figure 9 ANT (N2410CM-T-G300U) Figure 10 ANT (N2410CM-T-G300U)

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN421V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13073 10-1 10. MPE ESTIMATION 10.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 10.2. Estimation Result EUT: Wireless Lite-N USB Module M/N: PW-MN421 Test date: 2013-03-28 Pressure: 101.4±1.0 kpa Humidity: 46.4±3.0% Tested by: Leo-Li Test site: RF Site Temperature：23.6±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 CH6 CH11 11g CH1 CH6 CH11 11n HT20 CH1 CH6 CH11 11n HT40 CH1 CH4 CH7 Note:The Estimate distance is 20cm.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN421V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13073 1-1 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Proware Technologies Co., Ltd. Wireless Lite-N USB Module Model No.: PW-MN421 FCC ID: WWMMN421V2 Prepared for : Proware Technologies Co., Ltd. 2nd F1 East Wing, South Section, Factory Building 24, Science & Technology Park, Shennan Rd, Nanshan District, Shenzhen Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F13073 Date of Test ： Mar.26~30, 2013 Date of Report ： Apr.03, 2013 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN421V2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13073 1-2 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ................................................................................... 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ........................................................................................ 2-3 2.4. Block Diagram of Test Setup ............................................................................................... 2-3 2.5. Test Facility .......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) ..................................................... 2-4 3. POWER LINE CONDUCTED EMISSION MERSUREMENT ................................. 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test .............................................................................................. 3-1 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results ..................................................................... 3-2 4. RADIATED EMISSION MEASUREMENT ................................................................ 4-1 4.1. Test Equipment ..................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment ..................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment ..................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment ..................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ....................................................................................................…

Text truncated - open the document above for the full version.
