PW-MN427_56I 150Mbps Wireless N USB Module FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation Only for indoor applications Note: Please don’t use the product outdoors in France. Notice The host or end product must be labeled with ‘contains FCC ID:WWMMN42756IV2’ display on the label. CONTENTS Package Contents .................................................................................................... 1 Chapter 1 Introduction .......................................................................................... 2 1.1 Product Overview .............................................................................................. 2 1.2 Main Features ................................................................................................... 2 1.3 LED Status ........................................................................................................ 2 Chapter 2 Installation Guide ................................................................................. 3 2.1 Hardware Installation ........................................................................................ 3 2.2 Software Installation .......................................................................................... 3 2.2.1 Overview ............................................................................................................. 3 2.2.2 Installation Guide ................................................................................................ 3 2.3 Uninstall Software ............................................................................................. 8 2.3.1 Uninstall the utility software from your PC .......................................................... 8 2.3.2 Uninstall the driver software from your PC ......................................................... 8 Chapter 3 Configuration ........................................................................................ 9 3.1 Configuration of Utility ....................................................................................... 9 3.1.1 Site Survey ........................................................................................................ 10 3.1.2 Profile ................................................................................................................ 10 3.1.3 Link Information ................................................................................................ 22 3.1.4 Advanced .......................................................................................................... 24 3.1.5 About .........................…

Text truncated - open the document above for the full version.

PROWARE TECHNOLOGIES CO., LTD. Modular Approval Request Letter Dear Application Examiner, Proware Technologies Co., Ltd., It’s 150Mbps Wireless N USB Module PW‐MN427_56I 2.0, FCC ID: WWMMN42756IV2,would like to have your authorization as a full modular approval specific to the computer device, TV device such as desktop/laptop computer/ Smart TV. The requirements of section 15.212 have been met and shown on the following statements. 1, “The modular transmitter must have it’s own RF shielding.” The radio portion of this module has been shielded,please see exhibition External Photo. 2, “The modular transmitter must have buffered modulation data inputs.” The EUT has buffered data inputs, it is integrated in chip RT5370. 3，“The modular transmitter must have it’s own power supply regulation.” The USB interface provides 5V DC, The on board power IC MP2104DJ‐LF convert 5V DC to 3.3V DC. 4，“The modular transmitter must comply with antenna requirements of section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements,it’s have I‐PEX antenna connector that no antenna other than that furnished by the responsible party shall be used with the device,The spurious emissions are shown in the test report. 5, “The modular transmitter must be tested in a stand‐alone configuration.” The EUT was tested in a stand‐ alone configuration via a PCB to Notebook,please see section photographs of test configration in the test report. 6, “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. 7, “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instructions along with module to explain any such requirement.” The EUT is compliant with all applicable FCC rules,detail instructions for maintaining compliance are given in the users’ Manual. 8, “The modular transmitter must conply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements.RF exposure is addressed in the test report. Best Regarts! Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

PROWARE TECHNOLOGIES CO., LTD. AGENCY AUTHORIZATION LETTER FCC ID：WWMMN42756IV2 Date: Feb 01, 2013 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd (No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China) to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

PROWARE TECHNOLOGIES CO., LTD. Date: Feb 01, 2013 Communications Commission Authorization and Evaluation Division FCC ID: WWMMN42756IV2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

PROWARE TECHNOLOGIES CO., LTD. Attestation for FCC Declaration of Conformity FCC ID:WWMMN42756IV2 Date: 2013‐02‐01 Please be notified that we, the undersigned, Proware Technologies Co Ltd., LTD declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM‐F1020105 , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53‐11, Tin‐Fu Tsun, Lin‐Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Yongquan Wang Title of authorized signer: Product Dept. Manager Company Name: PROWARE Technologies Co., Ltd. Tel: 86-755-26525554 Fax: 86-755-26508930 Web site: WWW.PROWARE.COM.CN

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN42756IV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13089 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN42756IV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13089 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

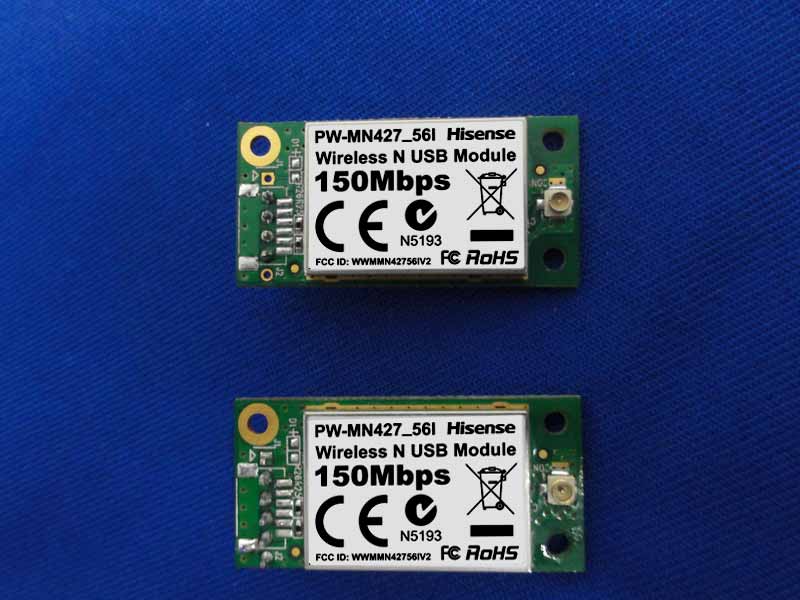

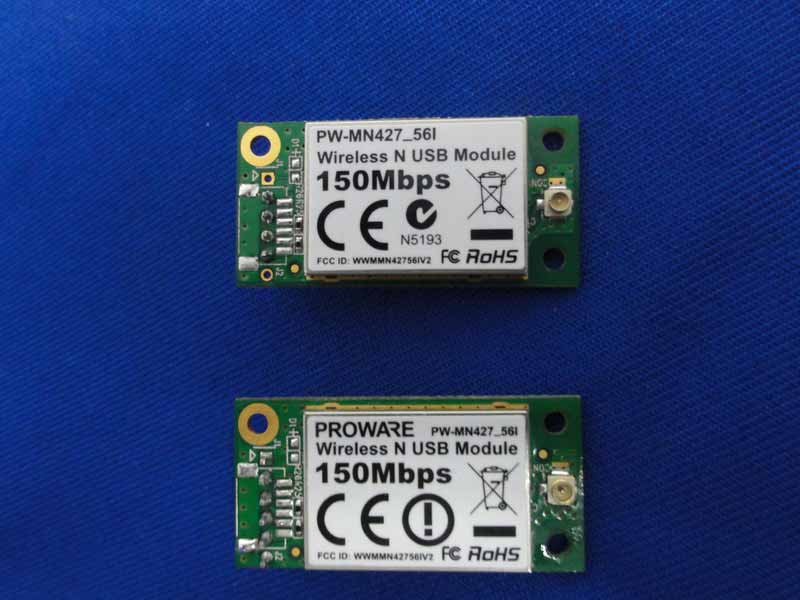

Label Location

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN42756IV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13089 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN42756IV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13089 14-4 Figure 7 General Appearance of the EUT Figure 8 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN42756IV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13089 14-5 Figure 9 General Appearance of the EUT Figure 10 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN42756IV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13089 14-6 Figure 11 Antenna 1 Figure 12 Antenna 2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN42756IV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13089 14-7 Figure 13 Antenna 3 Figure 14 Antenna 4 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN42756IV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13089 14-8 Figure 15 Antenna 5

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN42756IV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13089 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2. Estimation Result EUT: 150Mbps Wireless N USB Module M/N: PW-MN427_56I Test date: 2013-01-26 Pressure: 101.2±1.0 kpa Humidity: 51.6±3.0% Tested by: Leo-Li Test site: RF Site Temperature：20.8±0.6°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 3.4dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 2412 18.48 70.47 3.4 2.19 0.0307 CH6 2437 17.95 62.37 3.4 2.19 0.0272 CH11 2462 17.23 52.84 3.4 2.19 0.0230 11g CH1 2412 21.59 144.21 3.4 2.19 0.0628 CH6 2437 20.96 124.74 3.4 2.19 0.0543 CH11 2462 20.51 112.46 3.4 2.19 0.0490 11n HT20 CH1 2412 21.98 157.76 3.4 2.19 0.0687 CH6 2437 21.43 139.00 3.4 2.19 0.0605 CH11 2462 20.82 120.78 3.4 2.19 0.0526 11n HT40 CH1 2422 21.55 142.89 3.4 2.19 0.0622 CH4 2437 22.34 171.40 3.4 2.19 0.0746 CH7 2452 22.26 168.27 3.4 2.19 0.0733

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN42756IV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13089 1-1 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Proware Technologies Co., Ltd. 150Mbps Wireless N USB Module Model No.: PW-MN427_56I FCC ID: WWMMN42756IV2 Prepared for : Proware Technologies Co., Ltd. 2nd F1 East Wing, South Section, Factory Building 24, Science & Technology Park, Shennan Rd, Nanshan District, Shenzhen Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F13089 Date of Test ： Jan.12 ~ Apr. 15, 2013 Date of Report ： Apr. 23, 2013 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:WWMMN42756IV2 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13089 1-2 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-5 1.1. Description of Standards and Results ................................................................................... 1-5 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ........................................................................................ 2-3 2.4. Block Diagram of Test Setup ............................................................................................... 2-3 2.5. Test Facility .......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) ..................................................... 2-4 3. POWER LINE CONDUCTED EMISSION MERSUREMENT ................................. 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test .............................................................................................. 3-1 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results ..................................................................... 3-2 4. RADIATED EMISSION MEASUREMENT ................................................................ 4-1 4.1. Test Equipment ..................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment ..................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment ..................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment ..................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ............................................................................…
