WY9-A66Bluetooth Mini Speaker

Note: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND INDUSTRY CANADA LICENSE-EXEMPT RSS STANDARD(S). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Cet appareil est conforme à la Partie 15 des règlements de la FCC et aux normes RSS de l’Industrie du Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer des interférences nuisibles, et (2) cet appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent provoquer un fonctionnement indésirable. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED CHANGES OR MODIFICATIONS TO THIS EQUIPMENT. SUCH CHANGES OR MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

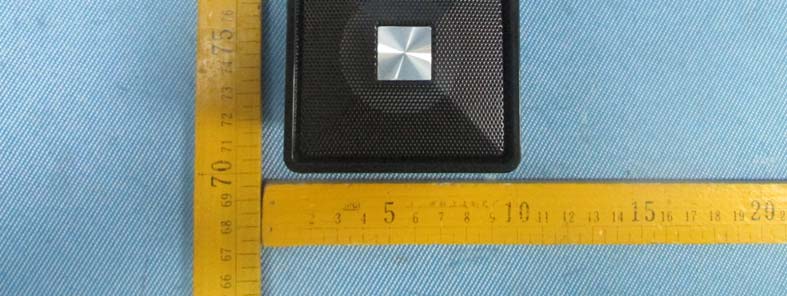

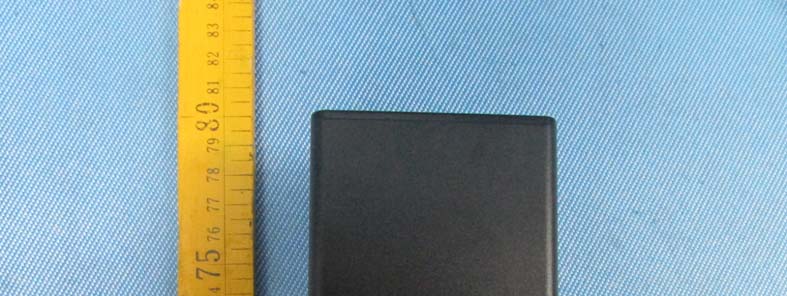

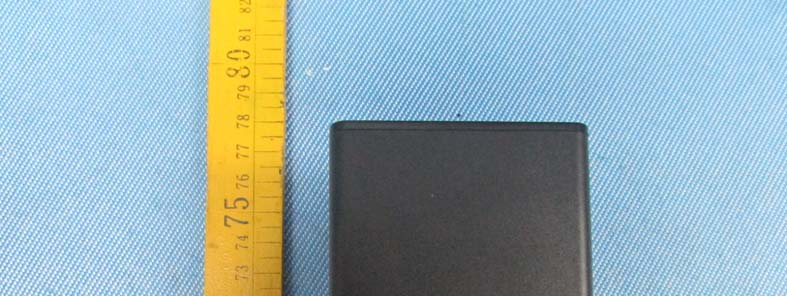

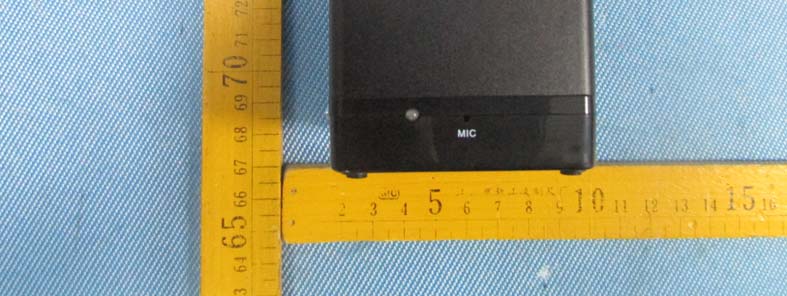

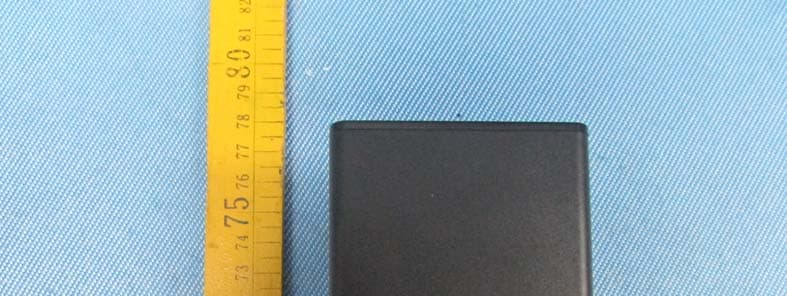

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs - Constructional Details EUT – External View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Telnova Technology Co.,Ltd Model:A66 Power:3.7V 800mAh FCC ID: WY9-A66 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: WY9-A66 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Telnova Technology Co.,Ltd Model:A66 Power:3.7V 800mAh FCC ID: WY9-A66 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Label Sample for model: A66 FCC ID: WY9-A66 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn EUT – Internal View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn EUT-RF Module View ==End of test report==

Reference No.: WTS13S0201293E Page 1 of 87 FCC TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC ID : WY9-A66 Applicant : Telnova Technology Co.,Ltd Address : F7,Block B, Jiuzhou Electronic Building, Southern No.12 Rd, High-tech Industrial Park, Nanshan District, Shenzhen ,Guangdong Province, China Manufacturer : The same as above Address : The same as above Equipment Under Test (EUT) : Product Name : Bluetooth Mini Speaker Model No. : A66 Standards : FCC CFR47 Part 15 Section 15.247:2011 Date of Test : Jan.31~Apr.11, 2013 Date of Issue : Apr.11, 2013 Test Result : PASS Remark: * The sample described above has been tested to be in compliance with the requirements of ANSI C63.4:2003. The test results have been reviewed and comply with the rules listed above and found to meet their essential requirements. The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel: +86-755-83551033 Fax: +86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTS13S0201293E Page 2 of 87 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Spurious Radiated Emissions 15.205(a) 15.209 15.247(d) PASS Band edge Emissions 15.247(d) PASS Spurious RF Conducted Emissions from out of band 15.247(d) PASS Duty Cycle 15.35 PASS Conducted Emissions 15.207 PASS 20dB Bandwidth 15.215c 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Radiofrequency radiation exposure evaluation 2.1093 PASS Reference No.: WTS13S0201293E Page 3 of 87 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS ............................................................................................................................................................ 3 4 GENERAL INFORMATION ................................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T. ............................................................................................................ 5 4.2 DETAILS OF E.U.T. ..................................................................................................................................... 5 4.3 TEST FACILITY ............................................................................................................................................ 5 4.4 TEST LOCATION .......................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST .................................................................................................................. 6 5.1 EQUIPMENTS LIST ....................................................................................................................................... 6 5.2 MEASUREMENT UNCERTAINTY ................................................................................................................... 7 5.3 TEST EQUIPMENT CALIBRATION ................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 8 6.1 E.U.T. OPERATION ..................................................................................................................................... 8 6.2 EUT SETUP ................................................................................................................................................ 8 6.3 CONDUCTED EMISSION TEST RESULT ....................................................................................................... 9 7 SPURIOUS RADIATED EMISSIONS .............................................................................................................. 11 7.1 EUT OPERATION : .................................................................................................................................... 11 7.2 TEST SETUP .............................................................................................................................................. 12 7.3 SPECTRUM ANALYZER SETUP .................................................................................................................. 13 7.4 TEST PROCEDURE .................................................................................................................................... 14 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION................................................................................. 14 7.6 SUMMARY OF TEST RESULTS ................................................................................................................... 15 8 SPURIOUS RF CONDUCTED EMISSIONS FROM OUT OF BAND .......................................................... 23 8.1 TEST PROCEDURE .................................................................................................................................... 23 8.2 TEST RESULT ..............................................…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs – Test Setup Radiated Emissions Below 30MHz From 30-1000MHz Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Above 1GHz Conducted Emissions
