WY9-BTS-70BLUETOOTH RECEIVER

FCC ID Label Sample for Model: BTS-70 FCC ID: WY9-BTS-70 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Label Location for model: BTS-70 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. FCC ID: WY9-BTS-70 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

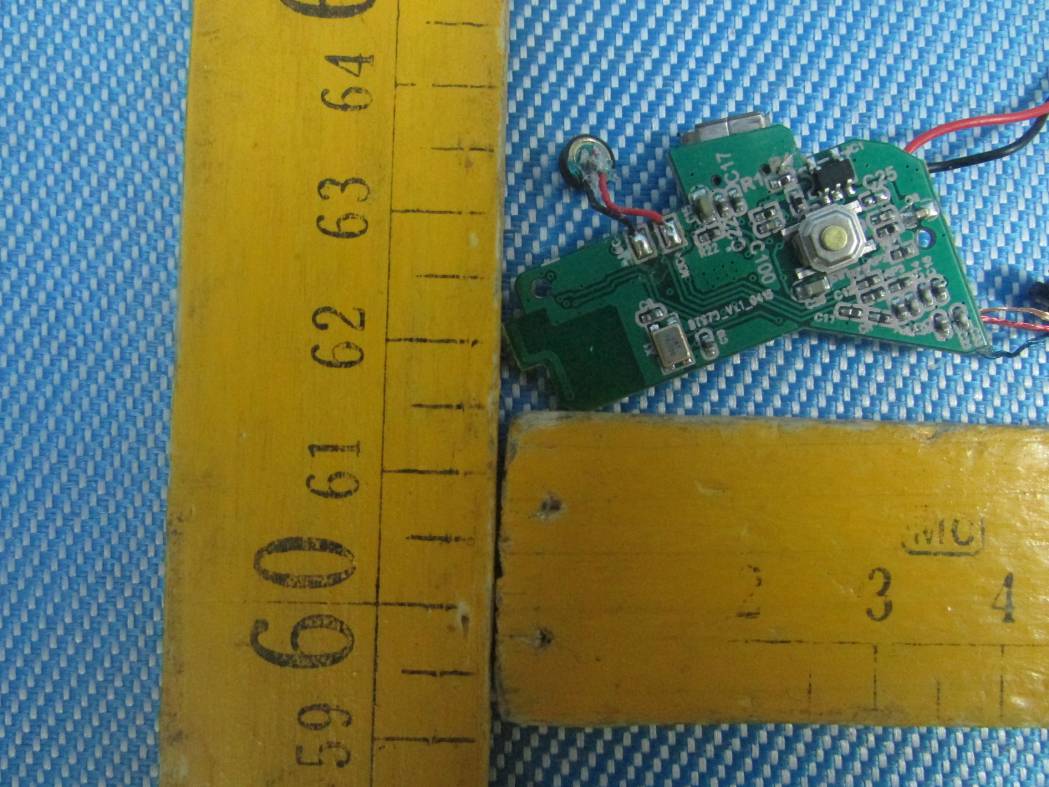

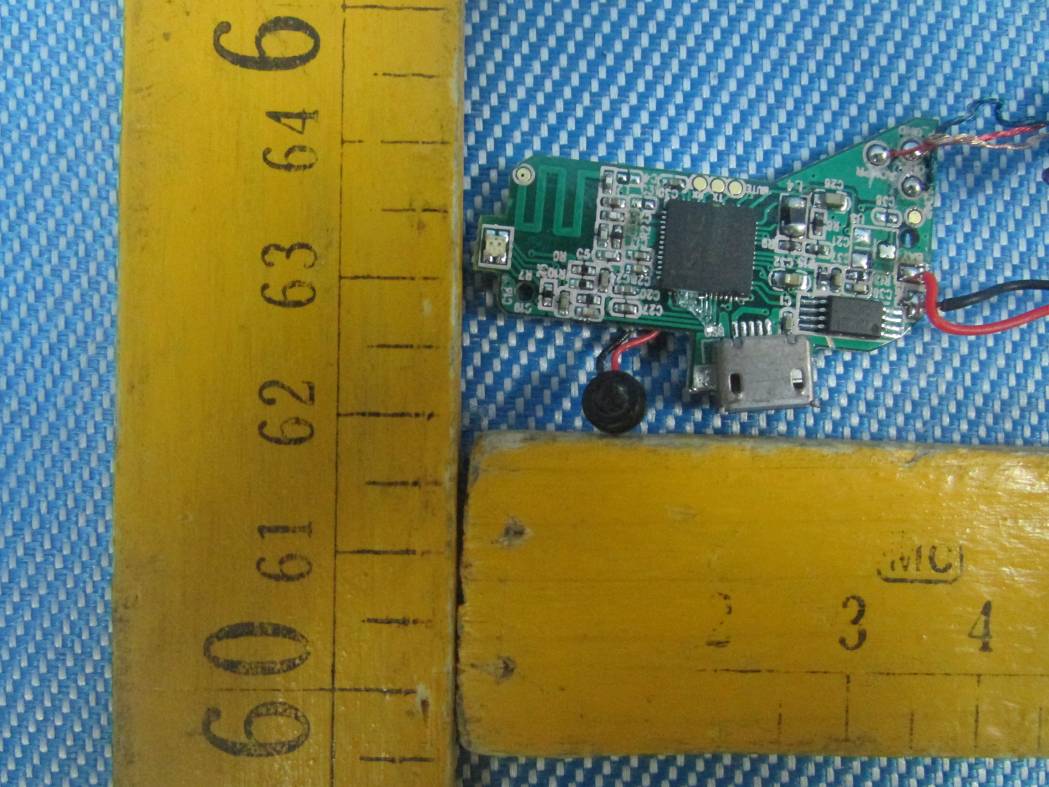

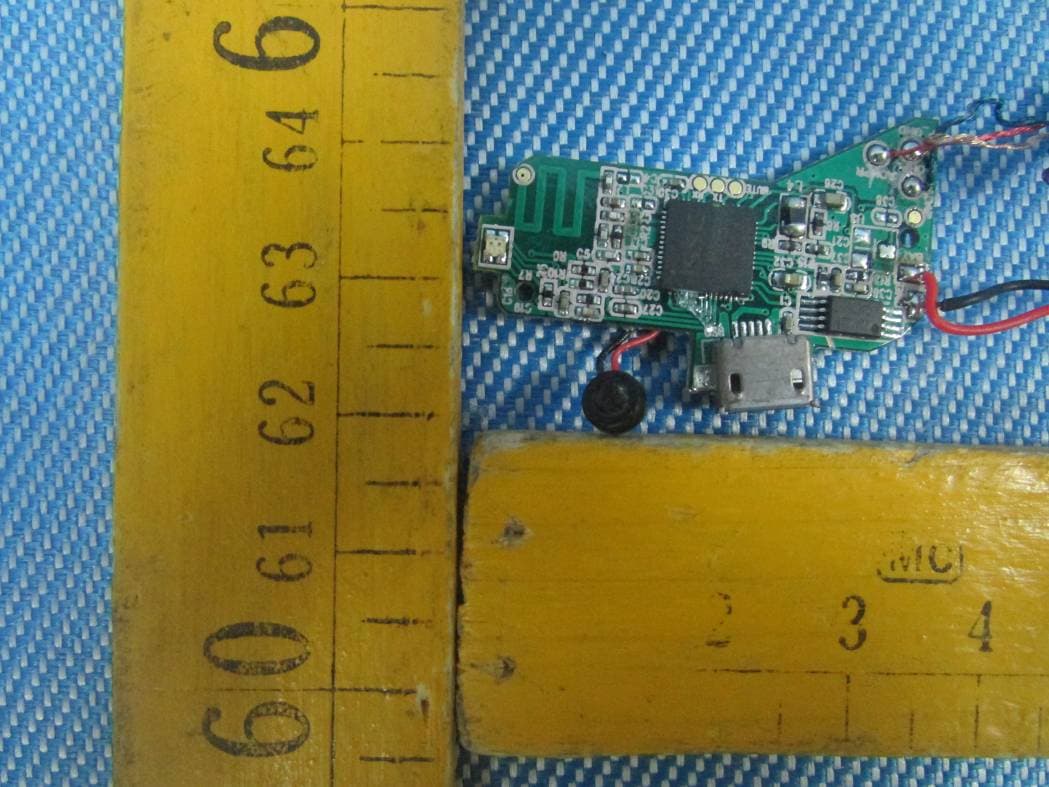

Report No.: WTS13S0503804E Page 68 of 69 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 18.2 EUT- Internal View Report No.: WTS13S0503804E Page 69 of 69 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn =End of test report==

Circuit Description The Bluetooth recriver use the frequency band is 2402-2480MHz,and when the RF Antenna receive or transmit the BT IC(IS1681N) deal system final singal,which XTAL is 16MHz,the RF antenna will transmit the singal to the others devices which connect to the bluetooth receiver,and the receive singal will transmit to the audio out port.the U2 EEPROM ACE24C32 which supplied the 1.8V voltage to the deal system. This Bluetooth module is regulated to Bluetooth V3.0+EDR. and set from 2402.00MHz to 2480.00MHz.The separation is 1.0MHz and there are 79 channels in total. The working procedures are: a. When power on, this device will loop scan the whole frequency until a connection command from the partner is received. b. This device transmits a response signal. c. The partner receives the response signal and recognizes it, then send a connection command to establish the connection. d. each frequency is used equally on the average by each transmitter that each new transmission event begins on the next channel in the hopping sequence after the final channel used in the previous transmission event. e. After the connection establish successfully, the data transmission is beginning. At the same time, the partner and this device will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is 1600 times per second. This device conform to the criteria in FCC Public NoticeDA00-705. f. The bandwidth of the this device, which is set to a fixed width by the software, match the hopping channel bandwidth of their corresponding partner. This device is a true frequency hopping system and does not have the capability to be coordinated with other FHSS systems in an effort to avoid the simultaneous occupancy of individual hopping frequencies by multiple transmitters. There are 79 channels in total. The channels hopping from one channel to another channel during the pseudorandom selection process. The hopping interval is 12 millisecond. This system frequency hops between 79 channels. If it is determined that one of the 79 hopping channels is found to be noisy or poor due to other RF interference, then a new channel is selected from the 78 unused channels and the one noisy channel is released to the unused group. This repeats whenever a noisy or poor channel is detected. For example, for the hop pattern of 2414MHz,2434MHz,2444MHz,2434MHz,2451MHz,2441MHz,2454MHz,2434MHz,2427MHz,2461 MHz,2461MHz,2444MHz,2414MHz,2448MHz,2451MHz,2417MHz,2478MHz,2469MHz,2473MHz, 2403MHz,etc. The sequential hops can not follow any order, is completely random.

55 44 33 22 11 D D C C B B A A P2_4 BASEBAND(IBDK MODE) CONFIGURATION TABLE 4-DIR & CENTER PUSH BUTTON L EEPROM24C321V8 MODE BOOT MODEAPPLICATION P2_0 MFB BUTTON H LED L RED L BLUE H EAN L: EXT FLASH, H: INT ROM H AOHPMS STEREO OUTPUT AOHPRAOHPL MIC1+MIC INPUTMIC1- GPIOP0_1P3_5P1_2P0_5 EEPROM SCL P1_6 REV P0_2 BUZZER DRIVER (*OPTIONAL) FWD FUNCTION VOL-VOL+ EEPROM SDA P2_7 PLAY/PAUSE GPIO vs. APP FUNCTION P1_3 ADAP GND TEST POINT HCI_TXD RESET HCI_RXD BAT+ P2_0P2_4 EAN BK_OUT BAT- MAIN POWER TREE IS1681N_AIS1681N DEFAULT_A ISSC Technologies Corp. ADD. 4F, No.8, Dusing Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan TEL. 886-3-5778385 B 12 Tuesday, January 17, 2012 Board Name Size Title Rev Date: Sheet of P/N VOL+ LED2LED1 SCLSDA MFB VOL- PLAY FWD REV MICN_1 MICP1MICN1 MICP_1 RST_N HCI_RXD EANP2_4P2_0 HCI_TXD LED1PLAYVOL-MFBREVLED2 AOHPM FWD MICP_1AOHPLAOHPR VOL+ MICN_1 PLAY HCI_RXD VOL-FWD HCI_TXD SDA MICP1 VOL+ LED2 AOHPL AOHPR LED1 MICN1 AOHPM AOHPL RST_N AOHPR P2_0 EAN REV SCL P2_4 MIC_BIAS AOHPM MIC_BIAS MFB RST_N BUZ_DRV VOL- VOL+ LED1LED2 MICP_1MICN_1AOHPLAOHPMAOHPR MFBVOL+VOL-FWDREVPLAY P0_0 1V8 SYS_PWR SYS_PWR ADAP BAT_IN CODEC_VO 1V8 SYS_PWR 1V8 BAT_IN ADAP_IC BK_OUT 1V8 CODEC_VO BK_OUT BK_OUT ADAP_IC BK_OUT BAT_IN ADAP 1V8 1V8 1V8 1V8 C221u/6.3V C910p/50V C1010p/50V U2ACE24C32 1234 5678 A0A1A2GND SDA SCL WP VCC C33 NP C200.047u/25V C1639p/50V R81R 1 2 L2 1nH C4 NP-0402 TP12 1 C270.047u/25V C30.5p/50V TP17 1 R20 12 TP1RF-TP2 C24220p/50V C51p/50V C194.7u/10V R10 2K 1 2 SW1PT-5202 123 654 78 ACENCD COM B NCNC TP2 1 R91R 1 2 TP9 1 SW2PT-5501G 12 34 C38 10u/16V TP5 1 TP14 1 TP11 1 TP3 1 C15 10u/16V C739p/50V C2 1.8p/50V C374.7u/10V C394.7u/10V D1LED-HR 1 2 C364.7u/10V X1X4P-16MHZ 41 32 C23 0.1u/16V C184.7u/10V C1410p/25V TP18 1 TP4 1 1.5RR22 1 2 R4 1K 1 2 C10.1u/16V C2510u/16V L322uH TP10 1 R51K 12 IS1681N U1IS1681N 123456789 101314 15 16 19 20 21 22 24 25 26 27 4241403837 17 363432313029 28 56 55 54 52 50 49 48 47 46 45 43 53 35 18 57 1112 23 39 44 51 33 VDDAOAOHPMVSSAOAOHPLVDDAVSSAVCOMMICP1MICN1MIC_BIASVDD_IORST_N P1_2 P1_3 CODEC_VO 3V1_IN ADAP_IN BAT_IN SAR_VDD SYS_PWR BK_VDD BK_LX XO_N XO_P VDD_IO HCI_RXD HCI_TXD 1V8 P0_5P0_2P2_4 LED2LED1 MFB BK_OUT AOHPR 1V8 EAN VDD_IO P0_0 P2_0 P3_0 P0_3 P0_1 RTX VCC_RF P3_5 P2_7 3V1_O GND AIRAIL SK1 P1_6 RX_CLS1 P0_4 P2_2 R6 1K 1 2 R151K 12 TP7 1 C13 0.022u/16V C2610u/16V C32 6.8u/16V L1 2.2nH TP19 1 R130R5 1 2 R7 1K 1 2 C1110p/25V C21 1u/6.3V TP6 1 R3 NP-0402 C17 1u/16V C81u/6.3V LED1LED-B 1 2 ANT1ANT-MP8 1 U3RT9161A-50 12 3 GND VOUT VIN TP15 1 C610p/25V C300.1u/16V TP16 1 R14K7 12 C1239p/50V

Reference No.: WTS13S0503804E Page 1 of 69 FCC TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC ID : WY9-BTS-70 Applicant : Telnova Technology Co.,Ltd Address : F7,Block B, Jiuzhou Electronic Building, Southern No.12 Rd, High-tech Industrial Park, Nanshan District, Shenzhen ,Guangdong Province, China Manufacturer : The same as above Address : The same as above Equipment Under Test (EUT) : Product Name : Bluetooth Receiver Model No. : BTS-70 Rules : FCC CFR47 Part15 C Section 15.247:2010 Date of Test : May 21 ~ 25, 2013 Date of Issue : May 31, 2013 Test Result : PASS* Remark: * The sample detailed above has been tested to the requirements of FCC rules mentioned above. The test results have been reviewed against the directives above and found to meet their essential requirements. The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West of Baima Road., Songgang Street, Bao’an District, Shenzhen, China Tel: +86-755-83551033 Fax: +86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Report No.: WTS13S0503804E Page 2 of 69 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 PASS Radiated Emissions 15.205(a) 15.209 15.247(d) PASS Duty Cycle 15.35 PASS Spurious RF Conducted Emissions from out of band 15.247(d) PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Antenna Requirement 15.203 PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Report No.: WTS13S0503804E Page 3 of 69 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY ................................................................................................................................................... 2 3 CONTENTS ............................................................................................................................................................. 3 4 GENERAL INFORMATION .................................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T. ............................................................................................................ 5 4.2 DETAILS OF E.U.T. ..................................................................................................................................... 5 4.3 CHANNEL LIST ............................................................................................................................................ 5 4.4 TEST FACILITY ............................................................................................................................................ 6 4.5 TEST LOCATION .......................................................................................................................................... 6 4.6 GENERAL CONDITION .................................................................................................................................. 6 4.6.1 Environmental condition of test site ....................................................................................................... 6 4.6.2 Test Mode .................................................................................................................................................. 6 5 EQUIPMENT USED DURING TEST ................................................................................................................... 7 5.1 EQUIPMENTS LIST....................................................................................................................................... 7 5.2 MEASUREMENT UNCERTAINTY ................................................................................................................... 8 5.3 TEST EQUIPMENT CALIBRATION ................................................................................................................ 8 6 CONDUCTED EMISSIONS .................................................................................................................................. 9 6.1 E.U.T. OPERATION ..................................................................................................................................... 9 6.2 EUT SETUP ................................................................................................................................................ 9 6.3 CONDUCTED EMISSION TEST RESULT ..................................................................................................... 10 7 RADIATED EMISSIONS ..................................................................................................................................... 12 7.1 EUT OPERATION: ..................................................................................................................................... 12 7.2 TEST SETUP ............................................................................................................................................. 13 7.3 SPECTRUM ANALYZER SETUP .................................................................................................................. 14 7.4 TEST PROCEDURE ................................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: WTS13S0503804E Page 63 of 69 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 17 Photographs –Test Setup 17.1 Photograph – Conducted Emission Test Setup 17.2 Radiated Emissions Below 30MHz Report No.: WTS13S0503804E Page 64 of 69 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn From 30-1000MHz Above 1GHz
