WY9F-3066BLUETOOTH MODULE

Telnova Technology Co.,Ltd 1 This module is limited to OEM installation ONLY Bluetooth Module for Audio Application F-3066 Class2 Bluetooth Module Features . Bluetooth V2.1+EDR specification support . A2DPv1.2 . AVRCPv1.0 . HFPV1.5 Applications . This module applies only to the following Bluetooth speaker: Manufacturer : Telnova Technology Co.,Ltd Producted name: Bluetooth Spesaker Model name:MBT 300 Brand name:N/A Block Diagram This is part circuit structure: The encoder IC IS1681S(OSC16MHz), it is a single chip radio and basedand is for Bluetooth 2.4GHz systems including enhanced data rates(EDR) to 3MBPS; The EEPROM 24C32, it is a single chip 8 megabit(1024X8-bit-/512kx16-bit) Flash memoy, CMos 3.0 Volt-only. The module Supports Bluetooth v2.1. the Frequency range: 2402-2480MHz. The module also has necessary balun and bandpass filters to interface with a build-in PCB antenna, which forms a very cost effective radio subsystem. Telnova Technology Co.,Ltd 2 Physical Layout and Size Telnova Technology Co.,Ltd 3 Pins Configurations General Electrical Specification Telnova Technology Co.,Ltd 4 Radio Characteristics Telnova Technology Co.,Ltd 5 Notes: 1 PSR configuration setting maintains the transmit power to be within the Bluetooth specification v2.0 limits 2 Class 2 RF transmit power range, Bluetooth specification v2.0 3 Up to five exceptions are allowed in v2.0 of the Bluetooth specification 4 Up to three exceptions are allowed in v2.0 of the Bluetooth specification 5 Measured at F0 = 2441MHz Installation diagram Module Installation location(Telnova Technology Co.,Ltd MBT300 Bluetooth Spesaker) Module Installation location Module Installatio Telnova Technology Co.,Ltd 6 FCC Statement: NOTICE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by ValenceTech Limited may void the FCC authorization to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help Radiofrequency radiation exposure information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Please see the RF Exposure information. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device should be installed and operated with a minimum distance of 20cm between the antenna and all persons. Label requirements: Contains Transmitter Module FCC ID: WY9F-3066 Host use instruction: The module must install and work with a speaker, The speaker’s manufacturer is Telnova Technology Co., Ltd.. The Host mode name: MBT300BLUETOOTH SPEAKER The Host Brand Name: N/A FCC RF Exposure Requirement 1.At least 20cm separation distance between the antenna and the user’s body must be maintained at all times. And must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi transmitter product procedures. 2. To comply with FCC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a mobile-only exposure condition must not exceed 0dBi in the 2.4G band. 3. A user manual with the end product must clearly indicate the operating requirements and conditions that must be observed to ensure compliance with current FCC RF exposure guidelines. Telnova Technology Co.,Ltd 7 Note: If this module is intended for use in a portable device, you are responsible for separate approval to satisfy the SAR requirements of FCC Part 2.1093. Please be noticed following information and instructions should be placed in the end-user’s operating manual The F-30 66 Module has been granted as limited modular approval for BLUETOOTH SPEAKER. F-3066 Module must be installed in the designated host as specified in this manual. 1. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. 2. The F-3066 Module and its antenna must not be co-located or operating in conjunction with any other transmitter or antenna within a host device. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. 3.A label must be affixed to the outside of the end product into which the F-30 66 Module is incorporated, with a statement similar to the following: For F-30 66: This device contains FCC ID: WY9F-3066. 4. The module shall be in non-detachable construction protection into the finished products, so that the end-user has to destroy the module while remove or install it. 5. This module is to be installed only in mobile or fixed applications. According to FCC part 2.1091(b) definition of mobile and fixed devices is:. Mobile devic…

Text truncated - open the document above for the full version.

OSD16MHz EEPROM 24C32 2402-2480MHz Encoder IS1681S Audio out Bluetooth module Power DC 3.3V

Telnova Technology Co.,Ltd F7,Block B, Jiuzhou Electronic Building, Southern No.12 Rd, High-tech Industrial Park, Nanshan District, Shenzhen ,Guangdong Province, China Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Oct 23, 2013 Regarding to the Pubic Notice DA 00-1407 pertaining to PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL, Telnova Technology Co.,Ltd would like to request Limited modular approval for the submission FCC ID: WY9F-3066. Telnova Technology Co.,Ltd confirms that the product complies with numbered requirements identified below: Limited Modular Approval is being requested for this device. The following statements detail these requirements and the manner in which the device meets them. The module has its own complete RF transceiver with PCB antenna and reference oscillator. The module meets all of the technical specifications applicable to the frequency band of operation. Item Requirements EUT 1 Have its own RF shielding This BT module does not have its own shielding. However, it is Limited Modular Approval.The module was limited to be inst alled into the specified host. The host manuf acturer is: Telnova Technology Co.,Ltd. Host Brand name is: N/A; Host model nam e is: MBT300 Bluetooth Spesaker. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered throu gh logic and microprocessor inputs 3 Have its own power supply regulation The power input by DC3.3V. 4 Meet the antenna requirements of section 15.203 The device contains a PCB antenna, and the maximum antenna gain is 0dBi. 5 Demonstrate compliance in a stand‐ alone configuration Device is tested in a test fixture in a standal one configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “” FCC ID label format will be included in the filling. Host ID label will be displayed on th e host system. Telnova Technology Co.,Ltd F7,Block B, Jiuzhou Electronic Building, Southern No.12 Rd, High-tech Industrial Park, Nanshan District, Shenzhen ,Guangdong Province, China 7 The module must comply with all specific rules applicable to the transmitter. The granteemust provide comprehensive instru- ctions to explain compliance requirements. Please refer to “User Manual” Exhibit 8 The module must comply with RF exposure requirements. See FCC Rules. Spread Spec- trum transmitters must comply with RF exposure limits in 15.247. RF exposureevaluation is exempted because of low output power (EIRP: 1.68mW). Sincerely, Jason Shao/Manager Telnova Technology Co.,Ltd Tel: +86-755-26947072 Fax: +86-755-26947073

Telnova Technology Co., Ltd. FCC ID: WY9F-3066 POWER OF ATTORNEY Date: Oct 23, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Oct 22, 2014. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Telnova Technology Co., Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ................................................................................. Signature Jason Shao/Manager ................................................................................. Typed name and Title

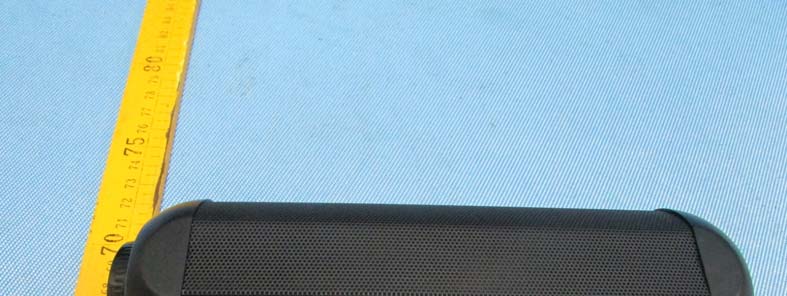

Reference No.: WTS13S0907640E Page 84 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 19.2 EUT – Host External View Reference No.: WTS13S0907640E Page 85 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: F-3066 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Model No.:F-3066 FCC ID: WY9F-3066

FCC Label Sample for model: F-3066 FCC ID: WY9F-3066 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Reference No.: WTS13S0907640E Page 86 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 19.3 EUT – Host Internal View Reference No.: WTS13S0907640E Page 87 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Reference No.: WTS13S0907640E Page 88 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Reference No.: WTS13S0907640E Page 89 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ==End of test report==

Reference No.: WTS13S0907640E Page 83 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 19 Photographs - Constructional Details 19.1 EUT – Module Photos RF Antenna

Circuit description The EUT is a Bluetooth module This is part circuit structure: The encoder IC IS1681S(OSD16MHz), it is a single chip radio and basedand is for Bluetooth 2.4GHz systems including enhanced data rates(EDR) to 3MBPS; The EEP- ROM 24C32, it is a single chip 8 megabit(1024X8-bit-/512kx16-bit) Flash memoy, CMos 3.0 Volt-only. The module Supports Bluetooth v2.1. the Frequency range: 2402-2480MHz. The working procedures are: a. When power on, this device will loop scan the whole frequency until a connection command from the partner is received. b. This device transmits a response signal. c. The partner receives the response signal and recognizes it, then send a connection command to establish the connection. d. each frequency is used equally on the average by each transmitter that each new transmission event begins on the next channel in the hopping sequence after the final channel used in the previous transmission event. e. After the connection establish successfully, the data transmission is beginning. At the same time, the partner and this device will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is 1600 times per second. This device conform to the criteria in FCC Public NoticeDA00-705. f. The bandwidth of the this device, which is set to a fixed width by the software, match the hopping channel bandwidth of their corresponding partner. This device is a true frequency hopping system and does not have the capability to be coordinated with other FHSS systems in an effort to avoid the simultaneous occupancy of individual hopping frequencies by multiple transmitters. There are 79 channels in total. The channels hopping from one channel to another channel during the pseudorandom selection process. The hopping interval is 12 millisecond. This system frequency hops between 79 channels. If it is determined that one of the 79 hopping channels is found to be noisy or poor due to other RF interference, then a new channel is selected from the 78 unused channels and the one noisy channel is released to the unused group. This repeats whenever a noisy or poor channel is detected. For example, for the hop pattern of 2414MHz, 2434MHz, 2444MHz, 2434MHz,2451MHz,2441MHz,2454MHz,2434MHz,2427MHz,2461MHz,2461MHz,2444MHz, 2414MHz,2448MHz,2451MHz,2417MHz,2478MHz,2469MHz,2473MHz,2403MHz,etc. The sequential hops can not follow any order, is completely random.

1 VDDAO 2 AOHPM 3 VSSAO 4 AOHPL 5 VDDA 6 VSSA 7 VCOM 8 MICP1 9 MICN1 10 MIC_BIAS 11 AIR 12 AIL 13 VDD_IO 14 RST 42 XO_N 41 XO_P 40 VDD_IO 39 P16 38 RXD 37 TXD 36 P05 35 P27 34 P02 33 P22 32 P24 31 LED2 30 LED1 29 MFB 43 VCC_RF 44 RX_CLS1 45 RTX 46 P01 47 P03 48 P30 49 P20 50 P00 51 P04 52 VDD_IO 53 P35 54 EAN 55 1V8 56 AOHPR 28 BK_OUT 27 BK_LX 26 BK_VDD 25 SYS_PWR 24 SAR_VDD 23 SK1 22 BAT_IN 21 ADAP_IN 20 3V1_IN 19 CODEC_VO 18 3V1 17 1V8 16 P13 15 P12 57 GND U1 IS1681S C1 NC FB1 10UF EEPROM 24C32 A0 A1 A2 GND VCC WP SCL SDA U3 C2 10UF C3 1UF C4 0.1UF C5 1UF C6 10UF R7 1K C7 10uf L3 10UH R4 1R R5 1R C8 1UF C9 1UF C10 0.1UF R8 1K/NC C11 18PF C12 18PF C13 10UF C14 1UF R1 0R L1 2.2NH C15 2PF C16 1PF C17 1.8PF C18 1PF C21 0.1uf R3 4k7 R6 1K/NC XTAL_IN XTAL_OUT GND GND U2 16MHZ F-3066 1 P04 2 P20 3 MFB 4 VOL+ 5 VOL- 6 UP 7 DOWN 8 PLAY 9 V1.8 10 GND 11 BAT 12 LED0 13 LED1 27 MICP 28 MICN 29 MICB 14 5V 15 AOL 16 AGND 17 AOR 18 AIL 19 AIR 20 P00 21 TX 22 RX 23 MUTE 24 P20 25 P03 26 P01 U4 F-3066 1V8 BK_OUT MFB ADAP VBAT 1V8 1V8 VDD_IO 1V8 P13 P12 VD_IO CODEC_VO MICP MICN MIC_BIAS AIR AIL AOL AOR 1V8 VDD_IO MUTE P00 P20 P30 P03 VOL+ VDD_IO VOL- RX TX UP DOWN PLAY LED0 LED1 VDD_IO P13 P12 BK_OUT P04 P20 MFB VOL+ VOL- DOWN UP PLAY VBAT LED0 LED1 MICP MICN MICB ADAP AOL AOR AIL AIR P00 TX RX MUTE P20 P03 P01 1V8 MFB

Reference No.: WTS13S0907640E Page 1 of 89 FCC TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC ID : WY9F-3066 Applicant : Telnova Technology Co.,Ltd Address : F7,Block B, Jiuzhou Electronic Building, Southern No.12 Rd, High-tech Industrial Park, Nanshan District, Shenzhen ,Guangdong Province, China Manufacturer : The same as above Address : The same as above Equipment Under Test (EUT) : Product Name : Bluetooth Module Model No. : F-3066 Standards : FCC Part15.247:2012 Date of Test : Sep.24~29, 2013 Date of Issue : Oct. 22, 2013 Test Result : PASS Remark: * The sample described above has been tested to be in compliance with the requirements of ANSI C63.4:2003. The test results have been reviewed and comply with the rules listed above and found to meet their essential requirements. The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel: +86-755-83551033 Fax: +86-755-83552400 Compiled by: Approved by: Maikou Zhang / Project Engineer Philo Zhong / Manager Reference No.: WTS13S0907640E Page 2 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Spurious Radiated Emissions 15.205(a) 15.209 15.247(d) PASS Band edge Emissions 15.247(d) PASS Spurious RF Conducted Emissions from out of band 15.247(d) PASS Duty Cycle 15.35 PASS Conducted Emissions 15.207 PASS 20dB Bandwidth 15.215c 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: WTS13S0907640E Page 3 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 TEST SUMMARY................................................................................................................................................... 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION.................................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T.................................................................................................................. 5 4.2 DETAILS OF E.U.T........................................................................................................................................... 5 4.3 CHANNEL LIST................................................................................................................................................. 5 4.4 TEST MODE..................................................................................................................................................... 5 4.5 DESCRIPTION OF SUPPORT UNITS.................................................................................................................. 6 4.6 TEST FACILITY................................................................................................................................................. 6 4.7 TEST LOCATION............................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST................................................................................................................... 7 5.1 EQUIPMENTS LIST........................................................................................................................................... 7 5.2 MEASUREMENT UNCERTAINTY........................................................................................................................ 7 5.3 TEST EQUIPMENT CALIBRATION..................................................................................................................... 7 6 CONDUCTED EMISSION..................................................................................................................................... 8 6.1 E.U.T. OPERATION.......................................................................................................................................... 8 6.2 EUT SETUP..................................................................................................................................................... 8 6.3 CONDUCTED EMISSION TEST RESULT............................................................................................................ 9 7 SPURIOUS RADIATED EMISSIONS............................................................................................................... 11 7.1 EUT OPERATION :......................................................................................................................................... 11 7.2 TEST SETUP.................................................................................................................................................. 12 7.3 SPECTRUM ANALYZER SETUP...................................................................................................................... 13 7.4 TEST PROCEDURE......................................................................................................................................... 14 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION...........................…

Text truncated - open the document above for the full version.

Reference No.: WTS13S0907640E Page 80 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 18 Photographs – Test Setup 18.1 Conducted Emissions 18.2 Radiated Emissions Below 30MHz Reference No.: WTS13S0907640E Page 81 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn From 30-1000MHz Above 1GHz Reference No.: WTS13S0907640E Page 82 of 89 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 18.3 BT module Installation diagram with Host(Mode :MBT-300) BT module Installation diagram
