WYK-ES2440XDual Radio Access Point/Bridge

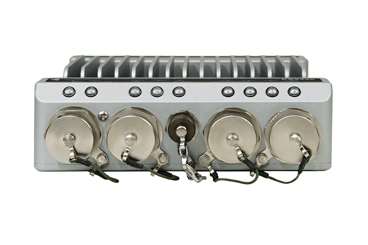

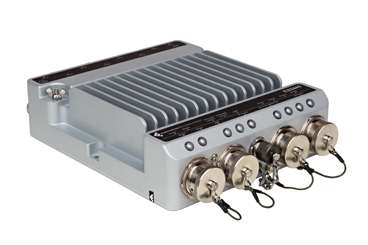

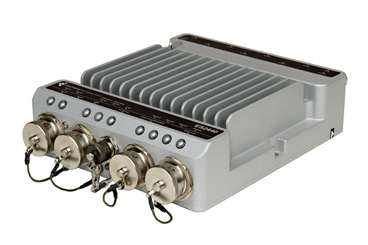

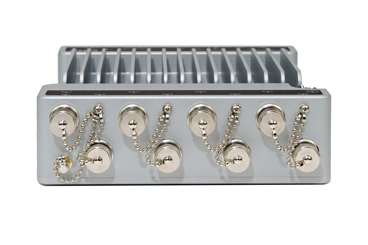

High-capacity wireless mesh point for rapid outdoor deployment The Fortress ES2440 High Capacity Infrastructure Mesh Point utilizes MIMO technology to bring high performance secure wireless communica- tions to outdoor locations and across long distances through a self-forming, self-healing mesh network. The ES2440 offers FIPS 140-2 validated security and is upgradeable to NSA Suite B algorithms*. Delivered in a form factor that is rugged, weatherized and easy to set-up and operate, the Fortress ES2440 functions as both a wireless access point and bridge, with four powerful radios for maximum range and performance. Fortress Mesh Points ensure high performance networking under highly mobile conditions, allowing nodes to move within the network and to seamlessly leave and join the network. Rapidly deployable in theater network extension solution Enabled for COTS-for-SECRET deployments* Ruggedized for use in harsh environments High capacity through 4 MIMO radios Long range links with high throughput and reliability Comprehensive Security The central component of DoD and other sensitive network solutions is the ability to ensure data security at all times and at all levels. Fortress products support the most advanced security implementations in the industry. Using standards based, interoperable and compliant security protocols certified to FIPS-140-2 and upgradable to NSA Suite B cryptography, Fortress is a leader in secure wireless networking. Fortress products are unique in that they support in-built RADIUS, advanced Wi-Fi WPA2 security with EAP-TLS, use a hardware crypto implementation and have a hardware based True Random Number Generator (TRNG) ensuring the richest security with the highest performance. FastPath Mesh ™ Fortress FastPath Mesh technology provides a self-forming, path optimizing, self-healing network architecture designed from the ground up to support truly mobile and often transported networks, elegantly addressing the needs of dynamic tactical networks. FastPath Mesh is link protocol agnostic and utilizes all interfaces and radio links to reach a destination using the lowest cost path. The resulting network is a unique mix of proactive and reactive protocols designed to work together to improve network performance and address moving nodes. Overlaid on the mesh is end-to-end encryption and capabilities to eliminate multicast/broadcast flooding for improved overall network performance. Fortress’s implementation includes a fully distributed DNS capability and is IPv4 and IPv6 multicast-aware. Rugged for Outdoor Robust packaging and enhanced RF specifications are crucial to adapting standard Wi-Fi to the harsh and long range conditions typical in tactical wireless deployments and transportable networks. Size, Weight and Power (SWaP) and highest levels of en- vironmental certification are the cornerstone of providing a solution that can withstand the toughest conditions, can survive constant portability, and can be easily embedded in larger systems. Better quality and high power RF enables reliable, high throughput long distance operation required for typical in-theater operational conditions. Fortress solutions are delivered in ruggedized form factors with superior RF hardware and antennas while remaining more cost effective than custom designed technology once typical in secure networks. COTS+ Fortress Solutions leverage industry proven and cost effective technologies adapted for tactical environments. High quality cryptographic implementation Specially rugged packaging State of the art design optimized for size, weight and power consumption High-power, low-noise radio designs Fortress’ COTS+ approach provides the most suited solution to address secure wireless networking in military, government and other sensitive arenas. Suite B Capable The NSA Suite B initiative is a common set of cryptographic algorithms to create products that meet the widest range of US Government needs. Suite B Cryptography is built on COTS information-assurance products using Advanced Encryption Standard (AES) and is under evaluation by the NSA to protect information up to the SECRET level. Fortress products are NSA Suite B capable and can be upgraded where approval is achieved. Hardware Based Encryption Fortress products deliver much higher performance by using a hardware crypto FPGA that enables fast, deter- ministic performance to protect against timing attacks. Fast security throughput is critical in supporting real-time applications such as encrypted voice and video. Fortress’ cryptographic implementa- tion has passed rigorous examination and been approved by NIST. Licensed 4.4 GHz C Band Fortress products can operate in the 4.4 GHz C Band a licensed band allocated to US and NATO military use. Operating at 4.4 GHz in the C Band offers several advantages. 4.4 GHz is a licensed band restricted to military use, so it offers an additional level of security, and less crowded use of the spectrum. Superior Performance Fortress Mesh Points use hardware crypto and hardware TRNG to provide fast, deterministic performance that is unmatched in the industry. They are equipped with pow- erful radios that can operate in 802.11 a/b/g modes, providing superior range and performance. GPS Enabled GPS capability provides real-time position data that is displayed in Fortress’s Topology Viewer and Mesh Viewer as well as Google Earth, and Cursor on Target / FalconView for Blue Force Tracking. Features of the ES2440 High-Capacity Infrastructure Mesh Point Made in the USA Fortress products are designed and manufactured in the USA to maintain the highest levels of quality with oversight to provide manufacturing design assurance. All software or program- mable hardware devices are built from source code that is controlled in house. Optimal SWaP+C (Size, Weight, Power & Cost) Fortress provides the lightest and smallest Mesh Points in the industry, purpose built for frequent transportation and integration into land, sea and…

Text truncated - open the document above for the full version.

ES2440 High-Capacity Infrastructure Mesh Point Hardware Guide www.gdfortress.com © 2012 Fortress Technologies, Inc. ES2440 Hardware Guide i 009-00045-00r4 Fortress ES2440 High-Capacity Infrastructure Mesh Point [rev.4a] Copyright © 2012 Fortress Technologies, Inc. All rights reserved. This document contains proprietary information protected by copyright. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, without written permission of Fortress Technologies, 2 Technology Park Drive, Westford, MA 01886-3140, except as specified in the Product Warranty and License Terms. FORTRESS TECHNOLOGIES MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. FORTRESS TECHNOLOGIES SHALL NOT BE LIABLE FOR ERRORS CONTAINED HEREIN OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE FURNISHING, PERFORMANCE OR USE OF THIS MATERIAL. THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. The General Dynamics C4 Systems | Fortress Technologies, Fortress Technologies and AirFortress logos and AirFortress and are registered trademarks. Multi-Factor Authentication, Unified Security Model, Wireless Link Layer Security and Three Factor Authentication (TFA) are trademarks of Fortress Technologies, Inc. The technology behind Wireless Link Layer Security™ enjoys U.S. and international patent protection under patent number 5,757,924. All trademarks mentioned in this document are the property of their respective owners. LIMITED WARRANTY Hardware Fortress warrants the Hardware will be free of defects in material and workmanship under normal use. Fortress further warrants that the Hardware will conform to Specifications in effect on the date of shipment of the product, from Fortress location. Software The Limited Warranty as described in the Fortress End User License Agreement (EULA) sets forth Fortress’ warranty obligations with respect to Software. This End User License Agreement is included with the product or a copy may be obtained at the following URL: http://www.gdfortress.com/Support/general-support.html This limited warranty extends only to the original purchaser of the Product. DURATION OF WARRANTY Hardware and Software is warranted for a period of one (1) year commencing from the ship date to Purchaser [and in the case of resale by a Fortress Solution Provider, commencing not more than (90) days after original shipment by Fortress]. The date of shipment is established per the shipping document (packing list) for the Product that is shipped. REMEDIES Purchaser’s sole and exclusive remedy (within the warranty period) and the entire liability of Fortress and its suppliers under this limited warranty will be, after return to a Fortress repair facility, the repair and return of Product to Purchaser. At Fortress’ option if it is not able to repair the product, we will replace it with a comparable product that is new or refurbished. Purchaser shall pay expenses for return of such Products to Fortress. Fortress shall pay expenses for shipment of returned Products to Purchaser. WARRANTY EXCLUSIONS The above Hardware and Software (EULA) limited warranty do not apply if the Hardware Product or Software or any other equipment upon which the Software is authorized by Fortress or its suppliers or licensors to be used (a) has been damaged through abuse or negligence or by accident, (b) has been altered except by an authorized Fortress representative, (c) has been subjected to abnormal physical or electrical stress (i.e., lightning strike) or abnormal environmental conditions, (d) has been lost or damaged in ES2440 Hardware Guide ii transit, or (e) has not been installed, operated, repaired or maintained in accordance with instructions provided by Fortress. Purchaser is responsible for all freight expenses incurred as a result of returning Products that are determined by Fortress to be (1) free from defect or (2) defective as a result of one of the circumstances listed in (a) through (e) above. Such Products shall be shipped back to Purchaser, and Purchaser shall be responsible for associated freight charges. If Products are returned to Purchaser, title to the Products and risk of loss shall pass to Purchaser at the time Fortress delivers Products to the carrier for shipment. Limited Warranty shall apply only to those Products that are branded by Fortress with a Fortress trademark ("Fortress Branded"). Fortress does not warrant any third party Products even if included with other Fortress Branded Products. Furthermore, Fortress provides all such third party Products AS IS. However, the original manufacturers or suppliers may provide their own warranties as specified in the documentation accompanying such third party Products. LIMITED MAINTENANCE & SUPPORT Fortress provides “Limited Maintenance & Support” on its Products during the Limited Warranty period. Limited Hardware Maintenance & Support consists of (a) repair or replacement of defective components/products and (b) remote technical support. Limited Software Maintenance & Support consists of (a) bug fixes, (b) maintenance releases, and (c) remote technical support. Limited Maintenance & Support will be provided based on the Urgency & Escalation process in affect at the time of the trouble report. Issues with products are reported by calling Fortress Technical Support at (978) 923-6400. Note: Please be prepared to provide the product serial number(s), version number(s), and name of the company the product was purchased from (if other than Fortress) to the Fortress Technical Support Engineer; this will assist in determining maintenance & support status. Technical Support will work to resolve the issue over the phone. If a product needs to be returned to Fortress for repair or replacement; a Returned Materials Authorization (RMA) number will be issued for the return. Note: For…

Text truncated - open the document above for the full version.

Fortress Technologies · 4023 Tampa Road, Suite 2000 · Oldsmar, FL · 1.888.4PRIVACY · www.fortresstech.com Long Term Confidentiality Request Letter October 08, 2012 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR ES2440, FCC ID: WYK-ES2440x To Whom It May Concern: This letter serves as justification for long term (i.e. permanent) confidentiality for internal photos of the system and its components. These photos reveal the internal hardware design of the product. As such, these photos reveal trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provides unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, John Pacheco Engineering Director

Fortress Technologies · 4023 Tampa Road, Suite 2000 · Oldsmar, FL · 1.888.4PRIVACY · www.fortresstech.com Long Term Confidentiality Request Letter April 6, 2012 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR ES2440, FCC ID: WYK-ES2440x To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the follow list of items: Exhibit Type File Name Block Diagram Schematics Schematics Operational Description ES2440xBlkDia.pdf ES2440xSchem1.pdf ES2440xSchem2.pdf ES2440xOpDes.pdf Photos which are required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, John Pacheco Engineering Director Fortress Technologies · 4023 Tampa Road, Suite 2000 · Oldsmar, FL · 1.888.4PRIVACY · www.fortresstech.com

Notes: 1) L abel material t o b e 3 M 7 872 P latinum P olyest er ( UL a pproved). 2) 1 mil clear matte polyester overlaminate required. 3) A ll p rint color t o be black. 4) L abel to b e R oHS c ompliant p er E U d irective 2002/95/EC. Statement o f c ompliance t o b e a vailable u pon r equest . 3.20 max 0.125 4 places R 1.50 ES2440-35 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Input Voltage: 9 to 30VDC, 56VDC (POE+), 45W Max. FCC ID: WYK-ES2440x IC: 8190A-ES2440x RoHS Model: A DWG. NO. SIZE 1410-00099 -01 REV. MATERIAL Compliance DRAWING IS THE SOLE PROPERTY OF DATE JCB FINISH DO NOT SCALE DRAWING CHANGE DESC. PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS FORTRESS TECHNOLOGIES IS PROHIBITED. COMMENTS: SHEE T 1 OF 1 Q.A. MFG A PPR. ENG A PPR. CHECKED DRAWN WITHOUT THE WRITT EN PERMISS ION OF REPRODUCTIO N IN PART OR AS A WHOLE FORTRESS TECHNOLOGI ES. ANY 06APR12 ES2 440-35 NAME .00 5 Label REV REVISION HISTORY DI MENSIO NS ARE IN INCHES TOLERANCES: FR ACTIONAL ANGULAR: MACH BEND TWO PLACE DECIMAL .01 THREE PLACE DECIMAL SCALE:1:1 1Initial release.

Next-Gen 2x2 Dual Polarity MIMO Omni Antenna Models: AMO-2G10, AMO-2G13, AMO-5G10, AMO-5G13 Hi-Performance, Long Range Seamlessly Integrates with Rocket M 360 Degree Coverage Omni Datasheet | Omni AirMax Omni is a Carrier Class 2x2 Dual Polarity MIMO omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios (Rocket M sold separately). Rocket M combines the “brains” in one robust unit; just pair Rocket M with AirMax Omni to create powerful 360 ̊ omnidirec- tional basestation. This seamless integra- tion gives network architects unparalleled flexibility and convenience. On the right is one example of how AirMax Omni can be deployed: Internet Backbone ISP Network RocketDish with Rocket M (PtP backhaul) RocketDish with Rocket M (PtP backhaul) AirMax Omni with Rocket M (PtMP) Corporate campus with NanoBridge M clients Mobile computer with AirGrid M client Omnidirectional Coverage 02 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Overview Unlike standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller. This "time slot" method eliminates hidden node collisions & maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, & scalability compared to all other outdoor systems in its class. Intelligent QoS Priority is given to voice/video for seamless access. Scalability High capacity and scalability. Long Distance Capable of high speed Carrier Class links Latency Multiple features dramatically reduce noise. Utilize AirMax Technology Time Channel Time Slot 1 Time Slot 2 Time Slot 3 Time Slot 4 Frame Time Slot 4 Packet Prioritization VOIPVOIPVOIPVOIP DATA AirMax Clients (up to 100 clients can be connected per AirMax Omni, 4 clients are shown to show general concept) AirMax Omni Usage Example AirMax Omni Antennas provide wide 360° coverage and utilize AirMax technlogy to produce Carrier Class performance and power. 12 3 4 5 OMNI PTMP LINKS (Point to Multi-Point) 1 2 3 4 5 6 6 7 7 *When Omni is paired with Rocket M * Datasheet | Omni 03 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Models [left to right] AMO-5G10 (5GHz, 10dBi), AMO-5G13 (5GHz, 13dBi), AMO-2G10 (2.4GHz, 10dBi), AMO-2G13 (2.4GHz, 13dBi) Datasheet | Omni AirOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture which enables hi-performance outdoor multipoint networking. Protocol Support Ubiquiti Channelization Spectral Width Adjust ACK Auto-Timing AAP Technology Multi-Language Support 04 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Software View OS Integrated on all Ubiquiti M products, AirView provides Advanced Spectrum Analyzer Functionality: Waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference. Waterfall Aggregate energy over time for each frequency. Waveform Aggregate energy collected. Real-time Energy is shown real-time as a function of frequency. Recording Automize AirView to record and report results. Contro l AirControl is a powerful and intuitive web based server network management application which allows operators to centrally manage entire networks of Ubiqutii devices. Network Map Monitor Device Status Mass Firmware Upgrade Web UI Access Manage Groups of Devices Task Scheduling www.ubnt.com/aircontrol www.ubnt.com/airview www.ubnt.com/airos * When AirMax Omni is paired with Rocket M * Datasheet | Omni Antenna Characteristics AMO-2G10AMO-2G13AMO-5G10AMO-5G13 Frequency Range2.35 - 2.55 GHz5.45 - 5.85 GHz* Gain10 dBi13 dBi10 dBi13 dBi Elevation Beamwidth12 deg7 deg12 deg7 deg Downtilt4 deg2 deg4 deg2 deg Dimensions** (l x w x h)217 x 123 x 1011 mm217 x 123 x 1386 mm158 x 98 x 579 mm158 x 98 x 834 mm Weight**2.1 kg2.4 kg0.68 kg0.82 kg Wind Loading28 lb @ 100 mph38 lb @ 100 mph8 lb @ 100 mph10 lb @ 100 mph Wind Survivability125 mph100 mph125 mph Max VSWR1.7:11.6:11.5:1 PolarizationDual Linear Cross-pol Isolation25 dB min ETSI SpecificationEN 302 326 DN2 MountingUniversal pole mount, Rocket M bracket, and weatherproof RF jumpers included 05 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Specifications * Only 5745 - 5825 MHz is supported in the USA ** Dimensions and weight include pole mount; do not include Rocket M (Rocket M sold separately) Datasheet | Omni 06 Specifications (cont.) AMO-2G10 - Antenna Information 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -30 2.42.45 V-pol dB GHz 2.5 -20 -10 H-pol Vertical AzimuthReturn LossVertical Elevation Horizontal Elevation 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB -9 -3 dB Horizontal Azimuth Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB AMO-2G13 - Antenna Information 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -24 2.42.45 V-pol dB GHz 2.5 -18 -12 -6 H-pol Vertical AzimuthReturn LossVertical Elevation Horizontal Elevation 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB -9 -3 dB Horizontal Azimuth 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB Datasheet | Omni 07 Specifications (cont.) AMO-5G10 - Antenna Information 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -24 5.555.65 V-pol dB GHz 5.75 -18 -12 -6 H-pol Vertical AzimuthReturn LossVertical Elevation Horizontal Elevation 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB -9 -3 dB Horizontal Azimuth Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB 90 -90 120…

Text truncated - open the document above for the full version.

Next-Gen 2x2 Dual Polarity MIMO Omni Antenna Models: AMO-2G10, AMO-2G13, AMO-5G10, AMO-5G13 Hi-Performance, Long Range Seamlessly Integrates with Rocket M 360 Degree Coverage Omni Datasheet | Omni AirMax Omni is a Carrier Class 2x2 Dual Polarity MIMO omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios (Rocket M sold separately). Rocket M combines the “brains” in one robust unit; just pair Rocket M with AirMax Omni to create powerful 360 ̊ omnidirec- tional basestation. This seamless integra- tion gives network architects unparalleled flexibility and convenience. On the right is one example of how AirMax Omni can be deployed: Internet Backbone ISP Network RocketDish with Rocket M (PtP backhaul) RocketDish with Rocket M (PtP backhaul) AirMax Omni with Rocket M (PtMP) Corporate campus with NanoBridge M clients Mobile computer with AirGrid M client Omnidirectional Coverage 02 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Overview Unlike standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller. This "time slot" method eliminates hidden node collisions & maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, & scalability compared to all other outdoor systems in its class. Intelligent QoS Priority is given to voice/video for seamless access. Scalability High capacity and scalability. Long Distance Capable of high speed Carrier Class links Latency Multiple features dramatically reduce noise. Utilize AirMax Technology Time Channel Time Slot 1 Time Slot 2 Time Slot 3 Time Slot 4 Frame Time Slot 4 Packet Prioritization VOIPVOIPVOIPVOIP DATA AirMax Clients (up to 100 clients can be connected per AirMax Omni, 4 clients are shown to show general concept) AirMax Omni Usage Example AirMax Omni Antennas provide wide 360° coverage and utilize AirMax technlogy to produce Carrier Class performance and power. 12 3 4 5 OMNI PTMP LINKS (Point to Multi-Point) 1 2 3 4 5 6 6 7 7 *When Omni is paired with Rocket M * Datasheet | Omni 03 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Models [left to right] AMO-5G10 (5GHz, 10dBi), AMO-5G13 (5GHz, 13dBi), AMO-2G10 (2.4GHz, 10dBi), AMO-2G13 (2.4GHz, 13dBi) Datasheet | Omni AirOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture which enables hi-performance outdoor multipoint networking. Protocol Support Ubiquiti Channelization Spectral Width Adjust ACK Auto-Timing AAP Technology Multi-Language Support 04 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Software View OS Integrated on all Ubiquiti M products, AirView provides Advanced Spectrum Analyzer Functionality: Waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference. Waterfall Aggregate energy over time for each frequency. Waveform Aggregate energy collected. Real-time Energy is shown real-time as a function of frequency. Recording Automize AirView to record and report results. Contro l AirControl is a powerful and intuitive web based server network management application which allows operators to centrally manage entire networks of Ubiqutii devices. Network Map Monitor Device Status Mass Firmware Upgrade Web UI Access Manage Groups of Devices Task Scheduling www.ubnt.com/aircontrol www.ubnt.com/airview www.ubnt.com/airos * When AirMax Omni is paired with Rocket M * Datasheet | Omni Antenna Characteristics AMO-2G10AMO-2G13AMO-5G10AMO-5G13 Frequency Range2.35 - 2.55 GHz5.45 - 5.85 GHz* Gain10 dBi13 dBi10 dBi13 dBi Elevation Beamwidth12 deg7 deg12 deg7 deg Downtilt4 deg2 deg4 deg2 deg Dimensions** (l x w x h)217 x 123 x 1011 mm217 x 123 x 1386 mm158 x 98 x 579 mm158 x 98 x 834 mm Weight**2.1 kg2.4 kg0.68 kg0.82 kg Wind Loading28 lb @ 100 mph38 lb @ 100 mph8 lb @ 100 mph10 lb @ 100 mph Wind Survivability125 mph100 mph125 mph Max VSWR1.7:11.6:11.5:1 PolarizationDual Linear Cross-pol Isolation25 dB min ETSI SpecificationEN 302 326 DN2 MountingUniversal pole mount, Rocket M bracket, and weatherproof RF jumpers included 05 Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com Specifications * Only 5745 - 5825 MHz is supported in the USA ** Dimensions and weight include pole mount; do not include Rocket M (Rocket M sold separately) Datasheet | Omni 06 Specifications (cont.) AMO-2G10 - Antenna Information 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -30 2.42.45 V-pol dB GHz 2.5 -20 -10 H-pol Vertical AzimuthReturn LossVertical Elevation Horizontal Elevation 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB -9 -3 dB Horizontal Azimuth Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB AMO-2G13 - Antenna Information 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -24 2.42.45 V-pol dB GHz 2.5 -18 -12 -6 H-pol Vertical AzimuthReturn LossVertical Elevation Horizontal Elevation 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB -9 -3 dB Horizontal Azimuth 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB Datasheet | Omni 07 Specifications (cont.) AMO-5G10 - Antenna Information 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -24 5.555.65 V-pol dB GHz 5.75 -18 -12 -6 H-pol Vertical AzimuthReturn LossVertical Elevation Horizontal Elevation 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB -9 -3 dB Horizontal Azimuth Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reservedwww.ubnt.com 90 -90 120 -120 150 -150 180 60 -60 30 -30 0 -9 -3 dB 90 -90 120…

Text truncated - open the document above for the full version.

INFRASTRUCTURE ANTENNAS Sector Panels PCTEL, Inc. WEB: www.antenna.com 127 2.3-2.7GHz 65° & 90° Sector Panel Technical Data Polarization: Linear dual slant +/- 45° Nominal Impedance: 50 ohms VSWR: < 1.5 Front to Back Ratio: > 25 dB Port to Port Isolation: 30 dB typical Upper Side Lobe Suppression: 30 degrees above horizon: > -15 dB Radome Material: Gray UV resistant plastic Connector: Type N female Mounting Method: Adjustable pipe mount bracket (included) Mount Material: Nickel Zinc Trivalent Plated Steel (RoHS Compliant) This WiMAX antenna is designed to cover frequencies from 2300 to 2700 MHz. It offers excellent port to port isolation of 30 dB typical, with a VSWR of less than 1.5 in a rugged, off-white UV resistant radome. Features • Outstanding port to port isolation of 30 dB typical • VSWR of less than 1.5 • Great upper side lobe suppression • Adjustable scissors-style pipe mount bracket with 0-10° downtilt RF/Electrical Specifi cations Mechanical Specifi cations SP2327-16XP65 2300-2500 MHz 2500-2700 MHz 16.0 dBi 16.5 dBi 65° +/- 5° 65° +/- 5° 9° 9° SP2327-15XP90 2300-2500 MHz 2500-2700 MHz 15.0 dBi 15.5 dBi 90° +/- 5° 90° +/- 5° 9° 9° SP4959-16XP904.9-5.4 GHz 5.4-5.9 GHz 16.5 dBi 15.5 dBi 90° +/- 10% 90° +/- 10% 5° 5° SP2327-16XP65 -40°C to 65°C storage / -40°C to 65°C operating 28” x 6.7” x 3.5” (711 x 171 x 90 mm) 7 lbs (3.1 kg) 125 mph (200 km/h) SP2327-15XP90 -40°C to 65°C storage / -40°C to 65°C operating 28” x 6.7” x 3.5” (711 x 171 x 90 mm) 7 lbs (3.1 kg) 125 mph (200 km/h) SP4959-16XP90 40°C to 65°C storage / -40°C to 65°C operating 28” x 6.7” x 3.5” (711 x 171 x 90 mm) 7 lbs (3.1 kg) 125 mph (200 km/h) Model Temperature Range Dimensions (L X W X D) Weight (Mass) Wind Survivability Model Frequency Range Nominal Gain Azimuth Beamwidth Elevation Beamwidth

4.9-5.9GHz 65° & 90° Sector Panels This WiMAX antenna is designed to cover frequencies from 4.9 to 5.9 GHz. It offers excellent port to port isolation of 30 dB typical, with a VSWR of less than 1.5 in a rugged, off-white UV resistant radome. Features • Outstanding port to port isolation of 30 dB typical • VSWR of less than 1.5 • Great upper side lobe suppression • Adjustable scissors-style pipe mount bracket with 0-10° downtilt Model Frequency Range Nominal Gain Azimuth Beamwidth Elevation Beamwidth RF/Electrical Specifi cations Mechanical Specifi cations SP4959-17XP654.9-5.4 GHz 5.4-5.9 GHz 17.5 dBi 16.5 dBi 65° +/- 10% 65° +/- 10% 5° 5° SP4959-16XP904.9-5.4 GHz 5.4-5.9 GHz 16.5 dBi 15.5 dBi 90° +/- 10% 90° +/- 10% 5° 5° SP4959-17XP65 -40°C to 65°C storage / -40°C to 65°C operating 28” x 6.7” x 3.5” (711 x 171 x 90 mm) 7 lbs (3.1 kg) 125 m…
