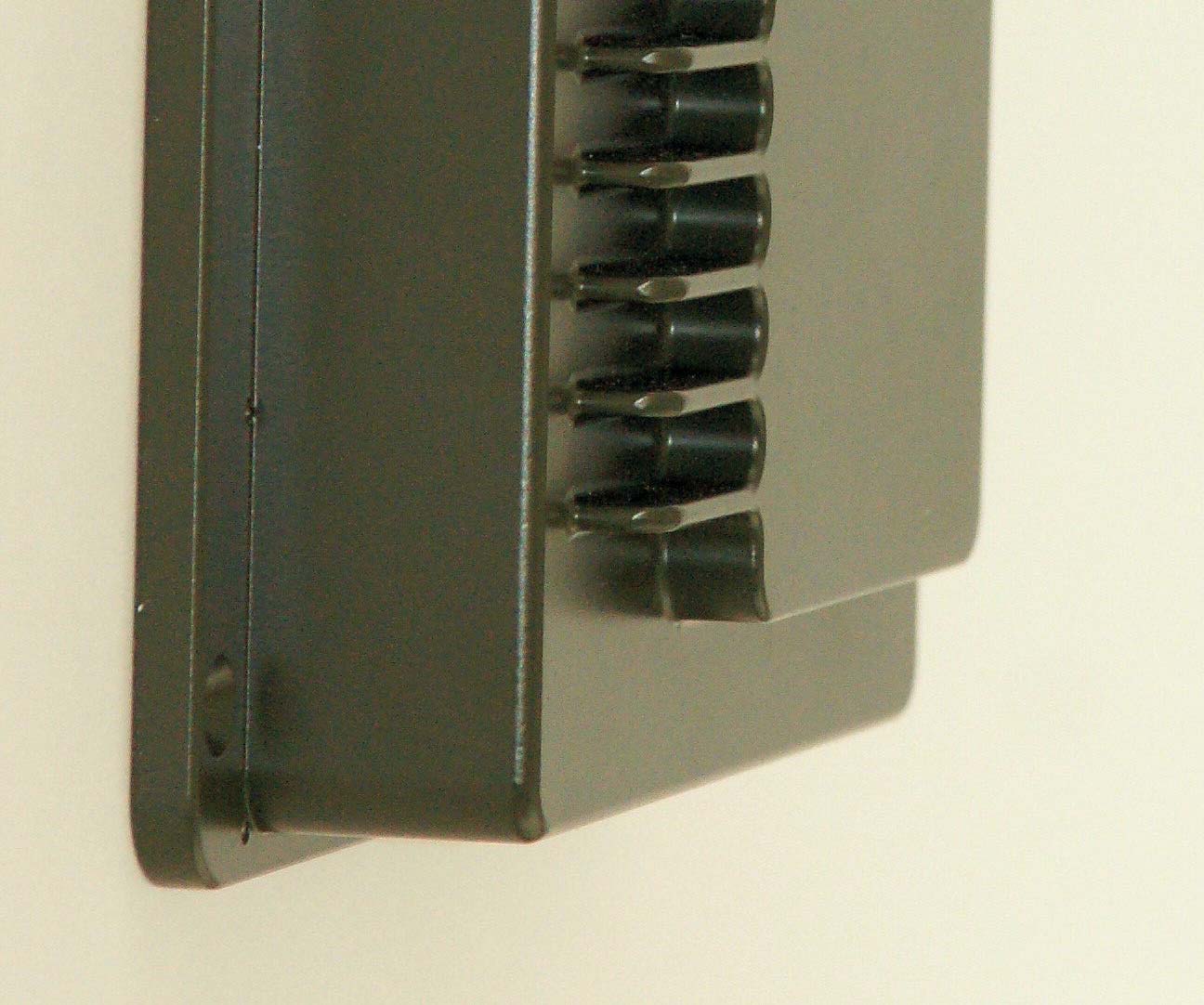

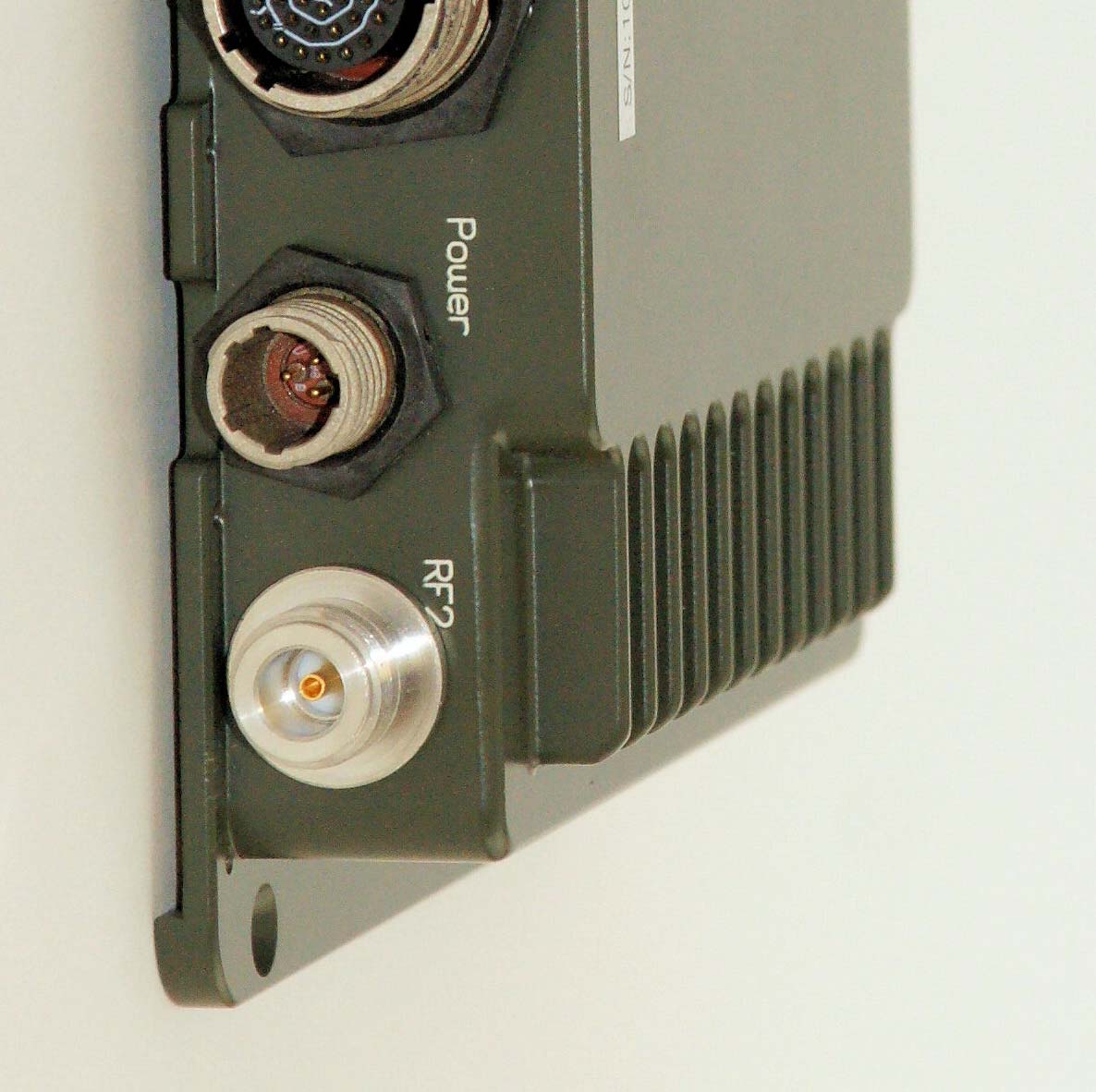

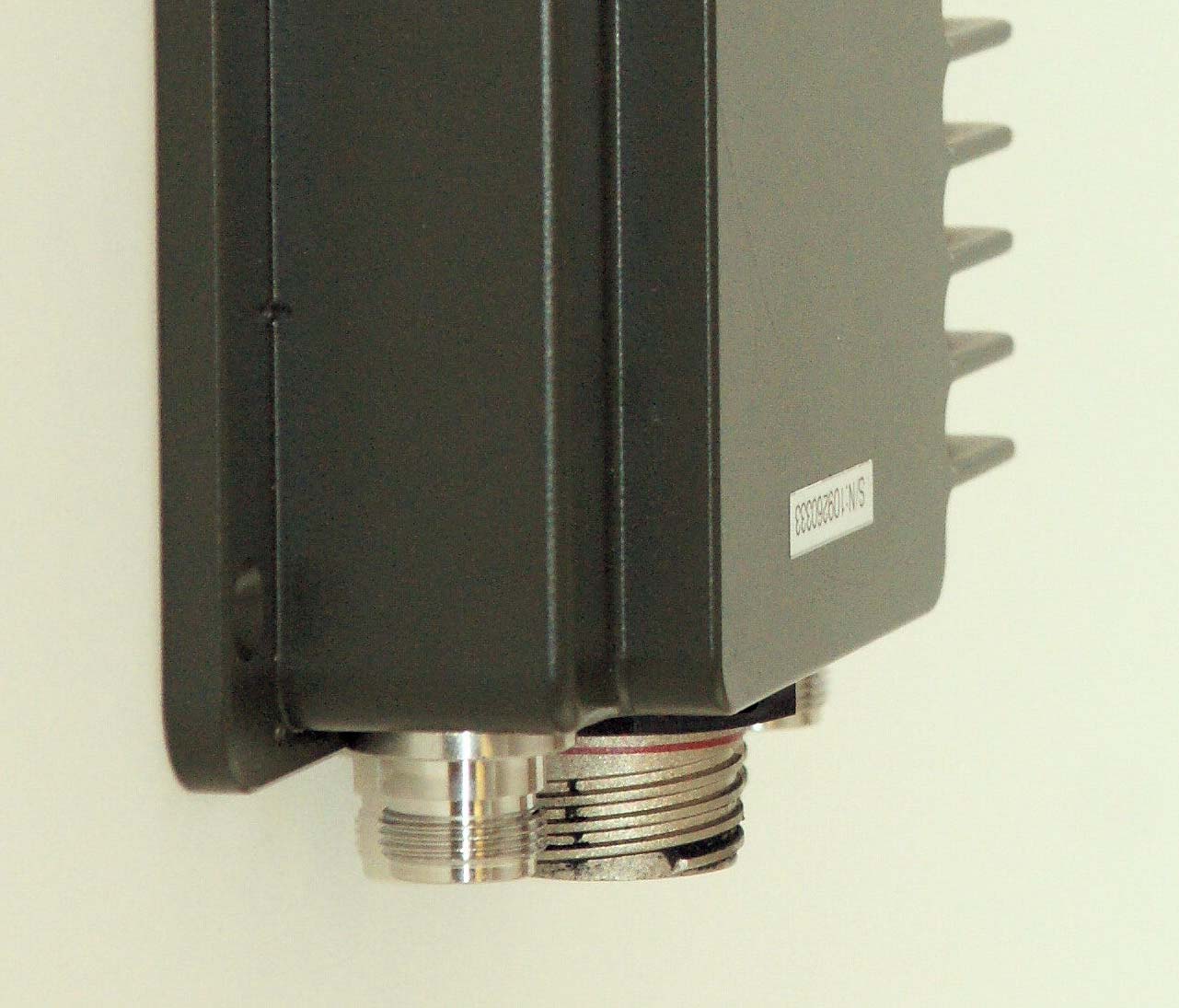

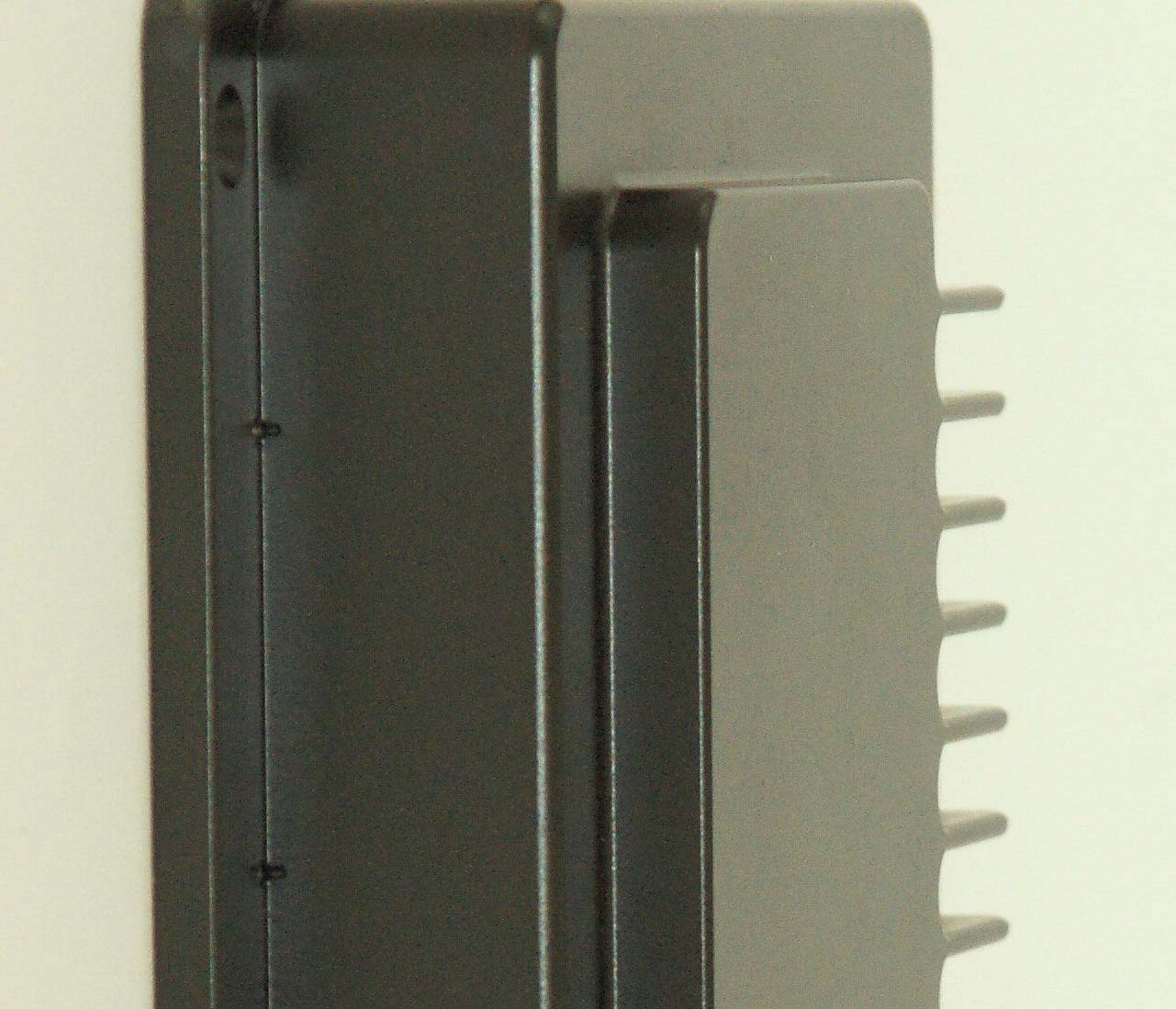

WYK-ES820Dual Radio Access Point/Bridge

Fortress Security System ES820 Secure Wireless Bridge User Guide www.fortresstech.com © 2010 Fortress Technologies ES820 Bridge i Fortress ES820 Secure Wireless Bridge 5.2 [rev.0] Copyright © 2010 Fortress Technologies, Inc. All rights reserved. This document contains proprietary information protected by copyright. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, without written permission of Fortress Technologies, 4023 Tampa Road, Suite 2000, Oldsmar, FL 34677, except as specified in the Product Warranty and License Terms. FORTRESS TECHNOLOGIES, INC., MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. FORTRESS TECHNOLOGIES, INC. SHALL NOT BE LIABLE FOR ERRORS CONTAINED HEREIN OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE FURNISHING, PERFORMANCE OR USE OF THIS MATERIAL. THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. The Fortress Technologies and AirFortress logos and AirFortress and are registered trademarks; Multi-Factor Authentication, Unified Security Model, Wireless Link Layer Security and Three Factor Authentication (TFA) are trademarks of Fortress Technologies, Inc. The technology behind Wireless Link Layer Security™ enjoys U.S. and international patent protection under patent number 5,757,924. Portions of this software are covered by the GNU General Public License (GPL) Copyright © 1989, 1991 Free Software Foundation, Inc,. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA. To receive a complete machine-readable copy of the corresponding source code on CD, send $10 (to cover the costs of production and mailing) to: Fortress Technologies; 4023 Tampa Road, suite 2000; Oldsmar, FL 34677-3216. Please be sure to include a copy of your Fortress Technologies invoice and a valid “ship to” address. This product includes cryptographic software written by Eric Young ([email protected]). This product includes software written by Tim Hudson ([email protected]). Copyright © 1995-1998 Eric Young ([email protected]) All rights reserved. This package is an SSL implementation written by Eric Young ([email protected]). The implementation was written so as to conform with Netscape’s SSL. THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Atheros, the Atheros logo, Atheros Driven, Driving the wireless future, Super G and Super AG are all registered trademarks of Atheros Communications. ROCm, JumpStart for Wireless, Atheros XR, Wake-on-Wireless, Wake-on-Theft, and FastFrames, are all trademarks of Atheros Communications, Inc. This product uses Dynamic Host Control Protocol copyright 1995, 1996, 1997, 1998, 1999 by the Internet Software Consortium-DHCP. All rights reserved. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/) Copyright © 1998-2007 The OpenSSL Project. All rights reserved.THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT ES820 Bridge ii OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. This product uses Net-SNMP Copyright © 1989, 1991, 1992 by Carnegie Mellon University, Derivative Work - 1996, 1998-2000. Copyright © 1996, 1998-2000 The Regents of the University of California. All rights reserved. Copyright © 2001-2003, Cambridge Broadband Ltd. All rights reserved. Copyright © 2003 Sun Microsystems, Inc. All rights reserved. Copyright © 2001-2006, Networks Associates Technology, Inc. All rights reserved. Center of Beijing University of Posts and Telecommunications. All rights reserved. Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http:// www.apache.org/licenses/LICENSE-2.0. Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. Microsoft and Windows are registered trademarks of the Microsoft Corporation. Firefox is a trademark of the Mozilla Foundation. SSH is a trademark of SSH Communication Security. All other trademarks mentioned in this document are the property of their respective owners. FCC EMISSIONS COMPLIANCE STATEMENT THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERF…

Text truncated - open the document above for the full version.

Fortress Security System ES210 Secure Wireless Bridge User Guide www.fortresstech.com © 2009 Fortress Technologies D R A F T D O C U M E N T Fortress ES210 i Fortress ES210 Secure Wireless Bridge 5.2 Copyright © 2009 Fortress Technologies, Inc. All rights reserved. This document contains proprietary information protected by copyright. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, without written permission of Fortress Technologies, 4023 Tampa Road, Suite 2000, Oldsmar, FL 34677, except as specified in the Product Warranty and License Terms. FORTRESS TECHNOLOGIES, INC., MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. FORTRESS TECHNOLOGIES, INC. SHALL NOT BE LIABLE FOR ERRORS CONTAINED HEREIN OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE FURNISHING, PERFORMANCE OR USE OF THIS MATERIAL. THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. The Fortress Technologies and AirFortress logos and AirFortress and are registered trademarks; Multi-Factor Authentication, Unified Security Model, Wireless Link Layer Security and Three Factor Authentication (TFA) are trademarks of Fortress Technologies, Inc. The technology behind Wireless Link Layer Security™ enjoys U.S. and international patent protection under patent number 5,757,924. Portions of this software are covered by the GNU General Public License (GPL) Copyright © 1989, 1991 Free Software Foundation, Inc,. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA. To receive a complete machine-readable copy of the corresponding source code on CD, send $10 (to cover the costs of production and mailing) to: Fortress Technologies; 4023 Tampa Road, suite 2000; Oldsmar, FL 34677-3216. Please be sure to include a copy of your Fortress Technologies invoice and a valid “ship to” address. This product includes cryptographic software written by Eric Young ([email protected]). This product includes software written by Tim Hudson ([email protected]). Copyright © 1995-1998 Eric Young ([email protected]) All rights reserved. This package is an SSL implementation written by Eric Young ([email protected]). The implementation was written so as to conform with Netscape’s SSL. THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Atheros, the Atheros logo, Atheros Driven, Driving the wireless future, Super G and Super AG are all registered trademarks of Atheros Communications. ROCm, JumpStart for Wireless, Atheros XR, Wake-on-Wireless, Wake-on-Theft, and FastFrames, are all trademarks of Atheros Communications, Inc. This product uses Dynamic Host Control Protocol copyright 1995, 1996, 1997, 1998, 1999 by the Internet Software Consortium-DHCP. All rights reserved. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/) Copyright © 1998-2007 The OpenSSL Project. All rights reserved.THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR D R A F T D O C U M E N T Fortress ES210 ii CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. This product uses Net-SNMP Copyright © 1989, 1991, 1992 by Carnegie Mellon University, Derivative Work - 1996, 1998-2000. Copyright © 1996, 1998-2000 The Regents of the University of California. All rights reserved. Copyright © 2001-2003, Cambridge Broadband Ltd. All rights reserved. Copyright © 2003 Sun Microsystems, Inc. All rights reserved. Copyright © 2001-2006, Networks Associates Technology, Inc. All rights reserved. Center of Beijing University of Posts and Telecommunications. All rights reserved. Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http:// www.apache.org/licenses/LICENSE-2.0. Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. Microsoft and Windows are registered trademarks of the Microsoft Corporation. Firefox is a trademark of the Mozilla Foundation. SSH is a trademark of SSH Communication Security. All other trademarks mentioned in this document are the property of their respective owners. FCC EMISSIONS COMPLIANCE STATEMENT THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROV…

Text truncated - open the document above for the full version.

Agent Authorization Letter Decemebr 17, 2009 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize John Pacheco, to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, David Aylesworth Vice President of Product Management

Fortress Technologies · 4023 Tampa Road, Suite 2000 · Oldsmar, FL · 1.888.4PRIVACY · www.fortresstech.com Long Term Confidentiality Request Letter December 17, 2009 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR ES820, FCC ID: WYK-ES820 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the follow list of items: Exhibit Type File Name Block Diagram Schematics Operational Description ES820BlkDia.pdf ES820Schem.pdf ES820OpDes.pdf Internal Photos Internal Photos.pdf which required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, David Aylesworth Vice President of Product Management

Fortress Technologies · 4023 Tampa Road, Suite 2000 · Oldsmar, FL · 1.888.4PRIVACY · www.fortresstech.com Short Term Confidentiality Request Letter December 17, 2009 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For ES820 FCC ID: WYK-ES820 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, Fortress Technologies, Inc. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which Fortress Technologies, Inc considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Fortress Technologies, Inc feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, David Aylesworth Vice President of Product Management

A DWG. NO. SIZE 1410-00067-01 REV. MATERIAL Compliance DRAWING IS THE SOLE PROPERTY OF DATE JBETZ FINISH DO NOT SCALE DRAWING CHANGE DESC. PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS FORTRESS TECHNOLOGIES IS PROHIBITED. COMMENTS: SHEE T 1 OF 1 Q.A. MFG A PPR. ENG A PPR. CHECKED DRAWN WITHOUT THE WRITT EN PERMISS ION OF REPRODUCTIO N IN PART OR AS A WHOLE FORTRESS TECHNOLOGI ES. ANY 23NOV09 ES820-35 NAME .00 5 Label REV REVISION HISTORY DI MENSIO NS ARE IN INCHES TOLERANCES: FR ACTIONAL ANGULAR: MACH BEND TWO PLACE DECIMAL .01 THREE PLACE DECIMAL SCALE:1:1 Notes: 1) L abel material t o b e 3 M 7 872 P latinum P olyest er ( UL a pproved). 2) A dhesive: 3 M 9 471 P SA applied t o back o f label. 3) 1 mil c lear polyester overlaminate required. 4) A ll p rint color t o be black. 5) L abel to b e R oHS c ompliant p er E U d irective 2002/95/EC. Statement o f c ompliance t o b e a vailable u pon r equest . 3.20 max 0.125 4 places R 1.50 ES820-35 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Input Voltage: 9 to 30VDC, 7W Max. FCC ID: WYK-ES820 IC: 8190A-ES820

Label attaches here

75 Specifications Frequency/Gain: See above Bandwidth@2:1 VSWR: See above Impedance: 50 Ohm nominal Max Power: 25 Watts ECO5 Beamwidth: 30 o El, 360 o Az ECO6 Beamwidth: 25 o El, 360 o Az ECO8 Beamwidth: 12 o El, 360 o Az ECO9 Beamwidth 12 o El, 360 o Az ECO12 Beamwidth: 7 o El, 360 o Az Operating Temp: -40 o to +85 o C Lightning Protection: External recommended Max Wind Velocity: 125+ mph (200 kph) Material: White fiberglass radome, Weight: <0.75 lbs (< 0.340 kg) Antenna Diameter: 0.63 in (1.6 cm) Radome, 0.9 in (2.3 cm) at the base Connector (standard): N female direct Model Numbers Model Description Frequency ECO5-2400 5 dBi Omni 2.4 - 2.5 GHz ECO8-2400 8 dBi Omni 2.4 - 2.5 GHz ECO6-2600 6 dBi Omni 2.5 - 2.7 GHz ECO9-2600 9 dBi Omni 2.5 - 2.7 GHz ECO6-3500 6 dBi Omni 3.4 - 3.7 GHz ECO9-3500 9 dBi Omni 3.4 - 3.7GHz ECO6-4900 6 dBi Omni 4.9 - 5.0 GHz ECO9-4900 9 dBi Omni 4.9 - 5.0 GHz ECO12-4900 12 dBi Omni 4.9 - 5.0 GHz ECO6-5500 6 dBi Omni 5.0 - 6.0 GHz ECO9-5500 9 dBi Omni 5.0 - 6.0 GHz ECO12-5800 12 dBi Omni 5.7 - 6.0 GHz add "PT" Pigtail Cable Option with N male connector & 3/4-20 thread with Nut add “RN” Direct mount version with Male N Mobile Mark's ECO Omni antennas are designed for all new data & broadband systems, including WiFi, 802.11 & WiMAX systems. Using the latest PCB technology, these antennas improve high-speed broadband system performance in an economical package. The ECO Series are free space antennas; no ground plane is required. Mounting hardware is available for a variety of uses. Standard hardware includes pole/wall mount. The antenna element is enclosed in an tough white fiber- glass radome. The low profile radome is only 0.63 inches (1.6 cm) diameter, and 0.9 in (2.3 cm) at the base. The antenna terminates with an integrated N-female. A "PT" pigtail cable option also provides a direct coax into the antenna and can be outfitted with a variety of connectors, such as Reverse Polarity TNC or SMA. For direct male N mounting, series “RN” can be chosen. These antennas can withstand the harshest outdoor environments, yet are quite attractive for indoor use. The antennas are supplied with hardware for pole or surface mount. ■ Gain configurations from 5 dBi to 12 dBi ■ Economical, weatherproof and durable design for both indoors and outdoors ■ Standard mounting kit includes all hardware needed for pole or wall mount ■ Pigtail cable option; use standard mount or hole mount with the 3/4-20 threaded stud ECO Series Omni Antennas (Pat.Pend.) for all 2.4 - 6.0 GHz Systems Product Specifications US Office & Headquarters: 3900-B River Road, Schiller Park, IL 60176 Tel: 800-648-2800 or 847-671-6690 Fax: 847-671-6715 UK Office: 106 Anglesey Business Park, Hednesford, Staffs. WS12 1NR UK Tel: (+44) 1543-878343 Fax: (+44) 1543-871714 Visit our web page at www.mobilemark.com. Specifications subject to change without notice (4/2008). Mounting: Pole or surface mount, mounts up to 2" (5cm) Antenna Length: ECO5-2400 11 in (28.0 cm) ECO8-2400 22 in (56.0 cm) ECO6-2600 15 in (38.1 cm) ECO9-2600 22 in (56.0 cm) ECO6-3500 15 in (38.1 cm) ECO9-3500 19 in (48.3 cm) ECO6-4900 11 in (28.0 cm) ECO9-4900 15 in (38.1 cm) ECO12-4900 19 in (48.3 cm) ECO6-5500 11 in (28.0 cm) ECO9-5500 15 in (38.1 cm) ECO12-5800 19 in (48.3 cm) PT Pigtail Option: 1ft cable (0.3 meters) & N male, others available ECO Series 2.4 - 5 GHz Models with N female "PT" pigtail cable op- tion for all models

49 Antenna Diameter:1" (25 mm), main mast Length/Weight: 3 dBi Models16", 1.5 lbs (41 cm, 0.7 kg) 6 dBi Models19", 1.5 lbs (48 cm, 0.7 kg) 9 dBi Models27", 2.0 lbs (69 cm, 0.9 kg) 12 dBi Model41", 2.5 lbs (104cm, 1.1 kg) Mounting Kit:Mast mount kit included Mounting Dimensions:Use mast up to 2" (50 mm) Material:Fiberglass radome with aluminum body Options:Reflector Option Kits Pigtail Cable Option Part 15 Reverse Connectors
3 dBi, 6 dBi, 9 dBi & 12 dBi antennas provide uniform omni coverage
Unique design allows economical build out
Mounting kit includes all hardware needed
Reflector options provide directional beamshaping & sectorization OD Series Omni Antenna For WLAN, Video and Data Systems The OD Series Antennas are optimized for use in a wide variety of wireless systems. Typical uses include WLAN access points or bridge (802.11b/g), and surveillance transmitters. These antennas are collinear arrays. Unique phasing cancels out-of-phase current distribution, improving performance. The OD Series are free space antennas; no ground plane is required. Unique options for the OD series are add-on Reflector Kits that beam shapes the omni pattern. Reflector options are available to provide cardioid shape in 90 o , 120 o & 180 o patterns. These can result in improved directional gain, and isolation for reduced interference. The black fiberglass radome (1" diameter/25 mm) makes the antennas durable and rugged. They can withstand the harshest environments of snow, wind, rain and ice. The feed assembly is made of precision machined aluminum components and is irridited for weather protection. The antenna comes with all the hardware needed to install it to Specifications Frequency & Gain:See above Bandwidth @2:1 VSWR:See above Nominal Impedance:50 ohms Max. Power (continuous):25 watts Vertical Beamwidth (-3 dB point): 3 dBi Model55 degrees 6 dBi Model25 degrees 9 dBi Model14 degrees 12 dBi Model 7 degrees Wind Load (flat plate equiv.):30-40 sq. inches (190-260 sq.com) Rated Wind Velocity:100+ mph (160+kph) Lightning Protection:External suggested OD Series Interface:N female connector a mast. The OD antennas terminate with a female N connector. Optional models include pigtail cable with other connectors. For ISM, Part 15 compliant connectors are available (reverse polarized), please consult factory. Model Numbers ModelFreq.(MHz)GainApplications OD3-24002400-24853 dBiWLAN, ISM, Video OD6-24002400-24856 dBiWLAN, ISM, Video OD9-24002400-24859 dBiWLAN, ISM, Video OD12-24002400-2485 12 dBiWLAN, ISM, Video Pigtail Cable Option RevTNC & 1ft (30 cm)RG-8 Cable add -PTA to model Reflector OptionsModel Add-on 90 o kit for OD9 -2400ODR9-2400K Add-on 120 o kit for OD9-2400ODR9-2400T120K Add-on 180 o kit for OD9-2400ODR9-2400T180K Reflector options available for all models, consult factory for full details and complete model listings OD12 US Office & Headquarters: 3900-B River Road, Schiller Park, IL 60176 Tel: 800-648-2800 or 847-671-6690 Fax: 847-671-6715 UK Office: 106 Anglesey Business Park, Hednesford, Staffs. WS12 1NR UK Tel: (+44) 1543-878343 Fax: (+44) 1543-871714 Visit our web page at www.mobilemark.com. Specifications subject to change without notice (1/2006). OD9 OD6 OD6 Shown with PTA option & Rev TNC 180 o Reflector Option shown Product Specifications

Electromagnetic Compatibility Fortress Technologies MPE Calculation – M25 and M5 Radios Vehicle Mesh Point ES820 (M25 and M5 Radios) CFR Title 47 15.247; RSS-210, Issue 7, June 2007 MET Report: EMC28036-FCC247 © 2010, MET Laboratories, Inc. Page 87 of 101 DOC-EMC702 6/18/2009 § 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. M25 Radio: MPE Limit Calculation: EUT’s operating frequency is 2412 - 2462 MHz and 5745 – 5825 MHz;. 2.4 GHz 802.11 g mode: Highest conducted power = 207.5 mW (i.e. 23.17 dBm). Therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 . Equation from page 18 of OET 65, Edition 97-01 S = P G/ 4R 2 where, S = Power Density mW/m 2 P = Power (mW) R = Distance to the center of radiation of the antenna G = Maximum antenna gain Maximum antenna gain for EUT = 9 dBi = 7.94 P = 207.5 mW R = 20 cm G = 7.94 S1 = 207.5*7.94 / 4(3.1416)(20) 2 S1 = 0.33 mW/cm 2 Therefore, EUT meets the Uncontrolled Exposure limit at 20cm. Electromagnetic Compatibility Fortress Technologies MPE Calculation – M25 and M5 Radios Vehicle Mesh Point ES820 (M25 and M5 Radios) CFR Title 47 15.247; RSS-210, Issue 7, June 2007 MET Report: EMC28036-FCC247 © 2010, MET Laboratories, Inc. Page 88 of 101 DOC-EMC702 6/18/2009 5.8 GHz 802.11 a mode: Highest conducted power = 216.3 mW (i.e. 23.35 dBm). Therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 . Equation from page 18 of OET 65, Edition 97-01 S = P G/ 4R 2 where, S = Power Density mW/m 2 P = Power (mW) R = Distance to the center of radiation of the antenna G = Maximum antenna gain Maximum antenna gain for EUT = 9 dBi = 7.94 P = 216.3 mW R = 20 cm G = 7.94 S2 = 216.3*7.94 / 4(3.1416)(20) 2 S2 = 0.34 mW/cm 2 Therefore, EUT meets the Uncontrolled Exposure limit at 20cm Electromagnetic Compatibility Fortress Technologies MPE Calculation – M25 and M5 Radios Vehicle Mesh Point ES820 (M25 and M5 Radios) CFR Title 47 15.247; RSS-210, Issue 7, June 2007 MET Report: EMC28036-FCC247 © 2010, MET Laboratories, Inc. Page 89 of 101 DOC-EMC702 6/18/2009 M5 Radio: EUT’s operating frequency is 5745 - 5825 MHz;. Highest conducted power = 475.3 mW (i.e. 26.76 dBm). Therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 . Equation from page 18 of OET 65, Edition 97-01 S = P G/ 4R 2 where, S = Power Density mW/m 2 P = Power (mW) R = Distance to the center of radiation of the antenna G = Maximum antenna gain Maximum antenna gain for EUT = 9 dBi = 7.94 P = 475.3 mW R = 22 cm G = 7.94 S3 = 475.3*7.94 / 4(3.1416)(22) 2 S3 = 0.62 mW/cm 2 Therefore, EUT meets the Uncontrolled Exposure limit at 22cm Electromagnetic Compatibility Fortress Technologies MPE Calculation – M25 and M5 Radios Vehicle Mesh Point ES820 (M25 and M5 Radios) CFR Title 47 15.247; RSS-210, Issue 7, June 2007 MET Report: EMC28036-FCC247 © 2010, MET Laboratories, Inc. Page 90 of 101 DOC-EMC702 6/18/2009 Co-location: S Power density (mW/cm²) General Population Limit (mW/cm²) S as a fraction of the limit (%) S1 0.33 1 33 S3 0.62 1 62 S Power density (mW/cm²) General Population Limit (mW/cm²) S as a fraction of the limit (%) S2 0.34 1 34 S3 0.48 1 48 The total percentages do not exceed 100 % per OET 65 requirements when the spectral power density is calculated at least 22cm away from the unit.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory January 21, 2010 Fortress Technologies 2 Technology Park Drive Westford, MA 01886 Dear John Pacheco, Enclosed is the EMC Wireless test report for compliance testing of the Fortress Technologies, Vehicle Mesh Point ES820 (containing M25 and M5 Radios) as tested to the requirements of FCC Part 15 Subpart C and RSS-210, Issue 7, June 2007 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Fortress Technologies\EMC28036-FCC247) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Fortress Tec hnologies Cover Page Vehicle Mesh Point ES820 (M25 and M5 Radios) CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMC28036-FCC247 © 2010, MET Laboratories, Inc. Page ii of ix DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Fortress Technologies Vehicle Mesh Point ES820 (M25 and M5 Radios) Tested under the FCC Certification Rules contained in 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMC28036-FCC247 January 21, 2010 Prepared For: Fortress Technologies 2 Technology Park Drive Westford, MA 01886 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility Fortress Tec hnologies Cover Page Vehicle Mesh Point ES820 (M25 and M5 Radios) CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMC28036-FCC247 © 2010, MET Laboratories, Inc. Page iii of ix DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Fortress Technologies Vehicle Mesh Point ES820 (M25 and M5 Radios) Tested under the FCC Certification Rules contained in 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Dusmantha Tennakoon, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment t…
