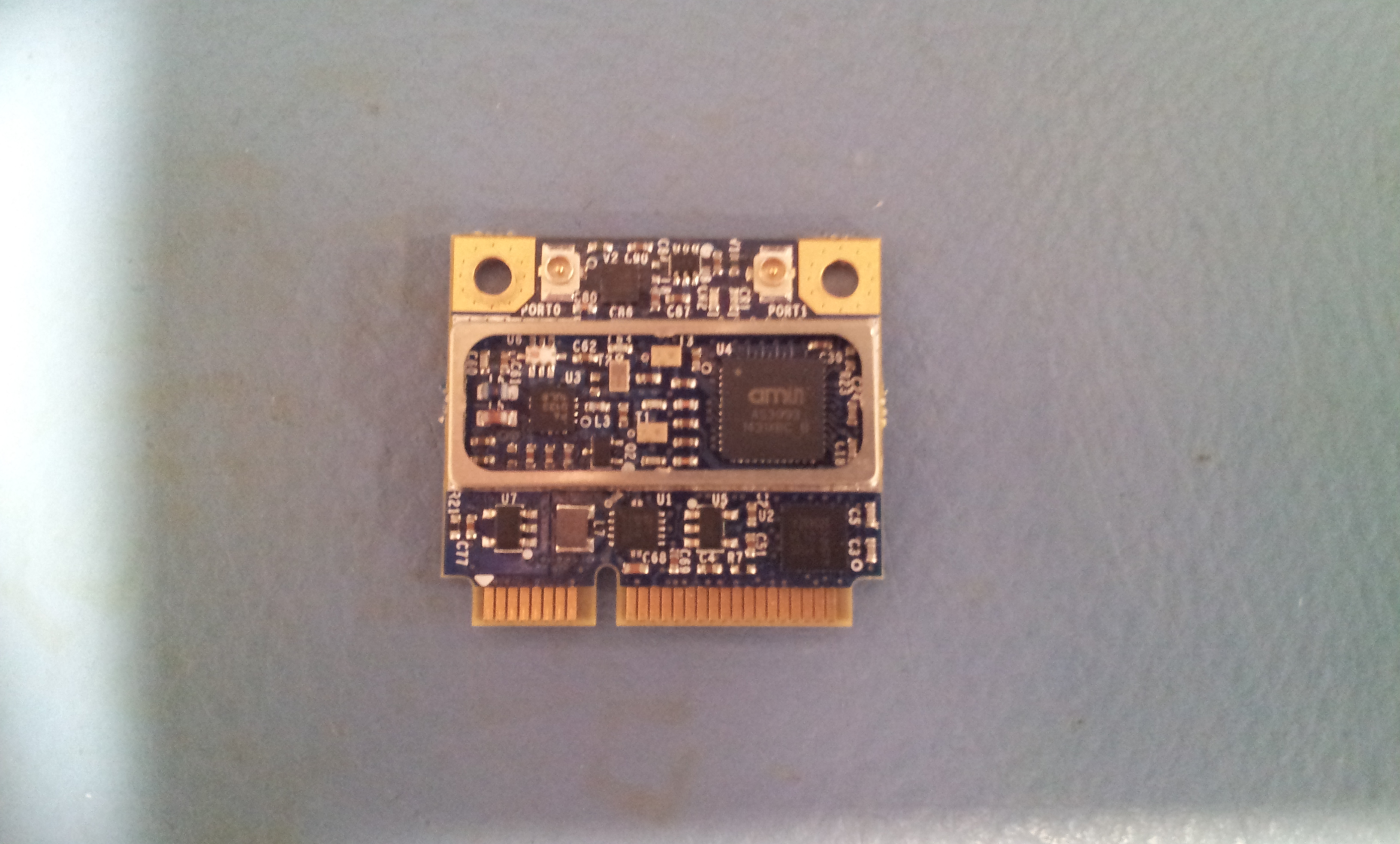

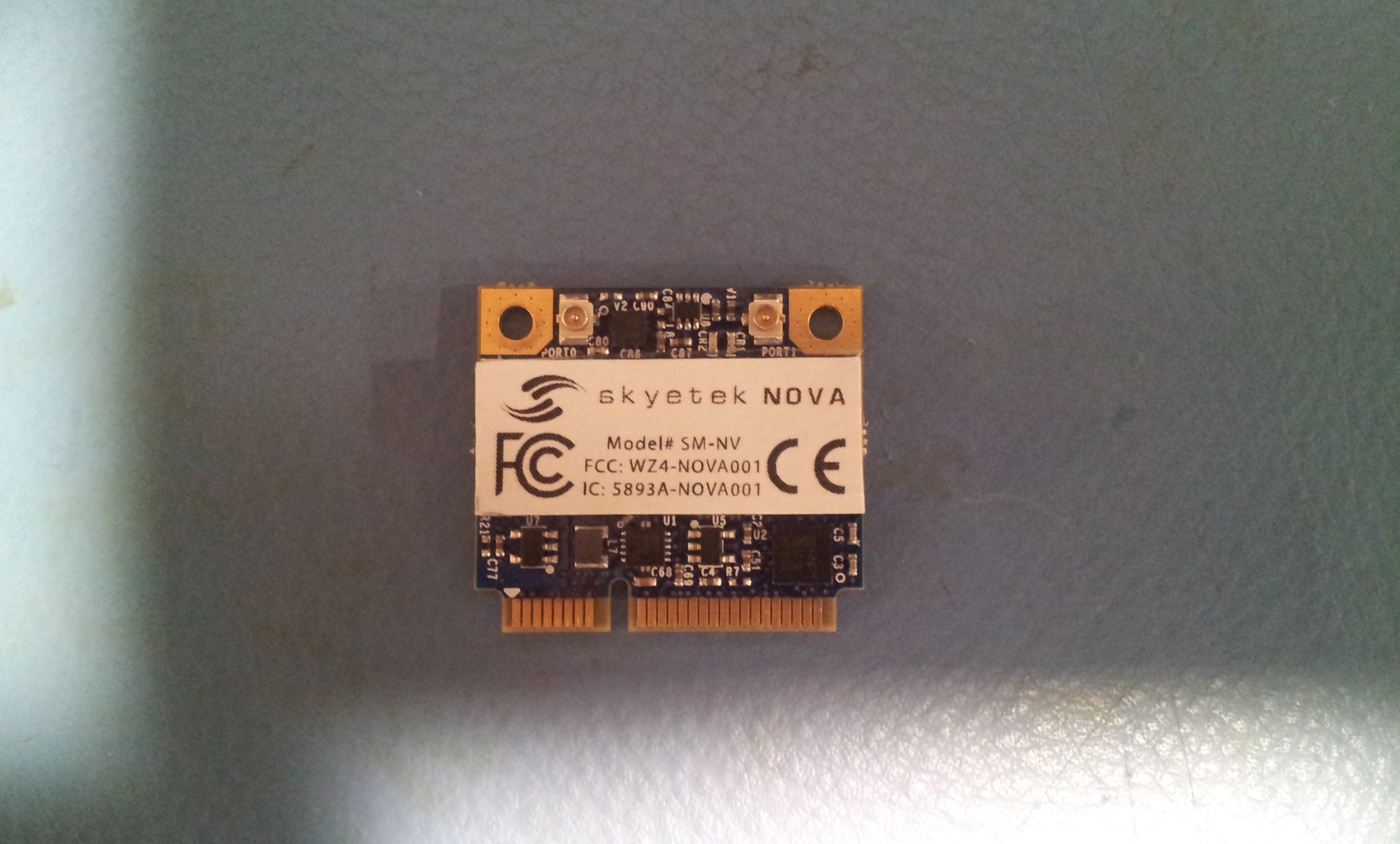

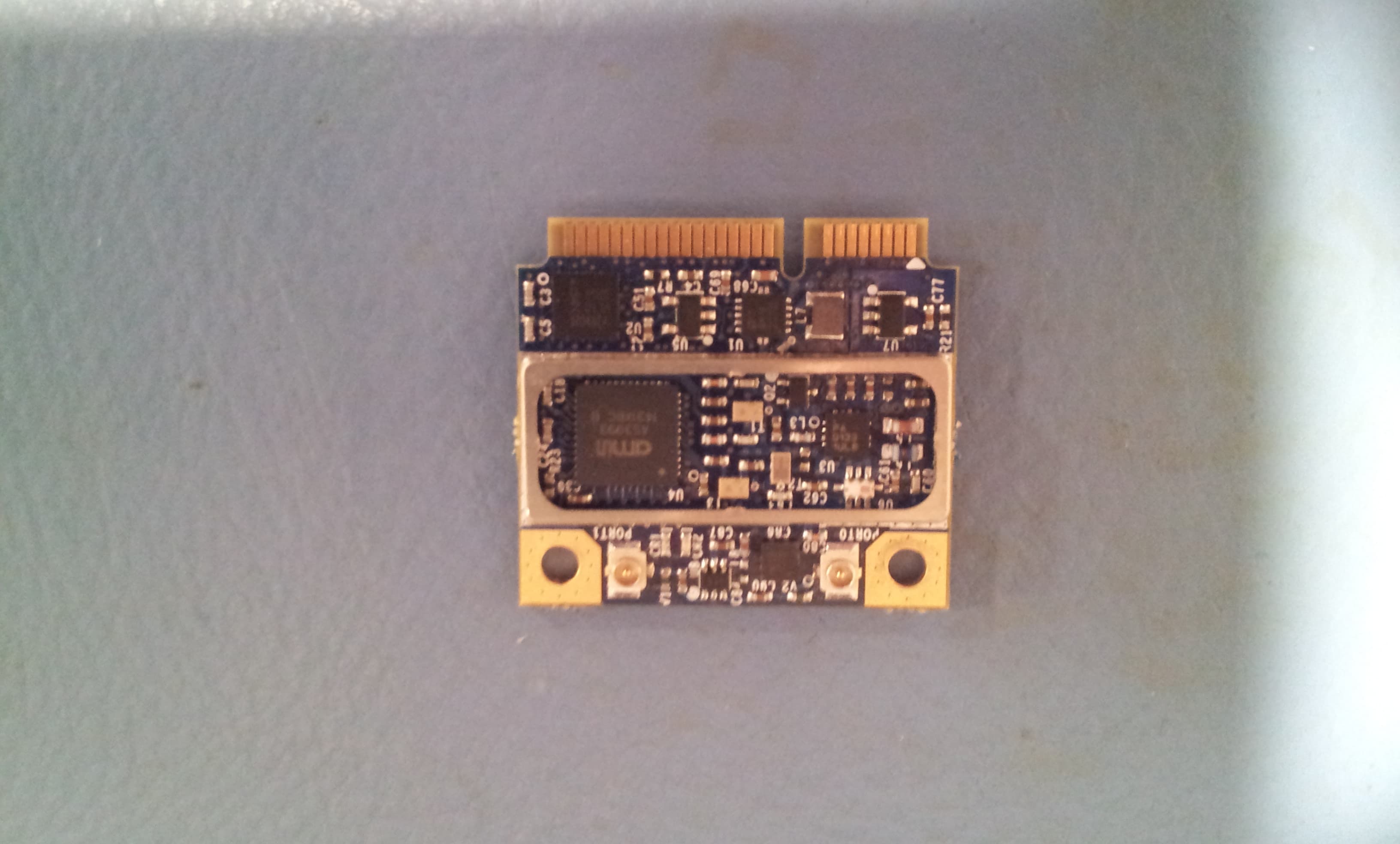

WZ4-NOVA001RFID Interrogator

SKYEMODULE NOVA DATASHEET V1.4 SkyeModule Nova Datasheet - Preliminary Page | 2 Skyetek Inc 1732 Wazee St. Ste 202 Denver, CO 80202 www.skyetek.com Main 720.328.3425 Fax:720.228.2400 COPYRIGHT INFORMATION: Copyright 2014 SkyeTek, Inc., 1732 Wazee St. Suite 202, Denver, Colorado 80202, U.S.A. All rights reserved. Version 031014 This product or document is protected by copyright and distributed under licenses restricting its use, copying, distribution, and decompilation. No part of this product or document may be reproduced in any form by any means without prior written authorization of SkyeTek and its licensors, if any. SkyeTek and SkyeWare are trademarks or registered trademarks of SkyeTek, Inc. MIFARE and NXP is a registered trademark of Royal Philips Electronics. MicroSoft and Windows are registered trademarks of Microsoft Corporation. TECHNICAL SUPPORT AND CONTACT INFORMATION SkyeTek, Inc. 1732 Wazee St. Suite 202 Denver, CO 80202 http://www.skyetek.com SALES: [email protected] TECHNICAL SUPPORT: [email protected] SkyeModule Nova Datasheet - Preliminary Page | 3 Skyetek Inc 1732 Wazee St. Ste 202 Denver, CO 80202 www.skyetek.com Main 720.328.3425 Fax:720.228.2400 TABLE OF CONTENTS 1 INTRODUCTION .............................................................................................................................................. 7 1.1 GETTING STARTED .............................................................................................................................................. 7 1.2 WHY A SKYETEK MODULE? .................................................................................................................................. 7 1.3 ADDITIONAL READING ......................................................................................................................................... 8 1.4 REVISION HISTORY .............................................................................................................................................. 8 2 DEFINITION OF TERMS ................................................................................................................................... 8 3 ORDERING INFORMATION ............................................................................................................................. 9 3.1 NOVA STANDARD PART NUMBERS ......................................................................................................................... 9 3.2 HOW TO BUY ..................................................................................................................................................... 9 4 SKYEMODULE NOVA OVERVIEW .................................................................................................................. 10 4.1 DESCRIPTION.................................................................................................................................................. 10 4.2 BLOCK DIAGRAM .............................................................................................................................................. 10 4.3 FEATURES ........................................................................................................................................................ 11 4.4 APPLICATIONS .................................................................................................................................................. 11 4.5 AGENCY APPROVALS ......................................................................................................................................... 12 5 MECHANICAL SPECIFICATIONS ..................................................................................................................... 12 5.1 CONNECTOR DESCRIPTIONS ................................................................................................................................ 13 5.2 HOST INTERFACE CONNECTOR PIN MAPPING ......................................................................................................... 13 5.3 USING THE GPIO PINS ...................................................................................................................................... 14 6 ELECTRICAL SPECIFICATIONS ........................................................................................................................ 15 6.1 ELECTRICAL CHARACTERISTICS ............................................................................................................................. 15 6.2 ABSOLUTE MAXIMUM RATINGS ........................................................................................................................... 16 7 ENVIRONMENTAL SPECIFICATIONS .............................................................................................................. 16 7.1 ELECTROSTATIC PRECAUTIONS ............................................................................................................................. 16 7.2 GENERAL RATINGS AND OPERATING CONDITIONS ................................................................................................... 16 8 SYSTEM PERFORMANCE ............................................................................................................................... 17 8.1 SYSTEM RANGE ................................................................................................................................................ 17 9 REGULATORY APPROVALS AND MODULE INTEGRATION GUIDELINES .......................................................... 17 9.1 AGENCY APPROVALS ......................................................................................................................................... 17 9.2 FCC/IC GUIDELINES (ENGLISH) ........................................................................................................................... 17 9.3 FCC/IC GUIDELINES (FRANÇAIS) ...................................................…

Text truncated - open the document above for the full version.

www.skyetek.com 1415 Larimer Street, Denver, CO 80202 720-328-3425 Antenna Tuner Power Regulation IN OUT ISOL CPLD ARM CORTEX M0 MICRO ANT A PCIe Connector USB SPI_0 UART 12C GPIO(4) ANT B RF Synthesizer LO I LO Q Power Divider RX Detector and Framing Logic M C U I n t e r f a c e Clock Logic TX Framing TX Modulator Baseband Filter TX RF ANT SEL RX RF AS3993 R a d i o I C D r i v e r s Skye OS Protocol Parser Tag Commands Crypto Libraries ISO Protocol Libraries Tag Feature Libraries RF PA I n t e r f a c e D r i v e r s TX TX R a d i o C o n t r o l D r i v e r s Vin RF RF BPF Coupler 20 MHz 12 MHz 902.5–927.5MHz USA 865-868 MHz EU 902.5–927.5MHz USA 865-868 MHz EU Figure 1 - Nova Reader Block Diagram

www.skyetek.com 1415 Larimer Street, Denver, CO 80202 720-328-3425 Date: March 17, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; www.skyetek.com 1415 Larimer Street, Denver, CO 80202 720-328-3425 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Mark Matlin, Director of Engineering Skyetek, Inc.

Applicant/Grantee Skyetek, Inc FCC ID: WZ4-N OVA001 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval R equirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular t ransmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Y 2 The modular transmitter must have buf fered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Y 3 The modular transmitter must have its ow n power supply regulation. Y 4 The modular transmitter must comply w ith the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Y 5 The modular transmitter must be tested i n a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

www.skyetek.com 1415 Larimer Street, Denver, CO 80202 720-328-3425 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: June 8, 2015 Subject: Request for Confidentiality FCC ID: WZ4-NOVA001 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until July, 1 2015. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Mark Matlin, Director of Engineering Skyetek, Inc.

FCC Part 1 Subpart I FCC Part 2 Subpart J INDUSTRY CANADA RSS 102 ISSUE 5 RF EXPOSURE REPORT FOR RFID INTERROGATOR MODEL NUMBER: SM-NV FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 REPORT NUMBER: 15U20118 – E3, REVISION D ISSUE DATE: MAY 12, 2015 Prepared for SKYETEK, INC 1415 LARIMER St, STE 207 Denver, CO 80202, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-08888 REPORT NO: 15U20118-E3D DATE: MAY 12, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 2 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 03/25/14 Initial Issue H. Mustapha A 04/09/15 Corrected RSS-102 issue number Revised IC exemption paragraph Revised RF exposure results tables H. Mustapha B 04/16/15 Corrected RSS-102 issue number Revised RX exposure results tables H. Mustapha C 05/04/15 Corrected Duty Cycle H. Mustapha D 05/12/15 Added power density to RF exposure results table for IC H. Mustapha REPORT NO: 15U20118-E3D DATE: MAY 12, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 3 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. REFERENCES ................................................................................................................... 6 4. FACILITIES AND ACCREDITATION ................................................................................. 6 5. MAXIMUM PERMISSIBLE RF EXPOSURE ....................................................................... 7 5.1. FCC RULES ................................................................................................................ 7 5.2. IC RULES .................................................................................................................... 8 5.3. EQUATIONS ................................................................................................................ 9 5.4. LIMITS AND IC EXEMPTION .....................................................................................10 6. ON TIME AND DUTY CYCLE RESULTS ..........................................................................11 6.1. DUTY CYCLE PLOT ...................................................................................................11 7. RF EXPOSURE RESULTS ................................................................................................12 REPORT NO: 15U20118-E3D DATE: MAY 12, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 4 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SKYETEK, INC 1415 LARIMER St, STE 207 Denver, CO 80202, U.S.A. EUT DESCRIPTION: RFID INTERROGATOR MODEL: SM-NV SERIAL NUMBER: Conducted: FCC 2 Radiated: FCC 1 DATE TESTED: Feb 23 to Feb 28, 2015 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J Pass INDUSTRY CANADA RSS 102 ISSUE 5 Pass UL Verification Services Inc. calculated the RF Exposure of the above equipment in accordance with the requirements set forth in the above standards, using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations of these calculations. The results show that the equipment is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. REPORT NO: 15U20118-E3D DATE: MAY 12, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 5 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. Approved & Released For UL Verification Services Inc. By: Calculated By: Huda Mustapha HUDA MUSTAPHA LIEU NGUYEN PROJECT LEAD LAB EMC ENGINEER UL Verification Services Inc. UL Verification Services Inc. FRANK IBRAHIM PROGRAM MANAGER UL Verification Services Inc. REPORT NO: 15U20118-E3D DATE: MAY 12, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 6 of 12 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC OET Bulletin 65 Edition 97-01 and IC Safety Code 6. 3.…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR RFID INTERROGATOR MODEL NUMBER: SM-NV FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 REPORT NUMBER: 15U20118 – E1, Revision B ISSUE DATE: JUNE 1, 2015 Prepared for SKYETEK, INC 1415 LARIMER St, STE 207 Denver, CO 80202, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15U20118-E1B DATE: JUNE 1, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 2 of 97 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 03/13/15 Initial Issue H. Mustapha A 04/09/15 Added Average Power section Corrected span in Peak Output Power Plots Corrected margin of 1.594MGz emission on Page 55 H. Mustapha B 06/01/15 Updated Sections 9.2.4, 9.3.4, 11.2.3 and 11.3.4 and 11.4.3 with data and photos of standalone PIFA antenna Updated section 6 with equipment used for the updates above H. Mustapha REPORT NO: 15U20118-E1B DATE: JUNE 1, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 3 of 97 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 7 3. FACILITIES AND ACCREDITATION ................................................................................. 7 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. SAMPLE CALCULATION ............................................................................................ 7 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 8 5. EQUIPMENT UNDER TEST ............................................................................................... 9 5.1. DESCRIPTION OF EUT .............................................................................................. 9 5.2. MAXIMUM OUTPUT POWER...................................................................................... 9 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 9 5.4. SOFTWARE AND FIRMWARE .................................................................................... 9 5.5. WORST-CASE CONFIGURATION AND MODE .........................................................10 5.6. DESCRIPTION OF TEST SETUP ...............................................................................10 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................12 7. MEASUREMENT METHODS ............................................................................................13 8. ANTENNA PORT TEST RESULTS ...................................................................................14 8.1. ON TIME AND DUTY CYCLE .....................................................................................14 8.1.1. ON TIME AND DUTY CYCLE RESULTS .............................................................14 8.1.2. DUTY CYCLE PLOTS .........................................................................................14 8.2. Maximum Data Rate: PR-ASK MODULATION ............................................................15 8.2.1. 20 dB BANDWIDTH .............................................................................................15 8.2.2. 99% BANDWIDTH ...............................................................................................18 8.2.3. CARRIER FREQUENCY SEPARATION ..............................................................21 8.2.4. NUMBER OF HOPPING FREQUENCIES ...........................................................23 8.2.5. AVERAGE TIME OF OCCUPANCY ....................................................................24 8.2.6. PEAK OUTPUT POWER .....................................................................................26 8.2.7. AVERAGE POWER .............................................................................................29 8.2.8. CONDUCTED SPURIOUS EMISSIONS ..............................................................30 8.2.9. RECEIVER SPURIOUS EMISSIONS ..................................................................35 9. RADIATED TEST RESULTS .............................................................................................37 9.1. LIMITS AND PROCEDURE ........................................................................................37 9.2. TRANSMITTER ABOVE 1 GHz ..................................................................................38 9.2.1. LINEARLY POLARIZED PATCH ANTENNA........................................................38 9.2.2. CIRCULARLY POLARIZED PATCH ANTENNA ..................................................50 9.2.3. DIPOLE ANTENNA..............................................................................................62 REPORT NO: 15U20118-E1B DATE: JUNE 1, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 4 of 97 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 9.2.4. PIFA ANTENNA ..............................................................…

Text truncated - open the document above for the full version.

REPORT NO: 15U20118-E1B DATE: JUNE 1, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 85 of 97 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11. SETUP PHOTOS 11.1. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 15U20118-E1B DATE: JUNE 1, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 86 of 97 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11.2. RADIATED RF WORST CASE PHOTO SETUP 11.2.1. LINEARLY POLARIZED & CIRCULARLY POLARIZED PATCH ANTENNAS X DIRECTION Y DIRECTION REPORT NO: 15U20118-E1B DATE: JUNE 1, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 87 of 97 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11.2.2. DIPOLE ANTENNA X DIRECTION Y DIRECTION REPORT NO: 15U20118-E1B DATE: JUNE 1, 2015 FCC ID: WZ4-NOVA001 IC: 5893A-NOVA001 Page 88 of 97 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except…

Text truncated - open the document above for the full version.
