X26DA13RWireless Hearing Instrument

USER GUIDE CUSTOM HEARING INSTRUMENTS 400332000-GB-14.10-Rev.A.indd 119-11-2014 12:48:23 2 Hearing instrument type designations for models included in this user guide are: DA312r, FCC ID: X26DA312 R, IC: 6941C-DA312R; DA13r, FCC ID: X26DA13R, IC: 6941C-DA13R; DA312i, FCC ID: X26DA312I, IC: 6941C-DA312I; and DA13i, FCC ID: X26DA13I, IC: 6941C-DA13I. Please see page 10, 12 and 14 for lists of models referring to these types. Statement: This device complies with part 15 of the FCC rules and ICES-003 of the IC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful inter ference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to part 15 of the FCC Rules and ICES-003 of the IC rules. These limits are designed to provide rea- sonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi- sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from the one in which the receiver is con- nected. •Consult the dealer or an experienced radio/TV technician for help. 400332000-GB-14.10-Rev.A.indd 219-11-2014 12:48:23 3 Changes or modifications can void the user ́s authority to operate the equipment. Intended use Generic air-conduction hearing instruments are wearable sound-amplifying devices intended to compen- sate for impaired hearing. The fundamental operating principle of hearing instruments is to receive, amplify, and transfer sound to the ear drum of a hearing impaired person. The products are in compliance with the following regulatory requirements: •In the EU: the device conforms to the Essential Requirements according to Annex I of Council Directive 93/42/EEC for medical devices (MDD) and essential requirements and other relevant provisions of Direc- tive 1999/5/EC (R&TTE). •The declaration of conformity may be consulted at www.resound.com •In US: FCC CFR 47 Part 15, subpart C. •Other identified applicable international regulatory requirements in countries outside the EU and US. Please refer to local country requirements for these areas. •In Canada: these hearing instruments are certified under the rules of IC. •Japanese Radio Law and Japanese Telecommunications Business Law Compliance. This device is granted pursuant to the Japanese Radio Law (電波法) and the Japanese telecommunications Business Law (電気通信事業法) This device should not be modified (otherwise the granted designation number will become invalid). •Patents: US 7,593,537 US 8,00,849 400332000-GB-14.10-Rev.A.indd 319-11-2014 12:48:23 4 Introduction Congratulations on the purchase of your new hearing instruments. ReSound’s innovative sound technology and design, combined with the customised device programming selected by your hearing care profes- sional, will make hearing a more enjoyable experience. Hearing instruments will enable you to hear sounds that you may not have heard in years because of your hearing loss. Practice and a positive attitude are important in learning to use hearing instruments. Your ReSound instruments have been adjusted according to your individual hearing loss and needs. Some people adjust quickly to wearing hearing instruments in their ears and hearing new sounds; other people may need more time. This product is a custom-made device. Please read this manual carefully in order to wholly benefit from the use of your hearing instruments. With proper care, maintenance, and usage, your hearing instruments will aid you in better communication for many years. Ask your hearing care professional if you have any questions. ReSound is a registred trade mark of ReSound A/S 400332000-GB-14.10-Rev.A.indd 419-11-2014 12:48:23 5 Hearing instrument model: Model CIC: Battery size 10 Model IIC: Battery size 10 Model ITC: Battery size 13 or 312 (circle one) Model ITE: Battery size 13 or 312 (circle one) Model MIH: Battery size 13, 312, or 10 for MIH-S (circle one) Left serial number: Right serial number: Smart Smart.....................16 Volume control ...................22 Program button...................23 Wireless ..................17, 25, 30 Phone Now......................27 Tinnitus Sound Generator...........35 Telecoil/Tele-loop system ...........25 Power device-exceeds 132 dB SPL ..... Specific features supported by your hearing system: Ask your hearing care professional to mark the options supported by your hearing system. 400332000-GB-14.10-Rev.A.indd 519-11-2014 12:48:23 6 Contents Statement.............................2 Intended use ..........................3 List of countries ........................3 Introduction............................4 Specific features supported by your hearing system .........................5 Description of the hearing instruments.......8 Getting started ........................14 On/Off function........................14 SmartStart ...........................14 Inserting/Replacing the battery............15 Low battery indicator when paired with wireless accessories only................16 Inserting/removing hearing instruments .....17 Operation of the hearing instrument . . . . . . . .20 Volume control (optional).................20 Programme button (optional) .............21 Flight mode...........................22 Te…

Text truncated - open the document above for the full version.

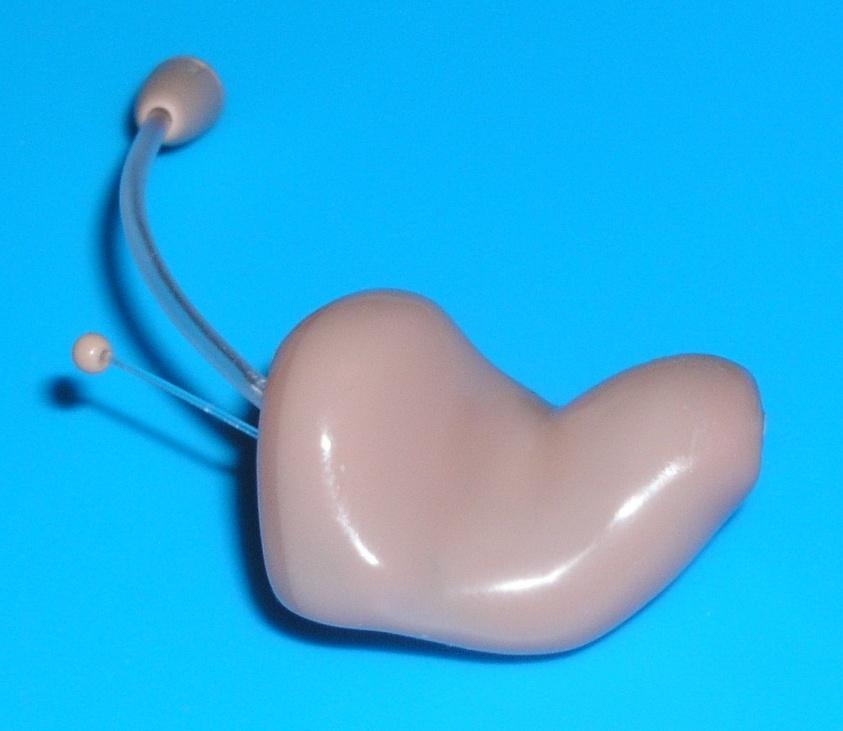

Document Title: Doc. #: Rev. #: External photos of DA13r XXXXX A Form 0007380 - Rev I Short term confidential Page 1 of 2 Corp Template Not subject to issue control when printed Printed Date: 1 November 2014 GN Hearing A/S Owner/Editor: Local Address, if applicable: Dan Lanan Lautrupbjerg 7 DK-2750 Ballerup Denmark Date: 31.10.2014 DA13r Antenna inside of tube Push Button Battery Door Document Title: Doc. #: Rev. #: External photos of DA13r XXXXX A Form 0007380 - Rev I Short term confidential Page 2 of 2 Corp Template Not subject to issue control when printed Printed Date: 1 November 2014 DA13r

Document Title: Doc. #: Rev. #: Internal photos of DA13r XXXXX A Form 0007380 - Rev I Short term confidential Page 1 of 2 Corp Template Not subject to issue control when printed Printed Date: 3 November 2014 GN Hearing A/S Owner/Editor: Local Address, if applicable: Dan Lanan Lautrupbjerg 7 DK-2750 Ballerup Denmark Date: 03.11.2014 BOTTOM SIDE Antenna feed point Wired connections to Mics, battery contacts, programming contacts Document Title: Doc. #: Rev. #: Internal photos of DA13r XXXXX A Form 0007380 - Rev I Short term confidential Page 2 of 2 Corp Template Not subject to issue control when printed Printed Date: 3 November 2014 TOP SIDE Inside of a finished device

GN Hearing A/S TUV SUD BABT FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Date: January 22, 2015 RF exposure analysis for the equipment DA13r (FCC ID: X26DA13r) 1. Introduction The device DA13r (FCC ID: X26DA13r) is a wireless hearing instrument used to amplify sound from the surrounding to the end user and also receive audio signals through wireless connection to accessories. It contains a multi-mode 2.4GHz radio which operates, time & frequency divided, in either BlueTooth Low Energy mode (BTLE) or a proprietary “Proximity” mode and is intended for use within 20 cm of humans. 2. SAR limits According to § 2.1093 (d) (2) the limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole-body and peak spatial-average SAR limit is 1.6 W/kg, averaged over any 1 gram of tissue over the whole body. 3. Compliance criteria: Individual transmitters are deeded to comply with § 2.1093 requirements if the output power of the transmitter meets the conditions specified in section 4.3.1 (Standalone SAR test exclusion) considerations of the document “KDB 447498 D01 General RF Exposure Guidance v05r02”. 4. Compliance calculations : Mode Sub- mode Frequency Average field strength (dBμV/m) Average output power (dBm) Average output power (mW) Evaluation distance per KDB 447498 D01 General RF Exposure Guidance v05r02 - 4.3.1 (mm) SAR Test Exclusion Thresholds per KDB 447498 D01 General RF Exposure Guidance v05r02 - 4.3.1 - 1) (mW) SAR Test Exclusion Thresholds per KDB 447498 D01 General RF Exposure Guidance v05r02 - 4.3.1 - 1) BLE BLE 2402 79.92 -15,32 0,029 5 10 COMPLIANT 2440 81.10 -14,13 0,039 5 10 COMPLIANT 2480 80.86 -14,37 0,037 5 10 COMPLIANT Proximity Proximity 2404 76.72 -18,51 0,014 5 10 COMPLIANT 2440 77.77 -17,46 0,018 5 10 COMPLIANT 2478 77.57 -17,66 0,017 5 10 COMPLIANT Sincerely, P.A. By: Lars Hagander Title: Vice president, Corporate Quality Company: GN Hearing A/S, Lautrupbjerg 7, 2750 Ballerup, Denmark Telephone / Fax: +45 45 75 21 00 / +45 45 75 44 29 e-mail: [email protected]

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 44100RRF.005 Page 1 of 48 2014-12-17 FCC LISTED, REGISTRATION NUMBER: 720267 IC LISTED REGISTRATION NUMBER IC 4621A-1 Informe de ensayo nº: Test report No: NIE: 44100RRF.005 Test report USA FCC Part 15.249, 15.209 CANADA RSS-210, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. Licence-Exempt Radio Apparatus (All Frequency Bands): Category I Equipment. General Requirements for Compliance of Radio Apparatus. Identificación del objeto ensayado ...................... : Identification of item tested Wireless hearing instrument Marca ................................................................... : Trade Resound Modelo y/o referencia tipo .................................. : Model and /or type reference DA13r Other identification of the product .................... : Commercial name: RESOUND FCC ID: X26DA13r IC: 6941C-DA13r Final HW version ................................................ : DA13r Final SW version ................................................. : 4.1.1.0 Serial number ....................................................... : 14003999110, 14039990044 Características ..................................................... : Features Bluetooth LE and Proximity radio Peticionario ......................................................... : Applicant GN HEARING A/S Lautrupbjerg 7, 2750 Ballerup. Denmark CVR: 55082715 Contact person: Youssef El Mahdaoui Telephone: +45 2116 6605 e-mail: [email protected] Método de ensayo solicitado, norma ................... : Test method requested, standard USA FCC Part 15.249 10-1-13 Edition: Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, 5725–5875 MHz, and 24.0–24.25 GHz. CANADA RSS-210 Issue 8 (December 2010). CANADA RSS-Gen Issue 4 (November 2014). ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Resultado .............................................................. : Summary IN COMPLIANCE Aprobado por (nombre / cargo y firma) ........... : Approved by (name / position & signature) A. Llamas RF Lab. Manager AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 44100RRF.005 Page 2 of 48 2014-12-17 Fecha de realización ........................................... : Date of issue 2014-12-17 Formato de informe No. ...................................... : Report template No FDT08_15 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 44100RRF.005 Page 3 of 48 2014-12-17 Index Competences and guarantees ......................................................................................................................... 4 General conditions ......................................................................................................................................... 4 Uncertainty .................................................................................................................................................... 4 Usage of samples ........................................................................................................................................... 4 Test sample description ................................................................................................................................. 5 Test samples supplier .................................................................................................................................... 5 Testing period ................................................................................................................................................ 5 Environmental conditions .............................................................................................................................. 6 Remarks and comments ................................................................................................................................. 7 Testing verdicts ............................................................................................................................................. 8 Appendix A – Test result “Bluetooth Low Energy” ...................................................................................... 9 Appendix B – Test result “Proximity radio” ............................................................................................... 29 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 44100RRF.005 Page 4 of 48 2014-12-17 Competences and guarantees AT4 wireless is a laboratory with a measurement facility in compliance with the requirements of Section 2.948 of the FCC rules and has been added to the list of facilities whose measurements data will be accepted in conjuction with applications for Certification under Parts 15 or 18 of the Commission's Rules. Registration Number: 720267. AT4 wireless is a laboratory with a measurement site in compliance with the requirements of RSS 212, Issue 1 (Provisional) and has been added to the list of filed sites of the Canadian Certification and Engineering Bureau. Reference File Number: IC 4621A-1. In order to assure the traceability to other national and international laboratories, AT4 wireless has a calibration and maintenance program for its measurement equipment. AT4 wireless guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on …

Text truncated - open the document above for the full version.

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456

Report No: (NIE) 44100RRF.005 Page 4 of 7 2014-12-17 GENERAL SET-UP FOR RADIATED MEASUREMENTS AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456

Report No: (NIE) 44100RRF.005 Page 5 of 7 2014-12-17 TEST SET-UP FOR RADIATED MEASUREMENTS BELOW 1 GHz AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456

Report No: (NIE) 44100RRF.005 Page 6 of 7 2014-12-17 TEST SET-UP FOR RADIATED MEASUREMENTS ABOVE 1 GHz AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456

Report No: (NIE) 44100RRF.005 Page 7 of 7 2014-12-17 TEST SET-UP FOR CONDUCTED MEASUREMENTS
