022311 – 6 Authority to Act as Agent Date: 25 th July 2013 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: RN Electronics Ltd is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 25 th July 2015 By: ____ JASON MILLER_____ Title: __Quality Manager______ On behalf of: Imagination Technologies Ltd / Pure Division Telephone: +44 1923 622252

Request for Confidentiality Date:25 th July 2013 Subject: Confidentiality Request for:X280067_ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short TermPermanentBlock Diagrams Short TermExternal Photos Short TermPermanent* 1 Internal Photos Short TermPermanentOperation Description/Theory of Operation Short TermPermanentParts List & Placement/BOM Short TermPermanentTune-Up Procedure Short TermPermanentSchematics Short TermTest Setup Photos Short TermPermanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Imagination Technologies Ltd / Pure has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: Not Applicable NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:_____JASON MILLER_______

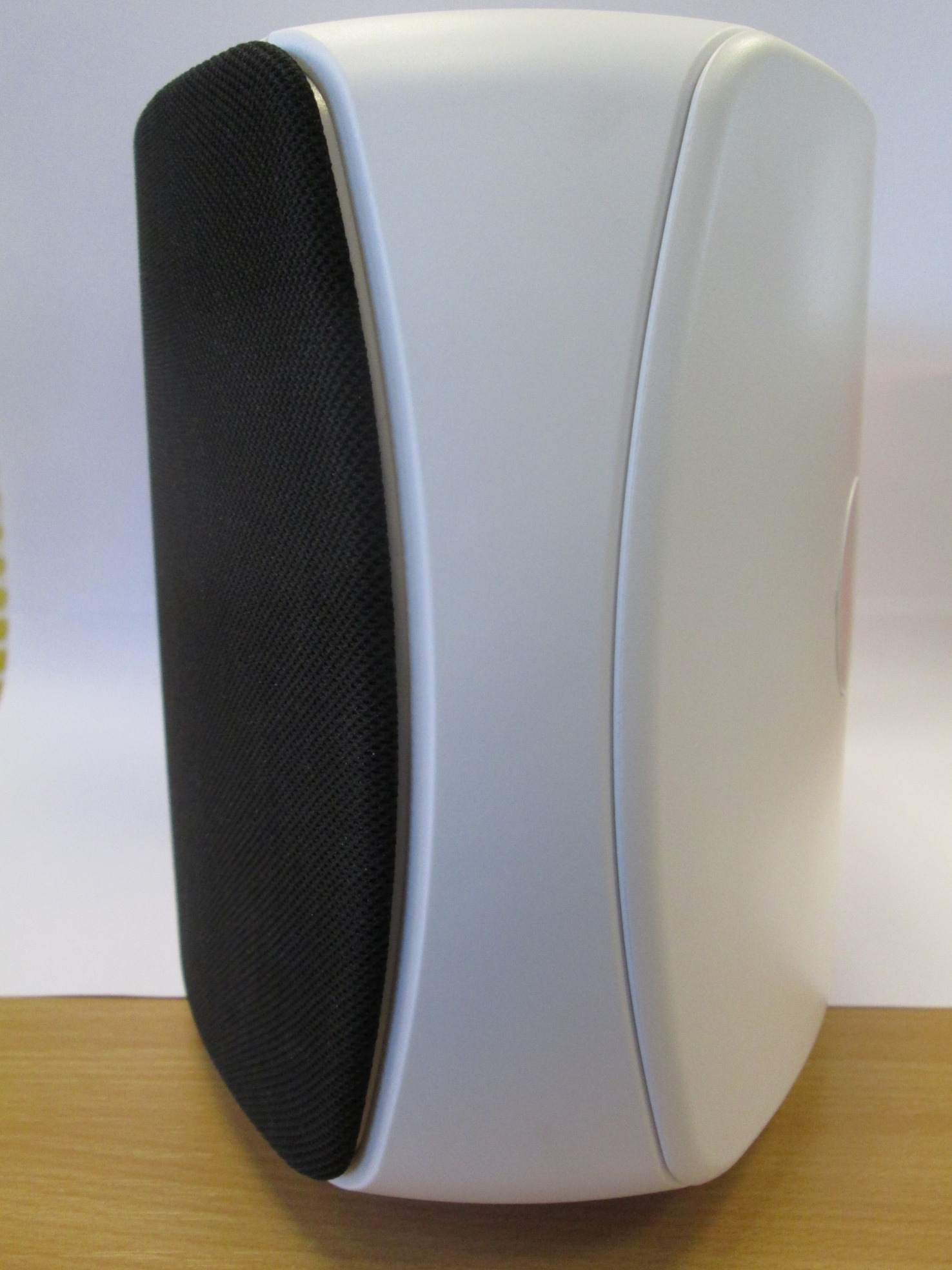

Pure Jongo T6, T640 – external photos V1 18-July-13 Front View Back View Side View (Right) Side View (Left) Top View Bottom View Front View (Speaker Grille removed)

Name Jongo T640,Bottom Panel, Silkscreen Part # 14W78 Version 4 Date 01/07/2013 Pantone 877C Pantone Cool Grey 10C Black PlasticsWhite Plastics Silkscreen Colour

Pure Jongo T6, T640 – internal photos V1 22-July-13 Internal View (Casing opened) Rear Case WiFi Antenna PCB Front WiFi Antenna PCB Rear PSU / AMP PCB Front with cover fitted PSU / AMP PCB Front without cover fitted PSU / AMP PCB Rear Rear Connectors cover Rear Connectors with cover removed Aux In / WiFi button PCB Top Aux In / WiFi button PCB bottom Main PCB Front with screening can Main PCB Front without screening can Main PCB Rear with screening can Main PCB Rear without screening can Buttons PCBs Rear Buttons PCBs Front

Jongo T6 RF Exposure:- The Jongo T6 is intended as a mobile device. A warning statement is included in the user manual advising users to maintain a minimum distance of 20cm. Evaluation is therefore for exposure potential against the MPE limits given in Appendix A of OET Bulletin 65, Supplement C: 1500-100,000MHz; 1mW/cm 2 Compliance requirements are based upon General population / Uncontrolled exposure. Equation (3) of OET Bulletin 65: where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g. mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna (appropriate units, e.g. cm) Substituting known values for the Jongo T6: WiFi RF worst case Peak conducted power, P = 26.9mW (+13.8dBm). WiFi antenna gain (measured), G = +4.7 dB. n.b. although the specified gain for the chip antenna is 0dBi, this is the best gain (Low channel gain) measured in practice. Distance, R = 20cm (for mobile use). S = 0.0141< 1mW/cm 2 The Jongo T6 will be internally fitted with a pre-approved FCC Bluetooth USB dongle, which would therefore be co-located. Maximum power of all Bluetooth devices is 100mW eirp. The maximum MPE is therefore as follows. Equation (3) of OET Bulletin 65: where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g. mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna (appropriate units, e.g. cm) Bluetooth worst case average power, P = 100mW Bluetooth antenna gain (maximum with above power is unity), G = 1. Distance, R = 20cm (for mobile use). S = 0.002< 1mW/cm 2 For co-location we can compare both items to the limit and sum the percentage of limit to check 100% not exceeded: 0.02/1 + 0.0141/1 = 3.41% limit< 100%

FCC 47CFR part 15C Test Report For Jongo T6 Jongo T640 Reference Standard: FCC 47CFR part 15C Manufacturer: PURE For type of equipment and serial number, refer to section 3 Report Number:05-6938-7-13 Issue 02 Supersedes report 05-6938-7-13 issue 01 Report Produced by: -R.N. Electronics Ltd. 1 Arnolds Court Arnolds Farm Lane Mountnessing Essex CM13 1UT Telephone+44 (0) 1277 352219 [email protected] This report is not to be reproduced by any means except in full and in any case not without the written approval of R.N. Electronics Ltd. 2013RN ELECTRONICS LIMITEDREPORT NUMBER 05-6938-7-13 ISSUE 02 ALL RIGHTS RESERVED File namePURE.6938-7 ISSUE 02 The contents of this report, apart from the referenced ANSI C63.4-2003, are beyond the scope of UKAS Testing Laboratory No. 2360 accreditation. QMF21J – 3; 47CFR15.247, RNE ISSUE 01 SEP 2012PAGE 2 OF 148 Copy No. pdf Arnolds Court, Arnolds Farm Lane, Mountnessing, Brentwood Essex, CM13 1UT Certificate of Test 6938-7 The unit noted below has been tested byR.N. Electronics Limitedand, where appropriate, conforms to the relevant subpart of FCC 47CFR Part 15. This is a certificate of test only and should not be confused with an equipment authorisation. Other standards may also apply. Equipment:Jongo T6 Model Number:Jongo T640 Proposed FCC ID:X280067 Unique Serial Number(s):ES2-1 (radiated tests), ES3-2 (conducted tests) Manufacturer:PURE Imagination Technologies Home Park Industrial Estate Kings Langley Hertfordshire WD4 8LZ Full measurement results are detailed in Report Number:05-6938-7-13 Issue 02 Test Standards:FCC 47CFR Part 15.247 effective dateOctober 1 st 2012, Class DTS Intentional Radiator NOTE: Certain tests were not performed based upon manufacturer's declarations. For details refer to section 3 of this report. DEVIATIONS: Deviations from the standards have been applied. For details refer to section 4.2 of this report. This certificate relates only to the unit tested as identified by a unique serial number and in the condition at the time it was tested. It does not relate to any other similar equipment and performance of the product before or after the test cannot be guaranteed. Whilst every effort is made to assure quality of testing, type tests are not exhaustive and although no non-conformances may be found, this doesn't exclude the possibility of unit not meeting the intentions of the standard or the requirements of the Directive, particularly under different conditions to those during testing. Any compliance statements are made reliant on (a) the application of the product and use of the assigned band being acceptable to one or more national authorities within the EU and (b) the modes of operation as instructed to us by the Customer based on their specific knowledge of the application and functionality of the EUT. Statements of compliance, where measurements were made, do not include the measurement uncertainty. The measurement uncertainty, where stated, is the expanded uncertainty based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95%. Date of Test:28th May to 31st May, 2013 Test Engineer: Approved By: Managing Director Customer representative 2013RN ELECTRONICS LIMITEDREPORT NUMBER 05-6938-7-13 ISSUE 02 ALL RIGHTS RESERVED File namePURE.6938-7 ISSUE 02 The contents of this report, apart from the referenced ANSI C63.4-2003, are beyond the scope of UKAS Testing Laboratory No. 2360 accreditation. QMF21J – 3; 47CFR15.247, RNE ISSUE 01 SEP 2012PAGE 3 OF 148 1 Contents 1Contents............................................................................................................... 3 2Equipment Under Test (EUT) ............................................................................... 4 2.1Equipment Specification............................................................................................................... 4 2.2EUT Configurations for testing..................................................................................................... 4 2.3Functional Description .................................................................................................................. 5 2.4EUT Modes .................................................................................................................................... 5 2.5Emissions Configuration............................................................................................................... 7 3Summary of test results ........................................................................................ 8 4Specifications....................................................................................................... 9 4.1Relevant Standards....................................................................................................................... 9 4.2Deviations ....................................................................................................................................... 9 4.3Tests at Extremes of Temperature & Voltage ........................................................................... 9 4.4Measurement Uncertainties .......................................................................................................10 5Tests, Methods and Results ............................................................................... 11 5.1AC power line conducted emissions.........................................................................................11 5.2Radiated emissions.....................................................................................................................13 5.3Occupied bandwidth....................................................................................................................17 5.4Maximum Peak conducted output power.................................................................................22 5.5Frequency tolerance ...................…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emissions. AC Conducted
