X280073MIPS Creator CI20 platform

FeatureDetails Model numberCI20 SoCIngenic JZ4780 CPUDual 1.2 GHz XBurst MIPS32 little endian Caches32 kl + 32 kD per core, 512K shared L2 RAM NAND 1 GB DDR3 8 GB SD card1x full size slot + 1x slot via secondary expansion header USB1x USB otg + 1x USB host Ethernet Wi-Fi 1x 10/100 Mbps using Davicom DM9000C controller over 8-bit interface IW8103 Wi-Fi + BT4.0, built-in ceramic aerial GPUSGX540 VideoHardware video decode up to 1080 Display Camera HDMI, up to 2k resolution ITU645 dedicated connector GPIO25 available on headers SPI2 ports on primary and secondary expansion header, with 4 chip selects I2C ADC 1 port on primary expansion header 7 inputs on secondary expansion header, including 5-wire touch and battery monitoring functions UART Audio 1 on dedicated UART header, 2 via primary expansion header Audio in and out via 3.5mm 4-wire connector JTAGStandard 14-pin MIPS EJTAG header Transport Stream Interface Via secondary expansion header Power Rating 5V via 4 mm (shield) x 1.7 mm (pin) centre positive connector DC input 5V 500 mA – 1000 mA Approvals FCC ID: X280073, IC: 8864A-0073 FeatureDetails www.imgtec.com 105XR Creator CI20 Microcomputer Get started at www.imgtec.com/creator Safety instructions 1. Read these instructions – All the safety and operating instructions should be read before this apparatus is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference. 3. Heed all warnings – All warnings on the apparatus and in the operating instructions should be adhered to. 4. Follow all instructions – All operating and use instructions should be followed. 5. Do not use this apparatus near water – The apparatus should not be used near water or moisture – for example, in a wet basement or near a swimming pool and the alike. 6. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and objects filled with liquids, such as vases, shall not be placed on the apparatus. 7. Unplug this apparatus during lightning storms or when unused for long periods of time. 8. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way. 9. Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors. 10. Avoid handling the printed circuit board while it is powered. Only handle by the edges to minimise the risk of electrostatic discharge damage. 11. This apparatus is not designed to be powered from a USB port on other connected equipment, if this is attempted it may malfunction. 12. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. 13. This apparatus shall only be connected to an external power supply rated at 5V DC, and a minimum current of 500–1000 mA. Any external power supply used with this apparatus shall comply with relevant regulations and standards applicable in the country of intended use. 14. This apparatus should not be over-clocked without using the governor as this may make certain components very hot. 15. This apparatus should be used in a well ventilated environment and should not be covered. 16. This apparatus should be placed on a stable, flat, non-conductive surface when in use and should not have contact with conductive items. 17. The connection of unapproved devices to the GPIO connector may affect compliance or result in damage to the apparatus and invalidate the warranty. 18. All peripherals used with the apparatus should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met. These articles include but are not limited to keyboards, monitors, and mice used in conjunction with the apparatus. 19. Where peripherals are connected that do not include the cable or connector, the cable or connector used must offer adequate insulation and operation in order to meet the relevant performance and safety requirements. FCC notice to a user in the United States This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help IC notice to a user in Canada This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this r…

Text truncated - open the document above for the full version.

Imagination Technologies Ltd Date 16 th ，Jan，2015 FCC ID: X280073 We hereby declare that our device with the FCC ID above does not initiate and it can not be configured to initiate any transmission on any non-US frequencies or unauthorized frequencies. This includes probes, beacons, and ad-hoc mode transmissions. Our operation is limited to the following frequencies and modes: 802.11b Channel 1 (2412MHz) – Channel 11 (2462MHz) 802.11g Channel 1 (2412MHz) – Channel 11 (2462MHz) 802.11n (20MHz) Channel 1 (2412MHz) – Channel 11 (2462MHz) BT-LE(GFSK ) Channel 0 (2402MHz) – Channel 39 (2480MHz) BT 2.1 + EDR Channel 0 (2402MHz) – Channel 78 (2480MHz) Name Jason Miller Title Quality Manager Signature

Single-modular approval request letter Date: Jan. 21, 2015 To: Curtis-Straus LLC Certification Department – TCB/FCB One Distribution Center Circle #1 Littleton, MA 01460 Re: Module Approval Letter, per 47CFR 15.212; FCC ID: X280073 To Whom It May Concern: Pls. be advised that Imagination Technologies Ltd. Radio Module conforms to the modular definition as stated in 47CFR15.212, as such; a. The modular transmitter with its own shielding. b. This module has data buffer. c. This module has internal power regulation inside the chipset. d. The modular transmitter has an integral chip antenna, it’s fulfil the requirements of 15.203. e. The modular transmitter is tested in a stand-alone configuration powered by USB Port or external AC/DC adapter f. The modular transmitter will silkscreen on the PCB board with FCC ID: X280073. g. The modular transmitter complies with Section 15.249 & 15.247. h. The modular transmitter complies with any applicable RF exposure requirements. Sincerely Company Name Imagination Technologies Ltd. Company Address Home Park Estate, Kings Langley, Hertfordshire ,WD4 8LZ, United Kingdom Name and Title of Person Signing Jason Miller / Quality Manager Contact Info (Phone and Email) Phone:+44 192362252 Email: [email protected]

Title Quality Manager ：Jason Miller +44 1922 65748 Technologies Ltd 65748 : +44 (0)1922 f : +44 (0)1923 622252 Imagination Technologies Limited Imagination House, Home Park Estate Kings Langley, Herts WD4 8LZ, UK t www.imgtec.com AGENCY AUTHORIZATION LETTER FCC ID: X280073 Date: 24 th September 2014 To whom it may concern: We, the undersigned, hereby authorize Bureau Veritas Shenzhen Co. Ltd Dongguan Branch., to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by BVDG within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name Company name: Imagination Tel.：+44 1923 622252 Fax： ：

Imagination Technologies Ltd +44 1922 65748 Title Q uality Manager : +44 (0)1922 65748 : +44 (0)1923 2622252 Imagination Technologies Limited Imagination House, Home Park Estate Kings Langley, Herts WD4 8LZ, UK t f www.imgtec.com Date: 24 th September 2014 Federal Communications Commission Authorization and Evaluation Division FCC ID: X280073 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name：Jason Miller Company name: Tel.：+44 1923 622252 Fax： ：

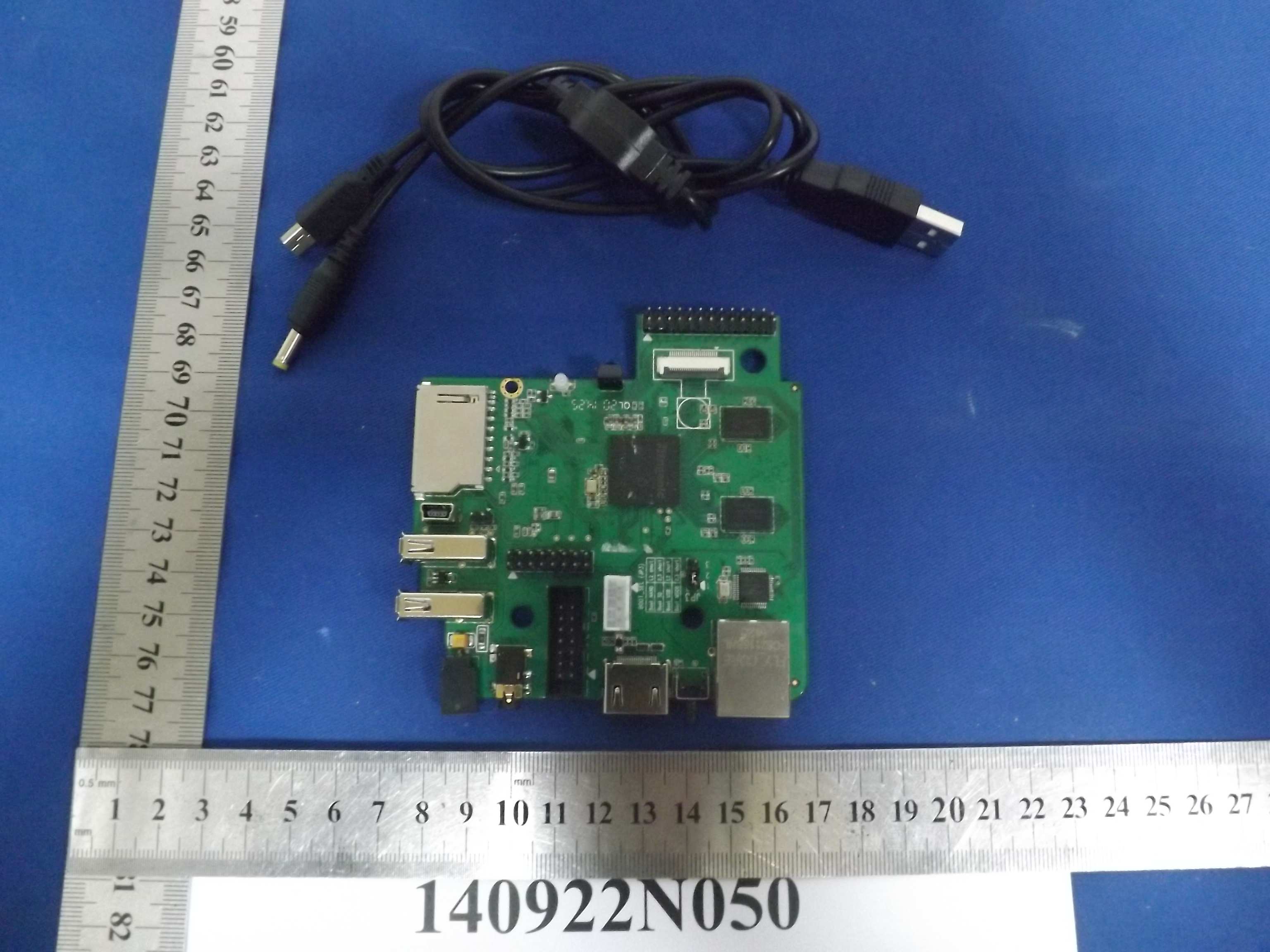

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Reference No.: 140922N050 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Reference No.: 140922N050 BT/WIFI ANT

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 6 Report Version 1 Test Report No.: FS140922N050 RF EXPOSURE REPORT Applicant Imagination Technologies Ltd. Address Home Park Estate, Kings Langley, Hertfordshire, WD4 8LZ, United Kingdom Manufacturer or Supplier Digi-in Technology Co., Ltd Address: Jiatian Industrial park, Wulian villiage, Fenggang Town, Dongguan, China Product MIPS Creator CI20 platform Brand Name Imagination Model CI20 Additional Model & Model Difference N/A Date of tests Sep. 22 ~ Oct. 22, 2014 FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Yuqiang Yin Project Engineer / EMC Department Approved by Glyn He Supervisor / EMC Department Date: Oct. 22, 2014 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 6 Report Version 1 Test Report No.: FS140922N050 Table of Contents RELEASE CONTROL RECORD ................................................................................3 1. CERTIFICATION.............................................................................................. 4 2. RF EXPOSURE LIMIT .....................................................................................5 3. MPE CALCULATION FORMULA.....................................................................5 4. CLASSIFICATION ...........................................................................................5 5. ANTENNA GAIN ..............................................................................................5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...................6 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 6 Report Version 1 Test Report No.: FS140922N050 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED FS140922N050 Original release Oct. 22, 2014 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 6 Report Version 1 Test Report No.: FS140922N050 1. CERTIFICATION FCC ID: X280073 PRODUCT: MIPS Creator CI20 platform BRAND NAME: Imagination MODEL NO.: CI20 TEST SAMPLE: Engineering Sample APPLICANT: Imagination Technologies Ltd. TESTED DATE: Oct. 22, 2014 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 6 Report Version 1 Test Report No.: FS140922N050 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: Transmitter Circuit Peak Gain (dBi) Antenna Type Chain 0 2.0 Chip Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 6 of 6 Report Version 1 Test Report No.: FS140922N050 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 93.756 2.0 20 0.030 1.00 Conclusion Therefore device complie…

Text truncated - open the document above for the full version.

Home Park Estate, Kings Langley, Hertfordshire, WD4 8LZ, United Ki Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 59 Report Version 1 Test Report No.: RF140922N050-1 TEST REPORT Applicant Imagination Technologies Ltd. Address ngdom Manufacturer or Supplier Digi-in Technology Co., Ltd Address No.888, Jiatian Industrial park, Wulian villiage, Fenggang Town, Dongguan, China Product MIPS Creator CI20 platform Brand Name Imagination Model CI20 Additional Model & Model Difference N/A Date of tests Sep. 22 ~ Oct. 22, 2014 the tests have been carried out according to the requirements of the following standard: FCC Part 15, Subpart C, Section 15.247 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Yuqiang Yin Project Engineer / EMC Department Approved by Glyn He Supervisor / EMC Department Date: Oct. 22, 2014 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 59 Report Version 1 Test Report No.: RF140922N050-1 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1 SUMMARY OF TEST RESULTS .................................................................................................... 5 2 MEASUREMENT UNCERTAINTY ................................................................................................. 5 3 GENERAL INFORMATION ............................................................................................................ 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................. 6 3.2 DESCRIPTION OF TEST MODES ............................................................................................... 7 3.2.1. CONFIGURATION OF SYSTEM UNDER TEST ............................................................... 8 3.2.2. TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .................................... 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 11 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................ 11 4 TEST TYPES AND RESULTS ...................................................................................................... 12 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................................. 12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................................... 12 4.1.2 TEST INSTRUMENTS ..................................................................................................... 12 4.1.3 TEST PROCEDURES ..................................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD ........................................................................... 13 4.1.5 TEST SETUP ................................................................................................................... 14 4.1.6 EUT OPERATING CONDITIONS .................................................................................... 14 4.1.7 TEST RESULTS .............................................................................................................. 15 4.2 RADIATED EMISSION MEASUREMENT .................................................................................. 17 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .................................................... 17 4.2.2 TEST INSTRUMENTS ..................................................................................................... 18 4.2.3 TEST PROCEDURES ..................................................................................................... 19 4.2.4 DEVIATION FROM TEST STANDARD ........................................................................... 19 4.2.5 TEST SETUP ................................................................................................................... 20 4.2.6 EUT OPERATING CONDITIONS .................................................................................... 20 4.2.7 TEST RESULTS .............................................................................................................. 21 4.3 6dB BANDWIDTH MEASUREMENT ............................................…

Text truncated - open the document above for the full version.

Home Park Estate, Kings Langley, Hertfordshire, WD4 8LZ, United Ki Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 33 Report Version 1 Test Report No.: RF140922N050-2 TEST REPORT Applicant Imagination Technologies Ltd. Address ngdom Manufacturer or Supplier Digi-in Technology Co. ,Ltd Address Jiatian Industrial park, Wulian villiage, Fenggang Town, Dongguan, China Product MIPS Creator CI20 platform Brand Name Imagination Model CI20 Additional Model & Model Difference N/A Date of tests Sep. 22 ~ Oct. 22, 2014 The submitted sample of the above equipment has been tested according to the requirements of the following standards: FCC Part 15, Subpart C, Section 15.249 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Yuqiang Yin Project Engineer / EMC Department Approved by Glyn He Supervisor / EMC Department Date: Oct. 22, 2014 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 33 Report Version 1 Test Report No.: RF140922N050-2 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1 SUMMARY OF TEST RESULTS .................................................................................................... 5 2 MEASUREMENT UNCERTAINTY ................................................................................................. 5 3 GENERAL INFORMATION ............................................................................................................ 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 6 3.2 DESCRIPTION OF TEST MODES ............................................................................................. 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 8 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................... 8 4 TEST TYPES AND RESULTS ........................................................................................................ 9 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................................. 9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................................... 9 4.1.2 TEST INSTRUMENTS ........................................................................................................ 9 4.1.3 TEST PROCEDURES....................................................................................................... 10 4.1.4 DEVIATION FROM TEST STANDARD............................................................................. 10 4.1.5 TEST SETUP ..................................................................................................................... 11 4.1.6 EUT OPERATING CONDITIONS ...................................................................................... 11 4.1.7 TEST RESULTS ................................................................................................................ 12 4.2 RADIATED EMISSION MEASUREMENT ................................................................................ 14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ........................................................ 14 4.2.2 TEST INSTRUMENTS ........................................................................................................ 15 4.2.3 TEST PROCEDURES ........................................................................................................ 16 4.2.4 DEVIATION FROM TEST STANDARD ............................................................................... 17 4.2.5 TEST SETUP ...................................................................................................................... 17 4.2.6 EUT OPERATING CONDITIONS ....................................................................................... 17 4.2.7 TEST RESULTS ................................................................................................................. 18 4.3 20dB BANDWIDTH MEASUREMENT ...................................................................................... 26 4.3.1 LIMITS OF 20dB BANDWIDTH MEASUREMENT ........................................................... 26 4.3.…

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 140922N050 SET-UP FOR CONDUCTED EMISSION TEST Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 140922N050 SET-UP FOR RADIATED EMISSION TEST Frequency Range< 30MHz~1GHz > Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 140922N050 Frequency Range< Above 1GHz >
