X2FB-368BTBLUETOOTH CAR KIT

User Manual Features: z With Bluetooth, compatible with you iphone, Power and charge your iPod, iPhone3G, iPhone4G & iPad, iPad2, simultaneously through the 30-pin dock connector. z Support calls receiving, call rejecting and last number re-dialing. z TTS function; report the caller number in English. z Flexible goose neck, easily reposit, convenient and safe z Removable stoppers to keep the device in holder steadily. z High quality silicon gel on the back & sides to protect your device from being damaged. Specifications: Bluetooth version: Version 2.1, class 2 Transmit distance: 4~6 meters Working voltage: DC 12V 1. Installation: 1. Set up the car mount suction cup on the windshield or any other smooth surface in the car. Just hold it in the position you want and lock it. 2. Connect the car charger and the unit through the mini USB socket. 3. Place your iPod/iPhone/iPad into the holder; adjust the flexible clamp by pressing the crandle lock release button, and fix your devices steadily. Bluetooth function operations Paring with a Bluetooth enabled cell phone 1. With the B-368BT ON, long press the Multi-function button on the front panel until the Red & Blue LEDs flash, and the screen will display “Pairing”, which indicating that the unit is ready to be paired. 2. The Bluetooth cell phone will search for the nearby Bluetooth devices, the cell phone will display “B-368BT” in the list of Bluetooth devices, if you are using a “dongle” type Bluetooth adaptor; follow the manufacturer’s instructions for that device. 3. Select “B-368BT” to add this Bluetooth device into the list of paired devices. 4. Enter in the PIN Code “0000” and your mobile phone will show that pairing is completed. .If pairing is successful, the Blue LED will be light all the time. Basic Operations: Answer the call: Short press the Multi-function key to answer the call when someone calling. Reject the call: Long press the Multi-function key to reject the call when someone calling. End the call: Short press the Multi-function button to end the calling. Call transfer: Long press the Multi-function key to transfer the call between the unit and your mobile phone when in talking. Last number re-dialing: short press the Multi-function key twice to re-dial the last caller number when Bluetooth connected. Use with your iPad: Use with your iPhone 3G: Use with your iPhone 4G: FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC ID: X2FB-368BT NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Bluetooth module 16M Crystalloid DC 5V Power supply OLED display 30PIN charging interface for Apple

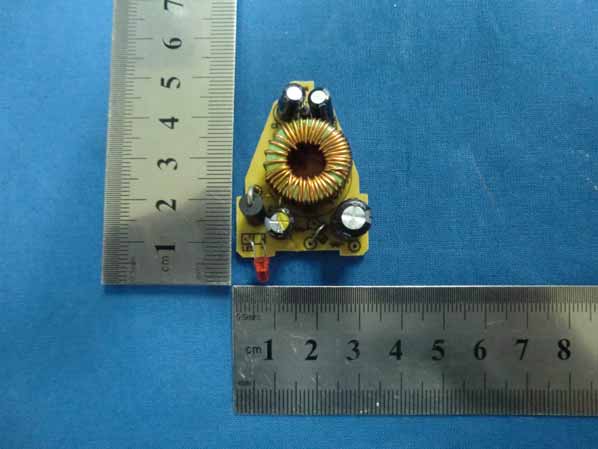

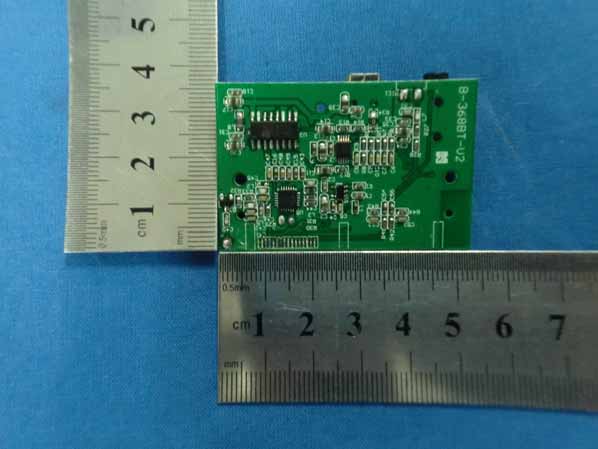

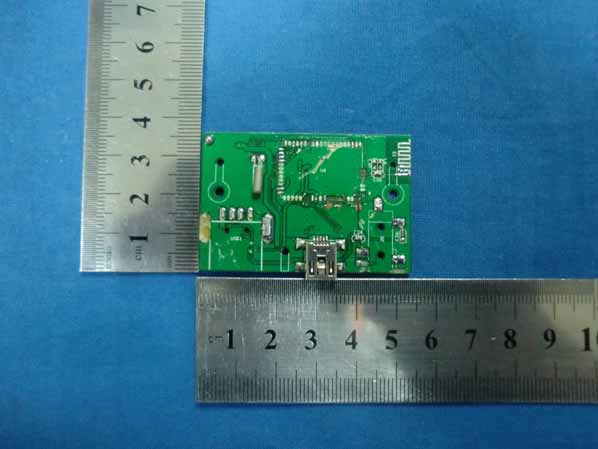

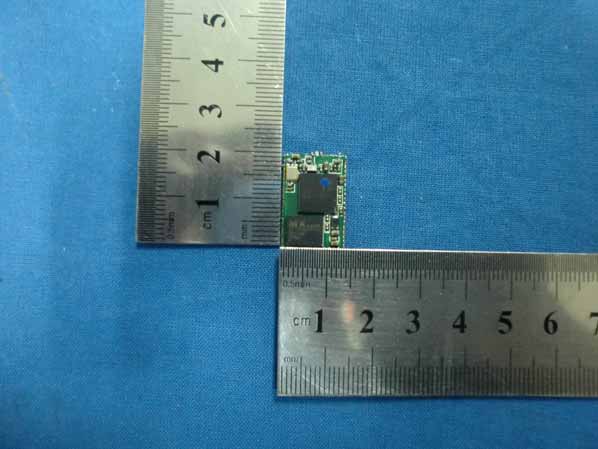

Internal Photo Antenna

Operational Description 1, Bluetooth car kit has the 12V power from the cigarette jack which output Voltage DC 5V power supply, step-down the voltage to be 3.3V through U1, the bluetooth chipset work properly. 2, when Bluetooth chipset work properly, send control signal to OLED screen, OLED performance properly. 3, when Bluetooth chipset work properly, send control signal to U5 (transmitter IC), U5 emitted the Bluetooth audio source. 4, Input current DC 5V power supply, after filtering, output by the 30PIN interface, you can charge the device to the corresponding interface

UnRegistered UnRegistered UnRegistered UnRegistered UnRegistered UnRegistered UnRegistered UnRegistered

12345678 A B C D 87654321 D C B A Title NumberRevisionSize A2 Date:1-Jun-2011 Sheet of File:E :\公司资料\IPOD发射器\ B-368BT.DDBDrawn By: C43 105 R33 330R R32 22K L5 180nH C40 101 VCC C41 103 B 1 C 3 E 2 Q3 9018 1 A 1 B 2 C 3 D 4 E 5 F 6 J5 IPOD_R1 IPOD_L1 R_IN L_IN S104 CH+ S105 CH- VCC PIO11 PIO10 C24105 C26105 123456789101112131415161718192021222324 U5 QN8007B R29 10K C46 103 C49 475 C47 102 C44 101 C48 475 Y2 26M L_FM R_FM VCC PIO6PIO7 L3 100M/600R L2 100nH C51 102 1 C45NC R30 47K R31 47K VCC C37 NC C36 2.2p L6 4.7nH C32 10p C33 473 MIC_A_N MIC_A_P MIC1 EM5BPS E1 ANT L7 15NH R27 2.2K C35 106 C34 473 GND 1 PIO3 2 PIO2 3 AIO1 4 AIO0 5 DN 6 DP 7 RX 8 TX 9 CTS 10 RTS 11 PIO10 12 PIO12 13 PIO9 14 PIO15 15 PIO11 16 PIO13 17 PIO7 18 PIO8 19 PIO14 20 GND 21 PIO4 22 PIO5 23 PIO6 24 RESET 25 PCM-1N 26 PCM-CLK 27 PCM-SYNC 28 PCM-OUT 29 CSB 30 3V3 31 GND 32 CLK 33 MISO 34 MOSI 35 LED1 36 LED2 37 VREG 38 1V8 39 GND 40 BATT 41 5V 42 GND 43 SPK-B-P 44 SPK-B-N 45 SPK-A-P 46 SPK-A-N 47 GND 48 MIC-B-P 49 MIC-B-N 50 MIC-A-P 51 MIC-A-N 52 MIC-BAIS 53 PIO0 54 PIO1 55 GND 56 ANT 57 GND 58 U6 BLUETOOTH GND VCC MIC_BAIS MIC_A_NMIC_A_P GND SPK_A_N SPK_A_P GNDGND1V8 VCC PIO14 SPK_B_N SPK_B_P GND GND PIO4 PIO5 PIO6 PIO10 PIO9PIO11 PIO7 MIC_BAIS VCC R28 0R PIO2 K1 POWER VCC R18 100K R19 47K PIO2 C3 106 C1 104 C2 103 C5 102 IN 1 GND 2 EN 3 BP 4 OUT 5 U1 R9167 VCC+5V L1 100M\600R 2 R1 100K C4 104 C22 105 R1647K R1747K 1 2 3 4 5 6 7 8 9 10 11 12 13 14 OLED 12832 C23 105 C21 105 VCC VCC C19 105 C20 105 R15 390K GND PIO7 PIO6 PIO9 R4 1K VCC R3 1K VCC PIO5 PIO14 + C14 106 + C11 106 C13 106 C12 104 C8 474 C7 474 C6 474 C9 474C10 474 SPK_A_N SPK_A_P SPK_B_P SPK_B_N BT_L BT_R VCC R6 33K R12 33K R11 33K R8 33K R9 33K R13 33K R14 33K R7 33K R10 33K IN1- 2 IN1+ 3 BYPASS 4 IN2+ 7 IN2- 8 SHUTDOWN 6 V02 9 VSS 5 VDD 10 V01 1 GND 11 U2 TPA6112A2A C15105 C16 105 X1 14 X2 15 X3 11 B 9 Y0 1 Y1 5 Y2 2 Y3 4 A 10 X0 12 X 13 Y 3 VDD 16 VEE 7 VSS 8 INH 6 U3 UTC4052 R_IN L_IN PIO4 R_FM L_FM +5V BT_L BT_R 123456789 101112131415161718192021222324252627282930 IPOD30 CON30 R21 68K GND R20 0R IPOD_R IPOD_L +5V DPDM R22 75K R25 51K R23 43k R24 51K USB C31 104 C30 10uF UGND 1 D+ 2 D- 3 UVDD 4 SHIELD 5 USB1 +5V L8 10uH GND 1 2 3 4 5 6 7 8 9 USB CON9 +5V C39 106 C38 104 2 C17 106 C18 104 D3 RED D4 BLUE L9 100M/600R R34 0R RF C50 10uF C42 15p R42 2K R41 2K C53 392 C52 392 R44 6K8 R43 6K8 C54 105 C55 105 IPOD_R IPOD_L IPOD_R1 IPOD_L1 UnRegistered

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For GaoYi Tech Limited 5th Floor, Building F2, Hua Feng Industrial Zone HangCheng Road, Xi Xiang Town, Bao An District, Shenzhen, China FCC ID: X2FB-368BT June 23, 2011 This Report Concerns: Original Report Equipment Type: Bluetooth Car Kit Test Engineer: Eric Li Report No.: BSTDG11060011Y-1ER-3 Receive EUT Date/Test Date: June 17, 2011/ June 17-22, 2011 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road, Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. GaoYi Tech Limited FCC ID: X2FB-368BT FCC ID REPORT: BSTDG11060011Y-1ER-3 Page 2/18 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. FCC ID LABEL...........................................................................................................................6 4. TEST RESULTS SUMMARY ...................................................................................................7 Modifications ................................................................................................................................7 5. TEST EQUIPMENT USED .......................................................................................................8 6. ANTENNA REQUIREMENT ...................................................................................................9 6.1. STANDARD APPLICABLE............................................................................................9 6.2. ANTENNA CONNECTED CONSTRUCTION ..............................................................9 6.3. Result ................................................................................................................................9 7. CONDUCTED POWER LINE TEST .....................................................................................10 7.1. Test Equipment ...............................................................................................................10 7.2. Test Procedure ................................................................................................................10 7.3. Test Setup........................................................................................................................10 7.4. Conducted Power line Emission Limits..........................................................................10 7.5. Conducted Power Line Test Result.................................................................................11 8. RADIATED EMISSION TEST ...............................................................................................12 8.1. Test Equipment ...............................................................................................................12 8.2. Test Procedure ................................................................................................................12 8.3. Radiated Test Setup ........................................................................................................12 8.4. Radiated Emission Limit.................................................................................................13 8.5. Radiated Emission Test Result .......................................................................................14 9. BAND EDGE .............................................................................................................................16 9.1. Test Equipment ...............................................................................................................16 9.2. Test Procedure ................................................................................................................16 9.3. Band Edge FCC 15.249(d) Limit ....................................................................................16 9.4. Band Edge Test Result ....................................................................................................16 GaoYi Tech Limited FCC ID: X2FB-368BT FCC ID REPORT: BSTDG11060011Y-1ER-3 Page 3/18 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BST approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BST in any way guarantees the later performance of the product/equipment. 1.1.2.The sample/s mentioned in this report is/are suppl…
