X2FB-800BLUETOOTH CAR KIT

2.4GHz Crystal 16MHz

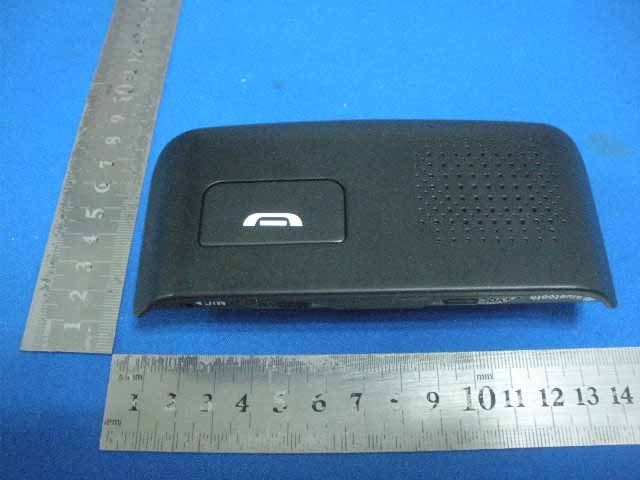

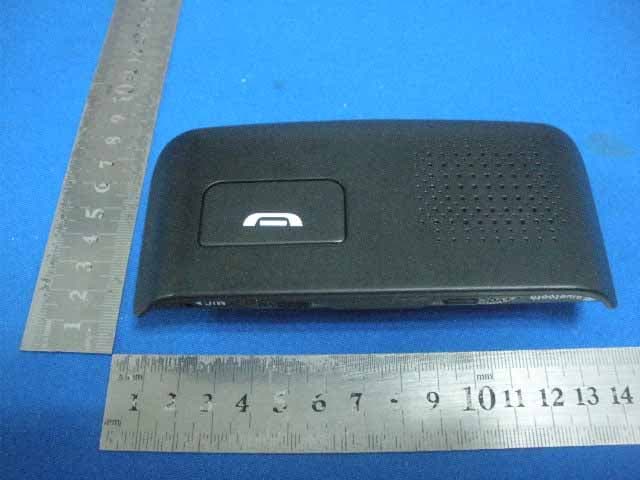

External Photo for Model: B-800, B-668BT, B-288BT, B-228BT, B-128, B-258BT, B-810 External Photo for Model: B-800, B-668BT, B-288BT, B-228BT, B-128, B-258BT, B-810

FCC ID LABEL FCC ID: X2FB-800 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location

Internal Photo for Model: B-800, B-668BT, B-288BT, B-228BT, B-128, B-258BT, B-810 Internal Photo for Model: B-800, B-668BT, B-288BT, B-228BT, B-128, B-258BT, B-810 Antenna Internal Photo for Model: B-800, B-668BT, B-288BT, B-228BT, B-128, B-258BT, B-810 Internal Photo for Model: B-800, B-668BT, B-288BT, B-228BT, B-128, B-258BT, B-810 Internal Photo for Model: B-800, B-668BT, B-288BT, B-228BT, B-128, B-258BT, B-810 Internal Photo for Model: UM028A Internal Photo for Model: UM028A

Circuit description 1. power This product uses the 3.7V li-battery for the electric power supply, the 3.7V is mainly divided into two ways, One is for full-time worker of the SPK , the other is for changing 3.3V stabilovolt to 3.3V for the full-time worker of bluetooth module and the MIC 2. C10, R8, R9 compose replacement electric circuit. 3. R10, the R11 compose the monitor electric circuit of li-battery voltage . 4, SPK_R_N and the SPK_R_P audio transport TPA2010 to SPK via the merit. 5, MIC changes the input sound signal of MIC_L_P and MIC_L_N into the electrical signal for processing by bluetooth module .

UnRegistered

UnRegistered

12345678 A B C D 87654321 D C B A Title NumberRevisionSize A2 Date:5-Dec-2009 Sheet of File:F:\公司资料\遮阳板\B-358\B-385.ddbDrawn By: C10 105 C7 106 R11 150K C6 102 R25 47K C24105 R9 100K R26 10K R3 2K R10 220K C8 102 C9 106 C23 105 R247K R5 680R R27 47K SPK_L- 1 SPK_L+ 2 SPK_R- 3 SPK_R+ 4 GND 5 MIC_L+ 6 MIC_L- 7 MIC_R+ 8 MIC_R- 9 1.8V 10 PCM_IN 11 PCM_SYNC 12 PCM_CLK 13 PCM_OUT 14 AIO0 15 AIO1 16 AIO3 17 GND 18 3V3 19 USB_D+ 20 USB_D- 21 RTS 22 CTS 23 TX 24 RX 25 RESET 26 GND 27 GND 44 PIO9 43 PIO8 42 PIO0 41 PIO1 40 PIO2 39 PIO3 38 PIO11 37 PIO10 36 MISO 35 CLK 34 CSB 33 MOSI 32 PIO7 31 PIO6 30 PIO5 29 PIO4 28 GND 45 ANT 46 GND 47 U3 BLUETOOTH C20 NC C19 2.2p L4 4.7nH ANT PIO9 PIO10MISOCLKCSBMOSIPIO5 RX TX VCC 1V8 SPK_L_PSPK_L_N SPK_R_P SPK_R_N MIC_L_PMIC_L_N C12 333 C13 102 C17 104 C18 15p C14 333 MIC_L_N MIC_L_P R16 1K MIC1 EM5BPS D3 RED E1 ANT PIO7 PIO6 PIO4 AIO0AIO1 AOI3 PIO8 PIO0PIO3PIO11 RESET PIO2 PIO1 USB_CHG GND IN 1 GND 2 EN 3 BP 4 OUT 5 U2 LTC4054 D4 IN4148 D1 IN4148 REDVBATT VBATT USB_CHG VBATT VBATT GNDRESET AIO0GND RED C16 106 C3 106 C1 104 C2 103 C5 102 IN 1 GND 2 EN 3 BP 4 OUT 5 U1 R9167 VCCVBATT SPK_R_N SPK_R_P K3 VOL+ K2 VOL- R23 47K R24 47K R15 100K R12 33K R14 47K R13 47K R19 1K R17 1K R18 1K C15 331 C25 104 C27 10p C28 10p L1 100M\600R L2100M/600R R21 100K R22 10K EN R20 2.2K C26 106 R8 10K R4 680R D2 BLUE VBATT Q1 BC847 Q2 BC847 R7 47K R6 47K R1 56K PIO8 AOI3 Q38550S PIO9 VCC VCC C4 104 C11 NC K1 POWER VBATT PIO2 PIO3 EN PVDD B2 GND A2 VD+ C3 VD- A3 GND B3 SHUTDOWN C2 IN- C1 IN+ A1 VDD B1 U4 PTA2010 PIO4 VBATT L3 100M/600R SPK+ SPK- 123 J1 HEADER 3 R31 0R R30 0R R32 0R R33 0R SPK_L_N SPK_L_P UnRegistered

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For GaoYi Tech Limited 5th Floor, Building F2, Hua Feng Industrial Zone, Hangcheng Road, Xi Xiang Town, Bao An District, Shenzhen, China FCC ID: X2FB-800 Dec. 16, 2009 This Report Concerns: Original Report Equipment Type Bluetooth car kit Test Engineer: Eric Li Report No.: BST09121471016R-3 Receive EUT Date/Test Date: Dec.10,2009/ Dec.10-16,2009 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road, Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. GaoYi Tech Limited FCC ID: X2FB-800 BST FCC ID REPORT : BST09121471016R-3 Page 2/18 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL...........................................................................................................................5 4. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 5. TEST EQUIPMENT USED .......................................................................................................7 6. CONDUCTED POWER LINE TEST .......................................................................................8 6.1. Test Equipment .................................................................................................................8 6.2. Test Procedure ..................................................................................................................8 6.3. Test Setup..........................................................................................................................8 6.4. Configurating of the EUT .................................................................................................8 6.5. EUT Operating Condition...............................................................................................10 6.6. Conducted Power line Emission Limits..........................................................................10 6.7. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Confihuration of the EUT ...............................................................................................12 7.5. EUT Operating Condition...............................................................................................12 7.6. Radiated Emission Limit.................................................................................................12 7.7. Radiated Emission Test Result .......................................................................................13 8. BAND EDGE .............................................................................................................................16 8.1. Test Equipment ...............................................................................................................16 8.2. Test Procedure ................................................................................................................16 8.3. Configuration of The EUT ..............................................................................................16 8.4. EUT Operating Condition...............................................................................................16 8.5. Band Edge FCC 15.249(d) Limit ....................................................................................16 8.6. Band Edge Test Result ....................................................................................................16 GaoYi Tech Limited FCC ID: X2FB-800 BST FCC ID REPORT : BST09121471016R-3 Page 3/18 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must…
