1: Introduction BL-RT3070-8D product is a low power, high linear output power, in line with IEEE802 11B I G standard, IEEE 802.11i security protocol support, and the standard IEEE 802.11e quality of service 54M USB wireless card, with other meet the standard of wireless devices interconnected, supporting the latest WEP 64/128 bit data encryption, support WPA-PSK/WPA2-PSK, WPNWPA2 security, wireless transmission rates of up to 54M, 11B is the product of 5 times normal, the All the smart set high gain antenna, can adapt to different working environment, desktop or notebook computer users, and other wireless networking devices need to achieve easy access to the wireless network. 2: Application: Wireless Internet, network cameras, set-top box GPS, hard disk player, wireless networking equipment and other needs. 3: product Features Project Description Supported protocols and standards IEEE 802.11G, IEEE 802.11B CSMA/CA ACK Bus Interface USB1.1 USB2.0 Frequency range 2.412-2.462GHz No. of Channel 11 Data modulation IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) Transmission rate 11b: 11/5.5/2/1M (Adaptive) 11g: 54/48/36/24/18/12/9/6M (Adaptive) Sensitivity @PER 54M:-72dBm@ 1 0%PER, 11M:-85dBm@8%PER 6M: -88dBm@10%PER, 1M: -90dBm@8%PER Transmit power IEEE 802.11b:16.93dBm; IEEE 802.11g:17.75dBm Antenna gain 3dbi LED Instructions Status Indicator Transmission distance Indoor up to 100m, outdoor up to 300 meters (depends on the Environments ） Operating System Support WIN2000/XP/VISTA/LINUX/WINCE/WIN7 Operating voltage DC 5V +-0.2V Environment: Operating temperature:0°C---40°C Work Humidity: 10%---90% Size (L*W*H) 39.4MM* 14.8MM*3MM IC RALINK 2070 4: System Support Platform Operating System CPU Supplier Drive WIN2000/XP/VISTA/WIN7 X86 Platform Support LLNUX2.4/2.6 ARM, MIPSII Support WINCE5.0/6.0 ARIVI ,MIPSII Support 5: Product pin definition TOP Built-in antenna test point Bottom 6: Product Size 14.8 mm 1.0 mm 0.85 0.8mm 0.25mm 39.4 mm 琤 Appendix A FCC A.1 FCC statement in User's Manual (for class B) "Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. A.2 FCC Statements: 1.This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. 2.This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 3.Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 4.This compliance to FCC radiation exposure limits for an uncontrolled environment, the minimum of 20 cm separation distance shall be maintained between antenna and body. The host device must be labelled to display the FCC ID of the module "Contains FCC ID:X2NBL-LW02-2" If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: X2NBL-LW02-2 The modular could be installed or integrated in mobile or fix devices only. This modular could not be installed in any portable device, for example, USB dongle like transmitters is forbidden. when the module is installed inside another device, the user manual of this device must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

DATE : December 29, 2011 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_X2NBL-LW02-2___________ Product Name:_ wifi module _ _________ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics Long-term confidential • Block diagram Long-term confidential • Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this December 29, 2011 By: Jianjun Xia Signature Printed Title: Engineer On behalf of : (Company Name) B-LINK ELECTRONIC LIMITED Telephone: +86-755-28023440

B-LINK ELECTRONIC LIMITED Date: December 29, 2011 To: Federal Communications Commission 7435 Oakland Mills Road Columbia,MD FCC ID: X2NBL-LW02-2 To Whom It May Concern: This letter is to ascertain that B-LINK ELECTRONIC LIMITED Product: wifi module Model: BL-LW02-2 The EUT is in the process of being granted under the FCC DOC for Computing Decice Peripheral. All the test will be performed at the FCC recognized test lab. If you have any question or concerns, pls, contact us. Sincerely, Signature Jianjun Xia / Engineer Title: Engineer Telephone: +86-755-28023440 Email: [email protected] Date: December 29, 2011

Limit Modular approval letter We B-LINK ELECTRONIC LIMITED wishes to request a limited modular transmitter approval (LMA). Our module Product name: wifi module Model number: BL-LW02-2 was deemed to fill the requirements of PART 15 UNLICENSED LIMITED MODULAR TRANSMITTER APPROVAL. 1. The modular transmitter has its own RF shielding, but only have single-sided shielding, see the external photo. We declare that the shielding of the module is identical to the sample tested on batch production. 2. The modular transmitter has buffered modulation/data inputs and the module complies with Part 15 requirements under conditions of excessive data rates or over-modulation. 3. The modular transmitter has its own power supply regulation. 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). The antenna is permanently attached 5. The modular transmitter was tested in a stand-alone configuration. The module was not inside another device during testing. The module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. DC power lines and data input/output lines connected to the module do not contain ferrites. Any accessories, peripherals, or support equipment connected to the module during testing are unmodified or commercially available. 6. The outside of the device into which the module is installed displays a label referring to the enclosed module. This exterior label use wording as following: “Contains FCC ID: XZNBL-LW02-2.” Modular has own permanent attached Label which exhibits FCC ID XZNBL-LW02-2. 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and we have provided adequate instructions along with the module to explain any such requirements. A copy of these instructions was included in the application for equipment authorization. 8. The modular transmitter complies with the applicable RF exposure requirement, and meet MPE calculation of 47 CFR 1.107(b) (1). A minimum separation distance of 20 cm is always maintained between the modular and it’s antenna with any human being nearby. Signature of applicant: Date: December 29, 2011

Top View Bottom View

FCC ID: X2NBL-LW02-2

Label Location

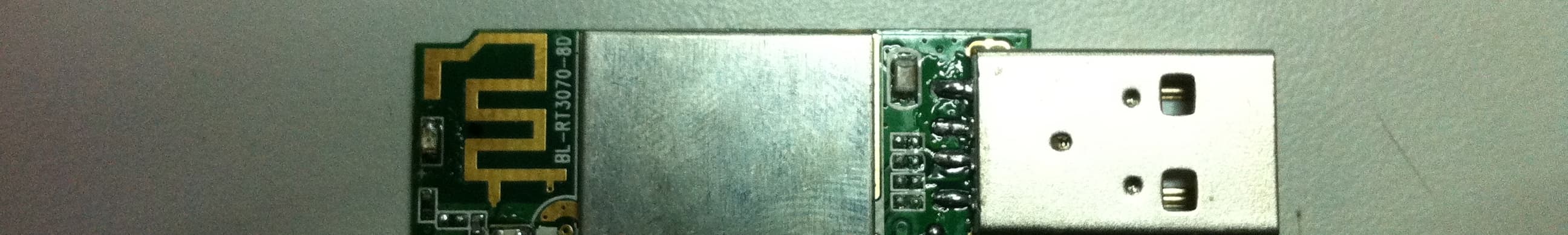

Top View Bottom View ANTENNA

Shenzhen Certification Technologh Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guangdong, P.R. China. FCCID: X2NBL-LW02-2Page 1 of 64 TESTREPORT FCC ID: X2NBL-LW02-2 Applicant: Shenzhen Bilian Electronic Limited Address: No 268, Fuqian Rd, Jutang Community, Guanlan Town, Baoan District, Shenzhen, 518110, Prc Equipment under Test (EUT): Name: wifi module Model: BL-LW02-2 Standards : FCC PART 15, SUBPART C : 2010 (Section 15.247) Report No. :STE111217248 Date of Test :December 18-25, 2011 Date of Issue:December 26, 2011 Test Result :PAS S * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.:STE111217248 FCCID: X2NBL-LW02-2Page 2 of 64 TABLE OF CONTENT DescriptionPage 1 General Information--------------------------------------------------------------------------------------- 4 1.1Description of Device (EUT) --------------------------------------------------------------------- 4 1.2Description of Test Facility ----------------------------------------------------------------------- 5 2 EMC Equipment List -------------------------------------------------------------------------------------- 5 3 Test Procedure --------------------------------------------------------------------------------------------- 5 4Summary of Measurement--------------------------------------------------------------------------- 6 4.1Summary of test result-------------------------------------------------------------------------- 7 4.2Test mode------------------------------------------------------------------------------------------- 8 5Spurious Emission ------------------------------------------------------------------------------------- 9 5.1Conducted Spurious Emission---------------------------------------------------------------- 9 5.1.1 Test limit-------------------------------------------------------------------------------------------- 9 5.1.2 Method of measurement------------------------------------------------------------------------ 9 5.1.3 Test Setup------------------------------------------------------------------------------------------ 9 5.1.4 Test Results---------------------------------------------------------------------------------------- 9 5.2Radiation Emission------------------------------------------------------------------------------16 5.2.1 Radiation Emission Limits(15.209)----------------------------------------------------------16 5.2.2 Test Setup-----------------------------------------------------------------------------------------16 5.2.3 Test Procedure-----------------------------------------------------------------------------------18 5.2.4 Test Equipment Setting For emission test.est Result----------------------------------18 5.2.5 Test Condition------------------------------------------------------------------------------------18 5.2.6 Test Result----------------------------------------------------------------------------------------18 6POWER LINE CONDUCTED EMISSION-------------------------------------------------------- 26 6.1Conducted Emission Limits(15.209&249)-------------------------------------------------26 6.2Test Setup-----------------------------------------------------------------------------------------26 6.3Test Procedure-----------------------------------------------------------------------------------27 6.4Test Resluts---------------------------------------------------------------------------------------27 7Peak Power---------------------------------------------------------------------------------------------- 29 7.1Test limit-------------------------------------------------------------------------------------------29 7.2Test Procedure-----------------------------------------------------------------------------------29 7.3Test Setup-----------------------------------------------------------------------------------------29 7.4Test Results---------------------------------------------------------------------------------------29 8PEAK POWER SPECTRAL DENSITY----------------------------------------------------------- 30 8.1Test limit-------------------------------------------------------------------------------------------30 8.1.1 Please refer section15.247.-----------------------------------------------------------------30 8.2Method of measurement-----------------------------------------------------------------------30 8.3Test Setup-----------------------------------------------------------------------------------------30 8.4Test Results---------------------------------------------------------------------------------------30 96dB Bandwidth----------------------------------------------------------------------------------------- 34 9.1Test limit-------------------------------------------------------------------------------------------34 9.2Method of measurement-----------------------------------------------------------------------34 9.3Test Setup-----------------------------------------------------------------------------------------34 9.4Test Results---------------------------------------------------------------------------------------34 Report No.:STE111217248 FCCID: X2NBL-LW02-2Page 3 of 64 10 NUMBER OF HOPPING FREQUENCY---------------------------------------------------------- 38 10.1 Test limit-----------…

Text truncated - open the document above for the full version.

Radiated Emission Test Setup in Chamber Below 1G Above 1G Conducted Emission Test Setup
