X2U-ORCA-PCIEORCA PCIe Data Card(CDMA2000 800/1900 1X RTT)

Engineering Test Software (ETS) Operation This document provides final product specifications. VIA Telecom reserves the right to make changes to this product at any time without notice. This document contains proprietary information of VIA Telecom, Inc. The information contained herein is not to be used by or disclosed to third parties without the express written permission of an officer of VIA Telecom, Inc. This document describes VIA Telecom’s Engineering Test Software and will remain the official reference source for all revisions/releases of this product until rescinded by an update. VIA Telecom, Inc. reserves the right to make changes to any product herein at any time without notice. VIA Telecom does not assume any responsibility or liability arising out of the application or use of any product described herein, except as expressly agreed to in writing by VIA Telecom; nor does the purchase or use of a product from VIA Telecom convey a license under any patent rights, copyrights, trademark rights, or any other of the intellectual property rights of VIA Telecom or third parties. The VIA Telecom logo design and VIA TELECOM are trademarks owned by the company. Microsoft, Windows, Windows NT, Visual Basic, and Visual C++ are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. LabVIEW is a trademark of National Instruments Corporation. CommLib is a trademark of sysFire LLC. All other brand and product names may be trademarks of their respective companies. VIA Telecom products are not intended for use in life-support appliances, devices, or systems. Use of any VIA Telecom product in such applications without written consent of the appropriate VIA Telecom officer is prohibited. VIA Telecom is certified to the ISO 9001:2000 quality management system international standard. VIA Telecom, Inc. 3390 Carmel Mountain Road San Diego, CA 92121, U.S.A. Tel: 858.350.5560 Internet: www.via-telecom.com Copyright © VIA Telecom, Inc. 2006 All Rights Reserved. Printed in U.S.A. January 2006 Engineering Test Software Operation Rev 28_A Sept 2005 VIA Telecom, Inc. Proprietary Internal Revision History Page Engineering Test Software Operation Revision: 32 Status: Draft Author: Multiple Function: VIA Telecom, Inc. Path and Filename: C:\CM\CBPTOOLS\Docs\ctm_ets_overview.doc File Type: Microsoft Word 2000 Version 32 Release Date: May 10, 2007 Engineering Test Software Operation Rev 28_A Sept 2005 ii VIA Telecom, Inc. Proprietary Revision History Rev Status* Date Author Reason for change/description 32 Draft 5/10/2007 C. Lewis Corrected the description of non-bitpacked bit fields. 31 Draft 1/24/2007 C. Lewis Added string and numeric field password description. 30 Draft 2/21/2006 C.Lewis Added the Download.dll documentation. 29 Draft 1/19/2006 C. Lewis M. Liu D. Orloff Added ViaHub description, updated the EtsMain command line options, added the ViaBinary interface to the ViaIf.dll and the EtsIf.ocx interface. Added BINLOG and GETDEF sections. Added conditionally and invisible definition support descriptions. 28 Approved 9/19/2005 Roy Davis, Bryan Yang Rev 26_D approved for release as Rev 28_A 27 Draft 09/02/2005 C. Lewis M. Liu Added ViaIf.dll description and added explanations to the Get Command, Error and Response interface functions. Added USB support 26 Approved 5/24/2005 Roy Davis, Bryan Yang Rev 25_P approved for release as Rev 26_A 25 Pending 05/02/2005 M. Liu Added the description of ViaCrypt utility and binary EtsMsg.bin file 24 Approved 1/13/2005 R. Smith J. Miller Rev 23_P approved for release as Rev 24_A. 23 Pending 01/06/2005 Chuck Lewis D. Orloff Made generic to all CBP products Added section on DBM Templates and AutoRspQ interface Removed ETS Visual Basic Interface Updated sections for adding Commands, Traces, Spies, and Faults Miscellaneous minor updates 22 Draft 10/06/2004 H. Nguyen Added Register OCX and updated External EXEs 21 Draft 08/17/2004 H. Nguyen Added Auto Config Loading when phone is detected. 20 Draft 06/18/2004 H. Nguyen Added External EXEs to ETS GUI 19 Draft 2/5/2004 C. Lewis Added the Lock Config File command line option 18 Draft 10/13/2003 D. Schaeffer Convert to customer template 17 Approved 7/15/2003 P. LaBarbera R. Smith S. O’Leary Version 16_D approved for release as version 17_A 16 Draft 6/12/03 C. Lewis Added the description of “Default ETS Options” section. 15 Draft 5/28/03 C. Lewis Added descriptions of the following new options. Disabled commands, hidden fields, read only fields and startup command options. Updated with changes as recommended in review. Added Fault Log section description. Moved section 5 to the end. 14 Draft 4/14/03 C. Lewis Updated the command line options and added the COUNT_OF option to expression definitions. 12 Draft 3/10/03 C. Lewis Added bitpacked arrays. Updated documentation for Lite message definitions. Added description of the “Save Engineering Test Software Operation Rev 28_A Sept 2005 VIA Telecom, Inc. Proprietary Internal Revision History Page Rev Status* Date Author Reason for change/description 32 Draft 5/10/2007 C. Lewis Corrected the description of non-bitpacked bit fields. 31 Draft 1/24/2007 C. Lewis Added string and numeric field password description. 30 Draft 2/21/2006 C.Lewis Added the Download.dll documentation. 29 Draft 1/19/2006 C. Lewis M. Liu D. Orloff Added ViaHub description, updated the EtsMain command line options, added the ViaBinary interface to the ViaIf.dll and the EtsIf.ocx interface. Added BINLOG and GETDEF sections. Added conditionally and invisible definition support descriptions. 28 Approved 9/19/2005 Roy Davis, Bryan Yang Rev 26_D approved for release as Rev 28_A 27 Draft 09/02/2005 C. Lewis M. Liu Added ViaIf.dll description and added explanations to the Get Command, Error and Response interface functions. Added USB support 26 Approved 5/24/2005 Roy Davis, Bryan Yang Rev 25_P approved for release as Rev 26_A 25 Pending 05/02/2005 M. Liu Added the desc…

Text truncated - open the document above for the full version.

Orca Mini PCI Express Card User Manual USB Driver Installation 1. To install the VIA USB Windows device driver, you must first start the Setup application,VIA USB Drivers 2.1.5 (32-Bit).exe, by double-clicking the associated icon. 2. Choose the directory for the application to be installed. 3. ClickInstall, then this setup program will copy all the files into the directories on the local system drive of your PC. The following dialog box will appear upon execution. 4. Click Finish when this action has been completed. 5. Power up the notebook which has Shamu PCIe data card installed inside. Then Windows will install all the related drivers automatically. You can find “VIA Telecom USB Modem”, “VIA Telecom AT Port”, “VIA Telecom LBS Port”, “VIA Telecom Voice Port” and “VIA Telecom USB ETS” in Device Manager. Dial up Application Setup 1. Select “New Connection Wizard” 2. Select Connect to the Internet 3. Select “Set up my connection manually” 4. Select” Connect using a dial- up modem” 5. Enter your ISP name 6. Enter your Number to Dial 7. Select Anyone’s use 8. Enter user name and password 9. After finishing the configuration, you can set up a connection If Driver is properly installed, you can see “VIA Telecom USB Modem” in theproperties menu. RF Exposure Your device contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your device, the system handling your connection controls the power level at which your device transmits. Important safety information regarding radio frequency radiation (RF) exposure. To ensure compliance with RF exposure guidelines the device must be used with a separation from the body. Failure to observe these instructions could result in your RF exposure exceeding the relevant guideline limits. The maxim permissible exposure is defined in 47 CFR 1.1310 with 0.5498 mW/cm*cm(CDMA800MHz) and 1 mW/cm*cm (CDMA 1900MHz). The transmitter is using external antenna that operate at 20cm or more from nearby persons. The maxim power density is 0.3523mW/cm*cm (CDMA 800MHz) and 0.5058 mW/cm*cm (CDMA1900MHz) at 20cm.

Federal Communications Commission Authorization and EvaluationDivision Pursuant to Sections 0.457and 0.459 of the Commission'sRules,we, VIATelecom,Inc.,hereby request confidentialtreatment ofinformation accompanying thisApplication(FCC 10: X2U-ORCA-PCIE)asoutlined below: ExhibitType Block Diagram, Schematics Operational Description Parts List Tune Up Info The above materials contain trade secrets and proprietary information not customarily released to the public.The public disclosure of these matters might be harmful to us,VIA Telecom,Inc.,and provide unjustified benefits to its competitors. We,VIA Telecom,Inc.,understandthat pursuanttoRule 0.457, disclosure of thisApplication(FCC 10: X2U-ORCA-PCIE)and allaccompanying documentation willnot bemade before thedate oftheGrantforthisapplication. Sincerely Yours, D~~

FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435Oakland Mills Road Columbia,MD 21046 We,VIATelecom,Inc. the undersigned, Hereby authorizes Shanghai Morlab CommunicationTechnology Co.,Ltd,WenJie Zhang to act onitsbehalfinall matters relatingto application for Equipment authorization,includingthe signing ofall documents relating to these matters.Allacts carried out byShanghai Morlab Communication Technology Co.,Ltd on our behalf shallhavethe same effect as our own action. We,the undersigned,hereby certify that weare not subjec ttoadenialof federal benefits, that includes FCC benefits,pursuantto Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a).

PRINT THIS ON YOUR COMPANY PAPER Attn: Reviewing Engineer RE: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL To Whom It May Concern: We, VIA Telecom, Inc, hereby requests for part 15 unlicensed modular transmitter approval of our device, described as follows: Brand name: Model name: Orca_PCIe Type number: FCC ID: X2U-ORCA-PCIE In FCC Public Notice DA 00-1407 released June 26,2000 there are eight numbered requirements that our device complies with: 1. The modular transmitter must have its own shielding. The DUT does provide RF shielding. Please refer to DUT picture. 2. The modular transmitter must have buffered modulation/data inputs The DUT has buffered data input it’s integrated in chip M36W0R6050T3ZAQ. 3. The modular transmitter must have its own power supply regulation The DUT has its own power supply regulation it’s integrated in PMIC chip 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c The DUT does not meet the FCC antenna requirements, a standard SMA antenna connector provided on board. Please refer to picture. 5. The modular transmitter must be tested in a stand-alone configuration The DUT was tested in a stand-alone configuration via a test kit. Please see section photographs of test configuration in the test report. 6. The modular transmitter must be labelled with its own FCC ID number Please see exhibition label sample for the FCC ID of this module. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The DUT is compliant with all applicable FCC rules. 8. The modular transmitter must comply with any applicable RF exposure requirements. The DUT is comply with RF exposure requirement MPE evaluation. The MPE report is addressed in the RF exposure exhibition.

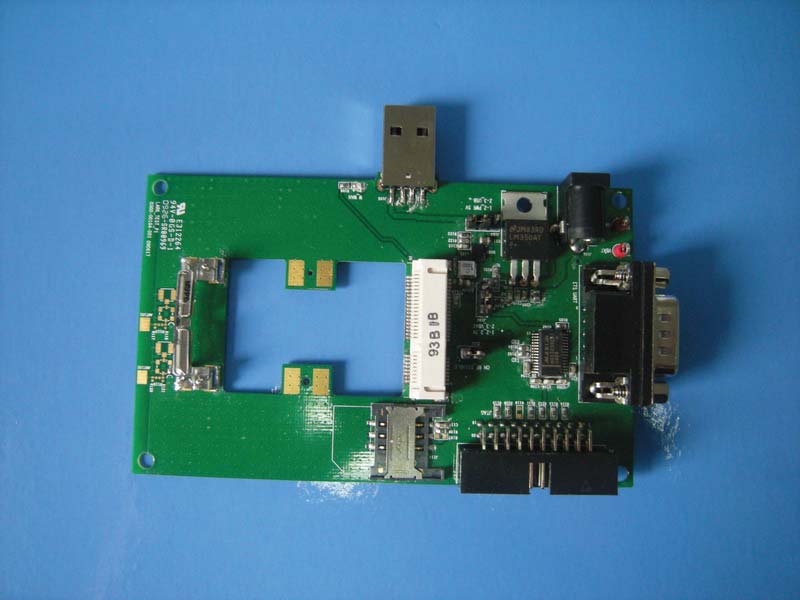

externalphoto  EUTFRONT  EUTBACK  TESTBOARDFRONT  TESTBOARDBACK  TESTBOARD+ANTENNA+RFCABLE  EUT+TESTBOARD+RFCABLE



internalphoto   FRONTVIEW  BACKVIEW  EUT&SHIEDING

Calculation and sample for Confirmation Dear Reviewer, As specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure(MPE), Limits for General Population/Uncontrolled Exposure: Frequency range (MHz)Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 The RF Exposure level is calculated using the general equation: S = P′/ 4 πR 2 The maximum measured Conducted power output is 800MHz ：23.80 dBm (~0.2398 W) 1900MHz： 23.72 dBm (~0.2355 W) the EUT antenna gain is 800MHz ：0.8dBi 1900MHz ：3.0dBi CDMA 800MHz: P′=P*G = 23.80dBm+0.8dBi=24.60dBm(288.40mW) CDMA1900MHz: P′=P*G = 23.72dBm+3.0dBi=26.72dBm(469.89mW) R = 20 cm π = 3.1416 Solving for S, the power density at 20 cm is CDMA800: 0.0573 mW/cm 2 CDMA1900: 0.0934 mW/cm 2 The power density limit is: For 800MHz: f/1500=824.7/1500=0.5498 mW/cm 2 For 1900MHz: 1.0 mW/cm 2 So, the power density is kept. Please contact us if you have any additional questions. Best Regards Morlab ZhangWenjie

FCC ID：X2U-ORCA-PCIE Maximum Permissible Exposure as specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure Frequency range (MHz) Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 Calculations 850 MHz band (824.7 – 848.31 MHz) Maximum peak output power at antenna input terminal: 23.80 dBm (~0.2398 W) Predicted distance R: 20 cm Predicted frequency: 824,7 MHz MPE limit S: 0.5498 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum allowable antenna gain for mobile/portable stations: 9.21 dBi Maximum allowable antenna gain for other stations: 10.61 dBi Prediction The maximum allowable MPE value of 0,5498 mW/cm² will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 10.61 dBi will be used. This means that the power density levels in a distance of 20 cm are in accordance with the FCC regulations as long as the used antenna has a gain below 10.61 dBi. For mobile and portable stations the EIRP is restricted to 2.0 Watts, (§24.232 (c)). Therefore the maximum antenna gain is 9.21 dBi. FCC ID：X2U-ORCA-PCIE Maximum Permissible Exposure as specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure Frequency range (MHz) Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 Calculations 1900 MHz band (1851.25 – 1908.75 MHz) Maximum peak output power at antenna input terminal: 23.72 dBm (~0.2355 W) Prediction distance R: 20 cm Prediction frequency: 1880 MHz MPE limit S: 1 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum allowable antenna gain for mobile/portable stations: 9.29 dBi Maximum allowable antenna gain for other stations: 13.29 dBi Prediction The maximum allowable MPE value of 1 mW/cm² will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 13.29 dBi will be used. This means that the power density levels in a distance of 20 cm are in accordance with the FCC regulations as long as the used antenna has a gain below 13.29. For mobile and portable stations the EIRP is restricted to 2.0 Watts, (§24.232 (c)). Therefore the maximum antenna gain is 9.29 dBi.

Report No.: SH10030061R01 Page 2 of 42 TABLE OF CONTENTS 1.TEST RESULT CERTIFICATION .......................................................................................... 4 2.GENERAL INFORMATION .................................................................................................... 5 2.1Equipment under Test (EUT) Description ............................................................................... 5 2.2Test Standards and Results ........................................................................................................ 6 2.3Facilities and Accreditations ...................................................................................................... 7 2.3.1Facilities .................................................................................................................................... 7 2.3.2Test Environment Conditions .................................................................................................... 7 2.447 CFR Part 2, Part 22H ,Part 24E Requirements .................................................................. 8 2.4.1Conducted Related Tests ........................................................................................................... 8 2.4.2Radiated Power and Spurious Emission Tests .......................................................................... 9 2.4.3Frequency Stability Test .......................................................................................................... 10 2.4.4Test Mode ................................................................................................................................ 10 2.5Frequencies ................................................................................................................................ 11 2.5.1Requirement ............................................................................................................................ 11 2.5.2Procedure................................................................................................................................. 11 2.5.3Test Results ............................................................................................................................. 12 2.6Conducted RF Output Power .................................................................................................. 13 2.6.1Requirement ............................................................................................................................ 13 2.6.2Test Procedure ......................................................................................................................... 13 2.6.3Test Results ............................................................................................................................. 14 2.6.4Test Plots ................................................................................................................................. 15 2.7Occupied Bandwidth ................................................................................................................ 18 2.7.1Occupied Bandwidth Definition ............................................................................................. 18 2.7.2Test Procedure ......................................................................................................................... 18 2.7.3Test Result ............................................................................................................................... 19 2.7.4Test plots ................................................................................................................................. 20 2.8Band-edge .................................................................................................................................. 23 2.8.1Requirement ............................................................................................................................ 23 2.8.2Test Description ...................................................................................................................... 23 2.8.3Test Result ............................................................................................................................... 23 Report No.: SH10030061R01 Page 3 of 42 2.8.4Test plots ................................................................................................................................. 24 2.9Conducted Spurious Emission ................................................................................................. 26 2.9.1Requirement ............................................................................................................................ 26 2.9.2Test Procedure ......................................................................................................................... 26 2.9.3Test Results ............................................................................................................................. 27 2.9.4Test Plots ................................................................................................................................. 28 2.10Transmitter Radiated Power (EIRP/ERP) .......................................................................... 31 2.10.1Requirement ............................................................................................................................ 31 2.10.2Test Procedure ......................................................................................................................... 31 2.10.3Test Result ............................................................................................................................... 32 2.10.4Test plots ................................................................................................................................. 33 2.11Radiated Spurious Emission ...........…

Text truncated - open the document above for the full version.

Test Setup Photo Radiation Te s t Setup  ConductedTestSetup
