X3U-MT113GPS Motorcycle/Vehicle Tracker

GPS Motorcycle/Vehicle Tracker USER MANUAL (Model: MT113) GUANGZHOU TOPTEN ELECTRONICS FACTORY Address: 20/F, Tower B, Gaoke Building, Tianhe North Road, Guangzhou, China. Tel: (+86)20-38351400, 38351401 Fax: (+86)20-38351400 Website:http://www.t10.cn Email: [email protected] Version 2.0 (Date: Nov. 11, 2011) TOPTEN MT113 GPS Motorcycle/Vehicle Tracker http://www.GPScaralarm.com User Manual Page 1 CONTENT Preface...............................................................................................................2 I. Features & Functions......................................................................................3 II. How to Operate it...........................................................................................4 Arm/Disarm by Phone Calling......................................................................4 Arm/Disarm the System by SMS..................................................................4 Check the location by Google Map’s URL....................................................5 Authorize the Alarm-received Mobile...........................................................5 Change User Password...............................................................................5 Check the Real Physical Address................................................................6 Check the GPS Coordinates by SMS..........................................................6 Stop the Car by SMS...................................................................................6 Restore the Stopped Car to Normal Status..................................................6 Adjust the Sensitivity of Motion Sensor........................................................7 Switch the Working Mode of Blue Line........................................................7 Other SMS Command List...........................................................................8 III. Alarm Types................................................................................................12 IV. Installation...................................................................................................13 V . Specifications..............................................................................................15 VI. FAQs & Troubleshooting.............................................................................15 VII. Maintenance..............................................................................................16 TOPTEN MT113 GPS Motorcycle/Vehicle Tracker http://www.GPScaralarm.com User Manual Page 2 Preface MT113 GPS Motorcycle/vehicle tracker is the cost-effective solution for security & real-time tracking. It is specially used for motorcycle tracking because of its compact size and water-proof design. Read it Firstly: Please read this manual thoroughly before you use the device; please keep it for future reference. Attention: (1) Please keep the device away from heavy water, high temperature, heavy dust or strong magnetism. (2) Please prepare a valid GSM SIM card in advance. (3) For safety reason, do not tell other people the mobile phone number of your MT113. Warning: We strongly suggest user let the professional car electrician to install the system. TOPTEN MT113 GPS Motorcycle/Vehicle Tracker http://www.GPScaralarm.com User Manual Page 3 I. Features & Functions 1. Track on command or by time interval via SMS/GPRS. 2. Arm/disarm by SMS or phone call. 3. Check the car’s real physical address (such as city name, street name..(need support of the TS01 or TS03 center); 4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc. 5. Check the location directly by the Google map’s URL ; 6. Online website tracking by GPRS data network; 7. Odometer function 8. Movement alert; 9. Geo-fence alert; 10. Over-speed alert; 11. SOS button to call for help in case of emergency; 12. Inbuilt motion sensor has 2 kinds of usages (1)it arming status, if the vehicle/motorcycle is vibrated, it will trigger alarm (2)The system will enter into sleep mode for power saving if there is no vibration for a certain time. 13. Inbuilt 2Mb memory to store the offline GPS data; 14. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the built-in 800mAH backup battery can work for emergency, and the system will send out power failure alert immediately. 15. Cut off engine to stop the car safely by SMS/GPRS;(optional) 16. I/O: 2 inputs and 1output 17. Compact size with water-proof design TOPTEN MT113 GPS Motorcycle/Vehicle Tracker http://www.GPScaralarm.com User Manual Page 4 II. How to Operate it The default user password is 000000. If the user password is changed, user should send the SMS command with the new user password instead of 000000. XXX is the control code, all the letters must be capital letters or in small letters, command with mixed capital letter & small letter is not recognized by system Arm/Disarm by Phone Calling User could also use the alarm-received mobile phone to call the tracker’s SIM card number, so as to arm/disarm the system. Arm : After hearing several ring tones, if the systems hang up the call automatically, and call back you, it means that the system is armed. Disarm : After hearing several ring tones, if the system hangs up the call automatically, and don’t call back you, it means that the system is disarmed. Note: (1) There is no communication fee for this operation, it is a very convenient way to arm & disarm the system. (2)The SIM card inside the device must have the function of Caller ID Display. (3) Only the alarm-received mobile phone can realize this function. Arm/Disarm the System by SMS SMS command: 000000ARM (or 000000arm) This SMS instruction is used to arm the system When the system is armed, the movement alert is activated automatically. When the motorcycle/car moves, the alarm will be triggered. SMS command: 000000DSM (or 000000dsm) This command is used to disarm the system & stop sending alert SMS…

Text truncated - open the document above for the full version.

DATE : December 9, 2011 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_X3U-MT113 ________ Product Name:_ GPS Motorcycle/Vehicle Tracker __ _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics Long-term confidential • Block diagram Long-term confidential • Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this December 9, 2011 By: Kenny leung Signature Printed Title: Commercial Director On behalf of : (Company Name) Topten electronics Technology Limited Telephone: +86-20-38351400

December 9, 2011 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Certification Technology Service Co.,Ltd, Address: 3F, Bldg.27, Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, Shenzhen 518055, Guangdong, P.R. China Person: Mark Zhu (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Topten electronics Technology Limited Address: Room2007,Tower B, Gaoke Building,908 Tianhe North Road, Guangzhou, China ( applicant name and address). Dated this December 9, 2011 20 Agency agreement expiration date: Usually Give 8 - 12 Months By: Kenny leung Signature Printed Title: Commercial Director On behalf of : (Company Name) Topten electronics Technology Limited Telephone: +86-20-38351400

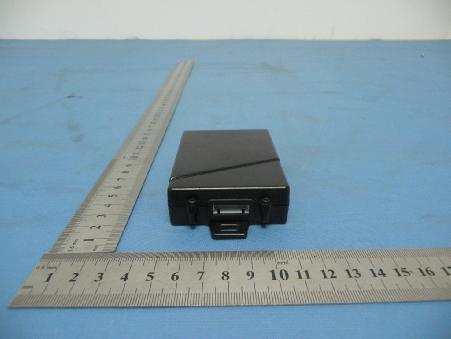

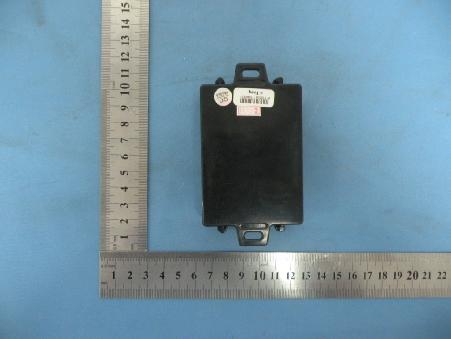

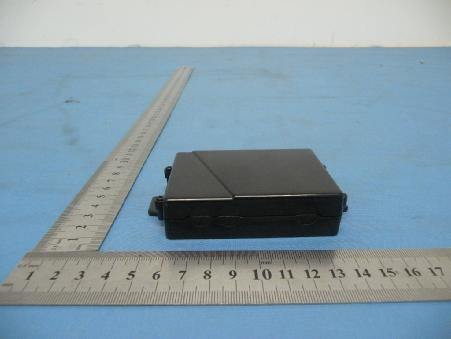

Full View Top View Bottom View Front View Rear View Front View Left View

FCC ID: X3U-MT113 Model No.: MT113 Manufacturer: Topten electronics Technology Limited

Label location

GSM ANTENNA This Mini USB port, Case no corresponding port, the port will not be used

TOPTEN ELECTRONICS TECHNOLOGY LIMITED Add: Room2007, Tower B, Gaoke Building, 908 Tianhe North Road, Guangzhou, China TEL: +86-20- 38351400, 38351401 FAX: +86-20-38351400 (ext.606) http://www.t10.cn . Email: [email protected] Letter of Certification This is to formally certify that: The tune up procedures of Wireless GPS Car Alarm (Model MT113) is not open to end user. The end user is not allowed to perform final tune. All the power and frequency set up were finished at the manufacturer stage. _____________________________________ (Commercial Director: Kenny Leung) Date: Dec.9, 2011 TOPTEN ELECTRONICS TECHNOLOGY LIMITED

RF Exposure Report 1. Standard Applicable According to 1.1310 table 1, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 824.2 0.55 30 836.6 0.56 30 848.8 0.57 30 1850.2 1.0 30 1880.0 1.0 30 1909.8 1.0 30 Note: F= Frequency in MHz 3. Result: This device is not portable device and for normal use, the operator will be at least 25cm away form the device. SAR measurement is not necessary. 4. MEP estimation at 25cm Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain(linear) MPE GSM 850 190 836.6 2108.63 32.00 0.536 PCS 1900 810 1909.8 32.000.246

Shenzhen Certification Technologh Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guang dong, P.R. China. FCC ID: X3U-MT113Page 1 of 23 TEST REPORT FCC ID: X3U-MT113 Applicant
TOPTEN ELECTRONICS TECHNOLOGY LIMITED Address
Room 2007, Tower B, Gaoke Building, 908 Tianhe North Road, Guangzhou, China Equipment Under Test (EUT): Name: GPS Motorcycle/Vehicle Tracker Model: MT113, MT114, MT115 In Accordance with: FCC PART 2; FCC PART 22H; FCC PART PART 24E Report No: STE111124121 Date of Test: December 1-7, 2011 Date of Issue : December 8, 2011 Test Result:PA S S In the configuration tested, the EUT complied with the standards specified above Authorized Signature ___________________________ (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.:STE111124121 FCC ID: X3U-MT113Page 2 of 23 Contents 1.General Information............................................................................................................... 3 1.1. Description of Device (EUT).......................................................................................... 3 1.2. Test Lab information....................................................................................................... 3 2.Summary of test ...................................................................................................................... 4 2.1. Summary of test result .................................................................................................... 4 2.2. Assistant equipment used for test.................................................................................... 4 2.3. Test mode ........................................................................................................................ 5 2.4. Test Environment Conditions.......................................................................................... 5 2.5. Measurement Uncertainty (95% confidence levels, k=2) ............................................... 5 2.6. Test Equipment ............................................................................................................... 6 3.Conducted Output power....................................................................................................... 7 4.Radiated Output power..........................................................................................................8 4.1. Limit................................................................................................................................ 8 5.Occupied Bandwidth .............................................................................................................. 9 6.Frequency stability ............................................................................................................... 10 7.Conducted spurious emissions ............................................................................................. 11 8.Radiated Spurious emissions ............................................................................................... 12 8.1. Block Diagram of Test Setup ........................................................................................ 12 8.2. Limit.............................................................................................................................. 12 8.3. Test Procedure...............................................................................................................12 8.4. Test Result..................................................................................................................... 13 9.Block Edge Compliance........................................................................................................ 15 10. Test setup photo .................................................................................................................... 16 11. Photos of EUT ....................................................................................................................... 17 Report No.:STE111124121 FCC ID: X3U-MT113Page 3 of 23 1. General Information 1.1. Description of Device (EUT) EUT:GPS Motorcycle/Vehicle Tracker Model No.:MT113, MT114, MT115 Note: No any difference with each model. Trade Name:TOPTEN Power supply:DC 12V Supply by battery Radio Technology:GSM/GPRS 850/900/1800/1900 GPRS Multislot Class:Class 10 Power class:GSM/GPRS 850/900: Class 4 GSM/GPRS 1800/1900: Class 1 FCC Operation frequency:824.2MHz—848.8MHz and 1850.2MHz—1909.8MHz Modulation:GMSK Antenna Type:Integrated Patch Antenna, 3dBi Peak Gain. Applicant:TOPTEN ELECTRONICS TECHNOLOGY LIMITED Address:Room 2007, Tower B, Gaoke Building, 908 Tianhe North Road, Guangzhou, China Manufacturer:GUANGZHOU TOPTEN ELECTRONICS FACTORY Address:Building #28, No.128 Xiaoping Section, Huangshi Road, Baiyun District, Guangzhou, China 1.2. Test Lab information Shenzhen Certification Technology Service Co.,Ltd. 3F, Bldg.27, Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, Shenzhen 518055, Guangdong, P.R. China FCC Registered No.:305283 Report No.:STE111124121 FCC ID: X3U-MT113Page 4 of 23 2. Summary of test 2.1. Summary of test result Description of Test ItemStandardResults Conducted Output power FCC PART 2: 2.1046 FCC PART 22H: 22.913 (a) FCC PART 24E: 24.232 (c) PASS Radiated Output power(erp/eirp) FCC PART 22H:22.913 (a) FCC PART 24E:24.…

Text truncated - open the document above for the full version.

Page 1 of 61 47 CFR PART 22 SUBPART H & 24 SUBPART E TEST REPORT of GSM/GPRS 850/900/1800/1900 Module Model Name: M10 Brand Name: QUECTEL Report No.: SH09070021AR02 FCC ID: XMR-16182009002 prepared for Quectel Wireless Solutions Co.,Ltd Room 801, Building E,No 1618 Yishan Road, Shanghai,China,201103 prepared by Shenzhen Electronic Product Quality Testing Center Morlab Laboratory 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China Tel: +86 755 86130398 Fax: +86 755 86130218 NOTE: This test report can be duplicated completely for the legal use with the approval of the applicant; it shall not be reproduced except in full, without the written approval of Shenzhen Electronic Product Quality Testing Center Morlab Laboratory. Any objections should be raised to us within thirty workdays since the date of issue. Report No.: SH09070021AR02 Page 2 of 61 TABLE OF CONTENTS 1. TEST CERTIFICATION ........................................................................................................... 4 2.GENERAL INFORMATION .................................................................................................... 5 2.1EUT Description ........................................................................................................................... 5 2.2Test Standards and Results ........................................................................................................... 7 2.3Facilities and Accreditations ......................................................................................................... 8 2.3.1Facilities .................................................................................................................................... 8 2.3.2Test Environment Conditions .................................................................................................... 8 3.47 CFR PART 2, PART 22H REQUIREMENTS .................................................................... 9 3.1Frequencies ................................................................................................................................... 9 3.1.1Requirement .............................................................................................................................. 9 3.1.2Test Description ........................................................................................................................ 9 3.1.3Test Result ............................................................................................................................... 10 3.2Conducted RF Output Power ...................................................................................................... 15 3.2.1Requirement ............................................................................................................................ 15 3.2.2Test Description ...................................................................................................................... 15 3.2.3Test Result ............................................................................................................................... 15 3.320dB Occupied Bandwidth ......................................................................................................... 22 3.3.1Definition ................................................................................................................................ 22 3.3.2Test Description ...................................................................................................................... 22 3.3.3Test Verdict .............................................................................................................................. 22 3.4Frequency Stability ..................................................................................................................... 29 3.4.1Requirement ............................................................................................................................ 29 3.4.2Test Description ...................................................................................................................... 29 3.4.3Test Verdict .............................................................................................................................. 29 3.5Conducted Out of Band Emissions ............................................................................................. 31 3.5.1Requirement ............................................................................................................................ 31 3.5.2Test Description ...................................................................................................................... 31 3.5.3Test Result ............................................................................................................................... 31 3.6Band Edge ................................................................................................................................... 44 3.6.1Requirement ............................................................................................................................ 44 3.6.2Test Description ...................................................................................................................... 44 Report No.: SH09070021AR02 Page 3 of 61 3.6.3Test Result ............................................................................................................................... 44 3.7Transmitter Radiated Power (EIRP/ERP)................................................................................... 49 3.7.1Requirement ............................................................................................................................ 49 3.7.2Test Description ...................................................................................................................... 49 3.7…

Text truncated - open the document above for the full version.

Report No.: SH09070021AR02 Page 31 of 61 3.5Conducted Out of Band Emissions 3.5.1Requirement According to FCC section 22.717(a) and FCC section 24.235(a), the power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43+10*log(P)dB. This calculated to be -13dBm. 3.5.2Test Description See section 3.1.2 of this report. 3.5.3Test Result The measurement frequency range is from 30MHz to the 10 th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the out of band emissions. 1. Test Verdict: BandChannel Frequency (MHz) Measured Max. Spurious Emission (dBm) Refer to Plot Limit (dBm) Ve r d i c t GSM 850MHz 128 824.2 -24.66 Plot A1/A2 -13 PA S S 190 836.6 -24.87 Plot B1/B2 PASS 251 848.8 -24.94 Plot C1/C2 PASS GSM 1900MHz 512 1850.2 -24.45 Plot D1/D2 -13 PA S S 661 1880.0 -24.70 Plot E1/E2 PASS 810 1909.8 -27.71 Plot F1/F2 PASS GPRS 850MHz 128 824.2 -26.37 Plot A3/A4 -13 PA S S 190 836.6 -25.05 Plot B3/B4 PASS 251 848.8 -26.08 Plot C3/C4 PASS GPRS 1900MHz 512 1850.2 -24.43 Plot D3/D4 -13 PA S S 661 1880.0 -24.45 Plot E3/E4 PASS 810 1909.8 -25.04 Plot F3/F4 PASS 2. Test Plot for the Whole Measurement Frequency Range: Note: the power of the EUT transmitting frequency should be ignored. Report No.: SH09070021AR02 Page 32 of 61 Test Plot of GSM (Plot A1:GSM 850MHz Channel = 128, 30MHz to 1GHz) (Plot A2: GSM 850MHz Channel = 128, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 33 of 61 (Plot B1: GSM 850MHz Channel = 190, 30MHz to 1GHz) (Plot B2:GSM 850MHz Channel = 190, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 34 of 61 (Plot C1:GSM 850MHz Channel = 251, 30MHz to 1GHz) (Plot C2:GSM 850MHz Channel = 251, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 35 of 61 (Plot D1:GSM 1900MHz Channel = 512, 30MHz to 2GHz) (Plot D2:GSM 1900MHz Channel = 512, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 36 of 61 (Plot E1:GSM 1900MHz Channel = 661, 30MHz to 2GHz) (Plot E2:GSM 1900MHz Channel = 661, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 37 of 61 (Plot F1:GSM 1900MHz Channel = 810, 30MHz to 2GHz) (Plot F2:GSM 1900MHz Channel = 810, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 38 of 61 Test Plot of GPRS: (Plot A3: GPRS 850MHz Channel = 128, 30MHz to 1GHz) (Plot A4: GPRS 850MHz Channel = 128, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 39 of 61 (Plot B3: GPRS 850MHz Channel = 190, 30MHz to 1GHz) (Plot B4: GPRS 850MHz Channel = 190, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 40 of 61 (Plot C3: GPRS 850MHz Channel = 251, 30MHz to 1GHz) (Plot C4: GPRS 850MHz Channel = 251, 1GHz to 9GHz) Report No.: SH09070021AR02 Page 41 of 61 (Plot D3: GPRS 1900MHz Channel = 512, 30MHz to 2GHz) (Plot D4: GPRS 1900MHz Channel = 512, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 42 of 61 (Plot E3: GPRS 1900MHz Channel = 661, 30MHz to 2GHz) (Plot E4: GPRS 1900MHz Channel = 661, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 43 of 61 (Plot F3: GPRS 1900MHz Channel = 810, 30MHz to 2GHz) (Plot F4: GPRS 1900MHz Channel = 810, 2GHz to 20GHz) Report No.: SH09070021AR02 Page 44 of 61 3.6Band Edge 3.6.1Requirement According to FCC section 22.717(b) and FCC section 24.235(b), in the 1MHz bands immediately outside and adjacent to the frequency block a resolution bandwidth of at least one percent of the emission bandwidth (26dB emission bandwidth) of the fundamental emission of the transmitter may be employed. 3.6.2Test Description See section 3.1.2 of this report. 3.6.3Test Result The lowest and highest channels are tested to verify the band edge emissions. 1. Test Verdict: BandChannel Frequency (MHz) Measured Max. Band Edge Emission (dBm) Refer to Plot Limit (dBm) Ve r d i c t GSM 850MHz 128 824.2 -14.24 Plat A1 -13 PA S S 251 848.8 -14.05 Plot B1 PASS GSM 1900MHz 512 1850.2 -14.65 Plat C1 -13 PA S S 810 1909.8 -14.07 Plot D1 PASS GPRS 850MHz 128 824.2 -13.43 Plat A2 -13 PA S S 251 848.8 -13.81 Plot B2 PASS GPRS 1900MHz 512 1850.2 -16.34 Plat C2 -13 PA S S 810 1909.8 -14.97 Plot D2 PASS Report No.: SH09070021AR02 Page 45 of 61 2.Test Plot of GSM: (Plot A1:GSM 850MHz Channel = 128) (Plot B1:GSM 850MHz Channel = 251) Report No.: SH09070021AR02 Page 46 of 61 (Plot C1: GSM 1900MHz Channel = 512) (Plot D1: GSM 1900MHz Channel = 810) Report No.: SH09070021AR02 Page 47 of 61 3.Test Plot of GPRS: (Plot A2:GPRS 850MHz Channel = 128) (Plot B2:GPRS 850MHz Channel = 251) Report No.: SH09070021AR02 Page 48 of 61 (Plot C2:GPRS 1900MHz Channel = 512) (Plot D2:GPRS 1900MHz Channel = 810) Report No.: SH09070021AR02 Page 49 of 61 3.7Transmitter Radiated Power (EIRP/ERP) 3.7.1Requirement According to FCC section 22.713, the Effective Radiated Power (ERP) of mobile transmitters and auxiliary test transmitters must not exceed 7Watts, and FCC section 24.232, the broadband PCS mobile station is limited to 2Watts e.i.r.p. peak power. 3.7.2Test Description 1.Test Setup: The EUT, which is powered by the Battery charged with the AC Adapter, is located in a 3m Full-Anechoic Chamber; the cable loss, air loss and so on of the site as factors are pre-calibrated using the "Substitution" method, and calculated to correct the reading. The EUT is commanded by the SS to operate at the maximum output power i.e. GSM550MHz band Power Control Level (PCL) = 5 and Power Class = 4 and GSM1700MHz band Power Control Level (PCL) = 0 and Power Class = 1. A call is established between the EUT and the SS via a Common Antenna. The Test Antenna is a Bi-Log one (used for 30MHz to 1GHz) or a Horn one (used for above 3GHz), and it’s located at the same height as the EUT. The Filters consists of Notch Filters and High Pass Filter. Spectrum Analyzer <3 m> Test Antenna EUT Common Antenna Turn Table Filters & Preamplifier System Simulator <1.8 m> Report No.: SH09070021AR02 Page 50 of 61 2. Equipments List: DescriptionManufacturerModelSerial No. Cal. DateCal. Due System Simulator R&S CMU200 105571 2008.12 1year Spectrum Analyzer R&S FSP30 101020 2008.…

Text truncated - open the document above for the full version.
