Genie Duet H501 User Manual Genie Duet H501 Introduction 1 Introduction BonSayOn H501 Genie Duet is designed with two communication modes: Silent Mode, and Normal Mode. This will basically fit into any environments, whether you are in the office, walking or riding a motorcycle. Through the most advance Bone Conduction technology, BonSayOn H501 is just what your need for today’s mobile communication. Silent Mode The newest NVT bone conduction microphone V4.0 makes the voice quality much better than anyone in the market, very close to an air microphone. All background noise and/or wind sound will be greatly reduced even though the noise is louder than 100dB or the speed is faster than 100km/H. Normal Mode Similar to a normal Bluetooth headset, a built-in high sensitive microphone(Air Micis used when Normal mode is selected. This is the most beneficial when you are using the mobile phone in an office or walking on the street. aptX HiFi Sound Compression BonSayOn H501 incorporates an up-to-date BT chip. This is the most advance sound compression technique to compile top grade audio signal to the ears. When comparing the difference with or without H501, there is a noticeable difference. It enables CD-like quality of wireless audio. 1 1. Microphone Type NVT Bone Conduction Mic V4.0 2. Bluetooth Version Bluetooth V3.0, Class 2, CSR chip 3. Bluetooth Profile HSP V1.2/ HFP V1.6 A2DP V1.2/ AVRCP V1.4 4. Operating Distance 10 meters (open space) 5. Charge Time Up to 2 hours 6. Music Play Time Earbuds Headphone 8 up to hours Helmet Headphone 6 up to hours 7. Talk Time Earbuds Headphone 9 up to hours Helmet Headphone 7 up to hours 8. Standby Time Up to 350 hours 9. Operation Condition -10°C~50°C, Humidity: 0~90% 10. Battery Li-polymer Battery (140mAh/3.7V) 1. H501 Bluetooth Headset * 1 pc 2. USB 3.5mm Earphone Charging Cable * 1 pc 3. 3.5mm Earbuds Headphone * 1 pc 4. 3.5mm Helmet Headphone * 1 pc 5. Earphone clip * 2 pcs 6. Velcro * 1 pc 7. User’s Manual * 1 pc 8. Quick Operation Guide * 1 pc Optional Accessory 1. 3.5mm Mono Earphone Specifications Product & Accessories 2 3 Earphone/ Charge Plug Volume Up Button Volume Down Button Power Switch LED Indicator Key Definitions Search Mode Red/Blue indicator lights Unlinked Blue blinks twice every 2 seconds Connected 1 Blue flash every 6 seconds Music Mode 2 Blue flashes every 6 seconds Phone 3 Blue flashes every 6 seconds Incoming call Blue flashes continuously Communication Mode Exchange3 Red/Blue flash only Hint for Communication ModeAirRed flash once Bone2 Red flashes Erase Pairing List: 2 slow Red flashes Signal Descriptions Music Equalizer Mode H501 is equipped various Music Modes for user preferences. Each mode has its own preset equalizer levels. Press the Power Switch twice totoggle the EQ Mode in sequence Normal, Bass, Treble, Rock, and Jazz. To Change Communication Mode Be Careful As mentioned in the beginning of this manual, there are two communication modes available for this H501. The default setting is Normal Mode , using the Air Mic. Press the Power Switch and Volume Up button at the same time for 2 seconds will trigger the mode switch from Normal Mode to Silent Mode. A low high beep sounds can be heard from the earphone together with Red/Blue flashes indicator lights 1 time to indicate the mode has changed successfully. After completion, the user can start to use the Bone Conduction Mic. Repeating the above operation will switch the mode back to Normal Mode . To know what mode is in operation, press Power Switch and Volume Up button at the same time once. There will be a voice/beep prompt from the earphone and Red flash indicator as: 4 1. Press Power Switch until the LED starts Blue/Red flashes quickly to enter H501’s pairing mode. 2. Search for H501 by using your phone/music device. For more information on how to search for a Bluetooth device, please refer to the user guide that comes with your phone/music device. 3. Select BonSayOn H501 from the list of recognized devices. Follow the onscreen prompts to confirm the selection. If a pairing code is requested, enter 0000. Smartphone users do not need to key in a pairing code. 4. Once Pairing is successful, the LED will turn to Blue flashes slowly. 5. Do not need to pair again for a paired device, just press it on for 2 seconds and it will pair with your device automatically. 6. Two Bluetooth devices can be connected to a BonSayOn H501 at the same time. (For example, your smartphone and your pad.) When you finish your pairing for the first device, turn off the Bluetooth function on the first device and continue the pairing procedure for the 2nd device. When the pairing is done on the 2nd device, switch the Bluetooth function on of the first device again. Mode/Prompt Voice Beep Red LED Flash Normal Mode Air Once Once Silent Mode Bone Twice Twice 1. For getting the enough volume to helmet headphone, the maximum volume is higher than common Bluetooth headset. Please be careful to adjust the volume when using a standard earphone. It may damage your ears If the volume is too loud. 2. The strength of Bluetooth communication signal depends on the connected device (cellphone or notebook). Place the connected device and the product on the same side of the body to get a good communication result. It is because the body may block the Bluetooth signal. As mentioned in the beginning of this manual, there are two communication modes available for this H501. The default setting is Normal Mode , using the Air Mic. Press the Power Switch and Volume Up button at the same time for 2 seconds will trigger the mode switch from Normal Mode to Silent Mode. A low high beep sounds can be heard from the earphone together with Red/Blue flashes indicator lights 1 time to indicate the mode has changed successfully. After completion, the user can start to use the Bone Conduction Mic. Repeating the above operation will switch the mode back to Normal Mode . To know what mode is in operation, press Power Switch and Volume …

Text truncated - open the document above for the full version.

Date:June. 26,2014 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Alex Chiu / Director of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Alex Chiu of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Confidentiality Request FCC ID : X5HH501 Product : Genie Duet Model : H501 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Antenna SPEC The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours,

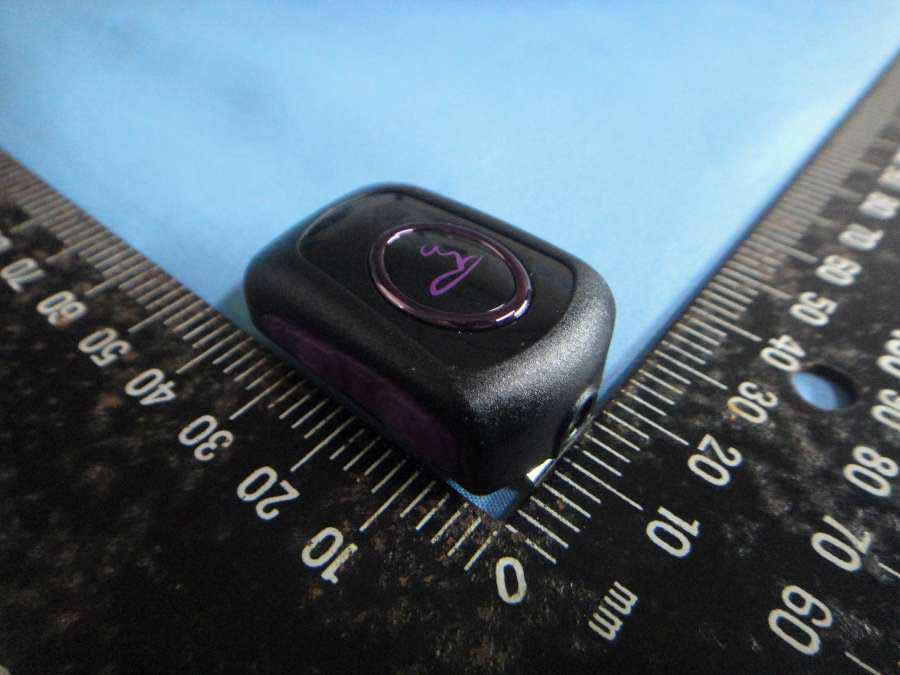

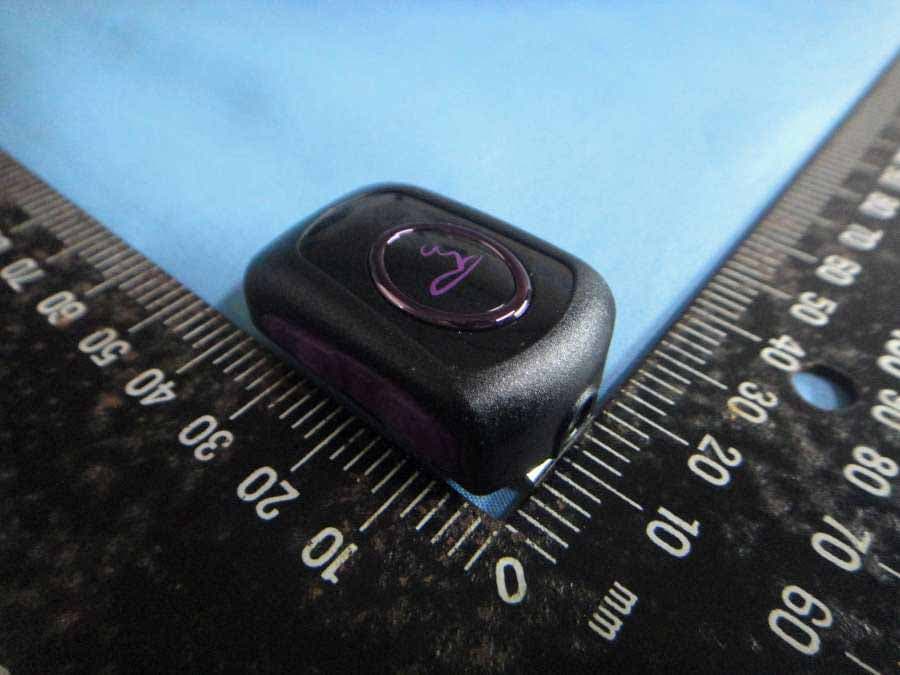

Compliance Certification Services Inc. Report No.T140701N01 Page A1 / 5 External Photo ( H501 ) Compliance Certification Services Inc. Report No.T140701N01 Page A2 / 5 External Photo ( H501 )

g Company : NeoVictory Technology Co., Ltd. Model: H501 Product : Genie Duet

Compliance Certification Services Inc. Report No.T140701N01 Page A3 / 5 Internal Photo ( H501 ) Compliance Certification Services Inc. Report No.T140701N01 Page A4 / 5 Antenna Compliance Certification Services Inc. Report No.T140701N01 Page A5 / 5

Compliance Certification Services Inc. Report No.: T140701N01-SAR Date of Issue: July 22, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The tune-up power is 3.10 dBm +/-1dB, therefore the highest tune-up power is 4.10 dBm (2.57 mW) @2402MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, ( 3mW / 5mm ) * ( 2.402GHz ^0.5 )= 0.9 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 0.9 < 3.0 Therefore, standalone SAR measurements are not required for both head and body.

Compliance Certification Services Inc. 1- e FCC ID: X5HH501 Report No.: T140701N01-RP1 Page 1 / 90 FCC 47 CFR PART 15 SUBPART C: 2012 AND ANSI C63.4: 2009 TEST REPORT For Genie Duet Model: H501 Brand Name: BonSayOn Issued for NeoVictory Technology Co., Ltd. 14F., No.1-85, Zhonghua Rd., Yongkang Dist., Tainan City 710, Taiwan (R.O.C.) Issued By Compliance Certification Services Inc. Tainan Laboratory No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 http://www.ccsrf.com E-Mail : [email protected] Issued Date: July 10, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. 1- e FCC ID: X5HH501 Report No.: T140701N01-RP1 Page 2 / 90 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 July 10, 2014 Initial Issue ALL Eva Lin 01 July 22, 2014 Update Data P5, 14-81 Eva Lin 02 July 24, 2014 Update Data P34,47,52-53,58-59,63 Eva Lin Compliance Certification Services Inc. 1- e FCC ID: X5HH501 Report No.: T140701N01-RP1 Page 3 / 90 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................4 2. EUT DESCRIPTION .....................................................................................................5 2.1 DESCRIPTION OF EUT & POWER ................................................................................... 5 3. DESCRIPTION OF TEST MODES ...............................................................................6 4. TEST METHODOLOGY ...............................................................................................7 5. FACILITIES AND ACCREDITATIONS.........................................................................8 5.1 FACILITIES ......................................................................................................................... 8 5.2 EQUIPMENT....................................................................................................................... 8 5.3 LABORATORY ACCREDITATIONS LISTINGS ................................................................. 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST......................................................................10 6.1 SETUP CONFIGURATION OF EUT................................................................................... 10 6.2 SUPPORT EQUIPMENT .................................................................................................... 11 7. APPLICABLE LIMITS AND TEST RESULTS..............................................................13 7.1 20dB BANDWIDTH FOR HOPPING................................................................................... 13 7.2 MAXIMUM PEAK OUTPUT POWER.................................................................................. 19 7.3 HOPPING CHANNEL SEPARATION ................................................................................. 25 7.4 NUMBER OF HOPPING FREQUENCY USED .................................................................. 30 7.5 DWELL TIME ON EACH CHANNEL................................................................................... 33 7.6 CONDUCTED SPURIOUS EMISSION............................................................................... 47 7.7 RADIATED EMISSIONS ..................................................................................................... 60 7.7.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ............................................... 60 7.7.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ............................................... 64 7.7.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz .............................................. 68 7.7.4 RESTRICTED BAND EDGES....................................................................................... 74 7.8 POWERLINE CONDUCTED EMISSIONS.......................................................................... 76 APPENDIX I PHOTOGRPHS OF TEST SETUP ..............................................................76 APPENDIX II PHOTOGRAPHS OF EUT..............................................................A1 Compliance Certification Services Inc. 1- e FCC ID: X5HH501 Report No.: T140701N01-RP1 Page 4 / 90 1. TEST REPORT CERTIFICATION Product: Genie Duet Model: H501 Brand Name: BonSayOn Applicant: NeoVictory Technology Co., Ltd. 14F., No.1-85, Zhonghua Rd., Yongkang Dist., Tainan City 710, Taiwan (R.O.C.) Manufacturer: NeoVictory Technology Co., Ltd. 14F., No.1-85, Zhonghua Rd., Yongkang Dist., Tainan City 710, Taiwan (R.O.C.) Tested: March 18, 2014 – July 04, 2014 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : AND ANSI C63.4 : 2009 PASS We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. 1- e FCC ID: X5HH501 Report No.: T140701N01-RP1 Page 5 / 90 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT Product Genie Duet Model Number H501 Brand Name BonSayOn Serial N…
