BonSayOn BonSayOn Product Manual Bluetooth Sunglasses S302 BonSayOn Introduction Completely different from the conventional microphone which picks up sound or voice through air, BonSayOn utilizes a newly developed nasal bone conduction microphone by picking up the sound through bone or solid material, instead of air. The speaker’s voice, which is received through vibrations of the nasal bone, is clear; reducing background noise , especially for wind sound. This is the most outstanding feature of our product. The clear conversation through the BonSayOn never fails in any noisy environment. Please enjoy BonSayOn; satisfied communication in style. BonSayOn Adjustable Nose Pad Button Indicator(Blue) /Charge(Red) Battery Earphone Jack / Charge Jack BonSayOn 1 Specification Microphone Type NeoV Nasal bone conduction microphone Version 3.0 Bluetooth Version Bluetooth V2.1,Class 2 Bluetooth Profile HSP, HFP, A2DP, AVRCP Operating Distance 10 meters (open space) Charge Time About 2 hours Music Play Time About 5 hours Talk Time About 6 hours Standby Time About 100 hours Size 172mmX155mmX45mm Weight 53g Operation Condition -30°C~50°C，humidity 0~90% Battery Li-polymer Battery (180mA/3.7V) Standard accessories 1 Hard case 1 Replacement yellow lens 1 USB cable 1 Standard earphone set 1 Product Manual Adjust the Nose Pads For getting good communication quality, please adjust nose pads to fit your nasal shape before using the product. BonSayOn BonSayOn 2 BonSayOn Instruction of Button Operation Pairing Press button until the blue and red LED flashes quickly to turn BonSayOn into pairing mode. Search for BonSayOn device using your phone/music device. For more information on how to search for Bluetooth device, please refer to the user guide that accompanies your phone/music device. Select BonSayOn S302 from the list of discovered devices from your phone/music device. Follow the onscreen prompts to confirm the selection. When prompted, enter the passkey “0000”(four zeros). When pairing is successful, the blue LED flashes slowly. Do not need to pair again for a paired device, just turn it on.(Blue LED flashes slowly) Dual Pairing BonSayOn supports dual pairing. It can be connected with two cell phones at the same time and answer a call in turn. ( Depends on the cell phone) Auto-answer BonSayOn supports auto-answer for incoming call. The incoming call will be answered automatically after 2 rings. Press button for 2 seconds to reject incoming call. BonSayOn 3 BonSayOn Button function illustration S t a t u s F u n c t i o n O p e r a t o n T u r n o n P r e s s f o r 3 s e c o n d s b u t t o n T u r n o n a n d s e a r c h d e v i c e P r e s s f o r 5 s e c o n d s b u t t o n R e j e c t a c a l l P r e s s b u t t o n f o r 2 s e c o n d s R e d i a l P r e s s b u t t o n f o r 2 s e c o n d s B a t t e r y p o w e r d i s p l a y P r e s s t w i c e b u t t o n f o r w a r d V o i c e d a i l i n g P r e s s t w i c e b u t t o n b a c k w a r d A n s w e r / E n d a c a l l P r e s s o n c e b u t t o n V o l u m e i n c r e a s e P r e s s o n c e b u t t o n b a c k w a r d V o l u m e d e c r e a s e P r e s s o n c e b u t t o n f o r w a r d S w i t c h a c a l l P r e s s b u t t o n f o r 2 s e c o n d s V o l u m e i n c r e a s e P r e s s o n c e b u t t o n b a c k w a r d V o l u m e d e c r e a s e P r e s s o n c e b u t t o n f o r w a r d L a s t T r a c e P r e s s t w i c e b u t t o n b a c k w a r d N e x t T r a c e P r e s s t w i c e b u t t o n f o r w a r d P a u s e / R e s u m e / A n s w e r a c a l l P r e s s o n c e b u t t o n O N T u r n o f f P r e s s f o r 5 s e c o n d s b u t t o n O F F S t a n d b y T a l k M u s i c Table of Operation Function (Press Forward) (Press) (Press Backward) BonSayOn 4 Indicator Earphone Jack / Charge Jack Battery BonSayOn Battery Charging Instruction The warning sound indicates 10% of battery power remaining. Battery power level: press button forward twice. Two seconds later a beep tone appears : 3 beeps mean high level, 2 beeps mean medium level,1 beep means low level ( 10-15% power remaining). Don't charge the battery if not necessary to avoid shortening battery lifetime. Charge as soon as possible when the warning sound appears on phone call or while playing music. Red LED lights during charging . When charging is complete, red LED will be turned off. Battery breakdown or lifetime ends：Red LED flashes. BonSayOn 5 BonSayOn 6 Q & A Q：Why is BonSayOn unable to link Bluetooth? A：First, make sure the Bluetooth existing in the device (mobile phone or computer) linked to BonSayOn, and activate its Bluetooth to search BonSayOn. The search time is not definite, so please be patient to wait until BonSayOn S302 is shown on the screen of the device. Finally, key in identification code “0000” to start using BonSayOn. Q：Why is the Bluetooth unable to switch on or disconnect soon after online? A：It would be power shortage, please charge immediately so as to maintain battery quality. A new battery must be charged first until the red light goes out. If the problem is still unsolved, please contact with authorized maintenance service station. Q: Why is Bluetooth auto-disconnected or unable to use after linking successfully? A: Check the Bluetooth “on line list” in the device (Pleas read your Bluetooth operation instructions.) linked to BonSayOn. Delete most of the names on the online list except BonSayOn to avoid linking other products. BonSayOn BonSayOn 7 BonSayOn BonSayOn 7 Q: Why cannot BonSayOn connect to the device with Bluetooth protocols? A: BonSayOn is equipped with Bluetooth chip made by the world first brand CSR company. It can connect to most of the Bluetooth devices but not all the Bluetooth devices due to the variety of Bluetooth protocols made by different companies. Q: Why cannot play the music again by using the buttons on BonSayOn after picking up a call or pause the music playing? A: The cell phone manufacturers usually implement so…

Text truncated - open the document above for the full version.

BonSayOn BonSayOn Product Manual Bluetooth Sunglasses S302 BonSayOn Introduction Completely different from the conventional microphone which picks up sound or voice through air, BonSayOn utilizes a newly developed nasal bone conduction microphone by picking up the sound through bone or solid material, instead of air. The speaker’s voice, which is received through vibrations of the nasal bone, is clear. Reducing the background noise , especially for the wind sound, is the most outstanding feature for our product. The clear conversation through the BonSayOn never fails in any noisy environment. Please enjoy BonSayOn; satisfied communication in style. BonSayOn Adjustable Nose Pad Button Indicator(Blue) /Charge(Red) Battery Earphone Jack / Charge Jack BonSayOn 1 Specification Microphone Type NeoV Nasal bone conduction microphone Version 3.0 Bluetooth Version Bluetooth V2.1,Class 2 Bluetooth Profile HSP / HFP / A2DP / AVRCP Operating Distance 10 meters (open space) Charge Time About 2 hours Music Play Time About 5 hours Talk Time About 6 hours Standby Time About 100 hours Size 172mmX155mmX45mm Weight 53g Operation Condition -30°C~50°C，humidity 0~90% Battery Li-polymer Battery (180mA/3.7V) Standard accessories Hard case Replacement yellow lens Glasses bag USB cable 2.5mm standard earphone set Product Manual Adjust the Nose Pads For getting good communication quality, please adjust nose pads to fit your nasal shape before using the product. BonSayOn BonSayOn 2 BonSayOn Instruction of Button Operation Pairing Press button until the blue and red LED flashes quickly to turn BonSayOn into pairing mode. Search for BonSayOn device using your phone/music device. For more information on how to search for Bluetooth device, please refer to the user guide that accompanies your phone/music device. Select BonSayOn S302 from the list of discovered devices from your phone/music device. Follow the onscreen prompts to confirm the selection. When prompted, enter the passkey “0000”(four zeros). When pairing is successful, the blue LED flashes slowly. Do not need to pair again for a paired device, just turn it on.(Blue LED flashes slowly) Dual Pairing BonSayOn supports dual pairing. It can be connected with two cell phones at the same time and answer a call in turn. ( Depends on the cell phone) Auto-answer BonSayOn supports auto-answer for incoming call. The incoming call will be answered automatically after 2 rings. Press button for 2 seconds to reject incoming call. BonSayOn 3 BonSayOn Button Function Illustration S t a t u s F u n c t i o n O p e r a t o n T u r n o n P r e s s f o r 3 s e c o n d s b u t t o n T u r n o n a n d s e a r c h d e v i c e P r e s s f o r 5 s e c o n d s b u t t o n R e j e c t a c a l l P r e s s b u t t o n f o r 2 s e c o n d s R e d i a l P r e s s b u t t o n f o r 2 s e c o n d s B a t t e r y p o w e r d i s p l a y P r e s s t w i c e b u t t o n f o r w a r d Vo i c e d i a l i n g P r e s s t w i c e b u t t o n b a c k w a r d A n s w e r / E n d a c a l l P r e s s o n c e b u t t o n Vo l u m e i n c r e a s e P r e s s o n c e b u t t o n b a c k w a r d Vo l u m e d e c r e a s e P r e s s o n c e b u t t o n f o r w a r d S w i t c h a c a l l P r e s s b u t t o n f o r 2 s e c o n d s Vo l u m e i n c r e a s e P r e s s o n c e b u t t o n b a c k w a r d Vo l u m e d e c r e a s e P r e s s o n c e b u t t o n f o r w a r d L a s t T r a c e P r e s s t w i c e b u t t o n b a c k w a r d N e x t T r a c e P r e s s t w i c e b u t t o n f o r w a r d P a u s e / R e s u m e / A n s w e r a c a l l P r e s s o n c e b u t t o n O N T u r n o f f P r e s s f o r 5 s e c o n d s b u t t o n O F F S t a n d b y T a l k M u s i c Table of Operation Function (Press Forward) (Press) (Press Backward) BonSayOn 4 Indicator Earphone Jack / Charge Jack Battery BonSayOn Battery Charging Instruction The warning sound indicates 10% of battery power remaining. Battery power level: press button forward twice. Two seconds later a beep tone appears : 3 beeps mean high level, 2 beeps mean medium level,1 beep means low level ( 10-15% power remaining). Don't charge the battery if not necessary to avoid shortening battery lifetime. Charge as soon as possible when the warning sound appears on phone call or while playing music. Red LED lights during charging . When charging is complete, red LED will be turned off. Battery breakdown or lifetime ends：Red LED flashes. BonSayOn 5 BonSayOn 6 Q & A Q：Why is BonSayOn unable to link Bluetooth? A：First, make sure the Bluetooth existing in the device (mobile phone or computer) linked to BonSayOn, and activate its Bluetooth to search BonSayOn. The search time is not definite, so please be patient to wait until BonSayOn S302 is shown on the screen of the device. Finally, key in identification code “0000” to start using BonSayOn. Q：Why is the Bluetooth unable to switch on or disconnect soon after online? A：It would be power shortage, please charge immediately so as to maintain battery quality. A new battery must be charged first until the red light goes out. If the problem is still unsolved, please contact with authorized maintenance service station. Q: Why is Bluetooth auto-disconnected or unable to use after linking successfully? A: Check the Bluetooth “on line list” in the device (Pleas read your Bluetooth operation instructions.) linked to BonSayOn. Delete most of the names on the online list except BonSayOn to avoid linking other products. BonSayOn BonSayOn 7 BonSayOn BonSayOn 7 Q: Why cannot BonSayOn connect to the device with Bluetooth protocols? A: BonSayOn is equipped with Bluetooth chip made by the world first brand CSR company. It can connect to most of the Bluetooth devices but not all the Bluetooth devices due to the variety of Bluetooth protocols made by different companies. Q: Why cannot play the music again by using the buttons on BonSayOn after picking up a call or pause the music playing? A: The cell phone manufacturers usually im…

Text truncated - open the document above for the full version.

O:\N\NEOVICTORY\3TC12\RT_125187\reply to fcc.doc (09/30/2009) Page 1 of 1 1) User manual includes "EMF exposure" compliance info in terms of milliGauss levels; please revise to clarify that is not applicable for FCC RF exposure compliance purposes. Reply: We just received the revised user's manual(1010608) from customer(find the attachment , which has been deleted the "EMF exposure" statement and added this comment: The transmitter output power is below the thresholds established by the FCC that would require a formal rf exposure evaluation. 2) Exhibits indicate bone conduction is used as audio/voice input, i.e. via nose bridge; if not in clearly in filing already, please clarify what is audio/voice output, i.e. is it via earphone jack only, or is there speaker, or bone conduction to the ear, or what. Reply: Audio output is via the earphone jack (page 2 of manual and device block diagram). The device is provided with a standard earphone set and inside helmet earphone (see page 3 of manual). There are no other audio output mechanisms /described in the filing, please advise if you need additional information uploaded to the filing to confirm this.

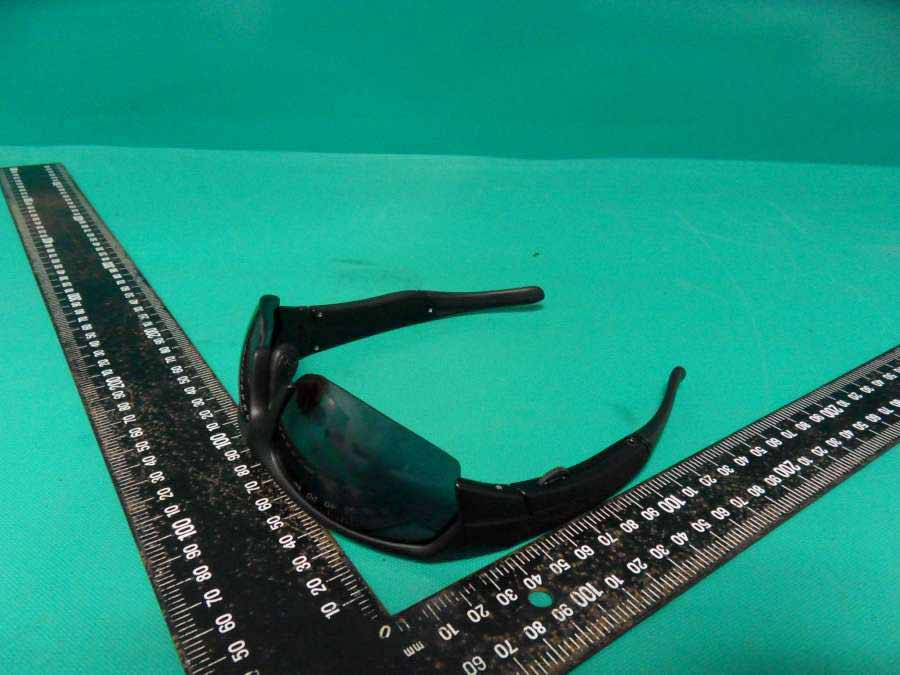

Compliance Certification Services Inc. Report No.T111024406 Page A1 / 8 External Photo (S302) Compliance Certification Services Inc. Report No.T111024406 Page A2 / 8 Compliance Certification Services Inc. Report No.T111024406 Page A3 / 8

g Company : NeoVictory Technology Co., Ltd. Model: S302 Product : BonSayOn S302 REMOTE CONTROL Model No: BonSayOn W301 FCC ID：X5HW301 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan Label Here

Compliance Certification Services Inc. Report No.T111024406 Page A4 / 8 Inernal Photo (S302) Compliance Certification Services Inc. Report No.T111024406 Page A5 / 8 Compliance Certification Services Inc. Report No.T111024406 Page A6 / 8 Compliance Certification Services Inc. Report No.T111024406 Page A7 / 8 Compliance Certification Services Inc. Report No.T111024406 Page A8 / 8

ACX Advanced Ceramic X Features ™Monolithic SMD with small, low-profile and light-weight type. ™Wide bandwidth Applications ™Bluetooth/Wireless LAN/Home RF ™ISM band 2.4GHz applications Specifications Part Number Frequency Range (MHz) Peak Gain Ȑ XZ-V ȑ Average Gain Ȑ XZ-V ȑ VSWRImpedance AT3216 -B2R7HAA_ 2400 ~ 2500 0.5 dBi typ. -0.5 dBi typ.2 max. 50: Q’ty/Reel (pcs) : 3,000pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : +5 ~ +35 o C, Humidity 45~75%RH Storage Period : 12 months max. Power Capacity : 2W max. Part Number cType AT : Antenna dDimensions ( L × W ) 3.2× 1.6 mm eMaterial Code B fFrequency Range 2R7=2700MHz gSpecification Code HAA hPackaging T: Tape & Reel B: Bulk iSoldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No.Terminal Name c Feeding Point d NC AT3216 Series Multilayer Chip Antenna c d AT 3216 - B 2R7 HAA‡‡ cd efhg i ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Mark LWTa Dimensions 3.2̈́0.2 1.6̈́0.2 1.3+ 0.1/-0.2 0.5̈́0.3 (a) Without Matching Circuits (b) With Matching Circuits *Line width should be designed to match 50: characteristic impedance, depending on PCB material and thickness. * 2.6 4.2 1.6 1.9 0.4 Unit : mm L W a T 3.3nH 2.7nH 1.2pF ACX Advanced Ceramic X Typical Electrical Characteristics (T=25 o C) ™Test Board ™Return Loss (a) Without Matching Circuits (b) With Matching Circuits Ground 13.5mm 6.5mm 39.5mm 6.5mm Matching Circuit No Ground 50: Feed Line Antenna 19mm 4mm ACX Advanced Ceramic X Radiation Patterns .... XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H XY cut @2.45GHz Vertical Horizontal XY-V/XY-H Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail:[email protected] http://www.acxc.com.tw 180 o 270 o 0 o 90 o X Z Y XY-cut scanning direction 180 o 270 o 0 o 90 o X Z Y XZ-cut scanning direction 180 o 270 o 0 o 90 o X Z Y YZ-cut scanning direction

Compliance Certification Services Inc. FCC ID: X5HS302 Report No.: T111024406-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1/ 49 FCC 47 CFR PART 15 SUBPART C ANSI C63.4: 2003 TEST REPORT For Bluetooth Sunglasses Model: S302 Data Applies To: SG04 Brand Name 1 (S302): BonSayOn Brand Name 2 (SG04): buhel Issued to NeoVictory Technology Co., Ltd. 2F, No.562, Dongning Rd., East Dist., Tainan City 70165, Taiwan(R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: December 28, 2011 Compliance Certification Services Inc. FCC ID: X5HS302 Report No.: T111024406-RP1 Page 2 / 49 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 December 28, 2011 Initial Issue ALL Sunny Chang Compliance Certification Services Inc. FCC ID: X5HS302 Report No.: T111024406-RP1 Page 3 / 49 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................6 3.1 EUT CONFIGURATION...................................................................................................... 6 3.2 EUT EXERCISE................................................................................................................ 6 3.3 GENERAL TEST PROCEDURES........................................................................................ 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS................................ 7 3.5 DESCRIPTION OF TEST MODES....................................................................................... 7 4. INSTRUMENT CALIBRATION .............................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION.................................................................... 8 4.2 MEASUREMENT EQUIPMENT USED.................................................................... 8 4.3 MEASUREMENT UNCERTAINTY........................................................................... 9 5. FACILITIES AND ACCREDITATIONS ...............................................................10 5.1 FACILITIES..................................................................................................................... 10 5.2 EQUIPMENT................................................................................................................... 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.................................................................. 10 5.1 TABLE OF ACCREDITATIONS AND LISTINGS.................................................................. 11 6. SETUP OF EQUIPMENT UNDER TEST ............................................................12 6.1 SETUP CONFIGURATION OF EUT................................................................................... 12 6.2 SUPPORT EQUIPMENT......................................................................................... 12 7. FCC PART 15.249 REQUIREMENTS ................................................................13 7.1 BAND EDGES MEASUREMENT........................................................................... 13 7.2 SPURIOUS EMISSION............................................................................................ 18 7.3 DUTY CYCLE CORRECTION FACTOR............................................................... 39 7.4 POWERLINE CONDUCTED EMISSIONS............................................................ 42 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP ..............................................45 APPENDIX 1 - PHOTOGRAPHS OF EUT....................................................A1 Compliance Certification Services Inc. FCC ID: X5HS302 Report No.: T111024406-RP1 Page 4 / 49 1. TEST RESULT CERTIFICATION Product: Bluetooth Sunglasses Model: S302 Data Applies To: SG04 Brand Name1: BonSayOn Brand Name2: buhel Applicant: NeoVictory Technology Co., Ltd. 2F, No.562, Dongning Rd., East Dist., Tainan City 70165, Taiwan(R.O.C.) Manufacturer: NeoVictory Technology Co., Ltd. 2F, No.562, Dongning Rd., East Dist., Tainan City 70165, Taiwan(R.O.C.) Tested: October 25, 2011 ~ December 27, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C ANSI C63.4 : 2003 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249.The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: X5HS302 Report No.: T111024406-RP1 Page 5 / 49 2. EUT DESCRIPTION Product Bluetooth Sunglasses Model Number S302 Data Applies To SG04 Brand Name 1 BonSayOn Brand Name 2 buhel Received Date October 24, 2011 Frequency Range 2402 ~ 2480 MHz Data Rate GFSK (1Mbps), π/4-DQPSK(2Mbps), 8-DPSK(3Mbps) Number of Channels 79 Channel Type of Modulation Frequency Hopping Spread Spectrum Power Supply Powered from Adapter , 5Vdc Antenna Type Chip Antenna Gain: 0.5 dBi Temperature Range -15°C ~ +60°C Remark: 1. Client consigns only one model sample to test (Model Number: S302). Therefore, t…
