X66WMI-02WIRELESS MODULE FOR IR COM-IR WHITEBOARD INTERFACE BOX

Wireless Module for IR COM User Manual Beijing Honghe Technology Group www.honghe-tech.com 2 目录 RF Wireless Connection ............................................................................................................ 3 Application Installation and Uninstallation ............................................................................... 3 Application Installation ..................................................................................................... 3 Application Uninstallation ................................................................................................. 4 Search and bind the Infrared WhiteBoard ................................................................................ 5 Calibrate .................................................................................................................................... 9 3 RF Wireless Connection Step 1: Fix the Infrared WhiteBoard and adjust the Calibrats of the projector and WhiteBoard. Step 2: Power the Infrared WhiteBoard wireless module with 5V power adaptor attached. Step 3: Plug the dongle(module) into the computer's USB port. Attention: The distance between the dongle(module) and Infrared WhiteBoard must be ≤ 15M and no obstacles shielding electromagnetic wave are allowed. Step 4: Connect the computer and projector( You can refer to Projector User Manual for more details). Application Installation and Uninstallation Application Installation Before software installation, exit the anti-virus or virus protection softwares in your computer. Insert the installation disc and double click and you can see the following: 4 Click, follow the instructions and complete the installation of the Infrared WhiteBoard software. For the most comprehensive functions, you can click, and complete the installation as the instructions show. Application Uninstallation If you are sure to delete the Infrared WhiteBoard software from your computer, click "Programs and Features" in "Control Panel". Choose " WhiteBoard " and click "Uninstall". 5 Search and bind the Infrared WhiteBoard If the Infrared WhiteBoard is with RF wireless connection, the computer should also search and bind the WhiteBoard after application installed. Details are as follow: Step 1: Make sure all devices necessary are connected and run the drive of Infrared WhiteBoard and you can find the taskbar notification area as follow: Step2: Click the drive icon in taskbar notification area and choose" Set wireless" as follow: 6 Step 3: Searching lasts for a while until the IEEE address appears and shows the current WhiteBoard found. If nothing appears, check if the hardware connection is correct or not. Step 4: Check the IEEE address of the WhiteBoard. The Infrared WhiteBoard wireless module has a label shows its IEEE address. Step 5: Click and choose the WhiteBoard you want to bind in drop-down menu. For example: The IEEE address of the WhiteBoard you want to bind is 00 02 01 10 05 18 01 66, then you just choose the item 00 02 01 10 05 18 01 66. IEEE address 7 represents the chosen or the current bound WhiteBoard( Bound WhiteBoard is at the top by default). Attention: Carefully check the IEEE address and must not bind other WhiteBoards or else they will be disconnected. If you can not find the correspondent IEEE address in the list, click" Search Again". If you can not find the correspondent IEEE address after many times"Search Again", check if the hardware connection is correct or not. Step 7: The user can define a name for the WhiteBoard in "Message Description" column and click "Bind", then message is successfully input seconds later. The user can only define" Message Description" when clicks the icon and only one item can be successfully defined each time, i.e. the current bound WhiteBoard. 8 Exit after successfully bound and wait for 15 seconds, the drive icon in the taskbar notification area will turn green from red as follow: 9 Calibrate To work normally, the handwriting of the projected image on the WhiteBoard should coincide with the actual one so as to calibrat accurately. The following situations need Calibration.  The Infrared WhiteBoard is used for the first time  The drive has been reinstalled  The calibrat of the Infrared WhiteBoard or projector is changed  The computer connected to the Infrared WhiteBoard is changed  The resolution ratio and refresh rate are changed Click"Calibrate" and the Infrared WhiteBoard will be in Calibration interface as follow: 10 Step 4: Vertically touch the centre of the flashing "十" with the WhiteBoard pen tip untill the flashing "十" move to the next Calibration point and thus one point is Calibrated. Follow the instructions in the Calibration interface and complete the Calibration of other points and thus the Infrared WhteBoard Calibration is finished. Notes:  Wrong Calibration may lead to WhiteBoard not working or abnormal working and this requires reCalibration.  Pressing "ESC" during Calibration can cancel the current Calibration operation. There are minor differences between the Calibration interface of different version software. The Calibration, however, is very much the same. For products with shortcut keys, there are shortcut-key Calibration and you just need to follow the instructions. 11 Trouble-shooting ※For the products with wireless connection, refer to this table. Solutions to Problems Problems Appearances Presumable Causes Solutions Infrared WhiteBoard is not working No drive icon on the right bottom of computer Drive is not started up Start up the drive Drive is not installed Install the drive Drive icon is red The WhiteBoard is not connected with the computer Refer to " Set wireless "and search and bind the WhiteBoard. The self-checking of WhiteBoard is not successful and can not be connected Check if there is any other objects pressing on the surface of the WhiteBoard. Remove if any. Drive malfunction Uninstall the drive and reinstall it Didn’t turn the switch to COM based on th…

Text truncated - open the document above for the full version.

AC Power Block Diagram TX Part Crystal (32MHz) DC convert circuit Adapter Interface/port Drawing Board RF IC 2415MHz

深圳市冠测技术服务有限公司 Shenzhen Certification Technology Service Co., Ltd TEL: 86-755-86375552 FAX: 86-755-26736857 Test Lab Attestation Letter This attestation is to confirm that the below listed device was tested at our Test Facilities located at: Test Lab Name: Shenzhen Certification Technology Service Co., Ltd Test Lab Address: 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'an District, shenzhen 518126, China Test Lab Registration Number: 197647 Date of Test: 2012-5-28 Test Report Number: BST12050417Y-1E-3 Applicant Name: Hitevision Digital Media Technology Co., Ltd. FCC ID: X66WMI-02 Name of Engineer(s) Performing Test: Eric Li Company Name of Engineer(s) Performing Test: Shenzhen Certification Technology Service Co., Ltd TEST LABORATORY: Signature of Authorized Representative of the Test Laboratory: Full Contact Name: Mark Zhu Position/Title: General Manager

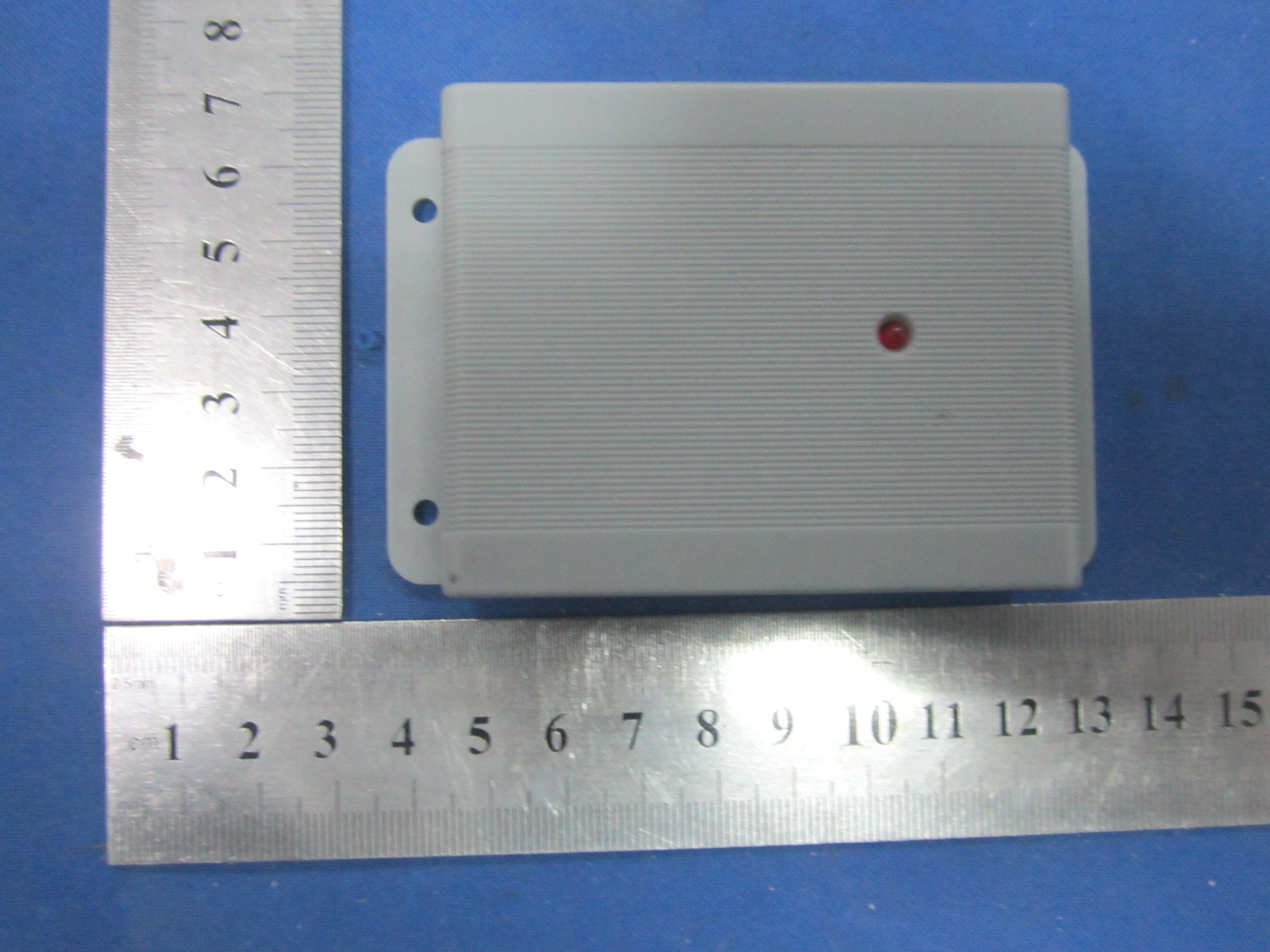

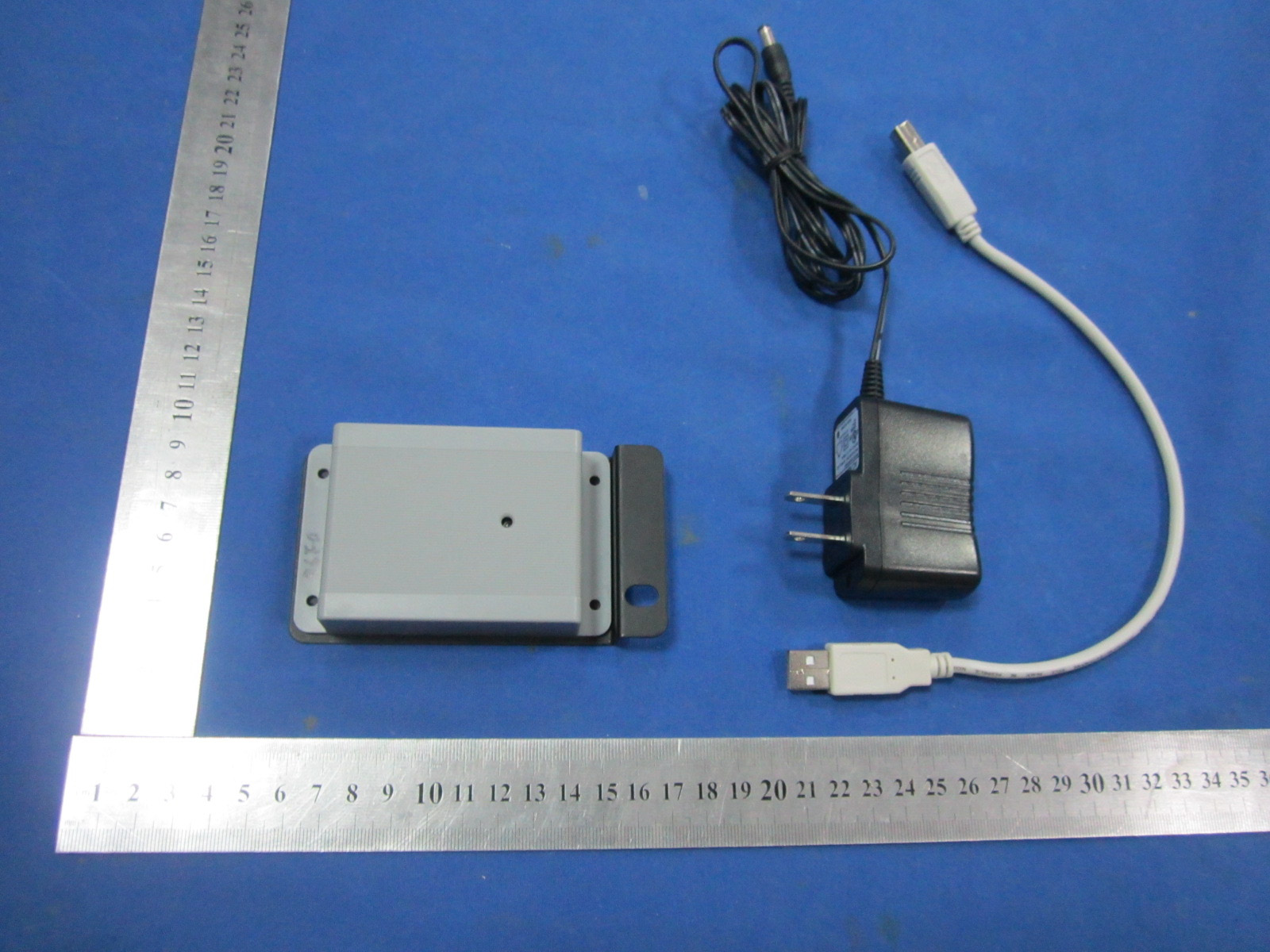

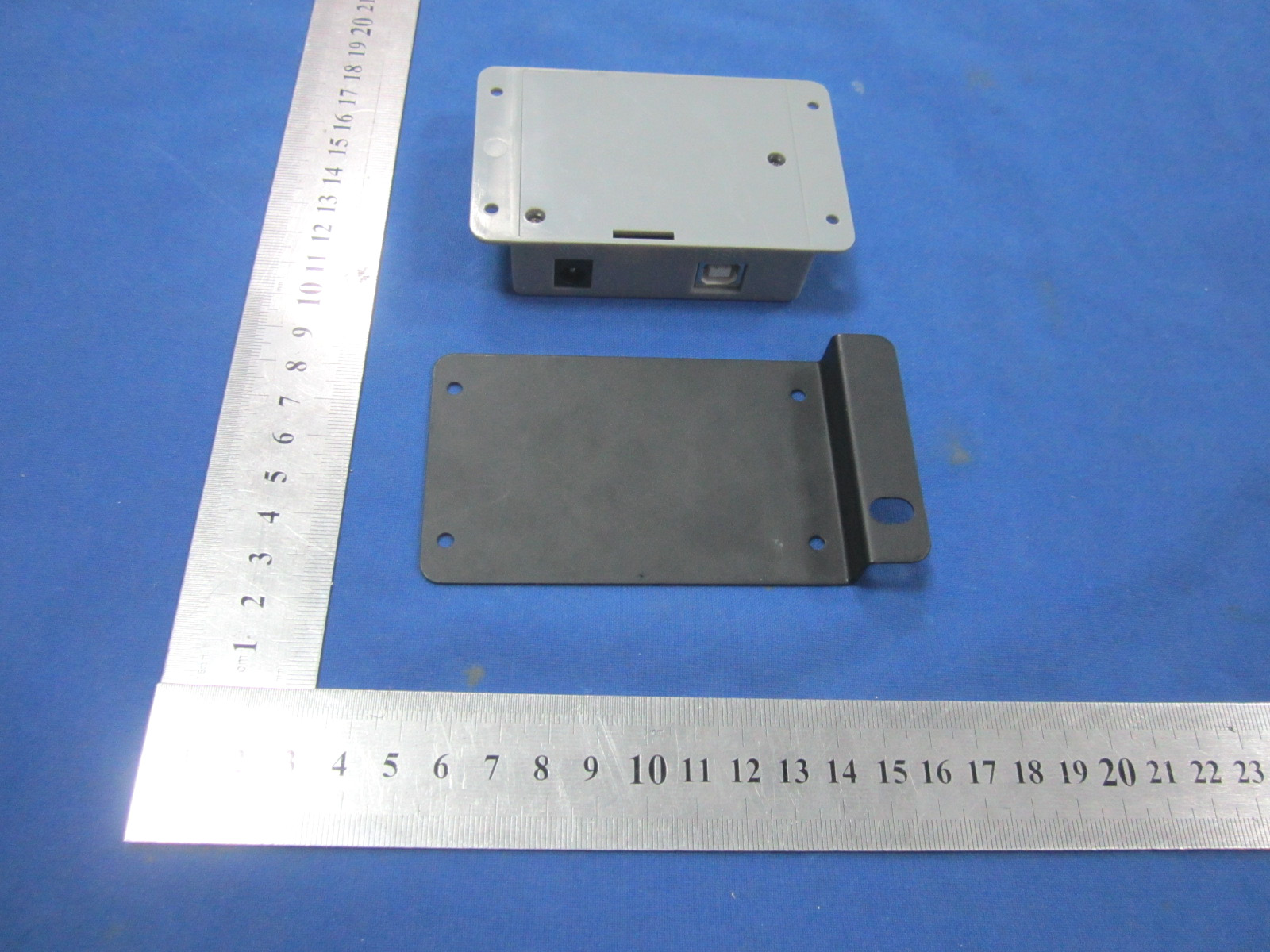

External Photo

FCC Certification Label FCC ID: X66WMI-02 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Label Location on EUT EUT View/ FCC ID Label Location

Internal Photo Antenna

Operational Description The circuit is made up of receiver and transmitter. The EUT is transmiter (remote control). First of all, the system power on, then press button of controller. The EUT will transmit RF signals to achieve information transmission function. The 2.4 G MOD is a module that can encode the data from the Wireless drawing boardand sends these data via RF at 2.4GHz band. The 2.4 G MOD is equipped with a complete modulator that provides 1RF channel . The transmitter of the EUT is supplied by adapter. The antenna is integral antenna without connector and is permanent. The receiver connect to USB Port of PC,and install driver .Then PC indentify it ,the transmiter can connect to PC through receiver,and can achieve transmit information of drawing board to PC function.

包志成 批准：审核： 制图时间：制图： 图纸版本：图纸名称： 项目编号：项目名： ANTENNA 16 P0_3 17 P0_2 18 P0_1 19 P0_0 37 P1_7 38 P1_6 5 P1_5 6 P1_4 7 P1_3 8 P1_2 9 P1_1 11 P1_0 34 P2_2 35 P2_1 36 P2_0 4 DVDD_USB 3 USB_P 2 USB_M 1 DGND_USB 39 AVDD_DREG 10 DVDD 41 GND 30 RBIAS 40 DCOUPL 23 XOSC32M_Q1 22 XOSC32M_Q1 33 P2_3 32 P2_4 26 RF_N 25 RF_P 31 AVDD_GUARD 29 AVDD4 28 AVDD1 27 AVDD2 24 AVDD3 21 AVDD5/AVDD_SOC 20 RESET_N 12 P0_7 13 P0_6 14 P0_5 15 P0_4 U1 CC2530_TX_REDES C391C_1U_0402_X5R_K_6P3C101C_100N_0402_X5R_K_10C211C_100N_0402_X5R_K_10C241C_100N_0402_X5R_K_10C274C_100N_0402_X5R_K_10C311C_100N_0402_X5R_K_10C272C_220P_0402_NPO_J_50 L1 L_BEAD_102_0402 C1C_100N_0402_X5R_K_10 C251 C_18P_0402_NPO_J_50 C261 C_18P_0402_NPO_J_50 L251 L_0402 L252 L_2NO_0402_S C252 C_1PO_0402_NPO_C_50 L261 L_2NO_0402_S C262 C_1PO_0402_NPO_C_50 C253 C_0402 C254 C_2P2_0402_NPO_C_50 C2 C_0402 X1 X_32.000/10/15/30/16 C231 C_27P_0402_NPO_J_50 C3 C_27P_0402_NPO_J_50 X2 X_32.768/20/50/40/12 C4 C_15P_0402_NPO_J_50 C5 C_15P_0402_NPO_J_50 C401 C_1U_0402_X5R_K_6P3 R301 R_50K_0402 19 17 15 13 11 9 7 5 3 12 4 6 8 10 12 14 16 18 20 P1 SMD_SOCKET_2X0 19 17 15 13 11 9 7 5 3 12 4 6 8 10 12 14 16 18 20 P2 SMD_SOCKET_2X0 2 1 P4 PINROW_1X2 0 FM1 FIDUCIAL_MARK 0 FM2 FIDUCIAL_MARK 0 FM3 FIDUCIAL_MARK 0 FM4 FIDUCIAL_MARK 0 FM5 FIDUCIAL_MARK 0 FM6 FIDUCIAL_MARK P2.1 P2.2 P1.0 P1.1 P1.3 P1.4 P1.5 P1.6 P1.7 P0.0 P0.1 P0.2 P0.3 P0.4 P0.5 P0.6 P0.7 RESET VDD P1.3 P1.0 P2.1 P2.2 P1.4 P1.5 P1.6 P1.7 P0.4 P0.1 P0.2 P0.3 P0.0 P1.1 P0.6 P0.7 VDD P2.0 P2.0 P1.2 P1.2 RESET P0.5 P0.4 P0.5

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Hitevision Digital Media Technology Co., Ltd. No. 1 Building, Hong Hui Industrial Park, Liu Xian No. 2 Road, No. 68 Zone, Bao An District, Shenzhen, China FCC ID: X66WMI-02 June 8, 2012 This Report Concerns: Original Report Equipment Type: Wireless Module for IR COM–IR Whiteboard Interface Box Test Engineer: Eric Li Report No.: BST12050417Y-1E-3 Receive EUT Date/Test Date: May 24, 2012/ May 25-30, 2012 Reviewed By: Christina Deng Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road, Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-26747751～3 Fax: 0755-26747751～3 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. Hitevision Digital Media Technology Co., Ltd. FCC ID: X66WMI-02 BST FCC ID REPORT: BST12050417Y-1E-3 Page 2/20 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. FCC ID LABEL...........................................................................................................................6 4. TEST RESULTS SUMMARY ...................................................................................................7 Modifications ................................................................................................................................7 5. TEST EQUIPMENT USED .......................................................................................................8 6. ANTENNA REQUIREMENT ...................................................................................................9 6.1. Standard Applicable..........................................................................................................9 6.2. Antenna Connected Construction .....................................................................................9 6.3. Result ................................................................................................................................9 7. CONDUCTED POWER LINE TEST .....................................................................................10 7.1. Test Equipment ...............................................................................................................10 7.2. Test Procedure ................................................................................................................10 7.3. Test Setup........................................................................................................................10 7.4. Conducted Power line Emission Limits..........................................................................10 7.5. Conducted Power Line Test Result.................................................................................11 8. RADIATED EMISSION TEST ...............................................................................................13 8.1. Test Equipment ...............................................................................................................13 8.2. Test Procedure ................................................................................................................13 8.3. Radiated Test Setup ........................................................................................................13 8.4. Radiated Emission Limit.................................................................................................15 8.5. Radiated Emission Test Result .......................................................................................16 9. BAND EDGE .............................................................................................................................17 9.1. Test Equipment ...............................................................................................................17 9.2. Test Procedure ................................................................................................................17 9.3. Band Edge FCC 15.249(d) Limit ....................................................................................17 9.4. Band Edge Test Result ....................................................................................................18 Hitevision Digital Media Technology Co., Ltd. FCC ID: X66WMI-02 BST FCC ID REPORT: BST12050417Y-1E-3 Page 3/20 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BST approves recommends or endorses the manufacture, supplier or use of such produc…

Text truncated - open the document above for the full version.

Radiated emissions test Conducted emissions test
