X6I-9010Wireless Weather Station

1 User manual KW5012 Features: z Weather Forecast with Sunny, Slightly Cloudy, Rainy and Cloud Burst. z 433MHz RF receiving frequency. z Maximum three selectable RF channels with wireless Thermo Sensor. (One Wireless Thermo Sensor Included) z Transmission range: 30 meters ( open area ). z Measuring range: Indoor temperature : 0°C ~ +50°C Humidity : 30% ~ 90% Outdoor temperature : -20°C ~ +50°C z Temperature Alert function. z Max/Min Memory for Humidity, Indoor and Outdoor Temperature. z Moon Phase Display. z High Tide, Medium Tide and Low Tide Indication. z Low-battery indicator for Outdoor Remote Sensor. z Perpetual Calendar Up to Year 2069. z 12/24Hour time display selectable. z Day of week in 8 Languages Selectable. z Wall Mount or Table Stand Selectable. z Battery: Main Unit : DC 1.5 V AA size x 2 pcs Thermo Sensor Unit : DC 1.5 V AAA size x 2 pcs z Size : 160 x 92 x 26 mm 2 Main Unit Appearance Part A- LCD A1: Weather Forecast A2: Outdoor Temperature A3: Indoor Temperature. A4: Indoor Humidity A5: Moon Phase & Tide Indicator. A6: Time Display Part B- Buttons B1: “SNOOZE/LIGHT” button B2: “MODE” button. B3: ”-(°C/°F)”button B4: “+(12/24)”& “HOLD Pa” button B5: “MAX/MIN” button B6: “CHANNEL “ button B7: “ALARM ON/OFF” button B8: “ALERT” button B9: “RESET” button Part C- Structure C1: Wall Mount Hole C2: Battery Compartment C3:. Stand 3 KW9010 Thermo Sensor Unit Appearance. D1: Transmission Indication LED D2: Outdoor Temperature D3: Wall Mount Hole D4: Channel Select Switch D5: Battery Compartment D6: °C/°F” button D7: “TX” button D8: Stand Manual Time Setting: z Hold “ MODE” button for 3 seconds to enter Clock/Calendar setting Mode . z Press “+” or “-” buttons to adjust the setting and press “MODE” button to confirm each setting. z The setting sequence is shown as follow: Hour, Minutes, Second, Year, Month/Day sequence, Month, Day, Time Zone, Day-of-week language. z 8 languages can be selected in Day-of-week, they are: German, English, Russian, Denmark, Dutch, Italian Spanish and French,. The languages and their selected abbreviations for each day of the week are shown in the following table. Language Sunday Monday Tuesday Wednesday Thursday Friday Saturday German, GE SO MO DI MI DO FR SA English, EN SU MO TU WE TH FR SA Russian, RU BC NH BT CP HT NT CY 4 Denmark, DA SO MA TI ON TO FR LO Dutch, NE ZO MA DI WO DO VR ZA Italian, IT DO LU MA ME GI VE SA Spanish, ES DO LU MA MI JU VI SA French, FR DI LU MA ME JE VE SA z The zone is used for the countries where can receive the DCF signal but the time zone is different from the German time. z When the country time is faster than the German time for 1 hr, the zone should be set to 1. Then the clock will automatically set 1 hour faster from the signal time received. z The Time Setting Mode will automatically exit in 5 seconds without any adjustment. Snooze Alarm Clock Function: z Press “ MODE” button to select to view : Time Date/Month /Weekday Alarm Time (“ “ Shown on the LCD) z When viewing the Alarm Time, hold “MODE” button for 3 seconds to enter Alarm Time setting. Press “ +” or “-” buttons to adjust the alarm time. z Press “ALARM ON/OFF” button to switch alarm on or off. If it is on, “ ” shown on the LCD. z Snooze alarm snoozes for 5 minutes, then it alarms again. z Press any button to stop the snooze alarm. Weather Forecast Function: z After Batteries inserted, or holding “Hold Pa” button for 3 seconds, weather icon Flash (LCD-A1). Enter the current weather pressing “ + “ or “- “ buttons. Press “MODE” button to confirm the setting. The weather forecast may not be accurate if the current weather entered is not correct. z Totally 5 different weather in the weather forecast. “ ” means Sunny . “ ” means Slightly Cloudy. 5 “ ” means Cloudy. “ ” means Rainy “” means Cloudburst. z If there is any inconsistency of weather forecast between Local Weather Station and this unit, the Local Weather Station's forecast should prevail. z The trend pointer displayed on the LCD indicates the trend of the Barometric pressure. “ ” indicates the barometric pressure trend is increasing. “ ” indicates the barometric pressure trend is steady. “ ” indicates the barometric pressure trend is decreasing. Maximum/Minimum Indoor /Outdoor Temperature and Humidity Recording Function: z Press “MAX/MIN” button to show the maximum recorded Indoor /Outdoor Temperature and Humidity. “” is shown on the LCD z Press “MAX/MIN” button again to show the minimum recorded Indoor/Outdoor Temperature and Humidity. “” is shown on the LCD. z Hold “MAX/MIN” button for 3 seconds to clear the recorded maximum and minimum reading. 6 Thermometer: z Press “-(°C / °F)” button to select Indoor/Outdoor Temperature in Celsius mode/ Fahrenheit mode. Outdoor Thermo Sensor Unit Registration Procedure: z The weather station automatically starts receiving transmission from Outdoor Thermo Sensor for outdoor temperature after new batteries are inserted. z The sensor will automatically transmit temperature to the weather station after batteries inserted. Batteries compartment of thermo sensor is locating behind the back cover, unscrews to open. z For having more than one external transmitter (Maximum3), select the Channel, CH1, CH2 or CH3 to ensure each sensor is transmitting difference channel before inserting batteries. The channel select switch is at the back of the thermo sensor. z Press “ TX “ button on the thermo sensor unit to transmit temperature to the weather station manually. The weather station gives a “beep” sound if it received the temperature. Display outdoor temperature : z Press “ CHANNEL” button to view the 3 Channels’ temperature. The sequence is shown as follow: Press Press Press “CHANNEL” button “CHANNEL” button “CHANNEL” button Display the three channels alternatively z Hold “ CHANNEL” button for 3 seconds to cancel unused channel manually. It will automatically register a new channel again if a new channel is received. If there is no temperature displayed in existing channel ( “ -…

Text truncated - open the document above for the full version.

Authorization Letter CARRIN ELECTRONICS COMPANY LIMITED 2010-03-01 To whom it may concern: We the undersigned, hereby authorize CTI employees Christy Chen to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CTI employees Christy Chen on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from CARRIN ELECTRONICS COMPANY LIMITED Sincerely, Signature: 2010-03-01

Ersteller: U Rodemeier Revision: 04 Erstelldatum: 03.08.01 Datum: 11.05.07 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: 2010-03-01 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: X6I-9010 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: •Block Diagram • Operation Description • Circuit Diagram • . The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Applicant’s Company: Centre Testing International Corporation address : Bldg. C, Hongwei Industrial Park, Block 70, Bao’an District, Shenzhen, Guangdong, China Signature : Job Title and Dept. :EMC Engineer, EMC Lab

FCC ID LABEL FORMAT: LABEL LOCATION

                         

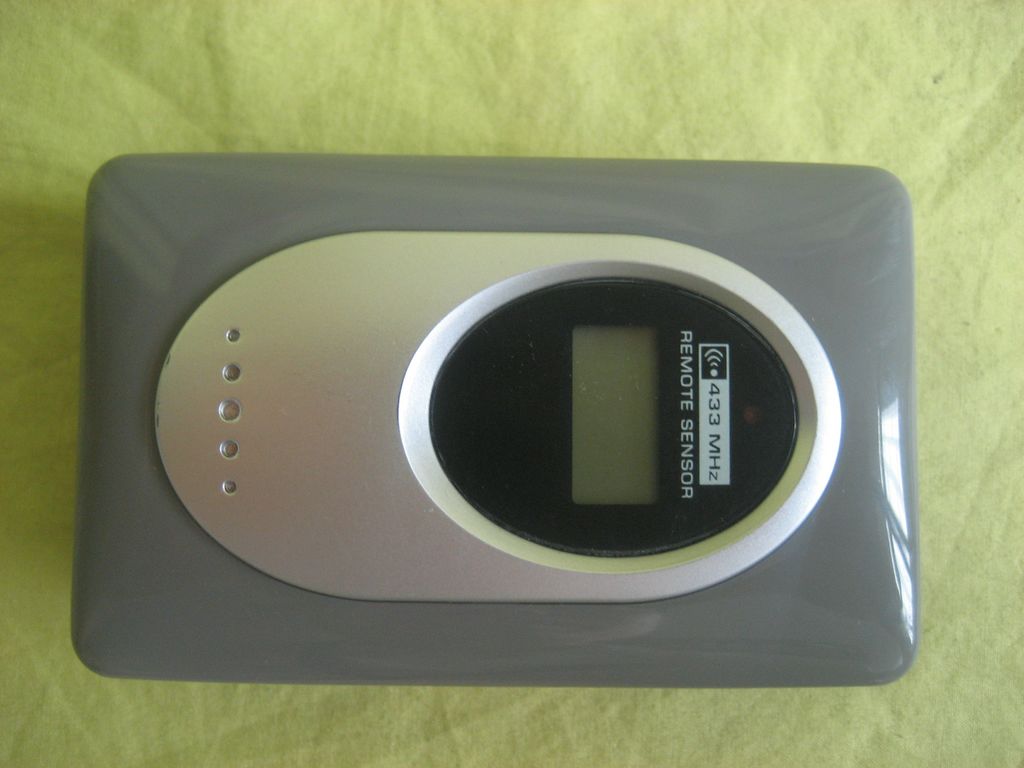

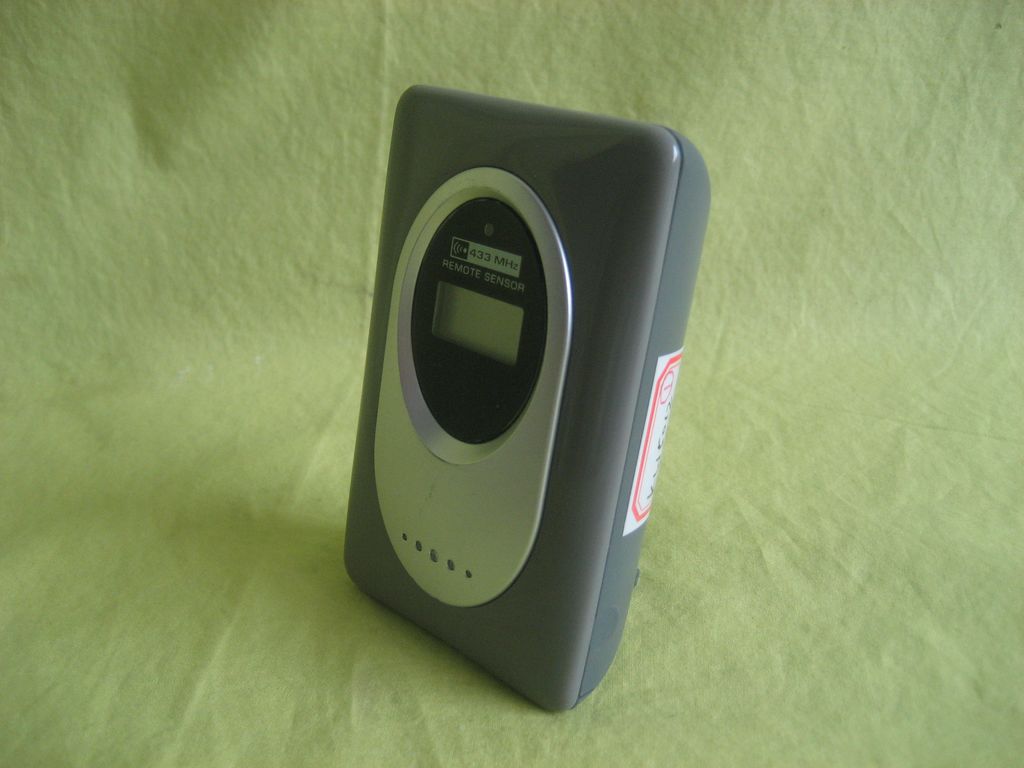

Report No.: SZEE100129262119-1 Page 1 of 25 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION Product Name :WEATHER STATION Model Name :KW9010, 47003TX FCC ID :X6I-9010 Trade Name :N/A Report Number :SZEE100129262119-1 Date :Mar. 03, 2010 Prepared for: CARRIN ELECTRONICS COMPANY LIMITED UNIT 2105-2106, TOWER A, REGENT CENTRE, 63 WO YI HOP ROAD, KWAI CHUNG, HONG KONG TEL: (852) 2418 2262 FAX: (852) 2489 0703 Prepared by: CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3362 FAX: +86-755-3368 3385 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results FCC Part15C: 2009 Pass Report No.: SZEE100129262119-1 Page 2 of 25 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION......................................................................................3 2. TEST SUMMARY .....................................................................................................4 3. MEASUREMENT UNCERTAINTY ...........................................................................4 4. PRODUCT INFORMATION......................................................................................4 5. TEST EQUIPMENT ..................................................................................................4 6. 20DB BANDWIDTH MEASUREMENT ....................................................................5 6.1 LIMITS..................................................................................................................5 6.2 BLOCK DIAGRAM OF TEST SETUP...................................................................5 6.3 TEST PROCEDURE..............................................................................................5 6.4 TEST RESULT......................................................................................................5 7. TIME MEASUREMENT ............................................................................................6 7.1 LIMITS..................................................................................................................6 7.2 BLOCK DIAGRAM OF TEST SETUP...................................................................6 7.3 TEST PROCEDURE..............................................................................................6 7.4 TEST RESULT......................................................................................................6 8. RADIATED EMISSIONS MEASUREMENT .............................................................8 8.1 LIMITS..................................................................................................................8 8.2 BLOCK DIAGRAM OF TEST SETUP...................................................................8 8.3 TEST PROCEDURE..............................................................................................9 8.4 TEST RESULT....................................................................................................10 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ......................................................19 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT .................................................21 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT ..................................................23 N/A means not applicable Report No.: SZEE100129262119-1 Page 3 of 25 1. GENERAL INFORMATION Applicant & Address: CARRIN ELECTRONICS COMPANY LIMITED UNIT 2105-2106, TOWER A, REGENT CENTRE, 63 WO YI HOP ROAD, KWAI CHUNG, HONG KONG Manufacturer & Address: CARRIN ELECTRONICS COMPANY LIMITED UNIT 2105-2106, TOWER A, REGENT CENTRE, 63 WO YI HOP ROAD, KWAI CHUNG, HONG KONG Equipment Under Test: WEATHER STATION Model Name: KW9010, 47003TX FCC ID: X6I-9010 Operated Frequency: 433.92MHz Trade Name: N/A Serial Number: N/A Technical Data: DC 3V Model Deviation: The two models above are identical in accordance with client’s requirements. The test model is KW9010, and all the test results are applicable to 47003TX. Date of test: Jan. 05, 2010 to Mar. 03, 2010 Condition of Test Sample: Normal The above equipment was tested by Centre Testing International Corporation for compliance with the requirements set forth in the FCC Part15.231 and 15.209 and the measurement procedure according to FCC requirements and ANSI C63.4. The test results of this report relate only to the tested sample identified in this report . Prepared by : Christy Chen Reviewed by : Louisa Lu Approved by : Jim Zhang Mana ger Date : Mar. 03, 2010 Report No.: SZEE100129262119-1 Page 4 of 25 2. TEST SUMMARY Clause Test Item Rule Result 6 20dB bandwidth FCC Part15.231(c) PASS 7 Time measurement FCC Part15.231 PASS 8 Radiated Emission FCC Part15.231(e) & FCC Part15.209(a) PASS Note: The power supply of EUT is by battery. 3. MEASUREMENT UNCERTAINTY This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement items Uncertainty Radiated Emissions 4.6 dB 4. PRODUCT INFORMATION Items Description Rating DC 3V Equipments Class Security/Remote Control Transmitter Modulation ASK Frequency Range 433.92MHz Channel Number 1 Antenna Integral PCB Antenna 5. TEST EQUIPMENT Equipment Manufacturer Model Number Serial Number Due Date Receiver R&S ESCI 100435 08/25/2010 Spectrum Analyzer Agilent E4443A MY45300910 01/19/2011 Biconilog Antenna ETS-LINGREN 3142C 920250 01/19/2011 Horn Antenna ETS-LINDGREN 3117 00057407 06/07/2010 Loop Antenna ETS-LINDGREN 6502 00071730 09/22/2010 Multi device Controller ETS-LINGREN 2090 00057230 01/19/2011 3M Chamber & Accessories ETS-LINDGREN FACT-3 N/A 01/19/2011 Report No.: SZEE100129262119-1 Page 5 of 25 6. 20DB BANDWIDTH MEASUREMENT 6.1 LIMITS The bandwidth of the emission shall be no wider than 0.25% of the center frequency for devices operating…

Text truncated - open the document above for the full version.
