X6I-9025WEATHER STATION

CARRIN ELECTRONICS COMPANY LIMITED

Click to zoom

Application Details

Equipment Class: CRR - Superregenerative Receiver
Date of Grant: Dec 15, 2011
Application Purpose: Original Equipment
Date of Application: Dec 15, 2011
Equipment Note: WEATHER STATION
Frequency Range: 433.96000000 - 433.96000000
Company: CARRIN ELECTRONICS COMPANY LIMITED
Country: Hong Kong

Documents & Files

Select a file to view

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

KW9025CC (no RCC) Features: z 433MHz RF receiving frequency. z Maximum three selectable RF channels with wireless Thermo Sensor. z Transmission range: 30 meters ( open area ). z Measuring range: Indoor temperature: 0°C ~ +50°C Outdoor temperature: -20°C ~ +50°C z Outdoor temperature alert function. z Max/Min Memory for Indoor and Outdoor Temperature. z Low-battery indicator for Outdoor Remote Sensor. z Perpetual Calendar Up to Year 2069. z 12/24 Hour time display selectable. z Day of week in 7 Languages Selectable. z Table Stand or Wall Mount Selectable. z Battery: Main Unit : DC 1.5 V AA size x 2 pcs Thermo Sensor Unit : DC 1.5 V AAA size x 2 pcs Main Unit Appearance Part A- LCD A1: Thermo Sensor Channel A2: Outdoor Temperature and Trend A3: Real Time Display A4: Indoor Temperature Part B- Buttons B1:”ALERT” button B2: “MAX/MIN” button B3: “CHANNEL” button B4: “AL ON/OFF” button. B5: “(12/24)“ button B6: “(C/F)“ button B7: “MODE/SET” button B8:”RESET” button Part C- Structure C1: Wall Mounting Hole. C2: Battery Compartment. C3: Stand Thermo Sensor Unit Appearance. D1: Transmission Indication LED D2: Outdoor Temperature D3: Wall Mount Hole D4: Channel Selecting Switch D5: Battery Compartment D6: “°C/°F” button D7: “TX” button D8: Stand Set Up: y Insert batteries. y Use a pin to press the RESET (B8) button Outdoor Thermo Sensor Unit Registration Procedure: y The clock automatically starts receiving the RF 433MHz signal to register new Thermo Sensor Unit after new batteries inserted, “- - . -“ flashes on the outdoor temperature. After registered all channels or press “CHANNEL” button (B3), scanning stops. All buttons will not function when scanning for Thermo sensor’s signal unless they are well received or stopped manually. z For having more than one external transmitter (Maximum3), select the Channel, CH1, CH2 or CH3 to ensure each thermo sensor is transmitting in difference channel before inserting batteries of the Thermo Sensor Unit. The channel select switch (D4) is at the back of the thermo sensor. z Insert Batteries on the Thermo Sensor Unit. It will automatically transmit temperature to the main unit. Batteries compartment (D5) of thermo sensor is locating behind the back cover, unscrews to open. z Press “ TX “ button (D7) on the thermo sensor unit to transmit temperature to the main unit to ensure the main unit can receive the channel. The main unit gives a “beep” sound if it received the temperature. Display outdoor temperature: z Press “CHANNEL” button (B3) to view the 3 Channels’ temperature. The sequence is shown as follow: Press Press Press “CHANNEL” button “CHANNEL” button “CHANNEL” button Display the three channels alternatively z Hold “CHANNEL” button (B3) for 3 seconds to cancel unused channel manually. It will automatically register a new channel again if a new channel is received. If there is no temperature displayed in existing channel ( “ - - . –“is displayed on the LCD), hold “CHANNEL” button (B3) for 3 seconds to cancel that channel and receive the channel again ( “Beep” sound can be heard.) Then, press “TX “button (D7) on the thermo sensor unit to transmit signal to the main unit manually z The trend pointer displayed on the LCD indicates the trend of the outdoor temperature. “ ” indicates the outdoor temperature is increasing. “ ” indicates the outdoor temperature is steady. “ ” indicates the outdoor temperature is decreasing. z Press “°C /°F” button (D6), on the Thermo Sensor unit, to select Thermo Sensor displayed in Celsius mode or Fahrenheit mode. Time Setting: z Hold “MODE/SET” button (B7) for 3 seconds to enter Clock/Calendar setting Mode. z Press “” (B5) or “” (B6) buttons to adjust the setting and press “MODE/SET” button (B7) to confirm each setting. z The setting sequence is shown as follow: Hour, Minutes, Second, Year, Month/Day sequence, Month, Day, Time Zone, Day-of-week language. z 7 languages can be selected in Day-of-week, they are: German, English, Denmark, Dutch, French, Italian and Spanish. The languages and their selected abbreviations for each day of the week are shown in the following table. Language Sunday Monday Tuesday Wednesday Thursday Friday Saturday German, GE SO MO DI MI DO FR SA English, EN SU MO TU WE TH FR SA Denmark, DA SO MA TI ON TO FR LO Dutch, NE ZO MA DI WO DO VR ZA French, FR DI LU MA ME JE VE SA Italian, IT DO LU MA ME GI VE SA Spanish, ES DO LU MA MI JU VI SA x The Time Setting Mode will automatically exit in 5 seconds without any adjustment. Alarm Clock Function: z Press “ MODE/SET” button (B7) to select to view : Time Date/Month /Weekday Alarm Time (“ “Shown on the LCD) z When viewing the Alarm Time, hold “MODE/SET” button (B7) for 3 seconds to enter Alarm Time setting. Press “” (B5) or “” (B6) buttons to adjust the alarm time. z Press “AL ON/OFF” button (B4) to switch alarm on or off. If it is on, “ ” shown on the LCD. z Press any button to stop the alarm. Thermometer: z Press “°C / °F” button (B6) to select Temperature in Celsius mode/ Fahrenheit mode. Maximum/Minimum temperature recording function: z Press “MAX/MIN” button (B2) to show the maximum or minimum of indoor and outdoor temperature. “ ” is shown on the LCD if maximum temperature is shown. “ ” is shown on the LCD if minimum temperature is shown. y Hold “MAX/MIN” button (B2) for 3 seconds to clear the recorded maximum and minimum reading. Temperature Alert function: z Hold “ALERT” button (B1) for 3 seconds to enter Temperature Alert setting, Temperature’s digits flash. z Press “” (B5) or “” (B6) button to select Indoor or Outdoor CH1, CH2 and CH3 temperature alert. Press “ALERT “button (B1) to confirm the setting. z Press “” (B5) or “” (B6) button to set the upper “” and lower “” limit of the temperature. Press “ALERT “button (B1) to confirm the setting. z Press “ALERT” button (B1) to set the Temperature Alert function on or off (“” appears on the LCD if this function is on). Low batteries indicator: z Low battery icon ““appear at particular channel indicating …

Text truncated - open the document above for the full version.

Cover Letter(s)

CARRIN ELECTRONICS COMPANY LIMITED DATE : 2011-12-15 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint __ Global United Technology Service Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong __ (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditionsfor certification, as specified by Nemko Canada Inc, still resides with CARRIN ELECTRONICS COMPANY LIMITED UNIT 2105-2106, TOWER A, REGENT CENTRE, 63 WO YI HOP RD, KWAI CHUNG, HONGKONG _( applicant name and address). Dated this Day of 12/15/2011 20 Agency agreement expiration date: Usually Give 8 - 12 Months By: Sam Li Signature Printed Title: Manager On behalf of : CARRIN ELECTRONICS COMPANY LIMITED Telephone: (852) 2418 2262

Cover Letter(s)

CARRIN ELECTRONICS COMPANY LIMITED DATE 2011-12-15 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: X6I-9025 Product Name: WEATHER STATION Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions’ rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block Diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Day of 12/15/2011 20 Agency agreement expiration date: Usually Give 8 - 12 Months By: Sam Li Signature Printed Title: Manager On behalf of : CARRIN ELECTRONICS COMPANY LIMITED Telephone: (852) 2418 2262

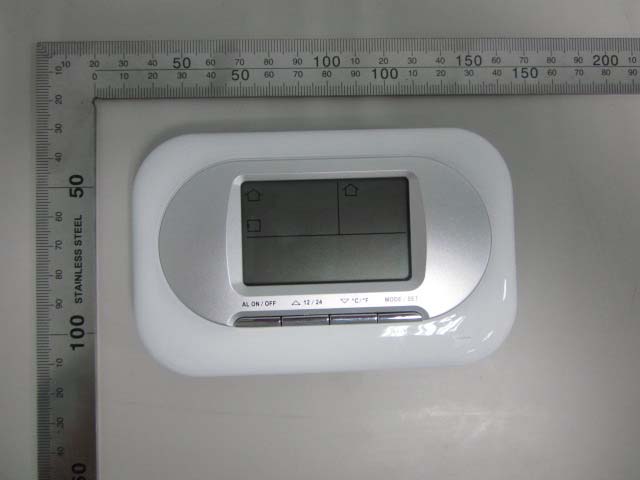

External Photos

ID Label/Location Info

Label 1 Size: 30mm*10mm Label 2 Size: 20mm*10mm

ID Label/Location Info

Label location 1 Label location 2

Internal Photos

Report No: GTSE11110092801 Global United Technology Services Co., Ltd. Project No.: GTSE111100928RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 17 of 20 Report No: GTSE11110092801 Global United Technology Services Co., Ltd. Project No.: GTSE111100928RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 18 of 20 Report No: GTSE11110092801 Global United Technology Services Co., Ltd. Project No.: GTSE111100928RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 19 of 20 Report No: GTSE11110092801 Global United Technology Services Co., Ltd. Project No.: GTSE111100928RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 20 of 20 ------End ------

Test Report

Global United Technology Services Co., Ltd. Report No: GTSE11110092801 Authorized Signature: Stephen Guo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page TEST REPORT Applicant: CARRIN ELECTRONICS COMPANY LIMITED Address of Applicant: UNIT 2105~2106, TOWER A, REGENT CENTRE, 63 WO YI HOP RD, KWAI CHUNG, HONG KONG Equipment Under Test (EUT) Product Name: WEATHER STATION Model No.: KW9025, 47020RX FCC ID: X6I-9025 Applicable standards: FCC CFR Title 47 Part 15 Subpart B:2010 Date of sample receipt: Nov. 18, 2011 Date of Test: Nov. 18-22, 2011 Date of report issued: Nov. 23, 2011 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: GTSE11110092801 Global United Technology Services Co., Ltd. Project No.: GTSE111100928RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 18 2 Version Version No. Date Description 00 Nov. 23, 2011 Original Prepared by: Date: Nov. 23, 2011 Project Engineer Reviewed by: Date: Nov. 23, 2011 Reviewer Report No: GTSE11110092801 Global United Technology Services Co., Ltd. Project No.: GTSE111100928RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 18 3 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 VERSION..................................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 TEST SUMMARY....................................................................................................................................................4 5 GENERAL INFORMATION...................................................................................................................................5 5.1 CLIENT INFORMATION....................................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF E.U.T................................................................................................................... 5 5.3 TEST MODE AND VOLTAGE...............................................................................................................................5 5.4 TEST FACILITY................................................................................................................................................... 5 5.5 TEST LOCATION................................................................................................................................................ 6 5.6 DESCRIPTION OF SUPPORT UNITS................................................................................................................... 6 5.7 DEVIATION FROM STANDARDS.......................................................................................................................... 6 5.8 ABNORMALITIES FROM STANDARD CONDITIONS.............................................................................................. 6 5.9 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 6 6 TEST INSTRUMENTS LIST..................................................................................................................................7 7 TEST RESULTS AND MEASUREMENT DATA................................................................................................8 7.1 RADIATED EMISSION......................................................................................................................................... 8 8 TEST SETUP PHOTO..........................................................................................................................................14 9 EUT CONSTRUCTIONAL DETAILS.................................................................................................................15 Report No: GTSE11110092801 Global United Technology Services Co., Ltd. Project No.: GTSE111100928RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 18 4 Test Summary Test Item Section in CFR 47 Result Conducted Emission Part15.107 N/A Radiat…

Text truncated - open the document above for the full version.
