X6I-9078Wireless Weather Station Receiver

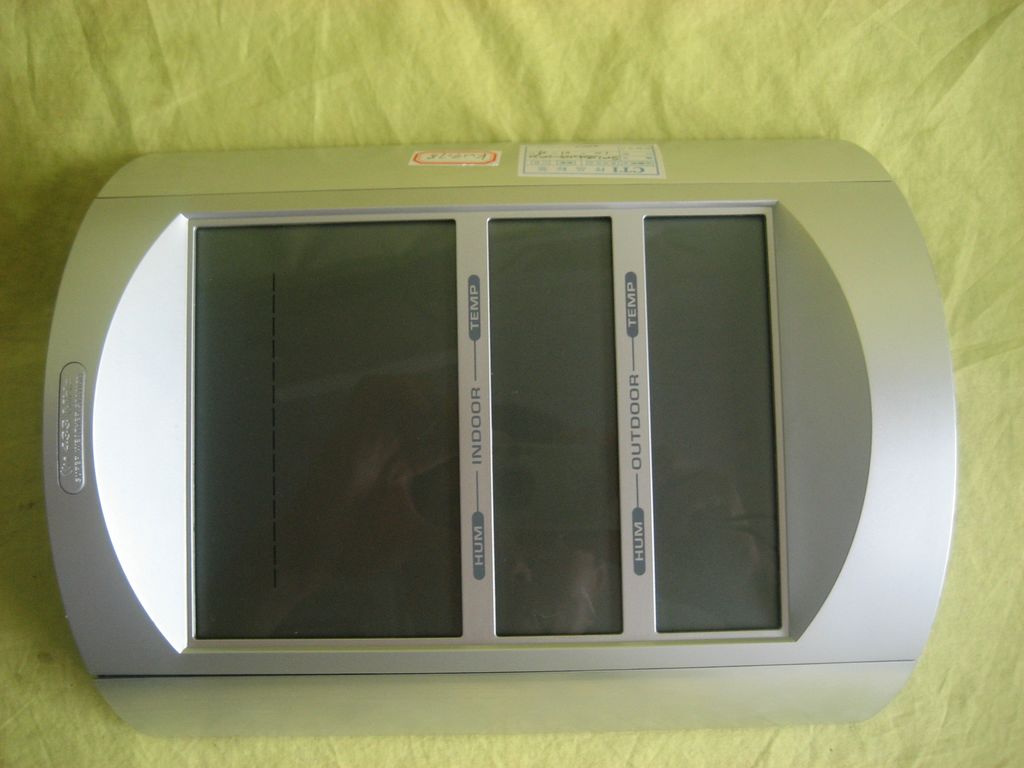

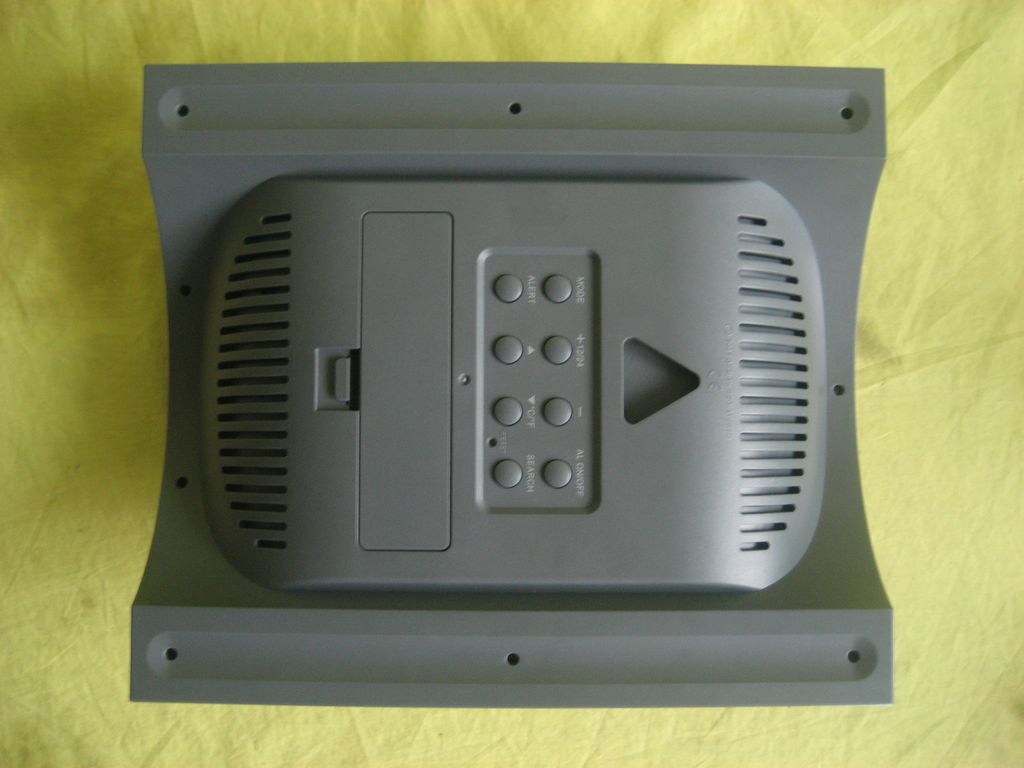

1 User manual KW9078 Feature: z Indoor and Outdoor Temperature z Indoor and Outdoor Humidity z Time Display with Date & Day of week z 433MHz RF receiving frequency. z RF channel with wireless Thermo Sensor. z Transmission range: 30 meters ( open area ). z Measuring range: Indoor temperature : 0°C ~ +50°C Outdoor temperature : -20°C ~ +50°C z Perpetual Calendar Up to Year 2069. z 12/24Hour time display selectable. z Battery: Main Unit : C size battery x 2 pcs Thermo Sensor Unit : DC 1.5 V AAA size x 2 pcs z Size : Main Unit : 260 x 210 x 80 mm Thermo Sensor Unit : 65X20X85mm 2 Main Unit Appearance LCD display A1 : Date, Day of Week A2: Time A3: Indoor Humidity A4: Indoor Temperature A5: Outdoor Humidity A6: Outdoor Temperature Button B1 : “Mode” button B2: “+12/24” button B3: “-“ button B4: “Al ON/OFF” button B5: “ALERT” button B6: “▲ “ button B7:” “ °C/°F”button B8: “search” button B9: “reset “ button Structure C1: Wall Mount Hold C2 : Battery compartment 3 KW9010-2TH Thermo Sensor Unit Appearance. D1: Transmission Indication LED D2: Outdoor Temperature & Humidity D3: Wall Mount Hole D4: Battery Compartment D5: °C/°F” button D6: “TX” button D7: Stand Set Up: y Insert batteries. y Use a pin to press the RESET (B9) button Manual Time Setting: z Hold “ MODE / SET” button (B1) for 3 seconds to enter Clock/Calendar setting Mode . z Press“+ ” (B2) or “- ” (B3) buttons to adjust the setting and press “MODE / SET” (B1) button to confirm each setting. z The setting sequence is shown as follow: Hour, Minutes, Second, Year, Month/Day sequence, Month, Day, Time Zone, Day-of-week language. z 7 languages can be selected in Day-of-week, they are: German, English, Denmark, Dutch, Italian Spanish and French,. The languages and their selected abbreviations for each day of the week are shown in the following table. Language Sunday Monday Tuesday Wednesday Thursday Friday Saturday German, GE SO MO DI MI DO FR SA English, EN SU MO TU WE TH FR SA Denmark, DA SO MA TI ON TO FR LO Dutch, NE ZO MA DI WO DO VR ZA Italian, IT DO LU MA ME GI VE SA 4 Spanish, ES DO LU MA MI JU VI SA French, FR DI LU MA ME JE VE SA z The zone is used for the countries where can receive the DCF signal but the time zone is different from the German time. z When the country time is faster than the German time for 1 hr, the zone should be set to 1. Then the clock will automatically set 1 hour faster from the signal time received. 12/24 Hour Display mode: y Press “+(12/24)” button (B4) to select 12 or 24 hours mode. Snooze Alarm Clock Function: z Press “MODE” button (B1) to select to view : Time Alarm Time (“AL“ Shown on the LCD) z When viewing the Alarm Time, hold “MODE” button (B1) for 3 seconds to enter Alarm Time setting. Press “ +” (B4) or “-” (B7) buttons to adjust the alarm time. z Press “ALARM ON/OFF” button (B4) to switch alarm on or off. If it is on, “” shown on the LCD. z When Alarming, press button B1, B2, B3 or B4 to stop alarming. Outdoor Thermo Sensor Unit Registration Procedure: z The main unit automatically starts receiving transmission from Outdoor Thermo Sensor for outdoor temperature after are Weather condition setting . z The thermo sensor will automatically transmit temperature to the main unit after batteries inserted. Batteries compartment (D4) of thermo sensor is locating behind the back cover, unscrews to open. z Press “ TX “ button (D6) on the thermo sensor unit to transmit temperature & humidity to the main unit manually. The main unit gives a “beep” sound if it received the temperature. Thermometer: z Press “-(°C / °F)” button (B7) to select Indoor/Outdoor Temperature in Celsius mode/ Fahrenheit mode. z If the temperature is out of the measurable range, LL.L ( beyond the minimum temperature) or HH.H (beyond the maximum temperature) will be shown on the LCD. Temperature Alert function: z Hold “ ALERT” button for 3 seconds to enter Temperature Alert setting, Temperature’s digits flash. Press “ ” button to select the ALERT for outdoor temperature or Indoor Temperature. Then press “ALERT” button to confirm the selection. z Press ““▲ ” or “” button to set the upper ”” and lower “” limit of the temperature. Press “ALERT “button to confirm the setting. z Press “ ALERT” button to set the Temperature Alert function on or off ( “” appears on the 5 LCD if this function is on). Low batteries indicator: y Low battery icon “ “appear on the display of Main unit. It means the outdoor sensor in low battery status. The batteries should be replaced. Note: z Use a pin to press the reset button (B9) if the Unit does not work properly. z Avoid placing the clock near interference sources/metal frames such as computer or TV sets. z The outdoor remote sensor should be taken back to Indoor when the temperature is -20C or under. (Please also check the operation temperature of battery that is suitable for low temperature) z The clock loses its time information when the battery is removed. z All Setting Mode will automatically exit in 15 seconds without any adjustment. FCC Compliance Statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC rule: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Authorization Letter CARRIN ELECTRONICS COMPANY LIMITED 2010-03-01 To whom it may concern: We the undersigned, hereby authorize CTI employees Christy Chen to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CTI employees Christy Chen on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from CARRIN ELECTRONICS COMPANY LIMITED Sincerely, Signature: 2010-03-01

Ersteller: U. RodemeierRevision: 04 Erstelldatum: 03.0 8.01 Datum: 11.05.07 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: 2010-03-01 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: X6I-9078 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential reatment of information a ccompanying this application as outlined below: • Block Diagram • Operation Description • Circuit Diagram • (XXXXX to be replaced by Schematics, Block Diagram, etc.) The abov e materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Applicant’s Company: Centre Testing International Corporation address : Bldg. C, Hongwei Industrial Park, Block 70, Bao’an District, Shenzhen, Guangdong, China Signature : Job Title and Dept. :EMC Engineer, EMC Lab

FCC ID LABEL FORMAT: CARRIN ELECTRONICS COMPANY LIMITED Model Name: KW9078 FCC ID: X6I-9078 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL

Report No.: SZEE100128262125-2 Page 1 of 15 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT UNINTENTIONAL RADIATOR CERTIFICATION Product Name : WEATHER STATION Model Name : KW9078, 47007RX FCC ID : X6I-9078 Trade Name : N/A Report Number : SZEE100128262125-2 Date : Feb. 10, 2010 Prepared for: CARRIN ELECTRONICS COMPANY LIMITED UNIT 2105-2106, TOWER A, REGENT CENTRE, 63 WO YI HOP ROAD, KWAI CHUNG, HONG KONG TEL: (852) 2418 2262 FAX: (852) 2489 0703 Prepared by: CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3362 FAX: +86-755-3368 3385 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results FCC Part15B: 2009 Pass Report No.: SZEE100128262125-2 Page 2 of 15 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION......................................................................................3 2. TEST SUMMARY .....................................................................................................4 3. MEASUREMENT UNCERTAINTY ...........................................................................4 4. TEST EQUIPMENT ..................................................................................................4 5. RADIATED EMISSIONS MEASUREMENT .............................................................5 5.1 LIMITS..................................................................................................................5 5.2 BLOCK DIAGRAM OF TEST SETUP...................................................................5 5.3 TEST PROCEDURE..............................................................................................5 5.4 TEST RESULT......................................................................................................5 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ........................................................8 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT ...................................................9 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT ..................................................11 N/A means not applicable Report No.: SZEE100128262125-2 Page 3 of 15 1. GENERAL INFORMATION Applicant & Address: CARRIN ELECTRONICS COMPANY LIMITED UNIT 2105-2106, TOWER A, REGENT CENTRE, 63 WO YI HOP ROAD, KWAI CHUNG, HONG KONG Manufacturer & Address: CARRIN ELECTRONICS COMPANY LIMITED UNIT 2105-2106, TOWER A, REGENT CENTRE, 63 WO YI HOP ROAD, KWAI CHUNG, HONG KONG Equipment Under Test: WEATHER STATION Model Name: KW9078, 47007RX FCC ID: X6I-9078 RX Frequency: 433.92MHz Trade Name: N/A Serial Number: N/A Technical Data: DC 3V Model Deviation: The two models above are identical in accordance with client’s requirements. The test model is KW9078, and all the test results are applicable to 47007RX. Date of test: Jan. 05 to Feb. 10, 2010 Condition of Test Sample: Normal The above equipment was tested by Centre Testing International Corporation for compliance with the requirements set forth in the FCC Part15B and the measurement procedure according to FCC requirements and ANSI C63.4. The test results of this report relate only to the tested sample identified in this report . Prepared by : Christy Chen Reviewed by : Louisa Lu Approved by : Jim Zhang Mana ger Date : Feb. 10, 2010 Report No.: SZEE100128262125-2 Page 4 of 15 2. TEST SUMMARY Clause Test Item Rule Result 5 Radiated Emission FCC Part15.109 PASS Note: The power supply of EUT is by battery. 3. MEASUREMENT UNCERTAINTY This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement items Uncertainty Radiated Emissions 4.6 dB 4. TEST EQUIPMENT Equipment Manufacturer Model Number Serial Number Due Date Spectrum Analyzer Agilent E4443A MY45300910 01/19/2011 Biconilog Antenna ETS-LINGREN 3142C 920250 01/19/2011 Multi device Controller ETS-LINGREN 2090 00057230 01/19/2011 3M Chamber & Accessories ETS-LINDGREN FACT-3 N/A 01/19/2011 Report No.: SZEE100128262125-2 Page 5 of 15 5. RADIATED EMISSIONS MEASUREMENT 5.1 LIMITS FCC Part15.109: Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meter) 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 5.2 BLOCK DIAGRAM OF TEST SETUP For radiated emissions from 30 - 1000MHz 5.3 TEST PROCEDURE a. The EUT was placed on the top of a turntable 0.8 meters above the ground in the chamber, 3 meters away from the antenna (wideband antenna), which was mounted on the top of a variable-height antenna tower. The maximum values of the field strength are recorded by adjusting the polarizations of the test antenna and rotating the turntable. b. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the turn table was turned from 0 degrees to 360 degrees to find the maximum reading. c. The test frequency analyzer system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. 5.4 TEST RESULT PASS Report No.: SZEE100128262125-2 Page 6 of 15 Figure 1: Test figure of radiated emission, 30MHz ~ 1GHz, 3m distance Report No.: SZEE100128262125-2 Page 7 of 15 Report No.: SZEE100128262125-2 Page 8 of 15 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP TEST SETUP OF RADIATED EMISSION (30MHz -1GHz) Report No.: SZEE100128262125-2 Page 9 of 15 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT View of external EUT-1 View of external EUT-2 Report No.: SZEE100128262125-2 Page 10 of 15 View of external EUT-3 Report No.: SZEE100128262125-2 Page 11 of 15 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT View of internal EUT-1 View of internal EUT-2 Report No.: SZEE100128262125-2 Page 12 of 15 View of internal EUT-3 View of internal EUT-4 Report No.: SZEE100128262125-2 Page 13 of 15 View of internal EUT-5 View of internal EUT-6 Report No.: SZEE100128262125-2 Page 14 of 15 Vie…
