Anaren AIR Module, Users Manual 1/18, 8/18/2010:3:57 PM Users Manual Models A1101R09A and A1101R09C Contents 1. Overview .......................................................................................................................................................... 2 1.1. A1101R09A ................................................................................................................................................. 2 1.2. A1101R09C ................................................................................................................................................. 2 1.3. Features ....................................................................................................................................................... 2 1.4. Theory of Operation .................................................................................................................................. 3 1.4.1. Typical Flow ..................................................................................................................................... 6 1.5. Applications ............................................................................................................................................... 7 2. Product Approvals .......................................................................................................................................... 8 2.1. USA (Federal Communications Commission, FCC, ) ..................................................................... 8 2.1.1. FCC Labeling Requirements ............................................................................................................. 8 2.1.2. End User Manual ............................................................................................................................. 9 2.1.3. RF Exposure ...................................................................................................................................... 9 2.2. Canada (Industry Canada, IC) ............................................................................................................... 10 2.3. Potential Interference Sources ................................................................................................................ 11 2.3.1. Time critical data ............................................................................................................................ 11 2.4. Approved Usage ...................................................................................................................................... 11 2.4.1. USA & Canada ............................................................................................................................... 12 3. Electrical Characteristics .............................................................................................................................. 13 3.1. Absolute Maximum Ratings .................................................................................................................. 13 3.2. Operating Conditions ............................................................................................................................. 13 3.3. Pin Out ...................................................................................................................................................... 13 3.4. Recommended Layout ............................................................................................................................ 16 3.5. Power Supply Considerations ............................................................................................................... 18 Anaren AIR Module, Users Manual 2/18, 8/18/2010:3:57 PM 1. Overview The A1101R09A and A1101R09C are surface mount modules with integrated crystal, internal voltage regulator, matching circuitry and filtering. The A1101R09A has an integral antenna, whereas the A1101R09C takes an external antenna through a U.FL connector (see Table 1). The modules operate in the US 902 – 928MHz ISM band. These radio modules are ideal for achieving low power wireless connectivity without having to deal with extensive RF, antenna design and regulatory compliance, allowing quick time to market. The modules are 100% tested to provide consistent performance. The A1101R09A and A1101R09C have received regulatory approvals for modular devices in the United States (FCC) and Canada under Industry Canada (IC) Radio Standards Specification (RSS) RSS-210 and RSS-Gen. The modular approval allows the end user to place either an A1101R09A or an A1101R09C with an approved antenna inside a finished product without having to perform costly regulatory testing for an intentional radiator. Section 2 has information on the requirements for the end user/integrator must fulfill to use the modules without intentional radiator regulatory testing. The A1101R09A and A1101R09C are based on the CC1101 transceiver IC from Texas Instruments. All control lines of the transceiver are provided at module level for full control of its operation. Please see the CC1101 data sheet (www.ti.com) for how to control the modules. Please see section section 8 for the recommended register settings for optimal performance and regulatory compliance. The A1101R09A measure 9x16x2.5mm and A1101R09Cmodules both measure 9x12x2.5mm and are footprint compatible with each other. 1.1. A1101R09A The A1101R09A has an integral antenna, providing high efficiency and near omni-directional radiation pattern. This is offers the lowest system cost when the application allows collocation of radio and antenna. 1.2. A1101R09C The A1101R09C has a compact antenna connector to allow locating the antenna away from the module due to form/function or to exit a metal enclosure, see figure 6 – figure 9 for more information on antenna location and enclosure considerations. 1.3. Features Features: • Frequency range: 902-968 MHz • Ultra small package size ¾ A1101R09C : 9mm x …

Text truncated - open the document above for the full version.

Anaren AIR Module, Users Manual 5/18, 8/18/2010:3:57 PM Figure 1 The functionality of the A1101R09A, using an integral antenna Figure 2 The functionality of the A1101R09C, using an external antenna. Anaren AIR Module, Users Manual 6/18, 8/18/2010:3:57 PM Figure 3 Transceiver IC block diagram. 1.4.1. Typical Flow After initial setup of registers for desired behavior, the normal operation flow diagram is shown in Figure 4. In applications of infrequent data transmissions the transceiver would be in “sleep” mode to save power (400nA). From there it would be woken up and enter “idle” mode. As part of the wake up process the crystal oscillator is started (~240μs) and the digital microcontroller interface is powered up. Before transmit or receive the frequency synthesizer needs to be started (“FS_Wakeup”) and having been powered off (or idle for a while) the control loop of the VCO/PLL needs to be calibrated (“calibrate”). A data frame is loaded into the transmit FIFO and the “TX” mode is entered. The transceiver will transmit the data and enter “idle” mode after completion. When transmit is complete “RX” mode is entered to wait for the acknowledge frame. Once a frame is received the transceiver will again enter “idle”mode. If no acknowledge frame is received within a given timeout the data frame would be re- transmitted. If the acknowledge frame indicated that the data was received the next data frame would be transmitted. After the last data frame have successfully been transmitted the transceiver would again be put in “sleep” mode. Medium access Anaren AIR Module, Users Manual 7/18, 8/18/2010:3:57 PM Figure 4 Transceiver state diagram 1.5. Applications Ultra low-power wireless applications, operating in the 902-928 MHz ISM band. ƒ Wireless alarm and security systems ƒ Industrial monitoring and control ƒ Wireless sensor networks ƒ AMR – Automatic Meter Reading ƒ Home and building automation ƒ Existing applications where simple upgrade to wireless is desired

Applicant/Grantee Anaren Microwave, Inc. FCC ID: X7J-A10040601 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The Anaren modular transmitter has a cover over the radio elements, with the antenna or antenna connector located outside of the cover YES 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The Anaren modular transmitter has built-in data buffering, with separate 64- byte receive and transmit FIFOs YES 3 The modular transmitter must have its own power supply regulation. The module has internal regulation to allow an input voltage range of 1.8 to 3.6 volts. YES 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The Anaren modular transmitter uses one of two methods to employ a unique coupler for all connections between the module and antenna: 1.) Permanently connected internal antenna 2.) U.FL unique coupling connector YES 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to The modular device was tested in a stand-alone configuration with the help of another board which supplied only physical support and power connections YES the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The Anaren modular transmitter is marked with a unique FCC identification number. See drawing included with the application for location of the marking. Instructions are given to the end user in the module data sheet that if the module is installed inside another device, then the outside of the device must also display a label referring to the enclosed module YES 7 The modular transmitter must comply with any specific rules or operating Please refer to the "OEM User's Manual" supplied separately. YES requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. 8 The EUT meets the RF Exposure requirements. The EUT meets the RF Exposure requirements. YES A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with…

Text truncated - open the document above for the full version.

Front – External Rear – Internal / External

Front – External Rear – Internal / External

PROPOSED FCC/IC ID LABEL AND LOCATION Bottom of Module FCC /IC Label Location ANAREN INC. FCC ID: X7J-A10040601 IC: 8975A-A10040601 Model: A1101R09A PROPOSED FCC/IC ID LABEL AND LOCATION ANAREN INC. FCC ID: X7J-A10040601 IC: 8975A-A10040601 Model: A1101R09C Bottom of Module FCC /IC Label Location PROPOSED FCC/IC ID LABEL FOR HOST DEVICE ANAREN MICROWAVE, INC. This device contains FCC ID: X7J-A10040601, IC: 8975A-A10040601

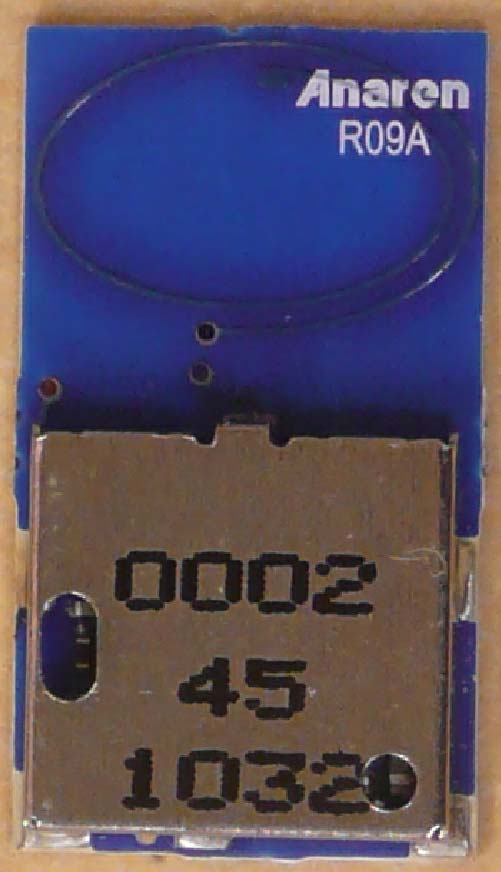

Anaren Inc. A1101R09A Radio Module ‐ Certification Pictures Front – Internal Rear – Internal / External

Anaren Inc. A1101R09C Radio Module ‐ Certification Pictures Front – Internal Rear – Internal / External

Anaren AIR Module, Users Manual 3/18, 8/18/2010:3:57 PM • Low Power Consumption • Regulatory approvals for FCC • Digital RSSI output • Programmable channel filter bandwidth • Programmable output power up to +10 dBm • High sensitivity (–104 dBm at 1.2 kBaud, 1% packet error rate) • Low current consumption (14.4 mA in RX, 1.2kBaud, input well above sensitivity limit) • Fast startup time: 240us from SLEEP to Rx or Tx mode • Separate 64 byte Rx and Tx FIFOs • Data Rate: 1.2 – 500 Kbit/Sec • Programmable data rate from 1.2 to 500 kBaud • Sleep state: 0.4μA • Idle State: 1.7mA Canada under Industry Canada (IC) Radio Standards Specification (RSS) RSS-210 and RSS-Gen. • No regulatory “Intentional radiator” testing required to integrate module into end product. Simple certification labeling replaces testing. 1.4. Theory of Operation The A1101R09A and A1101R09C are for low power wireless applications in the US 902 – 928MHz ISM band. The devices can be used to implement a variety of networks, including; point to point, point to multipoint, peer to peer and mesh networks The A1101R09A and A1101R09C both interface to an application microcontroller via SPI bus. Physical and MAC layer functionality are accessed via the SPI bus, through addressable registers as well as execution commands. Data received or to be transmitted are also accessed through the SPI bus and are implemented as a FIFO register (64 bytes each for Tx and Rx). To transmit, a frame of data is placed in the FIFO, this may include a destination address. A transmit command is given, which will transmit the data according to the initial setup of the registers. To receive data a receive command is given, which will listen for a transmission and when one occurs put the received frame in the FIFO. When neither transmit or receive is required the device can enter either an Idle mode, from which it can quickly re-enter receive or transmit mode or it can enter a low power sleep mode, from which a crystal startup is also required prior to transmit or receive operation. Below a block diagram is given for each of the A1101R09A and A1101R09C modules. • Antenna o The antenna couples energy between the air and the module. For applications where installations are done by an end user (non-professional), an omni-directional antenna pattern is desired, such that the application will work equally well in any direction. Similarly for peer to peer or point to multipoint application an omni-directional pattern is desired such that all nodes have a fair chance of communicating. The A1101R09A module has an integral antenna that is near omni-directional, whereas the A1101R09C has approved antenna options ranging from near omni-directional to shaped front/back patterns (useful for inline, professional installations). Note that the end radiation pattern Anaren AIR Module, Users Manual 4/18, 8/18/2010:3:57 PM depend not only on the antenna, but also the ground plane, enclosure and installation environment. • Filtering o Filtering removes spurious signals to comply with regulatory intentional radiator requirements. • Matching o The matching provides the correct loading of the transmit amplifier to achieve the highest output power as well as the correct loading for the receive LNA to achieve the best sensitivity. • Physical o The physical layer provides conversions between data, symbol and RF signal. • MAC o The MAC layer is part of the Logical Link Layer and provides frame handling, addressing and medium access services. • Microcontroller Interface o The microcontroller interface exposes registers and commands for the physical and MAC layers to a microcontroller. • Power Management o Power management ensures a stable supply for the internal functions as well as providing means for a low power sleep mode, in which most of the transceiver is power off.

Antenna Type & Gain: Integral Antenna (A1101R09A): Printed on the module PWB, gain of +2 dBi

FILE NAME DESCRIPTION 66089-XXXX_1. p df ADOBE PDF DRAWING 66089-XXXX_1.dxf 2D CAD DRAWING 66089-XXXX_1.xls FAI SHEET ELECTRONIC DATA FILES 1 2 A B 2 B 1 A-E_format_revF_INV2K8 0 66089-XXXX 1 D I S T DOC CODE THIRD ANGLE PROJECTION ANGLES ` PL DEC ` PL DEC ` DRAWN BY DESIGNER SCALE SHEET 1 OF 3 ANAREN MICROWAVE INC. SIZE CAGE CODE DOC 31597 A UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN -TOLERANCES- NO. EAST SYRACUSE, NEW YORK ENGINEER REV CONTRACT NO. ° ANTENNA, MONOPOLE MILLIMETERS 21 .10.31 S JOHNSON 10/07/13 N/A K RICHARDSON 600 19 APPROVAL SIGNATURES ON FILE DATE (YYMMDD) UPDATED BY REV DATE (YYMMDD) REVISIONS ( Δ DENOTES CHANGE) 1 10/07/13 S JOHNSON NOTES - UNLESS OTHERWISE SPECIFIED: 1.0 APPLICABLE STANDARDS / SPECIFICATIONS:1.1 ASME Y14.5M - 1994 (DIMENSIONING AND TOLERANCING): 2.0 MATERIAL RESTRICTIONS:2.1 THIS PART MUST BE COMPLIANT TO THE RoHS DIRECTIVE 2002/95/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL OF 27 JANUARY 2003, ON THE RESTRICTION OF THE USE OF CERTAIN HAZARDOUS SUBSTANCES IN ELECTRICAL AND ELECTRONIC EQUIPMENT. 3.0 DIMENSIONING AND TOLERANCING:3.1 DIMENSIONS ARE SHOWN IN UNIT S AS SPECIFIED IN TITLE BLOCK. 3.2 A REFERENCE (REF) DIMENSION IS A DIMENSION WITHOUT TOLERANCE AND IS USED FOR INFORMATIONAL PURPOSES ONLY.3.3 ALL RADII PER ELECTRONIC DATA FILE UNLESS OTHERWISE SPECIFIED3.4 DIMENSIONLESS FEATURES ARE CONSIDERED TO BE PROCESS CONTROLLED. LOCATIONS ARE GOVERNED BY THE ELECTRONIC DATA FILE GEOMETRY AND 2-PLACE DECIMAL TOLERANCES AS SPECIFIED IN TITLE BLOCK. 4.0 MATERIAL:4.1 CONNECTOR4.1.1 I-PEX IPX-13 OR EQUIVALENT4.2 CABLE:4.2.1 1.13MM DIAMETER COAXIAL CABLE4.2.2 INNER CONDUCTOR: SILVER PLATED COPPER WIRE4.2.3 OUTER CONDUCTOR: TIN PLATED COPPER WIRE4.2.4 INSULATOR: PFA FLUOROPOLYMER OR EQUIVALENT4.2.5 OUTER JACKET: FEP FLUOROPOLYMER OR EQUIVALENT 5.0 FINISH: N/A 6.0 PROCESS ALLOWANCE: NONE 1 2 A B 2 B 1 A-E_format_revF_INV2K8 66089-XXXX NTS 0 1 2 DOC CODE SCALE SHEET SIZE CAGE CODE DOC 31597 A NO. REV LEAD (mm) MEASURED FROM CONNECTOR CENTER PIN TO STRIPPED LEAD LENGTHFREQUENCY (x 100) LEAD, 6mmFREQUENCY, 2400 MHz EXAMPLE: 66089-2 4 0 6 66089-_ _ _ _ 7.0 COMPONENT PERFORMANCE CHARACTERISTICS:7.1 IMPEDANCE: 50 OHMS7.2 FREQUENCY RANGE: 2400 - 2483 MHz7.3 GAIN: 3 DBI7.4 VSWR: 1.7 MAX7.5 RADIATION: OMNIDIRECTIONAL 8.0 PERMANENT MARKING: NONE 9.0 INSPECTION CRITERIA:9.1 RESPONSIBILITY FOR INSPECTION: UNLESS OTHERWISE SPECIFIED IN THE CONTRACT OR ORDER, THE SUPPLIER IS RESPONSIBLE FOR THE PERFORMANCE OF ALL INSPECTION REQUIREMENTS AS SPECIFIED HEREIN. THE SUPPLIER MAY UTILIZE THEIR OWN FACILITIES OR ANY SUITABLE LABORATORIES UNLESS DISAPPROVED BY ANAREN MICROWAVE, INC. (AMI). AMI RESERVES THE RIGHT TO PERFORM ANY OF THE TESTS SET FORTH IN THIS SPECIFICATION. IF NO INSPECTION IS SPECIFIED, THE SUPPLIER IS RESPONSIBLEFOR ENSURING THAT PARTS MEET THE REQUIREMENTS OF THIS DRAWING. 10.0 SHIPPING AND STORAGE:10.1 THE SUPPLIER MUST FOLLOW THESE PRECAUTI ONS WHEN SHIPPING AND STORING THESE PARTS. 10.2 THE SUPPLIER SHALL STORE AND SHIP BOTH RAW MATERI AL AND FINISHED PARTS IN A CONTROLLED, NON-CORROSIVE ENVIRONMENT TO PREVENT OXIDATION, CORROSION, ETC.10.2.1 UNIQUE MATERIAL CHARACTERISTICS SUCH AS CORROSIO N PROTECTION FOR UNPLATED ST EEL SUPERSEDE THE FOLLOWING REQUIREMENTS.10.2.2 STORAGE:10.2.2.1 TEMPERATURE RANGE: 15 °C TO 30 °C.10.2.2.2 RELATIVE HUMIDITY: 40% RH MAXIMUM.10.2.3 SHIPPING:10.2.3.1 TEMPERATURE RANGE: -15 °C TO 40 °C (FOR LESS THAN 3 DAYS).10.3 THE SUPPLIER SHALL STORE, HANDLE, PACKAGE AND SHIP RA W MATERIALS AND FINISHED GOODS IN A MANNER THAT PREVENTS DAMAGE OR DEGRADATION OF THE MATERIAL.10.4 THE SUPPLIER SHALL LABEL EACH PRODUCT CONTAINER/BAG WITH PART NUMBER, PURCHASE ORDER NUMBER AND QUANTITY PERCONTAINER/BAG.10.4.1 THE SUPPLIER IS RESPONSIBLE FOR LABELING AND STOR ING FINISHED GOODS TO PREVENT MIXING WITH OTHER PARTS. 11.0 PART NUMBER SELECTION SYSTEM:11.1 SEE BELOW: BAND ANTENNA ELEMENT (mm) 04C 173±1 08C 86±1 09C 82±1 24C 30±1 TABLE 2: ANTENNA ELEMENT 1 2 A B 2 B 1 A-E_format_revF_INV2K8 66089-XXXX NTS 0 1 3 DOC CODE SCALE SHEET SIZE CAGE CODE DOC 31597 A NO. REV LEAD SEE PART NUMBER SELECTION SYSTEM [D2_DIST] ±1 ANTENNA ELEMENT SEE TABLE 2 [D1_DIST] Ø1.13 REMOVE OUTER JACKETAND BRAID

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR 902-928 MHZ TRANSCEIVER MODEL NUMBER: A1101R09A AND A1101R09C FCC ID: X7J-A10040601 IC: 8975A-A10040601 REPORT NUMBER: 10U13329-2, Revision B ISSUE DATE: AUGUST 20, 2010 Prepared for ANAREN, INC. 6635 KIRKVILLE ROAD EAST SYRACUSE, NY 13057-9600, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10U13329-2B DATE: AUGUST 20, 2010 FCC ID: X7J-A10040601 IC: 8975A-A10040601 Page 2 of 54 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 08/03/10 Initial Issue T. Chan A 08/13/10 Updated report, includes 1. Added serial number 2. Updated model differences description in the section 5.2 3. Updated description of worst case configuration Sunny Shih B 08/20/10 Updated 99% BW T. Chan REPORT NO: 10U13329-2B DATE: AUGUST 20, 2010 FCC ID: X7J-A10040601 IC: 8975A-A10040601 Page 3 of 54 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION.................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 5 4.2. SAMPLE CALCULATION.............................................................................................. 5 4.3. MEASUREMENT UNCERTAINTY................................................................................ 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT................................................................................................ 6 5.2. MANUFACTURER’S DESCRIPTION OF MODEL DIFFERENCES ............................. 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 6 5.4. SOFTWARE AND FIRMWARE..................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 6 5.6. DESCRIPTION OF TEST SETUP................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................... 9 7. ANTENNA PORT TEST RESULTS .................................................................................... 10 7.1.1. 99% BANDWIDTH .............................................................................................. 10 8. RADIATED TEST RESULTS .............................................................................................. 14 8.1. LIMITS AND PROCEDURE ........................................................................................ 14 8.2. TRANSMITTER BELOW 1 GHz.................................................................................. 15 8.3. TRANSMITTER ABOVE 1 GHz .................................................................................. 40 8.4. RECEIVER BELOW 1 GHz......................................................................................... 42 8.5. RECEIVER ABOVE 1 GHz ......................................................................................... 44 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................... 46 10. SETUP PHOTOS ............................................................................................................ 50 REPORT NO: 10U13329-2B DATE: AUGUST 20, 2010 FCC ID: X7J-A10040601 IC: 8975A-A10040601 Page 4 of 54 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: ANAREN, INC 6635 KIRKVILLE ROAD EAST SYRACUSE, NY, 13057, U.S.A. EUT DESCRIPTION: 902-928 MHZ TRANSCEIVER MODEL: A1101R09A AND A1101R09C SERIAL NUMBER: 0001-04 (Conducted unit), 0001-09 (Radiated unit) DATE TESTED: JULY 26 – JULY 30, 2010 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass INDUSTRY CANADA RSS-210 Issue 7 Annex 2.9 Pass INDUSTRY CANADA RSS-GEN Issue 2 Pass Compliance Certification Services, Inc. (CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by CCS will constitute fraud and shall nullify the document. Th…
