Anaren Integrated Radio A110LR09x User’s Manual Release Date 10/31/11 THIS PAGE LEFT INTENTIONALLY BLANK iii USERS MANUAL Models A110LR09A and A110LR09C Contents 1. Overview .......................................................................................................................................................... 5 1.1. A110LR09A ................................................................................................................................................ 5 1.2. A110LR09C ................................................................................................................................................. 5 1.3. Features....................................................................................................................................................... 6 1.4. Theory of Operation.................................................................................................................................. 6 1.4.1. Typical Flow ........................................................................................................................................ 9 1.5. Applications ............................................................................................................................................. 11 2. Product Approvals ........................................................................................................................................ 12 2.1. USA (Federal Communications Commission, FCC) .......................................................................... 12 2.1.1. FCC Labeling Requirements ............................................................................................................. 12 2.1.2. End User Manual .............................................................................................................................. 13 2.2. Canada (Industry Canada, IC) .............................................................................................................. 13 2.2.1. IC Labeling Requirements ................................................................................................................. 14 2.3. Europe (Conformité Européenne, ) .................................................................................................. 15 2.4. Potential Interference Sources ............................................................................................................... 16 2.4.1. Time critical data ............................................................................................................................... 16 2.5. Approved Usage ..................................................................................................................................... 16 2.5.1. US & Canada .................................................................................................................................... 17 2.5.2. Europe ............................................................................................................................................... 18 3. Electrical Characteristics .............................................................................................................................. 25 3.1. Absolute Maximum Ratings .................................................................................................................. 25 3.2. Operating Conditions ............................................................................................................................. 26 3.3. Pin Out ...................................................................................................................................................... 26 3.4. Recommended Layout ............................................................................................................................ 28 3.5. Power Supply Considerations ............................................................................................................... 30 4. Mechanical and Process ................................................................................................................................ 31 4.1. Dimensions............................................................................................................................................... 31 4.1.1. A110LR09A ...................................................................................................................................... 31 4.1.2. A110LR09C ...................................................................................................................................... 31 4.2. Packaging ................................................................................................................................................. 32 4.2.1. Matrix Tray Packaging ..................................................................................................................... 32 4.2.2. Tape-Reel Packaging ......................................................................................................................... 33 4.3. Soldering................................................................................................................................................... 34 4.3.1. Manual Mounting Procedure ........................................................................................................... 34 4.3.2. Automated Mounting Procedure ...................................................................................................... 35 THIS PAGE LEFT INTENTIONALLY BLANK A110LR09x – User’s Manual Page 5 of 38 Release Date 10/31/11 1. Overview The A110LR09A and A110LR09C are surface mount modules – each with an integrated crystal, internal voltage regulator, matching circuitry and filtering. The A110LR09A has an integral antenna, whereas the A110LR09C utilizes an external antenna through a U.FL connector (see Table 1). The modules operate in the…

Text truncated - open the document above for the full version.

Anaren Microwave, Inc. 6635 Kirkville Road East Syracuse, NY 13057 Phone: 315 432 8909 Fax: 315 432 9121 www.anaren.com A110LR09x Radio Modules Block Diagram Below is a block diagram for each of the A110LR09A and A110LR09C modules. • Antenna o The antenna couples energy between the air and the AIR module. For applications where installations are done by an end user (non-professional), an omni- directional antenna pattern is desired such that the application will work equally well in every direction. Similarly for peer to peer or point to multipoint applications, an omni-directional pattern is desired such that all nodes have a fair chance of communicating. The A110LR09A module has an integral antenna that is near omni-directional, whereas the A110LR09C has approved antenna options ranging from near omni-directional to shaped front/back patterns (useful for inline, professional installations). Note that the end radiation pattern depends not only on the antenna, but also on the ground plane, enclosure and installation environment. • Filtering o Filtering removes spurious signals to comply with regulatory intentional radiator requirements. • Matching o Matching provides the correct loading of the transmit amplifier to achieve the highest output power, as well as the correct loading for the receive LNA to achieve the best sensitivity. • Physical o The physical layer provides conversions between data, symbol and RF signal. • MAC o The MAC layer is part of the Logical Link Layer and provides frame handling, addressing and medium access services. For CE operations, part of the MAC is implemented in the S/W. • Microcontroller Interface o The microcontroller interface exposes registers and commands for the physical and MAC layers to a microcontroller. • Power Management o Power management ensures a stable supply for the internal functions, as well as providing means for a low power sleep mode (in which case, most of the transceiver is power off). Anaren Microwave, Inc. 6635 Kirkville Road East Syracuse, NY 13057 Phone: 315 432 8909 Fax: 315 432 9121 www.anaren.com Figure 1 The functionality of the A110LR09A, using an integral antenna Figure 2 The functionality of the A110LR09C, using an external antenna. Anaren Microwave, Inc. 6635 Kirkville Road East Syracuse, NY 13057 Phone: 315 432 8909 Fax: 315 432 9121 www.anaren.com Figure 3 Transceiver IC block diagram.

Anaren Microwave, Inc. 6635 Kirkville Road East Syracuse, NY 13057 Phone: 315 432 8909 Fax: 315 432 9121 www.anaren.com Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: X7J-A11072401 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. • Schematic Diagram Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until April 1, 2012. • External Photos • Internal Photos • Test Setup Photos • User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Kurt A. Richardson Product Line Manager Anaren Inc. October 1, 2011

Applicant/Grantee Anaren Microwave, Inc. FCC ID: X7J-A11072401 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The Anaren modular transmitter has a cover over the radio elements, with the antenna or antenna connector located outside of the cover YES 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The Anaren modular transmitter has built-in data buffering, with separate 64- byte receive and transmit FIFOs YES 3 The modular transmitter must have its own power supply regulation. The module has internal regulation to allow an input voltage range of 1.8 to 3.6 volts. YES 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The Anaren modular transmitter uses one of two methods to employ a unique coupler for all connections between the module and antenna: 1.) Permanently connected internal antenna 2.) U.FL unique coupling connector YES 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to The modular device was tested in a stand-alone configuration with the help of another board which supplied only physical support and power connections YES insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The Anaren modular transmitter is marked with a unique FCC identification number. See drawing included with the application for location of the marking. Instructions are given to the end user in the module data sheet that if the module is installed inside another device, then the outside of the device must also display a label referring to the enclosed module YES 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these Please refer to the "OEM User's Manual" supplied separately. YES instructions must be included in the application for equipment authorization. 8 The EUT meets the RF Exposure requirements. The EUT meets the RF Exposure requirements. YES A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with…

Text truncated - open the document above for the full version.

Front – External Rear External

Front – External Rear – External

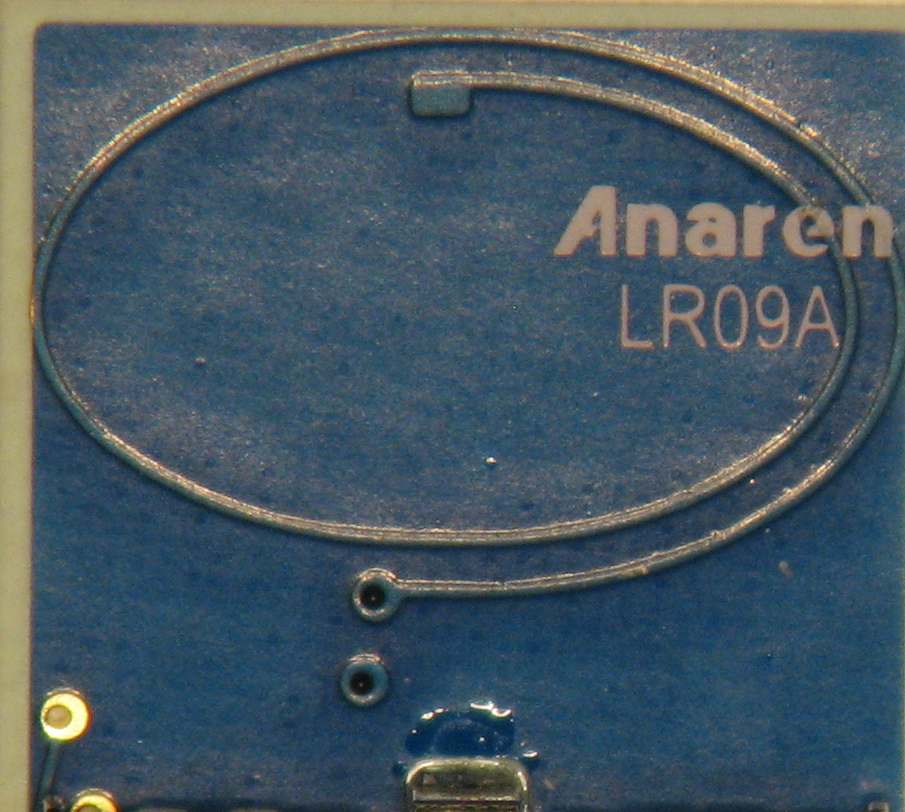

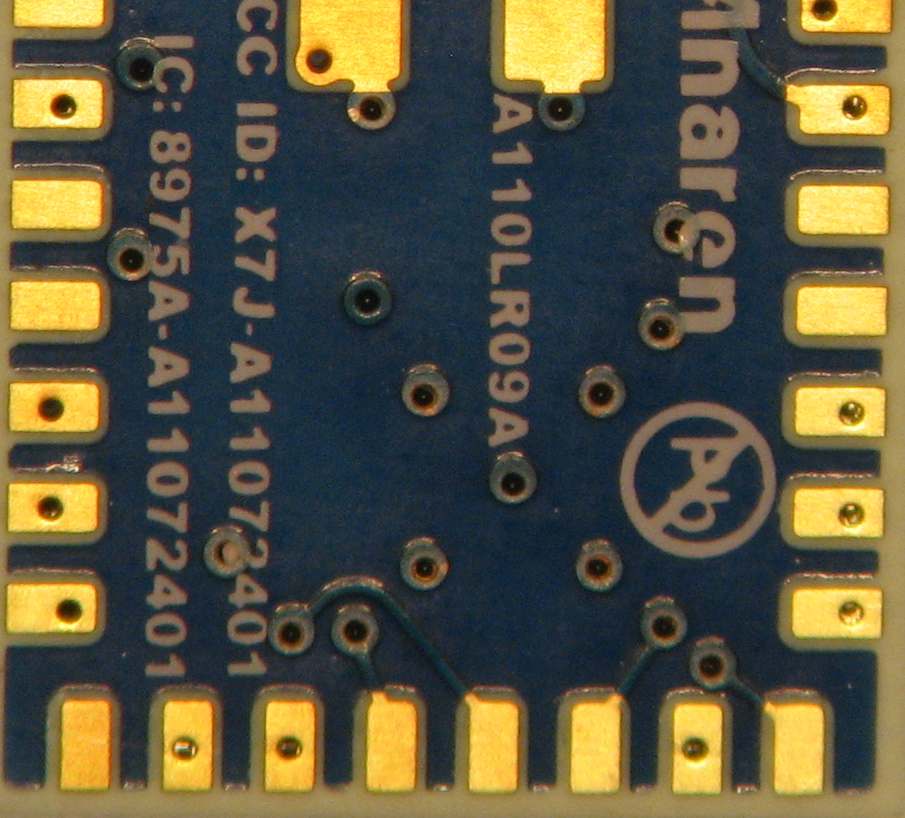

Anaren Inc. A110LR09A Radio Module - Certification Pictures Front – Internal

Anaren Inc. A110LR09C Radio Module - Certification Pictures Front – Internal

Anaren Microwave, Inc. 6635 Kirkville Road East Syracuse, NY 13057 Phone: 315 432 8909 Fax: 315 432 9121 www.anaren.com A110LR09x Radio Module Theory of Operation The A110LR09A and A110LR09C are for low power wireless applications in the European 868 – 870MHz, and US 902 – 928MHz ISM band. The devices can be used to implement a variety of networks, including; point to point, point to multipoint, peer to peer and mesh networks. The A110LR09A and A110LR09C both interface to an application microcontroller via an SPI bus. Physical and MAC layer functionality are accessed via the SPI bus through addressable registers as well as execution commands. Data received, or to be transmitted, are also accessed through the SPI bus and are implemented as a FIFO register (64 bytes each for Tx and Rx). To transmit, a frame of data is placed in the FIFO; this may include a destination address. A transmit command is given, which will transmit the data according to the initial setup of the registers. To receive data, a receive command is given, which enables the unit to “listen” for a transmission; when such a transmission occurs, it places the received frame in the FIFO. When neither transmit nor receive is required, the device can enter either an Idle mode, from which it can quickly re-enter a receive/transmit mode, or a low power sleep mode from which a crystal startup is required prior to transmit or receive operation.

FILE NAME DESCRIPTION 66089-XXXX_C.pdf ADOBE PDF DRAWING 66089-XXXX_C.dxf 2D CAD DRAWING 66089-XXXX_C.xls FAI SHEET ELECTRONIC DATA FILES 1 2 A B 2 B 1 A-E_format_revF_INV2K8 0 66089-XXXX C D I S T DOC CODE THIRD ANGLE PROJECTION ANGLES  PL DEC  PL DEC  DRAWN BY DESIGNER SCALE SHEET 1 OF 3 ANAREN MICROWAVE INC. SIZE CAGE CODE DOC 31597 A UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN -TOLERANCES- NO. EAST SYRACUSE, NEW YORK ENGINEER REV CONTRACT NO. ° ANTENNA, MONOPOLE MILLIMETERS 21 .10.31 S JOHNSON 10/07/13 N/A K RICHARDSON 600 19 APPROVAL SIGNATURES ON FILE DATE (YYMMDD) UPDATED BY REV DATE (YYMMDD) REVISIONS ( ∆ DENOTES CHANGE) A 101105 INITIAL RELEASE P. BACIUSKA B 110922 S. JOHNSON C 111025 M. BOLAN NOTES - UNLESS OTHERWISE SPECIFIED: 1.0 APPLICABLE STANDARDS / SPECIFICATIONS:1.1 ASME Y14.5M - 1994 (DIMENSIONING AND TOLERANCING): 2.0 MATERIAL RESTRICTIONS:2.1 THIS PART MUST BE COMPLIANT TO THE RoHS DIRECTIVE 2002/95/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL OF 27 JANUARY 2003, ON THE RESTRICTION OF THE USE OF CERTAIN HAZARDOUS SUBSTANCES IN ELECTRICAL AND ELECTRONIC EQUIPMENT. 3.0 DIMENSIONING AND TOLERANCING:3.1 DIMENSIONS ARE SHOWN IN UNIT S AS SPECIFIED IN TITLE BLOCK. 3.2 A REFERENCE (REF) DIMENSION IS A DIMENSION WITHOUT TOLERANCE AND IS USED FOR INFORMATIONAL PURPOSES ONLY.3.3 ALL RADII PER ELECTRONIC DATA FILE UNLESS OTHERWISE SPECIFIED3.4 DIMENSIONLESS FEATURES ARE CONSIDERED TO BE PROCESS CONTROLLED. LOCATIONS ARE GOVERNED BY THE ELECTRONIC DATA FILE GEOMETRY AND 2-PLACE DECIMAL TOLERANCES AS SPECIFIED IN TITLE BLOCK. 4.0 MATERIAL:4.1 CONNECTOR4.1.1 U. FL (I-PEX IPX-13 OR EQUIVALENT)4.2 CABLE:4.2.1 1.13MM DIAMETER COAXIAL CABLE4.2.2 INNER CONDUCTOR: SILVER PLATED COPPER WIRE4.2.3 OUTER CONDUCTOR: TIN PLATED COPPER WIRE4.2.4 INSULATOR: PFA FLUOROPOLYMER OR EQUIVALENT4.2.5 OUTER JACKET: FEP FLUOROPOLYMER OR EQUIVALENT 5.0 FINISH: N/A 6.0 PROCESS ALLOWANCE: NONE SHEET VIEW/FIG. # SERIALIZED PCS DIMENSIONS REQUIR ED 1 35 13 30 T ABLE 1: FIRST ARTICLE INSPECTION & MANUFACTUR ING LOT DATA PARAMETER DATA FAI MFG LOT 1 2 A B 2 B 1 A-E_format_revF_INV2K8 66089-XXXX NTS 0 C 2 DOC CODE SCALE SHEET SIZE CAGE CODE DOC 31597 A NO. REV 7.0 COMPONENT PERFORMANCE CHARACTERISTICS (AT CENTER FREQUENCY):7.1 IMPEDANCE: 50 OHMS7.2 CENTER FREQUENCY: SEE TABLE 27.3 GAIN: 2 DBI7.4 VSWR: 1.7 MAX7.5 RADIATION: OMNIDIRECTIONAL 8.0 PERMANENT MARKING: NONE 9.0 INSPECTION CRITERIA:9.1 RESPONSIBILITY FOR INSPECTION: UNLESS OTHERWISE SPECIFIED IN THE CONTRACT OR ORDER, THE SUPPLIER IS RESPONSIBLE FOR THE PERFORMANCE OF ALL INSPECTION REQUIREMENTS AS SPECIFIED HEREIN. THE SUPPLIER MAY UTILIZE THEIR OWN FACILITIES OR ANY SUITABLE LABORATORIES UNLESS DISAPPROVED BY ANAREN MICROWAVE, INC. (AMI). AMI RESERVES THE RIGHT TO PERFORM ANY OF THE TESTS SET FORTH I N THIS SPECIFICATION. IF NO INSPECTION IS SPECIFIED, THE SUPPLIER IS RESPONSIBLE FOR ENSURING THAT PARTS MEET THE REQUIREMENTS OF THI S DRAWING. 9.2 FIRST ARTICLE INSPECTION (FAI) SPECIFIED PARAMETER DATA, BOX- D#, [D#],: THIS SPECIFIED PARAMETER DATA IS USED FOR QUALITY EVALUATION OF THE FIRST PIECE PARTS PRODUCED FROM THE PRODUCTION TOOL/PROCESS AND EACH MANUFACTURING LOT (MFG LOT). 9.3 ALL DATA SHALL BE SUBMITTED TO AMI IN ELECTRON IC FORMAT IN THE EXCEL (.xls) FILES SUPPLIED BY AMI. 9.4 ALL PIECES SHALL BE SERIALIZED TO CORRESPOND WI TH THE SAMPLE NUMBER IN THE FAI EXCEL SPREAD-SHEETS. 9.5 SERIALIZATION MARKING SHALL CONSIST OF NON-PERMANENT, NON-DA MAGING METHODS (SUCH AS FELT-TI PPED MARKER.) THE SERIALIZATIO N SHALL NOT DEGRADE/DAMAGE THE PART. NO SCRATCHES, DENTS OR DEFORMATION ALLOWED.9.6 ALL FAI PIECES SHALL BE SUBMITTED TO AMI WHEN THE DATA IS SUBMITTED TO AMI.9.7 THE FOLLOWING TABLE INDICATES THE REQUIRED DIMENSIONS AND NUMBER OF SERIALIZED PIECES NECESSARY TO SATISFY FAI AND MFG LOT REQUIREMENTS: 10.0 SHIPPING AND STORAGE:10.1 THE SUPPLIER MUST FOLLOW THESE PRECAUTI ONS WHEN SHIPPING AND STORING THESE PARTS. 10.2 THE SUPPLIER SHALL STORE AND SHIP BOTH RAW MATERIAL AND FI NISHED PARTS IN A CONTROLLED, NO N-CORROSIVE ENVIRONMENT TO PREVE NT OXIDATION, CORROSION, ETC.10.2.1 UNIQUE MATERIAL CHARACTERISTICS SUCH AS CORROSION PROT ECTION FOR UNPLATED STEEL SUPERSEDE THE FOLLOWING REQUIREMENTS. 10.2.2 STORAGE:10.2.2.1 TEMPERATURE RANGE: 15 °C TO 30 °C.10.2.2.2 RELATIVE HUMIDITY: 40% RH MAXIMUM.10.2.3 SHIPPING:10.2.3.1 TEMPERATURE RANGE: -15 °C TO 40 °C (FOR LESS THAN 3 DAYS).10.3 THE SUPPLIER SHALL STORE, HANDLE, PACKAGE AND SHIP RAW MATE RIALS AND FINISHED GOODS IN A MANNER THAT PREVENTS DAMAGE OR DEGRADATION OF THE MATERIAL.10.4 THE SUPPLIER SHALL LABEL EACH PRODUCT CONTAINER/BAG WITH PA RT NUMBER, PURCHASE ORDER NUMBER AND QUANTITY PER CONTAINER/BAG . 10.4.1 THE SUPPLIER IS RESPONSIBLE FOR LABELING AND STOR ING FINISHED GOODS TO PREVENT MIXING WITH OTHER PARTS. C SECTION A-A SCALE 5 : 1 B A ND A NTE NNA EL EM ENT ( mm ) C ENT ER FRE Q UE NCY 04 1 7 3± 1 42 5 MHz 08 8 6± 1 86 6 MHz 09 8 2± 1 91 5 MHz 24 30±1 2.442 GHz 89 8 4± 1 89 8 MHz TA BL E 2 : A NTE NNA EL EME NT 1 2 A B 2 B 1 A-E_format_revF_INV2K8 66089-XXXX NTS 0 C 3 DOC CODE SCALE SHEET SIZE CAGE CODE DOC 31597 A NO. REV 66089-_ _ _ _ EXAMPLE: 66089-2 4 0 6 LEAD (mm) MEASURED FROM CONNECTOR CENTER PIN TO END OF JACKET AND BRAID BAND (SEE TABLE 2) CENTER FREQUENCY, 2442 MHz LEAD, 6mm A A LEAD SEE PART NUMBER SELECTION SYSTEM [D2_DIST] ±1 ANTENNA ELEMENT SEE TABLE 2 [D1_DIST] Ø1.13 REMOVE OUTER JACKETAND BRAID 11.0 PART NUMBER SELECTION SYSTEM:11.1 SEE BELOW: FIGURE 1 Ø0.68 Ø0.2

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR 902-928 MHZ TRANSCEIVER MODEL NUMBER: A110LR09A and A110LR09C* FCC ID: X7J-A11072401 IC: 8975A-A11072401 REPORT NUMBER: 11U13990-2, Revision B ISSUE DATE: OCTOBER 26, 2011 Prepared for ANAREN, INC. 6635 KIRKVILLE ROAD EAST SYRACUSE, NY 13057-9600, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 11U13990-2B DATE: OCTOBER 26, 2011 FCC ID: X7J-A11072401 IC: 8975A-A11072401 Page 2 of 91 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 10/10/11 Initial Issue F. Ibrahim A 10/24/11 Removed the GFSK data from the report, and added high frequency radiated data for 2FSK for EUT with monopole antenna. F. Ibrahim B 10/26/11 Revised MPE limits in section 10. F. Ibrahim REPORT NO: 11U13990-2B DATE: OCTOBER 26, 2011 FCC ID: X7J-A11072401 IC: 8975A-A11072401 Page 3 of 91 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION .................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 6 4.2. SAMPLE CALCULATION ............................................................................................... 6 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT ................................................................................................. 7 5.2. MANUFACTURER’S DESCRIPTION OF MODEL DIFFERENCES ............................... 7 5.3. MAXIMUM OUTPUT POWER ........................................................................................ 7 5.4. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 7 5.5. SOFTWARE AND FIRMWARE ...................................................................................... 7 5.6. WORST-CASE CONFIGURATION AND MODE ............................................................ 8 5.7. DESCRIPTION OF TEST SETUP .................................................................................. 9 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 11 7. ANTENNA PORT TEST RESULTS .................................................................................... 12 7.1.1. 6 dB BANDWIDTH ................................................................................................ 12 7.1.2. 99% BANDWIDTH ................................................................................................ 15 7.1.3. OUTPUT POWER ................................................................................................. 18 7.1.4. AVERAGE POWER .............................................................................................. 26 7.1.5. POWER SPECTRAL DENSITY ............................................................................ 28 7.1.6. CONDUCTED SPURIOUS EMISSIONS ............................................................... 36 8. RADIATED TEST RESULTS .............................................................................................. 44 8.1. LIMITS AND PROCEDURE ......................................................................................... 44 8.2. TRANSMITTER BELOW 1 GHz (PCB Antenna) .......................................................... 45 8.2.1. TRANSMITTER BELOW 1 GHz FOR 2FSK MODE, ML4 .................................... 45 8.2.2. TRANSMITTER BELOW 1 GHz FOR 2FSK MODE, ML7 .................................... 57 8.3. TRANSMITTER ABOVE 1 GHz (PCB Antenna) .......................................................... 69 8.3.1. HARMONIC AND SPURIOUS ABOVE 1 GHz FOR 2FSK MODE, ML4 ............... 69 8.3.2. HARMONIC AND SPURIOUS ABOVE 1 GHz FOR 2FSK MODE, ML7 ............... 70 8.4. TRANSMITTER BELOW 1 GHz (Monopole Antenna_Worst-case) ............................. 71 8.4.1. TRANSMITTER BELOW 1 GHz FOR 2FSK MODE, ML7 .................................... 71 8.5. TRANSMITTER ABOVE 1 GHz (Monopole Antenna) .................................................. 75 8.5.1. HARMONIC AND SPURIOUS ABOVE 1 GHz FOR 2FSK MODE, ML7 ............... 75 8.6. RECEIVER BELOW 1 GHz .......................................................................................... 76 REPORT NO: 11U13990-2B DATE: OCTOBER 26, 2011 FCC ID: X7J-A11072401 IC: 8975A-A11072401 Page 4 of 91 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8.7. RECEIVER ABOVE 1 GHz ........................................................................................... 79 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................... 80 10. MAXIMUM PERMISSIBLE EXPOSURE .............................................................…

Text truncated - open the document above for the full version.

REPORT NO: 11U13990-2B DATE: OCTOBER 26, 2011 FCC ID: X7J-A11072401 IC: 8975A-A11072401 Page 88 of 91 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 11U13990-2B DATE: OCTOBER 26, 2011 FCC ID: X7J-A11072401 IC: 8975A-A11072401 Page 89 of 91 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CC…
