X82-BLST-SP77XElectric Discharge Lamp Control Equipment

Electronic Ballast For Electrodeless Fluorescent Lamp 1．Product code. 150W SP779# 200W SP780# Note: # means the model designation may be followed by suffix. 2．Outside characteristic. The outside picture of Electronic Ballast For Electrodeless Fluorescent Lamp as below, there are three wires at input port, L line is blue，N line is gray, GND line is yellow and green. There are two white wires at output port. The input wires connect to the power grid, and the output wires connect to the Electrodeless Fluorescent Lamp. Outside picture Inside picture Size： Size picture 3．Electrical characteristic. 1) Input Voltage: 90-150Vac 2）Input Rating Current 1.5A @120V--electrodeless lamp 150W 1.9A @120V--electrodeless lamp 200W 3）Output Rating Current 0.81A (load,electrodeless lamp 150W) 0.96A (load,electrodeless lamp 200W) 4）Output Rating Voltage 190V (load,electrodeless lamp 150W) 210V (load,electrodeless lamp 200W) 5）Start Trigger Voltage 2000±100Vop (load,electrodeless lamp 150W) 2350±100Vop (load,electrodeless lamp 200W) 6）Output Frequency 230K±30kHz(load,electrodeless lamp 150W) 230K±30kHz(load,electrodeless lamp 200W) 7）Open circuit and short circuit protection 4．Ambient temperature. Generally the ballast is set up in the lamps and lanterns to use, the ambient temperature of ballast is -40--60°C in lamps and lanterns. FCC STATEMENT: This light device has been tested and found to comply with the limits for Consumer RF Lighting device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45 – 30MHz.

Request for Confidentiality Date: Nov 10, 2010 Subject: Confidentiality Request for FCC ID: X82-BLST-SP77X Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term „ Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term „ Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______ ______ Lineage Power (Shanghai) Co., Ltd. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ATCB in the event information regarding the product or the product is made available to the public. ATCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________________ Huang Donghai Title: On behalf: Lineage Power (Shanghai) Co., Ltd Telephone: +86-21-5427-9988 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details.

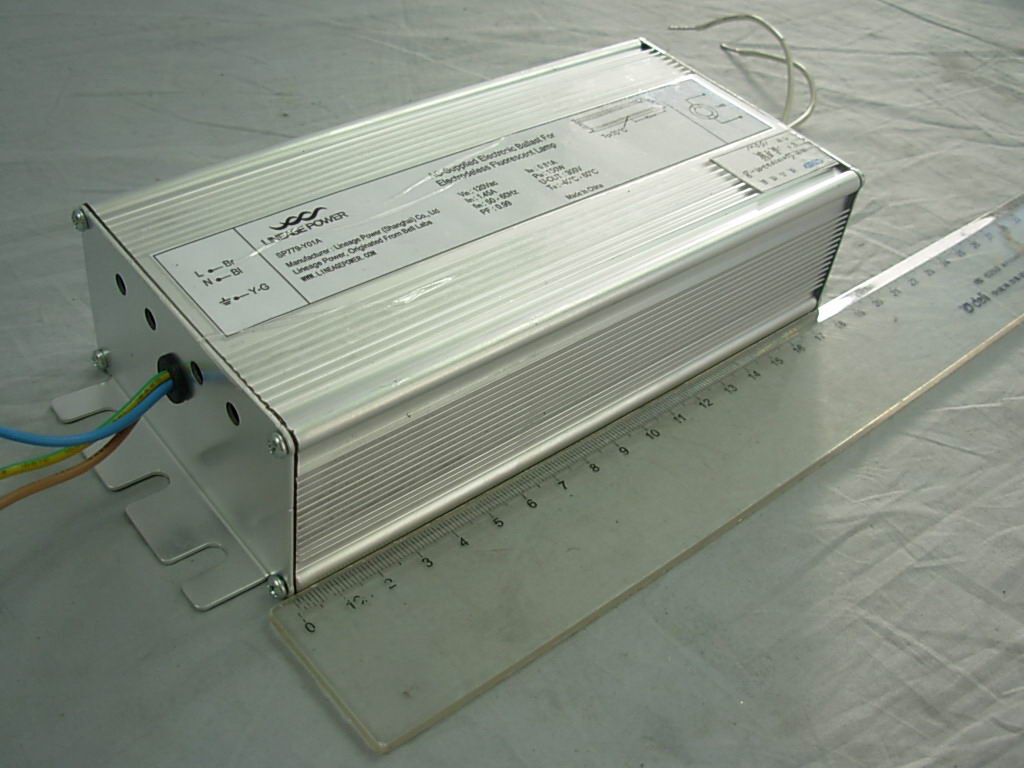

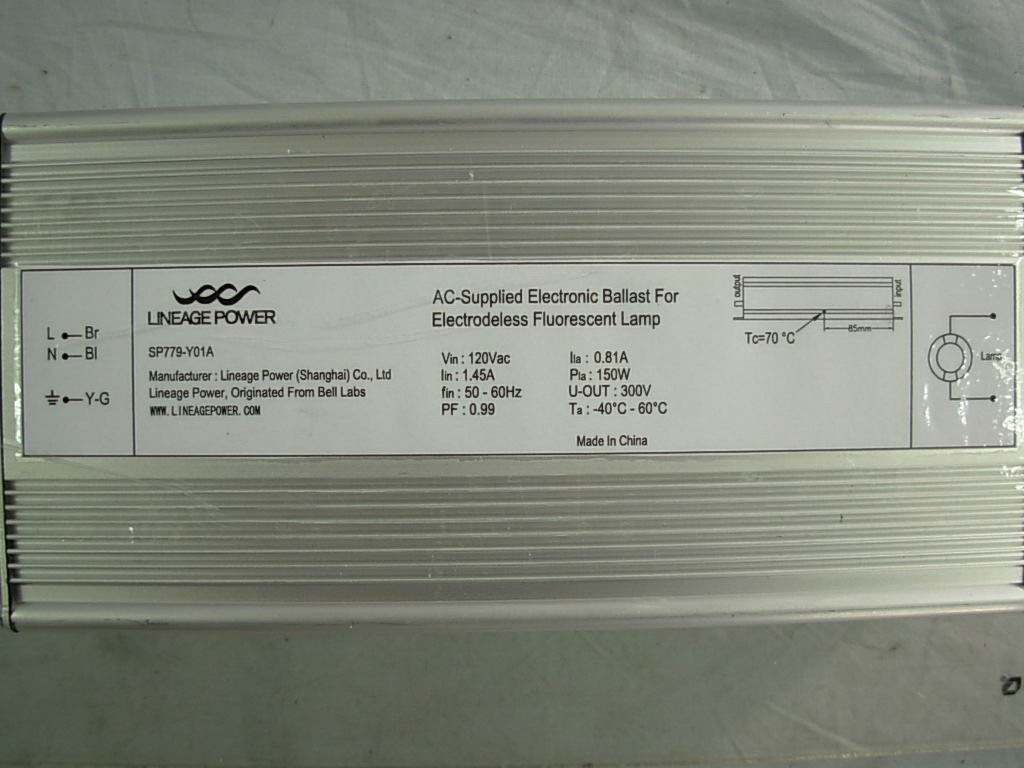

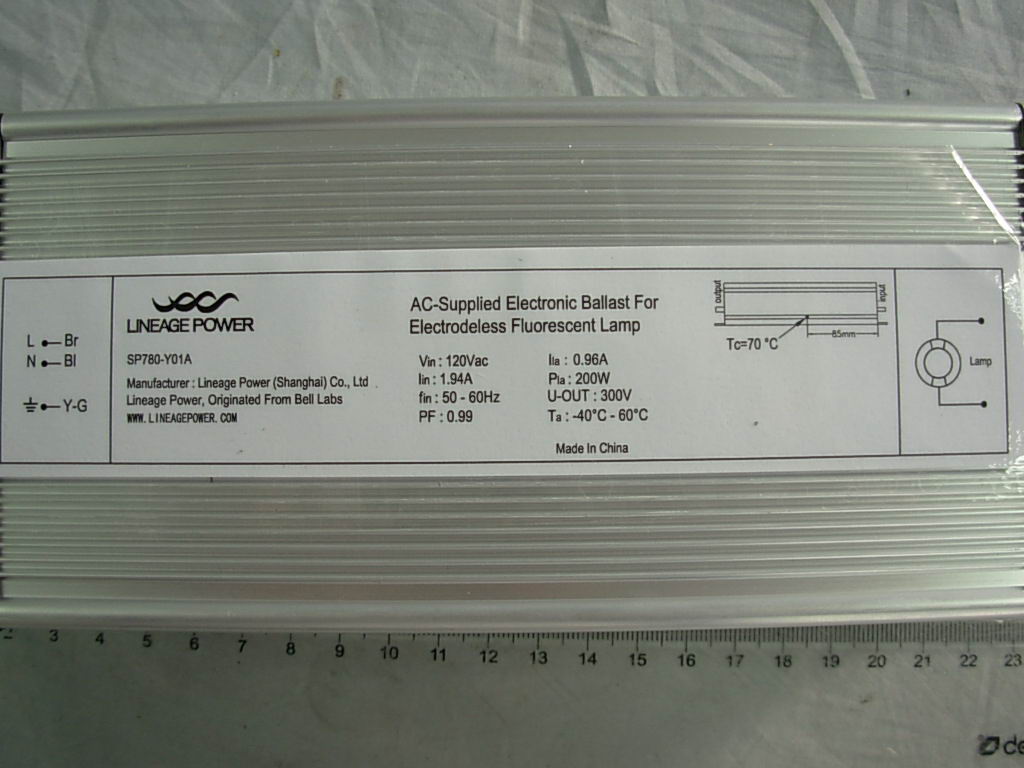

FIGURE 1 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP779#) GENERAL APPEARANCE (FRONT VIEW) F IGURE 2 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP779#) GENERAL APPEARANCE (BACK VIEW) FIGURE 3 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP779#) LABEL FIGURE 4 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP780#) GENERAL APPEARANCE (FRONT VIEW) F IGURE 5 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP780#) GENERAL APPEARANCE (BACK VIEW) FIGURE 6 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP780#) LABEL

Label Location Information Refer to the below red arrow: (For M/N: SP779#) Label (For M/N: SP780#) Label (For M/N: SP779#) Location (For M/N: SP780#) Location

FIGURE 1 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP779#) COVER REMOVED F IGURE 2 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP779#) MAIN BOARD REMOVED FIGURE 3 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP779#) MAIN BOARD (COMPONENT SIDE) F IGURE 4 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP779#) MAIN BOARD (SOLDERED SIDE) FIGURE 5 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP780#) COVER REMOVED F IGURE 6 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP780#) MAIN BOARD REMOVED FIGURE 7 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP780#) MAIN BOARD (COMPONENT SIDE) F IGURE 8 ELECTRIC DISCHARGE LAMP CONTROL EQUIPMENT (M/N: SP780#) MAIN BOARD (SOLDERED SIDE)

Operation Description Connect to AC power, the DC voltage will provide current. The current flows through the startup resistor to charge the integral capacitor. When the voltage sufficient to trigger the breakdown diode conduction to make the transistor behind conduction and saturation. Fluorescent lamp is light on.

Lineage Power (Shanghai) Co., Ltd. FCC ID: X82-BLST-SP77X Page 1 of 21 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F10151 Prepared For : Lineage Power (Shanghai) Co., Ltd. 1-2F, Building #58, No.461 Hongcao Road, Caohejing Hi-Tech Park, Shanghai 200233, China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. : ACI-F10151 Date of Test : Oct 22-29, 2010 Date of Report : Nov 10, 2010 Application for FCC Certificate On Behalf of Lineage Power (Shanghai) Co., Ltd. Electric Discharge Lamp Control Equipment Model No. : SP779# SP780# SP784# Serial No. : E2010102906E2010102907-- FCC ID : X82-BLST-SP77X Lineage Power (Shanghai) Co., Ltd. FCC ID: X82-BLST-SP77X Page 2 of 21 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F10151 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results ......................................................................................... 4 2 GENERAL INFORMATION .......................................................................................................... 5 2.1 Description of Equipment Under Test ........................................................................................ 5 2.2 Description of Test Facility ........................................................................................................ 6 2.3 Measurement Uncertainty .......................................................................................................... 6 3 CONDUCTED EMISSION TEST .................................................................................................. 7 3.1 Test Equipment ........................................................................................................................... 7 3.2 Block Diagram of Test Setup ..................................................................................................... 7 3.3 Conducted Emission Limits (FCC Part 18 Consumer Equipment) ............................................ 7 3.4 Test Configuration ...................................................................................................................... 7 3.5 Operating Condition of EUT ...................................................................................................... 8 3.6 Test Procedures .......................................................................................................................... 8 3.7 Test Results ................................................................................................................................ 8 4 MAGNETIC FIELD EMISSION TEST ...................................................................................... 11 4.1 Test Equipment ......................................................................................................................... 11 4.2 Block Diagram of Test Setup ................................................................................................... 11 4.3 Magnetic Field Emission Limit (FCC Part 18 305(b))............................................................. 12 4.4 Test Configuration .................................................................................................................... 12 4.5 Operating Condition of EUT .................................................................................................... 12 4.6 Test Procedures ........................................................................................................................ 12 4.7 Test Results .............................................................................................................................. 13 5 RADIATED EMISSION TEST ..................................................................................................... 16 5.1 Test Equipment ......................................................................................................................... 16 5.2 Block Diagram of Test Setup ................................................................................................... 16 5.3 Radiated Emission Limit (FCC Part 18.305(c) Consumer Equipment) ................................... 17 5.4 Test Configuration .................................................................................................................... 17 5.5 Operating Condition of EUT .................................................................................................... 17 5.6 Test Procedures ........................................................................................................................ 17 5.7 Test Results .............................................................................................................................. 18 6 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 21 Lineage Power (Shanghai) Co., Ltd. FCC ID: X82-BLST-SP77X Page 3 of 21 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F10151 TEST REPORT FOR FCC CERTIFICATE Applicant : Lineage Power (Shanghai) Co., Ltd. Manufacturer : Cherokee International (China) Power Supply Ltd. EUT Description : Electric Discharge Lamp Control Equipment (A) Model No. SP779# SP780# SP784# (B) Serial No. E2010102906E2010102907 -- (C) Power Supply 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 SUBPART C RF LIGHTING DEVICES OCTOBER 2009 AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 Subpart C (RF Lighting Devices) limits both radiated and conducted emissions. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed ful…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test F RONT VIEW S IDE VIEW 2. Magnetic Field Emission Test 3. Radiated Electromagnetic Emission Test FRONT VIEW OF RADIATED EMISSION TEST BACK VIEW OF RADIATED EMISSION TEST SETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION (M/N: SP779#) SETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION (M/N: SP779#) EUT IN LAMP EUT
