X8F-SCTOUCHSkyCaddie

Product Information Guide 2 3 © 2014 SkyHawke Technologies, LLC. All Rights Reserved. U.S. Pat. 8,758,170; 8,556,752; 8,523,711; 8,172,702; 7,118,498; 6,456,938; 5,844,483; 5,740,077; 5,507,485 SkyGolf ® and SkyCaddie ® are registered trademarks of SkyHawke Technologies, LLC, registered in the United States and other countries, and SkyGolf 360™ and SkyCaddie TOUCH™ are trademarks of SkyHawke Technologies, LLC. Apple ® , iPhone ® , iPod ® and iPad ® are trademarks of Apple, Inc. and are registered in the United States and other countries. Google Play™ is a trademark of Google, Inc. Bluetooth ® word and logo marks are registered trademarks owned by Bluetooth SIG, Inc. Use of marks not owned by SkyHawke Technologies is under license. Other trademarks and trade names are those of their respective owners. All content within is copyrighted by SkyHawke Technologies, LLC and may not be reprinted without permission. The content of this Guide (except for the SkyCaddie Product Use and License Agreement and the SkyCaddie TOUCH Consumer Limited Warranty) is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by SkyHawke Technologies, LLC. SkyHawke Technologies, LLC assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this Guide. IMPORTANT PLEASE READ CAREFULLY BEFORE USING YOUR SKYCADDIE TOUCH This Product Information Guide contains important safety, handling, and warranty information, as well as software license information, for your SkyCaddie TOUCH. Please read carefully before using your SkyCaddie TOUCH. Important Safety and Handling Information WARNING: Failure to follow these safety and handling instructions could result in fire, electric shock, or other personal injury or property damage, including damage to your SkyCaddie TOUCH. Carrying and Handling your SkyCaddie TOUCH Your SkyCaddie TOUCH contains sensitive components. Do not disassemble, open, crush, puncture, shred, microwave, incinerate, or insert foreign objects into your SkyCaddie TOUCH. Avoiding Water and Wet Locations Exposure to water may cause damage to your SkyCaddie TOUCH. Do not use your SkyCaddie TOUCH in rain or other wet locations. Take care not to 4 5 spill any food or liquid on your SkyCaddie TOUCH. Do not attempt to dry your SkyCaddie TOUCH with an external heat source, such as a microwave oven or hair dryer. SkyCaddie TOUCH devices that are damaged as a result of exposure to liquids are not serviceable. Repairing or Modifying your SkyCaddie TOUCH Never attempt to repair or modify your SkyCaddie TOUCH yourself. Disassembling your SkyCaddie TOUCH will void the warranty. Your SkyCaddie TOUCH does not contain any user-serviceable parts. Service should only be provided by a SkyGolf ® Authorized Service Provider. If your SkyCaddie TOUCH has been punctured, or subjected to a severe fall, do not use it until you contact an Authorized Service Provider. The rechargeable battery in your SkyCaddie TOUCH is not user-replaceable and should be replaced by a SkyGolf Authorized Service Provider only. For service information, go to www.SkyCaddie.com. Charging your SkyCaddie TOUCH In charging your SkyCaddie TOUCH, use only a SkyGolf supplied charger specifically designed for your SkyCaddie TOUCH. Use of other chargers may cause personal injury and property damage, including damage to your SkyCaddie TOUCH. Read all safety instructions for any products and accessories before using your SkyCaddie TOUCH. SkyGolf is not responsible for the operation of third-party accessories or their compliance with safety and regulatory standards. When charging the battery on your SkyCaddie TOUCH with an authorized SkyGolf charger designed for use with the SkyCaddie TOUCH, make sure that the charger is fully assembled before you plug it into a power outlet. Do not connect or disconnect the charger with wet hands. The charger may become warm during normal use, however your SkyCaddie TOUCH should never become hot. Always allow adequate ventilation around the charger and use care when handling. Unplug the charger if any of the following conditions exist: • The power cord or plug has become frayed or damaged. • The adapter is exposed to rain, liquid or excessive moisture. • The adapter case has become damaged. • You suspect the adapter needs service or repair. Choking Hazards Your SkyCaddie TOUCH contains small parts, which may present a choking hazard to small children. Keep your SkyCaddie TOUCH and its accessories away from children. Using Connectors and Ports Never force a connector into a port on your SkyCaddie TOUCH. Check for obstructions on the port. If the connector and port do not join with reasonable ease, make sure that the connector and port are properly aligned before attempting to insert again. Keeping Your SkyCaddie TOUCH Within Acceptable Temperatures Operate your SkyCaddie TOUCH in a place where the temperature is between 0° and 35° C (32° to 95° F). Low or high temperature conditions might shorten battery life or cause your SkyCaddie TOUCH to stop working properly. Avoid dramatic changes in temperature or humidity when using your SkyCaddie TOUCH and store it in a cool, dry place at room temperature. Exposure to Radio Frequency Energy Your SkyCaddie TOUCH contains radio transmitters and receivers, much like cell phones, pagers and other similar devices. When on, your SkyCaddie TOUCH sends and receives radio frequency (RF) energy through its antenna. 6 7 The SkyCaddie TOUCH can emit radio waves that can affect the operation of nearby electronics, including cardiac pacemakers. • Do not use the SkyCaddie TOUCH within 9 inches of a pacemaker. • If you have a pacemaker or other implanted medical device, do not use the SkyCaddie TOUCH without first consulting your doctor or the manufacturer of your medical device. Your SkyCaddie TOUCH has been tested and meets the SAR exposure requirements for Bluetooth ® operatio…

Text truncated - open the document above for the full version.

25:1483S.SGVTQ12W11!!! 312502304

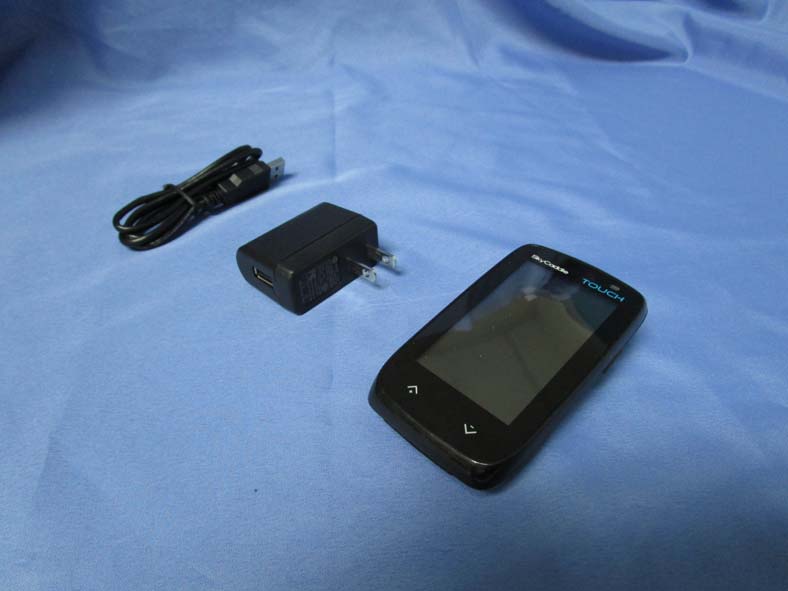

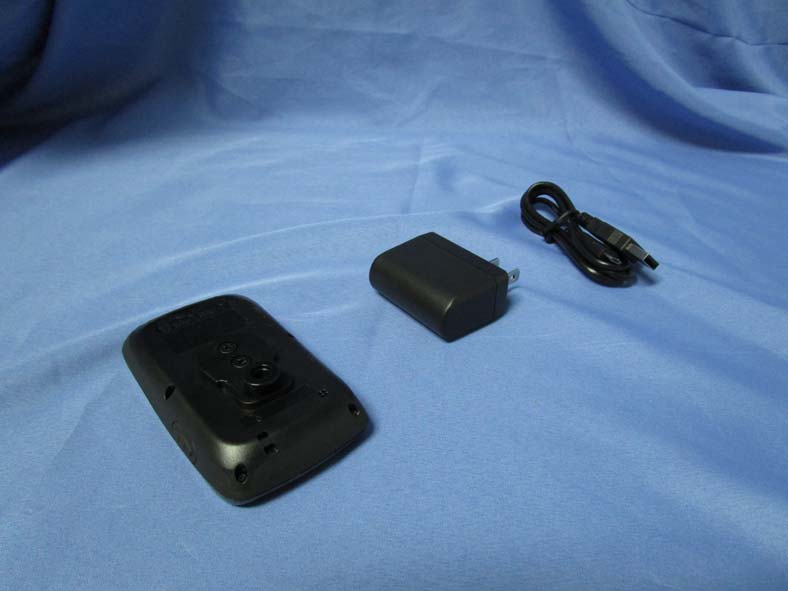

Report No：1490372R-RFUSP01V00-A Page: 133 of 144 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo Report No：1490372R-RFUSP01V00-A Page: 134 of 144 (3) EUT Photo

SkyCaddie / SkyGolf FCC ID.: X8F-SCTOUCH FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. SkyCaddie Model No.: Touch FCC ID : X8F-SCTOUCH S/N: Made in Taiwan Trade name: SkyCaddie / SkyGolf Model number.: Touch

Report No：1490372R-RFUSP01V00-A Page: 135 of 144 (4) EUT Photo (5) EUT Photo Report No：1490372R-RFUSP01V00-A Page: 136 of 144 (6) EUT Photo (7) EUT Photo Report No：1490372R-RFUSP01V00-A Page: 137 of 144 (8) EUT Photo (9) EUT Photo (ANT) Report No：1490372R-RFUSP01V00-A Page: 138 of 144 (10) EUT Photo (11) EUT Photo Report No：1490372R-RFUSP01V00-A Page: 139 of 144 (12) EUT Photo (MB) (13) EUT Photo Report No：1490372R-RFUSP01V00-A Page: 140 of 144 (14) EUT Photo (15) EUT Photo Report No：1490372R-RFUSP01V00-A Page: 141 of 144 (16) EUT Photo (17) EUT Photo Report No：1490372R-RFUSP01V00-A Page: 142 of 144 (18) EUT Photo (19) EUT Photo (ANT) Report No：1490372R-RFUSP01V00-A Page: 143 of 144 (20) EUT Photo (ANT -GPS) (21) EUT Photo(Battery) Report No：1490372R-RFUSP01V00-A Page: 144 of 144 (22) EUT Photo (23) EUT Photo(USB Cable)

Report No. 1490372R-RF-US-Exp Page: 1 of 3 RF Exposure Evaluation Declaration Product Name ：SkyCaddie Model No. ：Touch FCC ID. ：X8F-SCTOUCH Applicant : SkyHawke Technologies, LLC Address : 274 Commerce Park Drive, Ridgeland, Mississippi 39157 USA Date of Receipt : 2014/09/15 Date of Declaration : 2014/10/16 Report No. : 1490372R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 1490372R-RF-US-Exp Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1490372R-RF-US-Exp Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product SkyCaddie Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0.2dBi or 1.05 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: π/4 DQPSK Bluetooth Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 00 2402 0.2884 0.00006 39 2441 0.6152 0.00013 78 2480 0.9313 0.00019 8DQPSK Bluetooth Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 00 2402 0.2879 0.00006 39 2441 0.6112 0.00013 78 2480 0.9410 0.00020 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No：1490372R-RFUSP01V00-A Page: 1 of 144 FCC Test Report Product Name：SkyCaddie Model No. ：Touch FCC ID. ：X8F-SCTOUCH Applicant ： SkyHawke Technologies, LLC Address ： 274 Commerce Park Drive, Ridgeland, Mississippi 39157 USA Date of Receipt：2014/02/17 Issued Date ：2014/10/16 Report No. ：1490372R-RFUSP01V00-A Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：1490372R-RFUSP01V00-A Page: 2 of 144 Test Report Certification Issued Date : 2014/10/16 Report No. : 1490372R-RFUSP01V00-A Product Name ： SkyCaddie Applicant ： SkyHawke Technologies, LLC Address ： 274 Commerce Park Drive, Ridgeland, Mississippi 39157 USA Manufacturer ： Holux Technology, Inc. Model No. ： Touch FCC ID. ： X8F-SCTOUCH EUT Voltage : Mode 1: DC 5V (Power by PC) Mode 2: AC100-240V, 50-60Hz Mode 3: DC 3.7V (Power by Battery) Trade Name ： SkyCaddie / SkyGolf Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2013 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Fonbo Fang / Engineering Adm. Assistant ) Reviewed By : ( Sabrina Tsai / Engineer ) Approved By : ( Roy Wang / Director ) Report No：1490372R-RFUSP01V00-A Page: 3 of 144 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 NCC, Certificate No: NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：1490372R-RFUSP01V00-A Page: 4 of 144 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 6 1.1. EUT Description ............................................................................................................. 6 1.2. Test Mode .......................................................................................................................8 1.3. Tested System Details .................................................................................................... 9 1.4. Configuration of tested System .................................................................................... 10 1.5. EUT Exercise Software ................................................................................................ 11 1.6. Test Facility...................................................................................................................12 2. Conducted Emission .................................................................................................... 13 2.1. Test Equipment............................................................................................................. 13 2.2. Test Setup .................................................................................................................... 13 2.3. Limits ............................................................................................................................ 14 2.4. Test Procedure ............................................................................................................. 14 2.5. Test Specification.......................................................................................................... 14 2.6. Uncertainty ................................................................................................................... 14 2.7. Test Result....................................................................................................................15 2.8. Test Photo .................................................................................................................... 19 3. Peak Power Output ...................................................................................................... 21 3.1. Test Equipment............................................................................................................. 21 3.2. Test Setup .................................................................................................................... 21 3.3. Test procedures ............................................................................................................ 21 3.4. Limits ............................................................................................................................ 21 3.5. Test Specification.......................................................................................................... 21 3.6. Test Result....................................................................................................................22 4. Radiated Emission ....................................................................................................... 28 4.1. Test Equipment............................................…

Text truncated - open the document above for the full version.

Report No：1490372R-RFUSP01V00-A Page: 19 of 144 2.8. Test Photo Test Mode ： Mode 1: Transmit (Power by PC) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit (Power by PC) Description： Back View of Conducted Emission Test Setup Report No：1490372R-RFUSP01V00-A Page: 20 of 144 Test Mode ： Mode 2: Transmit (Power by Adapter) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 2: Transmit (Power by Adapter) Description： Back View of Conducted Emission Test Setup Report No：1490372R-RFUSP01V00-A Page: 48 of 144 4.7. Test Photo Test Mode ： Mode 1: Transmit (Power by PC) Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 1: Transmit (Power by PC) Description： Back View of Radiated Emission Test Setup (Bilog) Report No：1490372R-RFUSP01V00-A Page: 49 of 144 Test Mode ： Mode 2: Transmit (Power by Adapter) Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 2: Transmit (Power by Adapter) Description： Back View of Radiated Emission Test Setup (Bilog) Report No：1490372R-RFUSP01V00-A Page: 50 of 144 Test Mode ： Mode 3: Transmit (Power by Battery) Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 3: Transmit (Power by Battery) Description： Back View of Radiated Emission Test Setup (Bilog) Report No：1490372R-RFUSP01V00-A Page: 51 of 144 Test Mode ： Mode 1: Transmit (Power by PC) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit (Power by PC) Description： Back View of Radiated Emission Test Setup (Horn)
