X8WBT40NBluetooth 5.3, 802.15.4 module

Fanstel Corporation, Taipei

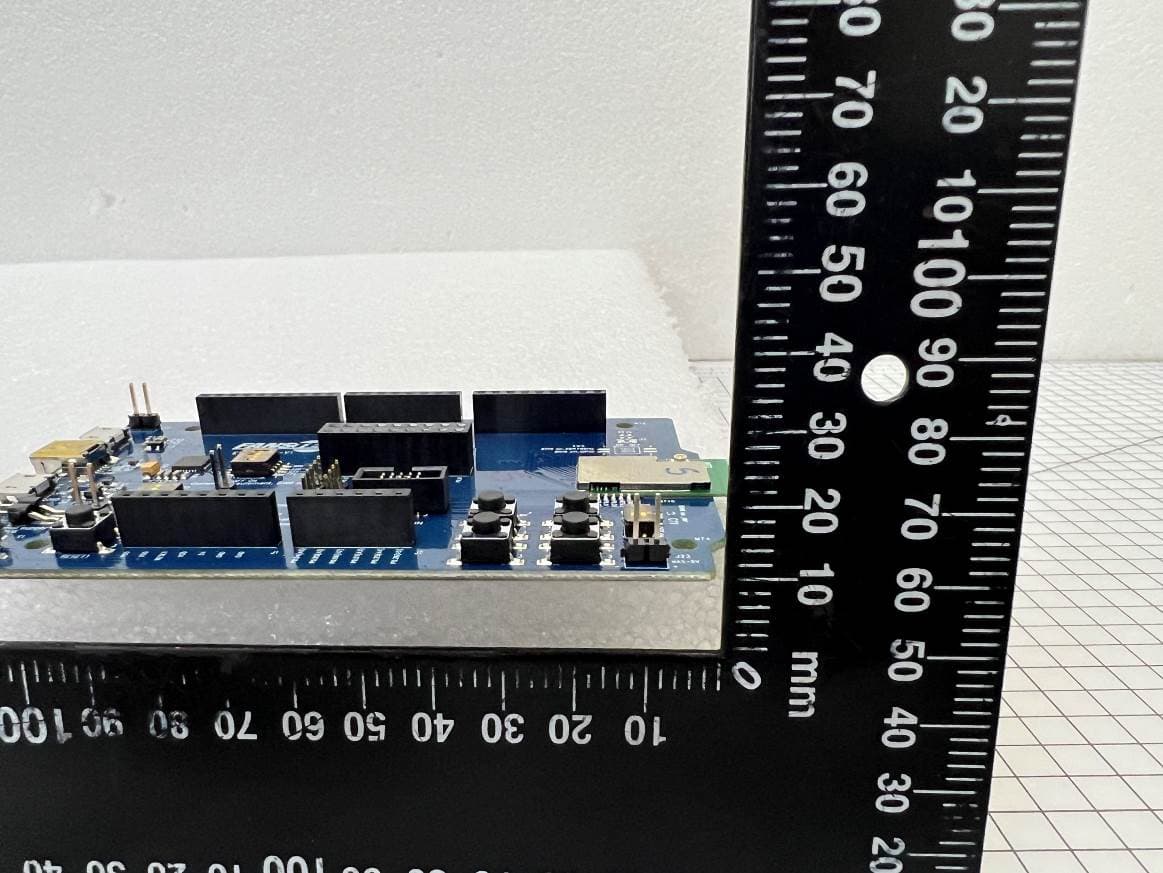

Bluetooth 5.3, 802.15.4 module - FCC ID X8WBT40N - Fanstel Corporation, Taipei
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
May 22, 2023
Application Purpose
Original Equipment
Date of Application
May 18, 2023
Equipment Note
Bluetooth 5.3, 802.15.4 module
Frequency Range
2405.00000000 - 2475.00000000
Company
Fanstel Corporation, Taipei
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗

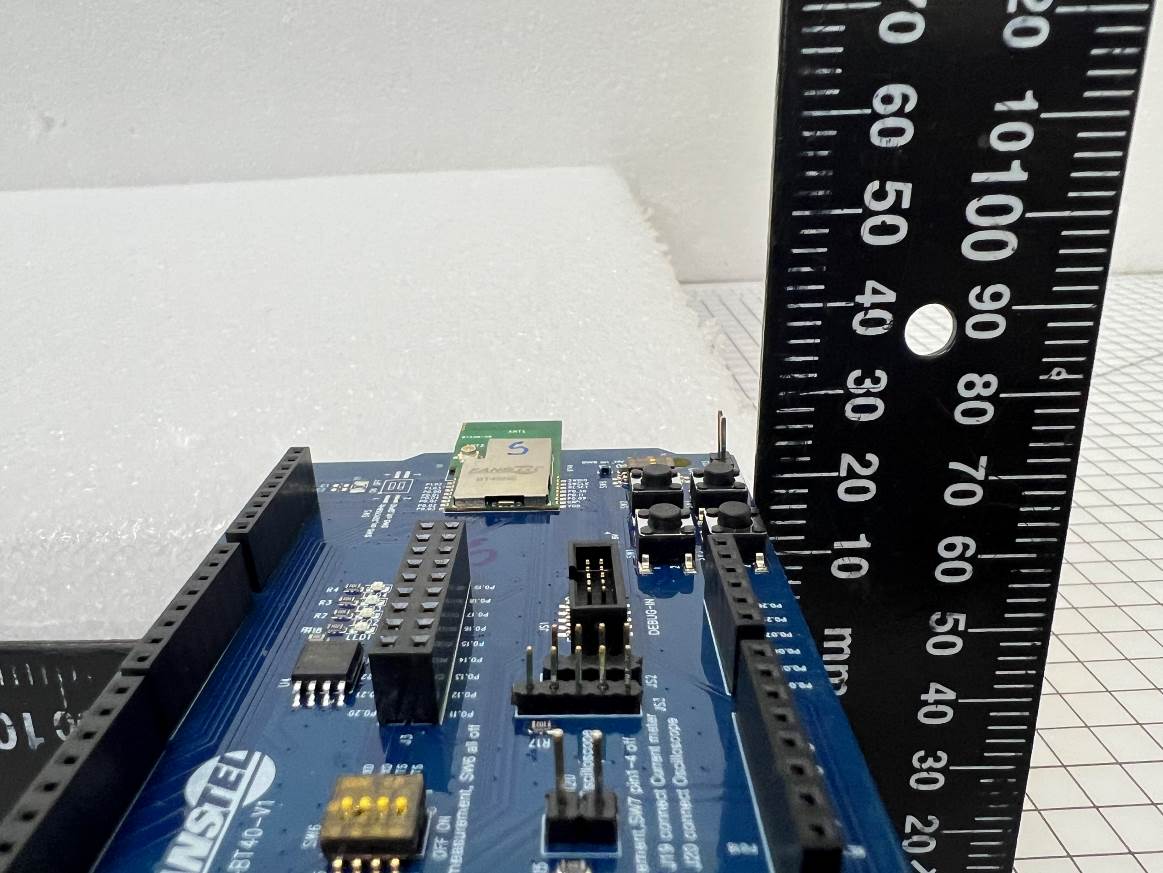

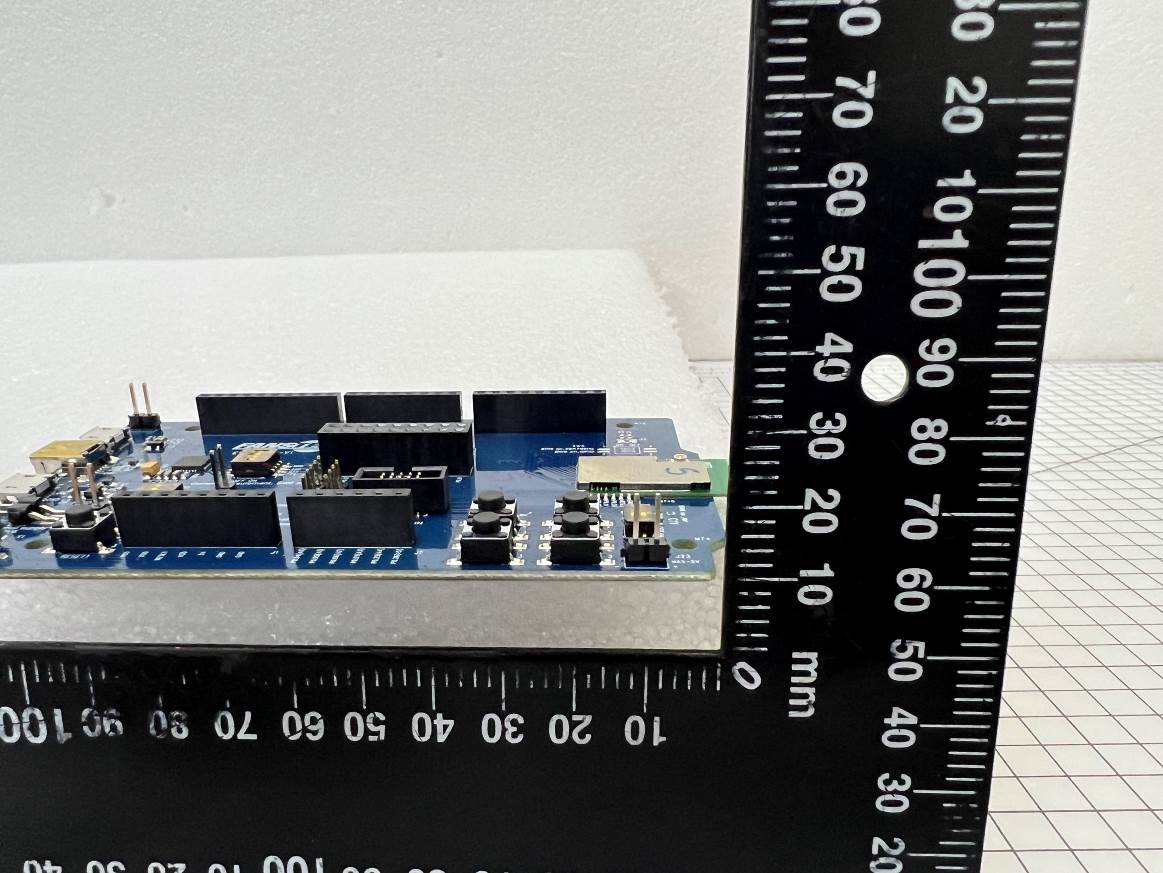

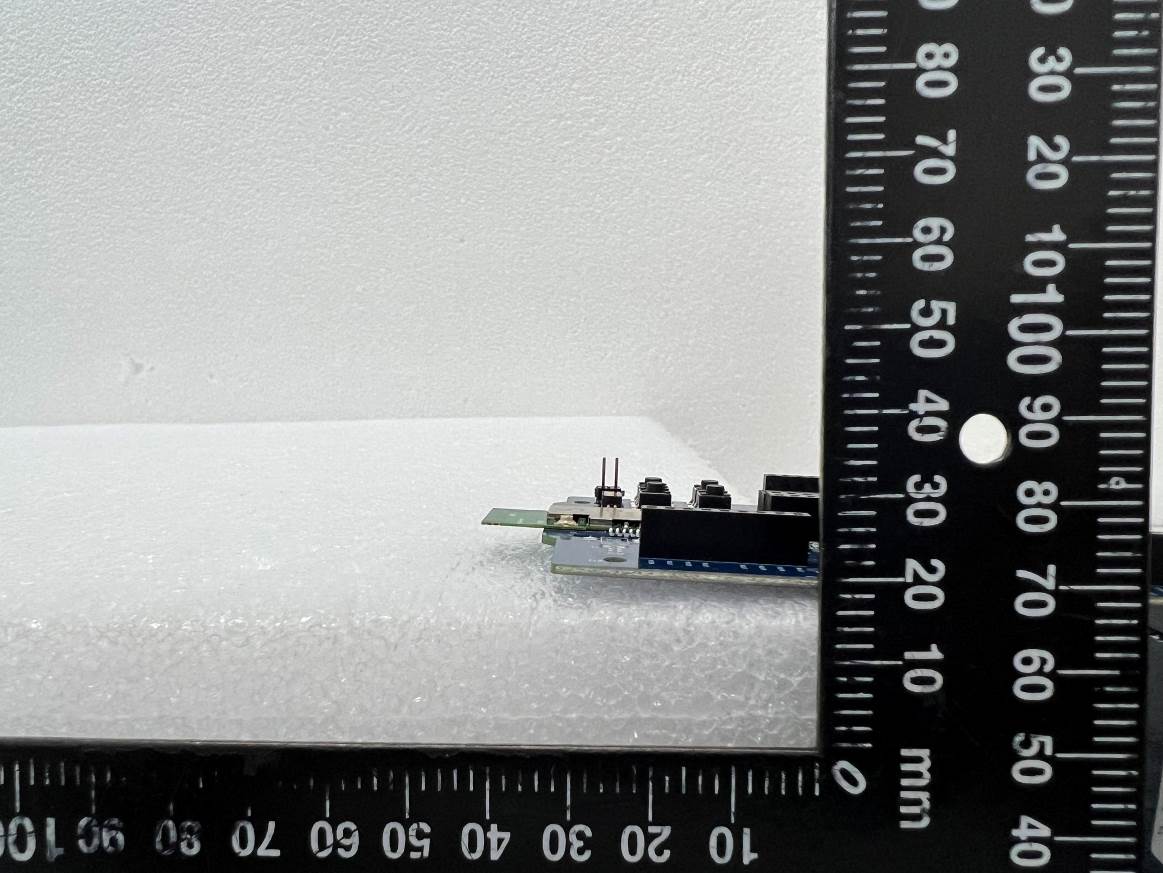

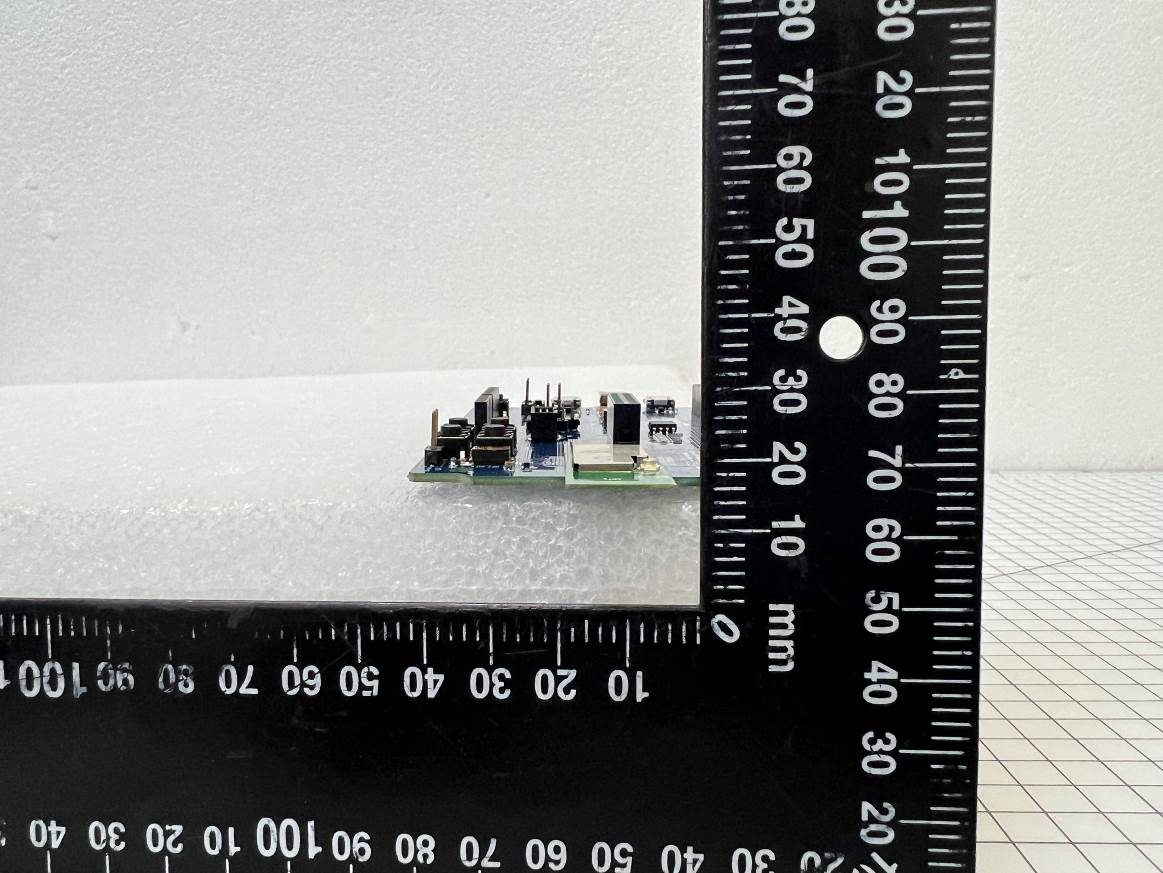

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

BLE 5.3 Modules with nRF21540 PA, BT40N/NE Draft Ver 0.90, Feb. 2023 1 BluNor BT40N/NE is a series of powerful, highly flexible, ultra long range Bluetooth Low Energy (BLE) modules using Nordic nRF21540 power amplifier. With up to 128 MHz dual core ARM Cortex TM M33 MCU, embedded 2.4GHz multi-protocol transceiver, and various antenna solution. It allows faster time to market with reduced development cost. No external component needed to minimize host PCB area: Both 32 MHz and 32.768 KHz, -40 o C to +105 o C, 20 PPM crystals are integrated. The N (BT40N) series module is footprint compatible with the Fanstel X series module (BT40X) using a Skyworks PA. The nRF21540 PA can be controlled using commands through SPI interface. BT40NE have both a PCB antenna and an u.FL connector. BT40N, BT40NE • nRF5340 QKAA, dual core ARM ® Cortex M33 • Application Core: 128 MHz Cortex M33 with FPU and DSP instructions.1MB flash, 512KB RAM, 8KB 2-way set associate cache. ARM® TrustZone® Cryptocell-312 co-processor • Network core: 64 MHz Cortex M33 with 2KB instruction cache.256KB flash, 64KB RAM • nRF21540 power amplifier. • NT40N: a high performance PCB antenna. • NT40NE: a high performance PCB antenna + an u.FL connector. • 39 GPIOs Common Specifications • Q D I D : 1 1 95 1 7 , 1 82 6 2 6 Application Examples • B L E - L TE M . 2 mo d u l e • B L E t o L T E g a t e w a y s Model Summaries module BT40N BT40NE SoC nRF5340 nRF5340 Size, mm 15x29.9x2.0 15x29.9x2.0 32M,32.768kHz crystals Integrated Integrated DCDC inductors,VDD,VDDH Integrated Integrated BT Antenna PA+PCB PA+PCB+u.FL Max TX, conducted Max TX, radiated Operating temp. -40 o C to +105 o C -40 o C to +105 o C FCC ID ISED ID CE, RCM TELEC Evaluation board EV-BT40NE EV-BT40NE Availability BLE 5.3 Modules with nRF21540 PA, BT40N/NE Draft Ver 0.90, Feb. 2023 2 Table Of Contents 1. Introduction .................................................................................................................................................... 3 BT40N, BT40NE Block Diagram .................................................................................................................... 3 2. Codes Development Using Nordic Tools ....................................................................................................... 5 Over-The-Air DFU .......................................................................................................................................... 5 nRF Connect SDK ......................................................................................................................................... 5 Development Tools ........................................................................................................................................ 5 3. Product Descriptions ...................................................................................................................................... 6 Mechanical Drawings ..................................................................................................................................... 6 Pin Assignments of BT40 ............................................................................................................................... 9 Pin Functions ............................................................................................................................................... 10 Mounting BT40N on the Host PCB ............................................................................................................... 13 Host Board Design for Low Cost or Long Range .......................................................................................... 14 Control Nordic nRF21540 Power Amplifier ................................................................................................... 15 Setting for BT833N and BT840N .............................................................................................................. 15 4. BT40F Evaluation Board .............................................................................................................................. 15 Nordic Development Tools ........................................................................................................................... 17 Android OS Apps ......................................................................................................................................... 17 iOS Apps ..................................................................................................................................................... 17 EV-BT40NE EvaluationBoard Schematics .................................................................................................. 18 Suggestion for Battery Power Application .................................................................................................... 19 5. Miscellaneous .............................................................................................................................................. 20 Soldering Temperature-Time Profile for Re-Flow Soldering ......................................................................... 20 Cautions, Design Notes, and Installation Notes ........................................................................................... 20 Packaging and Lot Number .......................................................................................................................... 24 FCC Label ................................................................................................................................................... 24 Revision History .............................................................................................................................................. 26 Contact Us ...................................................................................................................................................... 27 BLE 5.3 Modules with nRF215…

Text truncated - open the document above for the full version.

Attestation Statements

Covered list attestation FCC application letter Kiwa Page 1 of 2 RF_755_01 09-02-2023 [PLACE COMPANY LOGO HERE OR PUT ON COMPANY LETTERHEAD] Certification Application Attestation Statements < Fanstel Corporation, Taipei> < 10F-10, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih, > < 221> < New Taipei City > <c Taiwan> To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) [Paudy Tung] certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) [Paudy Tung] (“the applicant”) certifies that, as of the date of the filing of this application, the applicant - is / - is not (3) identified on the Covered List as an entity producing “covered” equipment. Date: 2023/05/08 City: New Taipei City Name (2) : Paudy Tung Function: Engineer Telephone number: +886-2-26989328 Email address: [email protected] Signature: 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . (2): For FCC it must be the Grantee Code “owner” or the authorized agent. (3): double click on the appropriate box and select ‘’checked” then “OK” Covered list attestation FCC application letter Kiwa Page 2 of 2 RF_755_01 09-02-2023 [PLACE COMPANY LOGO HERE OR PUT ON COMPANY LETTERHEAD] Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 01 07-02-2023 1 st version RvM Issued/modified by : Richard van de Meer Function : Certification assessor Revision : 01 Date : 07-02-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 09-02-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 09-02-2023

Cover Letter(s)

RF_160_05 Declaration of Authorisation Date of issue 02-01-2023 Declaration of Authorization We Name: Fanstel Corporation, Taipei Address: 10F-10, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih,. City: New Taipei City 221 Country: Taiwan Declare that: Name Representative of agent: ............. (1) Agent Company name: International Standards Laboratory Corp. Address: No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., City: Tao Yuan City 325. Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Bluetooth 5.3, 802.15.4 module Type designation: BT40N ; BT40NE  Trademark: Fanstel Validity/ expiry date on our behalf. Date: 2023/5/08.. City: New Taipei City .. Name: Paudy Tung .. (2) Function: Engineer............................... Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent. Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 02 1 02-01-2023 History sheet added AG Issued/modified by : Axel Gase Function : Quality Manager Revision : 02 Date : 02-01-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 02-01-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 02-01-2023

Cover Letter(s)

FCC, Request for non-disclosure Date: 02-01-2022 RF_501, Issue 10 Company Name: Fanstel Corporation, Taipei Address: 10F-10, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih, City: New Taipei City 221 Country: Taiwan To: Kiwa Netherlands B.V., Dept. FCC TCB Wilmersdorf 50 7327 AC Apeldoorn The Netherlands Subject: Request for confidentiality FCC ID: X8WBT40N Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 2023/5/08 Name and signature of applicant: Paudy Tung Engineer Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should state in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Kiwa NL B.V. at least 7 days before date of actual marketing or before expiration of the STC period FCC, Request for non-disclosure Date: 02-01-2023 RF_501, Issue 10 Page 1 of 1 Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 10 1 02-01-2023 History sheet added AG Issued/modified by : Axel Gase Function : Quality Manager Revision : 10 Date : 02-01-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 02-01-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 02-01-2023

Cover Letter(s)

RF_734_05 FCC Modular Approval Request Page 1 of 3 28-12-2022 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: _X8WBT40N__________________ Items to be covered by Single modular transmitters. Answer from applicant 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. The module has a metal shielded. Refer to the external photo of EUT . 2. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Data to the modulation circuit is buffered as described in the circuit/block diagram - nRF51540 provided with the application. 3. The module must contain power supply regulation on the module The module contains its own power supply regulation. Please refer to schematic as nRF52840 contain power regulation supplied to sub- functionality of the radio 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Device is equipped with External Antenna with unique non standard antenna port, PCB and Dipole Antenna. Refer to the photo of EUT. 5.The module must demonstrate compliance in a stand-alone configuration. The module was tested standalone as shown in test report setup photographs filed with this application. 6.The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The modular has a permanent fixed label, and below statement was listed in the User Manual; The host device must be labeled to display the FCC ID of the module “Contains FCC ID: X8WBT40N” . 7.The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual 8.The module must comply with RF exposure requirements. The transmitter meets MPE calculation of 47CFR§ 2.1091 & 47 CFR §1.1307. Refer to MPE Reports and Refer to modular installation manual. RF_734_05 FCC Modular Approval Request Page 2 of 3 28-12-2022 Items to be covered by Split modular transmitters. Answer from applicant 1. The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. 2. Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3. Control information and other data may be exchanged between the transmitter control elements and radio front end. 4. The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. 5. Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): __ Paudy Tung / Enginner________________ Date: ___2023/5/08_________ Signature: RF_734_05 FCC Modular Approval Request Page 3 of 3 28-12-2022 Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 5 1 28-12-2022 History sheet added WJJ Issued/modified by : Willem Jan Jong Function : Team Lead Revision : 5 Date : 28-12-2022 Verified by : Axel Gase Function : Quality Manager Date : 28-12-2022 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 28-12-2022

External Photos

International Standards Laboratory Corp. Report Number: ISL-23LR0019P Appendix Photographs of EUT of Product Name Bluetooth 5.3, 802.15.4 module Main Model BT40N Series Model BT40NE Brand Fanstel International Standards Laboratory Corp. Report Number: ISL-23LR0019P -1- EUT-1. EUT-2. International Standards Laboratory Corp. Report Number: ISL-23LR0019P -2- EUT-3. EUT-4. International Standards Laboratory Corp. Report Number: ISL-23LR0019P -3- EUT-5. EUT-6.

ID Label/Location Info

FCC ID & IC LABEL FORMAT AND LOCATION Applicant: Fanstel Corporation, Taipei FCC ID: X8WBT40N IC: 4100A-BT40N

Internal Photos

International Standards Laboratory Corp. Report Number: ISL-23LR0019P Appendix Photographs of EUT of Product Name Bluetooth 5.3, 802.15.4 module Main Model BT40N Series Model BT40NE Brand Fanstel International Standards Laboratory Corp. Report Number: ISL-23LR0019P -1- EUT-1. EUT-2. International Standards Laboratory Corp. Report Number: ISL-23LR0019P -2- EUT-3. EUT-4. PCB_Antenna International Standards Laboratory Corp. Report Number: ISL-23LR0019P -3- EUT-5. _ANT060 EUT-6. _module

RF Exposure Info

TEST REPORT of FCC/IC MPE REQUIREMENT Product : Bluetooth 5.3, 802.15.4 module Brand Name: Fanstel Model: BT40N; BT40NE Model Difference: Antenna difference Applicant: Fanstel Corporation, Taipei Address: 10F-10, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih, New Taipei City 221 Taiwan Test Performed by: International Standards Laboratory Corp. LT Lab. TEL: +886-3-263-8888 FAX: +886-3-263-8899 No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., Tao Yuan City 325, Taiwan Report No.: ISL-23LR0019FMPE Issue Date :2023/04/11 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. The uncertainty of the measurement does not include in consideration of the test result unless the customer required the determination of uncertainty via the agreement, regulation or standard document specification. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory Corp. -2 of 8- International Standards Laboratory Corp. Report Number: ISL-23LR0019FMPE VERIFICATION OF COMPLIANCE Applicant: Fanstel Corporation, Taipei Product Description: Bluetooth 5.3, 802.15.4 module Brand Name: Fanstel Model No.: BT40N; BT40NE Model Difference: Antenna difference Date of test: 2023/02/02 ~ 2023/04/11 Date of EUT Received: 2023/02/02 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory Corp. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2023/04/11 Weitin Chen / Senior Engineer Prepared By: Date: 2023/04/11 Gigi Yeh / Senior Engineer Approved By: Date: 2023/04/11 Jerry Liu / Technical Manager -3 of 8- International Standards Laboratory Corp. Report Number: ISL-23LR0019FMPE Table of Contents 1. Description of Equipment under Test (EUT) ............................................................................... 4 2. Maximum Permissible Exposure (MPE) ..................................................................................... 5 3. Evaluation Result: ........................................................................................................................ 7 -4 of 8- International Standards Laboratory Corp. Report Number: ISL-23LR0019FMPE 1. Description of Equipment under Test (EUT) General Information Product Name: Bluetooth 5.3, 802.15.4 module Brand Name: Fanstel Model Name: BT40N; BT40NE Model Difference: Antenna. Please see table below for detail. Temperature Range -40°C to +105°C Power Supply: 5VDC Information Frequency Range: 2402 – 2480MHz Max Output Power: 19.137dBm Channel number: 40 channels Modulation type: GFSK PMN (Product Marketing Name) BT40N HVIN (Hardware Version Identification Number) BT40N; BT40NE FVIN (Firmware Version Identification Number) Nrf Connect SDK 1.4.99 Test SW Version: Putty 0.60.0.0 RFpower setting: Pos0dBm Antenna Type Brand Model Peak Gain Frequency Range Connector Type 1 Dipole Fanstel ANT060 6dBi 2400-2485 MHz MMCX 2 PCB Fanstel F type 0.88dBi 2400-2485 MHz MMCX Model Summaries module BT40N BT40NE SoC nRF5340 nRF5340 Size, mm 15x29.9x2.0 15x29.9x2.0 32M,32.768kHz crystals Integrated Integrated DCDC inductors,VDD,VDDH Integrated Integrated BT Antenna PA+PCB PA+PCB+u.FL Operating temp. -40oC to +105oC -40oC to +105oC Evaluation board EV-BT40NE EV-BT40NE -5 of 8- International Standards Laboratory Corp. Report Number: ISL-23LR0019FMPE 2. Maximum Permissible Exposure (MPE) 2.1 Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density -6 of 8- International Standards Laboratory Corp. Report Number: ISL-23LR0019FMPE According to RSS 102 issue 5. 2.5.2 Exemption Limits for Routine Evaluation – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ 0.5 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance); • at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). In these cases, the information contained in t…

Text truncated - open the document above for the full version.

Test Report

TEST REPORT of FCC Part 15 Subpart C & CANADA RSS-247 Product: Bluetooth 5.3, 802.15.4 module Brand: Fanstel Main Model: BT40N Series Model: BT40NE Model Difference: Antenna. Please see page 6 for detail FCC ID: X8WBT40N IC: 4100A-BT40N FCC Rule Part: §15.247, Cat: DTS IC Rule Part: RSS-247 issue 2: 2017 RSS-Gen issue 5: 2018 Reference: ANSI C63.10: 2013 KDB 558074 D01 v05r02 Applicant: Fanstel Corporation, Taipei Address 10F-10, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih, New Taipei City 221 Taiwan Test Performed by: International Standards Laboratory Corp. LT Lab. TEL: +886-3-263-8888 FAX: +886-3-263-8899 No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., Tao Yuan City 325, Taiwan Report No.: ISL-23LR0019FCBLE Issue Date : April 11, 2023 FCC Registration Number: 487532 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. The uncertainty of the measurement does not include in consideration of the test result unless the customer required the determination of uncertainty via the agreement, regulation or standard document specification. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory Corp. -2 of 62- International Standards Laboratory Corp. Report Number: ISL-23LR0019FCBL E VERIFICATION OF COMPLIANCE Applicant: Fanstel Corporation, Taipei Equipment Under Test: Bluetooth 5.3, 802.15.4 module Brand: Fanstel Main Model: BT40N Series Model: BT40NE Model Difference: Antenna. Please see page 6 for detail FCC ID: X8WBT40N IC: 4100A-BT40N Date of Test: February 2, 2023 ~ April 11, 2023 Date of EUT Received: February 2, 2023 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15.247 RSS-247 Complied We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory Corp. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: April 11, 2023 Weitin Chen / Senior Engineer Prepared By: Date: April 11, 2023 Gigi Yeh / Senior Engineer Approved By: Date: April 11, 2023 Jerry Liu / Assistant Manager -3 of 62- International Standards Laboratory Corp. Report Number: ISL-23LR0019FCBL E Version Version No. Date Description 00 April 11, 2023 Initial creation of document -4 of 62- International Standards Laboratory Corp. Report Number: ISL-23LR0019FCBL E TABLE OF CONTENTS 1. General ........................................................................................................................................ 6 1.1 DESCRIPTION OF EUT ...................................................................................................................... 6 1.2 SPECIAL ACCESSORIES ..................................................................................................................... 7 1.3 EQUIPMENT MODIFICATIONS ........................................................................................................... 7 2. System Test Configuration ........................................................................................................ 8 2.1 EUT CONFIGURATION ...................................................................................................................... 8 2.2 EUT EXERCISE ................................................................................................................................. 8 2.3 TEST PROCEDURE ............................................................................................................................. 8 2.4 CONFIGURATION OF TESTED SYSTEM .............................................................................................. 8 2.5 DUTY FACTOR .................................................................................................................................. 9 3. Summary of Test Results ......................................................................................................... 10 4. Description of Test Modes ....................................................................................................... 10 5. AC Line Conduced Emission Test .......................................................................................... 11 5.1 STANDARD APPLICABLE .................................................................................................................11 5.2 MEASUREMENT PROCEDURE...........................................................................................................11 5.3 MEASUREMENT RESULT..................................................................................................................12 6. Peak Output Power Measurement ......................................................................................... 14 6.1 STANDARD APPLICABLE .................................................................................................................14 6.2 MEASUREMENT PROCEDURE...........................................................................................................14 6.3 MEASUREMENT RESULT..................................................................................................................15 7. Radiated Spurious Emission Test ........................................................................................... 16 7.1 STANDARD APPLICABLE .................................................................................................................16 7.2 MEASUREMENT PROCEDURE....................................................................…

Text truncated - open the document above for the full version.

Test Report

TEST REPORT of FCC Part 15 Subpart C & CANADA RSS-247 Product: Bluetooth 5.3, 802.15.4 module Brand: Fanstel Main Model: BT40N Seri…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Paudy Tung(Engineer)
[email protected]886-2-26989328Fax: 886-2-26984813

Technical Contact

International Standards Laboratory Corp.Jerry Liu
[email protected]+88632638888

No. 120, Lane 180, Hsin Ho Rd., Lung Tan Dist., · Taiwan

Non-Technical Contact

International Standards Laboratory Corp.Jerry Liu
[email protected]+88632638888

Test Firm

International Standards Laboratory Corp.Benson Chen
[email protected]886-3-263-8888Fax: 886-3-263-8899

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.40 GHz - 2.48 GHz53.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users may not be provided with the module installation instructions. OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance.
