X8WWM02CWIFI 6 Module

WM02C Compact, WiFi 6 Companion Modules Ver 0.97, Aug. 2024 1 WM02C Series module is a powerful, highly flexible, ultra low power WiFi 6 module using Nordic nRF7002 SoC. With an integrated PCB trace antenna, a chip antenna, an u.FL, or pads for an external antenna, it allows faster time to market with reduced development cost. A series of nRF5340 or nRF52840 modules can manage WiFi 6 modules through SPI interface. Many Fanstel modules are certified for both BLE and Thread, ideal for Matter applications. Specifications: • Nordic nRF7002 SoC. • Low-power and secure Wi-Fi for the IoT • Ideal coexistence with Bluetooth LE • Supports IEEE 802.11 a/b/g/n/ac/ax • Supports Target Wake Time (TWT), Orthogonal Frequency Division Multiple Access (OFDMA, Downlink and Uplink), BSS coloring • WiFi CERTIFIED 6 TM , WiFi CERTIFIED TM a/b/g/n/ac, WiFi Enhanced Open TM . • Supports WPA3 TM , WPA2 TM , WPA TM - Personal and Enterprise, Protected Management Frames. • Supports WMM ® , WMM-Power Save, WiFi Agile Multiband TM , WiFi Direct ® . • 2.4 GHz and 5 GHz dual-band or 2.4 GHz only • Adjustable TX power from +5 to +19 dBm. • Power consumption: • 165 mA @+15 dBm TX, 2.4 GHz, MCS7, Vbat=3.6V; 56 mA RX. • 244 mA @+15 dBm, 5 GHz, MCS7, Vbat=3.6V; 58 mA RX. • SPI / QSPI • Wi-Fi 6 Station (STA) • 1 Spatial Stream (SS) • 20 MHz channel bandwidth • 64 QAM (MCS7), 86 Mbps PHY throughput • Co-existence interfaces • 16 castellated pins. • Integrated shield to resist EMI • 40 MHz crystal embedded. • Operation voltage: 2.9V to 3.4V • Operation temperature: -4 0 °C to + 8 5 °C • FCC ID: • ISED ID: • CE: • Japan: • Australia RCM: • Taiwan NCC: Bluetooth Host Modules Matter applications, Certified for BLE and Thread. • nRF5340: BT40/BT40E/BT40F; BT40N/BT40NE(with nRF21540 PA). • nRF52840: BT840/BT840E/BT840F; BT840N/BT840NE (with nRF21540 PA). Certified for BLE only • nRF5340: BC40P/BC40C/BC40M. • nRF52840: BC840/BC840M/BC840E; BM840/BM840P; BT840X/BT840XE (with SKY66112 PA) Model Summaries module WM02C WM02V WM02E WM02P WM02F SoC nRF7002 nRF7002 nRF7002 nRF7002 nRF7002 WiFI 6 frequencies 2.4GHz + 5GHz 2.4GHz+5GHz 2.4GHz+5GHz 2.4GHz+5GHz 2.4GHz+5GHz Size, mm 12x19.1x2.0 12x25.3x2.0 12x16.8x2.0 12x12.9x2.0 12 (15.1) x24.3x2.0 BT Antenna Chip Chip u.FL Pads High performance PCB 2.4GHz range, iPhone 14 549 meters 505 meters 550 meters 493 meters 5GHz range, iPhone 14 413 meters 498 meters 510 meters 375 meters Availability Production Production Production Production WM02C Compact, WiFi 6 Companion Modules Ver 0.97, Aug. 2024 2 Table Of Contents 1. Introduction .................................................................................................................................................... 3 WM02C Block Diagram .............................................................................................................................. 3 2. Hardware Specifications and Designs............................................................................................................ 6 Block Diagram of nRF7002 ............................................................................................................................ 6 Mechanical Drawings ..................................................................................................................................... 7 Pin Assignments of WM02C ........................................................................................................................ 11 Pin Function ................................................................................................................................................. 11 Powering Up Sequence ............................................................................................................................... 13 Power Consumption Measurements ............................................................................................................ 13 Mounting WM02C Modules on the Host PCB ............................................................................................... 15 Host Board Layout ....................................................................................................................................... 15 3. Firmware Development ................................................................................................................................ 16 WM02C Evaluation Board ............................................................................................................................ 16 Nordic Development Tools ........................................................................................................................... 16 Codes for Evaluation Boards. ...................................................................................................................... 21 MAC addresses ........................................................................................................................................... 21 Setting Regional Transmission Parameters ................................................................................................. 22 USA, Canada, and Taiwan ....................................................................................................................... 22 Europe, UK, and Australia ........................................................................................................................ 22 Japan TELEC ........................................................................................................................................... 22 Evaluation Board Schematics ...................................................................................................................... 23 4. WiFi Range Measurements ......................................................................................................................... 25 Preliminary Measurement Results ............................................................................…

Text truncated - open the document above for the full version.

Agent letter FCC attestation statement Kiwa Page 1 of 2 RF_753, Issue 2 15-02-2023 [PLACE ON APPLICANT/COMPANY LETTERHEAD] U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Kiwa Nederland B.V. Wilmersdorf 50 7327 AC Apeldoorn Postbus 137 7300 AC Apeldoorn Netherlands ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company name: Fanstel Corp. FRN: 0023143266 Contact person name: Yuan Fan Street address: 7466 E. Monte Cristo Ave. Scottsdale ZIP/City/State AZ 85260 USA Telephone number: 1 480 948 4928 Email address: [email protected] Signature: Date: 2024/7/31 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Fanstel Corporation, Taipei Grantee Code: X8W Contact person name: Paudy Tung Street address: 10F-10, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi- Chih,. ZIP/City/State/Country New Taipei City 221 Taiwan Telephone number: +886-2-2698-9328 Email address: [email protected] Signature: Date: 2024/7/31 Agent letter FCC attestation statement Kiwa Page 2 of 2 RF_753, Issue 2 15-02-2023 [PLACE ON APPLICANT/COMPANY LETTERHEAD] Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 01 15-02-2023 1 st version RvdM Issued/modified by : Richard van der Meer Function : Certification assessor Revision : 02 Date : 15-02-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 15-02-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 15-02-2023

Covered list attestation FCC application letter Kiwa Page 1 of 2 RF_755_02 15-02-2023 [PLACE COMPANY LOGO HERE OR PUT ON COMPANY LETTERHEAD] Certification Application Attestation Statements Fanstel Corporation, Taipei> 10F-10, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih, 221 New Taipei City, Taiwan Subject: FCC ID: X8WWM02C To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) [Paudy Tung] certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) [Paudy Tung] (“the applicant”) certifies that, as of the date of the filing of this application, the applicant - is / - is not (3) identified on the Covered List as an entity producing “covered” equipment. Date: 2024/7/31 City: New Taipei City Name (2) : Paudy Tung Function: Engineer Telephone number: +886-2-26989328 Email address: [email protected] Signature: 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . (2): For FCC it must be the Grantee Code “owner” or the authorized agent. (3): double click on the appropriate box and select ‘’checked” then “OK” Covered list attestation FCC application letter Kiwa Page 2 of 2 RF_755_02 15-02-2023 [PLACE COMPANY LOGO HERE OR PUT ON COMPANY LETTERHEAD] Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 01 15-02-2023 1 st version RvM Issued/modified by : Richard van de Meer Function : Certification assessor Revision : 02 Date : 15-02-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 15-02-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 15-02-2023

RF_160_05 Declaration of Authorisation Date of issue 02-01-2023 Declaration of Authorization We Name: Fanstel Corporation, Taipei Address: 10F-10, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih,. City: New Taipei City 221 Country: Taiwan Declare that: Name Representative of agent: ............. (1) Agent Company name: International Standards Laboratory Corp. Address: No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., City: Tao Yuan City 325. Country Taiwan is authorized to apply for Certification of the following product(s): Product description: WIFI 6 Module Type designation: WM02C, WM02E, WM02F, WM02V, WM02P  Trademark: Fanstel Validity/ expiry date on our behalf. Date: 2024/7/31.. City: New Taipei City .. Name: Paudy Tung .. (2) Function: Engineer............................... Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent. Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 02 1 02-01-2023 History sheet added AG Issued/modified by : Axel Gase Function : Quality Manager Revision : 02 Date : 02-01-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 02-01-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 02-01-2023

FCC, Request for non-disclosure Date: 02-01-2022 RF_501, Issue 10 Company Name: Fanstel Corporation, Taipei Address: 10F-10, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih, City: New Taipei City 221 Country: Taiwan To: Kiwa Netherlands B.V., Dept. FCC TCB Wilmersdorf 50 7327 AC Apeldoorn The Netherlands Subject: Request for confidentiality FCC ID: X8WWM02C Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 2024/07/31 Name and signature of applicant: Paudy Tung Engineer Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should state in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Kiwa NL B.V. at least 7 days before date of actual marketing or before expiration of the STC period FCC, Request for non-disclosure Date: 02-01-2023 RF_501, Issue 10 Page 1 of 1 Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 10 1 02-01-2023 History sheet added AG Issued/modified by : Axel Gase Function : Quality Manager Revision : 10 Date : 02-01-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 02-01-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 02-01-2023

RF_734_05 FCC Modular Approval Request Page 1 of 3 28-12-2022 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: _X8WWM02C __________________ Items to be covered by Single modular transmitters. Answer from applicant 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. The module has a metal shielded. Refer to the external photo of EUT . 2. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Data to the modulation circuit is buffered as described in the circuit/block diagram - nRF7002 provided with the application. 3. The module must contain power supply regulation on the module The module contains its own power supply regulation. Please refer to schematic as nRF7002 contain power regulation supplied to sub- functionality of the radio 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Device is equipped with External Antenna with unique non standard antenna port, PCB, Chip and Dipole Antenna. Refer to the photo of EUT. 5.The module must demonstrate compliance in a stand-alone configuration. The module was tested standalone as shown in test report setup photographs filed with this application. 6.The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The modular has a permanent fixed label, and below statement was listed in the User Manual; The host device must be labeled to display the FCC ID of the module “Contains FCC ID: X8WWM02C” . 7.The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual 8.The module must comply with RF exposure requirements. The transmitter meets MPE calculation of 47CFR§ 2.1091 & 47 CFR §1.1307. Refer to MPE Reports and Refer to modular installation manual. RF_734_05 FCC Modular Approval Request Page 2 of 3 28-12-2022 Items to be covered by Split modular transmitters. Answer from applicant 1. The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. 2. Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3. Control information and other data may be exchanged between the transmitter control elements and radio front end. 4. The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. 5. Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): __ Paudy Tung / Enginner________________ Date: ___2024/7/31_________ Signature: RF_734_05 FCC Modular Approval Request Page 3 of 3 28-12-2022 Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 5 1 28-12-2022 History sheet added WJJ Issued/modified by : Willem Jan Jong Function : Team Lead Revision : 5 Date : 28-12-2022 Verified by : Axel Gase Function : Quality Manager Date : 28-12-2022 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 28-12-2022

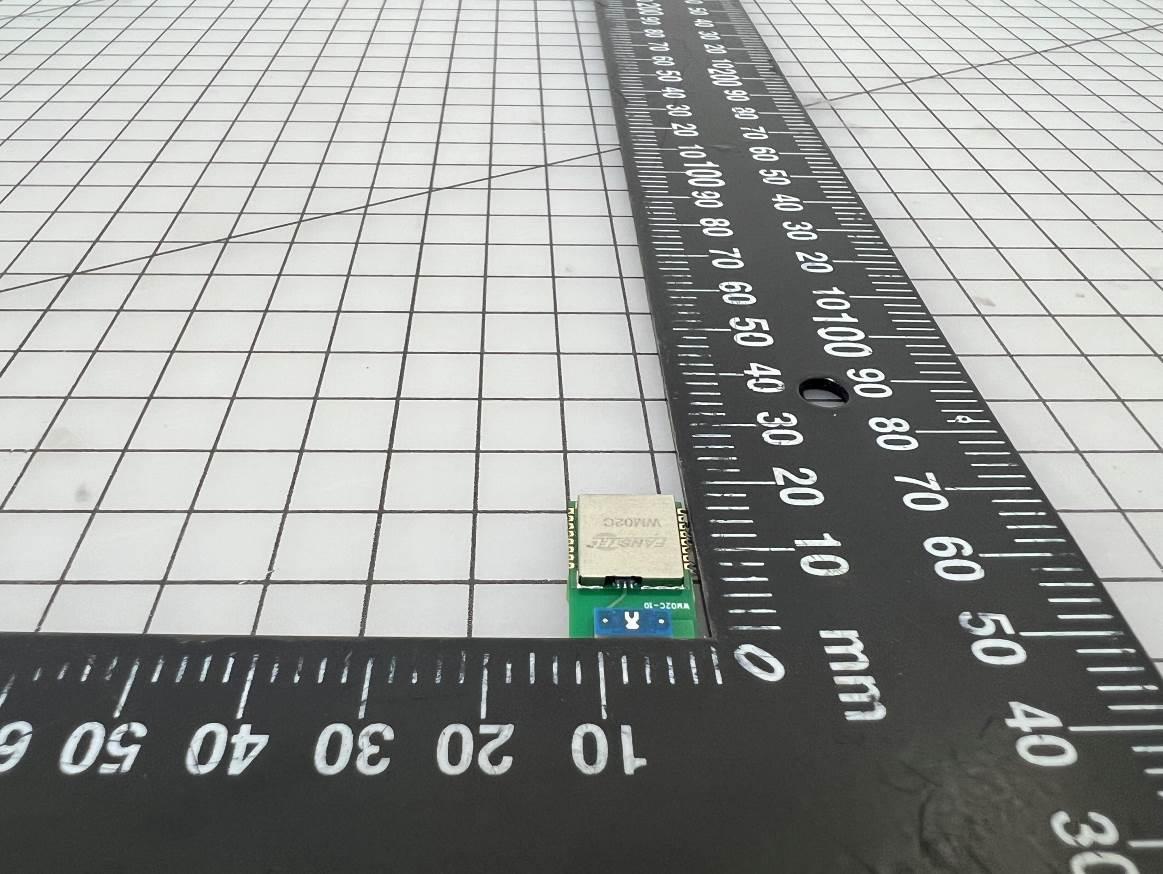

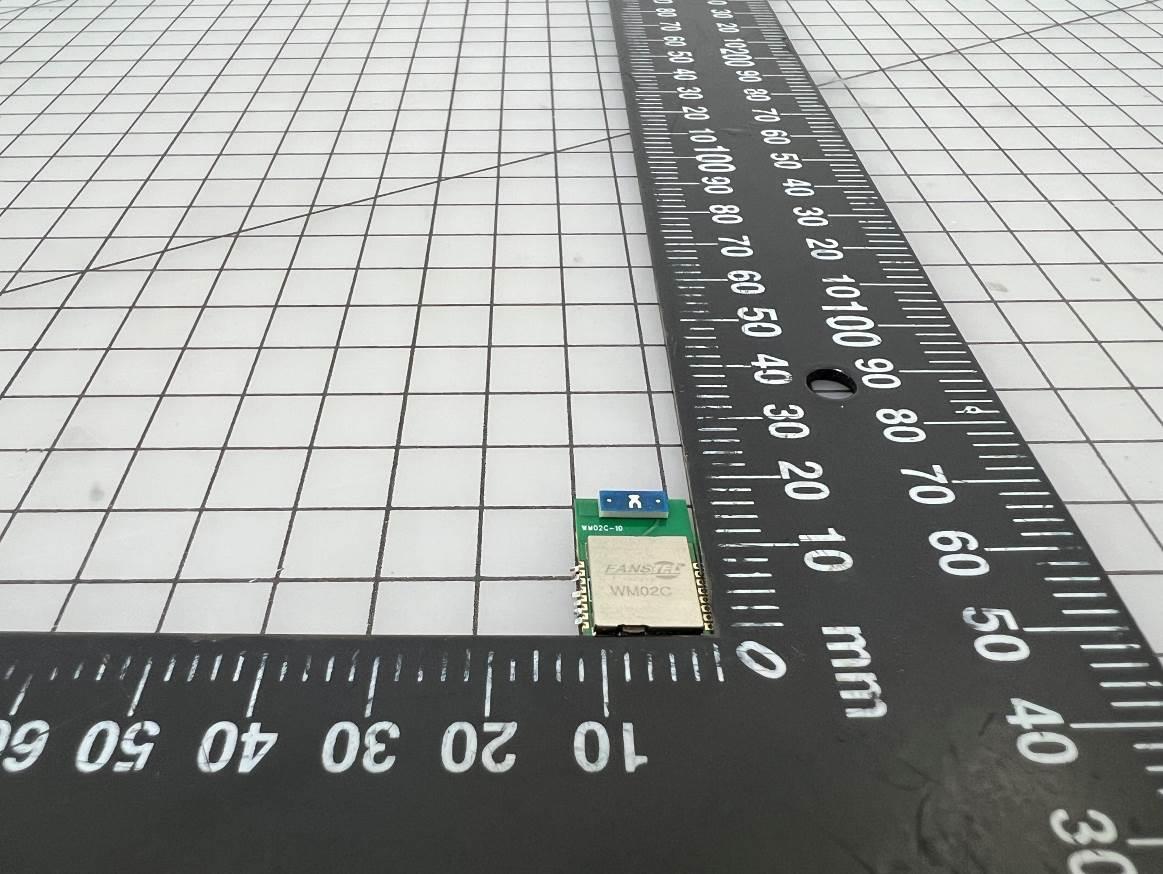

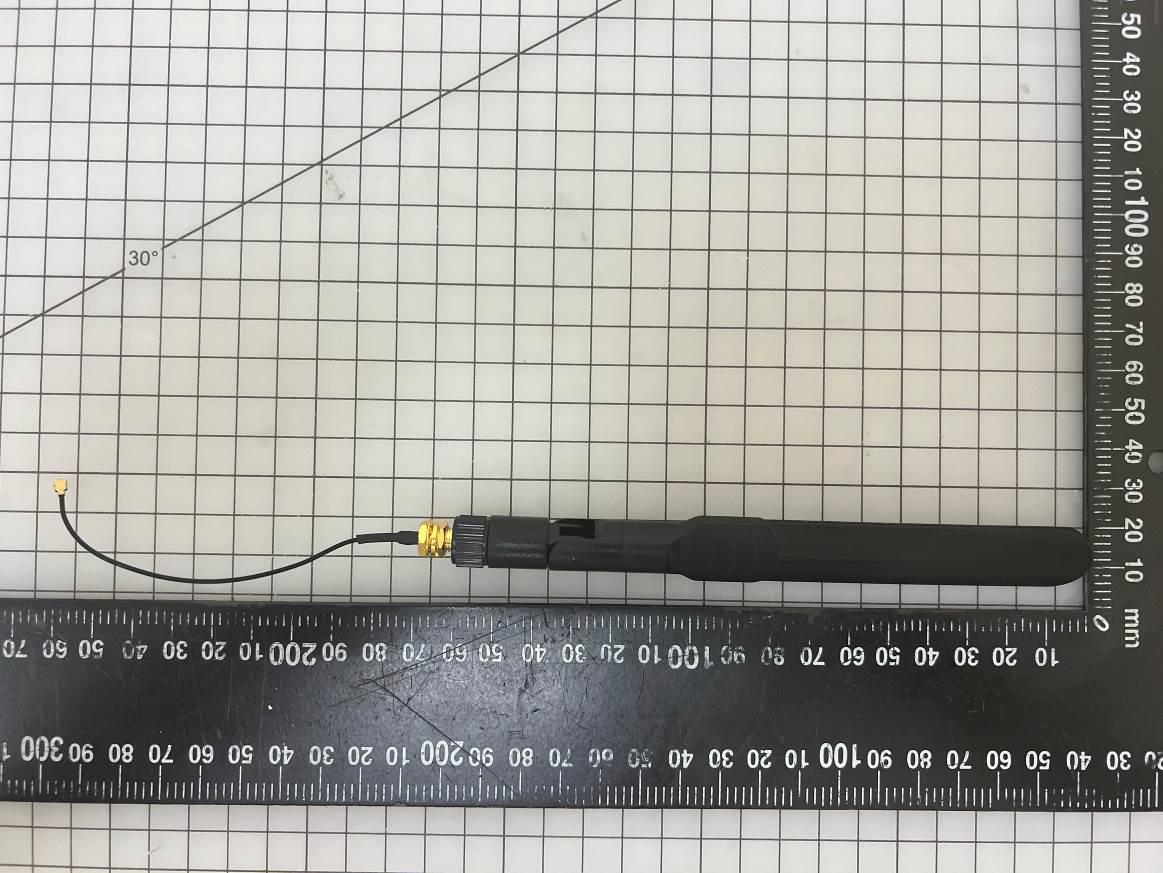

International Standards Laboratory Corp. Report Number: ISL-24LR0052P Appendix Photographs of EUT of Product Name WIFI 6 Module Main Model WM02C Series Model WM02E; WM02F; WM02V; WM02P Brand Fanstel International Standards Laboratory Corp. Report Number: ISL-24LR0052P -1- EUT-1. F type _ WM02F EUT-2. F type _ WM02F International Standards Laboratory Corp. Report Number: ISL-24LR0052P -2- EUT-3. F type _ WM02F EUT-4. F type _ WM02F International Standards Laboratory Corp. Report Number: ISL-24LR0052P -3- EUT-5. F type _ WM02F EUT-6. F type _ WM02F International Standards Laboratory Corp. Report Number: ISL-24LR0052P -4- EUT-7. C type _ WM02C EUT-8. C type _ WM02C International Standards Laboratory Corp. Report Number: ISL-24LR0052P -5- EUT-9. C type _ WM02C EUT-10. C type _ WM02C International Standards Laboratory Corp. Report Number: ISL-24LR0052P -6- EUT-11. C type _ WM02C EUT-12. C type _ WM02C International Standards Laboratory Corp. Report Number: ISL-24LR0052P -7- EUT-13. V type_ WM02V EUT-14. V type_ WM02V International Standards Laboratory Corp. Report Number: ISL-24LR0052P -8- EUT-15. V type_ WM02V EUT-16. V type_ WM02V International Standards Laboratory Corp. Report Number: ISL-24LR0052P -9- EUT-17. V type_ WM02V EUT-18. V type_ WM02V International Standards Laboratory Corp. Report Number: ISL-24LR0052P -10- EUT-19. E type _ WM02E EUT-20. E type _ WM02E International Standards Laboratory Corp. Report Number: ISL-24LR0052P -11- EUT-21. E type _ WM02E EUT-22. E type _ WM02E International Standards Laboratory Corp. Report Number: ISL-24LR0052P -12- EUT-23. E type _ WM02E EUT-24. E type _ WM02E International Standards Laboratory Corp. Report Number: ISL-24LR0052P -13- EUT-25. P type _ WM02P EUT-26. P type _ WM02P International Standards Laboratory Corp. Report Number: ISL-24LR0052P -14- EUT-27. P type _ WM02P EUT-28. P type _ WM02P International Standards Laboratory Corp. Report Number: ISL-24LR0052P -15- EUT-29. P type _ WM02P EUT-30. P type _ WM02P International Standards Laboratory Corp. Report Number: ISL-24LR0052P -16- EUT-31. _Dipole ANT

FCC ID & IC ID LABEL FORMAT AND LOCATION Applicant: Fanstel Corporation, Taipei FCC ID: X8WWM02C IC: 4100A-WM02C

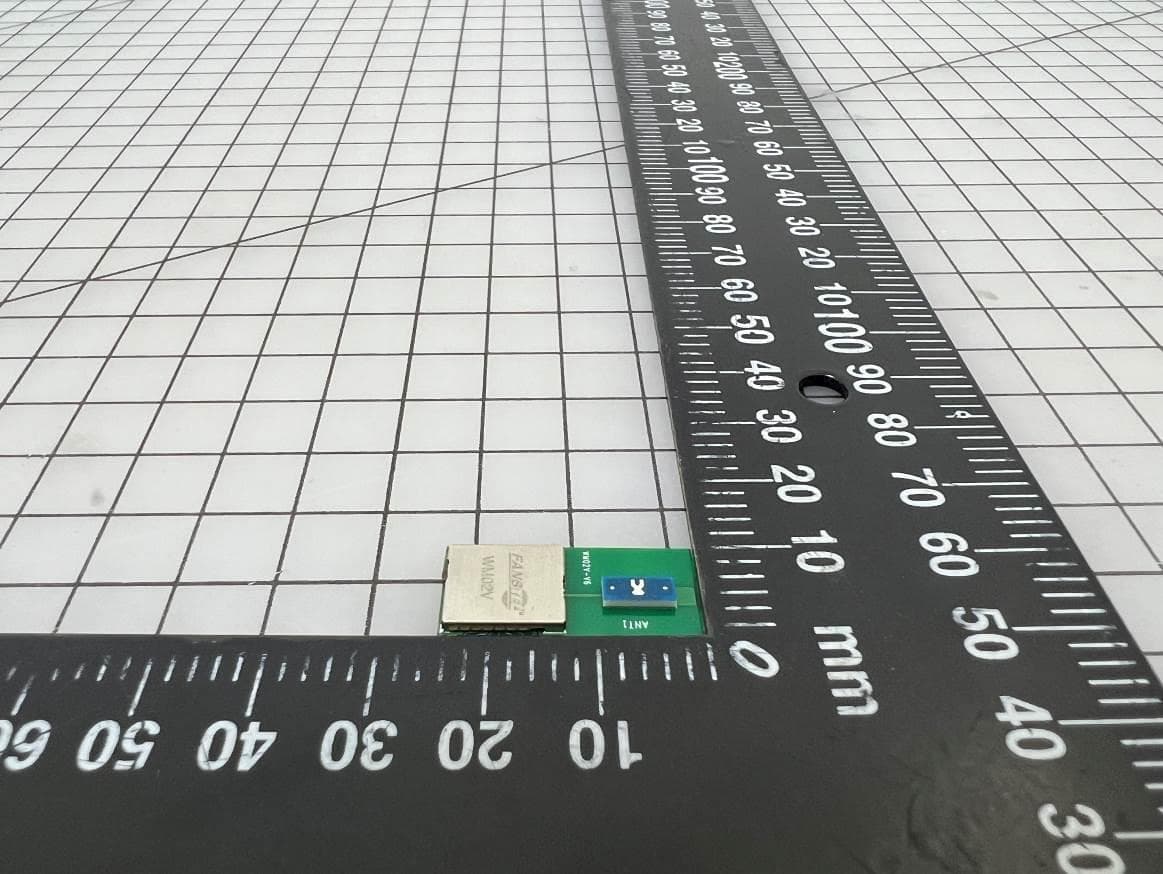

International Standards Laboratory Corp. Report Number: ISL-24LR0052P Appendix Photographs of EUT of Product Name WIFI 6 Module Main Model WM02C Series Model WM02E; WM02F; WM02V; WM02P Brand Fanstel International Standards Laboratory Corp. Report Number: ISL-24LR0052P -1- EUT-1. F type _ WM02F EUT-2. F type _ WM02F International Standards Laboratory Corp. Report Number: ISL-24LR0052P -2- EUT-3. C type _ WM02C EUT-4. C type _ WM02C International Standards Laboratory Corp. Report Number: ISL-24LR0052P -3- EUT-5. V type_ WM02V EUT-6. V type_ WM02V International Standards Laboratory Corp. Report Number: ISL-24LR0052P -4- EUT-7. E type _ WM02E EUT-8. E type _ WM02E International Standards Laboratory Corp. Report Number: ISL-24LR0052P -5- EUT-9. P type _ WM02P EUT-10. P type _ WM02P

序号用量 位置 材料名称封装 损耗率（用量的1%）3‰ 备注 11 U1 WM02C-10 4层板 12*20MM 21 ANT1 WAN007030JD251SN03 SMD 31 C211PF-GJM0335C1E1R0WB01DC0201 与订单用的料号不同 41C16 103K-GRM033R71A103KA01D C02011% 51C4 104K-CL03A104KQ3NNNC C02011% 63 C12,C13,C19 105K-GRM033R60J105KEA2D C02011% 71C9 224K-GRM033R60J224KE15D C02011% 82 C5,C18 0.47UF- GRM033R60J474ME010D C02011% 91 C7 22NF- GRM033R61C223KE84 C02011% 105 C1,C2,C8,C17,C20 2.2UF-GRM033R60J225ME47D C02011% 114 C3,C6,C14,C15 4.7UF-CL05A475MQ5NRNC C04021% 121 L3 4.2NH-MLG0603P4N2BT000 L02011% 131L2 3.3UH-SPN20163R3MPSA L20161% 3.3UH-WPN201610H 3 141 U2Nrf7002-QFAAQFN-6*6 151 U3 RFDIP2012050LQT3‰ 161Y2 40MHZ-Q22FA1280015212 NX2016SA 3‰ 17 1 WM02C镭雕屏蔽罩 3‰ 18 1 WM02C 屏蔽罩编带 3‰ 19 1/1000 编带，胶盘 20 1/1000 纯铝薄袋；40*43CM(防静电带印刷） 21 1/1000 黄色标签纸 22 1/1000 高吸附硅胶干燥剂（30G) 23 1/1000 环保温度卡 24 1/1000 模组盘装盒（36.63*34.93*5.08CM) 25 1/2000 外箱 381*120*375MM 26 1/5000 外箱 381*295*375MM 审核：制表：刘莉 下板用V7 泛世康科技有限公司 WM02C 料表

序号用量 位置 材料名称封装 损耗率（用量的1%）3‰ 备注 11 U1 WM02E-V4 4层板 12*11.5MM 21 ANT1U.FLSMD 31 C211PF-GJM0335C1E1R0WB01D C0201 与订单用的料号不同 41C16 103K-GRM033R71A103KA01D C02011% 51C4 104K-CL03A104KQ3NNNC C02011% 63 C12,C13,C19 105K-GRM033R60J105KEA2D C02011% 71C9 224K-GRM033R60J224KE15D C02011% 82 C5,C18 0.47UF- GRM033R60J474ME010D C02011% 91 C7 22NF- GRM033R61C223KE84 C02011% 105 C1,C2,C8,C17,C20 2.2UF-GRM033R60J225ME47D C02011% 114 C3,C6,C14,C15 4.7UF-CL05A475MQ5NRNC C04021% 121 L3 4.2NH-MLG0603P4N2BT000 L02011% 131L2 3.3UH-SPN20163R3MPSA L20161% 3.3UH-WPN201610H3R3MT 141 U2Nrf7002-QFAA QFN-6*6 151 U3 RFDIP2012050LQT3‰ 161Y2 40MHZ-Q22FA1280015212 NX2016SA 3‰ 17 1 WM02E镭雕屏蔽罩 3‰ 18 1 WM02E 屏蔽罩编带 3‰ 19 1/1000 编带，胶盘 20 1/1000 纯铝薄袋；40*43CM(防静电带印刷） 21 1/1000 黄色标签纸 22 1/1000 高吸附硅胶干燥剂（30G) 23 1/1000 环保温度卡 24 1/1000 模组盘装盒（36.63*34.93*5.08CM) 25 1/2000 外箱 381*120*375MM 26 1/5000 外箱 381*295*375MM 审核：制表：刘莉 下板用V7 2024/6/15 注意所有 WM02 系列 WT 系列 WM02Exx 系列 取消C10 C11 8pF 泛世康科技有限公司 WM02E料表

序号用量 位置 材料名称封装 损耗率（用量的1%）3‰ 备注 11 U1 WM02F-V4 4层板 21C211PF-GJM0335C1E1R0WB01DC0201 与订单用的料号不同 31C16 103K-GRM033R71A103KA01D C02011% 41C4 104K-CL03A104KQ3NNNC C02011% 53 C12,C13,C19 105K-GRM033R60J105KEA2D C02011% 61C9 224K-GRM033R60J224KE15D C02011% 72 C5,C18 0.47UF- GRM033R60J474ME010D C02011% 81 C7 22NF- GRM033R61C223KE84 C02011% 95 C1,C2,C8,C17,C20 2.2UF-GRM033R60J225ME47D C02011% 104 C3,C6,C14,C15 4.7UF-CL05A475MQ5NRNC C04021% 111 L3 4.2NH-MLG0603P4N2BT000 L02011% 121L2 3.3UH-SPN20163R3MPSA L20161% 3.3UH-WPN201610H 3 131 U2Nrf7002-QFAAQFN-6*6 141 U3 RFDIP2012050LQT3‰ 151Y2 40MHZ-Q22FA1280015212 NX2016SA 3‰ 16 1 WM02F镭雕屏蔽罩 3‰ 17 1 WM02F 屏蔽罩编带 3‰ 18 1/1000 编带，胶盘 19 1/1000 纯铝薄袋；40*43CM(防静电带印刷） 20 1/1000 黄色标签纸 21 1/1000 高吸附硅胶干燥剂（30G) 22 1/1000 环保温度卡 23 1/1000 模组盘装盒（36.63*34.93*5.08CM) 24 1/2000 外箱 381*120*375MM 25 1/5000 外箱 381*295*375MM 审核：制表：刘莉 下板用V7 泛世康科技有限公司 WM02F料表

序号用量 位置 材料名称封装 损耗率（用量 备注 11 U1 WM02P-V3 4层板 12*11.5MM 21C211PF-GJM0335C1E1R0WB01DC0201 与订单用的料号不同 31C16 103K-GRM033R71A103KA01D C02011% 41C4 104K-CL03A104KQ3NNNC C02011% 53 C12,C13,C19 105K-GRM033R60J105KEA2D C02011% 61C9 224K-GRM033R60J224KE15D C02011% 72 C5,C18 0.47UF- GRM033R60J474ME010D C02011% 81 C7 22NF- GRM033R61C223KE84 C02011% 95 C1,C2,C8,C17,C20 2.2UF-GRM033R60J225ME47D C02011% 104 C3,C6,C14,C15 4.7UF-CL05A475MQ5NRNC C04021% 111 L3 4.2NH-MLG0603P4N2BT000 L02011% 121L2 3.3UH-SPN20163R3MPSA L20161% 3.3UH-WPN201610H3R3MT 131 U2Nrf7002-QFAA QFN-6*6 141 U3 RFDIP2012050LQT3‰ 151Y2 40MHZ-Q22FA1280015212 NX2016SA3‰ 16 1 WM02P镭雕屏蔽罩 3‰ 17 1 WM02P 屏蔽罩编带 3‰ 18 1/1000 编带，胶盘 19 1/1000 纯铝薄袋；40*43CM(防静电带印刷） 20 1/1000 黄色标签纸 21 1/1000 高吸附硅胶干燥剂（30G) 22 1/1000 环保温度卡 23 1/1000 模组盘装盒（36.63*34.93*5.08CM) 24 1/2000 外箱 381*120*375MM 25 1/5000 外箱 381*295*375MM 审核：制表：刘莉 泛世康科技有限公司 WM02P料表 下板用V7

序号用量 位置 材料名称封装 损耗率（用量的1%） 备注 11 U1 WM02V-V6 4层板 12*25.2MM 2 1 ANT1WAN007030JD251SN03SMD 31 C211PF-GJM0335C1E1R0WB01DC0201 与订单用的料号不同 41C16 103K-GRM033R71A103KA01D C02011% 51C4 104K-CL03A104KQ3NNNC C02011% 63 C12,C13,C19 105K-GRM033R60J105KEA2D C02011% 71C9 224K-GRM033R60J224KE15D C02011% 82 C5,C18 0.47UF- GRM033R60J474ME010D C02011% 91 C7 22NF- GRM033R61C223KE84 C02011% 105 C1,C2,C8,C17,C20 2.2UF-GRM033R60J225ME47D C02011% 114 C3,C6,C14,C15 4.7UF-CL05A475MQ5NRNC C04021% 121 L3 4.2NH-MLG0603P4N2BT000 L02011% 131L2 3.3UH-SPN20163R3MPSA L20161% 3.3UH-WPN201610H3R3MT 141 U2Nrf7002-QFAA QFN-6*6 151 U3 RFDIP2012050LQT3‰ 161Y2 40MHZ-Q22FA1280015212 NX2016SA 3‰ 17 1 WM02V镭雕屏蔽罩 3‰ 18 1 WM02V 屏蔽罩编带 3‰ 19 1/1000 编带，胶盘 20 1/1000 纯铝薄袋；40*43CM(防静电带印刷） 21 1/1000 黄色标签纸 22 1/1000 高吸附硅胶干燥剂（30G) 23 1/1000 环保温度卡 24 1/1000 模组盘装盒（36.63*34.93*5.08CM) 25 1/2000 外箱 381*120*375MM 26 1/5000 外箱 381*295*375MM 审核：制表：刘莉 下板用V7 泛世康科技有限公司 WM02V料表

FCC ID: X8WWM02C International Standards Laboratory Corp. 1 1. Maximum Permissible Exposure (MPE) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density The MPE was calculated at 20 cm to show compliance with the power density limit The following formula was used to calculate the Power Density. S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna FCC ID: X8WWM02C International Standards Laboratory Corp. 2 Maximum Permissible Exposure (MPE) Evaluation Frequency Band (MHz) Conducted power (dBm) Antenna gain (dBi) Tune-Up Tolerance (dB) EIRP (dBm) MPE (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 22.29 3.65 1 26.940 0.09834 1 5180 - 5240 10.94 5.28 1 17.220 0.01049 1 5260 - 5320 10.05 5.28 1 16.330 0.00855 1 5500 - 5720 10.45 5.4 1 16.850 0.00964 1 5745 - 5825 9.83 5.34 1 16.170 0.00824 1 FCC ID: X8WWM02C International Standards Laboratory Corp. 3 Peak Power Mode Freq. (MHz) Output Power (dBm) Duty Factor (dB) Total Output Power (dBm) Output Power Limit (dBm) 802.11b 2412 16.55 ------ 16.55 30.00 2437 20.51 ------ 20.51 30.00 2462 15.50 ------ 15.50 30.00 802.11g 2412 20.55 ------ 20.55 30.00 2437 22.29 ------ 22.29 30.00 2462 20.08 ------ 20.08 30.00 802.11n HT20 2412 20.30 ------ 20.30 30.00 2437 22.11 ------ 22.11 30.00 2462 19.02 ------ 19.02 30.00 802.11ax HE20 2412 17.82 ------ 17.82 30.00 2437 22.14 ------ 22.14 30.00 2462 18.67 ------ 18.67 30.00 Average Power Mode Freq. (MHz) Output Power (dBm) Duty Factor (dB) Total Output Power (dBm) Output Power Limit (dBm) 802.11b 2412 14.14 ------ 14.14 30.00 2437 18.24 ------ 18.24 30.00 2462 13.15 ------ 13.15 30.00 802.11g 2412 10.09 ------ 10.09 30.00 2437 13.74 ------ 13.74 30.00 2462 10.17 ------ 10.17 30.00 802.11n HT20 2412 9.95 ------ 9.95 30.00 2437 13.60 ------ 13.60 30.00 2462 9.06 ------ 9.06 30.00 802.11ax HE20 2412 7.26 ------ 7.26 30.00 2437 13.97 ------ 13.97 30.00 2462 8.99 ------ 8.99 30.00 FCC ID: X8WWM02C International Standards Laboratory Corp. 4 Peak Power Band Mode Freq. (MHz) Output Power (dBm) Duty Factor (dB) Total Output Power (dBm) Output Power Limit (dBm) UNII-1 11a 5180 19.05 0.57 19.62 -- 5200 19.09 0.57 19.66 -- 5240 19.27 0.57 19.84 -- HT20 5180 18.86 0.72 19.58 -- 5200 18.89 0.72 19.61 -- 5240 19.03 0.72 19.75 -- VHT20 5180 18.8 0.70 19.50 -- 5200 18.83 0.70 19.53 -- 5240 18.97 0.70 19.67 -- HE20 5180 19.02 0.71 19.73 -- 5200 19.65 0.71 20.36 -- 5240 19.19 0.71 19.90 -- Band Mode Freq. (MHz) Output Power (dBm) Duty Factor (dB) Total Output Power (dBm) Output Power Limit (dBm) UNII-2A 11a 5260 19.18 0.57 19.75 -- 5300 19.21 0.57 19.78 -- 5320 19.25 0.57 19.82 -- HT20 5260 19.03 0.72 19.75 -- 5300 18.93 0.72 19.65 -- 5320 18.96 0.72 19.68…

Text truncated - open the document above for the full version.
