X9V-CN-F20-06TF-20-06 Wireless Transmitter

F-20-06 USER INSTRUCTION 1. Insert 1 piece battery (12V) in remote. 2. Press on the switch on vibrator for 3 sec, the green light flash, enter “standby” mode. 3. Press the “ON/OFF” button on remote for one time, the vibrator start to vibrate; Press the “mode switch” button on remote for the first time, vibrator are in stronger vibration; Press the ““mode switch” button for the second time, vibration are strongest; press the ““mode switch” button for the third time, vibrator enter into the vibration mode of “weak to strong”; each time when user press the ““mode switch” button, vibrator will have a vibration mode of one special frequency. This unit has seven different vibration modes. 4. Press “ON/OFF” button on remote for one time, the vibrator stop vibration. 5. Charging function: put the vibrator on charging cradle, the red light on vibrator will light; at this time, the charging cradle will charge for the vibrator through wireless charging. If it is in full charging, the red light on vibrator will turn into green. VIBRATOR CARE INSTRUCTION 1) Take care when using the Vibrator for the first time. Vibration can be intense. 2) Clean your vibrator after every use. 3) Take care when cleaning your vibrator. Remember it is an electrical item. Moisture can damage the product and also react with the batteries. Always remove the batteries before cleaning and after using your vibrator in order to keep it in optimum condition. 4) Keep your vibrator clean and dry. Store in a non-damp environment. Moisture can damage batteries and motor. 5) Always store your vibrator separately. Different materials have different chemical configurations and may react with each other. 6) Always allow your vibrator to cool down before storing in a safe place. Vibrators are electrical and motors grow warm with use. 7) Excessive usage of the vibrator will wear out the motor and may cause the motor to overheat. If you feel your vibrator is getting unduly hot, switch it off and allow it to cool down, before continuing to use. 8) Take care when using oils and lubricants so that they do not enter the battery compartment as they can react with the batteries. BATTERY CARE INSTRUCTIONS 1) Batteries must be inserted with the correct polarity. 2) Remove batteries when the product is not in use. 3) The supply terminals should not be short-circuited i.e. do not bridge terminal switch metallic pieces. 4) Only use the recommended batteries. 5) Only operate when fully assembled in accordance with the instructions. 6) Do not mix different types or new and used batteries. WA R N I N G To avoid injury and aggravation of pre-existing conditions, this device should not be used on swollen or inflamed areas or skin lacerations. Do not use on unexplained calf pain. No medical claims are warranted or implied by the use of this product. FCC INFORMATION FOR THE CONSUMER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

TX Block Diagram IC U6:TM57PE11 CPU INTERNAL OSCILLATION 4Mhz MANOSTAT DC 5V POWER DC 12V KEY LED OSCILLATION 315Mhz RADIOAMPLI FIER ANT

J.B. Industrial (Shen Zhen) Co., Ltd. DATE: 03-24-2010 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen VITE Technology Co., Ltd at Suite 2123, Building 4, Hongfa Centre, Central Area Baoan, Baoan District, Shenzhen, Guangdong, 518101, P.R. China Tracy Qi. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with J.B. Industrial (Shen Zhen) Co., Ltd. at J.B. Industrial Center, Beishandao YanTian, Shenzhen P.R. China. Dated this 03-24-2010 Day of 20 Agency agreement expiration date: 12-31-2010 By: Fenny Tseng Signature Printed Title: Director On behalf of : J.B. Industrial (Shen Zhen) Co., Ltd. Telephone: +86-755-25203018

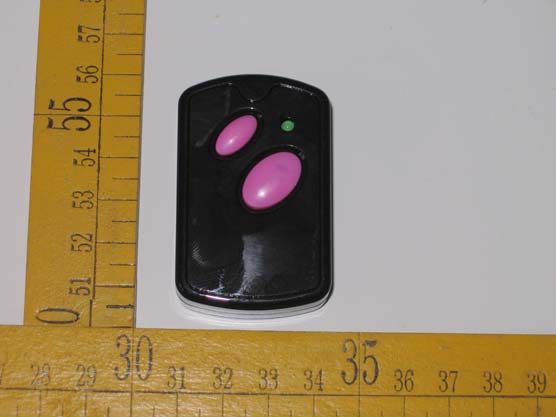

External and Internal Photos of the EUT External Photos

FCC ID Label Information 1. Label location: 2. FCC ID Label: J.B. Industrial (Shen Zhen) Co., Ltd. Model: CN-F20-06T FCC ID: X9V-CN-F20-06T

Internal Photos

CN-F20-06T Operation Description Press ON/OFF once, MCU (TM57PE11) 8 pins emit 4.5 Sec signals, loading on the 315MHz high frequency oscillation circuit (composed by transistor 3356 and resonator T1) generate carrier and transmit through ANT. IC U6:TM57PE11 CPU INTERNAL OSCILLATION 4Mhz MANOSTAT DC 5V POWER DC 12V KEY LED OSCILLATION 315Mhz RADIOAMPLI FIER ANT 315Mhz

PDF 文件使用 "pdfFactory Pro" ?用版本?建 www.fineprint.cn

Shenzhen VITE Technology Co., Ltd Tel: +86-755-89486194 Fax: +86-755-89486187 FCC PART 15 SUBPART C TEST REPORT FCC PART 15C Report Reference No......................: VITE1003015R Compiled by ( position+printed name+signature)..: File administrators Andy Zhang Supervised by ( position+printed name+signature)..: Test Engineer Andy Zhang Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: March 29, 2010 Testing Laboratory Name..............: Shenzhen VITE Technology Co., Ltd Address.............................................: Suite 2123, Building 4, Hongfa Centre, Central Area Baoan, Baoan District, Shenzhen, Guangdong, 518101, P.R. China Applicant’s name............................: J.B. Industrial (Shen Zhen) Co., Ltd. Address.............................................: J.B. Industrial Center, Beishandao YanTian, Shenzhen P.R.China. Test specification: Standard ...........................................: FCC Part 15C TRF Originator ..................................: Shenzhen VITE Technology Co., Ltd Master TRF.......................................: Dated 2009-03 Shenzhen VITE Technology Co., Ltd All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen VITE Technology Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen VITE Technology Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : F-20-06 Operation Frequency........................: 315MHz Modulation mode: ............................: ASK Trade Mark .......................................: JB Model/Type reference.......................: CN-F20-06T Listed Models ..................................: / Difference description.......................: / Power Supply..............................: DC 12V Anttenna Type..............................: Integral without external RF Port Result................................................: Positive FCC ID............................................. : X9V-CN-F20-06T V1.0 Page 2 of 17 Report No.: VITE1003015R T E S T R E P O R T Test Report No. : VITE1003015R March 29, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : F-20-06 Model /Type : CN-F20-06T Listed Models : / Difference description: / Applicant : J.B. Industrial (Shen Zhen) Co., Ltd. Address : J.B. Industrial Center, Beishandao YanTian, Shenzhen P.R.China. Manufacturer : J.B. Industrial (Shen Zhen) Co., Ltd. Address : J.B. Industrial Center, Beishandao YanTian, Shenzhen P.R.China. Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 17 Report No.: VITE1003015R Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 5 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 2.8. Test Result Summary 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. Radiated Emission Test 9 4.2. Occupied Bandwidth 12 5. TEST SETUP PHOTOS OF THE EUT .......................................... 15 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 16 V1.0 Page 4 of 17 Report No.: VITE1003015R 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15 Subpart C Section 15.231&ANSI C63.4-2003 V1.0 Page 5 of 17 Report No.: VITE1003015R 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : March 25, 2010 Testing commenced on : March 26, 2010 Testing concluded on : March 28, 2010 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz z 12 V DC o 24 V DC o Other (specified in blank below) Not applicable 2.3. Short description of the Equipment under Test (EUT) Transmitter For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer o - supplied by the lab o Power Cable Length (m) : / Shield : / Detachable : / o Multimeter Manufacturer : / Model No. : / V1.0 Page 6 of 17 Report No.: VITE1003015R 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: X9V-CN-F20-06T filing to comply with the FCC Part 15, Subpart C Rules. 2.7. Modifications No modifications were implemented to meet testing criteria. 2.8. Test Result Summary Test Item Test RequirementStandard Paragrph Result Radiated Emission (25MHz to 1000MHz) FCC PART 15 Section 15.231(b) PASS Occupled Bandwidth FCC PART 15 Section 15.231(c) PASS Dwell Time FCC PART 15 Section 15.231(a) PASS V1.0 Page 7 of 17 Report No.: VITE1003015R 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China There is one 3m semi-anechoic chamber and two line conducted labs for f…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
