XAB-HEDDI-M219Remote Controller

INSTRUCTIONS FOR RADIO CONTRO L OPER ATOR SINGLE ENT RY TRANSMITTER MODE L NO.:M219 Series Read the following instructions thoroughly before using transmitter. This transmitter must be adjusted so that the coding switches match the coding switches on your present operating transmitter or receiver. 1.Remove the transmitter cover a Unscrew the screws(Figure A). b Remove the front cover from the transmitter(Figure B). 2.Setting the code You may set your transmitter to any code you desire,but be sure the code you set matches on both your transmitter and receiver. there are 10bit dip switches on your transmitter, each of which can be placed in two different positions(on,0). Do not set all switches in same position,such as all on,all 0, (Figure C). WARNING :No other adjustments should be made inside the transmitter. Now that you have selected your personal code,replace the transmitter cover. FIGURE AFIGURE B 1 2 3 4 5 6 7 8 ON Dip switch 9 FIGURE C User manual User can click the button.A signal tramsit out. If the inside dip switch match the receiver switch,receiver will work. FCC NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT. SUCH MODIFICATIONS OR CHANGE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. 10

1 2 34 ABCD 4 3 2 1 D CBA Title M2 19 Series Remote Controller Block dirgram Number Revision Size A4 Date: 23-Jul-2014 Sheet of File: E:\Tony\Remote controller\220_219 Series\SAPP-S220V01-V10.DDB Drawn By: MCU ENCODER ENCODE SWITCH XT1 RF Transmit circuit DATA OUT PCB ANTENNA SW Q1 BT1 3V R 3V 3V Model no.: M 219 Series block diagram 9.37MHz 300 MHz

Heddolf Products Ltd. FCC ID: XAB-HEDDI-M219 POWER OF ATTORNEY Date: July 28,2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on July 27,2015. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Heddolf Products Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Heddolf Products Ltd. ............................................. ....................................... Signature: Ho Pan.Chan/ Electronic Engineer .................................................................................... Typed name and Title

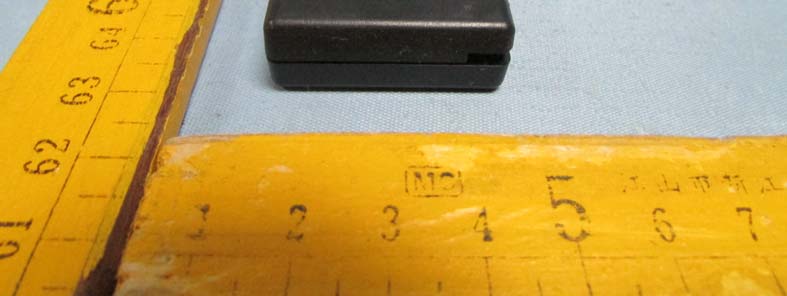

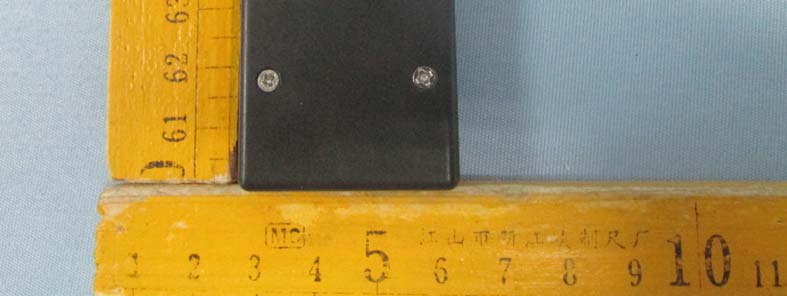

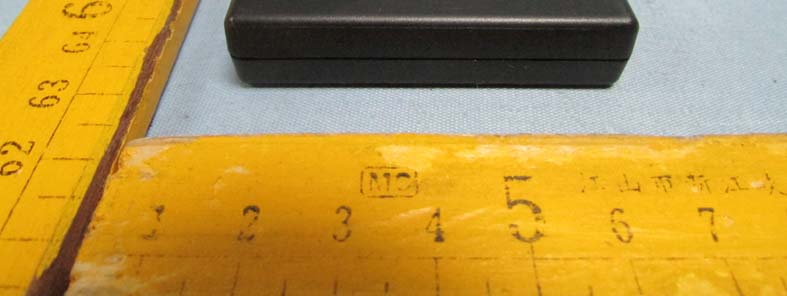

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs - Constructional D etails Model P219-1 - Appearance View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Model P219-2 - Appearance View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: M219, S219, L219, P219-1, P219-2, O219, C219 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. FCC ID: XAB-HEDDI-M219 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Label Sample for model: M219, S219, L219, P219-1, P219-2, O219, C219 FCC ID: XAB-HEDDI-M219 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn M odel P219-1- Internal View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Model P219-2- Internal V iew ANT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

M219 Operational Description The EUT is Remote Controller. Power input: DC3V by Battery. RF Modulation：OOK（IC PIC16F722). The transmitter consists of oscillator (9.37MHz), integrated circuit (to amplify the signal) and encoder. The oscillator generates the 300MHz frequency. The encoder generates rolling code. The binary code s ets can be selectable via the DIP switches to avoid the interference from the same kind of transmitter. The binary code is then transmitted to the antenna by the integrated circuit(IC). Frequency Error: The frequency error is controlled by the oscillator. Output Power Test: The transmitter output is connected to the spectrum analyzer; the output power is monitored and then adjusted. Once the procedure is finished the resistor is not adjustable by end users.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 22-Jul-2014 Sheet of File: E:\Tony\Remote controller\220_219 Series\SAPP-S220V01-V10.DDB Drawn By: VDD 20 VSS 19 A0 2 B0 21 B1 22 B2 23 B3 24 B4 25 B5 26 B6/ICSPCLK 27 B7/ICSPDAT 28 A1 3 A2 4 VREF/A3 5 A4 6 A5 7 C0 11 C1 12 C2 13 MCLR/VPP 1 C3/SCLK 14 C4/SDI 15 C5/SDO 16 C6/TX 17 C7/RX 18 VSS 8 A6/OSC2 10 A7/OSC1 9 IC1 PIC16F722_SSOP_28 SW2* 12345 J2NC Q18550 R710K R2* D3* C5104 C7 104 R547K R447K R9470R LED1Red R64.7K C910uF C320pF C10104P C12 *6.8~10PF C1110uF C420pF L2 *68nH~150nH L1 *470nH~680nH XT1 9. 37 MHz C13NC C14*2.7pF~6.8pF PAOUT 1 VSS 2 VDD 3 XTLOUT 4 XTLIN 5 ASK 6 IC2MICRF113 C82.2uF 3V 3V Data_out 3V Data_out C6104 BT13V M219 SERIES RF 300MHz 12345678910 11121314151617181920 SW1 * TX Remote Controller COM R1* SW3* D1 * C15102 SW4* R10 * R11 * R8* R12 * ANT Remark: D3/R2/SW2/SW3/R8 for NC. SW1 Dip Switch 9bit D1 LL4148, R11/R12 0R, R1 1.8K, SW4 SMD. MODEL:P219-1 / O219 / C219MODEL:P219-2SW1 Dip Switch 9bit ,D1/D3 LL4148, R1/R2 1.8K, R11/R12 0R, SW2/SW3 SMD.R8 NCMODEL: M219 / S219SW1 Dip Switch 10bit, D3 LL4148, R2 1.8K,R8/R10 0R, SW4 SMD.D1/R1/R11/R12/SW2/SW3 for NC.MODEL:L219SW1 Dip Switch 8bit,D1 LL4148,R1 1.8K,R8/R11 0R,SW4 SMD.SW2/SW3/R2/R10/R12 for NC. Parts marked with a * values can be changed.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 29 TEST REPORT Reference No. .................... : WTD14S0716644E FCC ID ................................ : XAB-HEDDI-M219 Applicant ............................ : Heddolf Products Limited Address .............................. : Unit 7, 22/F., Futura Plaza,111-113 How Ming Street, Kwun Tong, Kowloon, Hong Kong, PRC Manufacturer .................... : SAP Products Limited Address .............................. : Xian Sha No.2 Industrial Zone,Gao Bu Town,Dongguan City, Guangdong Province, PRC Product Name .................... : Remote Controller Model No. ........................... : M219, S219, L219, P219-1, P219-2, O219, C219 Standards........................... : FCC CFR47 Part 15 Section 15.231: 2012 Date of Receipt sample .... : Jul. 28, 2014 Date of Test ....................... : Jul. 29~Aug. 04, 2014 Date of Issue ...................... : Aug. 05, 2014 Test Result ......................... : Pass * Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Testing location: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTD14S0716644E Page 2 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 2 of 29 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 N/A Radiated Spurious Emissions 15.205(a) 15.209 15.231(a) PASS Periodic Operation 15.231(a) PASS 20dB Bandwidth 15.231(c) PASS Antenna Requirement 15.203 PASS Reference No.: WTD14S0716644E Page 3 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ...................................................................................................................................... 1 2 TEST SUMMARY ............................................................................................................................................. 2 3 CONTENTS ....................................................................................................................................................... 3 4 GENERAL INFORMATION ............................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................... 4 4.2 DETAILS OF E.U.T. ................................................................................................................................ 4 4.3 TEST FACILITY ....................................................................................................................................... 4 5 EQUIPMENT USED DURING TEST ............................................................................................................. 5 5.1 EQUIPMENTS LIST ................................................................................................................................. 5 5.2 MEASUREMENT UNCERTAINTY .............................................................................................................. 5 5.3 TEST EQUIPMENT CALIBRATION ........................................................................................................... 5 6 CONDUCTED EMISSION ............................................................................................................................... 6 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................ 7 7.1 EUT OPERATION ................................................................................................................................... 7 7.2 TEST SETUP .......................................................................................................................................... 8 7.3 SPECTRUM ANALYZER SETUP .............................................................................................................. 9 7.4 TEST PROCEDURE ............................................................................................................................... 10 7.5 SUMMARY OF TEST RESULTS ............................................................................................................. 11 8 PERIODIC OPERATION ............................................................................................................................... 13 9 20DB BANDWIDTH ....................................................................................................................................... 16 9.1 TEST PROCEDURE ............................................................................................................................... 16 9.2 TEST RESULT ...................................................................................................................................... 16 10 ANTENNA REQUIREMENT ......................................................................................................................... 17 11 MODEL P219-1 PHOTOGRAPHS OF TESTING ...................................................................................... 18 11.1 RADIATION EMISSION TEST SETUP ..................................................................................................... 18 12 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS ................................................................................. …

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Model P219-1 Photographs of Testing Radiation Emission Test Setup From 9.37MHz to 30MHz From 30MHz to 1GHz Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn From 1GHz to 3GHz
