XAB-HEDDI-M220Remote Controller

User manual FCC NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TTHE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT. SUCH MODIFICATIONS OR CHANGE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. INSTRUCTIONS FOR RADIO CONTROL OPERATOR SINGLE ENTRY TRANSMITTER MODEL NO.:M220 Series Read the following instructions thoroughly before using transmitter. This transmitter must be adjusted so that the coding switches match the coding switches on your present operating transmitter or receiver. 1.Remove the transmitter cover Remove the access cover from the front of the transmitter by sliding the cover away from the top of the transmitter(Figure A).this will expose the battery and the dip switches. the code can be changed using a small screwdriver. 2.Setting the code You may set your transmitter to any code you desire,but be sure the code you set matches on both your transmitter and receiver. there are 8bit dip switches on your transmitter,each of which can be placed in two different posit -ions(ON,OFF). Do not set all switches in same position,such as all ON,or all OFF(Figure B). WARNING:No other adjustments should be made inside the transmitter. Now that you have selected your personal code,replace the transmitter cover. FIGURE A 1 2 3 4 5 6 7 8 ON FIGURE B Dip switch Button batteries User can click the push button. A signal tramsit out. If the inside dip switch match the receiver switch, receiver will work. 9 10

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 23-Jul-2014 Sheet of File: E:\Tony\Remote controller\220_219 Series\SAPP-S220V01-V10.DDB Drawn By: MCU ENCODER ENCODE SWITCH XT1 RF Transmit circuit DATA OUT PCB ANTENNA SW Q1 BT1 3V R 3V 3V M220 Series Remote Controller Block dirgram Model no.: M220 Series block diagram 9.37MHz 300 MHz

Heddolf Products Ltd. FCC ID: XAB-HEDDI-M220 POWER OF ATTORNEY Date: July 28,2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on July 27,2015. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Heddolf Products Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Heddolf Products Ltd. ................................. ................................................... Signature: Ho Pan.Chan/ Electronic Engineer .................................................................................... Typed name and Title

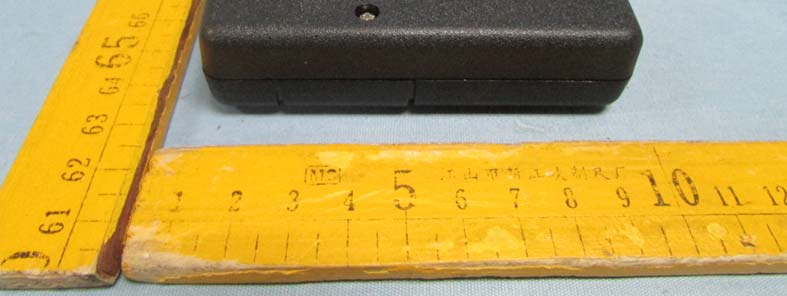

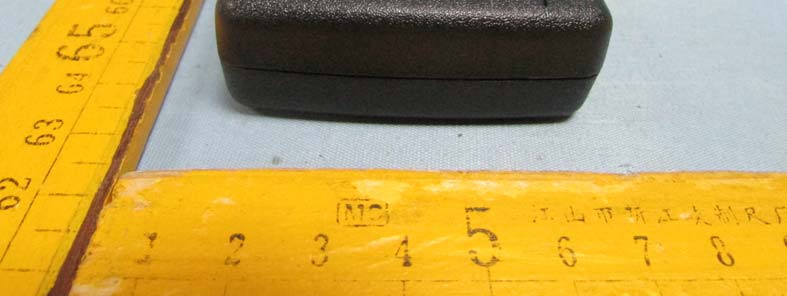

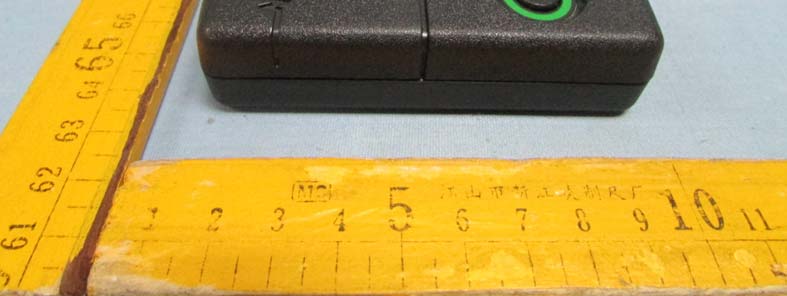

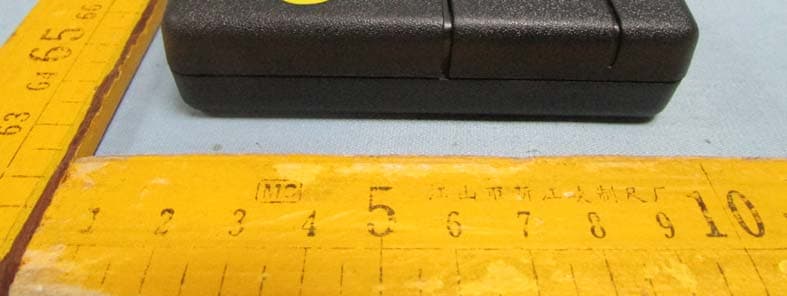

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs - Constructional Details Model P220-1 - Appearance View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn M odel P220-2 - Appearance View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn M odel P220-3 - Appearance View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: M220, L220, S220, P220-1, P220-2, P220-3, O220, C220 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. FCC ID: XAB-HEDDI-M220 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Label Sample for model: M220, L220, S220, P220-1, P220-2, P220-3, O220, C220 FCC ID: XAB-HEDDI-M220 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn M odel P220-1- Internal View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn M odel P220-2- Internal View ANT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn M odel P220-3- Internal View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT

M220 Operational Description The EUT is Remote Controller. Power input: DC3V by Battery. RF Modulation：OOK（IC PIC16F722). The transmitter consists of oscillator (9.37MHz), integrated circuit (to amplify the signal) and encoder. The oscillator generates the 300MHz frequency. The encoder generates rolling code. The binary code s ets can be selectable via the DIP switches to avoid the interference from the same kind of transmitter. The binary code is then transmitted to the antenna by the integrated circuit(IC). Frequency Error: The frequency error is controlled by the oscillator. Output Power Test: The transmitter output is connected to the spectrum analyzer; the output power is monitored and then adjusted. Once the procedure is finished the resistor is not adjustable by end users.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 23-Jul-2014 Sheet of File: E:\Tony\Remote controller\220_219 Series\SAPP-S220V01-V10.DDB Drawn By: VDD 20 VSS 19 A0 2 B0 21 B1 22 B2 23 B3 24 B4 25 B5 26 B6/ICSPCLK 27 B7/ICSPDAT 28 A1 3 A2 4 VREF/A3 5 A4 6 A5 7 C0 11 C1 12 C2 13 MCLR/VPP 1 C3/SCLK 14 C4/SDI 15 C5/SDO 16 C6/TX 17 C7/RX 18 VSS 8 A6/OSC2 10 A7/OSC1 9 IC1 PIC16F722_SSOP_28 SW3* Q18550 R710K R21.8K D3 * C5104 C7 104 R547K R447K R9200R LED1 Red R64.7K C810uF/6.3V C3 18pF C10 104 C1210P C9 10uF/6.3V C418pF L2 120nH~150nH L1 470nH XT1 9.37MHz C13NC C14 4.7pf~6.8pF PAOUT 1 VSS 2 VDD 3 XTLOUT 4 XTLIN 5 ASK 6 IC2MICRF113 C27NC 3V 3V Data_out 3V Data_out C6104 BT1 CR2032 3V M220 Series 12345678910 11121314151617181920 SW1 Dip switch for two state 10bit Remote Controller COM R3* SW4* D4 * D2 * SW2* R1* V1.0 R8* R12 * TP_CLKTP_DATATP_VPPTP_3.3VGND Program interface C11 * C26102 ANT Remark:Model :M220/S220 Dip switch for two state 10bit ,D3 LL4148 ,SW3 6*6*5mm,R8 0R, R1 /R3 /R12 /D2 /D4/ SW4 /SW2 for NC. Model L220 Dip switch for two state 8bit ,D4 LL4148 ,SW3 6*6*5mm,R3 1.8K, R8 0R, R1 /R12/ D2 /D3 /SW4 /SW2 for NC. Model: O220/C220/P220-1 Dip switch for three state 9bit ,D3 LL4148 ,SW3 6*6*5mm,R12 0R, R8 /D2/ D4 /SW4 /SW2 for NC. Model: P220-2 Dip switch for three state 9bit ,D2/ D4 LL4148 ,SW2/SW4 6*6*5mm,R12 0R, R8/ SW3 for NC. Parts marked with a * values can be changed. Model: P220-3 Dip switch for three state 9bit ,D2/D3/ D4 LL4148 ,SW2/SW3/SW4 6*6*5mm,R12 0R, R8 for NC. RF 300MHz

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 33 TEST REPORT Reference No. .................... : WTD14S0716641E FCC ID ................................ : XAB-HEDDI-M220 Applicant ............................ : Heddolf Products Limited Address .............................. : Unit 7, 22/F., Futura Plaza,111-113 How Ming Street, Kwun Tong, Kowloon, Hong Kong Manufacturer .................... : SAP Products Limited Address .............................. : Xian Sha No.2 Industrial Zone, Gao Bu Town, Dongguan City, Guangdong Province, PRC Product Name .................... : Remote Controller Model No. ........................... : M220, L220, S220, P220-1, P220-2, P220-3, O220, C220 Standards........................... : FCC CFR47 Part 15 Section 15.231: 2012 Date of Receipt sample .... : Jul. 28, 2014 Date of Test ....................... : Jul. 29~Aug. 04, 2014 Date of Issue ...................... : Aug. 05, 2014 Test Result ......................... : Pass * Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Testing location: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTD14S0716641E Page 2 of 33 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 2 of 33 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 N/A Radiated Spurious Emissions 15.205(a) 15.209 15.231(a) PASS Periodic Operation 15.231(a) PASS 20dB Bandwidth 15.231(c) PASS Antenna Requirement 15.203 PASS Reference No.: WTD14S0716641E Page 3 of 33 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ...................................................................................................................................... 1 2 TEST SUMMARY ............................................................................................................................................. 2 3 CONTENTS ....................................................................................................................................................... 3 4 GENERAL INFORMATION ............................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................... 4 4.2 DETAILS OF E.U.T. ................................................................................................................................ 4 4.3 TEST FACILITY ....................................................................................................................................... 4 5 EQUIPMENT USED DURING TEST ............................................................................................................. 5 5.1 EQUIPMENTS LIST ................................................................................................................................. 5 5.2 MEASUREMENT UNCERTAINTY .............................................................................................................. 5 5.3 TEST EQUIPMENT CALIBRATION ........................................................................................................... 5 6 CONDUCTED EMISSION ............................................................................................................................... 6 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................ 7 7.1 EUT OPERATION ................................................................................................................................... 7 7.2 TEST SETUP .......................................................................................................................................... 8 7.3 SPECTRUM ANALYZER SETUP .............................................................................................................. 9 7.4 TEST PROCEDURE ............................................................................................................................... 10 7.5 SUMMARY OF TEST RESULTS ............................................................................................................. 11 8 PERIODIC OPERATION ............................................................................................................................... 13 9 20DB BANDWIDTH ....................................................................................................................................... 16 9.1 TEST PROCEDURE ............................................................................................................................... 16 9.2 TEST RESULT ...................................................................................................................................... 16 10 ANTENNA REQUIREMENT ......................................................................................................................... 17 11 MODEL P220-1 PHOTOGRAPHS OF TESTING ...................................................................................... 18 11.1 RADIATION EMISSION TEST SETUP ..................................................................................................... 18 12 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS .............................................................................…

Text truncated - open the document above for the full version.

Model P220-1 Photographs of Testing Radiation Emission Test Setup From 9.37MHz to 30MHz From 30MHz to 1GHz From 1GHz to 3GHz
