XAB-HEDDI-P219REMOTE CONTROLLER

User manual FCC NOTE: Thi s device complies with Part 15 of the FCC Rules. Opera tion is subject to the following two conditions:(1)thi s device may not cause harmful interfere nce, and (2) thi s device must accept any interference received, including interferen ce t hat may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIF ICATIONS TO THIS EQUIP MENT. SUCH MODIFICATI ONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. INSTRUCTIONS FOR RADIO CONTROL OPERATOR SINGLE ENTRY TRANSMITTER MODEL NO.:P219-1 Read the following instructions thoroughly before using transmitter. This transmitter must be adjusted so that the coding switches match the coding switches on your present operating transmitter or receiver. 1.Remove the transmitter cover a Unscrew the screws(Figure A). b Remove the front cover from the transmitter(Figure B). 2.Setting the code You may set your transmitter to any code you desire,but be sure the code you set matches on both your transmitter and receiver. there are 9bit dip switches on your transmitter,each of which can be placed in three different posit -ions(+,0,-). Do not set all switches in same position,such as all +,or all - (Figure C). WARNING:No other adjustments should be made inside the transmitter. Now that you have selected your personal code,replace the transmitter cover. FIGURE A 1 2 3 4 5 6 7 8 ON FIGURE B Dip switch Button batteries User can click the push button. A si gnal tramsi t out. If the inside dip switch match the receive r switch, receiver will work. 9 FIGURE C

Block diagram

Heddolf Products Limited FCC ID: XAB-HEDDI-P219 Model Differences Statement Model Name: P219-1, P219-2, S219, L219 Describe the differences: All modules are exactly the same(Including circuit schematics, PCB), except the key and the model name. for more information see description below: P219-1, L219, S219 are just difference in code switch. P219-1, P219-2 are difference in key. Applicant’s name: HoPan.Chan Date and Applicant’s Signature: Data: 2013-12-27

Heddolf Products Ltd. FCC ID: XAB-HEDDI-P219 POWER OF ATTORNEY Date: Dec 28,2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Dec 27,2014. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Heddolf Products Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Signature: Ho Pan.Chan/ Electronic Engineer .................................................................................... [typed name and title] Heddolf Products Ltd. Unit 7, 22/F., Futura Plaza,111-113 How Ming Street, Kwun Tong, Kowloon, Hong Kong

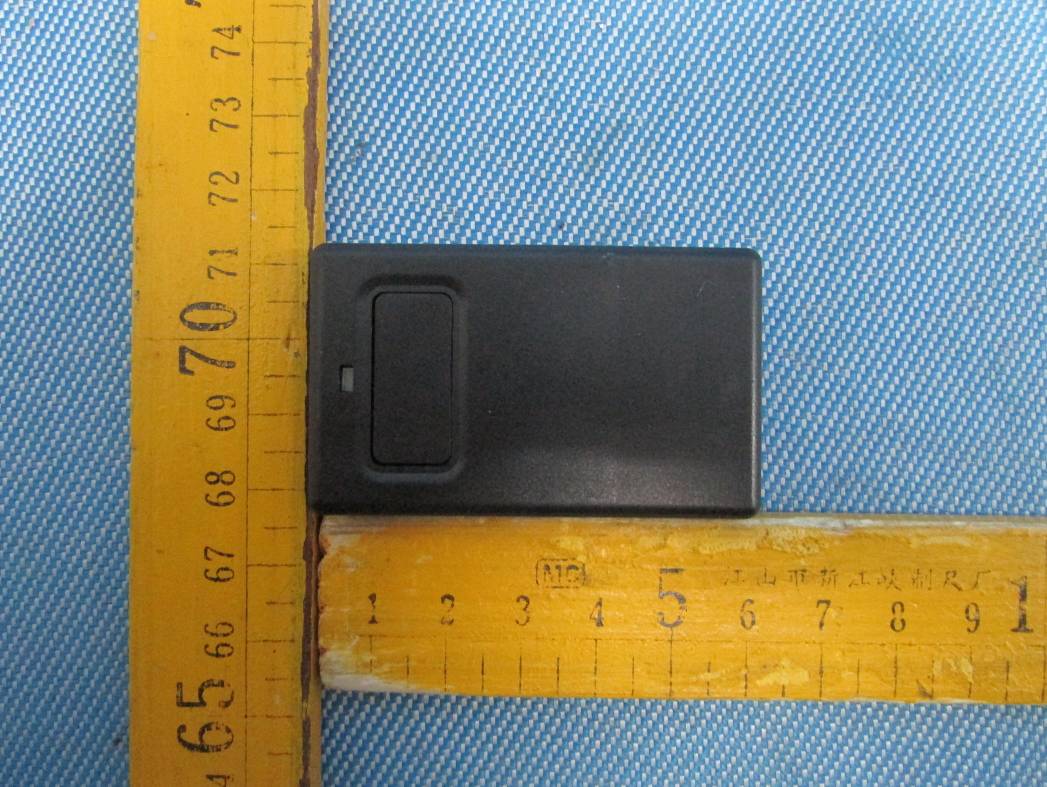

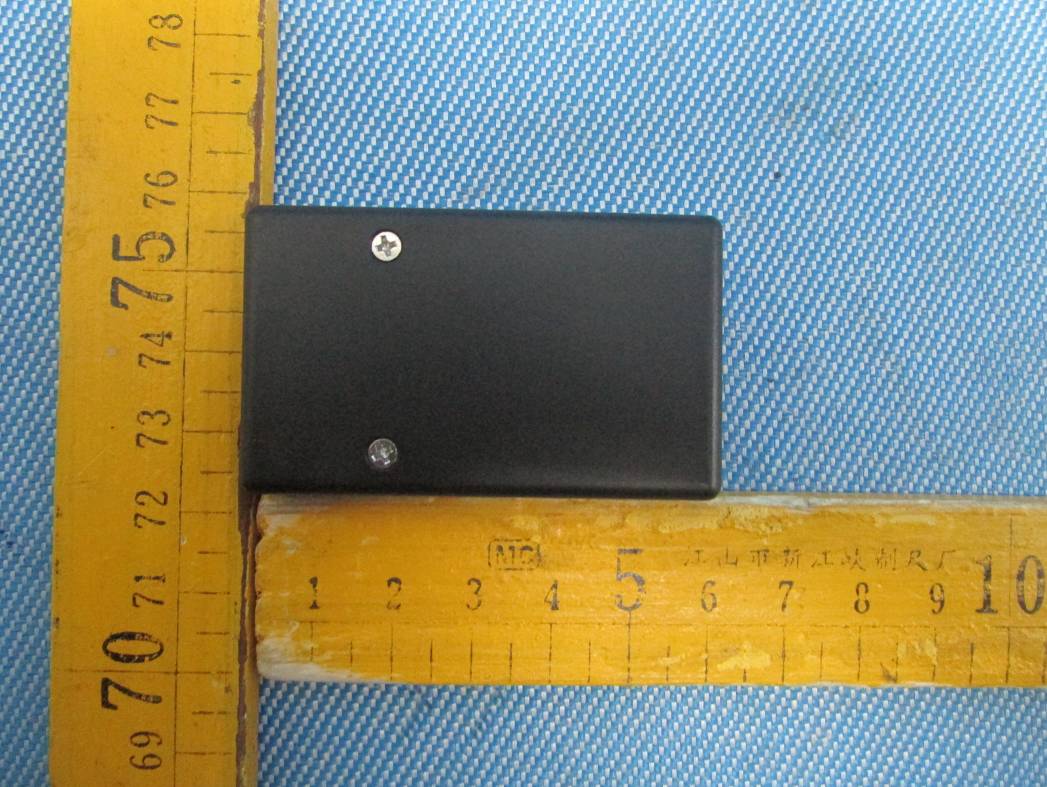

Reference No.: WTD13S1210020E Page 18 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 12 Photographs - Constructional Details P219-1, S219, L219 Reference No.: WTD13S1210020E Page 19 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Reference No.: WTD13S1210020E Page 20 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn P219-2 Reference No.: WTD13S1210020E Page 21 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: P219-1 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Model No.: P219-1 FCC ID: XAB-HEDDI-P219

FCC Label FCC Label Sample for model: P219-1, P219-2, S219, L219 FCC ID: XAB-HEDDI-P219 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Reference No.: WTD13S1210020E Page 22 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn L219 Reference No.: WTD13S1210020E Page 23 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn P219-1 ANT Reference No.: WTD13S1210020E Page 24 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT Reference No.: WTD13S1210020E Page 25 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 25 of 28 S219 Reference No.: WTD13S1210020E Page 26 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 26 of 28 P219-2 ANT Reference No.: WTD13S1210020E Page 27 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 27 of 28 ANT Reference No.: WTD13S1210020E Page 28 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn =========================End of Test Report==========================

Circuit Description The EUT is Remote control. The transmitter consists of oscillator(9.9MHz), MCU IC (PIC16F722) and RF OAK Modulation IC(MICR- F113). EUT Operation Frequuncy: 318MHz Power input: DC3V by Battery.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 12-Dec-2013 Sheet of File: E:\Tony\Remote controller\220_219 Series\SAPP-S220V01-V10.DDB Drawn By: VDD 20 VSS 19 A0 2 B0 21 B1 22 B2 23 B3 24 B4 25 B5 26 B6/ICSPCLK 27 B7/ICSPDAT 28 A1 3 A2 4 VREF/A3 5 A4 6 A5 7 C0 11 C1 12 C2 13 MCLR/VPP 1 C3/SCLK 14 C4/SDI 15 C5/SDO 16 C6/TX 17 C7/RX 18 VSS 8 A6/OSC2 10 A7/OSC1 9 IC1 PIC16F722_SSOP_28 SW2* 12345 J2NC Q18550 R710K R2* D2* C5104 C7 104 R547K R447K R9470R LED1Red R64.7K C910uF C3 20pF C10104P C1210P C1110uF C420pF L2150nH L1 470nH XT19.9MHz C13NC C146.8pF PAOUT 1 VSS 2 VDD 3 XTLOUT 4 XTLIN 5 ASK 6 IC2MICRF113 C82.2uF 3V 3V Data_out 3V Data_out C6104 BT13V 219 SERIES 12345678910 11121314151617181920 SW1 * TX Remote Controller COM R1* SW3* D1 * C15102 SW4* R2 * R11 * R8* R12 * ANT Remark:D3/R2/SW2/SW3/R8 for NC. SW1 Dip Switch 9bit D1 LL4148, R11/R12 0R,R1 1.8K,SW4 SMD. MODEL:P219-1MODEL:P219-2SW1 Dip Switch 9bit ,D1/D3 LL4148,R1/R2 1.8K,R11/R12 0R,SW2/SW3 SMD.R8 NCMODEL:S219SW1 Dip Switch 10bit,D3 LL4148,R2 1.8K,R8/R10 0R,SW4 SMD.D1/R1/R11/R12/SW2/SW3 for NC.MODEL:L219SW1 Dip Switch 8bit,D1 LL4148,R1 1.8K,R8/R11 0R,SW4 SMD.SW2/SW3/R2/R10/R12 for NC.

TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 28 Reference No. : WTD13S1210020E FCC ID : XAB-HEDDI-P219 Applicant : Heddolf Products Limited Address : Unit 7, 22/F., Futura Plaza,111-113 How Ming Street, Kwun Tong, Kowloon, Hong Kong Manufacturer : SAP Products Limited Address : Xian Sha No.2 Industrial Zone, Gao Bu Town,Dongguan City, Guangdong Province, PRC. Equipment Under Test (EUT) : Product Name : Remote Controller Model No. : P219-1, P219-2, S219, L219 Rules : FCC CFR47 Part 15 Section 15.231: 2012 Date of Receipt sample : Dec.16, 2013 Date of Test : Dec.17~21, 2013 Date of Issue : Dec.24, 2013 Test Result : PASS* *Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Testing location: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Maikou.zhang/ Project Engineer Philo Zhong / Manager Reference No.: WTD13S1210020E Page 2 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 N/A Radiated Spurious Emissions 15.205(a) 15.209 15.231(b) PASS Periodic Operation 15.231(a) PASS 20dB Bandwidth 15.231(c) PASS Antenna Requirement 15.203 PASS Reference No.: WTD13S1210020E Page 3 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ............................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 4.1 GENERAL DESCRIPTION OF E.U.T..............................................................................................................4 4.2 DETAILS OF E.U.T........................................................................................................................................4 4.3 TEST FACILITY..............................................................................................................................................4 4.4 TEST LOCATION............................................................................................................................................4 5 EQUIPMENT USED DURING TEST....................................................................................................................5 5.1 EQUIPMENTS LIST........................................................................................................................................5 5.2 MEASUREMENT UNCERTAINTY....................................................................................................................5 5.3 TEST EQUIPMENT CALIBRATION..................................................................................................................5 6 CONDUCTED EMISSION TEST...........................................................................................................................6 7 RADIATION EMISSION TEST..............................................................................................................................7 7.1 EUT OPERATION:........................................................................................................................................7 7.2 TEST SETUP.................................................................................................................................................7 7.3 SPECTRUM ANALYZER SETUP.....................................................................................................................9 7.4 TEST PROCEDURE.......................................................................................................................................9 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION....................................................................................9 7.6 SUMMARY OF TEST RESULTS....................................................................................................................10 8 PERIODIC OPERATION......................................................................................................................................11 9 20DB BANDWIDTH..............................................................................................................................................14 9.1 TEST PROCEDURE.....................................................................................................................................14 9.2 TEST RESULT.............................................................................................................................................14 10 ANTENNA REQUIREMENT................................................................................................................................15 11 PHOTOGRAPHS OF TESTING..........................................................................................................................16 11.1 RADIATION EMISSION TEST VIEW..............................................................................................................16 12 PHOTOGRAPHS - CONSTRUCTIONA…

Text truncated - open the document above for the full version.

Reference No.: WTD13S1210020E Page 16 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 11 Photographs of Testing 11.1 Radiation Emission Test View From 9.9MHz-30MHz From 30MHz to 1GHz Reference No.: WTD13S1210020E Page 17 of 28 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Above 1GHz
