ISimple® ® , a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 Ph. 866-788-4237 [email protected] ©2007 AAMP of Florida, Inc. IS-PRO REG. 04-19-10 Owner’s Manual MAKE THE CONNECTION iPod to your iPhone to your MediaWire TM [email protected] iSimple ® A/V CABLE WITH REMOTE FOR YOUR iPhone or iPod Video not intended to be in view of driver wireless remote remote holder connection for iPod or iPhone audio / video output PRO 2010 2 1. Introduction Thank you for purchasing the iSimple ® MediaWire™PRO. This product is designed to provide endless hours of listening and viewing pleasure from your factory or aftermarket entertainment system. To ensure optimal performance of the MediaWire™PRO we recommend that you read this entire manual before beginning the installation of this product. The MediaWire™PRO provides connectivity between your iPod/iPhone and any audio or audio/video source that accepts RCA connections. Note: many factory radios require an auxiliary input device to accept an RCA connection. For video output, an iPod/iPhone with video capability is required. The MediaWire™PRO will also charge your iPod/iPhone while connected. Visit http://www.iSimpleSolutions.com to see auxiliary input solutions for your radio. 2. Precautions PREVENTING DAMAGE TO YOUR VEHICLE OR MEDIA PLAYER Installation of this product requires you to make wiring connections. To eliminate the risk of an electrical short, we recommend disconnecting the vehicle’s battery prior to installation. If you do not feel comfortable making these connections, we suggest you seek professional installation. We recommend that the iPod/iPhone be disconnected from the cable when the vehicle is not in use. 3. Installation 1. Using a voltmeter identify a 12V+ wire and a ground wire 2. Connect the red wire on the MediaWire™PRO to the 12V+ constant power wire (or you can connect the MediaWire™PRO red wire to a switched accessory wire to provide battery charging only when the vehicle is running). 3. Connect the black wire on the MediaWire™PRO to ground. 4. Plug the male RCA connector ends of the MediaWire™PRO into the receivers auxiliary audio or A/V input. 5. Choose a convenient mounting location for your device. This is typically a glove box, center console or mounting cradle. 6. Run the docking cable and RCA connectors to the desired mounting location. 7. Securely install the cable in a location free from heat, humidity, moving parts, or sharp metal edges. We recommend securing the MediaWire™PRO to a suitable location using double sided tape, Velcro TM or zip-ties. Accessing your auxiliary audio source Please refer to the owners manual that came with your radio or vehicle for directions on how to access your radio’s auxiliary input source. On some iPod models you will need to enter the settings menu, and select video, select TV out, and set this option to “ASK”. When a video is selected to play, the iPod will ask “do you want to enable TV out?” select on, to view video on an external screen using this product. Some newer iPod/iPhone models do not have this option in the video settings menu. Instead, after connecting your iPod/ iPhone to our product, and selecting a video to play, the device will ask you automatically “Display on TV?” Choose “YES” to watch the video on an external monitor. 4. Mounting options 1. Dashboard: A strip of hook and loop tape has been provided if dash mounting of the WiFli™ remote is desired. Use the supplied alcohol prep. pad to clean the surface of the chosen mounting location for the remote. Allow surface to dry thoroughly before applying the hook and loop tape to ensure best performance. 2. Steering Wheel Mounting: The WiFli™ mounting cradle is designed to fit snugly to your steering wheel for safe and convenient access. Using the supplied attaching strap, tighten the mounting cradle to the steering wheel. The mounting cradle can be installed on either the left or right side of the steering wheel. Caution! The WiFli™ mounting cradle gives you quick access to WiFli™ remote while keeping both hands on the wheel. It is designed to be attached to the inside of the steering wheel perimeter. Position the cradle in an open space so as not to interfere with the deployment of the airbag or other steering wheel operations. Improper installation may lead to injury in the event of airbag deployment. + MENU WiFli ™ WiFli ™ MENU LeftRight miniUSB miniUSB 3 Removing WiFli™ Remote from the Mounting Cradle: To remove the WiFli™ remote from the mounting cradle, push upwards gently on the remote by placing your finger inside the recess on the side of the mounting cradle. 4. Remote Control Battery installation Before using your remote control with your device, Please first install the CR2025 Battery (included) into the remote as shown. Operation The wireless remote control is designed to give you access to your iPod or iPhone music library without handling your device. The remote will provide such controls as: track forward, and track back, as well as navigation through the iPod menus. The RF receiver is built into the iSimple cable. So it is installed automatically when you connect power and ground from the vehicle, to this iSimple cable. 5. Troubleshooting SymptomCauseRemedy iPod/iPhone is not charging Fuse is blown Check the fuse in the power lead of the MediaWire™PRO. If the fuse is blown, replace with a fuse of the same amperage. If fuse blows again, please call tech support. iPod/iPhone is not charging and fuse isn’t blown Weak wiring connection Check the Power (RED) and Ground (BLACK) wires to ensure that they are correctly connected to 12V+ and Ground. No video iPod is not set for video out In settings menu select Video Output ON. No audioRCA is not connectedVerify connection of RCA’s to Receiver. Remote does not control iPod Battery Issue Check that battery is installed correctly, and does not need to be replaced Transmission Interference Re-route cable so that RF rec…

Text truncated - open the document above for the full version.

AAMP of Flordia, dba AAMP of America

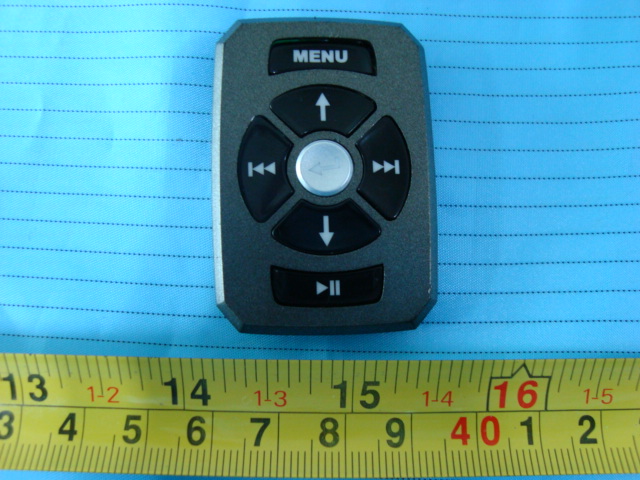

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT– Top View EUT– Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT - Cover off View EUT - Main Board TopView Antenna EUT - Main Board Bottom View EUT - Main Board Shielding off Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.231 MEASUREMENT AND TEST REPORT For AAMP of Flordia, dba AAMP of America 13160 56th Court, Clearwater, FL 33760, USA FCC ID: XBD-ISPRO Report Type: Original Report Product Type: 315 MHz Remote Controller Test Engineer: Tim Zhang Report Number: RSZ10090607-15.231 Report Date: 2010-11-09 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 AAMP of Flordia, dba AAMP of America FCC ID: XBD-ISPRO Report #: RSZ10090607-15.231 Page 2 of 18 FCC Part15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 SPECIAL ACCESSORIES.................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 FCC §15.203 - ANTENNA REQUIREMENT.............................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 FCC §15.205, §15.209 & §15.231(B) - RADIATED EMISSIONS .............................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP.........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 FCC §15.231(C) – 20 DB BANDWIDTH TESTING ................................................................................................12 REQUIREMENT...........................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST DATA................................................................................................................................................................12 FCC §15.231(A) - DEACTIVATION TE…
