XEG-MODEL12MULTI TRACK RECORD I NG CONSOLE

D00000000A Model 12 Multitrack Recording Console OWNER’S MANUAL IMPORTANT SAFETY INSTRUCTIONS WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. For U.S.A. Declaration of Conformity Model Number: Model 12 Trade Name: TASCAM Responsible party: TEAC AMERICA, INC. Address: 10410 Pioneer Blvd. Suite #1 Santa Fe Springs, California 90670, U.S.A. Telephone number: 1-323-726-0303 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. a) Reorient or relocate the receiving antenna. b) Increase the separation between the equipment and receiver. c) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. d) Consult the dealer or an experienced radio/TV technician for help. CAUTION Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the user’s authority to operate this equipment. For Canada THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. CET APPAREIL NUMERIQUE DE LA CLASSE B EST CONFORME A LA NORME NMB-003 DU CANADA. This product complies with the European Directives request and the other Commission Regulations. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing isrequired when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position. • The mains plug is used as the disconnect device, the disconnect device shall remain readily operable. • Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss. • If you are experiencing problems with this product, contact TEAC for a service referral. Do not use the product until it has been repaired. 2 TASCAM Model 12 IMPORTANT SAFETY INSTRUCTIONS WARNING • To prevent possible hearing damage, do not listen at high volume levels for long periods. CAUTION • Do not expose this apparatus to drips or splashes. • Do not place any objects filled with liquids, such as vases, on the apparatus. • Do not install this apparatus in a confined space such as a book case or similar unit. • The apparatus should be located close enough to the AC outlet so that you can easily grasp the power cord plug at any time. • If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat. • CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type. For European Customers Disposal of electrical and electronic equipment and batteries and/or accumulators (a) All electrical/electronic equipment and waste batteries/ accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities. (b) By disposing of electrical/electronic equipment and waste batteries/accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment. (c) Improper disposal of waste electrical/electronic equipment and batteries/accumulators can have serious effects on the environment and human health beca…

Text truncated - open the document above for the full version.

6 - Recorder functions Automatic punch in/out function Using the automatic punch in/out function, you can automatically record between punch in and out points set in advance. To use the automatic punch in/out functions, start playback from a pre-roll point before the punch in point where recording will start. Recording will stop when the punch out point is reached, but playback will continue for two seconds before stopping. Setting the punch in/out points 1. When the recorder is stopped, select MTR on the MENU Screen, and open the MTR Screen. (see “Menu operation procedures” on page 21) 2. Select AUTO PUNCH on the MTR Screen, and open the AUTO PUNCH Screen. 3. Press the 7/9 button to start playback. 4. Press the MULTI JOG dial to set the punch in and out points. The set points are shown next to the IN and OUT items. NOTE iYou can also turn the MULTI JOG dial to set the points. iSet the punch in and out points at least one second apart. iPress the F2 button to clear set punch in and out points. iPress the F3 button to select either the punch in or out point. An icon will appear next to the selected item. 5. Press the 8 button to stop playback. 6. Press the F4 button to turn the automatic punch in/ out function on. The icon appears on the AUTO PUNCH Screen. 7. Press the F1 button to return to the MENU Screen. TIP iBy setting only the punch in point, you can start recording with automatic punch in and then continue recording until you press the 8 button to stop. iBy setting only the punch out point, you can start recording by pressing the 0 button and then stop recording with automatic punch out. Setting a pre roll point When using automatic punch in, the amount of playback time before the punch in point can be set (pre roll point). 1. When the recorder is stopped, select MTR on the MENU Screen, and open the MTR Screen. (see “Menu operation procedures” on page 21) 2. Select A.PUNCH PRE ROLL on the MTR screen to open the A.PUNCH PRE ROLL screen. 3. Set the pre-roll point. OptionMeaning OFF Do not locate to a point before the punch in point. Manually moving to somewhere before the punch in point beforehand will be necessary. 1sec. – 10sec. (default: 2sec.) Locate to a pre roll point the set time before the punch in point and start playback. 4. Press the F1 button to return to the MTR Screen. Rehearsing punching in and out You can rehearse before punch in/out recording. In rehearsal, recording will not occur, but monitoring will be the same as if recording. 1. 1. Press the MENU button when the recorder is stopped to open the Home Screen. Confirm that the icon appears on the Home Screen. 2. Press the REC buttons for the tracks you want to record using automatic punch in/out. NOTE Punch in recording is not possible when the REC button is on for eight or more channels. 3. Press the 7/9 button. Auto punch in/out rehearsal starts. iThe transport starts playback from the pre-roll point. Both track playback and input source signals can be monitored. (see “Setting a pre roll point” on page 36) iWhen the punch in point is reached, only the input source signal will be monitored. The 0 button will blink showing that it is rehearsal mode. iWhen the punch out point is reached, both track playback and input source signals will be monitored. The 0 button will become unlit. iPlayback will automatically stop two seconds after the punch out point. The 7/9 button will blink. Rehearsal can be repeated. 36 TASCAM Model 12 6 - Recorder functions Using automatic punching in and out Follow these procedures to punch in and out automatically and record. 1. Confirm that the icon appears on the Home Screen. 2. Press the REC buttons for the tracks you want to record using automatic punch in/out. NOTE Punch in recording is not possible when the REC button is on for eight or more channels. 3. Press the 0 button. iThe transport starts playback from the pre-roll point. Both track playback and input source signals can be monitored. (see “Setting a pre roll point” on page 36) iWhen the punch in point is reached, only the input source signal will be monitored. The 0 button will light. iWhen the punch out point is reached, both track playback and input source signals will be monitored. The 0 button will become unlit. iPlayback will automatically stop two seconds after the punch out point. The 7/9 button will blink. TASCAM Model 12 37 7 - Track editing Clearing tracks The selected track will be cleared. 1. When the recorder is stopped, select MTR on the MENU Screen, and open the MTR Screen. (see “Menu operation procedures” on page 21) 2. Select TRACK EDIT on the MTR Screen, and open the TRACK EDIT Screen. 3. Select TRACK CLEAR on the TRACK EDIT Screen, and open the TRACK CLEAR Screen. 4. Turn the MULTI JOG dial to select the track to clear, and press the MULTI JOG dial. A confirmation message will appear. NOTE Press the F2 button to open a message asking to confirm that you want to clear all tracks. 5. Press the F4 button to clear the track(s). NOTE iTo cancel clearing tracks, press the F1 button. iUndoing is possible only for the last cleared track. 6. After clearing tracks completes, the TRACK CLEAR Screen will reopen. Importing tracks You can import audio files that you have to tracks in the current song. Files that can be imported to tracks must be WAV (BWF) format (“.WAV” extension). To import an audio file with a different format (.mp3, etc.) to this unit, it must be converted to a WAV file that matches the format of the song it will be imported into beforehand. 1. Connect this unit with a computer. (see “Connecting with a Computer” on page 51) 2. Use the computer to copy WAV files on it to this unit’s “MUSIC” folder. 3. Follow the proper disconnection procedures on the computer before disconnecting the USB cable. (see “Disconnecting” on page 52) 4. When the recorder is stopped, select MTR on the MENU Screen, and open the MTR Screen. (see “Menu operation procedures” on page 21) 5. Select TRACK EDIT on the MTR Screen, and ope…

Text truncated - open the document above for the full version.

TEAC CORPORATION Agent Authorization Company: TEAC CORPORATION Address: 1-47 Ochiai, Tama-shi, Tokyo, 206-8530, Japan Product Name: MULTI TRACK RECORD I NG CONSOLE Model Number(s ): Model 12 Product Description: MULTI TRACK RECORD I NG CONSOLE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/02/20 Name: AKIRA SEKIGUCHI Title: group Leader Company: TEAC CORPORATION

TEAC CORPORATION Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/02/20 Subject; Request for Confidentiality FCC ID: XEG-MODEL12 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: AKIRA SEKIGUCHI Title: group Leader

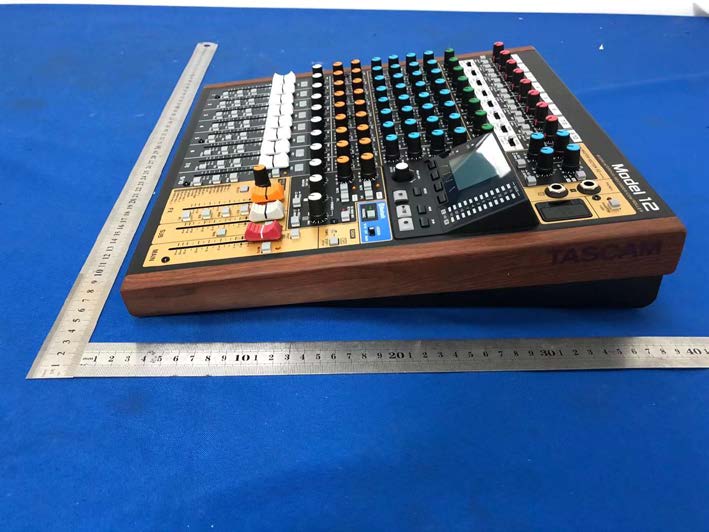

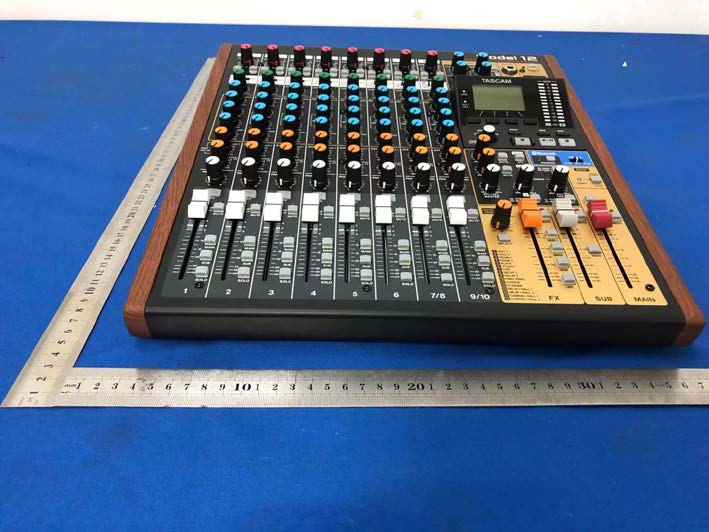

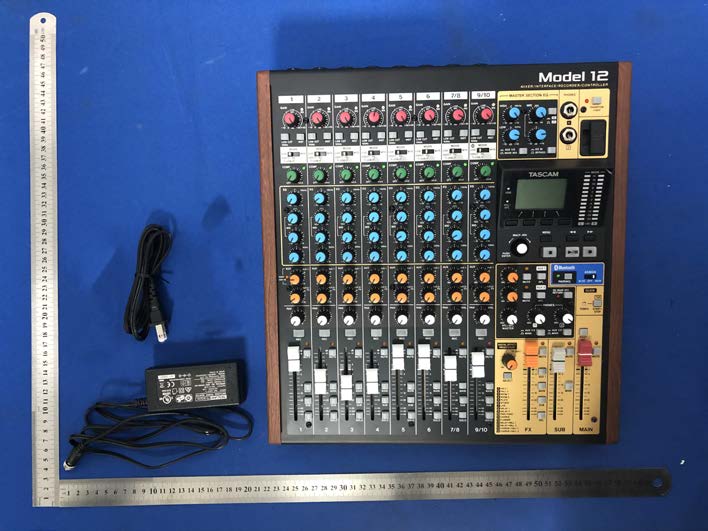

External Photos

Size:40*20mm M/N: Model 12 FCC ID: XEG-MODEL12 IC: 1559C-MODEL12 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: XEG-MODEL12 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT-EDR Modulation Frequency (MHz) Output Power (dBm) Max Antenna Gain (dBi) GFSK 2402 1.82 -0.15 GFSK 2441 1.42 -0.15 GFSK 2480 2.46 -0.15 Pi/4 DQPSK 2402 0.41 -0.15 Pi/4 DQPSK 2441 1.78 -0.15 Pi/4 DQPSK 2480 1.59 -0.15 8DPSK 2402 0.87 -0.15 8DPSK 2441 1.97 -0.15 8DPSK 2480 1.80 -0.15 max possible output power (PK,conducted)：2±1dbm -0.15dBi logarithmic terms convert to numeric result is nearly 0.97 3dbm=2mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=2/5*√2. 402=0. 62≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2/5*√2.441=0. 62≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=2/5*√2.48=0.63≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002498E FCC Part 15C Test Report FCC ID: XEG-MODEL12 Product Name: MULTI TRACK RECORD I NG CONSOLE Trademark: TASCAM Model Name : Model 12 Prepared For : TEAC CORPORATION Address : 1-47 Ochiai, Tama-shi, Tokyo, 206-8530, Japan Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Dec. 25, 2019 – Jan. 06, 2020 Date of Report : Jan. 06, 2020 Report No.: BCTC1912002498E Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 1 of 69 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002498E TEST RESULT CERTIFICATION Applicant’s name ............. : TEAC CORPORATION Address ............................. : 1-47 Ochiai, Tama-shi, Tokyo, 206-8530, Japan Manufacture's Name ........ : TEAC CORPORATION Address ............................. : 1-47 Ochiai, Tama-shi, Tokyo, 206-8530, Japan Product description Product name .................... : MULTI TRACK RECORD I NG CONSOLE Trademark ......................... : TASCAM Model and/or type reference .......................................... : Model 12 Standards ......................... : FCC Part15.247 ANSI C63.10:2013 558074 D01 15.247 Meas Guidance v05r02 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Willem Wang Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 2 of 69 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002498E Table of Contents Test Report Declaration Page 1. TEST SUMMARY ...................................................... 5 2. TEST FACILITY ....................................................... 6 3. MEASUREMENT UNCERTAINTY........................................ 6 4. GENERAL INFORMATION .............................................. 7 4.1 GENERAL DESCRIPTION OF EUT ...................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 8 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................. 13 6.1 Block Diagram Of Test Setup ........................................... 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 Test Result ........................................................... 15 7. RADIATED EMISSIONS ............................................... 17 7.1 Block Diagram Of Test Setup ........................................... 17 7.2 Limit ................................................................. 18 7.3 Test procedure ........................................................ 18 7.4 Test Result ........................................................... 20 7.5 RADIATED Band EMISSION MEASUREMENT ............................ 24 8. CONDUCTED EMISSION .............................................. 27 8.1 Block Diagram Of Test Setup ........................................... 27 8.2 Limit ................................................................. 27 8.3 Test procedure ........................................................ 27 8.4 Test Result ........................................................... 28 9. 20 DB BANDWIDTH .................................................. 37 9.1 Block Diagram Of Test Setup ........................................... 37 9.2 Limit ................................................................. 37 9.3 Test procedure ........................................................ 37 9.4 Test Result ........................................................... 38 10. MAXIMUM PEAK OUTPUT POWER .................................... 43 10.1 Block Diagram Of Test Setup .......................................... 43 10.2 Limit ................................................................ 43 10.3 Test procedure ....................................................... 43 10.4 Test Result .......................................................... 44 11. HOPPING CHANNEL SEPARATION .................................... 49 11.1 Block Diagram Of Test Setup .......................................... 49 11.2 Limit ................................................................ 49 Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 3 of 69 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002498E 11.3 Test procedure ....................................................... 49 11.4 Test Result .......................................................... 50 12. NUMBER OF HOPPING FREQUENCY .................................. 55 12.1 Block Diagram Of Test Setup .......................................... 55 12.2 Limit ................................................................ 55 12.3 Test procedure ....................................................... 55 12.4 Test Result .......................................................... 56 13. DWELL TIME ..............................…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002498E 16. EUT TEST SETUP PHOTOGRAPHS Spurious emissions Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 68 of 69 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002498E Conducted emissions ※※※※※ END OF REPORT ※※※※※ Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 69 of 69
