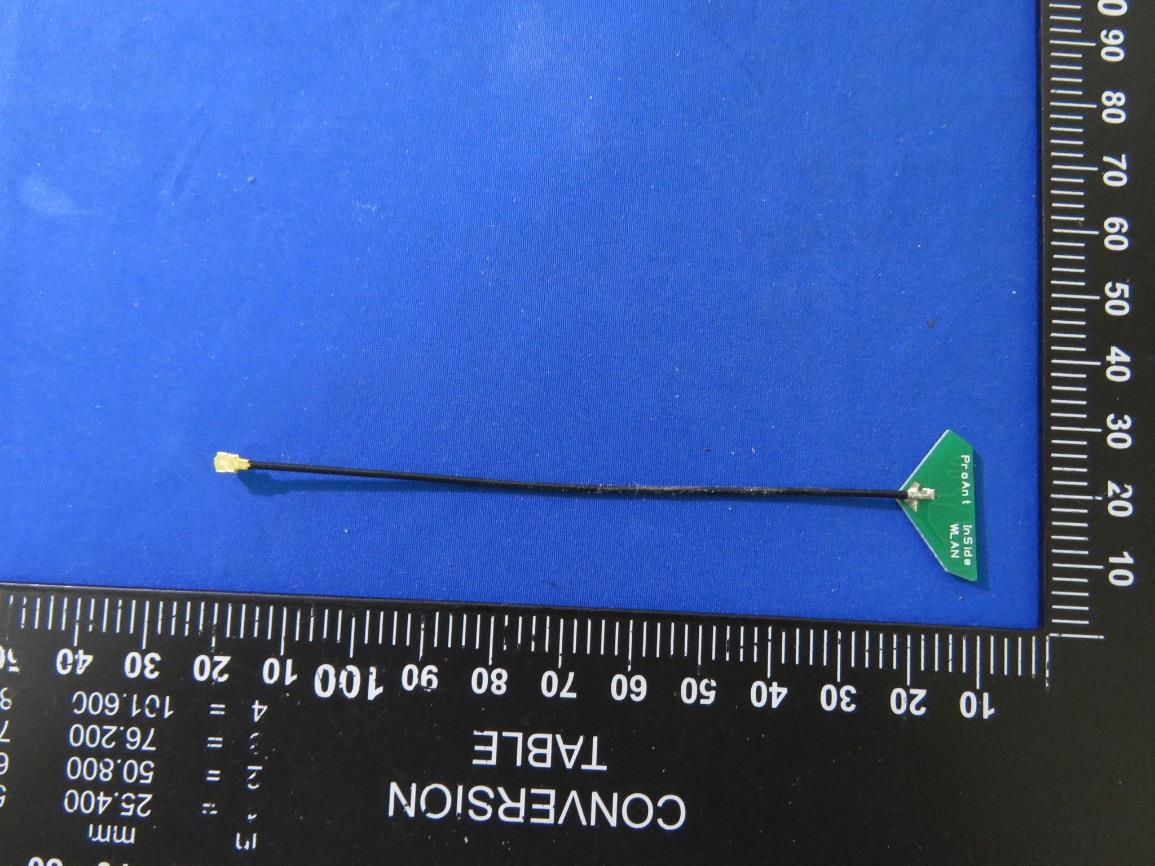

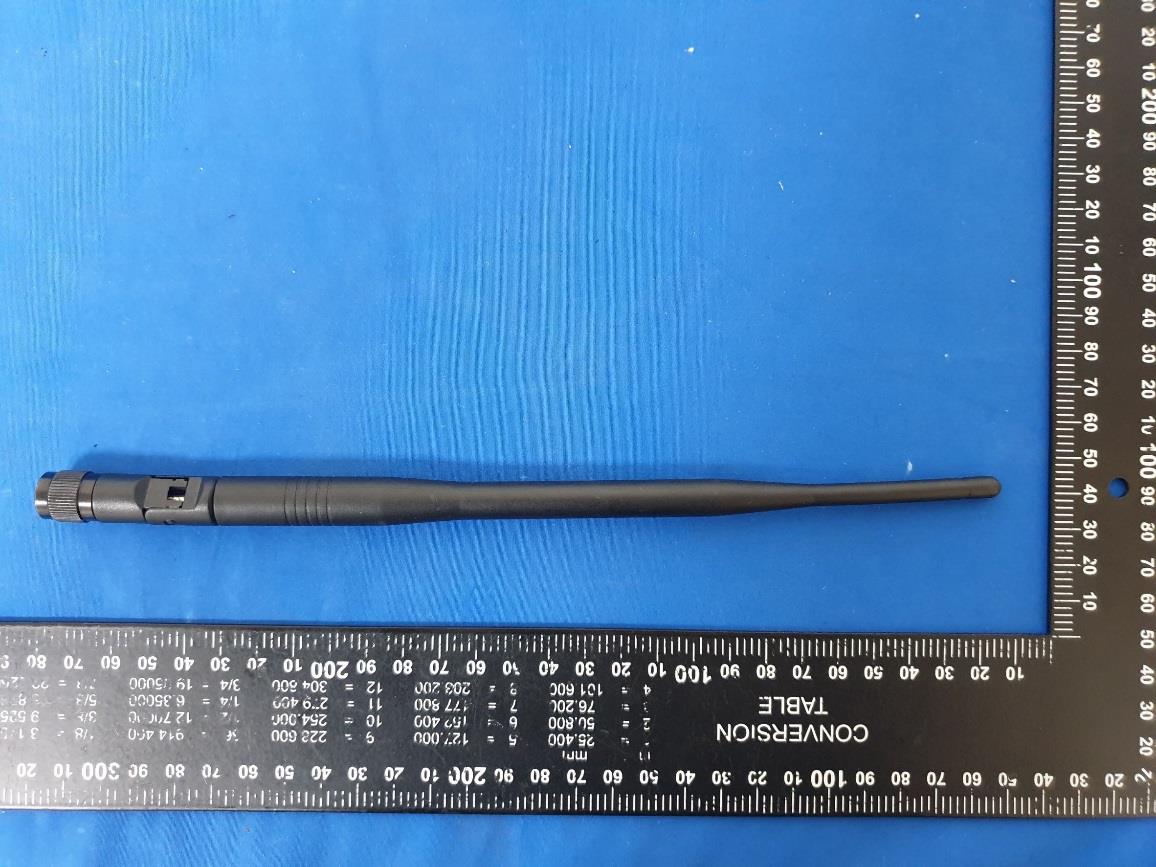

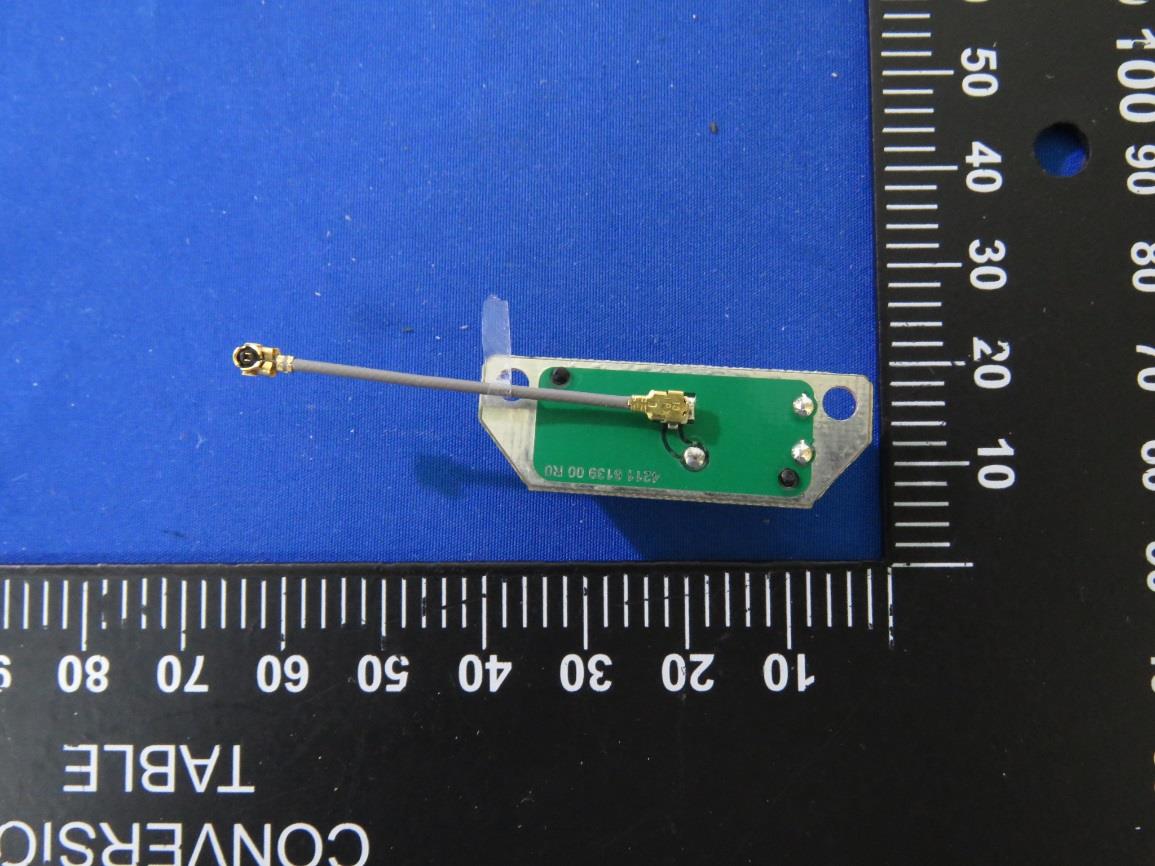

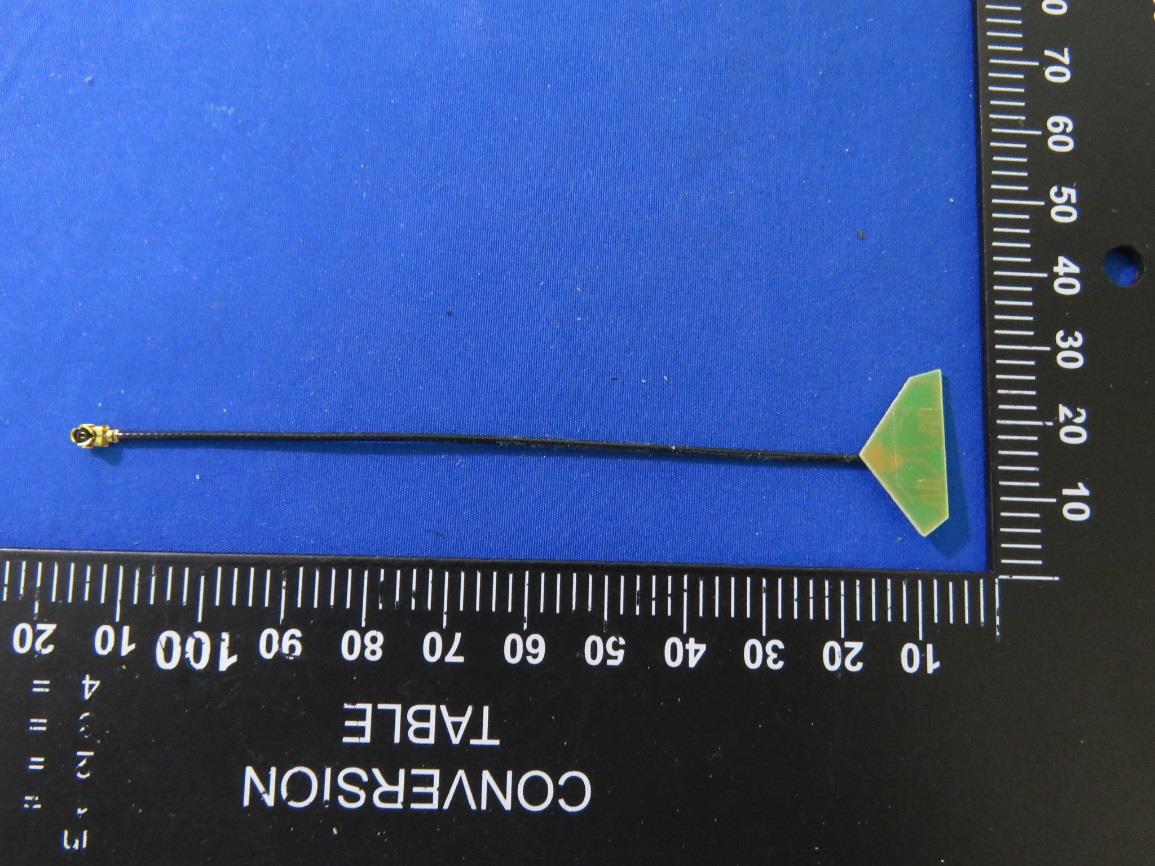

Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK200203002-00 Page 1 of 5 External Photographs Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK200203002-00 Page 2 of 5 Dipole Antenna (Inside WLAN PRO-IS-299) Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK200203002-00 Page 3 of 5 PIFA Antenna (SMARTEQ 4211613980) Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK200203002-00 Page 4 of 5 Dipole Antenna (TAOGLAS GW.71.5153) Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK200203002-00 Page 5 of 5 PCB Antenna (Redpine Signals RSIA7)

Label and Label Location Module Shielding Case

Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Project No.: RLK200203002-00 Page 1 of 1 Internal Photographs

Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK200203002-00C Page 11 of 79 4 FCC §15.247(i), § 1.1310, § 2.1091 – RF Exposure 4.1 Applicable Standard According to subpart 15.247(i) and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310, and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4R² = power density (in appropriate units, e.g. mW/cm2); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); 4.2 RF Exposure Evaluation Result Mode Frequency Range (MHz) Antenna Gain Target Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) BLE 2402-2480 3.80 2.3988 19.00 79.4328 20 0.0379 1 BR/EDR 2402-2480 3.80 2.3988 21.00 125.8925 20 0.0601 1 Wi-Fi 2.4G 2412-2472 3.80 2.3988 25.00 316.2278 20 0.1510 1 Wi-Fi 5G 5150-5850 5.50 3.5481 14.50 28.1838 20 0.0199 1 Note: Wi-Fi and BT can’t simultaneously. Result: MPE evaluation meet 20 cm the requirement of standard.

FCC Part 15.247 RSS-247 Issue 2, Feb 2017; RSS-Gen Issue 5, Mar 2019 TEST REPORT For Redpine Signals Inc 2107 N First Street, Suite 540, San Jose, CA 95131-2019, USA FCC ID: XF6-M7DB7 IC: 8407A-M7DB7 Report Type Original Report Product Name: Dual Band 802.11 a/b/g/n, Bluetooth 5.0 SIP Module Model Name: M7DB Report Number : RLK200203002-00C Report Date : 2020/05/18 Reviewed By : Zeus Chen Prepared By: Bay Area Compliance Laboratories Corp.(Linkou Laboratory) No. 6, Wende 2Rd., Guishan Dist., Taoyuan City 33382, Taiwan (R.O.C.) Tel: +886 (3)3961072; Fax: +886 (3) 3961027 www.bacl.com.tw Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Linkou Laboratory) Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK200203002-00C Page 2 of 79 Revision History Revision Report Number Issue Date Description 1.0 RLK200203002-00C 2020/05/18 Original Report Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK200203002-00C Page 3 of 79 TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .............................................................................. 5 1.2 OPERATION CONDITION OF EUT ................................................................................................................. 6 1.3 OBJECTIVE AND TEST METHODOLOGY ........................................................................................................... 6 1.4 MEASUREMENT UNCERTAINTY ................................................................................................................... 6 1.5 ENVIRONMENTAL CONDITIONS AND TEST DATE ............................................................................................... 6 1.6 TEST FACILITY ........................................................................................................................................ 7 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 8 2.1 DESCRIPTION OF TEST CONFIGURATION ......................................................................................................... 8 2.2 SUPPORT EQUIPMENT LIST AND DETAILS ....................................................................................................... 9 2.3 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................. 9 3 SUMMARY OF TEST RESULTS .................................................................................................................... 10 4 FCC §15.247(I), § 1.1310, § 2.1091 – RF EXPOSURE .................................................................................... 11 4.1 APPLICABLE STANDARD .......................................................................................................................... 11 4.2 RF EXPOSURE EVALUATION RESULT ........................................................................................................... 11 5 RSS-102 SEC 2.5.2 - EXEMPTION LIMITS FOR ROUTINE EVALUATION – RF EXPOSURE EVALUATION ............. 12 5.1 APPLICABLE STANDARD .......................................................................................................................... 12 5.2 RF EXPOSURE EVALUATION RESULT ........................................................................................................... 12 6 FCC §15.203 AND RSS-GEN SEC 6.8– ANTENNA REQUIREMENTS ................................................................ 13 6.1 APPLICABLE STANDARD .......................................................................................................................... 13 6.2 ANTENNA LIST AND DETAILS .................................................................................................................... 13 7 FCC §15.207 AND RSS-GEN SEC 8.8- AC LINE CONDUCTED EMISSIONS ........................................................ 14 7.1 APPLICABLE STANDARD .......................................................................................................................... 14 7.2 EUT SETUP AND TEST PROCEDURE ............................................................................................................ 15 7.3 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................... 15 7.4 TEST DATA AND TEST PLOT ..................................................................................................................... 16 8 FCC §15.209, §15.205, §15.247(D), RSS-GEN SEC 8.9, 8.10 AND RSS-247 SEC 5.5 – SPURIOUS EMISSIONS ..... 17 8.1 APPLICABLE STANDARD .......................................................................................................................... 17 8.2 EUT SETUP AND TEST PROCEDURE ............................................................................................................ 20 8.3 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................... 21 8.4 RADIATED EMISSION TEST PLOT AND DATA .................................................................................................. 22 9 FCC §15.247(A)(1) AND RSS-GEN SEC 6.7– 20 DB EMISSION BANDWIDTH ................................................... 45 9.1 APPLICABLE STANDARD .......................................................................................................................... 45 9.2 TEST PROCEDURE ................................................................................................................................. 46 9.3 TE…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK200203002-00C Page 41 of 79 Above 1G (1 GHz-26.5 GHz): The worst mode: BR-1Mbps Middle CH. Horizontal Vertical Level = Read Level + Factor Over Limit = Level – Limit Correct Factor = Antenna Factor + Cable Loss – Amplifier Gain Spurious emissions more than 20 dB below the limit were not reported Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK200203002-00C Page 42 of 79 Conducted Spurious Emissions: Channel Frequency (MHz) Delta Peak to Band Emission (dBc) Limit (dBc) Result BR-1Mbps mode Low 2402 50.41 ≥ 20 Compliance Mid 2441 54.24 ≥ 20 Compliance High 2480 55.35 ≥ 20 Compliance EDR-2Mbps mode Low 2402 51.23 ≥ 20 Compliance Mid 2441 50.80 ≥ 20 Compliance High 2480 54.66 ≥ 20 Compliance EDR-3Mbps mode Low 2402 50.36 ≥ 20 Compliance Mid 2441 48.89 ≥ 20 Compliance High 2480 51.67 ≥ 20 Compliance Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK200203002-00C Page 43 of 79 BR-1Mbps Low CH BR-1Mbps Middle CH BR-1Mbps High CH EDR-2Mbps Low CH EDR-2Mbps Middle CH EDR-2Mbps High CH Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK200203002-00C Page 44 of 79 EDR-3Mbps Low CH EDR-3Mbps Middle CH EDR-3Mbps High CH - - Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK200203002-00C Page 45 of 79 9 FCC §15.247(a)(1) and RSS-Gen Sec 6.7– 20 dB Emission Bandwidth 9.1 Applicable Standard According to FCC §15.247(a) (1) the maximum 20 dB bandwidth of the hopping channel shall be presented. According to RSS-247 §5.1 The bandwidth of a frequency hopping channel is the 20 dB emission bandwidth, measured with the hopping stopped. The system’s radio frequency (RF) bandwidth is equal to the channel bandwidth multiplied by the number of channels in the hopset. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals According to RSS-Gen §6.7, The occupied bandwidth or the “99% emission bandwidth” is defined as the frequency range between two points, one above and the other below the carrier frequency, within which 99% of the total transmitted power of the fundamental transmitted emission is contained. The occupied bandwidth shall be reported for all equipment in addition to the specified bandwidth required in the applicable RSSs. In some cases, the “x dB bandwidth” is required, which is defined as the frequency range between two points, one at the lowest frequency below and one at the highest frequency above the carrier frequency, at which the maximum power level of the transmitted emission is attenuated x dB below the maximum in-band power level of the modulated signal, where the two points are on the outskirts of the in-band emission. The following conditions shall be observed for measuring the occupied bandwidth and x dB bandwidth:  The transmitter shall be operated at its maximum carrier power measured under normal test conditions.  The span of the spectrum analyzer shall be set large enough to capture all products of the modulation process, including the emission skirts, around the carrier frequency, but small enough to avoid having other emissions (e.g. on adjacent channels) within the span.  The detector of the spectrum analyzer shall be set to “Sample”. However, a peak, or peak hold, may be used in place of the sampling detector since this usually produces a wider bandwidth than the actual bandwidth (worst- case measurement). Use of a peak hold (or “Max Hold”) may be necessary to determine the occupied / x dB bandwidth if the device is not transmitting continuously. Bay Area Compliance Laboratories Corp.(Linkou Laboratory) Report No.: RLK200203002-00C Page 46 of 79  The resolution bandwidth (RBW) shall be in the range of 1% to 5% of the actual occupied / x dB bandwidth and the video bandwidth (VBW) shall not be smaller than three times the RBW value. Video averaging is not permitted. Note: It may be necessary to repeat the measurement a few times until the RBW and VBW are in compliance with the above requirement. For the 99% emission bandwidth, the trace data points are recovered and directly summed in linear power level terms. The recovered amplitude data points, beginning at the lowest frequency, are placed in a running sum until 0.5% of the total is reached, and that frequency recorded. The process is repeated for the highest frequency data points (starting at the highest frequency, at the right side of the span, and going down in frequency). This frequency is then recorded. The difference between the two recorded frequencies is the occupied bandwidth (or the 99% emission bandwidth). 9.2 Test Procedure 20dB Bandwidth: (1) Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. (2) Position the EUT without connection to measurement instrument. Turn on the EUT and connect it to measurement instrument. Then set it to any one convenient frequency within its operating range. Set a reference level on the measuring instrument equal to the highest peak value. (3) Measure the frequency difference of two frequencies that were attenuated 20 dB from the reference level. Record the frequency difference as the emission bandwidth. (4) Repeat above procedures until all frequencies measured were complete. 99% Emission Bandwidth The occupied bandwidth is the frequency bandwidth such that, below its lower and above its upper frequency limits, the mean powers are each equal to 0.5% of the total mean power of the given emission. The following procedure shall be used for measuring 99% power bandwidth: a) The instrument center frequency is set to the nominal EUT channel center frequency. …
