XF6-RS9110N1103802.11 abgn MODULE

Redpine Signals, Inc. Proprietary and Confidential RS9110-N-11-03 Evaluation Board User Guide Version 1.5 Ver sion 1.5 August 2011 Redpine Signals, Inc. 2107 N. First Street, #680 San Jose, CA 95131. Tel: (408) 748-3385 Fax: (408) 705-2019 Email: [email protected] Website: www.redpinesignals.com Redpine Signals, Inc. Proprietary and Confidential Page 2 RS9110-N-11-03 Evaluation Board RS91 1 0 -N-1 1 -0 3 Eval u ati on B o ard User Guide Us e r Gu i d e Version 1.5 Ver s i o n 1.5 Disclaimer The information in this document pertains to information related to Redpine Signals Inc. products. This information is provided as a service to our customers, and may be used for information purposes only. Redpine assumes no liabilities or responsibilities for errors or omissions in this document. This document may be changed at any time at Redpine’s sole discretion without any prior notice to anyone. Redpine is not committed to updating these documents in the future. Copyright © 2011 Redpine Signals, Inc. All rights reserved. Redpine Signals, Inc. Proprietary and Confidential Page 3 RS9110-N-11-03 Evaluation Board RS91 1 0 -N-1 1 -0 3 Eval u ati on B o ard User Guide Us e r Gu i d e Version 1.5 Ver s i o n 1.5 Table of Contents 1: Introduction.......................................................................5 : Wi-Fi Data Transfer Tests...................................................6 .1: Test Setup.............................................................................6 .2: Evaluation Software – Windows XP.......................................7 .3: Evaluation Process on Windows XP.......................................8 .4: Evaluation Software – Linux..................................................8 .5: Evaluation Process on Linux..................................................9 .6: Evaluation Software – Windows CE.......................................9 .7: Evaluation Process on Windows CE......................................10 3: Connector Details.............................................................11 3.1: SPI/SDIO connector............................................................11 3.2: GPIO Interface Header Details.............................................11 3.3: SD Memory Interface...........................................................12 4: Compliance Statements....................................................12 Redpine Signals, Inc. Proprietary and Confidential Page 4 RS9110-N-11-03 Evaluation Board RS91 1 0 -N-1 1 -0 3 Eval u ati on B o ard User Guide Us e r Gu i d e Version 1.5 Ver s i o n 1.5 Table of Figures Figure 1: RS9110-N-11-03 Evaluation Board and Connectors.........................5 Figure 2: RF Cable Connected to the RS9110-N-11-03 Evaluation Board........6 Figure 3: Test Setup for Throughput Measurement.........................................7 Redpine Signals, Inc. Proprietary and Confidential Page 5 RS9110-N-11-03 Evaluation Board RS91 1 0 -N-1 1 -0 3 Eval u ati on B o ard User Guide Us e r Gu i d e Version 1.5 Ver s i o n 1.5 1: Introduction The RS9110-N-11-03 evaluation board provides a complete IEEE 802.11abgn W ireless LAN evaluation platform. This basically has the RS9110-N-11-03 IEEE 802.11abgn WLAN module mounted on it along with few other supporting components such as 40 MHz reference oscillator and other passives. The RS9110-N-11-03 is a high-performance, low-power WLAN module. The board connects to a host processor through SDIO or SPI interfaces. It also provides the connectivity for the WLAN module to the Vector Signal Generator (VSG) and Vector Signal Analyzer (VSA) through a microwave coaxial connector switch. The RS9110-N-11-03 evaluation board facilitates you in carrying out following tests. • Evaluation of the Transmit and Receive performance of the radio • Evaluation of the end–to-end throughput performance The following picture illustrates various connectors on the RS9110-N-11-03 evaluation board Figure 1: RS9110-N-11-03 Evaluation Board and Connectors Redpine Signals, Inc. Proprietary and Confidential Page 6 RS9110-N-11-03 Evaluation Board RS91 1 0 -N-1 1 -0 3 Eval u ati on B o ard User Guide Us e r Gu i d e Version 1.5 Ver s i o n 1.5 A probe point (Jumper PB9) is provided in order to measure the total power consumed by the RS9110-N-11-03 module during transmit, receive, and standby modes. On board resistors are provided for the Mode Select, which helps the user to switch from the SDIO host interface to SPI host interface. A JTAG Connector is also provided to debug process flow control of the evaluation board. A SMD-based Microwave switch connector is provided to detach the onboard antenna, and attach external RF input/output of any signal generator/signal analyzer through a Microwave Cable Adapter (Murata Part Number – MXHS83QH3000). The following diagram illustrates how the user can connect an adapter with Microwave coaxial cable to the switch connector. Figure 2: RF Cable Connected to the RS9110-N-11-03 Evaluation Board : Wi-Fi Data Transfer Tests The evaluation kit allows you to carry out WLAN data transfer tests, where in RS9110-N-11-03 EVB can be connected to any 802.11abgn Access Points and user can run any network applications to verify the WLAN connection. You can also evaluate the application level throughputs using this EVB. In order to perform these tests, a Windows XP, or Linux, or Window CE based W L AN driver is provided along with the evaluation kit. .1: Test Setup If you want to evaluate the system, you need to have the following test setup. The EVB is inserted into the Laptop that has SDIO slot, and it is wirelessly connected to an 802.11n Access Point. Data transfer tests can be performed using any other systems in the LAN, which is connected to AP. The test setup is shown in the figure below. The sub-net mask of the wireless interface on the Laptop and AP should be same as that of the LAN, for which AP is connected via Ethernet. Redpine Signals, Inc. Proprietary and Confidential Page 7 RS9110-N…

Text truncated - open the document above for the full version.

2107 North First Street, Suite 680, San Jose CA 95131 Phone: 408-748-3385 Fax: 408-705-2019 Redpine Signals, Inc. Redpine Signals, Inc. Gate No. 395, Plot No. 87 & 88 Sagar Society, Banjara Hills Road No. 2 Hyderabad – 500034, India Ph: +91-40-23550722 DFS Client Software Configuration Attestation Letter Date: 26 August 2011 To, Federal Communications Commission, Authorization and Evaluation Division. A) Verify that this device meets the frequency requirements of section 15.202 Ans: Redpine Signals’ RS9110-N-11-03 module has the necessary software and hardware in order to conform to the DFS client requirements of FCC Part 15 Subpart E (UNII). The associated driver along with the module ensures the following in the DFS bands: 1) No active scanning (prior to connection or in the connected state) is ever performed. 2) The client doesn’t initiate any transmission without initiation by a DFS master. 3) During operation in adhoc mode, all the channels belonging to the DFS bands are avoided, i.e neither the module initiates nor joins a network operating in the DFS band. Thereby it is ensured that no transmissions are performed in these bands altogether. B) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) or in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies), or modular devices that configure the modes of operations through software; the applicant must provide in the application software and operations description that discuss how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by an end user or an installer. Ans: No configuration control is given to the end-user for #1 to #3 in order not to violate any of the FCC Part 15, subpart E (UNII) DFS requirements. Apart from this, it is ensured in the firmware that irrespective of the driver’s configuration, it always performs passive scan in the frequencies belonging to the DFS band. Moreover, firmware is available in the form of a binary, which uses the company’s proprietary tool-chain, making it impossible for anyone to modify the code. Below is the channel/frequency plan for the device: Channel Frequency(MHz) Scan type 1 2412 Active 2 2417 Active 3 2422 Active 4 2427 Active 5 2432 Active 6 2437 Active 7 2442 Active 8 2447 Active 2107 North First Street, Suite 680, San Jose CA 95131 Phone: 408-748-3385 Fax: 408-705-2019 Redpine Signals, Inc. Redpine Signals, Inc. Gate No. 395, Plot No. 87 & 88 Sagar Society, Banjara Hills Road No. 2 Hyderabad – 500034, India Ph: +91-40-23550722 9 2452 Active 10 2457 Active 11 2462 Active 12 2467 Active 13 2472 Active 5GHz band 36 5180 Active 40 5200 Active 44 5220 Active 48 5240 Active 52 5260 Passive 56 5280 Passive 60 5300 Passive 64 5320 Passive 100 5500 Passive 104 5520 Passive 108 5540 Passive 112 5560 Passive 116 5580 Passive 120 5600 Passive 124 5620 Passive 128 5640 Passive 132 5660 Passive 136 5680 Passive 140 5700 Passive 149 5745 Active 153 5765 Active 157 5785 Active 161 5805 Active 165 5825 Active Sincerely, For Redpine Signals, inc. ------------------------------- Chandra Sekhar Abburi Vice President – Systems & Software

Applicant/Grantee Redpine Signals, Inc FCC ID: XF6-RS9110N1103 IC: 8407A - RS9110N1103 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 01 The radio elements of the modular transmitter must have their own Shielding. The physical crystal and tuning capacitors may be located External to the shielded radio elements. The module has its own RF “shielding.” Shield Can is employed on the board structure, please see exhibition External Photo, the emission measurement was conducted without further shielding added. Y 02 The modular transmitter must have Buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. All modulation and data input(s) are buffered.” The EUT has buffered data inputs, it is integrated on chip RS9110 Y 03 The modular transmitter must have its own power supply regulation. Our Transceiver + PA chip requires 3.3 and 2.8VDC. 3.3volts is supplied by the SDIO host and 2.8volt regulated power Is supplied our RS9110 chip. and "voltage variations on the 3.3V supply will not influence the radio parameters of the Module" Y 04 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The EUT meets the FCC antenna Requirements. The spurious emission, unique antenna connector and photo of Antennas are shown in the test report. Y 05 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites; unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use The modular transmitter was tested in a stand-alone configuration via a SDIO Interface. Y or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be Unmodified and commercially available (see Section 15.31(i)). 06 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC Identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then The outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording That expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the Application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the Information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed Must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must Include instructions on how to access In the exhibition OEM manual, there are instructions given to the OEM on how to Label the end product. Y the electronic display. A copy of these instructions must be included in the application for equipment Authorization. 07 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to Explain any such requirements. A copy of these instructions must be included in the application for equipment Authorization. The EUT is compliant with all Applicable FCC rules. Detail instructions for maintaining compliance are given in The OEM Manual. Y 08 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration Please see the SAR report. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated onl…

Text truncated - open the document above for the full version.

2107 North First Street, Suite 680, San Jose CA 95131 Phone: 408-748-3385 Fax: 408-705-2019 Redpine Signals, Inc. Redpine Signals, Inc. Gate No. 395, Plot No. 87 & 88 Sagar Society, Banjara Hills Road No. 2 Hyderabad – 500034, India Ph: +91-40-23550722 Date: 19September 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: XF6-RS9110N1103 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential Treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics and BOM RS-03 Schematics and BOM.pdf Detailed Block Diagram of Module The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, For Redpine Signals, inc. ------------------------------- Chandra Sekhar Abburi Vice President – Systems & Software

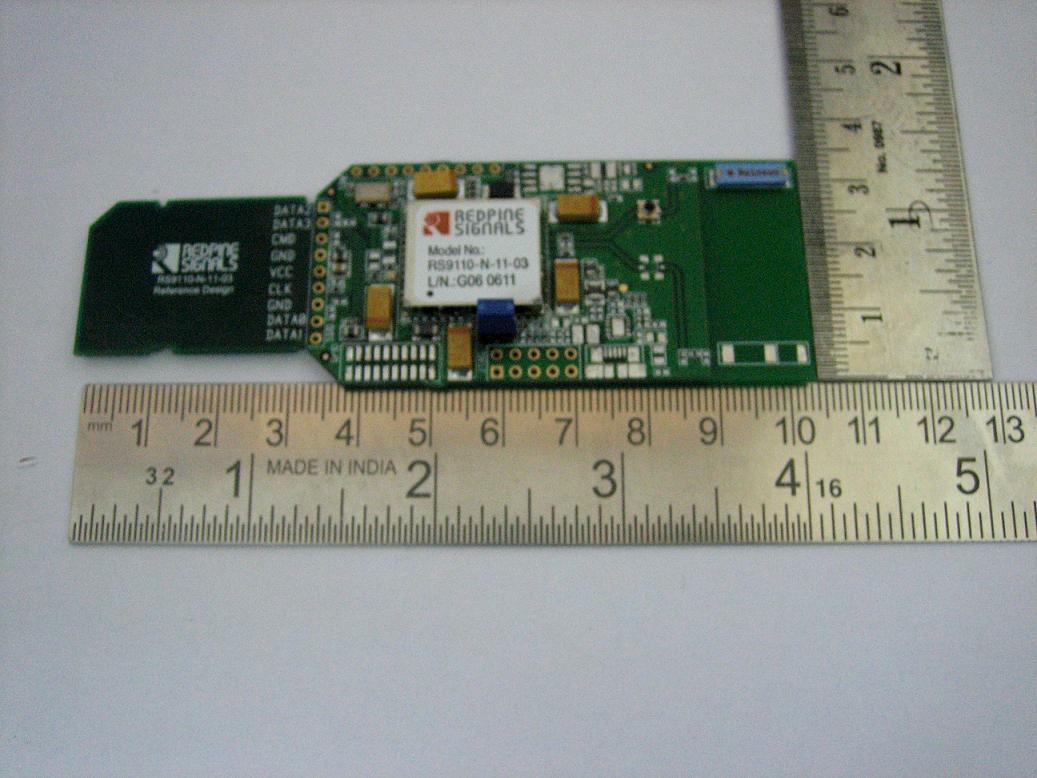

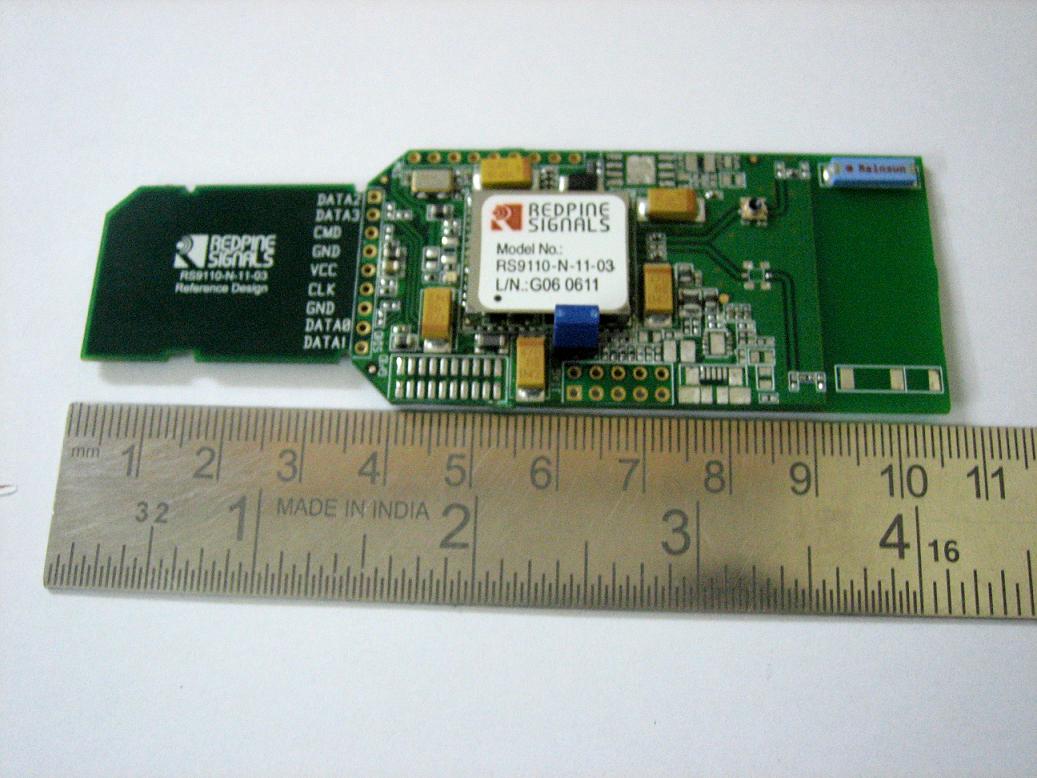

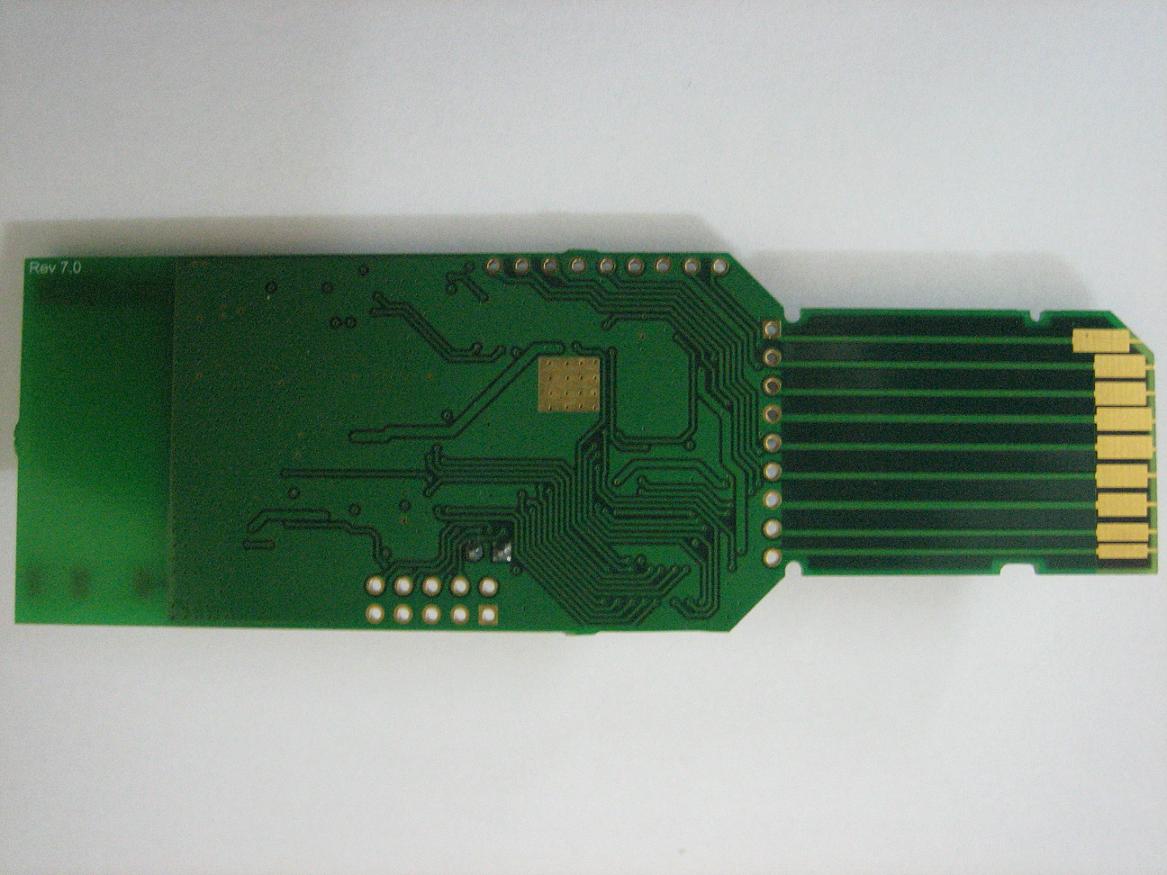

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422602/03 001 Seite 1 von 2 Page 1 of 2 EUT Top View EUT Bottom View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422602/03 001 Seite 2 von 2 Page 2 of 2 EUT Dimensional View EUT Dimensional View

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 02422602/03 001 Seite 1 von 1 Page 1 of 1 Label Diagram Location Diagram

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422602/03 001 & 02423392 001 Seite 1 von 2 Page 1 of 2 RF Section Module with Enclosure removed www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422602/03 001 & 02423392 001 Seite 2 von 2 Page 2 of 2 Inner View of Enclosure

www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02422602/03 001 Seite 1 von 4 Page 1 of 4 RF Exposure Report RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over- prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F= Frequency in MHz www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02422602/03 001 Seite 2 von 4 Page 2 of 4 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Test Results For 2.4GHz Antenna Gain: 0.5 dBi Modulation: 802.11b Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 2412 32.73407 0.00326 1.000 2442 27.73320 0.00276 1.000 2472 26.73006 0.00266 1.000 www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02422602/03 001 Seite 3 von 4 Page 3 of 4 Modulation: 802.11g Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 2412 28.31392 0.00282 1.000 2442 24.83133 0.00247 1.000 2472 28.70780 0.00286 1.000 Modulation: 802.11n Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 2412 30.69022 0.00305 1.000 2442 28.9068 0.00287 1.000 2472 26.60725 0.00264 1.000 For 5 GHz Antenna Gain: 0.5dBi Modulation: 802.11a Frequency Band (MHz) Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 5150 - 5350 5260 22.33572 0.0022 1.000 5470 – 5725 5500 18.40772 0.0018 1.000 5725 - 5825 5785 05.54625 0.0005 1.000 Note: Channel frequency selected which is having highest power in ecah frequency band www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 02422602/03 001 Seite 4 von 4 Page 4 of 4 Modulation: 802.11n Frequency Band (MHz) Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) 5150 - 5350 5320 23.28091 0.00232 1.000 5470 – 5725 5500 21.08628 0.00209 1.000 5725 - 5825 5785 06.30957 0.00062 1.000 Note: Channel frequency selected which is having highest power in each frequency band

Produkte Products TÜV Rheinland LGA Products GmbH  Tillystraße 2  D - 90431 Nürnberg  Tel.: +49 911 655 5225  Fax: +49 911 655 5226 Mail: [email protected]  Web: www.tuv.com Rev.:1.2 2009-12-29 / approved: M.Jungnitsch Prüfbericht - Nr.: 02422603 001 Seite 1 von 82 Test Report No.: Page 1 of 82 Auftraggeber: Client: Redpine Signals Inc. 2107 N.First Street, Suite 680 San Jose, CA 95131-2019 U.S.A Gegenstand der Prüfung: Test item: 802.11 abgn MODULE Bezeichnung: Identification: RS9110-N-11-03 Serien-Nr.: Serial No. Engineering Sample Wareneingangs-Nr.: Receipt No.: 1403011050 Eingangsdatum: Date of receipt: 07.08.2010 Prüfort: Testing location: Refer Page 4 of 82 for test facilities Prüfgrundlage: Test specification: FCC Part 15, Subpart E Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The tests item passed the test specification(s). Prüflaboratorium: Testing Laboratory: TÜV Rheinland (India) Pvt. Ltd. Alpha Tower, Sigma Soft Tech Park, # 7, Whitefield Main Road, Varthur Kodi, Bangalore – 560066, India geprüft / tested by: kontrolliert / reviewed by: 10.06.2011 Vinay.N Engineer 13.06.2011 ManagerKalyan Varma G Manager Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges /Other Aspects: FCC ID : XF6- RS9110N1103 Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. www.tuv.com Test Report No.: 02422603 001 Date: 11.04.2011 Page 2 of 82 Test Result Summary Clause Test Item Result 15.407 (a) 99% And 26 dB Occupied Bandwidth Pass 15.407 (a) Maximum Conducted Output Power Pass 15.407 (a) Power Spectral Density Pass 15.407 (a) Peak Excursion Pass 15.209 Radiated Emissions Pass 15.205 Restricted Bands of operation Pass 15.407 (b) Unwanted emission Pass www.tuv.com Test Report No.: 02422603 001 Date: 11.04.2011 Page 3 of 82 Content List of Test and Measurement Instruments .............................................................. 4 General Product Information ..................................................................................... 5 Product Function and Intended Use ............................................................................................. 5 Ratings and System Details ........................................................................................................... 5 Operation Descriptions .............................................................................................. 6 Test Set-up and Operation Mode ............................................................................... 7 Principle of Configuration Selection ............................................................................................ 7 Test Operation and Test Software ................................................................................................ 7 Special Accessories and Auxiliary Equipment ............................................................................ 7 Countermeasures to achieve EMC Compliance .......................................................................... 7 Table of carrier frequencies........................................................................................................... 7 Test Methodology ....................................................................................................... 8 Radiated Emission Test ................................................................................................................. 8 Test Results ................................................................................................................. 9 99% and 26 dB Occupied Bandwidth Section 15.407 (a) ............ 9 Conducted Peak Output Power Section 15.407 (a) .......... 29 Power Spectral Density Section 15.407 (a) ............ 40 Peak Excursion Section 15.407 (a) ........... 51 Spurious Radiated Emissions Section 15.209 /15.407 (b) (6) .......... 62 Restricted Bands of Operation Section 15.205 ........... 69 Out of Band Emission Section 15.407 (b) .......... 70 Appendix 1: Test Setup Photo Appendix 2: EUT External Photo Appendix 3: EUT Internal Photo Appendix 4: FCC Label and Label Location Appendix 5: Block Diagram Appendix 6: Specification of EUT Appendix 7: Schematic Diagrams Appendix 8: Bill of Material Appendix 9: User Manual Appendix 10: Maximum Permissible Human Exposure www.tuv.com Test Report No.: 02422603 001 Date: 11.04.2011 Page 4 of 82 List of Test and Measurement Instruments Wipro Technologies, Bangalore List of Test and Measurements Equipment Manufacturer Type S/N Calibration Due Date EMI Test Receiver Rohde & Schwarz ESIB40 100306 24.03.2012 Hybrid Log Periodic Antenna TDK HLP3003C 130334 21.03.2012 Broadband Horn Antenna Schwarzbeck Mess-Electronik BBHA9170 9170-344 21.03.2012 Double Ridged Horn Antenna Schwarzbeck Mess-Electronik BBHA9120D 9120D- 687 21.03.2012 Pre-Amplifier TDK-RFSolution PA-02 100008 15.02.2012 Spectrum Analyser Agilent Technologies E4407B US41192 772 27.01.2012 Testing Facilities 1) Wipro Technologies Survey No. 70,77,78 / 8A, Dodda Kannelli, Sarjapur Road, Bangalore – 560 035 India 2) HCL Technologies 73-74, Ground Floor, South Phase, Ambattur Estate, Ambattur, Chennai – 600058 India www.tuv.com Test Report No.: 02422603 001 Date: 11.04.2011 Page 5 of 82 General Product Information Product Function and Intended Use The Pro…

Text truncated - open the document above for the full version.

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TÜV Rheinland Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 Internet: www.tuv-eps.com E-mail: [email protected] Project number: 11012803.r01 Page 1 of 17 TEST REPORT OF A WLAN EVALUATION SYSTEM, BRAND REDPINE SIGNALS, MODEL RS9110-N-11-03, TESTED IN CONFORMITY WITH THE DFS REQUIREMENTS OF THE STANDARDS ETSI EN 301 893 V1.5.1, 47 CFR PART 15 (10-1-09) AND RSS-210 (ISSUE 8, DE 2010) FCC listed Industry Canada VCCI Registered R&TTE, LVD, EMC Notified Body : : : : 90828 2932G-1 R-1518, C-1598 1856 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: ETSI EN 301 893 V1.5.1, Clause 4.7 47 CFR Part 15 (10-1-09), section 15.407(h) RSS-210 (issue 8, de 2010), Clause A9.3 WLAN dual band EVB Redpine Signals, Inc. Redpine Signals, Inc. RS9110-N-11-03 Project number: 11012803.r01 Page 2 of 17 Description of test item Test item : WLAN dual band EVB Manufacturer : Redpine Signals, Inc. Brand : Redpine Signals, Inc. Model : RS9110-N-11-03 Receipt date : February 14, 2011 Applicant information Applicant's representative : -- Company : Redpine Signals, Inc. Address : 2107 N, First street, #680 City : San Jose, CA 95131 Country : USA Telephone number : (408) 748-3385 Telefax number : (408) 705-2019 Test(s) performed Location : Niekerk Test(s) started : February 16, 2011 Test(s) completed : February 17, 2011 Purpose of test(s) : Compliance with DFS requirements of standard Test specification(s) : ETSI EN 301893 V1.5.1 (2008-12), Clause 4.7 47 CFR Part 15 (10-1-09 Edition), section 15.407(h), RSS-210 (issue 8, de 2010), Clause A9.3 Project leader : O.H. Hoekstra Test engineer(s) : M.C. Edwards van Muyen O.H. Hoekstra Report written by : O.H. Hoekstra Report approved by : H.J. Pieters Report date : February 28, 2011 This report is in conformity with NEN-EN-ISO/IEC 17025: 2005. This report shall not be reproduced, except in full, without the written permission of TÜV Rheinland (EPS) B.V. The test results as indicated in this test report relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: ETSI EN 301 893 V1.5.1, Clause 4.7 47 CFR Part 15 (10-1-09), section 15.407(h) RSS-210 (issue 8, de 2010), Clause A9.3 WLAN dual band EVB Redpine Signals, Inc. Redpine Signals, Inc. RS9110-N-11-03 Project number: 11012803.r01 Page 3 of 17 Table of contents 1 Remarks. ............................................................................................................................................................... 4 1.1 Applied standards. .......................................................................................................................................... 4 1…
