XFT-TELO102VOIP Basestation

! Important 911 Information If you are using the Ooma Telo device without a landline backup, be advised that E911 service is less reliable than traditional 911 service. Some regions do not support E911 and your emergency call may be routed to an emergency response center which does not keep your contact information on file. In addition, Ooma relies on customers to keep their address up-to- date, and will send your call to an emergency response center with the address you’ve provided to us. It is therefore vital you keep your address current by logging into your online account or calling customer support at 1-888-711-6662. Lastly, you will not be able to make E911 calls with your Ooma system if power or Internet service is unavailable. Please leave this notice next to your phone. ! Safety Information When using telephone equipment, including the Ooma Telo ™ device, basic safety precautions should always be followed to reduce the risk of fire, electric shock, damage to equipment, loss of property, severe injury to persons or even loss of life, including the following: Do not use this equipment and all related accessories near or under water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement, near a swimming pool, under the rain, do not plunge any parts in water or any other liquid. Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Use only the power adapter indicated in this manual, if necessary order a new replacement power adapter from Ooma or authorized retailers using the original part number. Do not insert the power adapter into an extension cord, receptacle or outlet unless the prongs can be fully inserted, failure to do so may cause electric shock or excessive heat resulting in a fire. Do not overload power outlets and extensions cords, otherwise it can result in fire or serious electrical shock. sole responsibility to maintain such proof (e.g., a sales receipt). Returned products that are determined not to be materially defective will be subject to a handling fee. If you disagree with any of our decisions with respect to warranty service, you have the right to contest that decision as permitted under applicable laws and regulations. How State Law Applies. This limited warranty gives you specific legal rights. You may also have other rights which vary from state to state. Limitation on Liability. THIS WARRANTY IS THE COMPLETE AND EXCLUSIVE WARRANTY AGREEMENT FOR THE PRODUCT BETWEEN YOU AND OOMA. NO ONE IS AUTHORIZED TO MAKE MODIFICATIONS TO THIS LIMITED WARRANTY AND YOU SHOULD NOT RELY ON ANY SUCH MODIFICATION. OOMA RESERVES THE RIGHT TO CHANGE ITS LIMITED WARRANTY WITHOUT PRIOR NOTICE FOR FUTURE SALES. OOMA DISCLAIMS ALL OTHER WARRANTIES WITH RESPECT TO ITS PRODUCTS, WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE, INCLUDING WITHOUT LIMITATION, COURSE OF DEALING, TRADE USAGE OR PRACTICE OR THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, OR NON-INFRINGEMENT OF THIRD PARTY RIGHTS. MOREOVER, OOMA SHALL NOT BE LIABLE FOR INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY NATURE ARISING OUT OF, OR IN CONNECTION WITH, THE LIMITED WARRANTY OR THE USE OR PERFORMANCE OF ANY PRODUCT, WHETHER BASED ON CONTRACT OR TORT, INCLUDING NEGLIGENCE, OR ANY OTHER LEGAL THEORY, EVEN IF WE HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE TOTAL AGGREGATE LIABILITY BY OOMA FOR DAMAGES OF ANY NATURE, REGARDLESS OF FORM, ACTION OR FORESEEABILITY, SHALL IN NO EVENT EXCEED THE AMOUNT PAID BY YOU TO US FOR THE PRODUCT UPON WHICH LIABILITY IS BASED. SOME STATES AND/OR COUNTRIES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS To prevent overheating, situate the product away from heat sources such as radiators, heat registers, stoves, or other fixtures, appliances and products that produce heat. Unplug with caution the product from power outlets if it emits smoke, an abnormal smell or makes unusual noise. These conditions may cause fire or electrical shock. Do not remove the cover or disassemble any component of this product. This product contains no user-serviceable parts. Unplug the product from the power outlet before cleaning. Do not use liquid or if aerosol cleaners, use a damp cloth or a microfiber cloth for cleaning. This product should never be placed near or over radiator or heat register, nor in any area where proper ventilation is not provided. Do not allow anything to rest on the Ooma Telo device, its power cord or power adapter. Do not install the product where its power cord may be walked or stumbled on. Unplug the product from the power outlet if the power adapter cord or power adapter prongs are damaged or frayed, if liquid has been spilled onto the product, if the product has been exposed to rain, water or any other liquid, if the internal components of the Ooma Telo or its power adapter are exposed. Do not use a telephone to report a gas leak in the vicinity of the leak. The power supply adapter is intended to be correctly oriented in a vertical or floor mount position, the prongs are not designed to hold the power adapter in place if it is plugged upside down, for example do not use facing down power outlets on a ceiling, under a table or in a cabinet. The equipment and accessories must be operated only for its intended use and not for any other purposes. The FCC Wants You To Know This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communication may not be ensured when using this device. This equipment has been tested and found to comply with the limits for a Class B di…

Text truncated - open the document above for the full version.

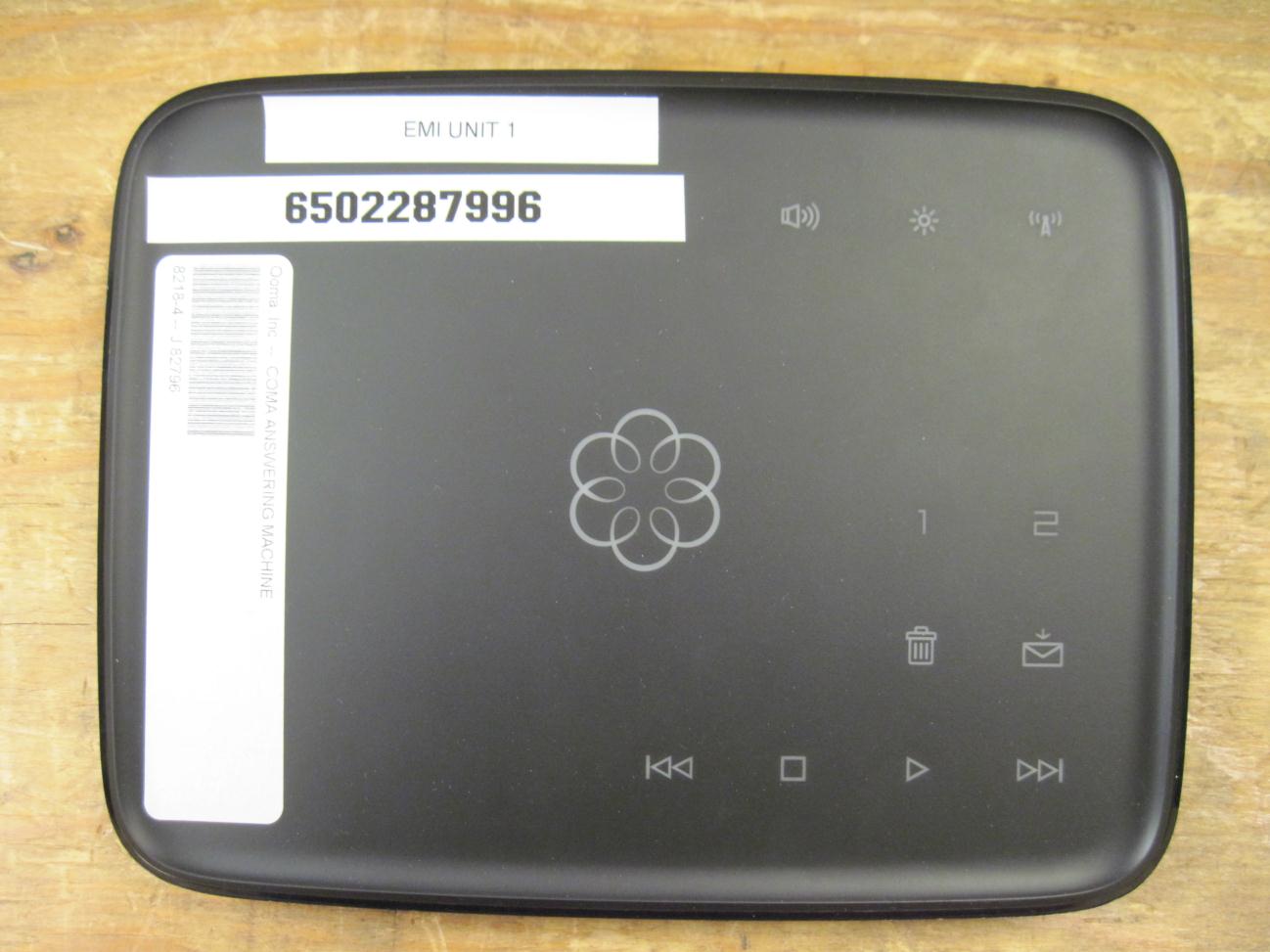

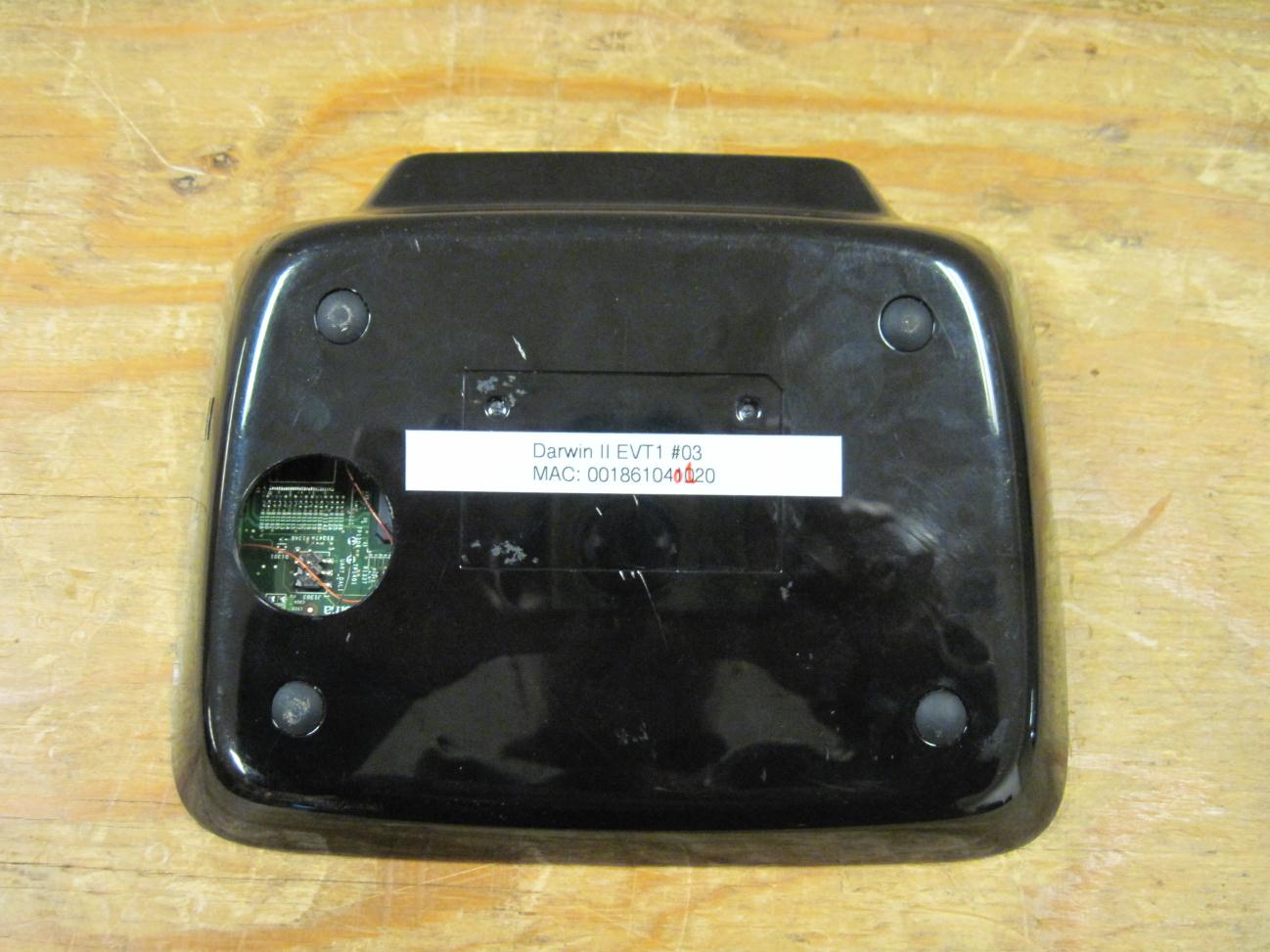

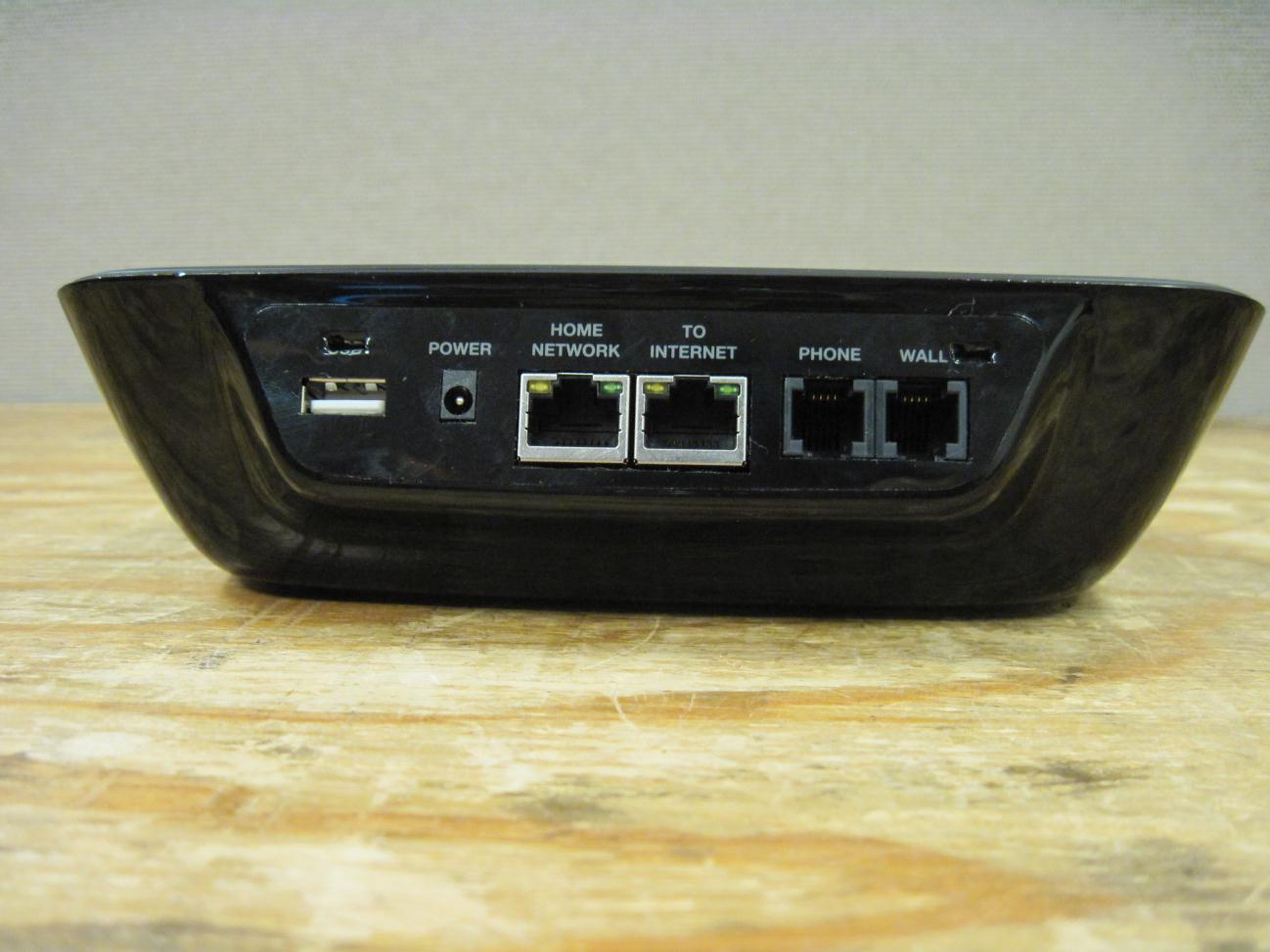

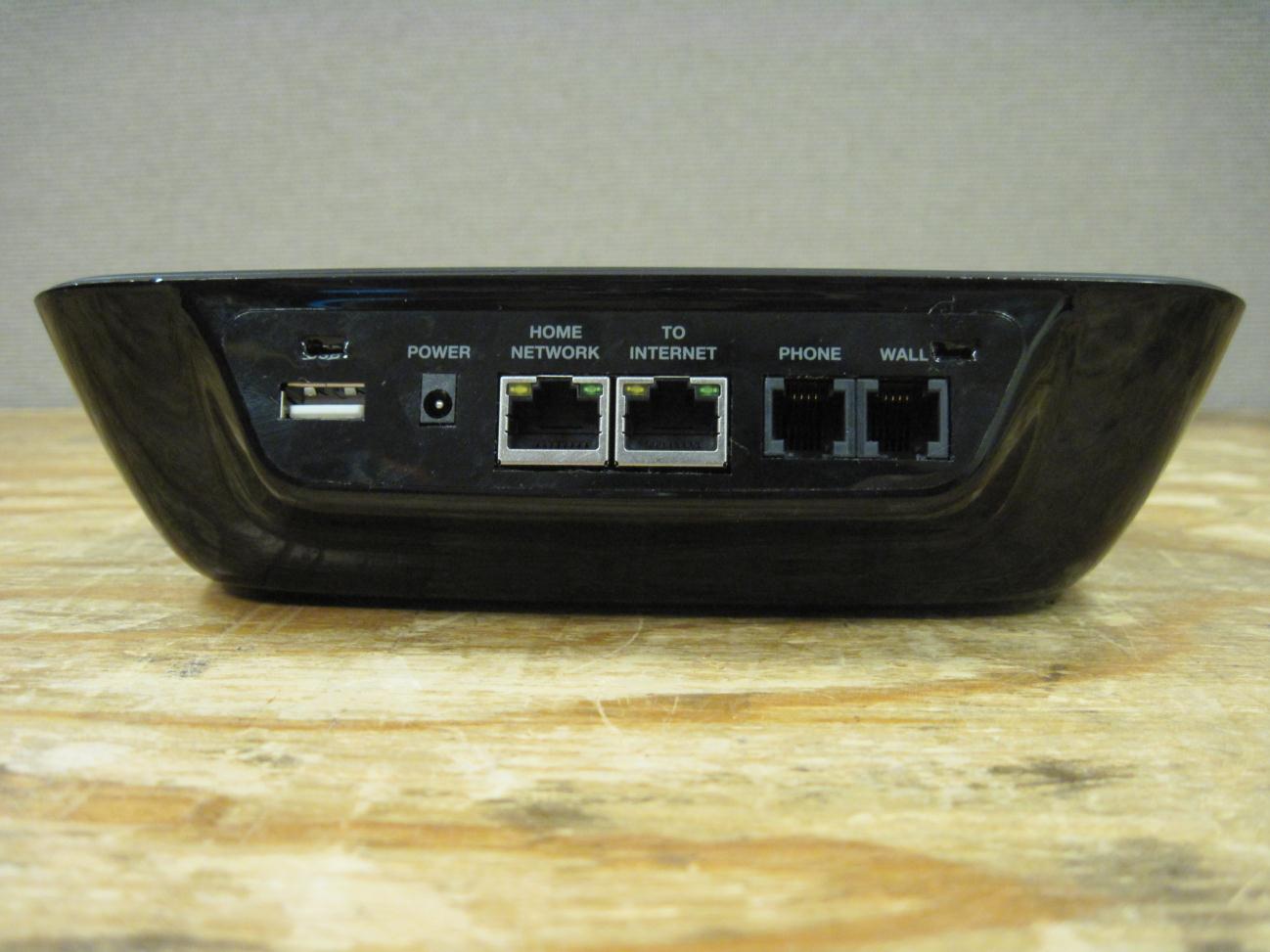

Description of Product: Ooma Telo The Ooma Telo is a DECT base-station with integrated FXO, FXS telephone ports, two 10/100 Mbps Ethernet ports, USB 2.0 port and Bluetooth. It is designed to be a DECT phone base-station as well as VOIP router allowing access to Ooma telephony services. FXO port allows connecting Telo device to PSTN network. FXS port allows connecting a phone handset. The phone has then access to PSTN as well as Ooma VOIP networks. Additionally, a DECT handset can be bonded with Telo device. The DECT phone has then access to PSTN as well as Ooma VOIP networks. DECT basestation uses DSPG system on the chip with built-in amplifier capable of up to 95mW RF peak power. The SOIC is connected two antennas allowing implementing antenna diversity. The two antennas are part of PCB and have maximum gain of 3.7dB. Ooma Telo offers router functionality on the LAN port. Services such as DHCP, NAT, firewall etc. are supported. Ooma Telo offers Bluetooth support that allows bonding Bluetooth-enabled devices such as cell-phones. Ooma Telo comes with an external power supply that provides 5V, 2A max.

Integrated Antenna Solutions  Product Specification AE020157-H Rufa 2.4 GHz SMD Antenna Product Specification 1 Features Designed for 2.4 GHz applications [Bluetooth™, WiFi™ (802.11b/g), Zigbee™, WiMedia™ etc.] Intended for SMD mounting Supplied in tape on reel 2 Description The Rufa antenna is intended for use with all 2.4 GHz applications. The antenna requires a groundplane, i.e your device acts as an active part of the antenna and thus demand careful consideration concerning its placement 3 Application Mobile phones PDAs Headsets Laptops PC- Cards CF- Cards • • • • • • • • • Integrated Antenna Solutions 2 Product Specification AE020157-H Rufa 2.4 GHz SMD Antenna Contents 1 Features  2 Description  3 Application  4 Model name 3 5 General data 3 6 Electrical characteristics 3 7 Electrical performance 4 7-1 Voltage Standing Wave Ratio 4 7-2 3D-Radiation 4 7-3 Radiation patterns 4 8 Antenna Dimensions 5 9 Antenna Foot print 5 10 Electrical interface 6 10-1 Transmission line and matching 6 10-2 Test board dimensions 6 10-3 Test board matching 6 11 Soldering 7 11-1 Recommended soldering conditions 7 11-2 Leadfree soldering 7 12 Reliability 7 12-1 Temperature and Humidity 7 12-2 Mechanical 8 12-3 Miscellaneous 8 12-4 Judgement standard 8 13 Hazardous Material Regulation Conformance 8 14 Application example 9 15 Packaging 1 0 15-1 Shelf storage recommendation 1 0 15-2 Tape characteristics 1 0 15-3 Reel dimension 1 0 15-4 Box dimension 1  15-5 Bag properties 1  15-6 Reel label information 1  Integrated Antenna Solutions 3 Product Specification AE020157-H Rufa 2.4 GHz SMD Antenna 4 Model name Right feeding Left feeding 3030A5839 - 01 Antenna Family -SMD Technology -PCB Drawing No. 3030A5887 - 01 Antenna Family -SMD Technology -PCB Drawing No. 5 General data Product NameRufa 2.4 GHz Article No. 3030A5839-01(Left) 3030A5887-01 (Right) Frequency2.4-2.5 GHz PolarizationLinear Operating temperature-40 to + 85 degC Impedance50 Ohm Weight0.1 gram Antenna typeSMD 6 Electrical characteristics Characteristics Conditions* MinTypMax Peak Gain4.0 dBi4.1 dBi4.4 dBi Frequency 2.4-2.5 GHz, Measured in 3D chamber ( near field) Efficiency66%68%69% VSWR1.3:11.5:11.6:1Frequency 2.4-2.5 GHz, Measured in Network Analyzer *Note all data provided in this table are based on the Antenova reference board Integrated Antenna Solutions 4 Product Specification AE020157-H Rufa 2.4 GHz SMD Antenna 7 Electrical performance 7-1 Voltage Standing Wave Ratio 7-2 3D-Radiation 7-3 Radiation patterns XY- Plane XZ- Plane YZ- Plane Total polarization Vertical polarization Horizontal polarization Integrated Antenna Solutions 5 Product Specification AE020157-H Rufa 2.4 GHz SMD Antenna 8 Antenna Dimensions Art no: 3030A5839-01 (Left) Art no: 3030A5887-01 (Right) LWHGFS1S2S3IJKL1MNO LengthWidthHeightGroundFeedSolder 12.8 ±0.23.9 ±0.21.1±0.152.0±0.12.0±0.12.0±0.11.0±0.10.25±0.18.1±0.13.7±0.12.4±0.11.3±0.10.3±0.15 Dimensions in millimeters 9 Antenna Foot print Art no: 3030A5839-01 (Left) Art no: 3030A5887-01 (Right) GFS1S2S3IJKL1MNO GroundFeedSolder 2.0±0.12.0±0.12.0±0.11.0±0.10.25±0.18.1±0.13.7±0.12.4±0.11.3±0.10.5±0.15 Dimensions in milimeters Integrated Antenna Solutions 6 Product Specification AE020157-H Rufa 2.4 GHz SMD Antenna 10 Electrical interface 10-1 Transmission line and matching The matching network has to be individually designed using one, two or three components. t, w = Unique dimensioning according to your PCB * C = Inductor and capacitor values according to your specific device* * Antenova provides this service upon request 10-2 Test board dimensions The testboard is designed for evaluation purposes for Rufa 2.4 GHz SMD antenna. The card has the same size as a typical PCMCIA card and is fitted with an SMA connector. 10-3 Test board matching Series capacitor 6.8 pF The testboard is matched with above specified component. Integrated Antenna Solutions 7 Product Specification AE020157-H Rufa 2.4 GHz SMD Antenna Note! The component value(s) will vary depending on size of PCB, surrounding components etc. 11 Soldering 11-1 Recommended soldering conditions 11-2 Leadfree soldering The antenna has been tested and approved for leadfree soldering. The reflow curve and solder paste used is listed below. Solder paste: KOKI S3X58-M405 12 Reliability 12-1 Temperature and Humidity ItemStandardLowHighDuration Operating temperature EN/IEC 60068-2-2, Test Bd: Dry heat -30 degC+90 degC- Temperature cycling EN/IEC 60068-2-14, Test Na: Change of temperature -40 degC+90 degC500 cycles / 10 min Storage life Humidity EN/IEC 60068-2-1, Test Ca: Damp heat +60 degC / 90% RH500 h Storage life Low temperature EN/IEC 60068-2-1, Test Ad: Cold -55 degC-500 h Storage life High temperature EN/IEC 60068-2-2, Test Bb: Dry heat -+125 degC500 h Integrated Antenna Solutions 8 Product Specification AE020157-H Rufa 2.4 GHz SMD Antenna 12-2 Mechanical ItemStandardLowHighDuration Bending IEC 60068-2-21, Test Ue1: Bending Bending 1 mm at a rate of 1 mm/s with support at end of PCB 1mm depth on reference board Shear IEC 60068-2-21, Test Ue3: Shear Force of 5 N applied to the side of the antenna. Drop test Dummy weight: 150g Height: 170cm One drop at each side, total drops: 6 Vibration EN/IEC 60068-2-6, Test Fc (sinusoidal) Acceleration spectral density:10-1000Hz Acceleration: 20m/s2 Number of axes: 3 mutually perpendicular 5 cycles per axis 12-3 Miscellaneous ItemStandardLowHighDuration Solderability EN/IEC 60068-2-58, Test Td Visual inspection of soldering pads. Estimation of how many % of the pads that are well tin plated. 12-4 Judgement standard The judgement of the above tests should be made as follows: Visual inspection - Normal apperance with no obvious cracking, peeling-off. Electrical inspection - The DUT satisfies the VSWR specification throughout the 2.4-2.5 GHz band 13 Hazardous Material Regulation Conformance Cadmium and cadmium compound. Organic brominated compound (PBB, PBDE) Polychlorinated biphenyl (PCB) Polychlorinated naphthalene (PCN) Organic ti…

Text truncated - open the document above for the full version.

rad_pattern - Measured - TeloVER6 Brass z=0, y=0, x=0 Monday, February 07, 2011

rad_pattern - Measured - Telo VER6 PCB z=0, y=0, x=0 Monday, February 07, 2011

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory February 1, 2011 Ooma, Inc. 1840 Embarcadero Rd. Palo Alto, CA 94303 Dear Michal Smulski, Enclosed is the EMC Wireless test report for compliance testing of the Ooma, Inc., Telo as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B for a Class B Digital Device and Subpart D for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Ooma, Inc.\EMCS82796-FCC15D Rev. 1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Ooma, Inc. Electromagnetic Compatibility Telo CFR Title 47, Part 15, Subpart B & D MET Report: EMCS82796-FCC15D Rev. 1 © 2011, MET Laboratories, Inc. Page ii of vii Electromagnetic Compatibility Criteria Test Report for the Ooma, Inc. Model Telo Tested under the FCC Rules contained in Title 47 of the CFR, Part 15. Subpart B for Unintentional Radiators Title 47 of the CFR, Part 15. Subpart D for Intentional Radiators MET Report: EMCS82796-FCC15D Rev. 1 February 1, 2011 Prepared For: Ooma, Inc. 1840 Embarcadero Rd. Palo Alto, CA 94303 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Ooma, Inc. Electromagnetic Compatibility Telo CFR Title 47, Part 15, Subpart B & D MET Report: EMCS82796-FCC15D Rev. 1 © 2011, MET Laboratories, Inc. Page iii of vii Electromagnetic Compatibility Criteria Test Report for the Ooma, Inc. Model Telo Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Part 15. Subpart B for Unintentional Radiators Title 47 of the CFR, Part 15. Subpart D for Intentional Radiators Anderson Soungpanya, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15 Subparts B & D, of the FCC Rules under normal use and maintenance. Shawn McMillen Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Ooma, Inc. Report Status Telo CFR Title 47, Part 15, Subpart B & D MET Report: EMCS82796-FCC15D Rev. 1 © 2011, MET Laboratories, Inc. Page iv of vii Report Status Sheet Revision Report Date Reason for Revision  January 25, 2011 Initial Issue. 1 February 1, 2011 Revised to reflect correct EUT name. Electromagnetic Compatibility Ooma, Inc. Table of Contents Telo CFR Title 47, Part 15, Subpart B & D MET Report: EMCS82796-FCC15D Rev. 1 © 2011, MET Laboratories, Inc. Page v of vii Table of Contents I. Executive Summary ................................................................................................................................................. 1 A. Purpose of Test ................................................................................................................................................... 2 B. Executive Summary ............................................................................................................................................ 2 II. Equipment Configuration ....................................................................................................................................... 3 A. Overview ............................................................................................................................................................. 4 B. References ........................................................................................................................................................... 5 C. Test Site .............................................................................................................................................................. 5 D. Description of Test Sample ................................................................................................................................. 5 E. Equipment Configuration .................................................................................................................................... 8 F. Support Equipment ............................................................................................................................................. 8 G. Ports and Cabling Information ............................................................................................................................ 9 H. Mode of Operation .............................................................................................................................................. 9 I. Modifications ...................................................................................................................................................... 9 a) Modifications to EUT .................................................................................................................... 9 b) Modifications to Test Standard ...................................................................................................... 9 J. D…
