XHHBNRV100eBook Reader

User Guide Version 1.4 nook User Guide 2 Barnes & Noble, Inc. 122 Fifth Avenue, New York, NY 10011 USA. © 2009 Barnes & Noble, Inc. All rights reserved. NOOK and the NOOK logo are trademarks of Barnes & Noble, Inc. or its affiliates. Patent pending. Screenshots and product images are simulated and for instructional purposes only. They may differ from the actual product and are subject to change without notice. Your use of the NOOK is subject to the NOOK Terms of Service in “NOOK™ Terms of Service” on page 170. The Terms of service can also be found here: www.nook.com/legal For warranty information, see “One Year Limited Warranty” on page 190. Customer Service You can reach Customer Service for your NOOK by sending an email to [email protected], or at these telephone numbers: • Within the United States: 1-800-THE-BOOK (1-800-843-2665) • Outside the United States: 1-201-438-1834 How to Use this Guide This nook User Guide documents all features of your NOOK. It is available as an eBook in the My Documents section of your NOOK Library. It is also available for download from the support section of the NOOK website in PDF format: www.nook.com/support If you want a printed copy of the User Guide, you can print the PDF on your own printer from Adobe Acrobat Reader. Quick Start Guide The Quick Start Guide covers the basics needed to get you started. It is printed and in the package with your NOOK, as well as at the above website. Tour Get the most out of your NOOK. The nook Tour takes you on a tour of your NOOK’s key features. We highly recommend that you take the tour during the welcome process when you first turn on your NOOK. The nook Tour is also in the My Documents section of your Library and at the above website. nook User Guide 3 Using this Guide To find specific information in this guide, you can use the table of contents or search the guide. In the EPUB version, tap Go to > Chapter on the touchscreen to go to a chapter. To search the User Guide for a specific word or phrase, tap Find, type the word or phrase, and then tap Submit. The User Guide on your NOOK is an eBook, so you can try out NOOK features like bookmarks and notes using the User Guide. Conventions Following are conventions used in the User Guide: This is a caution. Cautions contain important information, for example about safety and the loss of data. This is a note. Notes contain helpful information that we highlight to draw your attention to it. Menu choices on the touchscreen are shown in gray type, with greater than signs indicating successive choices. For example: Tap Bookmarks > Go to bookmark. Guide Updates If needed, new versions of the User Guide and Tour will be automatically downloaded to the My Documents section of your library through software updates. Guide updates are also posted on the support section of the NOOK website: www.nook.com/support More Information Online More information is available online: • FAQs • Video tutorials This information is available on the Support website: www.nook.com/support Guide Revision 1.4.0.1 nook User Guide 4 Contents Customer Service ..............................................................2 How to Use this Guide ..........................................................2 More Information Online ........................................................3 Getting Started ...............................................10 In the Package ................................................................10 Charge your NOOK ...................................................................11 Learn the Controls ............................................................11 Register your NOOK ..................................................................13 Explore. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Power and Charging ............................................15 Device States .................................................................15 Power Button .................................................................16 Power Management ............................................................17 Low Charge Alerts ............................................................17 Battery Charge and Charging Indicators ............................................17 Charging your NOOK .................................................................19 Wall Charging ................................................................19 USB Charging .................................................................20 Charging Recommendations .....................................................22 Hard Reset ...................................................................22 Your NOOK .........................................................24 Hardware Highlights ...........................................................24 NOOK Models ...............................................................25 Feature Highlights .............................................................25 Home Menu ..................................................................26 Home Screen .................................................................28 Back Cover ..................................................................28 SIM Card ....................................................................31 Built-in Storage ...............................................................31 Battery ......................................................................31 Optional Accessories ...........................................................33 International Use and Languages .................................34 nook User Guide 5 Using your NOOK abroad .......................................................34 Languages ....................................................................35 Safety and Care ...............................................36 Safety .......................…

Text truncated - open the document above for the full version.

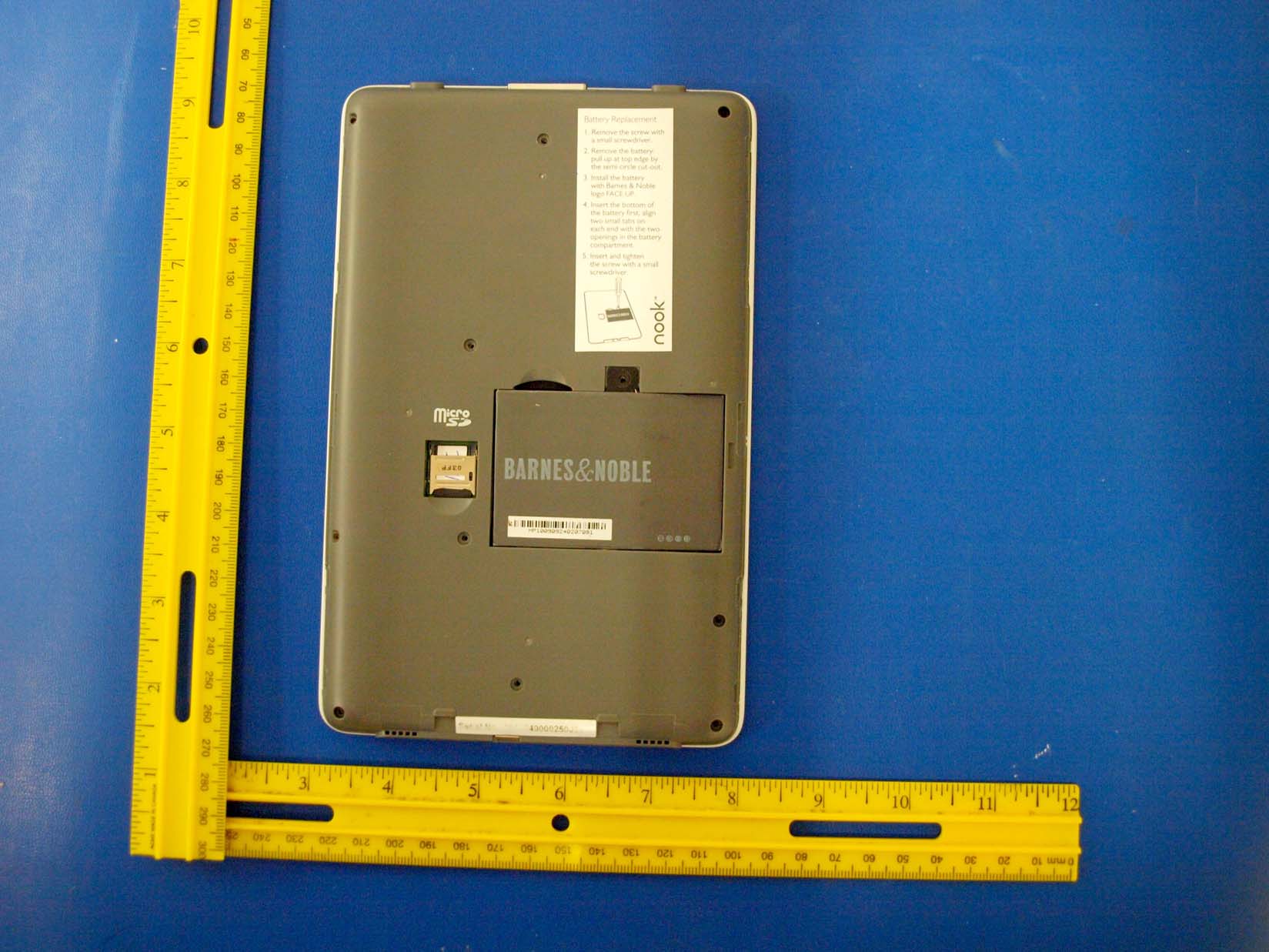

FCC and IC Label Backside of EUT Battery compartment BARNES&NOBLE MODEL No.:BNRV100 FCC ID: XHHBNRV100 IC : 8961A-BNRV100 This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation.

FCC OET BULLETIN 65 SUPPLEMENT C IC RSS-102 ISSUE 4 SAR EVALUATION REPORT For EBOOK, WLAN, AND USB PORTS WITHOUT WWAN MODEL: BNRV100 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 REPORT NUMBER: 10U13164-10A ISSUE DATE: May 28, 2010 Prepared for BARNES AND NOBLE 400 HAMILTON AVENUE PALO ALTO, CA 94301, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10U13164-10A DATE: May 28, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 2 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- May 25, 2010 Initial Issue -- A May 28, 2010 Added Section 7 Composition of Ingredients for Tissue Simulating liquids. Sunny Shih REPORT NO: 10U13164-10A DATE: May 28, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 3 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................................. 4 2. TEST METHODOLOGY ...................................................................................................................... 5 3. FACILITIES AND ACCREDITATION.................................................................................................. 5 4. CALIBRATION AND UNCERTAINTY................................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY .............................................................................................. 6 5. EQUIPMENT UNDER TEST ............................................................................................................... 7 6. SYSTEM SPECIFICATIONS ............................................................................................................... 8 7. COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATING LIQUIDS ...................................... 9 8. TISSUE DIELECTRIC PARAMETERS CHECK ............................................................................... 10 8.1. TISSUE PARAMETERS CHECK RESULTS FOR 2450 MHZ .................................................. 11 9. SYSTEM VERIFICATION.................................................................................................................. 12 9.1. SYSTEM CHECK RESULTS FOR D2450V2 ............................................................................ 12 10. OUTPUT POWER VERIFICATION............................................................................................... 15 11. SUMMARY OF SAR TEST RESULTS ......................................................................................... 16 12. SAR TEST PLOTS........................................................................................................................ 17 13. ATTACHMENTS ........................................................................................................................... 20 14. ATENNA TO USER SEPARATION DISTANCES ........................................................................ 21 15. TEST SETUP PHOTOS ................................................................................................................ 22 16. HOST DEVICE PHOTOS..............................................................................................................25 REPORT NO: 10U13164-10A DATE: May 28, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 4 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: BARNES AND NOBLE 400 Hamilton Avenue. PALO ALTO, CA 94301, U.S.A. EUT DESCRIPTION: EBOOK, WLAN, AND USB PORTS WITHOUT WWAN MODEL NUMBER: BNRV100 DEVICE CATEGORY: Portable EXPOSURE CATEGORY: General Population/Uncontrolled Exposure DATE TESTED: May 14 , 2010 FCC / IC Rule Parts Freq. Range [MHz] The Highest 1g SAR mW/g) Limit (mW/g) 15.247 / RSS-102 2400 – 2483.5 0.567 (Tablet – Bottom face) 1.6 Applicable Standards Test Results FCC OET Bulletin 65 Supplement C 01-01 IC RSS 102 Issue 4 Pass Compliance Certification Services, Inc. (CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by CCS will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government (NIST Handbook 150, Annex A). This report is written to support regulatory compliance of the applicable standards stated above. Approved & Released For CCS By: Tested By: SUNNY SHIH ENGINEERING SU…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR EBOOK, WLAN, AND USB PORTS WITHOUT WWAN MODEL NUMBER: BNRV100 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 REPORT NUMBER: 10U13164-1 ISSUE DATE: MAY 21, 2010 Prepared for BARNES AND NOBLE 400 HAMILTON AVENUE PALO ALTO, CA 94301, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10U13164-1 DATE: MAY 21, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 2 of 71 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 05/21/10 Initial Issue T. Chan REPORT NO: 10U13164-1 DATE: MAY 21, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 3 of 71 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION.................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 6 4.2. SAMPLE CALCULATION.............................................................................................. 6 4.3. MEASUREMENT UNCERTAINTY................................................................................ 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT................................................................................................ 7 5.2. MAXIMUM OUTPUT POWER....................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 7 5.4. SOFTWARE AND FIRMWARE..................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 7 5.6. DESCRIPTION OF TEST SETUP................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 10 7. ANTENNA PORT TEST RESULTS .................................................................................... 11 7.1. 802.11b MODE IN THE 2.4 GHz BAND...................................................................... 11 7.1.1. 6 dB BANDWIDTH .............................................................................................. 11 7.1.2. 99% BANDWIDTH .............................................................................................. 15 7.1.3. OUTPUT POWER ............................................................................................... 19 7.1.4. AVERAGE POWER ............................................................................................ 20 7.1.5. POWER SPECTRAL DENSITY .......................................................................... 21 7.1.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 25 7.2. 802.11g MODE IN THE 2.4 GHz BAND...................................................................... 30 7.2.1. 6 dB BANDWIDTH .............................................................................................. 30 7.2.2. 99% BANDWIDTH .............................................................................................. 33 7.2.3. OUTPUT POWER ............................................................................................... 36 7.2.4. AVERAGE POWER ............................................................................................ 37 7.2.5. POWER SPECTRAL DENSITY .......................................................................... 38 7.2.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 41 8. RADIATED TEST RESULTS .............................................................................................. 46 8.1. LIMITS AND PROCEDURE ........................................................................................ 46 8.2. TRANSMITTER ABOVE 1 GHz .................................................................................. 47 8.2.1. TRANSMITTER ABOVE 1 GHz FOR 802.11b MODE IN THE 2.4 GHz BAND .. 47 8.2.2. TRANSMITTER ABOVE 1 GHz FOR 802.11g MODE IN THE 2.4 GHz BAND .. 53 8.3. RECEIVER ABOVE 1 GHz ......................................................................................... 58 REPORT NO: 10U13164-1 DATE: MAY 21, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 4 of 71 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8.4. WORST-CASE BELOW 1 GHz................................................................................... 59 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................... 62 10. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 66 11. SETUP PHOTOS ...............................................................................................…

Text truncated - open the document above for the full version.

REPORT NO: 10U13164-1 DATE: MAY 21, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 69 of 71 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION ANTENNA PORT CONDUCTED PHOTO X-AXIS FRONT PHOTO REPORT NO: 10U13164-1 DATE: MAY 21, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 70 of 71 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION Y-AXIS FRONT PHOTO Z-AXIS FRONT PHOTO REPORT NO: 10U13164-1 DATE: MAY 21, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 71 of 71 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT LINE CONDUCTED FRONT PHOTO LINE CONDUCTED BACK PHOTO

REPORT NO: 10U13164-10A DATE: May 28, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 21 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 14. ATENNA TO USER SEPARATION DISTANCES REPORT NO: 10U13164-10A DATE: May 28, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 22 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 15. TEST SETUP PHOTOS Tablet - Bottom face (3.59 mm from Tx antenna-to-user) Tx Antenna REPORT NO: 10U13164-10A DATE: May 28, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 23 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Edge - Primary Landscape (No SAR) Tablet - Edge - Secondary Landscape (10.5 mm from Tx antenna-to-user) Tx Antenna 112.46 mm Tx Antenna REPORT NO: 10U13164-10A DATE: May 28, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 24 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Edge - Primary Portrait (No SAR) Tablet - Edge: Secondary Portrait (8.59 mm from Tx antenna-to-user) Tx Antenna Tx Antenna 168.6 mm REPORT NO: 10U13164-10A DATE: May 28, 2010 FCC ID: XHHBNRV100 IC: 8961A-BNRV100 Page 25 of 25 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 16. HOST DEVICE PHOTOS Front View Bottom View END OF REPORT
