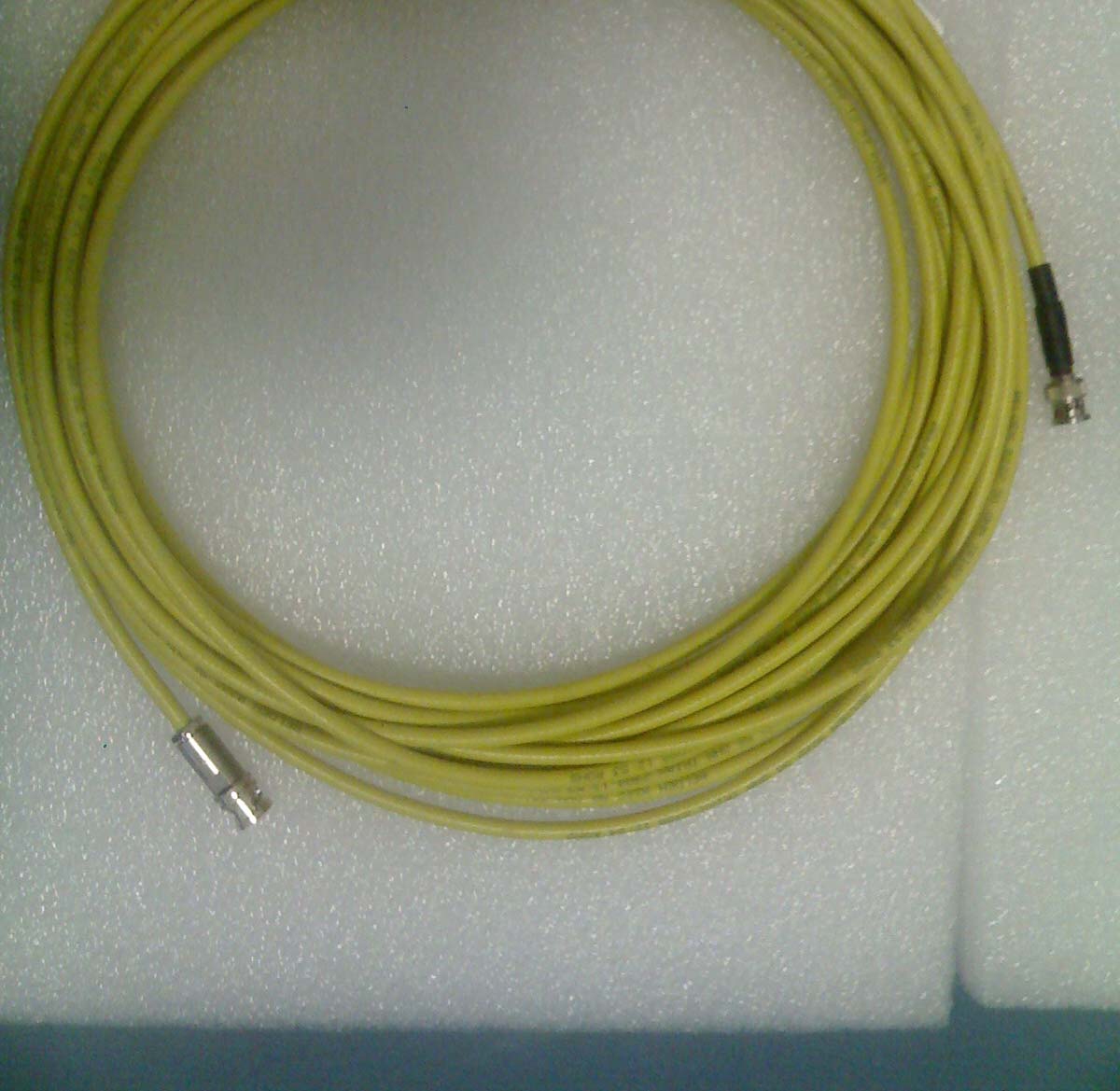

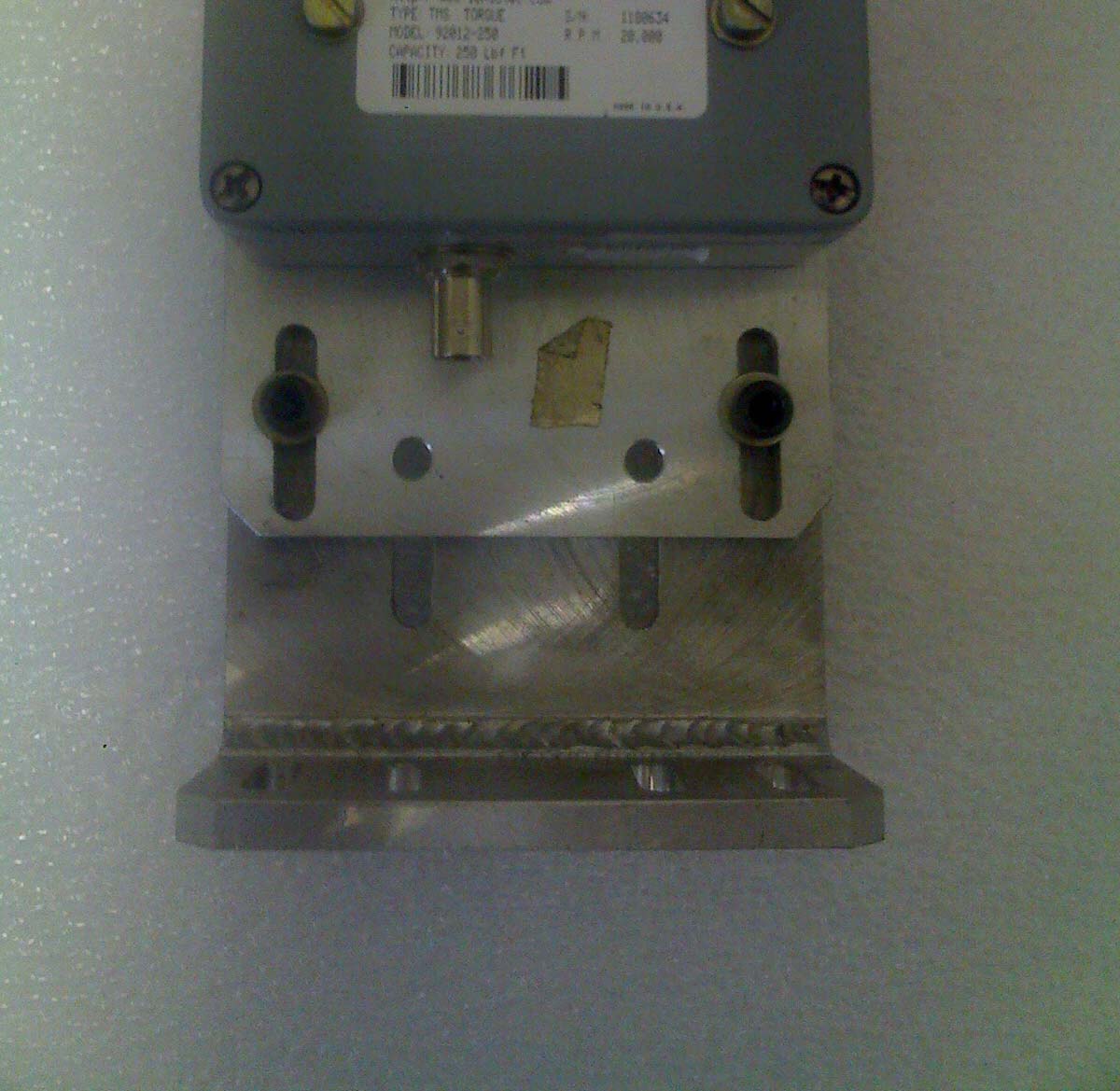

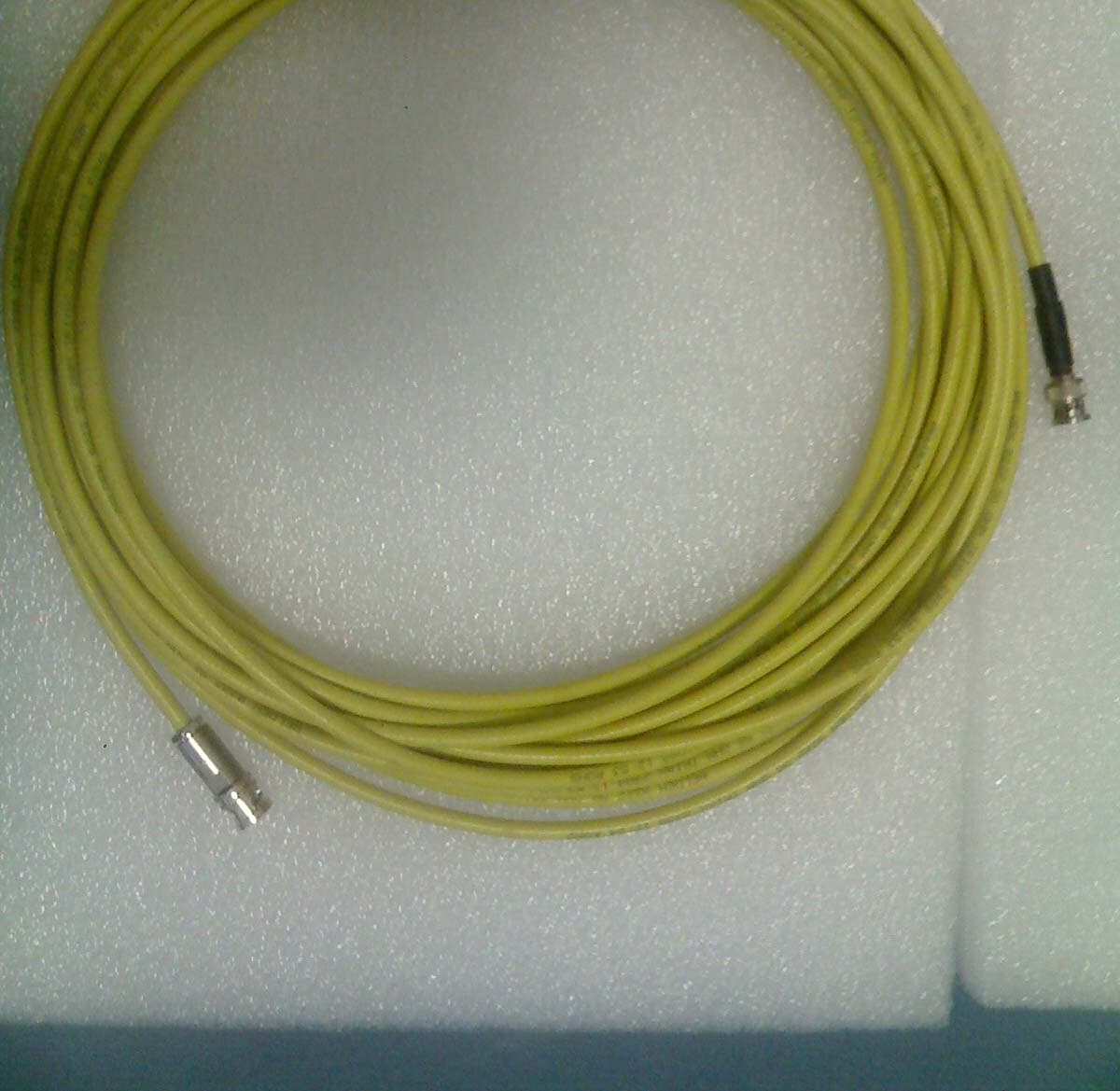

Sensotec - Lebow Operating Instructions for the TMS9000 Torque Measurement Rev D: Nov. 2006 008-0688-00 Sensing and Control TMS 9000 Torque Measurement System November 2006 008-0688-00 2 Honeywell • Sensing and Control Intended Use Rotating torque sensors are intended for use between a power source and its load. They may be used to measure the power output of a drive (such as an electric motor or gasoline engine) and a suitable load. They are also used to measure the torque required to operate a given load. TMS 9000 Torque Measurement System November 2006 008-0688-00 Honeywell • Sensing and Control 3 Operating Principles Torque Sensor Lebow Torque Sensors are designed structures that perform in a predictable and repeatable manner when a torque is applied. This torque is translated into a signal voltage by the resistance change of strain gages, which are attached to the torque sensor structure. The change in resistance indicates the degree of deformation, and in turn, the torque on the structure. The strain gages are connected in a 4 arm Wheatstone Bridge configuration which acts as an adding and subtracting electrical network and allows compensation for temperature effects as well as cancellation of signals caused by extraneous loading. When the torque sensor is rotating, a means must be provided to transfer an excitation voltage to the rotational element from a stationary surface, and also to transfer the torque signal from the rotational element back to the stationary surface. This is accomplished through the use of digital telemetry. Principle of Telemetry The digital telemetry system consists of a receiver-transmitter module, a caliper-style coupling module, and a signal processing module. The receiver-transmitter module is an integral part of the torque sensor and is connected to the strain gauges and to the epoxy glass annular printed circuit board that contains the rotating antenna system. Within the receiver-transmitter module, the sensor signals are amplified, digitized, and are then used to modulate the radio frequency carrier wave that is detected by the antenna after being transmitted across the air gap by the caliper coupling module. That same carrier wave is rectified to provide power to drive the strain gauges and the electronic components in the module, which is managed by a miniature microprocessor. The caliper coupling module connects to the signal processing module via a simple co-axial cable. The detector circuitry in the signal processing module recovers the digital measurement data from the torque sensor and passes it to the second microprocessor for scaling and linearizing. The third microprocessor provides the drive to the two analog outputs, as well as the standard digital interfaces and the optional digital interface modules. Extensive facilities are provided in software for setup and configuration of the complete system. Bolting Information Tighten all bolts, in incremental steps, to the bolt manufacturers rated torque specification. Use the respective sequence illustration shown below depending on the number of bolts the sensor requires. This bolting sequence applies to both bolt circles of the torque sensor. 1 8 7 34 5 6 2 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 TMS 9000 Torque Measurement System November 2006 008-0688-00 4 Honeywell • Sensing and Control Installation and Set-up Torque Sensor The TMS 9000 series torque sensors may be operated horizontally, vertically, or any angle in between provided the load is applied through the loading axis. All torque sensors in this series have bolt patterns that mate directly to standard industrial couplings. When mounted, one of the flanges should be mated to a good quality double flex coupling or a driveshaft arrangement that incorporates universal joints at each end. This is designed to compensate for angular and parallel misalignment. Avoid applications that place extraneous loads on the torque sensor. Caliper Coupling Module The caliper coupling module must be firmly mounted to a non-rotating support structure. It must be aligned with the epoxy glass annular printed circuit board antenna so that the air gap between the caliper and the antenna is approximately equal on both sides. Care should be taken to avoid any items touching one another, and consideration should be given to the effects of vibration as well as the free play in any driveshaft sliding joints. To assist in the process of aligning the caliper and the antenna, a simple plastic alignment tool is provided with each system. The tool is used to hold the required clearance between the caliper and the antenna while the caliper fixing bolts are being tightened, and then is removed before the sensor is rotated. The tolerances for end-float (axial) are +/- 4.5mm (+/- 3/16”) and for run-out (radial) are +/- 1.0mm (+/- 1/16”). For installations where run- out cannot be controlled within the specified tolerance, the secondary coupling position can be used. This is achieved by placing the edge of the caliper in close proximity to the edge of the antenna. In this position, the run-out tolerance can be at least doubled, at the expense of a reduced signal to noise ratio caused by the higher incidence of data drop outs. The axial tolerance is limited by the distance between the caliper sections. The caliper can also be mounted such that only one side is in proximity to the antenna, if the mounting arrangement does not allow for placing of the antenna between the two sides of the caliper. Successful positioning of the caliper can be confirmed by the presence of the ROTOR ACTIVE light on the signal processing module. The length of the RF cable connection between the caliper coupling module and the signal processing module is critical to system performance (due to reflections and standing waves). When using RG58 50-ohm cable, the length must be maintained at 13.9 metres (45’6’’ feet) or a multiple thereof. When using Belden 89907 cable, length must b…
